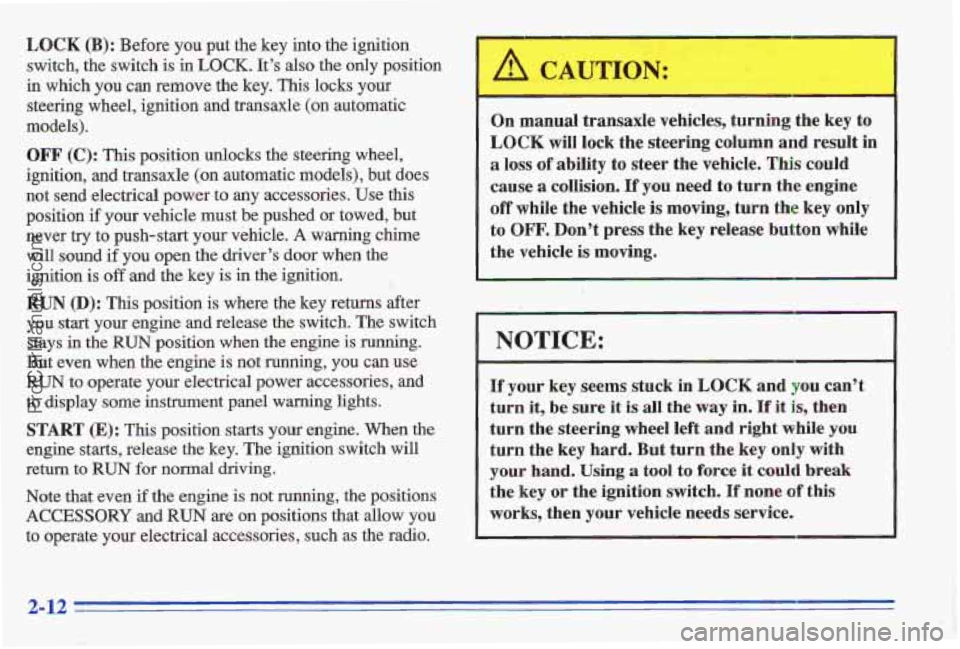

LOCK (B): Before you pur: the key into the ignition
switch, the switch is
in LOCK. It’s also the only position
in which you can remove the key. This locks your
steering wheel, ignition and transaxle
(on automatic
models).
OFF (C): This position unlocks the steering wheel,
ignition,
and transaxle (on automatic models), but does
not send electrical power to any accessories. Use this
position
if your vehicle must be pushed or towed, but
never
try to push-start your vehicle. A warning chime
will sound if you open the driver’s
door when the
ignition
is off and the key is in the ignition. 1
RUN (D): This position is where the key returns after
you
start your engine and release the switch. The switch
stays
in the RUN position when the engine is running.
But even when the engine
is not running, you can use
RUN to operate your electrical power accessories, and
to display
some instrument panel warning lights.
START (E): This position starts your engine. When the
engine
starts, release the key. The ignition switch will
return
to RUN for normal driving.
Note that even if the engine is not running, the positions
ACCESSORY and RUN are on positions that allow you
to operate your electrical accessories, such as the radio. On manual transaxle
vehicles, turning the key to
LOCK will lock the steering column and result in
a loss of ability to steer the vehicle. This could
cause
a collision. If you need to turn the engine
off while the vehicle is moving, turn the key only
to
OFF. Don’t press the key release button while
the vehicle is moving.
NOTICE:
If your key seems stuck in LOCK and you can’t
turn it,
be sure it is all the way in. If it is, then
turn the steering wheel
left and right while you
turn the key hard. But turn the key only with
your hand. Using a tool to force it could break
the key or the ignition switch. If none of this
works, then your vehicle needs service.
2-12
ProCarManuals.com

Fog Lamps Interior Lamps
Instrument Panel Intensity Control

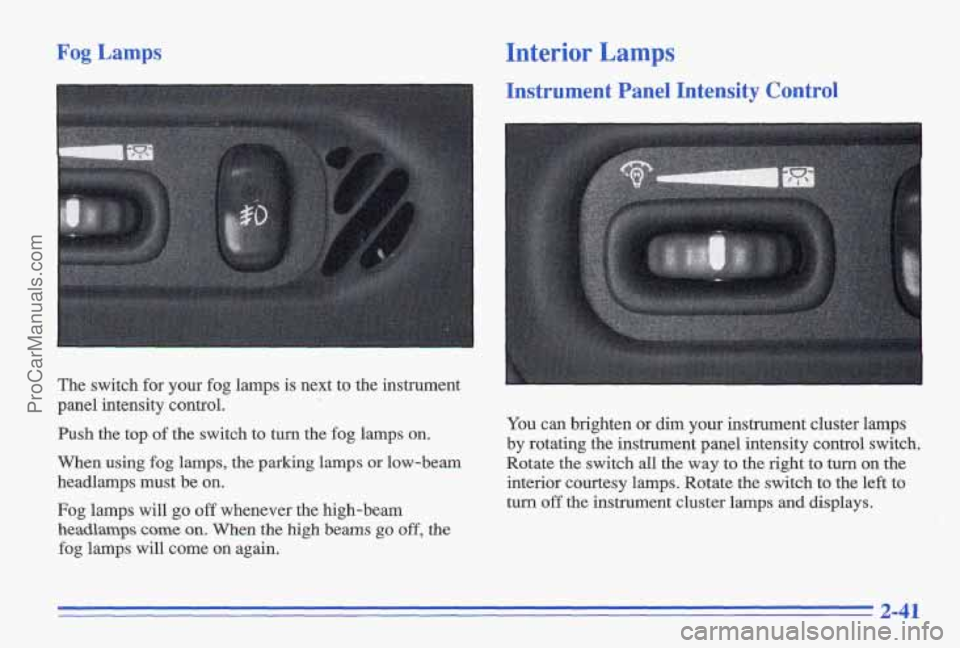

The switch for your fog lamps is next to the instrument
panel intensity control.
Push the top of the switch to turn the fog lamps on.
When using fog lamps, the parking lamps or low-beam
headlamps must be on.
Fog lamps will go off whenever the high-beam
headlamps come on. When the high beams go off, the
fog lamps will come on again.
You can brighten or dim your instrument cluster lamps
by rotating the instrument panel intensity control switch.
Rotate the switch all the way
to the right to turn on the
interior courtesy lamps. Rotate the switch to the left to
turn
off the instrument cluster lamps and displays.
2-41
ProCarManuals.com

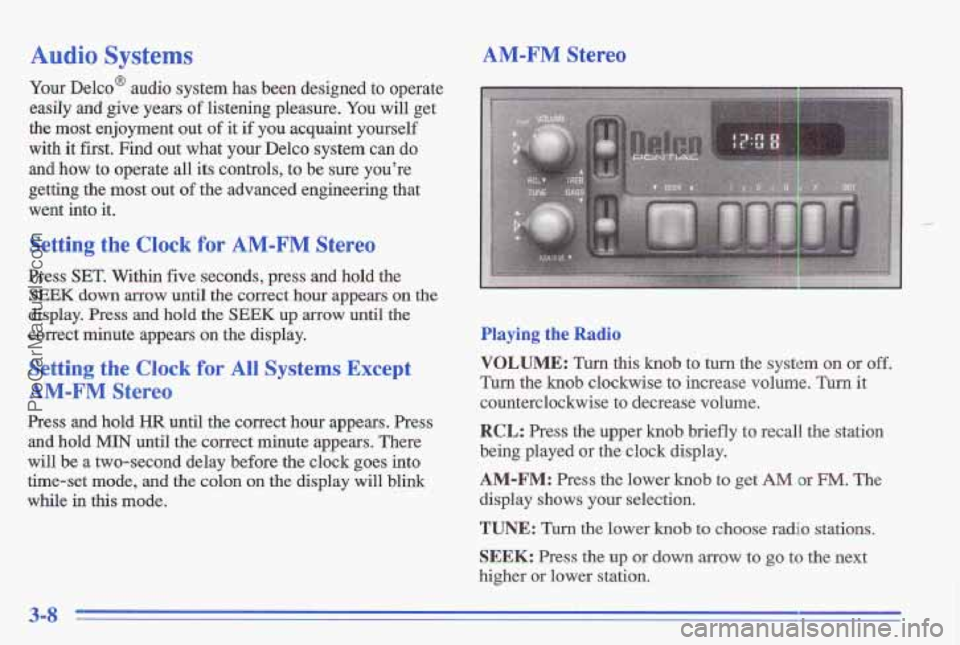

Audio Systems
Your Delco@ audio system has been designed to operate
easiIy
and give years of listening pleasure. You will get
the most enjoyment out of it if you acquaint yourself
with
if first. Find out what your Delco system can do
and how to operate all its controls, to be sure you're
getting the most out of the advanced engineering that
went into it.
Setting the Clock for AM-FM Stereo
Press SET. Within five seconds, press and hold the
SEEK down mow until the correct hour appears on the
display. Press and hold the SEEK up arrow until the
correct minute appears on the display.
Setting the Clock for All Systems Except
AM-FM Stereo
Press and hold HR until the correct hour appears. Press
and hold
MIN until the correct minute appears. There
will
be a two-second delay before the clock goes into
time-set mode,
and the colon on the display will blink
while in this mode.
AM-FM Stereo
Playing the Radio
VOLUME: Turn this knob to turn the system on or off.
Turn the knob clockwise to increase volume. Turn it
count'erclockwise to decrease volume.
RCL: Press the upper knob briefly t'o recall the station
being played
or the clock display.
AM-FM: Press the lower hob to get AM or FM. The
display shows your selection.
TUNE: Turn the lower knob to choose radio stations.
SEEK: Press the up or down arrow to go to the next
higher or lower station.
3-8
ProCarManuals.com

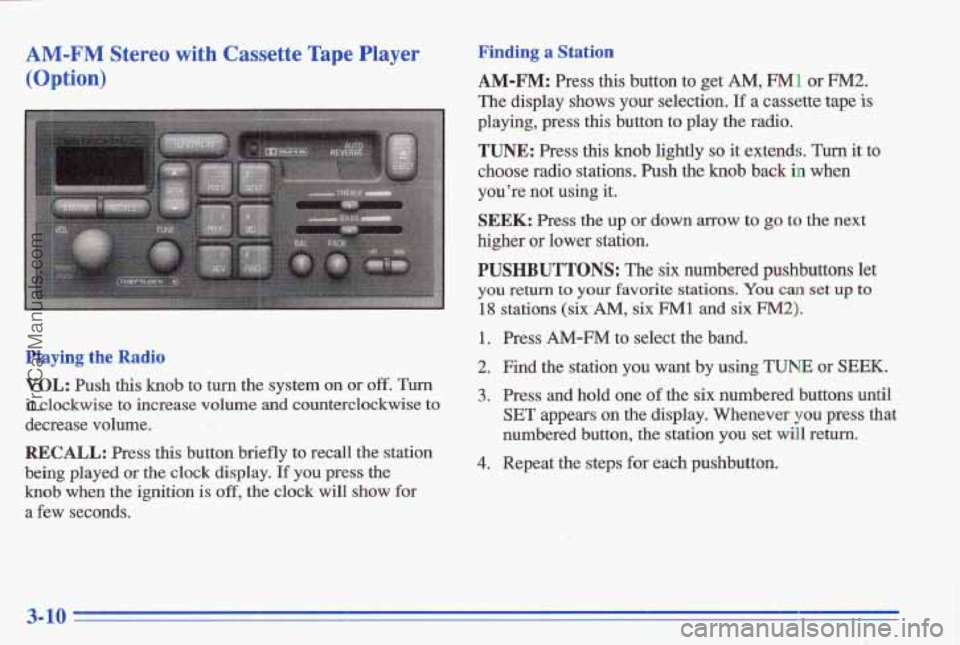

AM-FM Stereo with Cassette Tape Player
(Option)
Playing the Radio
VOL: Push this knob to turn the system on or off. Turn
it clockwise to increase volume and counterclockwise to
decrease volume.
RECALL: Press this button briefly to recall the station
being played or the clock display. If you press the
knob when the ignition is off, the clock will show for
a few seconds.

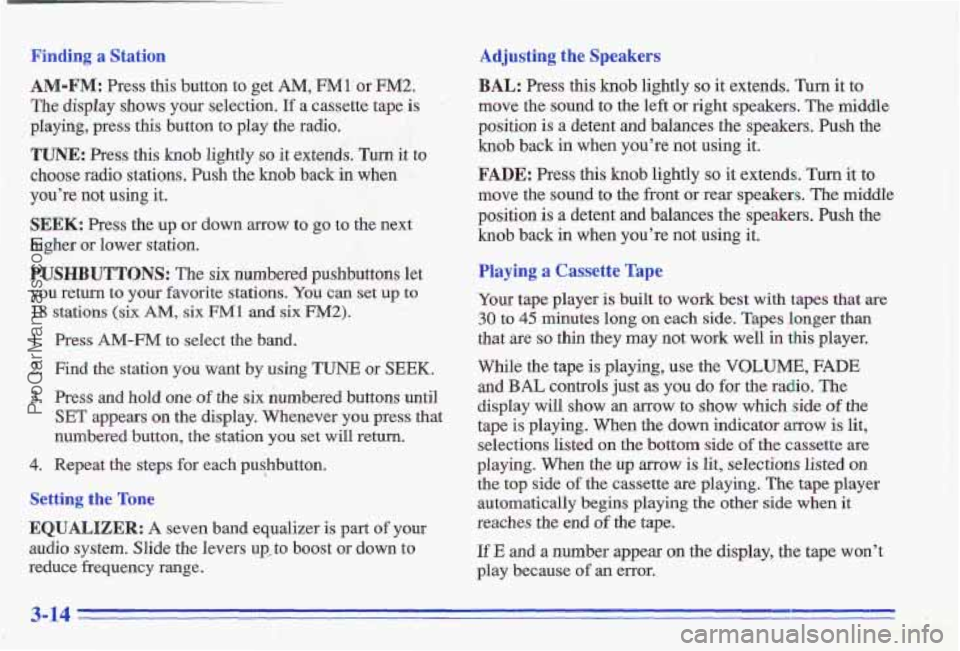

Finding a Station
AM-FM: Press this button to get AM, FM1 or FM2.
The display shows your selection. If a cassette tape is
playing, press this button to play the radio.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations. Push the knob back in when
you’re not wing it.
SEEK: Press the up or down arrow to go to the next
higher
or lower station.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six-AM, six FM1 and six FM2).
1. Press AM-FM to select the band.
2. Find the station you want by using TUNE or SEEK.
3. Press and hold one of the six numbered buttons until
SET appears an the display. Whenever you press that
numbered button, the station you set will return.
4. Repeat the steps for each pushbutton.
3-10
ProCarManuals.com

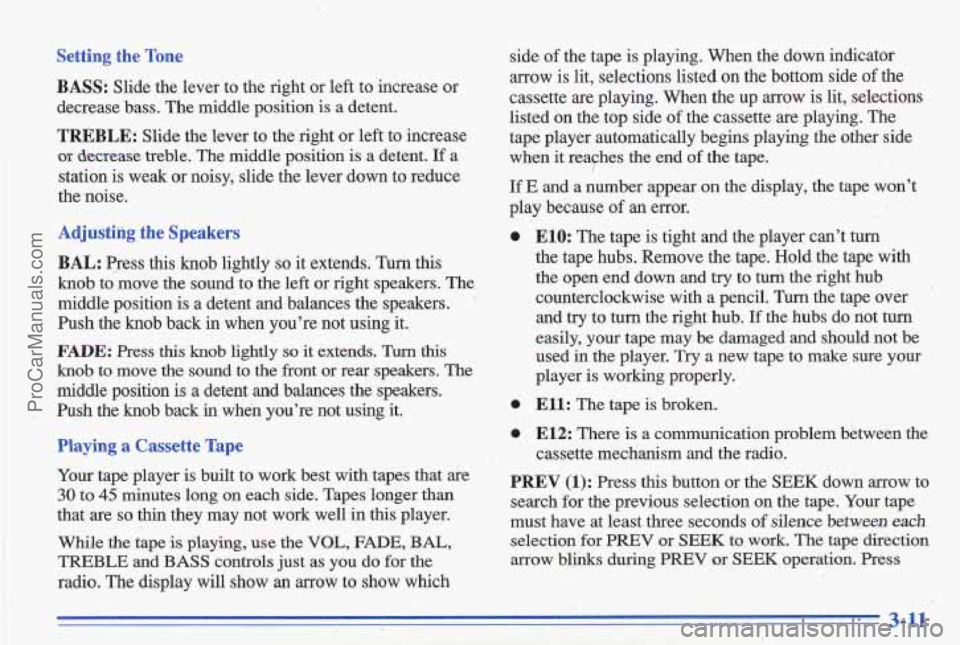

Tone Settin, __
BASS: Slide the lever to the right or left to increase or
decrease bass. The middle position
is a detent.
TREBLE: Slide the lever to the right or left to increase
of decrease treble. The middle position is a detent. If a
stati'on is weak or noisy, slide the lever down to reduce
the noise.
Adjusting. the'speakers
BAL:
press this knob lightly so it extends. Turn this
knob to move the sound to the left or right speakers. The
middle position
is a detent and balances the speakers.
Push the knob
back in when you're not using it.
FADE: Press this knob lightly so it extends. Turn this'
knob to move the sound to the front or rear speakers. The
middle position is a detent and balances the speakers.
Push the knob back in when you're not using it.
Playing a Cassette Tape
Your tape player is built to work best with tapes that are
30 to 45 minutes long on each side. Tapes longer than
that are
so thin they may not work well in this player.
While the tape iS playing, use the VOL, FADE, BAL,
TREBLE
and BASS controls just as you do for the
radio. The display will show an arrow to show which side
of the tape is playing. When the down indicator
arrow is lit,
selections listed on the bottom side of the I
cassette are playing. When the up arrow is lit, selections
listed on the top side
of the cassette are playing. The
tape player automatically begins playing
the other side
when it reayhes the end
of the tape.
If E and a number appear on the display, the tape won't
play because
of an error.

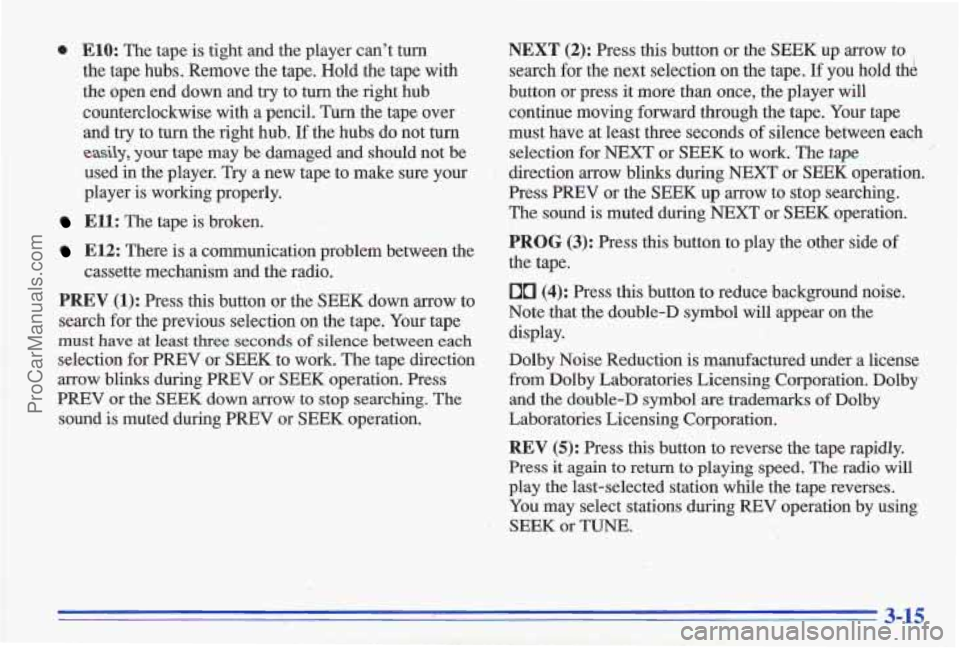

0 E10: The tape is'tight and the player can't turn
the tape hubs. Remove the tape. Hold the tape with
the open end down and try to tunithe right hub
counterclockwise with
a pencil. Turn the tape over
and try to turn the right hub.
If the hubs do not turn
easily, your tape may be damaged and should not be
used
in the player. Try a new tape to make sure your
player is working properly.
0 Ell: The tape is broken. ..
0 E12: There is a communication problem betweei the
PREV (1): Press this button or the'SEEK down arrow to
search for the previous selection on the tape. Your tape
must have at least three seconds
of silence between each
selection for PREV or SEEK to.work. The tape direction
arrow blinks during PREV or SEEK operation. Press
cassette mechanism and
the radio.
,. i . \. " ,- '-. .
,3-11
ProCarManuals.com

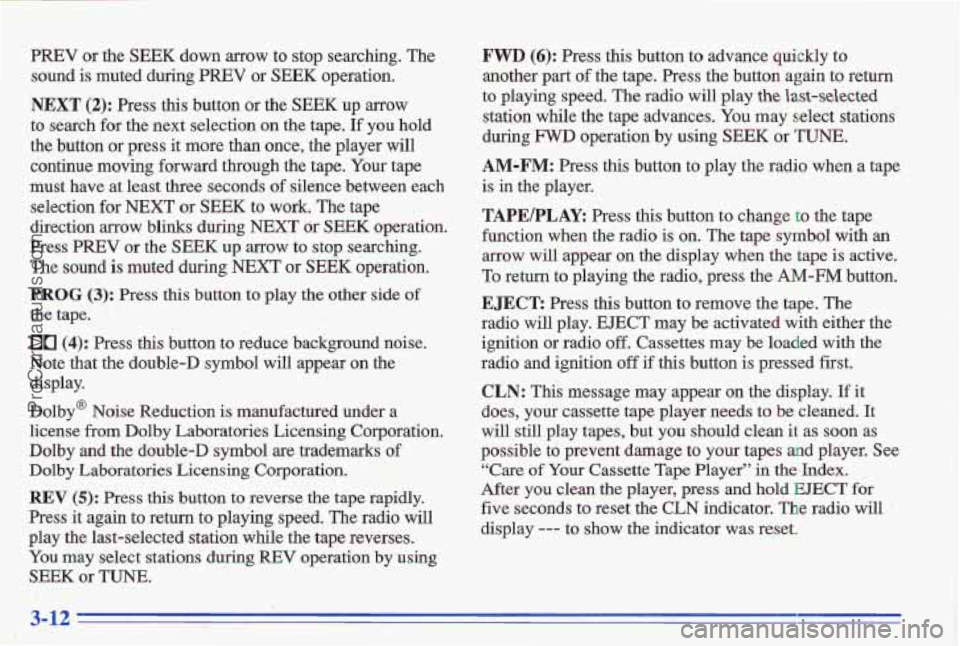

PREV or the SEEK down arrow to stop searching. The
sound
is muted during PREV or SEEK operation.
NEXT (2): Press this button or the SEEK up arrow
to search for the next selection on the tape.
If you hold
the button
or press it more than once, the player will
continue moving forward
through the tape. Your tape
must have at least three seconds of silence between each
selection for
NEXT or SEEK to work. The tape
direction arrow blinks during
NEXT or SEEM operation.
Press PREV
or the SEEK up arrow to stop searching.
The sound is muted during NEXT or SEEK operation.
PROG (3): Press this button to play the other side of
the tape.
00 (4): Press this button to reduce background noise.
Note that the double-D symbol will appear
on the
display.
Dolby@ Noise Reduction is manufactured under a
license from Dolby Laboratories Licensing Corporation.
Dolby and the double-D symbol
are trademarks of
Dolby Laboratories Licensing Corporation.
REV (5): Press this button to reverse the tape rapidly.
Press it again to return to playing speed. The radio will
play
the last-selected station while the tape reverses.
You may select stations during
REV operation by using
SEEK or TUNE. , _L. i :;, ,..:. ..I, : .’ , . - - 1. ..’ . . . . I

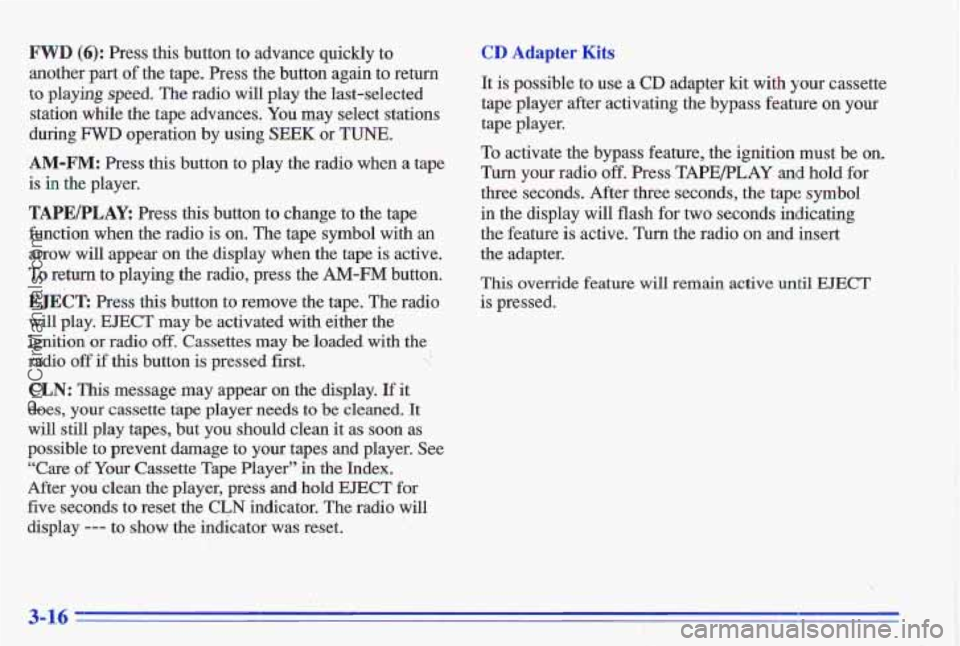

FWD (6): Press this button to advance quickly to
another
part of the tape. Press the button again to return
to playing speed. The radio will play
the last-selected
station while the tape advances. You may select stations
during
FWD operation by using SEEK or TUNE.
AM-FM: Press this button to play the radio when a tape
is in the player.
TAPE/PLAX Press this button to change to the tape
function when the radio is on. The tape symbol with
an
arrow will appear on the display when the tape is active.
To return to playing the radio, press the AM-FM button.
EJECT Press this blutton to remove the tape. The
radio will play. EJECT may
be activated with either the
ignition
or radio off. Cassettes may be loaded with the
radio and ignition
off if this button is pressed first.
CLN: This message may appear on the display. If it
does, your cassette tape player needs to be cleaned. It
will still play tapes, but you should clean it as soon as
possible to prevent damage to your tapes and player. See
“Care of Your Cassette Tape Player”
in the Index.
After you clean the player, press
and hold EJECT for
five seconds
to reset the CLN indicator. The radio will
display
--- to show the indicator was reset.
ProCarManuals.com

CD Adapter Kits
It is possible to use a CD adapter kit with your cassette
tape player after activating the bypass feature
on your
tape player.
To activate the bypass feature, the ignition must be on.
Turn your radio off. Press TAPEPLAY and hold for .
three seconds. After three seconds, the tape symbol
in the display will flash for two seconds indicating
the feature is active. Turn the radio on and insert
the adapter.
This override feature will remain active until
EJECT
is pressed.
.1 *
AM-FM Stereo with Cassette Tape Player
and Equalizer (Option)
Playing the Radio
VOL: Push this knob to turn the system on or off. Turn
it clockwise to increase volume and counterclockwise to
decrease volume.
RECALL: Press this button briefly to recall the station
being played or the clock display.
If you press the knob
when the ignition is off, the clock will show for a
few seconds.
'i-
3-13
ProCarManuals.com

Finding a Station Adjusting, the Speakers
AM-FM: Press this button to get AM, FM1 or FM2.
The display shows your selection. If a cassette tape is
playing, press this button to play the radio.
TUNE: Press this knob lightly so it extends. Turn it to
choos'e radio stations. Push the
knob back in when
you're not using it.
SEEK: Press the up or down arrow to go to the next
higher
or lower station.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite
stations. You can set up to
18 stations (six AM, six FMl and six FM2).
1. Press AM-FM to select the band.
2. Find the station you want by using TUNE or SEEK.
3. Press and hold one of the six numbered buttons until
'SET appears on the display. Whenever you press that
numbered.
button, the station you set will return.
4. Repeat the steps for each pushbutton.
Setting the Tone
EQUALIZER: A. seven band equalizer is part of your
audio system. Slide the levers up, to boost or down
to
reduce frequency range.
BAL: Press this knob lightly so it extends. Turn it to
move the sound to the left or right speakers.
The middle
position is a detent and balances the speakers. Push the
knob back in when you're not using it. .. ' .. . :-, ., ,I .I . . ' . -. I.,
FADE: Press this knob lightly so it extends. Turn it to
move the sound to the front or rear speakers. The middle
position
is a detent and balances the speakers. Push the
knob back in when you're not using it.
Playing a Cassette Tape
Your tape player is built to work best with tapes that are
30 to 45 minutes long on each side. Tapes longer than
that are
so thin they may not work well in this player.
While the tape
is playing, use the VOLUME, FADE
and BAL controls just as you do for the radio. The
display
will show an arrow to show which side of the
tape is playing. When the down indicator
arrow is lit,
selections listed
on the bottom side of the cassette are
playing. When the
up arrow is lit, selections listed on
the top side of the cassette are playing. The tape player
automatically begins playing
the other side when it
reaches the end of the tape.
If E and a number appear on the display, the tape won't
play because
of an error.
3-14
ProCarManuals.com

0 ElO: The tape is tight and the player can’t turn
the tape hubs.
Remove the tape. Hold the tape with
the open end down and try to turn the right hub
counterclockwise with a pencil. Turn the tape over and try to turn the right hub. If the hubs do not turn
easily, your tape may be damaged and should not be
used in the player. Try a new tape to make sure your
player is working properly.
Ell: The tape is broken.
E12: There is a communication problem between the
cassette mechanism and the radio.
PREV (1): Press this button or the SEEK down arrow to
search for the previous selection on the tape. Your tape
must have at least three seconds of silence between each
selection for PREV or SEEK to work. The tape direction
arrow blinks during PREV or SEEK operation. Press
PREV or the SEEK down
arrow to stop searching. The
sound is muted during PREV or SEEK operation.
NEXT (2): Press this button or the SEEK up arrow to
search for the next selection on the tape. If you hold the
button or press it more
than once, the player will
continue moving forward through the tape. Your tape
must have at least three seconds
of silence between each
selection for NEXT
or SEEK to work. The tape
direction arrow blinks during NEXT or SEEK operation.
Press PREV or the SEEK up arrow to stop searching.
The sound is muted during NEXT or SEEK operation.
PROG (3): Press this button to play the other side of
the tape.
I
00 (4): Press this button to reduce background noise.
Note ,that the double-D symbol will appear on the
display.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
REV (5): Press this button to reverse the tape rapidly.
Press
it again to return to playing speed. The radio will
play the last-selected station while the tape reverses.
You may select stations during REV operation by using
SEEK or TUNE.
ProCarManuals.com

FWD (6): Press this button to advance quickly to
another part
of the tape. Press the button again to return
to playing speed. The radio will play the last-selected
station while the tape advances. You may select stations
during
EWD operation by using SEEK or TUNE.
AM-FM: Press this button to play the radio when a tape
is
in the player.
TAPE/PLAY: Press this button to change to the tape
function when the radio is on. The tape symbol with
an
mow will appear on the display when the tape is active.
To return to playing the radio, press the AM-FM button.
EJECT: Press this button to remove the tape. The radio
will play. EJECT may be activated with either the
ignition or radio
off. Cassettes may be loaded with the
radio
off if this button is pressed first.
CLN: This message may appear on the display. If it
does, your cassette tape player needs to be cleaned. It
will still play tapes, but you should clean it as soon as
possible to prexent damage to your tapes and player. See
“Care of Your Cassette Tape Player” in the Index.
After you
clean the player, press and hold EJECT for
five seconds to reset the CLN indicator, The radio will..
. ,
display --- to show the indicator was reset.
CD Adapter Kits
It is possible to use a CD adapter kit with your cassette
tape player after activating the bypass feature on your
tape player.
To activate the bypass feature, the ignition must be on.
Tm your radio
off. Press TAPEPLAY and hold for
three seconds. After three seconds, the tape symbol
in the display will flash for two seconds indicating
the feature is active. Turn the radio on
and insert
the adapter.
This override feature will ‘remain active until EJECT
is pressed.
3-16
ProCarManuals.com
