Parking Lots
If you park in a lot where someone will be watching
your vehicle, it’s best to lock it up and take your keys.
But what if
you have to leave your key?
0
0
0
a
0
0
If possible, park in a busy, well lit area.
Put your valuables in a storage area, like your
trunk or glove box. Be sure to close and lock the
storage area.
Close all windows.
Slide the remote trunk release lockout switch all the
way to the right.
Lock the glove box.
Lock all the doors except the driver’s.
Passlock@
Your vehicle is equipped with the Passlock
theft-deterrent system.
Passlock is a passive theft-deterrent system. The system
is armed once the key is removed from the ignition.
Passlock enables fuel if the ignition lock cylinder
is
turned with a valid key. If a correct key is not used, fuel
is disabled. During normal operation, the THEFT
SYS light will go
off after the engine is started.
If the engine stalls and the THEFT SYS light flashes,
wait until the light stops flashing before trying to restart
the engine. Remember to release the key from the START position as soon as the engine starts.
If
you are driving and the THEFT SYS light comes on,
you will be able to restart the engine if you turn the
engine
off. However, your Passlock system is not
working properly and must
be serviced by your dealer.
Your vehicle is not protected by Passlock at this time.
You may also want to check the fuse (see “Fuses and
Circuit Breakers” in the Index).
See your dealer
for service.
If the THEFT SYS light comes on while the engine is
running,
a problem has been detected and the system
may need service. See your dealer for service.
In an emergency, call the Pontiac Roadside Assistance
Center at 1 -800-ROADSIDE or 1-800-762-3743.
(In Canada, call 1-800-268-6800).
2-13

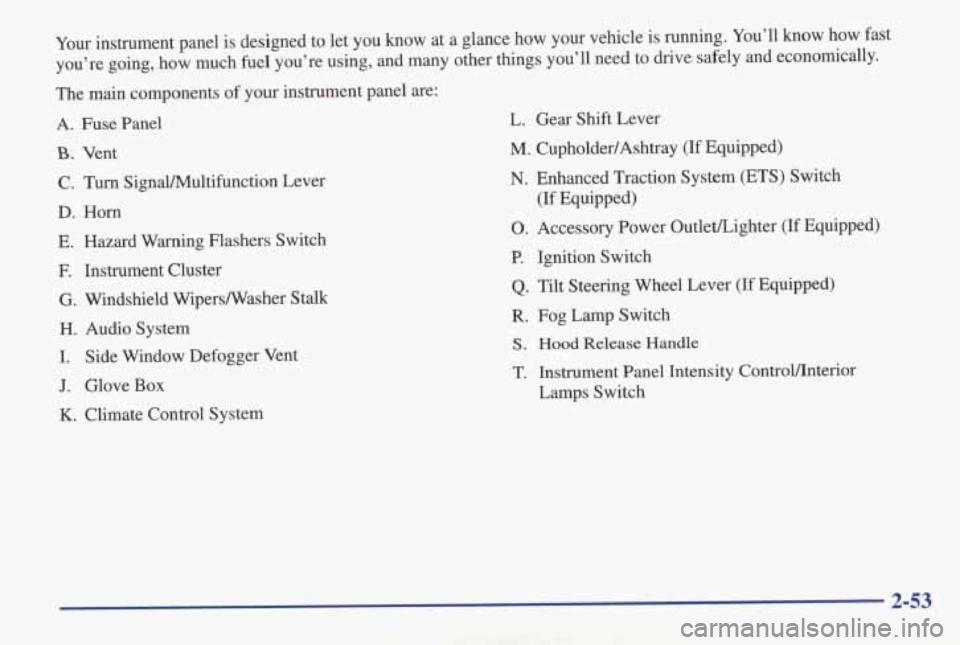

Your instrument panel is designed to let you know at a glance how \
your vehicle is running. You’ll know how fast
you’re going, how much
fuel you’re using, and many other things you’ll need to drive \
safely and economically.
The main components of your instrument panel are:
A. Fuse Panel
B. Vent
C. Turn SignaVMultifunction Lever
D. Horn
E. Hazard Warning Flashers Switch F. Instrument Cluster
G. Windshield WipersNasher Stalk
H. Audio System
I. Side Window Defogger Vent
J. Glove Box
K. Climate Control System L. Gear Shift Lever
M. CupholdedAshtray (If Equipped)
N. Enhanced Traction System (ETS) Switch
0. Accessory Power
Outlenighter (If Equipped)
(If Equipped)
P. Ignition Switch
Q. Tilt Steering Wheel Lever (If Equipped)
R. Fog Lamp Switch
S. Hood
Release Handle
T. Instrument Panel Intensity ControlDnterior
Lamps Switch
2-53

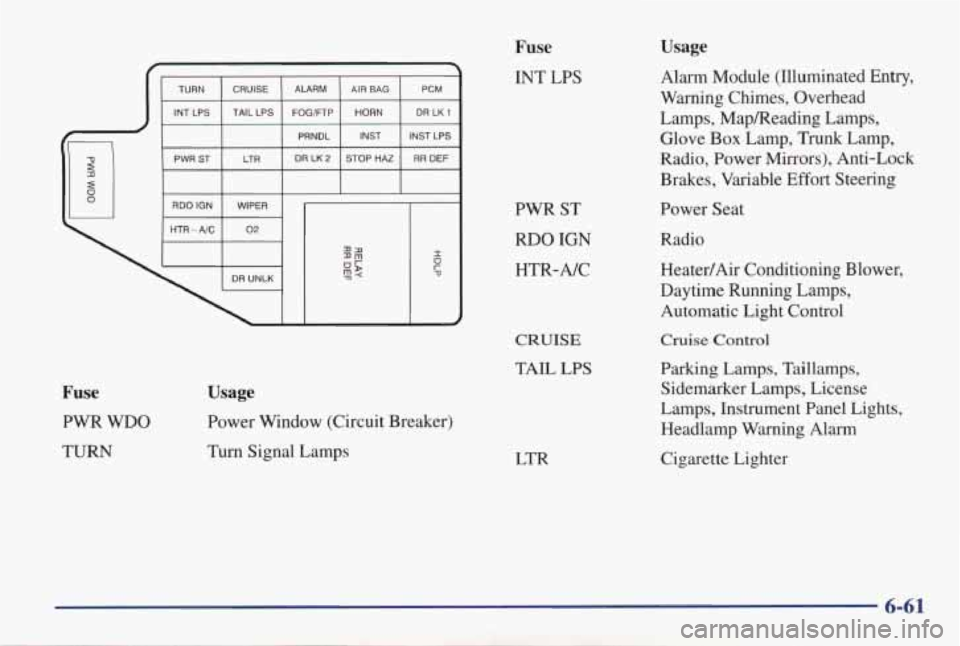

Fuse
PWR WDO
TURN
Usage
Power Window (Circuit Breaker)
Turn Signal Lamps
Fuse
INT LPS
PWR ST
RDO IGN
HTR-A/C
CRUISE
TAIL LPS
LTR
Usage
Alarm Module (Illuminated Entry,
Warning Chimes, Overhead
Lamps, MapReading Lamps,
Glove Box Lamp, Trunk Lamp,
Radio, Power Mirrors), Anti-Lock
Brakes, Variable Effort Steering
Power Seat
Radio
Heater/Air Conditioning Blower,
Daytime Running Lamps, Automatic Light Control
Cruise Control
Parking Lamps, Taillamps, Sidemarker Lamps, License
Lamps, Instrument Panel Lights,
Headlamp Warning Alarm
Cigarette Lighter
6-61

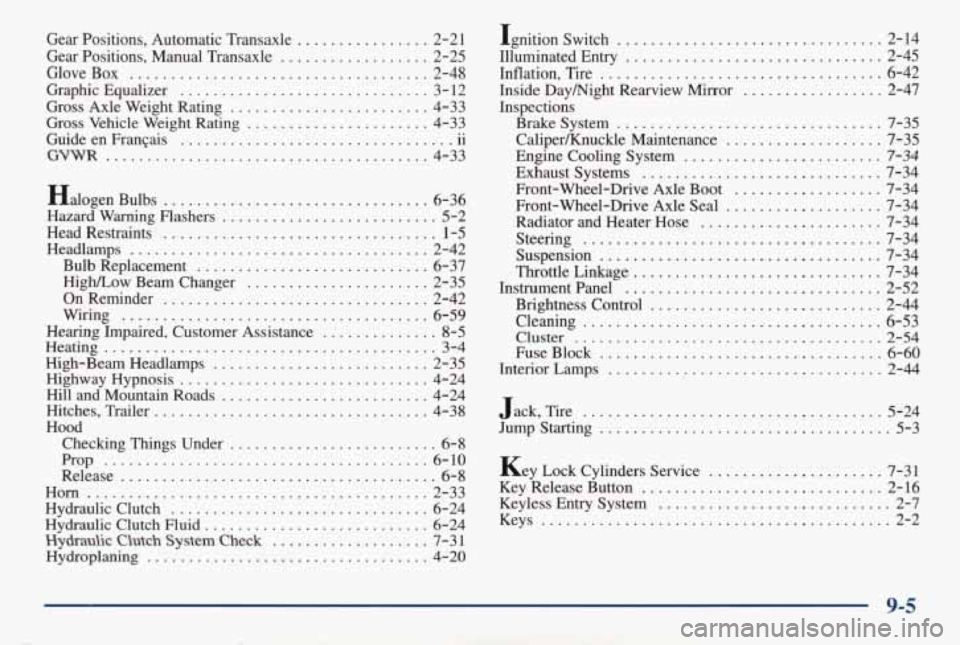

Gear Positions. Automatic Transaxle ................ 2-21
Gear Positions. Manual Transaxle
.................. 2-25
Glove Box
.................................... 2-48
Graphic Equalizer
.............................. 3-12
Gross Axle Weight Rating
........................ 4-33
Gross Vehicle Weight Rating
...................... 4-33
Guide en Franpis
11
GVWR ....................................... 4-33
.. .................................
Halogen Bulbs ................................ 6-36
Hazard Warning Flashers 5-2
Head Restraints
................................. 1-5
Bulb Replacement ............................ 6-37
High/Low Beam Changer
...................... 2-35
On Reminder
................................ 2-42
Hearing Impaired. Customer Assistance
.............. 8-5
Heating ........................................ 3-4
High-Beam Headlamps
.......................... 2-35
Highway Hypnosis
.............................. 4-24
HillandMountainRoads
......................... 4-24
Hitches. Trailer
.............. .......... 4-38
Hood
Checking Things Under
......................... 6-8
Release
...................................... 6-8
Horn
......................................... 2-33
Hydraulic Clutch
............................... 6-24
Hydraulic Clutch Fluid
........................... 6-24
Hydraulic Clutch System Check ................... 7-3 1
Hydroplaning .................................. 4-20
Y ..........................
Headlamps .................................... 2-42
Wiring
..................................... 6-59
Prop ....................................... 6-10 Ignition
Switch
................................ 2-14
Illuminated Entry
............................... 2-45
Inflation. Tire
.................................. 6-42
Inside Daymight Rearview Mirror
................. 2-47
Inspections Brakesystem
................................ 7-35
Caliperffiuckle Maintenance
................... 7-35
Engine Cooling System
........................ 7-34
Exhaust Systems ............................. 7-34
Front-Wheel-Drive Axle Boot
.......... .... 7-34
Front-Wheel-Drive Axle Seal
................... 7-34
Radiator and Heater Hose
...................... 7-34
Steering
.................................... 7-34
Suspension
.................................. 7-34
Throttle Linkage
.............................. 7-34
Instrument Panel
............................... 2-52
Brightness Control
............................ 2-44
Cleaning
.................................... 6-53
Cluster
..................................... 2-54
FuseBlock .................................. 6-60
Interior Lamps
................................. 2-44
Jack. Tire .................................. 5-24
Jump Starting
................................. 5-3
Key Lock Cylinders Service
..................... 7-31
Key Release Button
............................. 2-16
Keyless Entry System
............................ 2-7
Keys
.......................................... 2-2
9-5
