PONTIAC GRAND-AM 2000 User Guide

ix
For example,
these symbols
are used on an
original battery:
CAUTION
POSSIBLE
INJURY
PROTECT
EYES BY
SHIELDING
CAUSTIC
BATTERY
ACID COULD
CAUSE
BURNS
AVOID
SPARKS OR
FLAMES
SPARK OR
FLAME
COULD
EXPLODE
BATTERY
These symbols
are important
for you and
your passengers
whenever your
vehicle is
driven:
DOOR LOCK
UNLOCK
FASTEN
SEAT
BELTS
POWER
WINDOW
AIR BAG
These symbols
have to do with
your lamps:
MASTER
LIGHTING
SWITCH
TURN
SIGNALS
PARKING
LAMPS
HAZARD
WARNING
FLASHER
DAYTIME
RUNNING
LAMPS
FOG LAMPS
These symbols
are on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD
WASHER
WINDSHIELD
DEFROSTER
REAR
WINDOW
DEFOGGER
VENTILATING
FAN
These symbols
are used on
warning and
indicator lights:
ENGINE
COOLANT
TEMP
BATTERY
CHARGING
SYSTEM
BRAKE
COOLANT
ENGINE OIL
PRESSURE
ANTI-LOCK
BRAKES
Here are some
other symbols
you may see:
FUSE
LIGHTER
HORN
SPEAKER
FUEL
Vehicle Symbols
These are some of the symbols you may find on your vehicle.
ProCarManuals.com

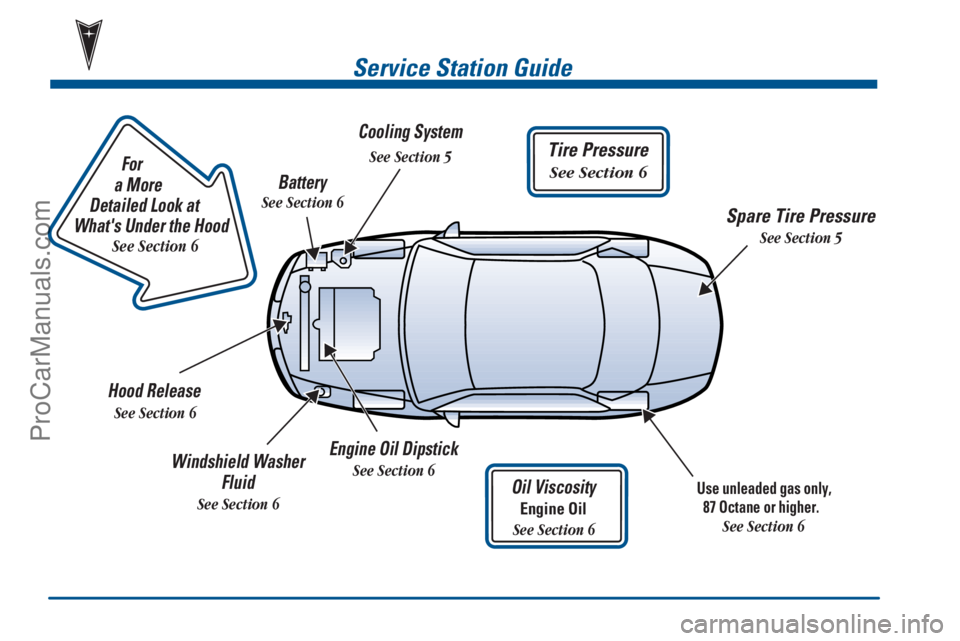

Service Station Guide
Oil Viscosity
Engine Oil
See Section 6
Engine Oil Dipstick
See Section 6
Use unleaded gas only,
87 Octane or higher.

See Section 6
Cooling System
See Section 5
Hood Release
See Section 6
Windshield Washer
Fluid
See Section 6
Spare Tire Pressure
See Section 5
Battery
See Section 6

For
a More
Detailed Look at
What's Under the Hood
See Section 6
Tire Pressure
See Section 6
ProCarManuals.com

1-
1-1
Section 1 Seats and Restraint Systems
Here you'll find information about the seats in your vehicle and how to use your safety belts properly. You can also
learn about some things you should not do with air bags and safety belt.
1
- 2 Seats and Seat Controls
1
- 9 Safety Belts: They're for Everyone
1
- 13 Here Are Questions Many People Ask About
Safety Belts
-- and the Answers
1
- 14 How to Wear Safety Belts Properly
1
- 14 Driver Position
1
- 22 Safety Belt Use During Pregnancy
1
- 23 Right Front Passenger Position
1
- 23 Supplemental Restraint System (SRS)
1
- 30 Rear Seat Passengers1
- 33 Rear Safety Belt Comfort Guides for
Children and Small Adults
1
- 35 Center Passenger Position
1
- 37 Children
1
- 39 Child Restraints
1
- 50 Larger Children
1
- 53 Safety Belt Extender
1
- 53 Checking Your Restraint Systems
1
- 53 Replacing Restraint System Parts After
a Crash
ProCarManuals.com

1-2
Seats and Seat Controls
This section tells you about the seats -- how to
adjust them
-- and also about reclining seatbacks
and head restraints.
Manual Seats
CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver's seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
don't want to. Adjust the driver's seat only when
the vehicle is not moving.
2-Way Manual Seat Controls
Lift the bar under the front of the seat to unlock it.
Slide the seat to where you want it and release the bar.
Try to move the seat with your body to be sure the seat
is locked in place.
ProCarManuals.com

1-3 Power Lift Seat-Forward/Rearward
Controls (If Equipped)
Move the control lever under the front of the seat to
unlock it. Slide the seat to where you want it. Then
release the lever and try to move the seat with your
body to make sure the seat is locked into place.
Power Lift Seat-Height Controls
(If Equipped)
The power seat switch is located on the lower left side
of the driver's seat. Raise the seat by holding the switch
up. Lower the seat by holding the switch down.
ProCarManuals.com

1-4 6-Way Power Seat Controls (If Equipped)
The power seat switch is located on the lower left side
of the driver's seat. This switch allows you to move the
seat up, down, forward, and backward. It also moves the
front of the seat up or down and the rear of the seat up
or down.Move the seat higher by lifting and holding the bottom
of the switch. Lower the seat by pushing and holding the
top of the switch.
To move the seat forward, push the rear of the switch
forward. To move the seat backward, push the front of
the switch rearward.
Raise the front of the seat by lifting and holding the
bottom front end of the switch. Lower the front of
the seat by pushing and holding the top front end
of the switch.
Raise the rear of the seat by lifting and holding the
bottom rear of the switch. Lower the rear of the seat
by pushing and holding the top rear of the switch.
ProCarManuals.com

1-5 Manual Lumbar Support (If Equipped)
Turn the knob on the right front of the driver's seat
cushion to the clockwise or counterclockwise to adjust
support of the lower back.
Reclining Front Seatbacks
To adjust the seatback, lift the lever on the outer side of
the seat and move the seatback to where you want it.
Release the lever to lock the seatback. Pull up on the
lever and the seat will go to an upright position.
ProCarManuals.com

1-6

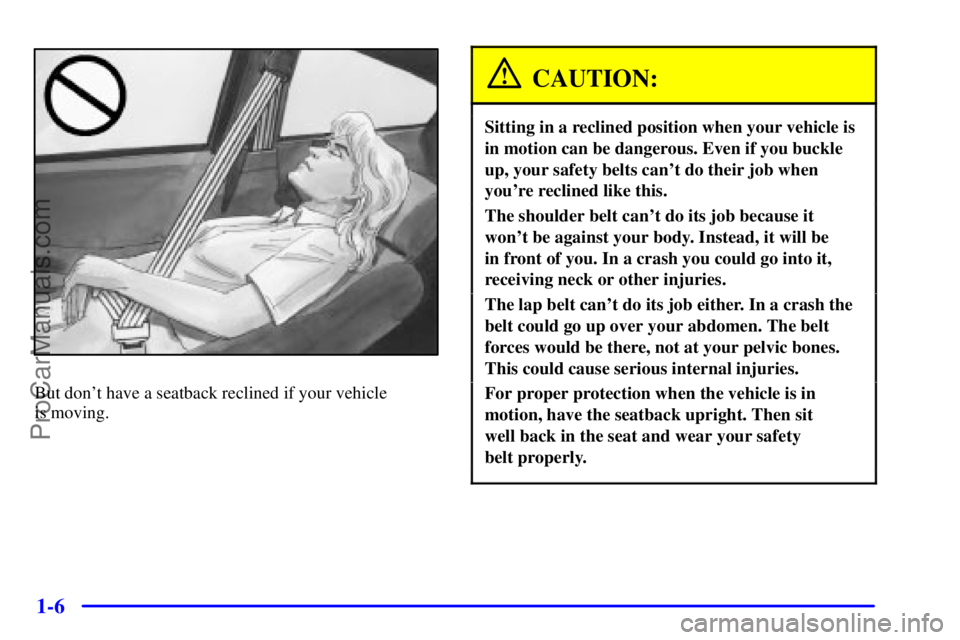

But don't have a seatback reclined if your vehicle
is moving.
CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job because it
won't be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
ProCarManuals.com

1-7 Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest to the top of your ears. This position
reduces the chance of a neck injury in a crash.
Seatback Latches (2-Door Models)
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
The front seatback folds forward to let people get into
the back seat. The seatback latch is designed for
one
-handed operation.
To fold a front seatback forward, lift the seatback latch
fully without pushing forward on the seatback.
Push the seatback to its original position, the seatback
will lock.
ProCarManuals.com

1-8 Easy Entry Seat (2-Door Models)
CAUTION:
If an easy entry right front seat isn't locked, it
can move. In a sudden stop or crash, the person
sitting there could be injured. After you've used
it, be sure to push rearward on an easy entry seat
to be sure it is locked.
The right front seat of your vehicle makes it easy to get
in and out of the rear seat.
1. Fold the right front seatback forward by lifting the
seatback latch fully.
2. The seat will slide forward to allow someone to get
into the rear seat area.
3. Push the seatback upright to lock and slide the seat
fully rearward to lock.
4. The front passenger should try to move the seat to
make sure the seat is locked into place.
Rear Seats
Folding the Rear Seat
To fold down the rear seat,
pull the release straps
located in the trunk.
Fold the seatback down from inside the vehicle. The
right strap operates the right rear split seat. The left strap
operates the left rear split seat.
Push the seatback up to return it to its original position.
To make sure the seatback is secure, push the seatback
into a fully upright position. Pull the seatback forward
slightly to make sure that it is latched. The seatback
should not fold down.
