2-8
One of the four operating modes may be selected
and programmed by the driver on vehicles with a
manual transaxle:

Mode 1: All doors automatically lock when the
vehicle speed is greater than 5 mph (8 km/h). The
doors will remain locked unless manually unlocked
or the lock button is pressed. All doors will unlock
when the transaxle is shifted into REVERSE (R)
and the key is turned to OFF.

Mode 2: This mode is only available on vehicle's
equipped with a remote keyless entry transmitter.
All doors automatically lock when the vehicle speed
is greater than 5 mph (8 km/h). Only the driver's
door will unlock when the transaxle is shifted into
REVERSE (R) and the key is turned to OFF.

Mode 3: All doors automatically lock when the
vehicle speed is greater than 5 mph (8 km/h). No
automatic door unlock.

Mode 4: No automatic door lock or unlock.Before your vehicle was shipped from the factory it was
programmed in Mode 1. To determine the current mode
or to change to a different mode, do the following:
1. Put an automatic transaxle in PARK (P) or a manual
transaxle in REVERSE (R) with the parking brake
engaged and turn the ignition to ON.
2. Press and hold LOCK on the power door lock switch
for 10 seconds. Release the switch when you hear
the chime.
3. Count the number of chimes you hear. The number
of chimes tells you which mode your vehicle is in.
You can change the mode by pressing and holding
LOCK on the power door lock switch (two chimes
for Mode 2, three chimes for Mode 3 and four
chimes for Mode 4).
4. Repeat Step 2 until you hear the number of chimes
that matches the mode you want.
The mode you selected is now set.

2-9 Delayed Locking
This feature will allow the driver to delay the actual
locking of the vehicle. This feature will not operate
if the key is left in the ignition. See ªAnti
-Lockout
Protectionº later in this section.
When LOCK on the driver's power door lock switch
is pressed, with the key removed from the ignition and
the driver's door open, three chimes will be heard. The
doors will not lock. Seven seconds after the driver's
door has been closed, all of the doors will lock and the
parking lamps will flash. The horn will also chirp if the
horn chirp feature is enabled. See ªProgrammable Horn
Chirpº in the Index for more information.
If the driver opens another door before the seven
seconds, the doors will not lock until seven seconds after
the last door is closed.
If the power door lock switch is pressed to LOCK
twice when leaving the vehicle, or the LOCK button on
the remote keyless entry transmitter is pressed, the doors
will lock immediately.
If the power door lock switch is pressed to unlock, the
doors will not lock automatically.
Rear Door Security Locks
(Four-Door Models)
Your vehicle is equipped with rear door security locks
that help prevent passengers from opening the rear doors
on your vehicle from the inside.
The switch is located on
the inside of the rear door.
To use the security locks, do the following:
1. Move the switch up.
2. Close the door.
3. Do the same thing on the other rear door.

2-10
The rear doors on your vehicle cannot be opened from
the inside when this feature is in use. If you want to
open a rear door when the security lock is on, do
the following:
1. Unlock the door from the inside.
2. Then open the door from the outside.
If you don't cancel the security lock feature, adults or
older children who ride in the rear won't be able to open
the rear door from the inside. You should let adults and
older children know how these security locks work, and
how to cancel the locks.
To cancel the rear door lock, do the following:
1. Unlock the door from the inside and open it from
the outside.
2. Move the switch down.
3. Do the same for the other rear door.
The rear doors will now work normally.Anti-Lockout Protection
Anti-Lockout Protection is a standard feature intended
to provide enhanced security and convenience. This
feature prevents a driver who has left the keys in the
ignition from locking the doors or using the power door
locks while any door is open.
To override this feature, when the key is in the ignition
and a door is open, hold the power door lock switch for
three seconds.
This feature cannot guarantee that you will never be
locked out of your vehicle. If you don't leave the keys
in the ignition, or if you use the manual door lock,
or if you use the remote keyless entry transmitter
(if equipped), you could still lock your keys inside your
vehicle. Always remember to take your keys with you.
Leaving Your Vehicle
If you are leaving your vehicle, open your door and
set the locks from the inside, then get out and close
the door.

2-11
Remote Keyless Entry System
(If Equipped)
If your vehicle has this feature, you can lock and unlock
your doors or unlock your trunk from about 3 feet (1 m)
up to 30 feet (9 m) away using the remote keyless entry
transmitter supplied with your vehicle.
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the left
or right, hold the transmitter higher, and try again.

Check to determine if battery replacement is
necessary. See the instructions that follow.

If you're still having trouble, see your dealer
or a qualified technician for service.

2-12 Operation
The following functions are
available with the keyless
entry system:
(Lock): All doors will automatically lock when this
button on the transmitter is pressed. The interior lamps
will turn off after all of the doors are closed. If all of the
doors are closed, the parking lamps will flash twice and
the horn will chirp to indicate locking has occurred.
(Unlock): The driver's door will unlock
automatically when this button on the transmitter is
pressed. If the button is pressed again within five
seconds, all remaining doors will unlock. The interior
lamps will stay on for 10 seconds or until the ignition is
turned on. The parking lamps will flash twice to indicate
unlocking has occurred.
(Remote Trunk Release): The trunk will unlock
when the vehicle symbol on the transmitter is pressed, as long
as the trunk lockout is not engaged. You can open the trunk
with the transmitter when the vehicle speed is less than 2 mph
(3 km/h), when the parking brake is engaged, or when
the ignition is off. The interior lamps will come on for
10 seconds or until the ignition switch is turned to ON.
(Horn): The horn will sound and the headlamps
and the parking lamps will flash for up to two minutes
when the horn symbol on the transmitter is pressed.
The interior lamps will come on and remain on while
the horn is sounding and the lamps are flashing. The
horn and lamps can be turned off by pressing the horn
symbol button again or by turning the ignition to ON.
Programmable Horn Chirp
When you use the remote keyless entry transmitter to
lock the doors or use the delayed locking feature the
parking lamps will flash and the horn will chirp.
The programmable horn chirp can be disabled by
pressing and holding either of the door lock switches in
the unlock position for 10 seconds with the ignition ON
and all of the doors closed. When you hear the horn
chirp, programming is complete.
To reactivate the horn chirp feature, repeat the
above procedure.

2-13 Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have a maximum of four
transmitters matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about four years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.
NOTICE:
When replacing the battery, use care not to
touch any of the circuitry. Static from your
body transferred to these surfaces may damage
the transmitter.

2-14
To replace the battery in the keyless entry transmitter do
the following:
1. Use a thin coin or similar object to separate the
bottom half from the top half of the transmitter.
2. Remove the battery and replace it with the new one.
Make sure the positive (+) side of the battery faces
up. Use one three
-volt, CR2032, or equivalent,
type battery.
3. Put the two halves back together. Make sure the
cover is on tightly, so water won't get in.
Trunk
To unlock the trunk from the outside, insert the key and
turn the trunk lock cylinder or use the remote keyless
entry transmitter (if equipped).
When closing the trunk, close from the center to ensure
it fully latches.

2-15
CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the trunk lid open or if
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk lid:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on Vent. That will force outside air into
your vehicle. See ªComfort Controlsº in
the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
Remote Trunk Release
Press the remote trunk release button, located on the
driver's door, to release the trunk lid.
Make sure the remote trunk release lockout feature
is not activated. Also, the remote trunk release will
only work when either the ignition is off, the parking
brake is engaged or the vehicle speed is less than
2 mph (3 km/h).

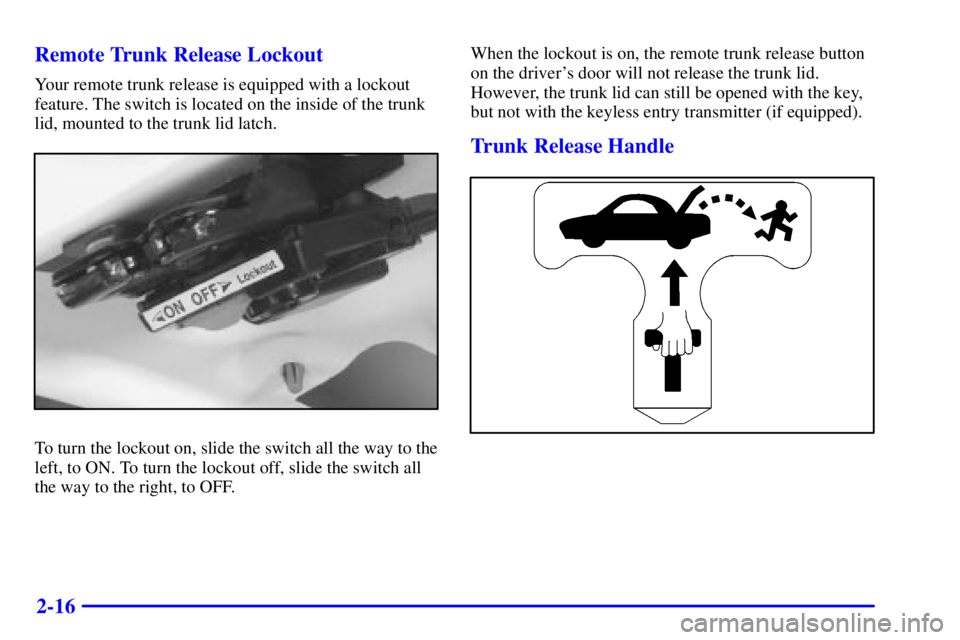

2-16 Remote Trunk Release Lockout
Your remote trunk release is equipped with a lockout
feature. The switch is located on the inside of the trunk
lid, mounted to the trunk lid latch.
To turn the lockout on, slide the switch all the way to the
left, to ON. To turn the lockout off, slide the switch all
the way to the right, to OFF.When the lockout is on, the remote trunk release button
on the driver's door will not release the trunk lid.
However, the trunk lid can still be opened with the key,
but not with the keyless entry transmitter (if equipped).
Trunk Release Handle

2-17
NOTICE:
The trunk release handle was not designed to be
used to tie down the trunk lid or as an anchor
point when securing items in the trunk. Improper
use of the trunk release handle could damage it.
There is a glow-in-the-dark trunk release handle located
inside the trunk on the trunk latch. This handle will glow
following exposure to light. Pull the release handle up to
open the trunk from the inside.
Trap-Resistant Trunk Kit
To help prevent a child from becoming trapped in your
trunk, you can order a trap
-resistant trunk kit from your
dealer. This kit includes:

a modified trunk latch,

a lighted release handle, and

seatback tethers (for vehicles with folding
rear seatbacks).
See your dealer for additional information.
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's door,
you'll hear a chime reminding you to remove your key
from the ignition and take it with you. Always do this.
Your ignition and transaxle will be locked. And
remember to lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
