gf (Unlock): The driver's door will unlock
automatically when this button on the transmitter is
pressed. If the button
is pressed again within five
seconds, all remaining doors will unlock. The interior
lamps will stay on for
10 seconds or until the ignition is
turned on. The parking lamps will flash twice to
indicate unlocking has occurred.
(Remote Trunk Release): The trunk will unlock
when the vehicle symbol on the transmitter is pressed,
as long as the trunk lockout is not engaged. You
can open the trunk with the transmitter when the vehicle
speed is less than
2 mph (3 km/h), when the parking
brake is engaged, or when the ignition is
off. The interior
lamps will come on for
10 seconds or until the ignition
switch is turned to
ON.
& (Horn): The horn will sound and the headlamps
and the parking lamps will flash for up to two minutes
when the horn symbol on the transmitter is pressed. The
interior lamps will come on and remain on while the
horn is sounding and the lamps are flashing. The horn
and lamps can be turned
off by pressing the horn
symbol button again or by turning the ignition to
ON.
Programmable Horn Chirp
When you use the remote keyless entry transmitter to
lock the doors or use the delayed locking feature
the parking lamps will flash and the horn will chirp.
The programmable horn chirp can be disabled by
pressing and holding either of the door lock switches in
the unlock position for
10 seconds with the ignition
ON and all of the doors closed. When you hear the horn
chirp, programming is complete.
To reactivate the horn chirp feature, repeat the above
procedure.
Matching Transmitter(s) to Your
Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can
be purchased through your dealer. Remember to bring
your dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock
your vehicle. Each vehicle can have a maximum of four
transmitters matched to it.
-n rnrn-ininm tmncmittnrc with \In1 I wh@n \In[ 1 nn 10 ully IUIII~ll'llly La-, lY I,,,.. .,.- ..., , I-- I--' J-
2-5

Mirrors
Manual Rearview Mirror
The mirror can be adjusted two ways. First, to adjust
the height of the mirror, adjust the arm that connects the
mirror to the windshield. Second, adjust the angle of
the mirror, by moving the mirror to a position that allows
you to see out of the back window.
To reduce glare from headlamps behind you, move the
lever toward you to the night position.
To return the
mirror to the daytime position, move the lever away
from you.
Outside Remote Control Mirror
The outside rearview mirror should be adjusted so you
can see
a little of the side of your vehicle when you
are sitting in
a comfortable driving position.
Adjust the driver’s outside mirror with the control lever
on the driver’s door.
To adjust your passenger’s mirror, sit in the driver’s seat
and have
a passenger adjust the mirror for you.
2-35

Turn Signal/Multifunction Lever The lever on the left side of the steering column
includes the following:
0 Turn and Lane-Change Signals
Headlamp High/Low-Beam Changer
0 Flash-to-Pass
Exterior Lamps Control
For information on the exterior lamps, see Exterior
Lamps
on page 3- 13.
Turn and Lane-Change Signals
The turn signal has two upward (for right) and two
downward
(for left) positions. These positions allow you
to signal a turn or a lane change.
To signal a turn, move the lever
all the way up or down.
When the turn
is finished, the lever will return
automatically.
3-6

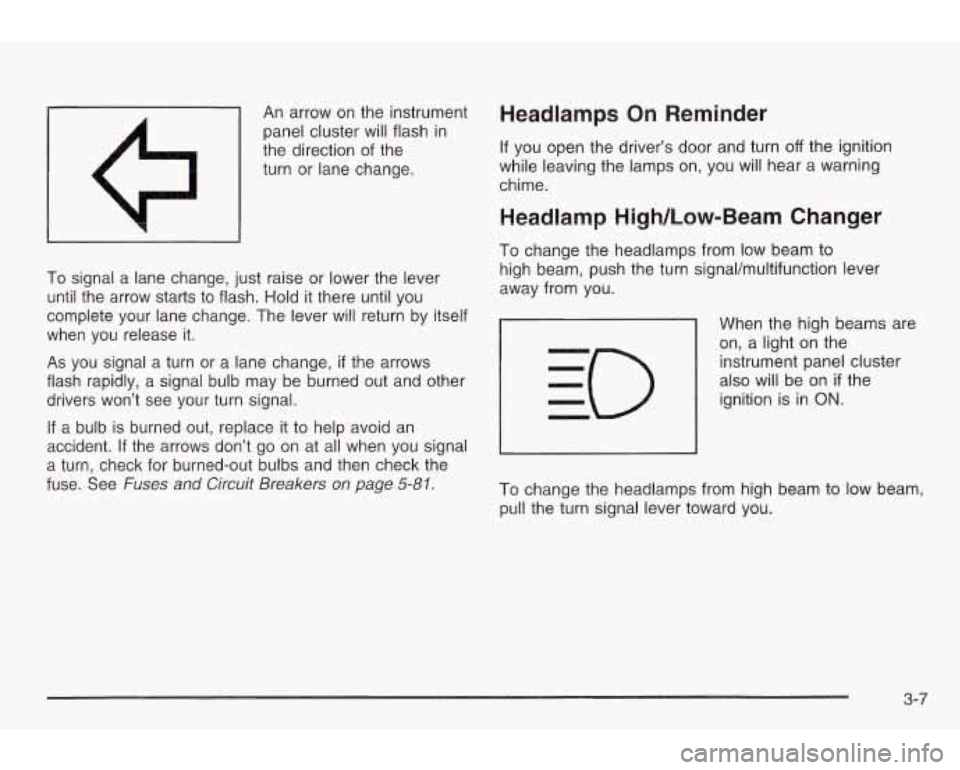

An arrow on the instrument
panel cluster will flash in
the direction of the
turn or lane change. Headlamps On Reminder
If you open the driver’s door and turn off the ignition
while leaving the lamps on, you will hear a warning
chime.
Weadlamp High/low-Beam Changer
~~ ~~~
To signal a lane change, just raise or lower the lever
until the arrow starts to flash.
Hold it there until you
complete your lane change. The lever will return by itself
when you release it.
As you signal a turn or a lane change, if the arrows
flash rapidly, a signal bulb may be burned out and other
drivers won’t see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident.
If the arrows don’t go on at all when you signal
a turn, check for burned-out bulbs and then check the
fuse. See
Fuses and Circuit Breakers on page 5-81.
To change the headlamps from low beam to
high beam, push the turn signaVmultifunction lever
away from you.
When the high beams are
on, a light on the
instrument panel cluster
also will be on
if the
ignition is in
ON.
To change the headlamps from high beam to low beam,
pull the turn signal lever toward you.
3-7

Flash-to-Pass
This feature lets you use your high-beam headlamps to
signal
a driver in front of you that you want to pass.
To use it, pull the turn signaVmultifunction lever toward
you until the high-beam headlamps come on, then
release the lever to turn them
off.
Windshield Wipers
You control the windshield wipers by moving the lever
with the wiper symbol on it up or down. For a single wiper cycle,
push the lever down
to MIST,
then release it. For more cycles, hold the lever down
longer.
For steady wiping at low speed, move the lever up
to
the LO position. For high-speed wiping, move the lever
up further, to
HI. To stop the wipers, move the lever
to OFF.
You can set the wiper speed for a long or short delay
between wipes. This can be very useful in light rain
or snow.
Move the lever
to INT (Intermittent), then turn the inner
band, labeled INT
ADJ (Intermittent Adjustment),
and choose the delay you want. Turn the inner band up
for shorter delay times between wiper cycles. Turn
the band down for a longer delay time between wiper
cycles.
Remember that damaged wiper blades may prevent you
from seeing well enough to drive safely.
To avoid
damage, be sure to clear ice and snow from the wiper
blades before using them. If they’re frozen to the
windshield, carefully loosen or thaw them. If your blades
do become damaged, get new blades or blade inserts.
Heavy snow or ice can overload your wiper motor.
A circuit breaker will stop the motor until it cools. Clear
away snow or ice
to prevent an overload.
3-8

Exterior Lamps
The lever on the left side of the steering column
operates the exterior lamps.
-g- (Exterior Lamps): Turn the outside part of the
lever with the symboi on
it, to operate tne iamps.
The exterior lamp control has three positions:
pf (Parking Lamps): Turning the control to this
position turns
on the parking lamps, together with the
following.
0 Sidemarker Lamps
0 Taillamps
e License Plate Lamps
0 Instrument Panel Lights
- - ED (Headlamps): Turning the control to this position
turns on the headlamps, together with the previously
listed lamps and lights.
AUTO: Turning the control to this position turns the
headlamps, taillamps and parking lamps on and
off automatically, while the ignition is on, by sensing
how dark it is outside. For more information see
“Automatic Headlamp System” later in this section.
Daytime Running Lamps (DRL)
nq~time R~Inning l_~~y.np (DRL) r,a.n make it ewier for
others to see the front of your vehicle during the
day. DRL can be helpful in many different driving
conditions, but they can be especially helpful in the short
periods after dawn and before sunset. Fully functional
daytime running lamps are required on all vehicles
11131 add in Canada. firnt CI
3-1 3

The DRL system will make your low-beam headlamps
come on at a reduced brightness when the following
conditions are met:
The ignition is on.
the exterior lamps control is in AUTO or the parking
the light sensor detects daytime light,
lamps
only position.
the parking brake is released, and
0 the shift lever is not in PARK (P) on vehicles with
When the DRL system is on, the taillamps, sidemarker
lamps, parking lamps and instrument panel lights
will not be illuminated unless you have turned the
exterior lamps control
to the parking lamp position.
As with any vehicle, you should turn on the regular
headlamp system when you need it.
an automatic transaxle only.
Automatic Headlamp System
When it
is dark enough outside, your automatic
headlamp system will turn on your headlamps at the
normal brightness along with other lamps such as
the taillamps, sidemarker, parking lamps and the
instrument panel lights. The radio lights will also be dim. Your
vehicle is equipped with a light sensor on the top
of the instrument panel under the defroster grill, so
be sure it is not covered which will cause the
automatic headlamp system
to be on whenever the
ignition is on.
The automatic headlamp system may also be on when
driving through a parking garage, heavy overcast
weather or a tunnel. This is normal.
There is a delay in the transition between the daytime
and nighttime operation
of the DRL and the automatic
headlamp systems
so that driving under bridges or
bright overhead street lights does not affect the system.
The DRL and automatic headlamp systems will only
be affected when the light sensor sees a change
in lighting lasting longer than this delay.
To idle your vehicle with the automatic headlamp
system
off, set the parking brake while the ignition is off.
Then start the vehicle. The automatic headlamp
system will stay
off until you release the parking brake.
As with any vehicle, you should turn on the regular
headlamps when you need them.
3-1 4

Headlamps Off in Park (P) Fog Lamps
To turn the headlamps off when it is dark outside, turn
the exterior lamps control
to the parking lamp position.
In this position, the parking lamps, sidemarker lamps,
taillamps, license plate lamps and instrument panel
lights will be on, but the headlamps will be
off.
To turn on the headlamps along with the other lamps
when it is dark outside, turn the exterior lamps control
to
the AUTO or headlamp position.
Delayed Headlamps
The delayed headlamps feature will continue to
illuminate the headlamps for 20 seconds after the key is
turned to OFF, then the headlamps will automatically
turn
off.
To override the 20 second delayed headlamp feature
while
it is active turn the turn signaVmultifunction
lever up one position and then back
to AUTO. If
your vehicle has this
feature, the button for your
fog lamps is located on
the instrument panel,
to the
left of the steering wheel,
beside the instrument
panel brightness
thumbwheel.
When using the fog lamps, the ignition must be on as
well as the parking lamps or the low-beam headlamps.
Press the button
to turn the fog lamps on. An indicator
light on the button will glow when the fog lamps are on.
Press the button again
to turn the fog lamps off. The
fog lamps will turn
off whenever the high-beam
headlamps are turned on. When the high beams are
turned
off, the fog lamps will come on again.
3-1 5

Security Light
SECURITY
This light will come on
when you turn the key
to
ON and will stay on
until the vehicle starts.
Service Vehicle Soon Light
SERVICE
VEHICLE
SOON
This light will come on
briefly when you turn the
ignition
to ON.
If you’re driving and the security light comes on and
remains on, your Passlock@ system is not working
properly. Your vehicle is not protected by Passlock@
and you should see your dealer.
Low Washer Fluid Warning
Light
It will stay on, or come on and a chime will sound if it
detects a problem on the vehicle, such
as a Daytime
Running
Lamps (DRL) or an automatic headlamp
system malfunction.
If this happens, see your dealer as
soon as possible.
This light will come on
briefly when you turn on
the ignition.
It will also stay
on, or come on and a
chime will sound,
if
the windshield washer fluid
reservoir is less than
one-third full.
3-36

Driving at Night
I
Night driving is more dangerous than day driving.
One reason is that some drivers are likely to be
impaired
- by alcohol or drugs, with night vision
problems, or by fatigue.
Here are some tips on night driving.
e
e
e
e
Drive defensively.
Don’t drink and drive.
Adjust your inside rearview mirror
to reduce the
glare from headlamps behind you.
Since you can’t see as well, you may need to slow
down and keep more space between you and other vehicles.
Slow down, especially on higher speed roads. Your
headlamps can light up only
so much road ahead.
In remote areas, watch for animals.
If you’re tired, pull
off the road in a safe place
and rest.
e
4-1 7
