Instrument Panel Fuse Block
Driver’s Side
Your vehicle may not be equipped with all the fuses and
features listed.
Fuses Usage
AWindshield Wiper Motor, Washer
Pump
BTrunk Release Relay/Motor, Audio
Amplifier/RFA
C Turn Signal Lamps
D Power Mirrors
Fuses Usage
E Air Bags
F Body Computer (BFC)
G Power Control Module (PCM)
H Door Lock Motors
I Cluster, Body Computer (BFC)
J Stop Lamps
K Hazard Lamps
LHVAC Head, Cluster, Data Link
Connector
Circuit
BreakersUsage
PWR SEAT Power Seats
Relay Usage
TRUN REL Trunk Relay
DR UNLOCK Door Unlock Relay
DR LOCK Door Lock Relay
DRIVER DR
UNLOCKDriver’s Door Unlock Relay
5-81

Engine Compartment Fuse Block
Your vehicle may not be equipped with all the fuses and
features listed.
The engine compartment fuse block is located on the
driver’s side of the vehicle, near the battery.
Fuse Usage
1 Ignition Switch
2Right Electrical Center-Fog Lamps,
Radio, Body Function Control
Module, Interior Lamps
Fuse Usage
3Left Electrical Center-Stop Lamps,
Hazard Lamps, Body Function
Control Module, Cluster, Climate
Control System
4 Anti-Lock Brakes
5Left Electrical Center-Power Seats,
Power Mirrors, Door Locks, Trunk
Release, Audio Amplifier, Remote
Keyless Entry
6 Not Used
7 Ignition Switch
8 Cooling Fan #1
Relays Usage
9 Rear Defog
10 Not Used
11 Starter (V6 only)
12 Cooling Fan #1
13 HVAC Blower (Climate Control)
14 Cooling Fan #2
15 Cooling Fan
16 Air Conditioning Compressor
17 Not Used
18 Fuel Pump
5-83

Relays Usage
19 Automatic Headlamp System
20 Automatic Headlamp System
21 Horn
22 Daytime Running Lamps (DRL)
Fuses Usage
23–32 Spare Fuse Holder
33 Rear Defog
34Accessory Power Outlets, Cigarette
Lighter
35 Generator
36 Not Used
37Air Conditioning Compressor, Body
Function Control Module
38 Automatic Transaxle
39 Powertrain Control Module (PCM)
40 Anti-Lock Brakes (ABS)
41 Ignition System
42Back-Up Lamps, Brake Transaxle
Shift Interlock
Fuses Usage
43 Horn
44 PCM
45 Parking Lamps
46Climate Control System, Air
Conditioning
47Canister Vent Valve, Exhaust
Oxygen Sensors
48 Fuel Pump, Injectors
49 Not Used
50 Right Headlamp
51 Left Headlamp
52 Cooling Fan #2
53 HVAC Blower (Climate Control)
54 Crank (V6 only)
55 Cooling Fan #2 Ground
56 Fuse Puller for Mini Fuses
57 Not Used
5-84

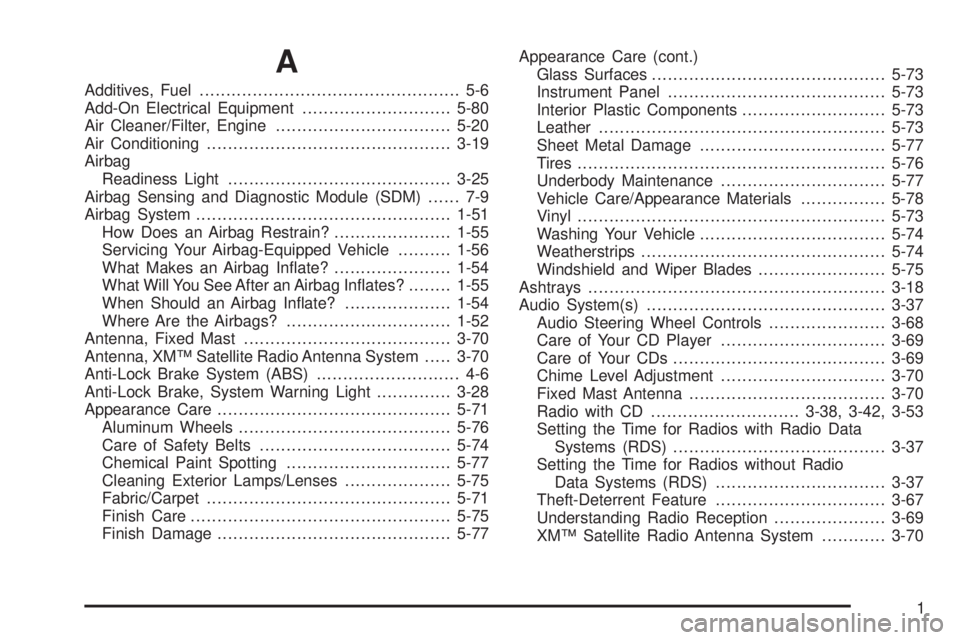

A
Additives, Fuel................................................. 5-6
Add-On Electrical Equipment............................5-80
Air Cleaner/Filter, Engine.................................5-20
Air Conditioning..............................................3-19
Airbag
Readiness Light..........................................3-25
Airbag Sensing and Diagnostic Module (SDM)...... 7-9
Airbag System................................................1-51
How Does an Airbag Restrain?......................1-55
Servicing Your Airbag-Equipped Vehicle..........1-56
What Makes an Airbag Inflate?......................1-54
What Will You See After an Airbag Inflates?........1-55
When Should an Airbag Inflate?....................1-54
Where Are the Airbags?...............................1-52
Antenna, Fixed Mast.......................................3-70
Antenna, XM™ Satellite Radio Antenna System.....3-70
Anti-Lock Brake System (ABS)........................... 4-6
Anti-Lock Brake, System Warning Light..............3-28
Appearance Care............................................5-71
Aluminum Wheels........................................5-76
Care of Safety Belts....................................5-74
Chemical Paint Spotting...............................5-77
Cleaning Exterior Lamps/Lenses....................5-75
Fabric/Carpet..............................................5-71
Finish Care.................................................5-75
Finish Damage............................................5-77Appearance Care (cont.)
Glass Surfaces............................................5-73
Instrument Panel.........................................5-73
Interior Plastic Components...........................5-73
Leather......................................................5-73
Sheet Metal Damage...................................5-77
Tires..........................................................5-76
Underbody Maintenance...............................5-77
Vehicle Care/Appearance Materials................5-78
Vinyl..........................................................5-73
Washing Your Vehicle...................................5-74
Weatherstrips..............................................5-74
Windshield and Wiper Blades........................5-75
Ashtrays........................................................3-18
Audio System(s).............................................3-37
Audio Steering Wheel Controls......................3-68
Care of Your CD Player...............................3-69
Care of Your CDs........................................3-69
Chime Level Adjustment...............................3-70
Fixed Mast Antenna.....................................3-70
Radio with CD............................3-38, 3-42, 3-53
Setting the Time for Radios with Radio Data
Systems (RDS)........................................3-37
Setting the Time for Radios without Radio
Data Systems (RDS)................................3-37
Theft-Deterrent Feature................................3-67
Understanding Radio Reception.....................3-69
XM™ Satellite Radio Antenna System............3-70
