child lock PONTIAC GRAND AM 2005 Owners Manual

Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
............................................... 1-8
Safety Belts
.............................................. 1-9
Child Restraints
.......................................1-30
Airbag System
.........................................1-51
Restraint System Check
............................1-57
Features and Controls..................................... 2-1
Keys
........................................................ 2-2
Doors and Locks
....................................... 2-7
Windows
.................................................2-13
Theft-Deterrent Systems
............................2-15
Starting and Operating Your Vehicle
...........2-15
Mirrors
....................................................2-28
Storage Areas
.........................................2-29
Sunroof
..................................................2-30
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-19
Warning Lights, Gages, and Indicators
........3-22
Audio System(s)
.......................................3-37Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-35
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-10
Bulb Replacement
....................................5-42
Windshield Wiper Blade Replacement
.........5-45
Tires
......................................................5-46
Appearance Care
.....................................5-71
Vehicle Identification
.................................5-79
Electrical System
......................................5-80
Capacities and Specifications
.....................5-85
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance and Information.............. 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-10
Index.................................................................1
2005 Pontiac Grand Am Owner ManualM

Q:If I am a good driver, and I never drive far from
home, why should I wear safety belts?
A:You may be an excellent driver, but if you are in an
accident — even one that is not your fault — you
and your passengers can be hurt. Being a good
driver does not protect you from things beyond your
control, such as bad drivers.
Most accidents occur within 25 miles (40 km) of
home. And the greatest number of serious injuries
and deaths occur at speeds of less than
40 mph (65 km/h).
Safety belts are for everyone.
How to Wear Safety Belts Properly
This part is only for people of adult size.
Be aware that there are special things to know about
safety belts and children. And there are different
rules for smaller children and babies. If a child will be
riding in your vehicle, seeOlder Children on page 1-30
orInfants and Young Children on page 1-32. Follow
those rules for everyone’s protection.
First, you will want to know which restraint systems your
vehicle has.
We will start with the driver position.
Driver Position
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here is how to wear
it properly.
1. Close and lock the door.
2. Adjust the seat so you can sit up straight. To see
how, see “Seats” in the Index.
1-14

Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely to be
seriously injured if they do not wear safety belts.
A pregnant woman should wear a lap-shoulder belt, and
the lap portion should be worn as low as possible,
below the rounding, throughout the pregnancy.The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly, it is more
likely that the fetus will not be hurt in a crash. For
pregnant women, as for anyone, the key to making
safety belts effective is wearing them properly.
Right Front Passenger Position
To learn how to wear the right front passenger’s safety
belt properly, seeDriver Position on page 1-14.
The right front passenger’s safety belt works the same
way as the driver’s safety belt — except for one thing. If
you ever pull the shoulder portion of the belt out all the
way, you will engage the child restraint locking feature.
If this happens, just let the belt go back all the way and
start again.
1-22

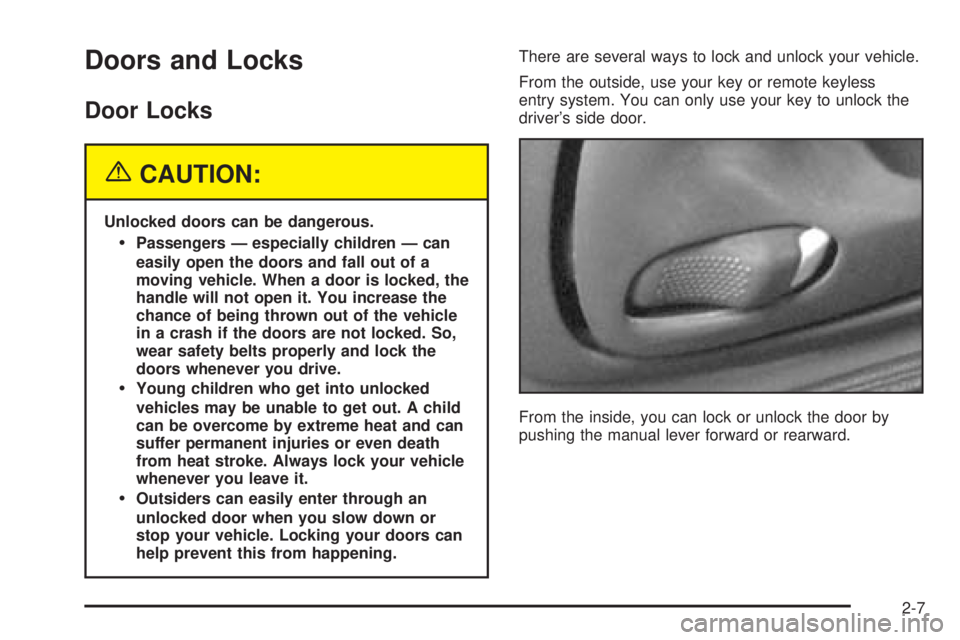

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers — especially children — can
easily open the doors and fall out of a
moving vehicle. When a door is locked, the
handle will not open it. You increase the
chance of being thrown out of the vehicle
in a crash if the doors are not locked. So,
wear safety belts properly and lock the
doors whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors can
help prevent this from happening.There are several ways to lock and unlock your vehicle.
From the outside, use your key or remote keyless
entry system. You can only use your key to unlock the
driver’s side door.
From the inside, you can lock or unlock the door by
pushing the manual lever forward or rearward.
2-7

Rear Door Security Locks
If your vehicle is a four-door model, it has rear door
security locks that help prevent passengers from
opening the rear doors from the inside.
The switch is located on the
inside of each rear door.
To use the security locks, do the following to each
rear door:
1. Move the switch up.
2. Close the door.The rear doors on your vehicle cannot be opened from
the inside when this feature is in use. If you want to
open a rear door when the security lock is on, do
the following:
1. Unlock the door from the inside.
2. Then open the door from the outside.
If you don’t cancel the security lock feature, adults or
older children who ride in the rear won’t be able to open
the rear door from the inside. You should let adults
and older children know how these security locks work,
and how to cancel the locks.
To cancel a rear door lock, do the following:
1. Unlock the door from the inside and open it from
the outside.
2. Move the switch down.
3. Do the same to the other rear door.
The rear doors will now work normally.
2-10

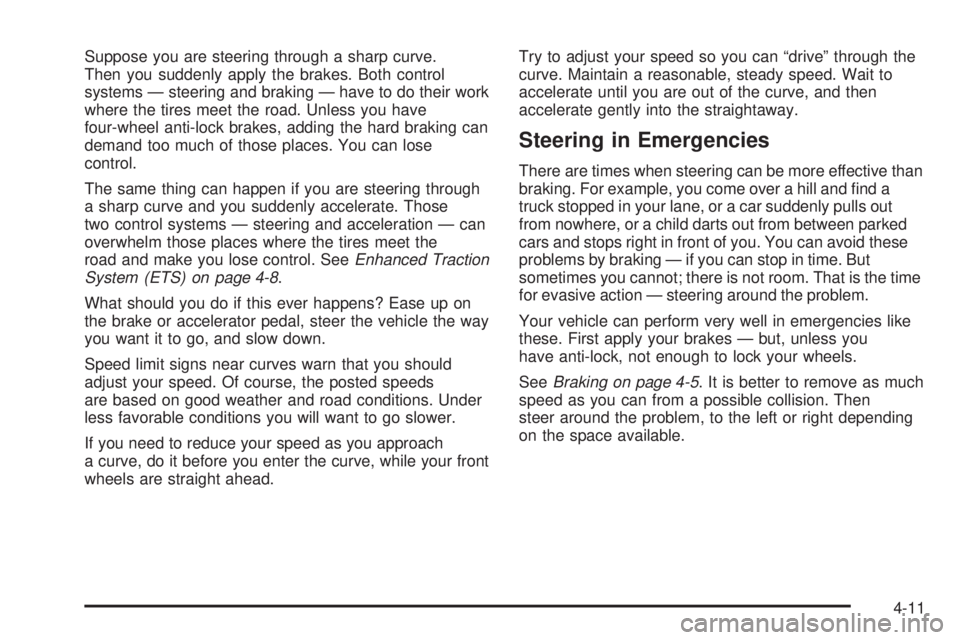

Suppose you are steering through a sharp curve.
Then you suddenly apply the brakes. Both control
systems — steering and braking — have to do their work
where the tires meet the road. Unless you have
four-wheel anti-lock brakes, adding the hard braking can
demand too much of those places. You can lose
control.
The same thing can happen if you are steering through
a sharp curve and you suddenly accelerate. Those
two control systems — steering and acceleration — can
overwhelm those places where the tires meet the
road and make you lose control. SeeEnhanced Traction
System (ETS) on page 4-8.
What should you do if this ever happens? Ease up on
the brake or accelerator pedal, steer the vehicle the way
you want it to go, and slow down.
Speed limit signs near curves warn that you should
adjust your speed. Of course, the posted speeds
are based on good weather and road conditions. Under
less favorable conditions you will want to go slower.
If you need to reduce your speed as you approach
a curve, do it before you enter the curve, while your front
wheels are straight ahead.Try to adjust your speed so you can “drive” through the
curve. Maintain a reasonable, steady speed. Wait to
accelerate until you are out of the curve, and then
accelerate gently into the straightaway.
Steering in Emergencies
There are times when steering can be more effective than
braking. For example, you come over a hill and find a
truck stopped in your lane, or a car suddenly pulls out
from nowhere, or a child darts out from between parked
cars and stops right in front of you. You can avoid these
problems by braking — if you can stop in time. But
sometimes you cannot; there is not room. That is the time
for evasive action — steering around the problem.
Your vehicle can perform very well in emergencies like
these. First apply your brakes — but, unless you
have anti-lock, not enough to lock your wheels.
SeeBraking on page 4-5. It is better to remove as much
speed as you can from a possible collision. Then
steer around the problem, to the left or right depending
on the space available.
4-11

Automatic Headlamp System............................3-15
Automatic Transaxle
Fluid..........................................................5-21
Operation...................................................2-20
B
Battery..........................................................5-36
Run-Down Protection...................................3-18
Before Leaving on a Long Trip.........................4-22
Brake
Anti-Lock Brake System (ABS)........................ 4-6
Emergencies................................................ 4-8
Parking......................................................2-23
System Warning Light..................................3-27
Brakes..........................................................5-33
Braking........................................................... 4-5
Braking in Emergencies..................................... 4-8
Break-In, New Vehicle.....................................2-15
Bulb Replacement...........................................5-42
Center High-Mounted Stoplamp (CHMSL)........5-44
Front Turn Signal and Parking Lamps.............5-43
Halogen Bulbs............................................5-42
Headlamps.................................................5-42
Replacement Bulbs......................................5-45
Taillamps, Turn Signal, and Stoplamps............5-44
Buying New Tires...........................................5-55
C
California Fuel.................................................. 5-5
Canadian Owners................................................ ii
Capacities and Specifications............................5-85
Carbon Monoxide...................2-11, 2-26, 4-25, 4-38
Care of
Safety Belts................................................5-74
Your CD Player...........................................3-69
Your CDs ...................................................3-69
Center Console Storage Area...........................2-30
Center High-Mounted Stoplamp (CHMSL)...........5-44
Center Rear Passenger Position, Safety Belts.......1-26
Chains, Tire...................................................5-59
Charging System Light....................................3-26
Check
Engine Light...............................................3-30
Checking Things Under the Hood......................5-10
Chemical Paint Spotting...................................5-77
Child Restraints
Child Restraint Systems...............................1-36
Infants and Young Children...........................1-32
Lower Anchorages and Top Tethers for
Children (LATCH System)..........................1-41
Older Children.............................................1-30
Securing a Child Restraint Designed for the
LATCH System........................................1-43
2

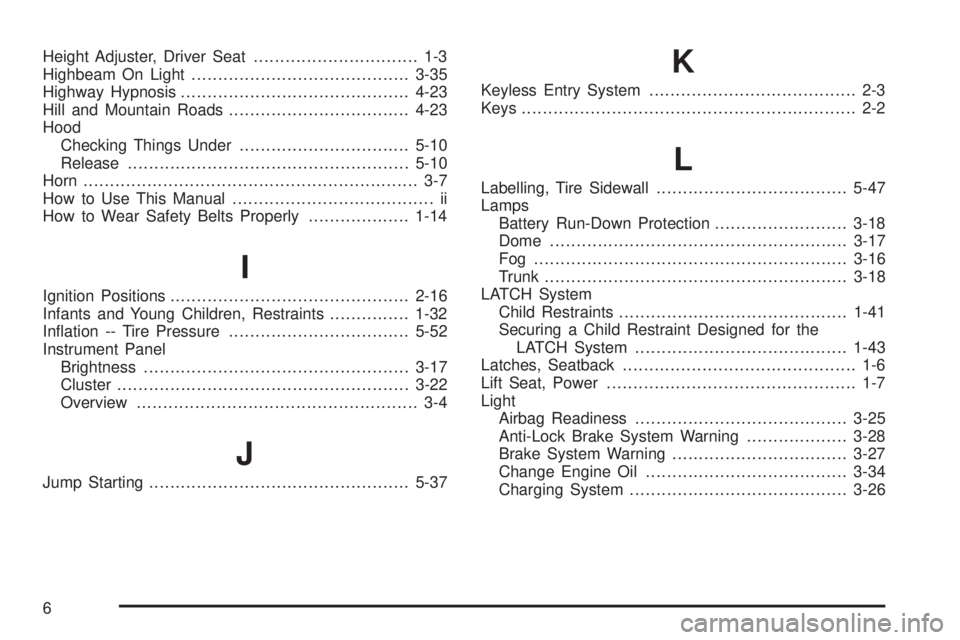

Height Adjuster, Driver Seat............................... 1-3
Highbeam On Light.........................................3-35
Highway Hypnosis...........................................4-23
Hill and Mountain Roads..................................4-23
Hood
Checking Things Under................................5-10
Release.....................................................5-10
Horn............................................................... 3-7
How to Use This Manual...................................... ii
How to Wear Safety Belts Properly...................1-14
I
Ignition Positions.............................................2-16
Infants and Young Children, Restraints...............1-32
Inflation -- Tire Pressure..................................5-52
Instrument Panel
Brightness..................................................3-17
Cluster.......................................................3-22
Overview..................................................... 3-4
J
Jump Starting.................................................5-37
K
Keyless Entry System....................................... 2-3
Keys............................................................... 2-2
L
Labelling, Tire Sidewall....................................5-47
Lamps
Battery Run-Down Protection.........................3-18
Dome........................................................3-17
Fog ...........................................................3-16
Trunk.........................................................3-18
LATCH System
Child Restraints...........................................1-41
Securing a Child Restraint Designed for the
LATCH System........................................1-43
Latches, Seatback............................................ 1-6
Lift Seat, Power............................................... 1-7
Light
Airbag Readiness........................................3-25
Anti-Lock Brake System Warning...................3-28
Brake System Warning.................................3-27
Change Engine Oil......................................3-34
Charging System.........................................3-26
6

N
New Vehicle Break-In......................................2-15
Normal Maintenance Replacement Parts............6-13
O
Odometer......................................................3-24
Odometer, Trip...............................................3-24
Off-Road Recovery..........................................4-12
Oil
Change Engine Oil Light...............................3-34
Engine.......................................................5-15
Pressure Light.............................................3-34
Older Children, Restraints................................1-30
Online Owner Center........................................ 7-3
Other Warning Devices...................................... 3-7
Outlet Adjustment............................................3-21
Outside
Convex Mirror.............................................2-29
Power Mirrors.............................................2-28
Remote Control Mirror..................................2-28
Owner Checks and Services.............................. 6-8
Owners, Canadian............................................... ii
P
Park (P)
Shifting Into................................................2-24
Shifting Out of............................................2-25
Park (P) Headlamps Off in Park (P)..................3-14
Parking
Brake........................................................2-23
Over Things That Burn.................................2-26
Passing.........................................................4-13
Passlock
®......................................................2-15
Power............................................................. 1-3
Door Locks.................................................. 2-8
Electrical System.........................................5-80
Lift Seat....................................................... 1-7
Retained Accessory (RAP)............................2-17
Steering Fluid.............................................5-31
Windows....................................................2-14
Programmable Automatic Door Locks.................. 2-8
Q
Questions and Answers About Safety Belts.........1-13
8

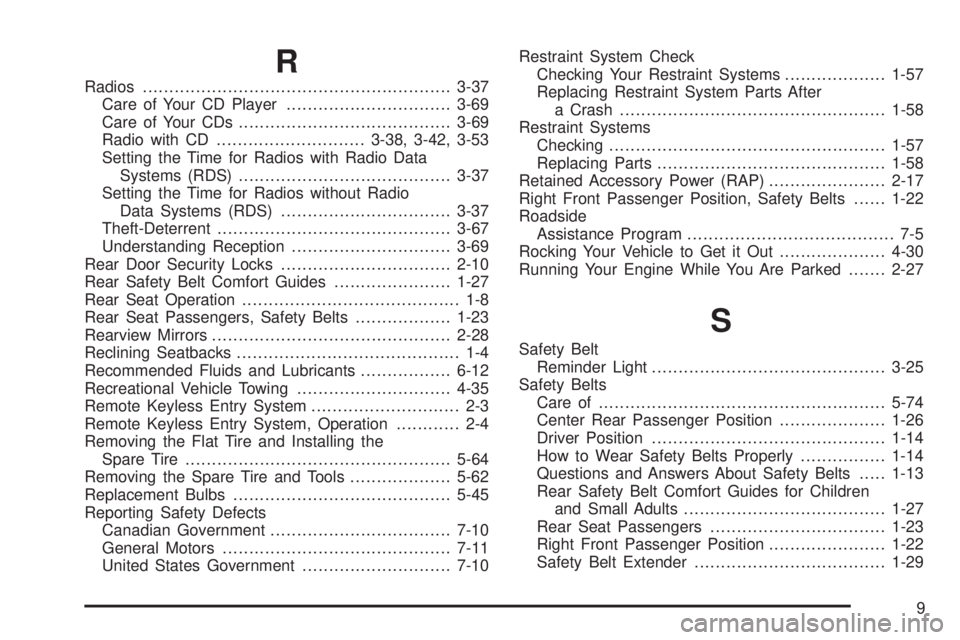

R
Radios..........................................................3-37
Care of Your CD Player...............................3-69
Care of Your CDs........................................3-69
Radio with CD............................3-38, 3-42, 3-53
Setting the Time for Radios with Radio Data
Systems (RDS)........................................3-37
Setting the Time for Radios without Radio
Data Systems (RDS)................................3-37
Theft-Deterrent............................................3-67
Understanding Reception..............................3-69
Rear Door Security Locks................................2-10
Rear Safety Belt Comfort Guides......................1-27
Rear Seat Operation......................................... 1-8
Rear Seat Passengers, Safety Belts..................1-23
Rearview Mirrors.............................................2-28
Reclining Seatbacks.......................................... 1-4
Recommended Fluids and Lubricants.................6-12
Recreational Vehicle Towing.............................4-35
Remote Keyless Entry System............................ 2-3
Remote Keyless Entry System, Operation............ 2-4
Removing the Flat Tire and Installing the
Spare Tire..................................................5-64
Removing the Spare Tire and Tools...................5-62
Replacement Bulbs.........................................5-45
Reporting Safety Defects
Canadian Government..................................7-10
General Motors...........................................7-11
United States Government............................7-10Restraint System Check
Checking Your Restraint Systems...................1-57
Replacing Restraint System Parts After
a Crash..................................................1-58
Restraint Systems
Checking....................................................1-57
Replacing Parts...........................................1-58
Retained Accessory Power (RAP)......................2-17
Right Front Passenger Position, Safety Belts......1-22
Roadside
Assistance Program....................................... 7-5
Rocking Your Vehicle to Get it Out....................4-30
Running Your Engine While You Are Parked.......2-27
S
Safety Belt
Reminder Light............................................3-25
Safety Belts
Care of......................................................5-74
Center Rear Passenger Position....................1-26
Driver Position............................................1-14
How to Wear Safety Belts Properly................1-14
Questions and Answers About Safety Belts.....1-13
Rear Safety Belt Comfort Guides for Children
and Small Adults......................................1-27
Rear Seat Passengers.................................1-23
Right Front Passenger Position......................1-22
Safety Belt Extender....................................1-29
9
