length PONTIAC GRAND PRIX 2001 Owners Manual

2-88 Functions
: If one of the doors is ajar, this light will
appear next to that door on the vehicle outline.
CHANGE OIL SOON: This light will appear when
the system indicates that it's time for an oil change.
The system predicts remaining oil life using inputs from
length of drives, coolant temperature, engine rpm and
vehicle speed. It alerts you to change the oil on a
schedule consistent with the vehicle's driving
conditions. After changing the oil, the system must be
reset. See ªHow to Reset the GM Oil Life System
º
in the Index.
LOW: This light will come on when the ignition is
on and the fluid in the washer fluid container is low.
AJAR: This light alerts you that the trunk is not
fully closed.LOW TRAC: This light will come on when the
enhanced traction system is limiting wheel spin.
See ªEnhanced Traction Systemº or ªLow Traction
Lightº in the Index.
TRAC OFF: This light lets you know that the enhanced
traction system has been disabled and will not limit
wheel spin. See ªEnhanced Traction System Warning
Lightº or ªLow Traction Lightº in the Index.
TRAC: If the vehicle has the enhanced traction system,
you will have a disable button on the far right side of the
DIC. The enhanced traction system is automatically
activated when you turn the ignition on. This button will
activate/deactivate the system. If you need to disable the
system, such as when you are stuck and are rocking the
vehicle back and forth, push this button. See ªStuck: In
Sand, Mud, Ice or Snowº in the Index.

2-91 Control Buttons
The trip computer has three buttons that control
its functions.
ENG/MET: Press this button to change the display
from English to metric units or metric to English.
RESET: Press this button for two seconds to reset the
mode displayed.
MODE: Press this button to change the mode
being displayed.
Functions
FUEL USED: Shows the total amount of fuel used
since you last reset this mode. The amount can be
displayed in gallons or liters.
AVG ECON: Shows the average fuel economy since
you last reset this mode.
OIL LIFE: Shows a percentage of the oil's remaining
useful life. The system predicts remaining oil life using
inputs from length of drives, coolant temperature,
engine rpm and vehicle speed. Each time you get an oil
change, be sure to reset this function so that it will give
you an accurate percentage. See ªHow to Reset the GM
Oil Life System
º in the Index.RANGE: Shows how much farther you can travel with
the fuel you have before refueling. When the range
displays ªLº, for 40 to 50 miles (64.36 to 80.45 km),
the display will flash the word LOW continuously and
the vehicle will chime three times. The range is
calculated from the average econ value times the fuel
remaining in the tank.
LOW: This light will come on when the ignition is on
and the fluid in the washer fluid container is low.
DOOR AJAR: If one of the doors is left ajar, a light
will appear next to that door on the vehicle outline.
BOOST GAGE: If you have the 3800 V6 supercharged
engine, this gage will show the amount of boost the
engine is receiving.
TRUNK AJAR: If the trunk is not fully closed or open,
a light will outline the trunk area on the vehicle outline.
LOW TRAC: This light will come on when the
enhanced traction system (3100 or 3800 V6 engine) or
the traction control system (3800 supercharged V6
engine) is limiting wheel spin. See ªTraction Control
Systemº ªEnhanced Traction Systemº and ªLow
Traction Lightº in the Index.

4-3
Drunken Driving
Death and injury associated with drinking and driving is
a national tragedy. It's the number one contributor
to the highway death toll, claiming thousands of victims
every year.
Alcohol affects four things that anyone needs to
drive a vehicle:

Judgment

Muscular Coordination

Vision

Attentiveness.
Police records show that almost half of all motor
vehicle
-related deaths involve alcohol. In most cases,
these deaths are the result of someone who was drinking
and driving. In recent years, about 16,000 annual motor
vehicle
-related deaths have been associated with the use
of alcohol, with more than 300,000 people injured.
Many adults
-- by some estimates, nearly half the adult
population
-- choose never to drink alcohol, so they
never drive after drinking. For persons under 21, it's
against the law in every U.S. state to drink alcohol.
There are good medical, psychological and
developmental reasons for these laws.The obvious way to solve the leading highway safety
problem is for people never to drink alcohol and then
drive. But what if people do? How much is ªtoo muchº if
the driver plans to drive? It's a lot less than many might
think. Although it depends on each person and situation,
here is some general information on the problem.
The Blood Alcohol Concentration (BAC) of someone
who is drinking depends upon four things:

The amount of alcohol consumed

The drinker's body weight

The amount of food that is consumed before and
during drinking

The length of time it has taken the drinker to
consume the alcohol.
According to the American Medical Association, a
180
-lb. (82 kg) person who drinks three 12-ounce
(355 ml) bottles of beer in an hour will end up with a
BAC of about 0.06 percent. The person would reach the
same BAC by drinking three 4
-ounce (120 ml) glasses
of wine or three mixed drinks if each had 1
-1/2 ounces
(45 ml) of a liquor like whiskey, gin or vodka.

6-46

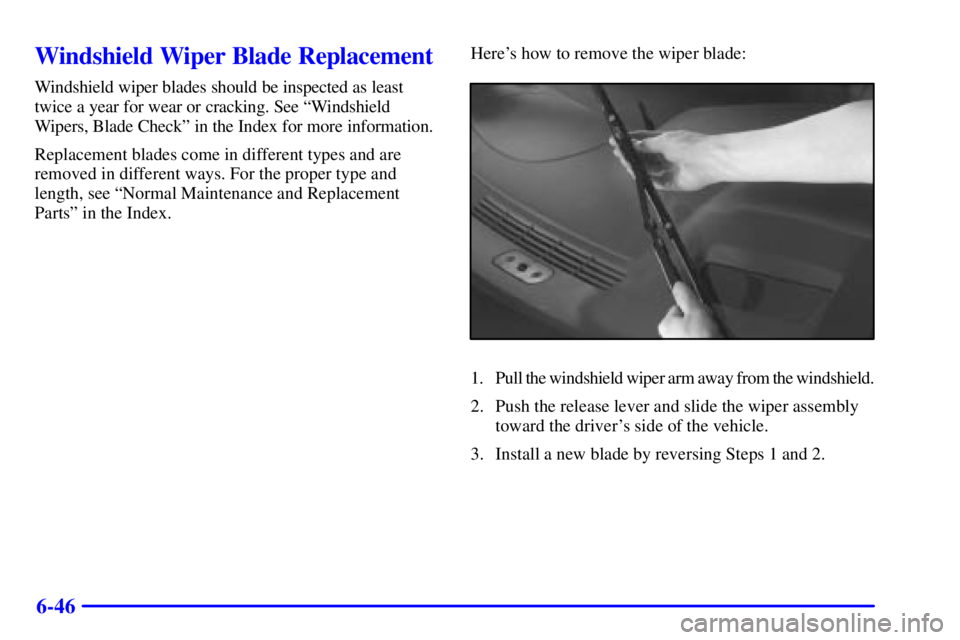

Windshield Wiper Blade Replacement
Windshield wiper blades should be inspected as least
twice a year for wear or cracking. See ªWindshield
Wipers, Blade Checkº in the Index for more information.
Replacement blades come in different types and are
removed in different ways. For the proper type and
length, see ªNormal Maintenance and Replacement
Partsº in the Index.Here's how to remove the wiper blade:
1. Pull the windshield wiper arm away from the windshield.
2. Push the release lever and slide the wiper assembly
toward the driver's side of the vehicle.
3. Install a new blade by reversing Steps 1 and 2.

6-72
PCV Valve
All Engines . . . . . . . . . . . CV892C*
Radiator Cap
3100 V6 (Code J) . . . . . . RC27*
3800 V6 (Code K) . . . . . GM Part No. 10409635
3800 V6 Supercharged
(Code 1) . . . . . . . . . . . . . GM Part No. 10409635
Spark Plugs
3100 V6 (Code J) . . . . . . 41
-940*
3800 V6 (Code K) . . . . . 41
-921*
3800 V6 Supercharged
(Code 1) . . . . . . . . . . . . . NGK Type PTR4B
-15*
Wiper Blades
Type . . . . . . . . . . . . . . . . Shepherd's Hook
Length . . . . . . . . . . . . . . 22 inches (56 cm)
*ACDelco

part number.
Vehicle Dimensions
Wheelbase 110.5 inches (280.7 cm). . . . . . . . . . . . . .
Tread Width
Front 62.0 inches (157.5 cm). . . . . . . . . . . . . . . . . .
Rear 61.5 inches (156.1 cm). . . . . . . . . . . . . . . . . . .
Length 196.5 inches (499.1 cm). . . . . . . . . . . . . . . . .
Width 72.7 inches (184.5 cm). . . . . . . . . . . . . . . . . . .
Height 54.7 inches (139.0 cm). . . . . . . . . . . . . . . . . . .
