PONTIAC GRAND PRIX 2003 Service Manual

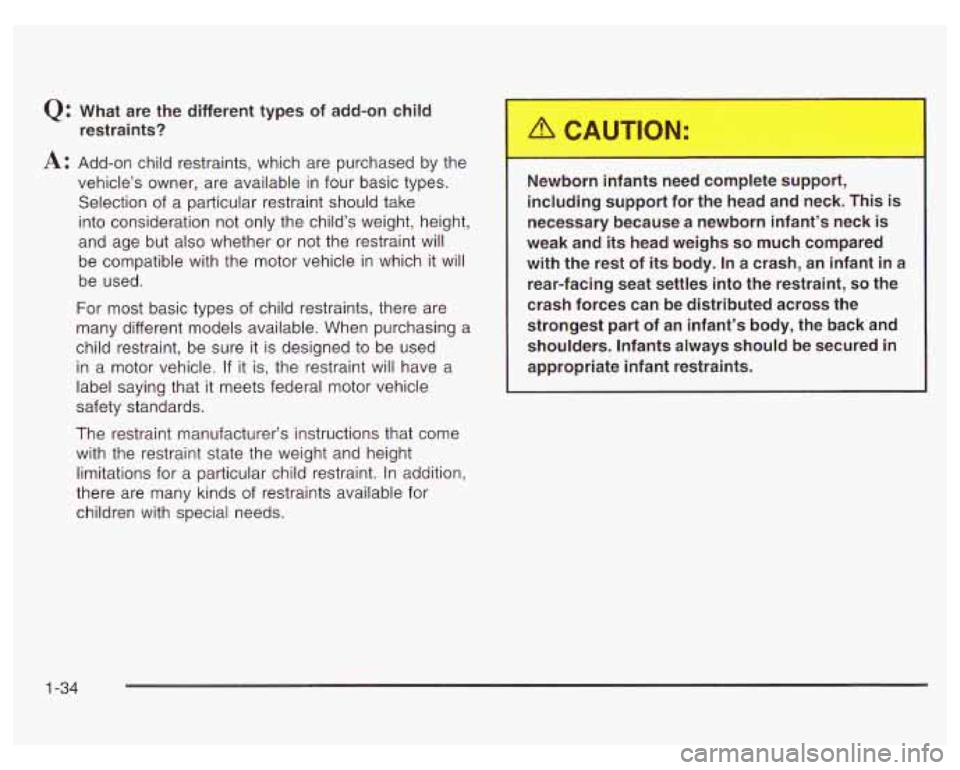

Q: What are the different types of add-on child restraints?
A: Add-on child restraints, which are purchased by the
vehicle’s owner, are available in four basic types.
Selection of a particular restraint should take
into consideration not only the child’s weight, height,
and age but also whether or not the restraint will
be compatible with the motor vehicle in which it will
be used.
For most basic types of child restraints, there are
many different models available. When purchasing a
child restraint, be sure it is designed to be used
in a motor vehicle. If it is, the restraint will have a
label saying that it meets federal motor vehicle
safety standards.
The restraint manufacturer’s instructions that come
with the restraint state the weight and height
limitations for a particular child restraint. In addition,
there are many kinds of restraints available for
children with special needs. Newborn infants
need complete support,
including support for the head and neck. This
is
necessary because a newborn infant’s neck is
weak and its head weighs
so much compared
with the rest of its body.
In a crash, an infant in a
rear-facing seat settles into the restraint,
so the
crash forces can be distributed across the
~ strongest part of an infant’s body, the back and
shoulders. Infants always should be secured in
appropriate infant restraints.
1-34

cd U

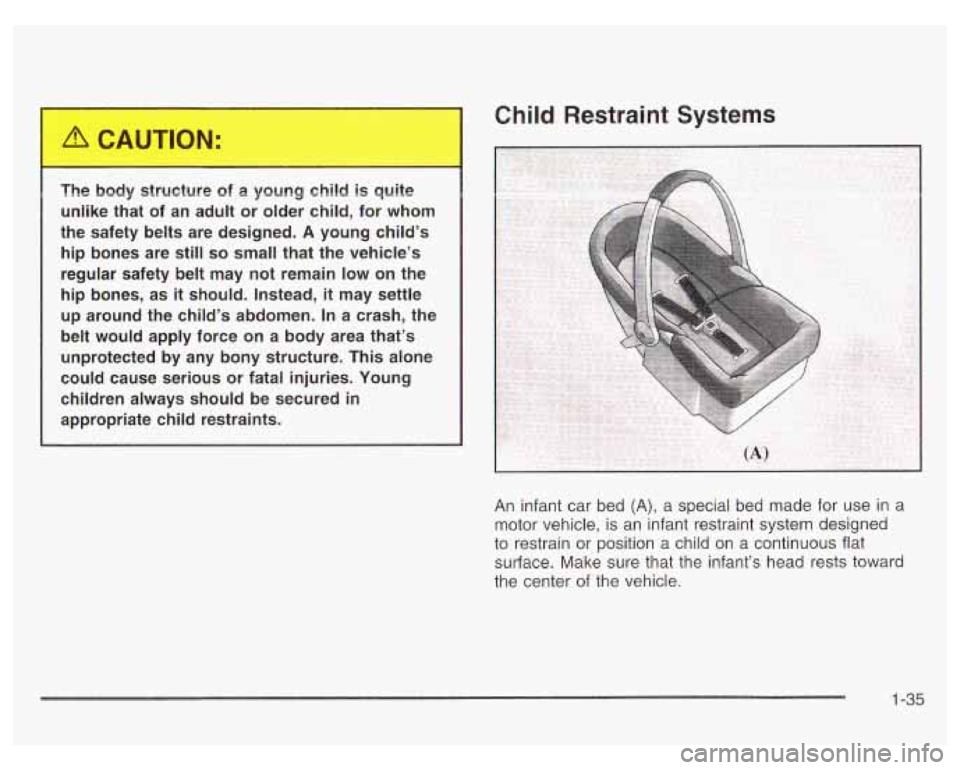

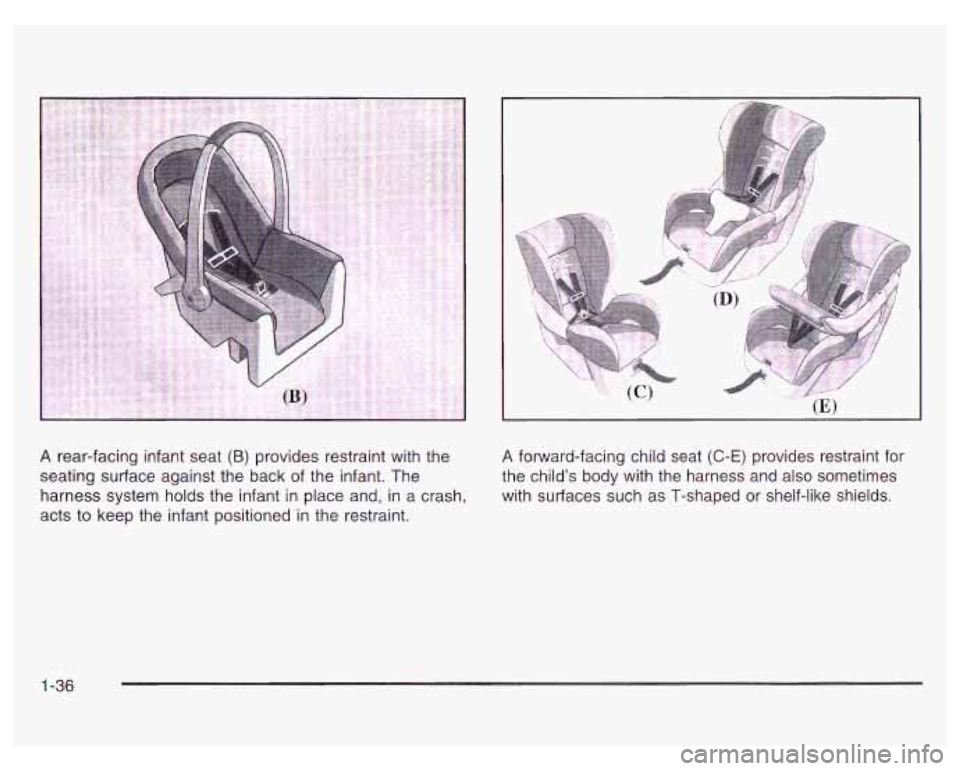

A rear-facing infant seat (B) provides restraint with the
seating surface against the back of the infant. The
harness system holds the infant in place and, in a crash,
acts to keep the infant positioned in the restraint. A forward-facing child seat (C-E) provides restraint for
the child's body with the harness and also sometimes
with surfaces such as T-shaped or shelf-like shields.
1-36

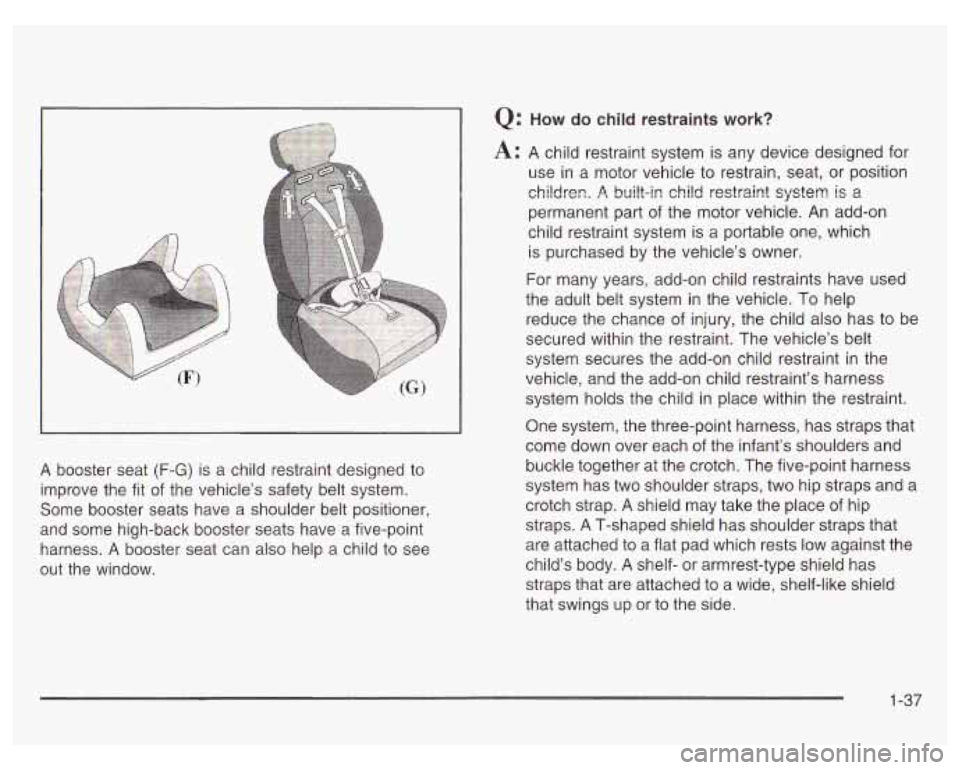

A booster seat (F-G) is a child restraint designed to
improve the fit
of the vehicle’s safety belt system.
Some booster seats have a shoulder belt positioner,
and some high-back booster seats have a five-point
harness.
A booster seat can also help a child to see
out the window.
Q: How do child restraints work?
A: A child restraint system is any device designed for
use in a motor vehicle to restrain, seat, or position
children.
R built-in child restraint system is i!
permanent part of the motor vehicle. An add-on
child restraint system is a portable one, which
is purchased by the vehicle’s owner.
For many years, add-on child restraints have used
the adult belt system in the vehicle. To help
reduce the chance of injury, the child also has to be
secured within the restraint. The vehicle’s belt
system secures the add-on child restraint in the
vehicle, and the add-on child restraint’s harness
system holds the child in place within the restraint.
One system, the three-point harness, has straps that
come down over each of the infant’s shoulders and
buckle together at the crotch. The five-point harness
system has two shoulder straps, two hip straps and a
crotch strap.
A shield may take the place of hip
straps.
A T-shaped shield has shoulder straps that
are attached to a flat pad which rests
low against the
child’s body.
A shelf- or armrest-type shield has
straps that are attached to a wide, shelf-like shield
that swings up or to the side.
1-37

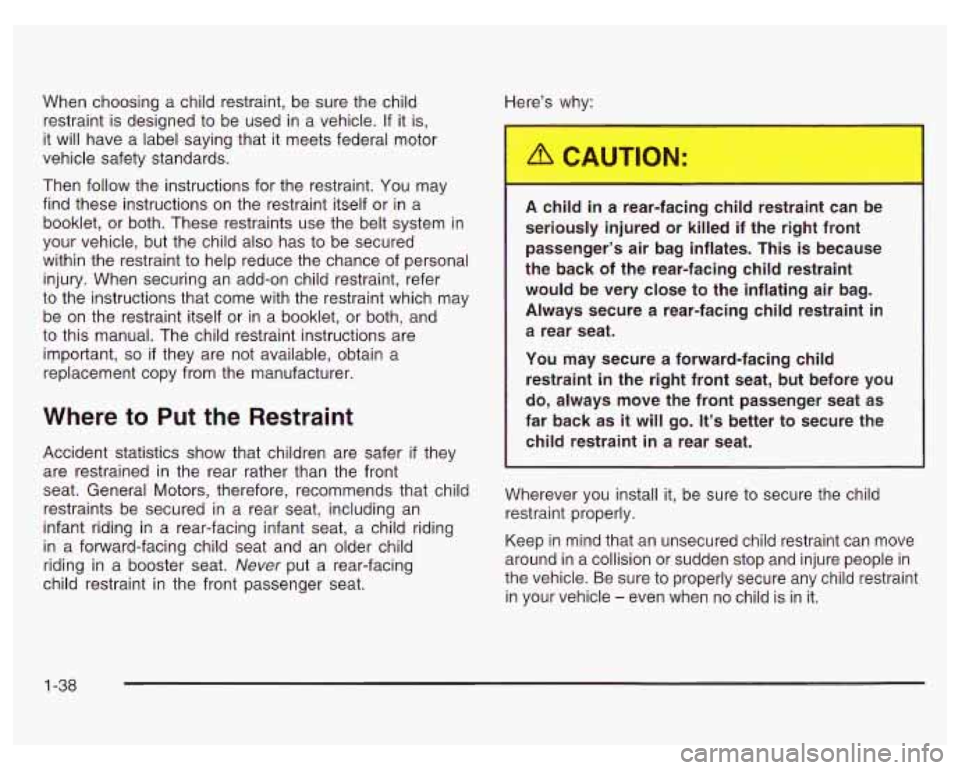

When choosing a child restraint, be sure the child
restraint is designed to be used in a vehicle.
If it is,
it
will have a label saying that it meets federal motor
vehicle safety standards.
Then follow the instructions for the restraint. You may
find these instructions on the restraint itself or in a
booklet, or both. These restraints use the belt system in
your vehicle, but the child also has to be secured
within the restraint to help reduce the chance of personal
injury. When securing an add-on child restraint, refer
to the instructions that come with the restraint which may
be on the restraint itself or in a booklet, or both, and
to this manual. The child restraint instructions are
important,
so if they are not available, obtain a
replacement copy from the manufacturer.
Where to Put the Restraint
Accident statistics show that children are safer if they
are restrained in the rear rather than the front
seat. General Motors, therefore, recommends that child
restraints be secured in a rear seat, including an
infant riding in a rear-facing infant seat, a child riding
in a forward-facing child seat and an older child
riding in a booster seat.
Never put a rear-facing
child restraint
in the front passenger seat. Here’s why:
A cl
f in a rear-facing child restraint can be
seriously injured or killed if
the right front
passenger’s air bag inflates. This is because
the back of the rear-facing child restraint
would be very close to the inflating air bag.
Always secure a rear-facing child restraint in
a rear seat.
You may secure a forward-facing child
restraint in the right front seat, but before you
do, always move the front passenger seat as
far back as
it will go. It’s better to secure the
child restraint
in a rear seat.
Wherever you install it, be sure to secure the child
restraint properly.
Keep in mind that an unsecured child restraint can move
around in a collision or sudden stop and injure people in
the vehicle. Be sure to properly secure any child restraint
in your vehicle
- even when no child is in it.
1-38

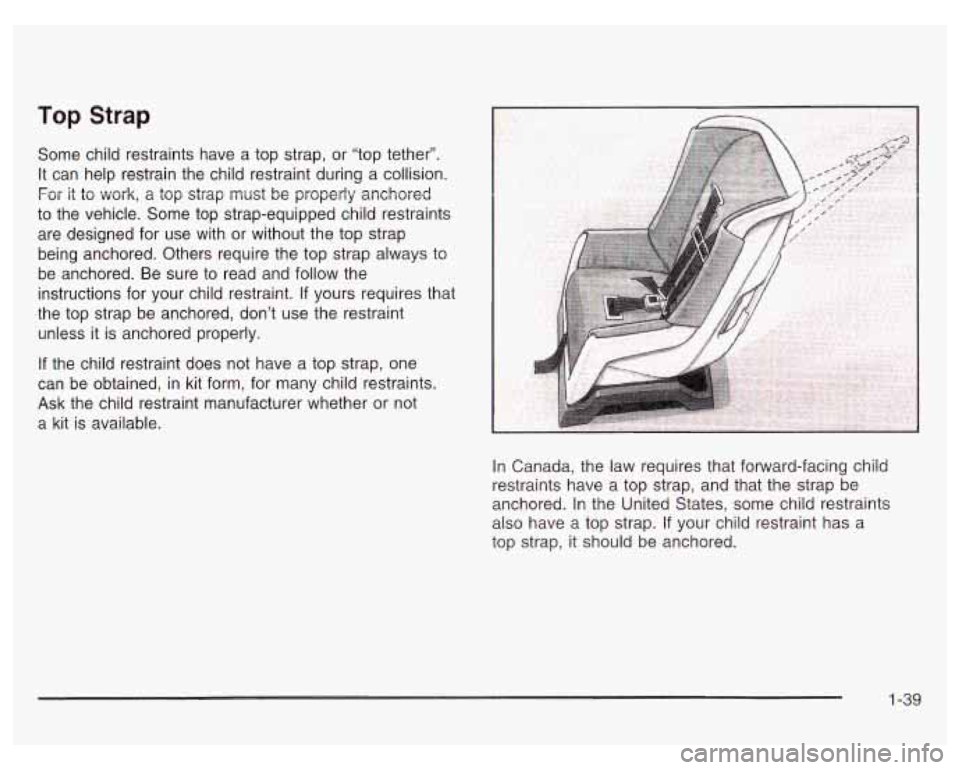

Top Strap
Some child restraints have a top strap, or “top tether”.
It can help restrain the child restraint during a collision.
For it to work, a top strap must be properly anchored
to the vehicle. Some top strap-equipped child restraints
are designed for use with or without the top strap
being anchored. Others require the top strap always to
be anchored. Be sure to read and follow the
instructions for your child restraint.
If yours requires that
the top strap be anchored, don’t use the restraint
unless it is anchored properly.
If the child restraint does not have a top strap, one
can be obtained, in kit form, for many child restraints.
Ask the child restraint manufacturer whether or not
a kit is available.
In Canada, the law requires that forward-facing child
restraints have a top strap, and that the strap be
anchored. In the United States, some child restraints
also have a top strap. If your child restraint has a
top strap,
it should be anchored.
1-39

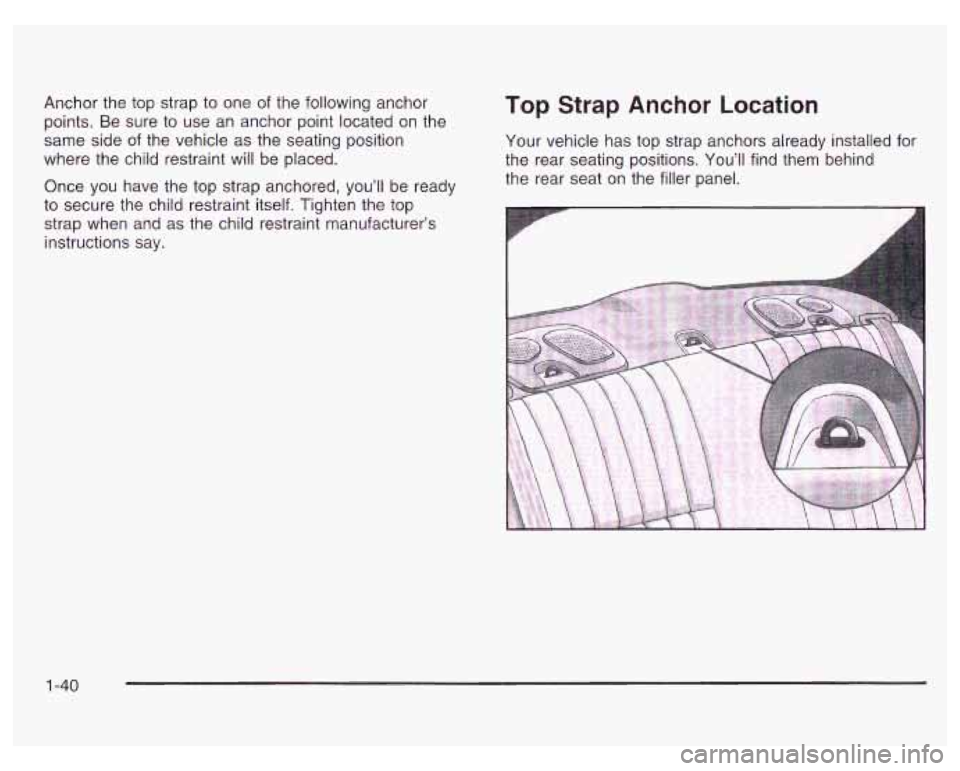

Anchor the top strap to one of the following anchor
points. Be sure to use an anchor point located on the
same side of the vehicle as the seating position
where the child restraint will be placed.
Once you have the top strap anchored, you’ll be ready
to secure the child restraint itself. Tighten the top
strap when and as the child restraint manufacturer’s
instructions say. Top Strap Anchor Location
Your vehicle has top strap anchors already installed for
the rear seating positions. You’ll find them behind
the rear seat on the filler panel.
1-40

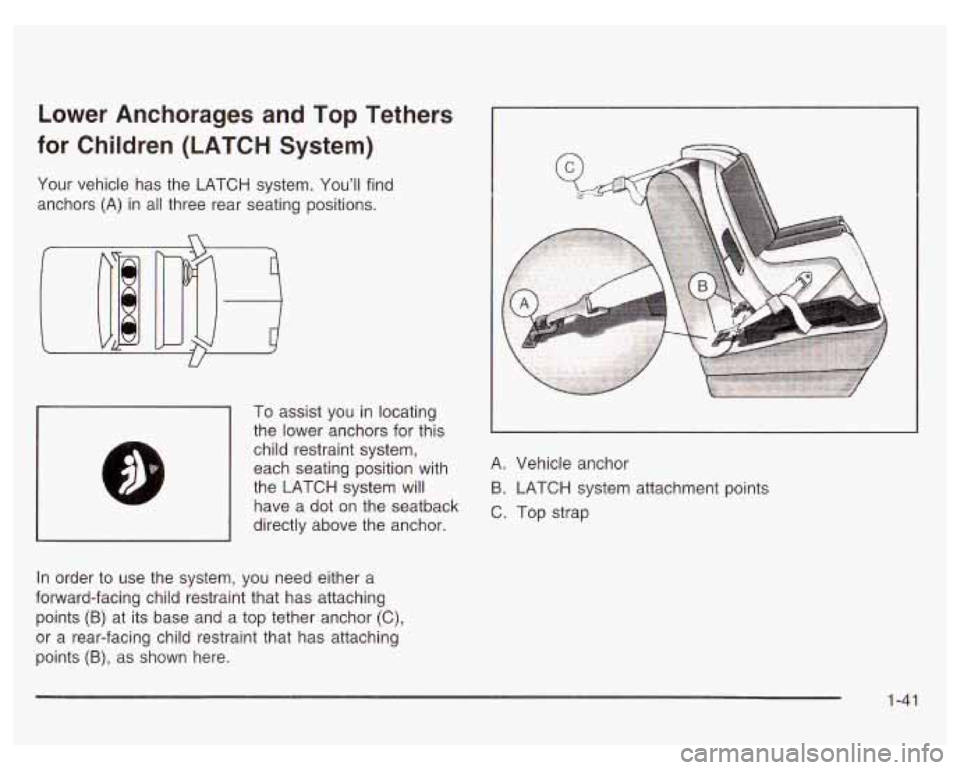

Lower Anchorages and Top Tethers
for Children (LATCH System)
Your vehicle has the LATCH system. You’ll find
anchors (A) in all three rear seating positions.
I
To assist you in locating
the lower anchors for this
child restraint system,
each seating position with
the LATCH system
will
have a dot on the seatback
directly above the anchor.
In order to use the system, you need either a
forward-facing child restraint that has attaching
points
(6) at its base and a top tether anchor (C),
or a rear-facing child restraint that has attaching
points
(B), as shown here. A.
Vehicle anchor
B. LATCH system attachment points
C. Top strap
1-41

L

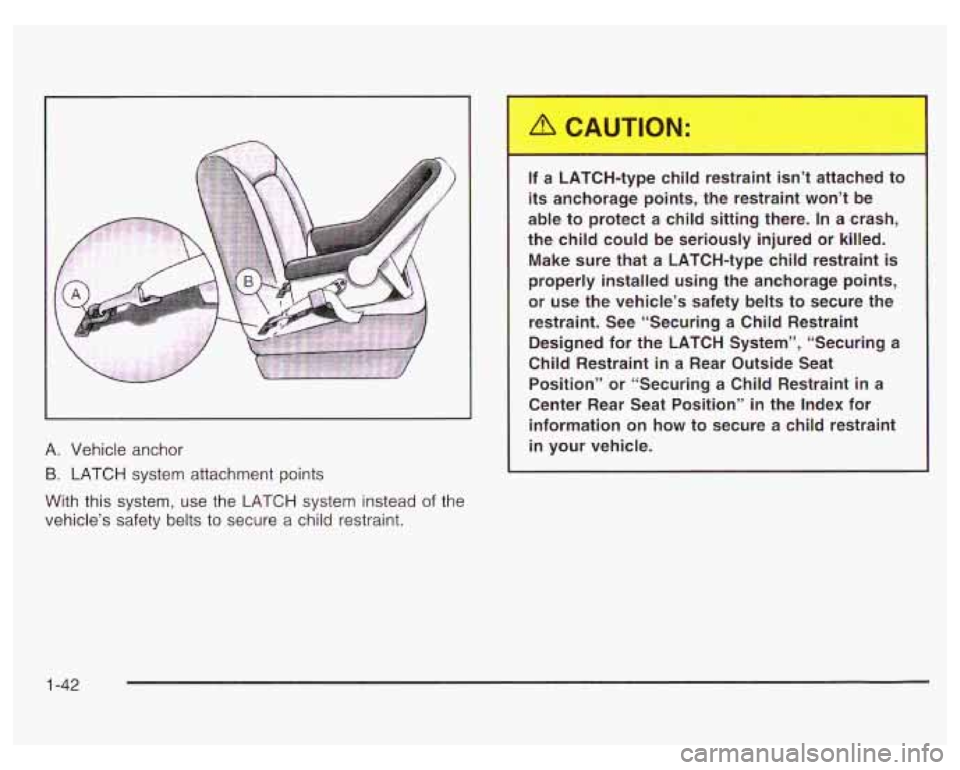

A. Vehicle anchor
B. LATCH system attachment points
With this system, use the LATCH system instead of the
vehicle’s safety belts
to secure a child restraint.
. - iTC. ‘type chi., restra ____ __ - attachec -3
its anchorage points, the restraint won’t be
able to protect a child sitting there. In a crash,
the child could be seriously injured or killed. Make sure that a LATCH-type child restraint is
properly installed using the anchorage points,
or use the vehicle’s safety belts to secure the
restraint. See “Securing a Child Restraint
Designed for the LATCH System”, “Securing a
Child Restraint in
a Rear Outside Seat
Position” or “Securing a Child Restraint in a
Center Rear Seat Position”
in the Index for
information on how to secure a child restraint
in your vehicle.
1 -42

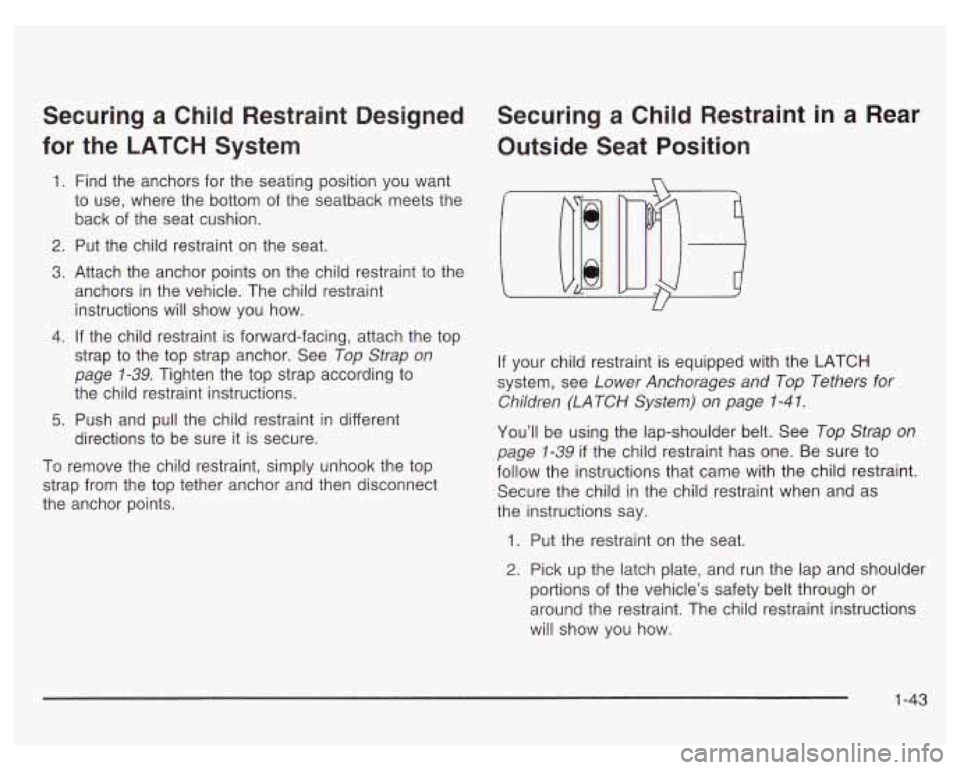

Securing a Child Restraint Designed
for the LATCH System
1.
2.
3.
4.
5.
Find the anchors for the seating position you want
to use, where the bottom
of the seatback meets the
back of the seat cushion.
Put the child restraint on the seat.
Attach the anchor points on the child restraint to the
anchors in the vehicle. The child restraint
instructions will show you how.
If the child restraint is forward-facing, attach the top
strap to the top strap anchor. See Top Strap on
page
1-39. Tighten the top strap according to
the child restraint instructions.
Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, simply unhook the top
strap from the top tether anchor and then disconnect
the anchor points.
Securing a Child Restraint in a Rear
Outside Seat Position
If your child restraint is equipped with the LATCH
system, see Lower Anchorages and Top Tethers
for
Children (LATCH System) on page 1-41.
You’ll be using the lap-shoulder belt. See Top Strap on
page
1-39 if the child restraint has one. Be sure to
follow the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.
1. Put the restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions
of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
1-43
