headlamp PONTIAC GRAND PRIX 2005 Owner's Manual

Service............................................................5-3
Doing Your Own Service Work.........................5-4
Adding Equipment to the Outside
of Your Vehicle...........................................5-5
Fuel................................................................5-5
Gasoline Octane............................................5-5
Gasoline Specications....................................5-5
California Fuel...............................................5-6
Additives.......................................................5-6
Fuels in Foreign Countries...............................5-7
Filling Your Tank............................................5-7
Filling a Portable Fuel Container.......................5-9
Checking Things Under the Hood....................5-10
Hood Release..............................................5-10
Engine Compartment Overview.......................5-12
Engine Oil...................................................5-14
Engine Oil Life System..................................5-18
Supercharger Oil..........................................5-19
Engine Air Cleaner/Filter................................5-20
Automatic Transaxle Fluid..............................5-22
Engine Coolant.............................................5-24
Radiator Pressure Cap..................................5-27
Engine Overheating.......................................5-27Overheated Engine Protection
Operating Mode........................................5-29
Cooling System............................................5-30
Power Steering Fluid.....................................5-38
Windshield Washer Fluid................................5-39
Brakes........................................................5-40
Battery........................................................5-42
Jump Starting...............................................5-43
Headlamp Aiming...........................................5-48
Bulb Replacement..........................................5-50
Halogen Bulbs..............................................5-50
Headlamps and Sidemarker Lamps.................5-51
Front Turn Signal, Parking and Fog Lamps......5-53
Taillamps, Turn Signal, and Stoplamps............5-54
Back-Up Lamps............................................5-55
Replacement Bulbs.......................................5-56
Windshield Wiper Blade Replacement..............5-57
Tires..............................................................5-58
Tire Sidewall Labelling...................................5-59
Tire Terminology and Denitions.....................5-61
Ination - Tire Pressure.................................5-64
Tire Pressure Monitor System.........................5-65
Section 5 Service and Appearance Care
5-1

Tire Inspection and Rotation...........................5-66
When It Is Time for New Tires.......................5-68
Buying New Tires.........................................5-68
Uniform Tire Quality Grading..........................5-69
Wheel Alignment and Tire Balance..................5-70
Wheel Replacement......................................5-71
Tire Chains..................................................5-72
If a Tire Goes Flat........................................5-73
Tire Inator Kit.............................................5-74
Changing a Flat Tire.....................................5-82
Removing the Spare Tire and Tools................5-83
Removing the Flat Tire and Installing
the Spare Tire..........................................5-85
Storing a Flat or Spare Tire and Tools............5-91
Compact Spare Tire......................................5-93
Appearance Care............................................5-94
Fabric/Carpet...............................................5-94
Vinyl...........................................................5-96
Leather.......................................................5-96
Instrument Panel..........................................5-96
Interior Plastic Components............................5-96
Glass Surfaces.............................................5-96
Care of Safety Belts......................................5-97
Weatherstrips...............................................5-97Washing Your Vehicle...................................5-97
Cleaning Exterior Lamps/Lenses.....................5-97
Finish Care..................................................5-98
Windshield and Wiper Blades.........................5-98
Aluminum Wheels.........................................5-99
Tires...........................................................5-99
Sheet Metal Damage...................................5-100
Finish Damage...........................................5-100
Underbody Maintenance...............................5-100
Chemical Paint Spotting...............................5-100
Vehicle Care/Appearance Materials................5-101
Vehicle Identication.....................................5-102
Vehicle Identication Number (VIN)................5-102
Service Parts Identication Label...................5-102
Electrical System..........................................5-103
Add-On Electrical Equipment.........................5-103
Headlamp Wiring........................................5-103
Windshield Wiper Fuses...............................5-103
Power Windows and Other Power Options......5-103
Fuses and Circuit Breakers..........................5-103
Instrument Panel Fuse Block........................5-104
Underhood Fuse Block................................5-105
Capacities and Specications........................5-108
Section 5 Service and Appearance Care
5-2

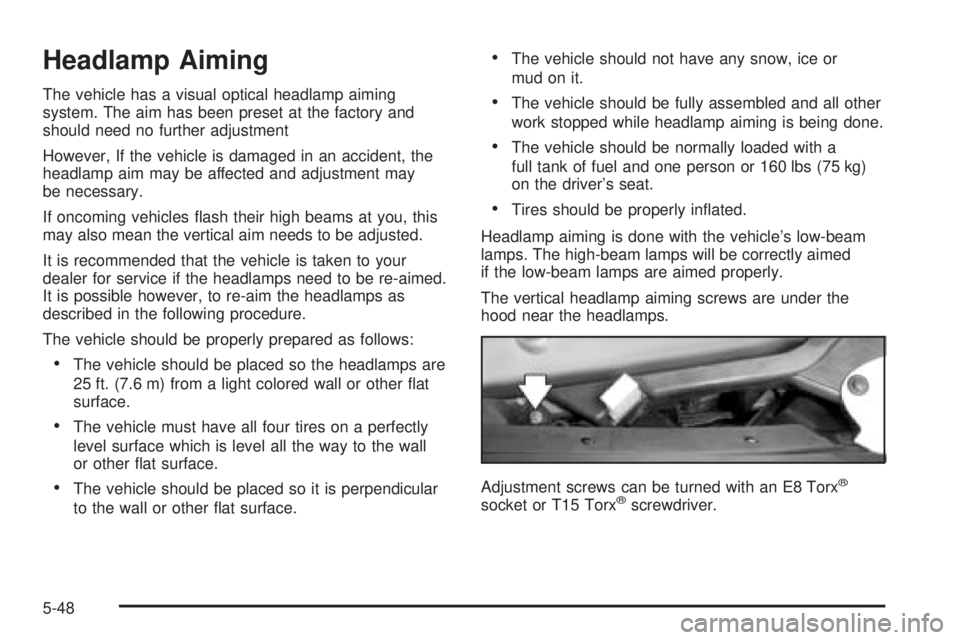

Headlamp Aiming
The vehicle has a visual optical headlamp aiming
system. The aim has been preset at the factory and
should need no further adjustment
However, If the vehicle is damaged in an accident, the
headlamp aim may be affected and adjustment may
be necessary.
If oncoming vehicles ash their high beams at you, this
may also mean the vertical aim needs to be adjusted.
It is recommended that the vehicle is taken to your
dealer for service if the headlamps need to be re-aimed.
It is possible however, to re-aim the headlamps as
described in the following procedure.
The vehicle should be properly prepared as follows:
The vehicle should be placed so the headlamps are
25 ft. (7.6 m) from a light colored wall or other at
surface.
The vehicle must have all four tires on a perfectly
level surface which is level all the way to the wall
or other at surface.
The vehicle should be placed so it is perpendicular
to the wall or other at surface.
The vehicle should not have any snow, ice or
mud on it.
The vehicle should be fully assembled and all other
work stopped while headlamp aiming is being done.
The vehicle should be normally loaded with a
full tank of fuel and one person or 160 lbs (75 kg)
on the driver’s seat.
Tires should be properly inated.
Headlamp aiming is done with the vehicle’s low-beam
lamps. The high-beam lamps will be correctly aimed
if the low-beam lamps are aimed properly.
The vertical headlamp aiming screws are under the
hood near the headlamps.
Adjustment screws can be turned with an E8 Torx
®
socket or T15 Torx®screwdriver.
5-48

Headlamp Vertical Aiming
1. Find the aim dot on the lens of the low-beam lamp.
2. Measure the distance from the ground to the aim
dot on the lamp. Record the distance.3. At the wall or other at surface, measure from the
ground upward the recorded distance from Step 2
and draw or tape a horizontal line the width of
the vehicle.
5-49

4. Turn on the low-beam headlamps and place a
piece of cardboard or equivalent in front of the
headlamp not being aimed. This should allow only
the beam of light from the headlamp being
aimed to be seen on the at surface.
Notice:Do not cover a headlamp to improve beam
cut-off when aiming. Covering a headlamp may
cause excessive heat build-up which may cause
damage to the headlamp.
5. Turn the vertical aiming screw until the headlamp
beam is aimed to the horizontal tape line. The top
edge of the cut-off should be positioned at the
bottom edge of the horizontal tape line.
6. Repeat Steps 4 and 5 for the opposite headlamp.Bulb Replacement
For the proper type of replacement bulbs, see
Replacement Bulbs on page 5-56.
For any bulb changing procedure not listed in this
section, contact your dealer.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas inside
and can burst if you drop or scratch the bulb.
You or others could be injured. Be sure to read
and follow the instructions on the bulb
package.
5-50

Headlamps and Sidemarker Lamps
1. Open the hood. SeeHood Release on page 5-10for
more information.
A. High-Beam Headlamp
B. Low-Beam Headlamp
C. Sidemarker Lamp2. Pull up half-way on the plastic retaining clip while
pushing rearward on the headlamp.
Align the square cut-out on the retaining clip with
the notch on the headlamp.
5-51

3. Pull the headlamp assembly straight out from the
vehicle. (Moving the headlamp up and down
slightly may help with its removal.)4. Turn the bulb socket ring one-quarter of a turn
counterclockwise to remove it from the headlamp
assembly.
5. Pull the old bulb from the socket.
6. Place the new bulb into the socket.
7. Turn the bulb socket ring one-quarter turn clockwise
to reinstall it back into the headlamp assembly.
8. Carefully reinstall the headlamp assembly.
9. Push down on the plastic retaining clip on the
electrical connector while pushing rearward on
the headlamp, making sure the headlamp assembly
is secure.
5-52

Front Turn Signal, Parking and
Fog Lamps
The front turn signal, parking, and fog lamps are
located below the high-beam, low-beam headlamps
and sidemarker lamps.
A. Front Turn Signal,
Parking Lamp
B. Fog Lamp
1. Follow Steps 1 through 3 of the headlamp
replacement procedure. SeeHeadlamps and
Sidemarker Lamps on page 5-51for more
information.2. Locate the front turn
signal, parking lamp,
and fog lamp bulbs,
which are located
below the headlamp
assembly.
The arrow indicates which
is the turn signal/parking
lamp bulb. The fog
lamp bulb is below it.
3. Turn the bulb socket one-quarter of a turn
counterclockwise to remove it from its assembly.
4. Pull the old bulb from the socket and replace it with
a new one.
5. Turn the bulb socket a quarter turn clockwise to
reinstall it.
6. Reinstall the headlamp assembly. Be careful to
avoid scratching or chipping the paint on the
vehicle.
7. Push down on the plastic retaining clip on the
electrical connector while pushing rearward on
the headlamp, making sure the headlamp assembly
is secure.
5-53

2. Turn the appropriate lamp socket a quarter turn
counterclockwise and remove it.
3. Remove the old bulb.
4. Put the new bulb into the lamp socket.
5. Turn the bulb a quarter turn clockwise to reinstall it.
Replacement Bulbs
Exterior Lamps Bulb Number
Back-Up Lamp 3157
Front Parking/Turn Signal Lamp 3757 KA
Front Sidemarker 194
Headlamps
High-Beam Halogen 9005
Low-Beam Halogen 9006
Stop/Taillamp/Turn Signal Lamps 3057
For replacement bulbs not listed here, contact
your dealer.
5-56

Wheel Replacement
Replace any wheel that is bent, cracked or badly rusted
or corroded. If wheel nuts keep coming loose, the
wheel, wheel bolts and wheel nuts should be replaced.
If the wheel leaks air, replace it (except some
aluminum wheels, which can sometimes be repaired).
See your dealer if any of these conditions exist.
Your dealer will know the kind of wheel you need.
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted
the same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new GM
original equipment parts. This way, you will be sure to
have the right wheel, wheel bolts and wheel nuts
for your vehicle.{CAUTION:
Using the wrong replacement wheels, wheel
bolts or wheel nuts on your vehicle can be
dangerous. It could affect the braking and
handling of your vehicle, make your tires lose
air and make you lose control. You could have
a collision in which you or others could be
injured. Always use the correct wheel, wheel
bolts and wheel nuts for replacement.
Notice:The wrong wheel can also cause problems
with bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper height,
vehicle ground clearance and tire or tire chain
clearance to the body and chassis.
SeeChanging a Flat Tire on page 5-82for more
information.
5-71
