PONTIAC GRAND PRIX 2007 Owners Manual

RDS Messages
ALERT!:Alert warns of local or national
emergencies. When an alert announcement
comes on the current radio station, ALERT!
displays. You will hear the announcement, even if
the volume is low or a CD is playing. If a CD is
playing, play stops during the announcement. Alert
announcements cannot be turned off.
ALERT! is not affected by tests of the emergency
broadcast system. This feature is not supported
by all RDS stations.
INFO (Information):If the current station has a
message, INFO displays. Press this button to
see the message. The message may display the
artist, song title, call in phone numbers, etc.
If the entire message is not displayed, parts of the
message appears every three seconds. To scroll
through the message, press and release the INFO
button. A new group of words appear on the display
after every press of this button. Once the complete
message has been displayed, the information
symbol disappears from the display until another
new message is received. The last message can be
displayed by pressing the INFO button. You can
view the last message until a new message is
received or a different station is tuned to.TRAF (Traffic):If TRAF displays, the tuned
station broadcasts traffic announcements.
To receive the traffic announcement from the
tuned station, press this button. Brackets
are displayed around TRAF and when a traffic
announcement broadcasts on the tuned radio
station, you will hear it.
If the station does not broadcast traffic
announcements, press the TRAF button and the
radio seeks to a station that does. When a station
that broadcasts traffic announcements is found, the
radio stops seeking and brackets are displayed
around TRAF. If no station is found that broadcasts
traffic announcements, NO TRAFFIC displays.
If the brackets are on the display and TRAF is not,
press the TRAF button to remove the brackets or
use the TUNE knob or the SEEK arrows to go to a
station that supports traffic announcements. If no
station is found that broadcasts traffic
announcements, NO TRAFFIC displays.
The radio plays the traffic announcement if the
volume is low. The radio interrupts the play of a CD
if the last tuned station broadcasts traffic
announcements and the brackets are displayed.
This function does not apply to XM™ Satellite
Radio Service.
251

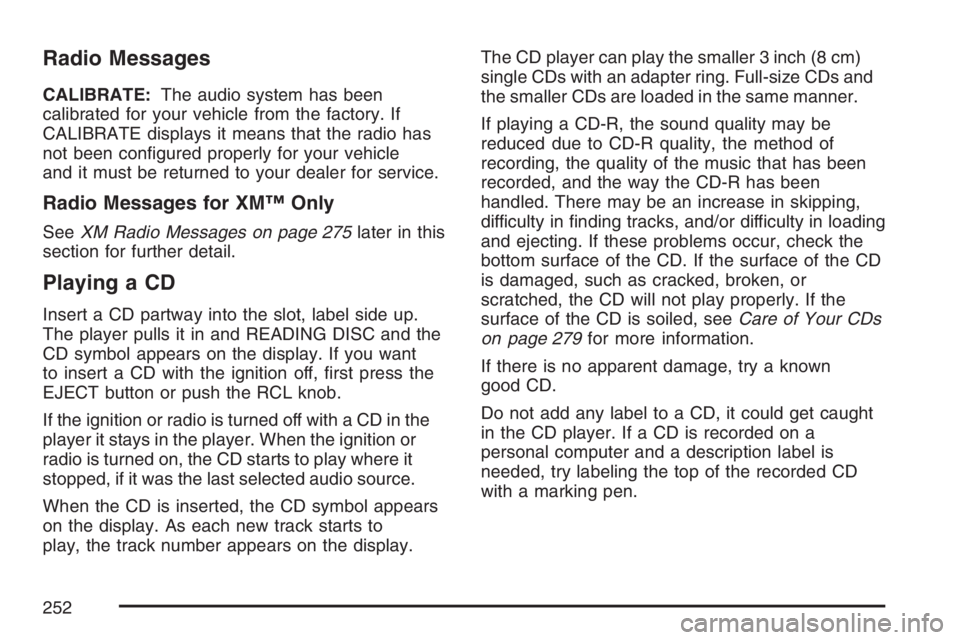

Radio Messages
CALIBRATE:The audio system has been
calibrated for your vehicle from the factory. If
CALIBRATE displays it means that the radio has
not been congured properly for your vehicle
and it must be returned to your dealer for service.
Radio Messages for XM™ Only
SeeXM Radio Messages on page 275later in this
section for further detail.
Playing a CD
Insert a CD partway into the slot, label side up.
The player pulls it in and READING DISC and the
CD symbol appears on the display. If you want
to insert a CD with the ignition off, rst press the
EJECT button or push the RCL knob.
If the ignition or radio is turned off with a CD in the
player it stays in the player. When the ignition or
radio is turned on, the CD starts to play where it
stopped, if it was the last selected audio source.
When the CD is inserted, the CD symbol appears
on the display. As each new track starts to
play, the track number appears on the display.The CD player can play the smaller 3 inch (8 cm)
single CDs with an adapter ring. Full-size CDs and
the smaller CDs are loaded in the same manner.
If playing a CD-R, the sound quality may be
reduced due to CD-R quality, the method of
recording, the quality of the music that has been
recorded, and the way the CD-R has been
handled. There may be an increase in skipping,
difficulty in nding tracks, and/or difficulty in loading
and ejecting. If these problems occur, check the
bottom surface of the CD. If the surface of the CD
is damaged, such as cracked, broken, or
scratched, the CD will not play properly. If the
surface of the CD is soiled, seeCare of Your CDs
on page 279for more information.
If there is no apparent damage, try a known
good CD.
Do not add any label to a CD, it could get caught
in the CD player. If a CD is recorded on a
personal computer and a description label is
needed, try labeling the top of the recorded CD
with a marking pen.
252

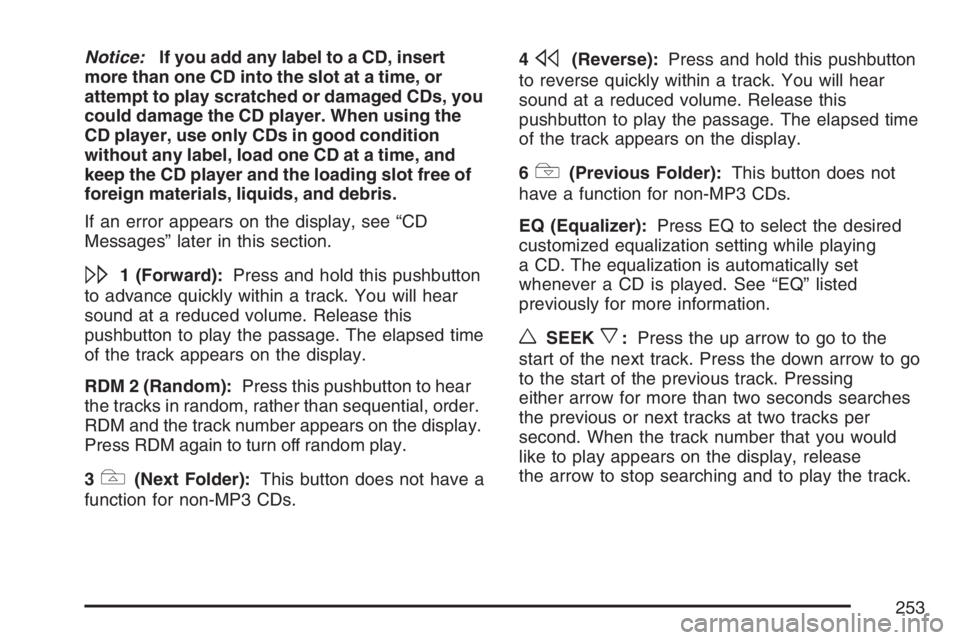

Notice:If you add any label to a CD, insert
more than one CD into the slot at a time, or
attempt to play scratched or damaged CDs, you
could damage the CD player. When using the
CD player, use only CDs in good condition
without any label, load one CD at a time, and
keep the CD player and the loading slot free of
foreign materials, liquids, and debris.
If an error appears on the display, see “CD
Messages” later in this section.
\1 (Forward):Press and hold this pushbutton
to advance quickly within a track. You will hear
sound at a reduced volume. Release this
pushbutton to play the passage. The elapsed time
of the track appears on the display.
RDM 2 (Random):Press this pushbutton to hear
the tracks in random, rather than sequential, order.
RDM and the track number appears on the display.
Press RDM again to turn off random play.
3
#(Next Folder):This button does not have a
function for non-MP3 CDs.4
s(Reverse):Press and hold this pushbutton
to reverse quickly within a track. You will hear
sound at a reduced volume. Release this
pushbutton to play the passage. The elapsed time
of the track appears on the display.
6
!(Previous Folder):This button does not
have a function for non-MP3 CDs.
EQ (Equalizer):Press EQ to select the desired
customized equalization setting while playing
a CD. The equalization is automatically set
whenever a CD is played. See “EQ” listed
previously for more information.
wSEEKx:Press the up arrow to go to the
start of the next track. Press the down arrow to go
to the start of the previous track. Pressing
either arrow for more than two seconds searches
the previous or next tracks at two tracks per
second. When the track number that you would
like to play appears on the display, release
the arrow to stop searching and to play the track.
253

wSCANx:Press and hold either arrow for
more than two seconds until SCAN and the track
number appear on the display and a beep
sounds. The CD goes to the next track, plays for a
few seconds, then goes to the next track. Press
either arrow again to stop scanning.
RCL (Recall):Push this knob to see how long the
current track has been playing. To change the
default on the display, track and elapsed
time, push the knob until you see the desired
display, then hold the knob until the display
ashes. The selected display is now the default.
While elapsed time appears on the display,
CD TIME displays.
BAND:Press this button to listen to the radio
when a CD is playing. The inactive CD remains
safely inside the radio for future listening.
CD AUX (Auxiliary):Press this button to play a
CD when listening to the radio. The CD symbol
appears on the display when a CD is loaded.
EJECT:Press this button to eject a CD. Eject may
be activated with either the ignition or radio off.
CDs may be loaded with the radio and ignition off
if this button is pressed rst.Playing an MP3 CD-R Disc
Your vehicle’s radio system may have the MP3
feature. If it has this feature, it is capable of playing
an MP3 CD-R disc. For more information on
how to play an MP3 CD-R disc, seeUsing an MP3
on page 269later in this section.
CD Messages
CHECK CD:If this message appears on the
display and/or the CD comes out, it could be for
one of the following reasons:
It is very hot. When the temperature returns to
normal, the CD should play.
You are driving on a very rough road. When the
road becomes smoother, the CD should play.
The CD is dirty, scratched, wet, or
upside down.
The air is very humid. If so, wait about an hour
and try again.
254

The format of the CD may not be compatible.
SeeUsing an MP3 on page 269later in this
section.
There may have been a problem while burning
the CD.
The label may be caught in the CD player.
If the CD is not playing correctly, for any other
reason, try a known good CD.
If any error occurs repeatedly or if an error cannot
be corrected, contact your dealer. If the radio
displays an error message, write it down
and provide it to your dealer when reporting the
problem.
Radio with Six-Disc CD
If your vehicle has the Monsoon audio system,
included are nine speakers and an eight channel
amplier. The radio displays MONSOON when
the radio or the ignition is turned on. See
your dealer for details.
255

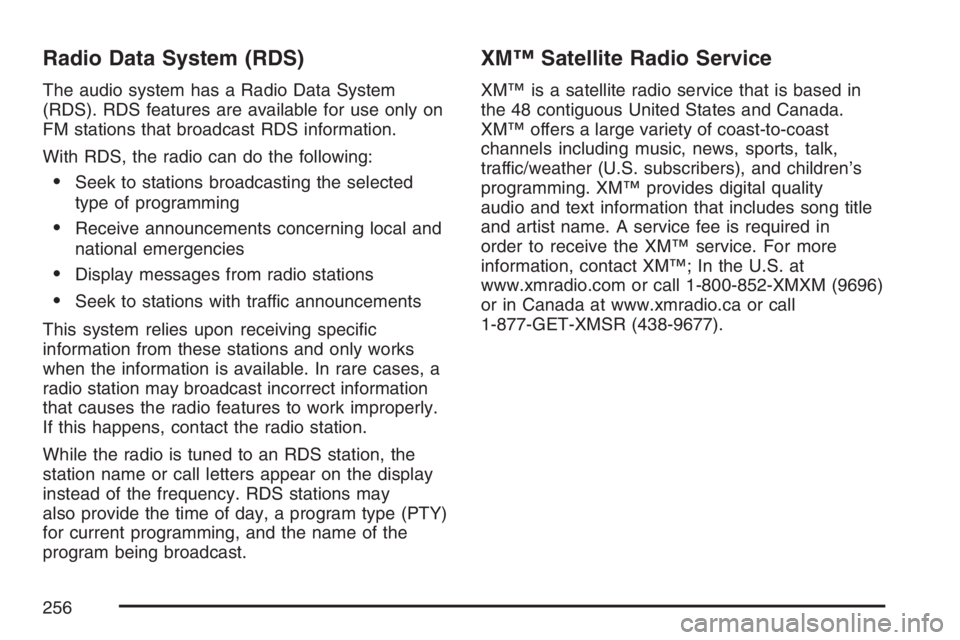

Radio Data System (RDS)
The audio system has a Radio Data System
(RDS). RDS features are available for use only on
FM stations that broadcast RDS information.
With RDS, the radio can do the following:
Seek to stations broadcasting the selected
type of programming
Receive announcements concerning local and
national emergencies
Display messages from radio stations
Seek to stations with traffic announcements
This system relies upon receiving specic
information from these stations and only works
when the information is available. In rare cases, a
radio station may broadcast incorrect information
that causes the radio features to work improperly.
If this happens, contact the radio station.
While the radio is tuned to an RDS station, the
station name or call letters appear on the display
instead of the frequency. RDS stations may
also provide the time of day, a program type (PTY)
for current programming, and the name of the
program being broadcast.
XM™ Satellite Radio Service
XM™ is a satellite radio service that is based in
the 48 contiguous United States and Canada.
XM™ offers a large variety of coast-to-coast
channels including music, news, sports, talk,
traffic/weather (U.S. subscribers), and children’s
programming. XM™ provides digital quality
audio and text information that includes song title
and artist name. A service fee is required in
order to receive the XM™ service. For more
information, contact XM™; In the U.S. at
www.xmradio.com or call 1-800-852-XMXM (9696)
or in Canada at www.xmradio.ca or call
1-877-GET-XMSR (438-9677).
256

Playing the Radio
PWR (Power):Push this knob to turn the system
on and off.
VOLUME:Turn this knob clockwise or
counterclockwise to increase or to decrease the
volume.
RCL (Recall):Press this knob to switch the
display between the radio station frequency and
the time. When the ignition is off, press this
knob to display the time.
For RDS, press the RCL knob to change what
appears on the display while using RDS. The
display options are station name, RDS station
frequency, PTY, and the name of the program
(if available).
For XM™ (if equipped), press the RCL knob while
in XM mode to retrieve four different categories
of information related to the current song or
channel: Artist, Song Title, Category or PTY,
Channel Number/Channel Name.To change the default on the display, press the
RCL knob until you see the desired display,
then hold the knob until the display ashes. The
selected display is now the default.
AUTO VOL (Automatic Volume):With automatic
volume, the audio system adjusts automatically
to make up for road and wind noise as you drive.
Set the volume at the desired level. Press this
button to select MIN (minimum), MED (medium),
or MAX (maximum). Each higher setting allows for
more volume compensation at faster vehicle
speeds. Then, as you drive, automatic volume
increases the volume, as necessary, to overcome
noise at any speed. The volume level should
always sound the same to you as you drive.
To turn automatic volume off, press this button
until OFF displays.
257

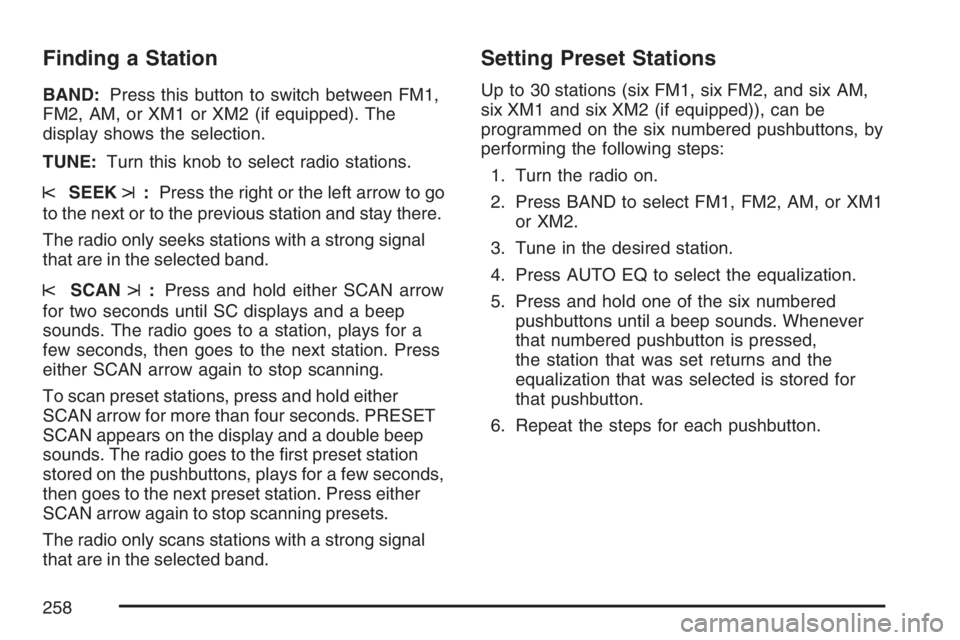

Finding a Station
BAND:Press this button to switch between FM1,
FM2, AM, or XM1 or XM2 (if equipped). The
display shows the selection.
TUNE:Turn this knob to select radio stations.
sSEEKt:Press the right or the left arrow to go
to the next or to the previous station and stay there.
The radio only seeks stations with a strong signal
that are in the selected band.
sSCANt:Press and hold either SCAN arrow
for two seconds until SC displays and a beep
sounds. The radio goes to a station, plays for a
few seconds, then goes to the next station. Press
either SCAN arrow again to stop scanning.
To scan preset stations, press and hold either
SCAN arrow for more than four seconds. PRESET
SCAN appears on the display and a double beep
sounds. The radio goes to the rst preset station
stored on the pushbuttons, plays for a few seconds,
then goes to the next preset station. Press either
SCAN arrow again to stop scanning presets.
The radio only scans stations with a strong signal
that are in the selected band.
Setting Preset Stations
Up to 30 stations (six FM1, six FM2, and six AM,
six XM1 and six XM2 (if equipped)), can be
programmed on the six numbered pushbuttons, by
performing the following steps:
1. Turn the radio on.
2. Press BAND to select FM1, FM2, AM, or XM1
or XM2.
3. Tune in the desired station.
4. Press AUTO EQ to select the equalization.
5. Press and hold one of the six numbered
pushbuttons until a beep sounds. Whenever
that numbered pushbutton is pressed,
the station that was set returns and the
equalization that was selected is stored for
that pushbutton.
6. Repeat the steps for each pushbutton.
258

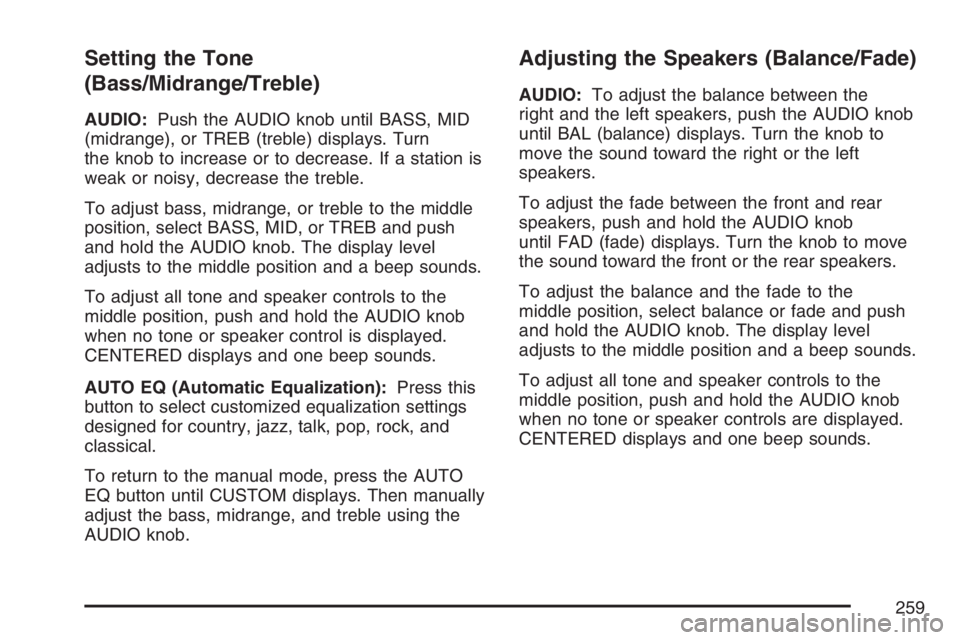

Setting the Tone
(Bass/Midrange/Treble)
AUDIO:Push the AUDIO knob until BASS, MID
(midrange), or TREB (treble) displays. Turn
the knob to increase or to decrease. If a station is
weak or noisy, decrease the treble.
To adjust bass, midrange, or treble to the middle
position, select BASS, MID, or TREB and push
and hold the AUDIO knob. The display level
adjusts to the middle position and a beep sounds.
To adjust all tone and speaker controls to the
middle position, push and hold the AUDIO knob
when no tone or speaker control is displayed.
CENTERED displays and one beep sounds.
AUTO EQ (Automatic Equalization):Press this
button to select customized equalization settings
designed for country, jazz, talk, pop, rock, and
classical.
To return to the manual mode, press the AUTO
EQ button until CUSTOM displays. Then manually
adjust the bass, midrange, and treble using the
AUDIO knob.
Adjusting the Speakers (Balance/Fade)
AUDIO:To adjust the balance between the
right and the left speakers, push the AUDIO knob
until BAL (balance) displays. Turn the knob to
move the sound toward the right or the left
speakers.
To adjust the fade between the front and rear
speakers, push and hold the AUDIO knob
until FAD (fade) displays. Turn the knob to move
the sound toward the front or the rear speakers.
To adjust the balance and the fade to the
middle position, select balance or fade and push
and hold the AUDIO knob. The display level
adjusts to the middle position and a beep sounds.
To adjust all tone and speaker controls to the
middle position, push and hold the AUDIO knob
when no tone or speaker controls are displayed.
CENTERED displays and one beep sounds.
259

Finding a Program Type (PTY) Station
(RDS and XM™)
To select and nd a desired PTY perform the
following:
1. Press the P-TYPE button to activate program
type select mode. P-TYPE and the last
selected PTY displays.
2. Turn the P-TYPE knob to select a PTY.
3. Once the desired PTY is displayed, press
either SEEK arrow to select and to take
you to the PTY’s rst station.
4. To go to another station within that PTY, and
the PTY is displayed, press either SEEK
arrow once. If the PTY is not displayed, press
either SEEK arrow twice to display the PTY
and then to go to another station.
5. Press P-TYPE to exit program type
select mode.
If PTY times out and is no longer on the
display, go back to Step 1.
If both P-TYPE and TRAF are on, the radio
searches for stations with the selected PTY and
traffic announcements.To use the PTY interrupt feature, press and hold
the P-TYPE button until a beep sounds on the
PTY you want to interrupt with. When selected, an
asterisk appears beside that PTY on the display.
You may select multiple interrupts, if desired.
When you are listening to a CD, the last selected
RDS station interrupts play, if that selected
program type format is broadcast.
SCAN:Scan the stations within a PTY by
performing the following:
1. Press the P-TYPE button to activate program
type select mode. P-TYPE and the last
selected PTY displays.
2. Turn the P-TYPE knob to select a PTY.
3. Once the desired PTY is displayed, press and
hold either SCAN arrow, and the radio begins
scanning the stations in the PTY.
4. Press either SCAN arrow to stop at a station.
If both P-TYPE and TRAF are on, the radio
scans for stations with the selected PTY and traffic
announcements.
260
