key PONTIAC GRAND PRIX 2007 Repair Manual

(d)Visually inspect wiper blades for wear or
cracking. Replace wiper blades that appear worn
or damaged or that streak or miss areas of
the windshield.
(e)Make sure the safety belt reminder light and all
belts, buckles, latch plates, retractors, and
anchorages are working properly. Look for any
other loose or damaged safety belt system parts.
If you see anything that might keep a safety
belt system from doing its job, have it repaired.
Have any torn or frayed safety belts replaced. Also
look for any opened or broken airbag coverings,
and have them repaired or replaced. The
airbag system does not need regular maintenance.
(f)Lubricate all key lock cylinders. Lubricate all
hinges and latches, including those for the
body doors, hood, secondary latch, pivots, spring
anchor, release pawl, rear compartment, glove
box door, console door, and any folding seat
hardware. More frequent lubrication may
be required when exposed to a corrosive
environment. Applying silicone grease on
weatherstrips with a clean cloth will make them
last longer, seal better, and not stick or squeak.
(g)If you drive regularly under dusty conditions,
the lter may require replacement more often.(h)Change automatic transaxle uid and lter if
the vehicle is mainly driven under one or more of
these conditions:
In heavy city traffic where the outside
temperature regularly reaches 90°F (32°C) or
higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police, or delivery
service.
(i)Drain, ush, and rell cooling system. This
service can be complex; you should have
your dealer perform this service. See Engine
Coolant on page 360 for what to use. Inspect
hoses. Clean radiator, condenser, pressure cap,
and ller neck. Pressure test the cooling
system and pressure cap.
(j)Check throttle system for interference or
binding and for damaged or missing parts. Replace
parts as needed. Replace any components that
have high effort or excessive wear. Do not
lubricate accelerator or cruise control cables.
478

Automatic Transaxle Shift Lock Control
System Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the
vehicle moves, you or others could be
injured.
1. Before you start, be sure you have enough
room around the vehicle. It should be parked
on a level surface.
2. Firmly apply the parking brake. SeeParking
Brake on page 115.
Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off, turn the ignition to RUN,
but do not start the engine. Without applying
the regular brake, try to move the shift
lever out of PARK (P) with normal effort. If the
shift lever moves out of PARK (P), contact
your GM Goodwrench
®dealer for service.
Ignition Transaxle Lock Check
While parked, and with the parking brake set, try
to turn the ignition to OFF in each shift lever
position.
The ignition should turn to OFF only when the
shift lever is in PARK (P).
The ignition key should come out only in OFF.
Contact your GM Goodwrench
®dealer if service
is required.
481

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name,
part number, or specication may be obtained from
your dealer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets
GM Standard GM6094M and
displays the American Petroleum
Institute Certied for Gasoline
Engines starburst symbol.
GM Goodwrench
®oil meets all the
requirements for your vehicle. To
determine the proper viscosity for
your vehicle’s engine, seeEngine
Oil on page 350.
Engine Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 360.
Hydraulic Brake
SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
WasherGM Optikleen
®Washer Solvent.
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
Usage Fluid/Lubricant
Automatic
TransaxleDEXRON®-VI Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
SuperchargerSupercharger Oil
(GM Part No. U.S. 12345982,
in Canada 10953513). See
Supercharger Oil on page 355.
Hood Latch
Assembly,
Secondary
Latch,
Pivots, Spring
Anchor, and
Release PawlLubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293,
in Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and Door
HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Weatherstrip
ConditioningWeatherstrip Lubricant
(GM Part No. U.S. 3634770,
in Canada 10953518) or
Dielectric Silicone Grease
(GM Part No. U.S. 12345579,
in Canada 992887).
483

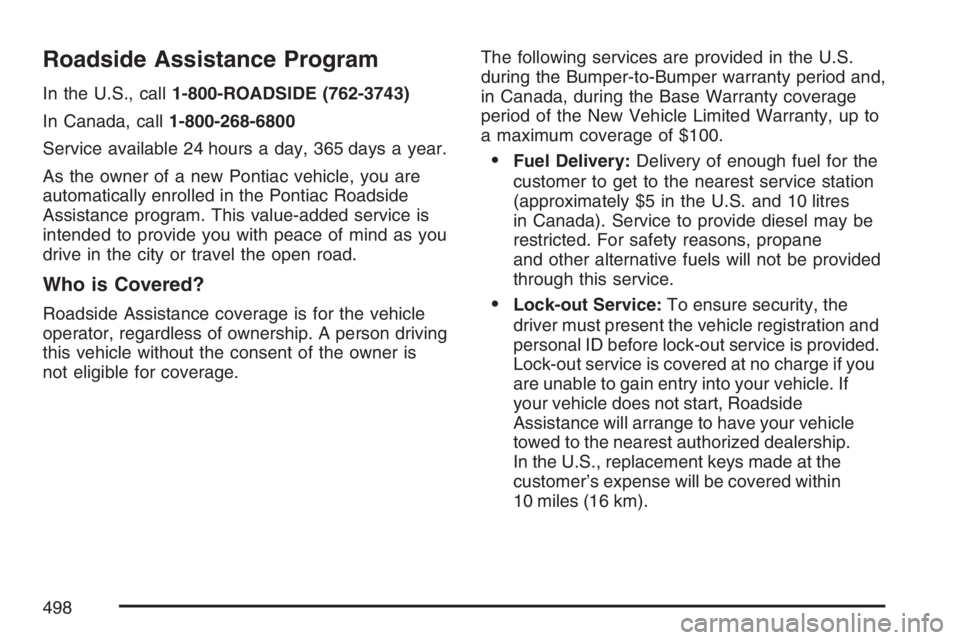

Roadside Assistance Program
In the U.S., call1-800-ROADSIDE (762-3743)
In Canada, call1-800-268-6800
Service available 24 hours a day, 365 days a year.
As the owner of a new Pontiac vehicle, you are
automatically enrolled in the Pontiac Roadside
Assistance program. This value-added service is
intended to provide you with peace of mind as you
drive in the city or travel the open road.
Who is Covered?
Roadside Assistance coverage is for the vehicle
operator, regardless of ownership. A person driving
this vehicle without the consent of the owner is
not eligible for coverage.The following services are provided in the U.S.
during the Bumper-to-Bumper warranty period and,
in Canada, during the Base Warranty coverage
period of the New Vehicle Limited Warranty, up to
a maximum coverage of $100.
Fuel Delivery:Delivery of enough fuel for the
customer to get to the nearest service station
(approximately $5 in the U.S. and 10 litres
in Canada). Service to provide diesel may be
restricted. For safety reasons, propane
and other alternative fuels will not be provided
through this service.
Lock-out Service:To ensure security, the
driver must present the vehicle registration and
personal ID before lock-out service is provided.
Lock-out service is covered at no charge if you
are unable to gain entry into your vehicle. If
your vehicle does not start, Roadside
Assistance will arrange to have your vehicle
towed to the nearest authorized dealership.
In the U.S., replacement keys made at the
customer’s expense will be covered within
10 miles (16 km).
498

H
Hazard Warning Flashers............................ 134
Head Restraints............................................ 13
Headlamp
Aiming..................................................... 388
Headlamp Wiring......................................... 459
Headlamps
Bulb Replacement.................................... 391
Daytime Running Lamps.......................... 145
Flash-to-Pass........................................... 137
Front Turn Signal, Parking and
Fog Lamps........................................... 394
Halogen Bulbs......................................... 391
Headlamps and Sidemarker Lamps.......... 391
High/Low Beam Changer......................... 137
On Reminder........................................... 145
Headlamps and Sidemarker Lamps............. 391
Head-Up Display (HUD).............................. 151
Heated Seats................................................ 10
Heater......................................................... 157
Heater......................................................... 162
Highbeam On Light..................................... 185
Highway Hypnosis....................................... 309
Hill and Mountain Roads............................. 309Hood
Checking Things Under............................ 344
Release................................................... 345
Horn............................................................ 134
How to Use This Manual ................................ 4
How to Wear Safety Belts Properly............... 22
I
Ignition Positions......................................... 105
Infants and Young Children, Restraints .......... 42
Ination - Tire Pressure............................... 408
Inator Kit, Tire........................................... 424
Instrument Panel
Overview.................................................. 132
Instrument Panel (I/P)
Brightness................................................ 147
Cluster..................................................... 169
Interior Lamps............................................. 146
J
Jump Starting.............................................. 382
K
Keyless Entry System................................... 86
Keys............................................................. 84
519

P
Paint, Damage............................................ 456
Park (P)
Shifting Into............................................. 116
Shifting Out of......................................... 117
Parking
Brake....................................................... 115
Over Things That Burn............................ 118
Passenger Airbag Status Indicator............... 173
Passenger Compartment Air Filter............... 166
Passenger Sensing System........................... 74
Passing....................................................... 299
PASS-Key
®III ............................................. 102
PASS-Key®III Operation............................. 103
Power
Accessory Outlet(s).................................. 156
Door Locks................................................ 94
Electrical System..................................... 459
Lumbar Controls.......................................... 9
Retained Accessory (RAP)....................... 106
Seat............................................................ 8
Steering Fluid.......................................... 376
Windows.................................................... 99
Pressure Cap.............................................. 364
Pretensioners, Safety Belt............................. 38
Programmable Automatic Door Locks............ 95
Q
Questions and Answers About Safety Belts ... 21
R
Radios........................................................ 233
Care of Your CD Player........................... 279
Care of Your CDs.................................... 279
Radio with CD................................235, 245
Radio with Six-Disc CD............................ 255
Setting the Time...................................... 234
Theft-Deterrent......................................... 277
Understanding Reception ......................... 278
Rear Assist Handle Reading Lamps............ 149
Rear Door Security Locks............................. 95
Rear Safety Belt Comfort Guides.................. 35
Rear Seat Passengers, Safety Belts.............. 32
Rearview Mirror with OnStar
®...................... 121
Reclining Seatbacks...................................... 10
Recommended Fluids and Lubricants.......... 483
Recreational Vehicle Towing........................ 322
Remote Keyless Entry (RKE) System............ 86
Remote Keyless Entry (RKE) System,
Operation................................................... 87
Removing the Flat Tire and Installing the
Spare Tire................................................ 438
522

Securing a Child Restraint
Rear Seat Position..................................... 58
Right Front Seat Position........................... 60
Service........................................................ 336
Accessories and Modications.................. 336
Adding Equipment to the Outside of Your
Vehicle................................................. 338
California Proposition 65 Warning............. 337
Doing Your Own Work............................. 337
Engine Soon Light................................... 180
Publications Ordering Information............. 511
Servicing Your Airbag-Equipped Vehicle......... 78
Setting the Time.......................................... 234
Sheet Metal Damage................................... 455
Shifting Into Park (P)................................... 116
Shifting Out of Park (P)............................... 117
Shoulder Belt Height Adjuster........................ 30
Signals, Turn and Lane-Change.................. 136
Spare Tire
Compact.................................................. 447
Installing.................................................. 438
Removing................................................ 436
Storing..................................................... 445
Specications, Capacities............................ 466
Speedometer............................................... 170
Split Folding Rear Seat................................. 16
StabiliTrak
®Plus System............................. 295Starting Your Engine................................... 107
Steering...................................................... 296
Steering Wheel Controls, Audio................... 277
Steering Wheel, Tilt Wheel.......................... 135
Storage Areas
Center Console Storage Area................... 127
Convenience Net..................................... 127
Cupholder(s)............................................ 126
Front Seat Storage Net............................ 127
Glove Box................................................ 126
Sunglasses Storage Compartment............ 127
Stuck in Sand, Mud, Ice, or Snow............... 316
Sun Visors.................................................. 100
Sunroof....................................................... 128
T
Tachometer................................................. 171
Taillamps
Turn Signal, and Stoplamps..................... 395
TCS Warning Light...................................... 178
Theft-Deterrent, Radio................................. 277
Theft-Deterrent Systems.............................. 100
Content Theft-Deterrent............................ 100
PASS-Key
®III .......................................... 102
PASS-Key®III Operation.......................... 103
524
