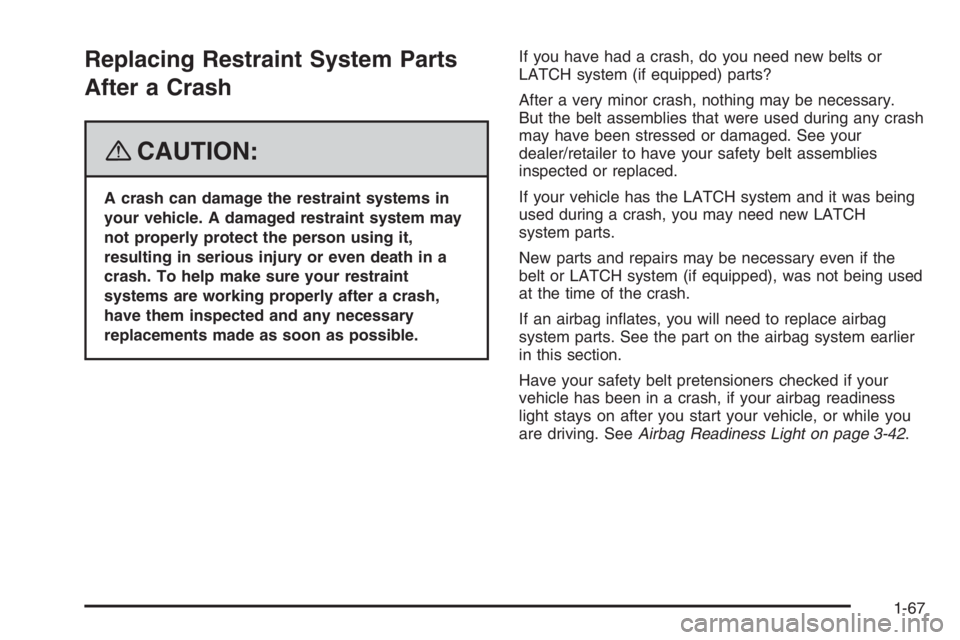

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems in
your vehicle. A damaged restraint system may
not properly protect the person using it,
resulting in serious injury or even death in a
crash. To help make sure your restraint
systems are working properly after a crash,
have them inspected and any necessary
replacements made as soon as possible.If you have had a crash, do you need new belts or
LATCH system (if equipped) parts?
After a very minor crash, nothing may be necessary.
But the belt assemblies that were used during any crash
may have been stressed or damaged. See your
dealer/retailer to have your safety belt assemblies
inspected or replaced.
If your vehicle has the LATCH system and it was being
used during a crash, you may need new LATCH
system parts.
New parts and repairs may be necessary even if the
belt or LATCH system (if equipped), was not being used
at the time of the crash.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system earlier
in this section.
Have your safety belt pretensioners checked if your
vehicle has been in a crash, if your airbag readiness
light stays on after you start your vehicle, or while you
are driving. SeeAirbag Readiness Light on page 3-42.
1-67

✍NOTES
1-68

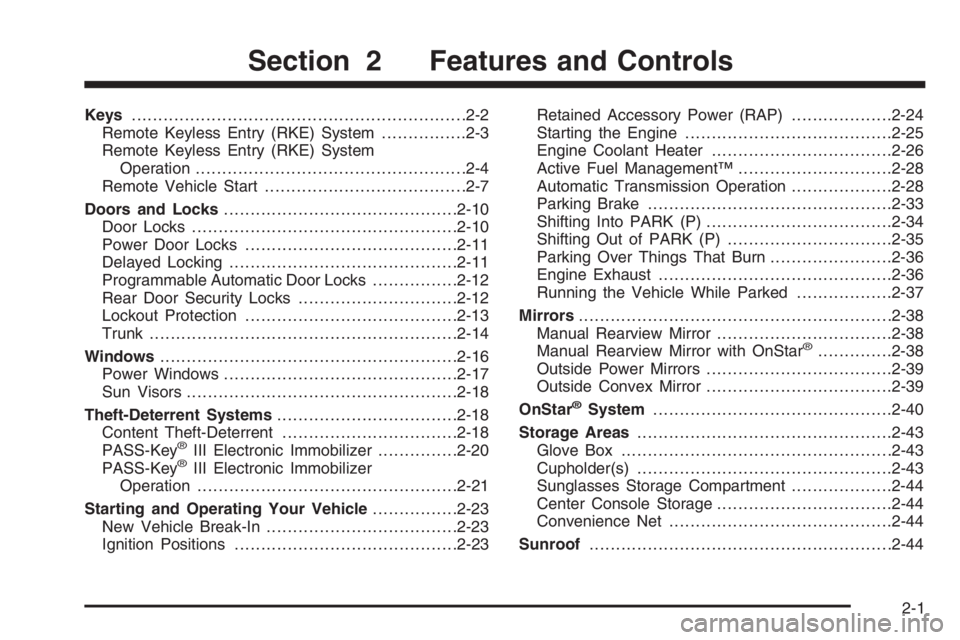

Keys...............................................................2-2
Remote Keyless Entry (RKE) System................2-3
Remote Keyless Entry (RKE) System
Operation...................................................2-4
Remote Vehicle Start......................................2-7
Doors and Locks............................................2-10
Door Locks..................................................2-10
Power Door Locks........................................2-11
Delayed Locking...........................................2-11
Programmable Automatic Door Locks................2-12
Rear Door Security Locks..............................2-12
Lockout Protection........................................2-13
Trunk..........................................................2-14
Windows........................................................2-16
Power Windows............................................2-17
Sun Visors...................................................2-18
Theft-Deterrent Systems..................................2-18
Content Theft-Deterrent.................................2-18
PASS-Key
®III Electronic Immobilizer...............2-20
PASS-Key®III Electronic Immobilizer
Operation.................................................2-21
Starting and Operating Your Vehicle................2-23
New Vehicle Break-In....................................2-23
Ignition Positions..........................................2-23Retained Accessory Power (RAP)...................2-24
Starting the Engine.......................................2-25
Engine Coolant Heater..................................2-26
Active Fuel Management™.............................2-28
Automatic Transmission Operation...................2-28
Parking Brake..............................................2-33
Shifting Into PARK (P)...................................2-34
Shifting Out of PARK (P)...............................2-35
Parking Over Things That Burn.......................2-36
Engine Exhaust............................................2-36
Running the Vehicle While Parked..................2-37
Mirrors...........................................................2-38
Manual Rearview Mirror.................................2-38
Manual Rearview Mirror with OnStar
®..............2-38
Outside Power Mirrors...................................2-39
Outside Convex Mirror...................................2-39
OnStar
®System.............................................2-40
Storage Areas................................................2-43
Glove Box...................................................2-43
Cupholder(s)................................................2-43
Sunglasses Storage Compartment...................2-44
Center Console Storage.................................2-44
Convenience Net..........................................2-44
Sunroof.........................................................2-44
Section 2 Features and Controls
2-1

Keys
{CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons, children
or others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
The windows will function with the keys in the
ignition and they could be seriously injured
or killed if caught in the path of a closing
window. Do not leave the keys in a vehicle
with children.
The key can be used for the ignition, as well as the
driver’s door lock and storage compartments.
The key comes with a bar coded tag attached to the
key ring. Keep this bar coded tag and give it to
your dealer/retailer if a new key needs to be made.
The vehicle has the PASS-Key
®III vehicle theft system.
The key has a transponder in the key head that
matches a decoder in the vehicle’s instrument panel.
2-2

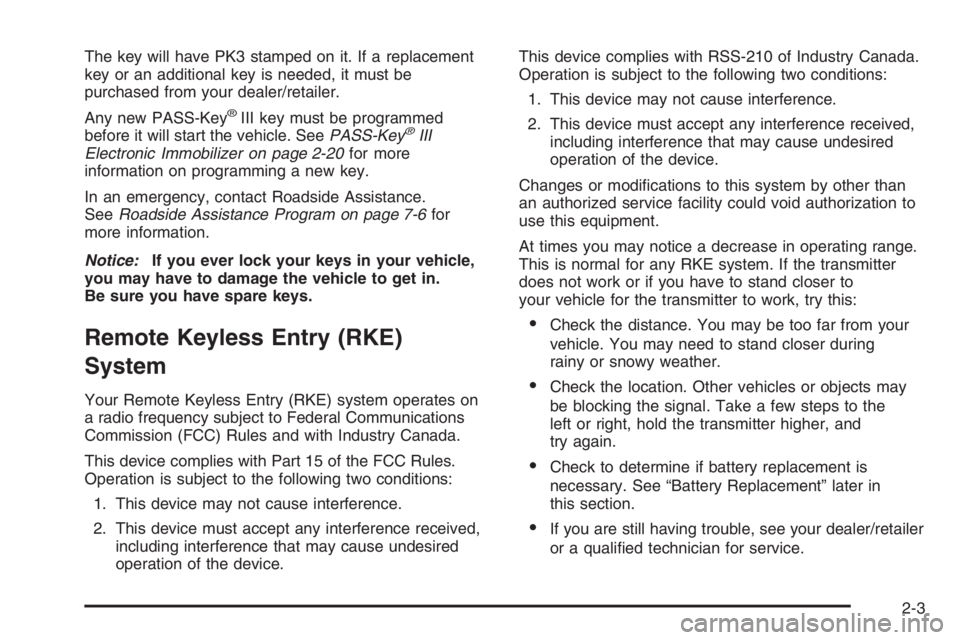

The key will have PK3 stamped on it. If a replacement
key or an additional key is needed, it must be
purchased from your dealer/retailer.
Any new PASS-Key
®III key must be programmed
before it will start the vehicle. SeePASS-Key®III
Electronic Immobilizer on page 2-20for more
information on programming a new key.
In an emergency, contact Roadside Assistance.
SeeRoadside Assistance Program on page 7-6for
more information.
Notice:If you ever lock your keys in your vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.
Remote Keyless Entry (RKE)
System
Your Remote Keyless Entry (RKE) system operates on
a radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in operating range.
This is normal for any RKE system. If the transmitter
does not work or if you have to stand closer to
your vehicle for the transmitter to work, try this:
Check the distance. You may be too far from your
vehicle. You may need to stand closer during
rainy or snowy weather.
Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
Check to determine if battery replacement is
necessary. See “Battery Replacement” later in
this section.
If you are still having trouble, see your dealer/retailer
or a qualied technician for service.
2-3

Remote Keyless Entry (RKE)
System Operation
The Remote Keyless Entry (RKE) transmitter functions
will work up to 195 feet (60 m) away, however, the
operating range may be less while the vehicle is running.
There are other conditions which can affect the
performance of the transmitter. SeeRemote Keyless
Entry (RKE) System on page 2-3.
The following functions
may be available with your
vehicle’s RKE system:
/(Remote Vehicle Start):If your vehicle has this
feature, press
/to start the engine from outside the
vehicle using the RKE transmitter. SeeRemote
Vehicle Start on page 2-7for additional information.
Q(Lock):PressQto lock all the doors. If enabled
through the Driver Information Center (DIC), the parking
lamps may ash once and the horn may chirp once
to indicate locking has occurred. See “REMOTE LOCKS
FEEDBACK” underDIC Operation and Displays
(Uplevel DIC with Trip Computer) on page 3-55orDIC
Operation and Displays (Base Level DIC) on page 3-62
for programming information.
Pressing
Qwill arm the content theft-deterrent system.
SeeContent Theft-Deterrent on page 2-18for more
information.
With Remote Start
Shown, Without Remote
Start Similar
2-4

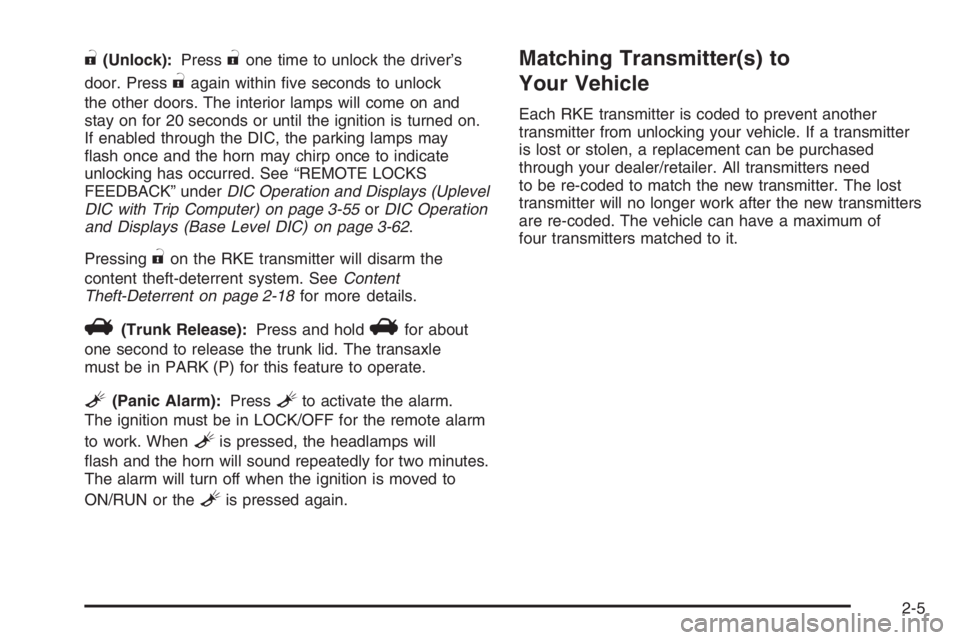

"(Unlock):Press"one time to unlock the driver’s
door. Press
"again within ve seconds to unlock
the other doors. The interior lamps will come on and
stay on for 20 seconds or until the ignition is turned on.
If enabled through the DIC, the parking lamps may
ash once and the horn may chirp once to indicate
unlocking has occurred. See “REMOTE LOCKS
FEEDBACK” underDIC Operation and Displays (Uplevel
DIC with Trip Computer) on page 3-55orDIC Operation
and Displays (Base Level DIC) on page 3-62.
Pressing
"on the RKE transmitter will disarm the
content theft-deterrent system. SeeContent
Theft-Deterrent on page 2-18for more details.
V(Trunk Release):Press and holdVfor about
one second to release the trunk lid. The transaxle
must be in PARK (P) for this feature to operate.
L(Panic Alarm):PressLto activate the alarm.
The ignition must be in LOCK/OFF for the remote alarm
to work. When
Lis pressed, the headlamps will
ash and the horn will sound repeatedly for two minutes.
The alarm will turn off when the ignition is moved to
ON/RUN or the
Lis pressed again.
Matching Transmitter(s) to
Your Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a transmitter
is lost or stolen, a replacement can be purchased
through your dealer/retailer. All transmitters need
to be re-coded to match the new transmitter. The lost
transmitter will no longer work after the new transmitters
are re-coded. The vehicle can have a maximum of
four transmitters matched to it.
2-5

Battery Replacement
Replace the battery if the KEY FOB BATTERY LOW
message displays in the DIC. See “KEY FOB BATTERY
LOW” underDIC Warnings and Messages on page 3-67
for additional information.
Notice:When replacing the battery, use care not
to touch any of the circuitry. Static from your
body transferred to these surfaces may damage
the transmitter.
To replace the battery in the RKE transmitter:
1. Separate the halves of the transmitter with a at,
thin object inserted into the notch on the side.
2. Remove the old battery. Do not use a metal object.
3. Insert the new battery, positive side facing up.
Replace with a CR2032 or equivalent battery.
4. Put the transmitter back together tightly.
2-6

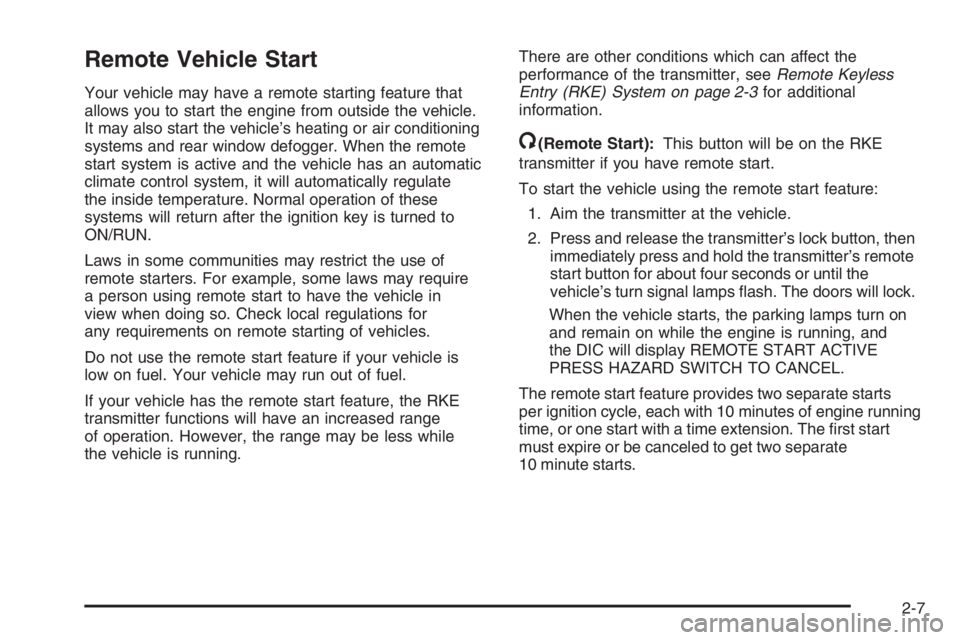

Remote Vehicle Start
Your vehicle may have a remote starting feature that
allows you to start the engine from outside the vehicle.
It may also start the vehicle’s heating or air conditioning
systems and rear window defogger. When the remote
start system is active and the vehicle has an automatic
climate control system, it will automatically regulate
the inside temperature. Normal operation of these
systems will return after the ignition key is turned to
ON/RUN.
Laws in some communities may restrict the use of
remote starters. For example, some laws may require
a person using remote start to have the vehicle in
view when doing so. Check local regulations for
any requirements on remote starting of vehicles.
Do not use the remote start feature if your vehicle is
low on fuel. Your vehicle may run out of fuel.
If your vehicle has the remote start feature, the RKE
transmitter functions will have an increased range
of operation. However, the range may be less while
the vehicle is running.There are other conditions which can affect the
performance of the transmitter, seeRemote Keyless
Entry (RKE) System on page 2-3for additional
information.
/(Remote Start):This button will be on the RKE
transmitter if you have remote start.
To start the vehicle using the remote start feature:
1. Aim the transmitter at the vehicle.
2. Press and release the transmitter’s lock button, then
immediately press and hold the transmitter’s remote
start button for about four seconds or until the
vehicle’s turn signal lamps ash. The doors will lock.
When the vehicle starts, the parking lamps turn on
and remain on while the engine is running, and
the DIC will display REMOTE START ACTIVE
PRESS HAZARD SWITCH TO CANCEL.
The remote start feature provides two separate starts
per ignition cycle, each with 10 minutes of engine running
time, or one start with a time extension. The rst start
must expire or be canceled to get two separate
10 minute starts.
2-7

If it is the rst remote start since the vehicle has been
driven, repeat the previous steps, while the engine is still
running, to extend the engine running time by 10 minutes
from the time you repeat the steps for remote starting.
The remote start running time can be extended one time
and only after the rst remote start.
After entering the vehicle during a remote start, insert
and turn the key to ON/RUN to drive the vehicle.
The engine will shut off automatically after 10 minutes,
unless a time extension has been done or the
vehicle’s key is inserted into the ignition switch and
turned to ON/RUN.
To manually shut off a remote start, do any of the
following.
Aim the RKE transmitter at the vehicle and press
and release the remote start button.
Turn on the hazard warning ashers.
Turn the ignition switch out of LOCK/OFF position
and then back to LOCK/OFF.
The parking lamps turn off to indicate the engine is off.After the engine has been started two times, or one
time with a time extension, the vehicle’s ignition must
be turned to ON/RUN using the key before the remote
start procedure can be used again. SeeIgnition
Positions on page 2-23for information regarding the
ignition positions on your vehicle.
The remote vehicle start feature will not operate if any
of the follow occur:
The remote start system is disabled through the DIC.
The vehicle’s key is in the ignition.
A door on the vehicle is open.
The vehicle’s hood is open.
The hazard warning ashers are on.
There is an emission control system malfunction.
The engine coolant temperature is too high.
The oil pressure is low.
Two remote vehicle starts, or one start with a time
extension, have already been provided for that
ignition cycle.
2-8
