Low Fuel Light
Ill If your fuel is low, a light
LOW
FUEL
will come on and stay on
until you add fuel. It will
also
come on for a few
seconds when you first turn
on the ignition as
a check to
show you it's working. If it
doesn't come on then, have
it fixed.
Trip Calculator (Option)
b INSTECON
fi FMp b AVGECON 3 8:8 8:8.8 MVGMPH'F L/lOOh/h%
b TRIP b AVG SPEED
ELAPSED
b FUELUSED
RANGE
When you start your engine, the trip calculator will
display a mode. A lighted arrow shows which mode
is displayed.
INST ECON: Shows your fuel economy when you
select this mode. This display will update every second
and cannot be reset.
AVG ECON: Shows your average fuel economy since
you last reset this mode.
AVG SPEED: Shows your average speed since you last
reset
this mode. It counts anly the time the engine is
running. The display will be updated every three
seconds until you select another mode.
FUEL USED: Shows the total amount of fuel used
since you last reset this mode. The amount can be
displayed in gallons or liters.
RANGE: Shows how much farther you can travel with
the fuel you have before refueling.
I€ there is less than
one-eighth of a tank,
LOFUEL will be displayed. If
the fuel level
is low enough, LOFUEL will show on
the display in all modes. The message will flash for
60 seconds and then stay on until you add more fuel.
You can't reset RANGE mode. Range is updated
automatically when you reset AVG
ECON.
2-57
ProCarManuals.com

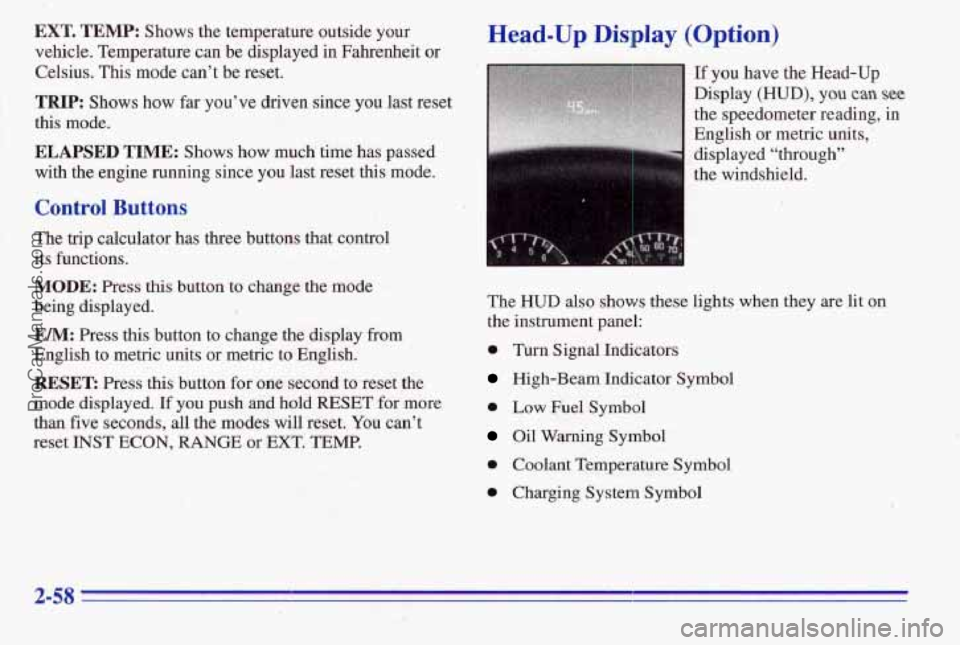

EXT. TEMP: Shows the temperature outside your
vehicle. Temperature can be displayed in Fahrenheit or
Celsius. This mode can’t be reset.
TRIP: Shows how far you’ve driv’en since you last reset
this mode.
ELAPSED TIME: Shows how much time has passed
with the engine running since you last reset this mode.
Control Buttons
The trip calculator has three buttons that control
its functions.
MODE: Press this button to change the mode
being displayed.
EM: Press this button to change the display from
English to metric units or metric to English.
RESET: Press this button for one second to reset the
mode displayed.
If you push and hold RESET for more
than five seconds, all the modes will reset. You can’t
reset
INST ECON, RANGE or EXT. TEMP.
Head-Up Display (Option)
If you have the Head-Up
Display
(HUD), you can see
the speedometer reading, in
English or metric units,
’
displayed “through”
the windshield.
The
HUD also shows these lights when they are lit on
the instrument panel:
0 Turn Signal Indicators
High-Beam Indicator Symbol
0 Low Fuel Symbol
Oil Warning Symbol
0 Coolant Temperature Symbol
0 Charging System Symbol
ProCarManuals.com

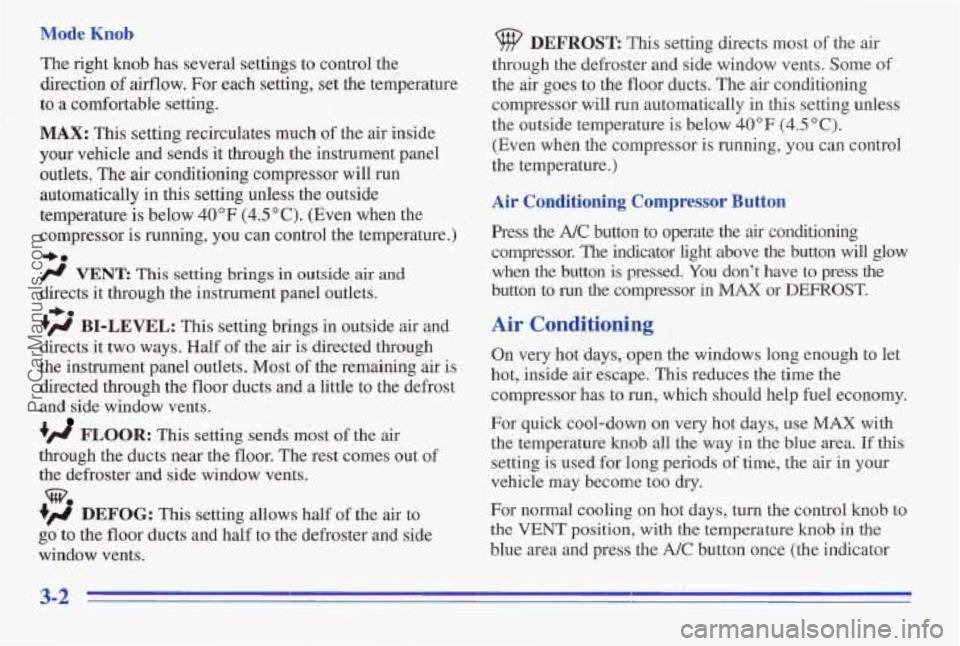

Mode Knob
The right knob has several settings to control the
direction of airflow. For each setting, set the temperature
to
a comfortable setting.
MAX: This setting recirculates much of the air inside
your vehicle
and sends it through the instrument panel
automatically
in this setting unless the outside
temperature is below
40°F (4.5"C). (Even when the
compressor
is running, you can control the temperature.)
+e
/J VENT This setting brings in outside air and
directs it through the instrument panel outlets.
+# BI-LEVEL: This setting brings in outside air and
directs
it two ways. Half of the air is directed through
the instrument panel outlets. Most
of the remaining air is
directed through the floor ducts and a little to the defrost
and side window vents.
?# FLOOR: This setting sends most of the air
through the ducts near the floor. The rest comes out of
the defroster. and side window vents.
sl3,
+# DEFOG: This setting allows half of the air to
go to the floor ducts and half to the defroster and side
window vents.
, outlets. The air conditioning compressor will run
+a
DEFROST: This setting directs most of the air
through the defroster and side window vents. Some of
the
air goes to the floor ducts, The air conditioning
compressor will run automatically in this setting unless
the outside temperature is below
40°F (4.5"C).
(Even when the compressor is running, you can control
the temperature.)
Air Conditioning Compressor Button
Press the A/C button to operate the air conditioning
compressor. The indicator light above the button will glow
when the button
is pressed. You don't have to press the
button to run the compressor in MAX or DEFROST.
Air Conditioning
On very hot-days, open the windows long enough to let
hot, inside air escape. This reduces the time
the
compressor has to run, which should help fuel economy.
For quick cool-down on very hot days, use MAX with
the temperature
knob all the way in the blue area. If this
setting is used for long periods of time, the
air in your
vehicle may become too
dry.
ror normal cooling on hot days, turn the control knob to
the
VENT position, with the temperature knob in the
blue area and press the A/C button once (the indicator
ProCarManuals.com

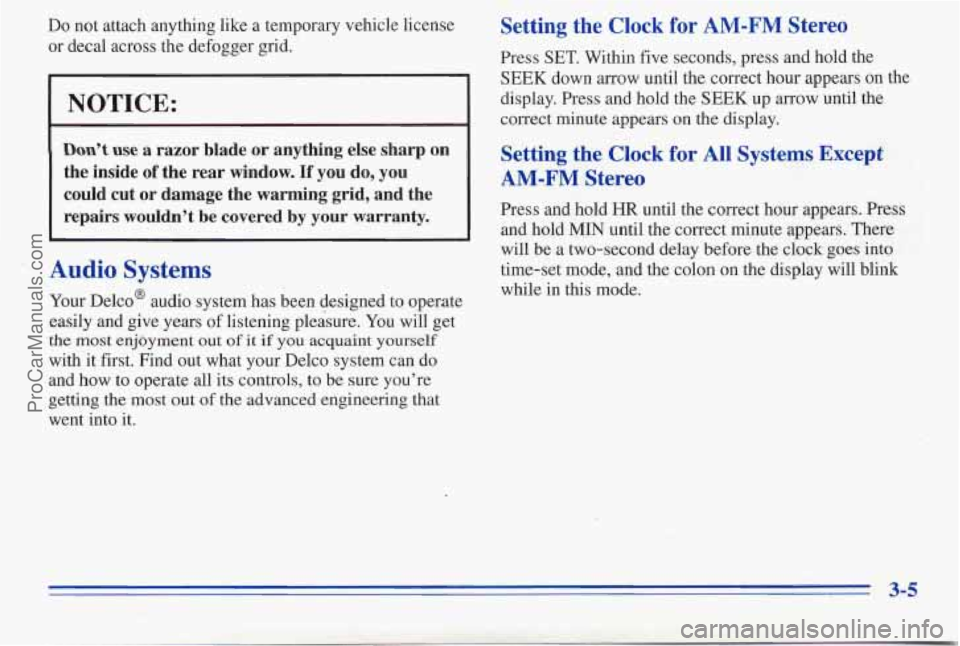

Do not attach anything like a temporary vehicle license
or decal across the defogger grid.
NOTICE:
Don’t use a razor blade or anything else sharp on
the inside of the rear window. If you do, you
could cut or damage the warming grid, and the
repairs wouldn’t be
covered by your warranty.
Audio Systems
Your Delco@ audio system has been designed to operate
easily and give years of listening pleasure. You will get
the most enjoyment out of it if you acquaint yourself
with’it first. Find out what your Delco system can do
and how to operate all its controls, to be sure you’re
getting the
most out of the advanced engineering that
went into it.
Setting the Clock for AM-FM Stereo
Press SET. Within five seconds, press and hold the
SEEK down arrow until the correct hour appears on the
display. Press and hold the
SEEK up arrow until the
correct minute appears on the display.
Setting the Clock for All Systems Except
AM-FM Stereo
Press and hold HR until the correct hour appears. Press
and hold
MIN until the correct minute appears. There
will be a two-second delay before the clock goes into
time-set mode, and the colon on the display will blink
while in this mode.
ProCarManuals.com

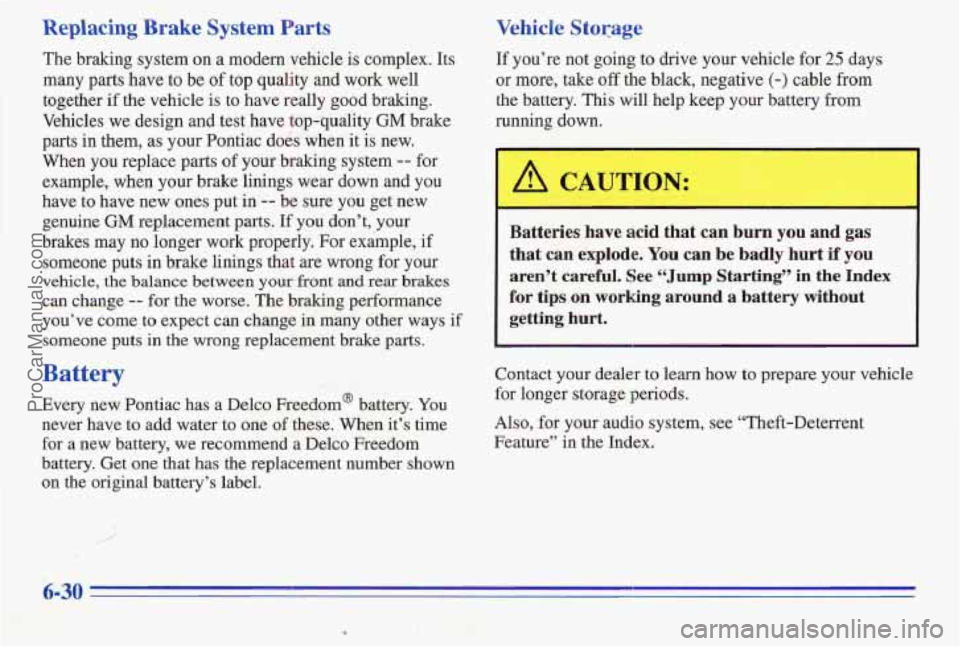

Replacing Brake System Parts
The braking system on a modern vehicle is complex. Its
many parts have to be
of top quality and work well
together
if the vehicle is to have really good braking.
Vehicles we design and test have top-quality
GM brake
parts
in them, as your Pontiac does when it is new.
When
you replace parts of your braking system -- for
example, when your brake linings wear down and you
have to have new ones put
in -- be sure you get new
genuine
GM replacement parts. If you don’t, your
brakes may no longer work properly. For example, if
someone puts in brake linings that are wrong for your
vehicle, the balance between your front and rear brakes
can change -- for the worse. The braking performance
you’ve come,to expect can change in many other ways if
someone puts
in the wrong replacement brake narts.
Battery
Every new Pontiac has a Delco Freedom@ battery. You
never have to add water to one of these. When it’s time
for
a new battery, we recommend a Delco Freedom
battery. Get one that has the replacement number shown
on the original battery’s @bel, : . :. .. .K . - ’ I- I c ’. :“I z: , ’ . .-
,. . - .. , .. .. .1 4
. . ..
.J:. - *-
.. - _1 . t .
Vehicle Storage
If you’re not going to drive your vehicle for 25 days
or more, take
off the black, negative (-) cable from
the battery. This will help keep your battery from
running down.
I I
I A CAUTION:
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
aren’t careful.
See “Jump Starting” in the Index
for tips on working around a battery without
getting
hurt.
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.
Also, for your audio system, see “Theft-Deterrent
Feature”
in the Index.
6-30
ProCarManuals.com

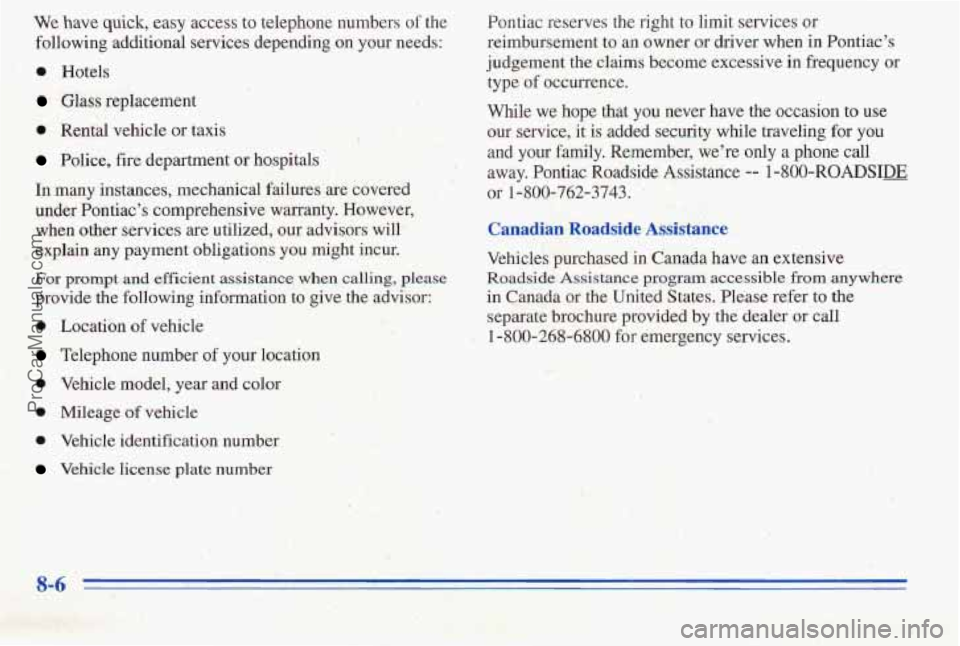

We have quick, easy access to telephone numbers of the
following additional services depending
on your needs:
’ 0 Hotels
Glass replacement
0 Rental vehicle or taxis
Police, fire department or haspitals
IJI many instances, mechanical failures are cdvered
under Pontiac’s comprehensive warranty. However,
when other services are utilized, our advisors will
explain any payment obligations
you might incur.
For prompt and efficient assistance when calling, please
provide the foliowing information to give the advisor
0 Locatiijn of vehicle
Telephone number of your location
0- Vehicle model, yeas and color Pontiac
reserves the right
to limit services or
reimbursement to an owner or driver when in Pontiac’s
judgement the
claims become excessive in frequency or
type of occurrence.
While we hope that you never have the occasion to use
ow service, it is added sear@ while traveling for you
and your family. Remember, we’re ody a phone call
away. Pontiac Roadside Assistance -- 1-800-ROADSDa
or 1-800-762-3743. .
Canadian - badside
Vehicles purchased in Canada have an extensive
Roaldside Assistance program accessible from anywhere
in Canada or the United States. Please refer to the
separate brochure provided by the dealer or caIl
1-800-258-6800 for emergency services.
0 Mileage of vehicle
0 Vehicle identification number
Vehicle license plate numbbr
8-6
ProCarManuals.com

Low Oil Level ............................. 2-55
Safety Belt Reminder ...................... 1-6, 2-46
Service Engine Soon .......................... 2-52
Loading
Your Vehicle ........................... 4-28
Automatic Door ............................... 2-4
. Cylinders ................................... 7-37
Key Lock Cylinder Service ...................... 7-37
Steering Column Lock Check ................... 7-39
Trunk ....................................... 2-7
Low Coolant Warning Light ...................... 2-51
Low Fuel Light
.............. ................. 2-57
Lubricants and Fluids ............................ 7-41
Lubrication Service,
Body ........................ 7-37
Oilwarning
................................. 2-54
Security .................................... 2-56
Locks
......................................... 2-3
Door ......................................... 2-5
PowerDoor .................................. 2-3
Window
.................................... 2-25
LowOilLevelLight
............................ 2-55
Maintenance. Normal Replacement Parts ........... 6-75
Maintenance Record ............................ 7-43
Maintenance Schedule
............................ 7-1
Long TripkIighway Definition
.................... 7-5
Long Trip/Highway Intervals ................ 7.5. 7-26
Owner Checks and Services ..................... 7-36
Recommended Fluids
and Lubricants ............. 7-41
Scheduled Maintenance Services
.................. 7-3
ShorCTrip/City Definition ....................... 7-4
Short Trip/City Intervals
.................... 7-4. 7-6
Periodic Maintenance Inspections .................. 7-40 Maintenance. Underbody
......................... 6-62
Maintenance When Trailer Towing ................. 4-37
Malfunction Indicator Lamp ...................... 2-52
Manual Front
Seat ............................... 1-1
Methanol ...................................... 6-3
Mhn ....................................... 2-37
ConvexOutside
.............................. 2-38
Inside Daymight Rearview
..................... 2~37
Manualoutside
.............................. 2-37
Power Outside
............................... 2-37
Visor Vanity
.......................... : ...... 2-41
MMT ...................................,..... 6-3
Mode Knob, Climate Control System ................. 3-2
MountainRoads ................................ 4-22
Multifunction Lever
............................. 2-26
Net. Convenience
.............................. 2-40
Neutral. Automatic Transaxle
..................... 2-15
New Vehicle "Break-In" ......................... 2-10
Nightvision
................................... 4-15
Odometer .................................... 2-45
Odometer.
Trip ................................. 2-45
Off-Road Recovery
............................. 4-11
Oil. Engine .................................... 6-10
Oil Warning Light .............................. 2-54
Overheating Engine ............................. 5-12
Owner Checks and Services ....................... 7-36
Owner Publications, Ordering ..................... 8-12
ProCarManuals.com
