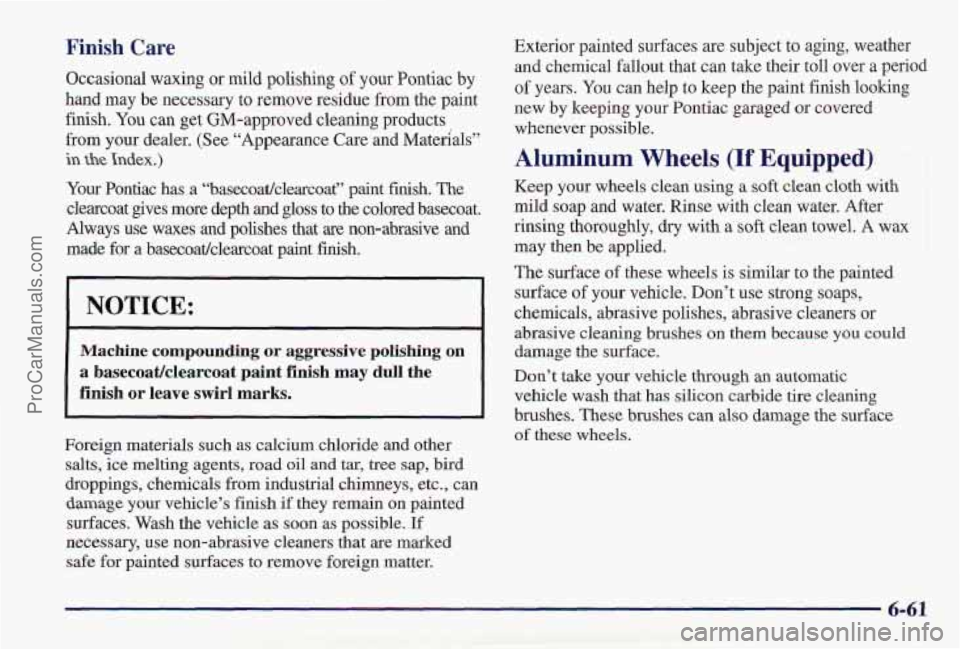

Finish Care
Occasional waxing or mild polishing of your Pontiac by
hand may be necessary to remove residue from the paint
finish. You can get GM-approved cleaning products
from your dealer. (See “Appearance Care and Materials”
in the Index.)
Your Pontiac has a “basecoatklearcoat” paint finish. The
clearcoat gives more depth and gloss to the colored basecoat.
Always use waxes and polishes that are non-abrasive and
made for
a basecoatklearcoat paint finish.
NOTICE:
Machine compounding or aggressive polishing on
a basecoat/clearcoat paint finish may dull the
finish or leave swirl marks.
Foreign materials such as calcium chloride and other
salts, ice melting agents, road oil and tar,
tree sap, bird
droppings, chemicals from industrial chimneys, etc., can
damage your vehicle’s finish if they remain on painted
surfaces. Wash the vehicle as soon as possible.
If
necessary, use non-abrasive cleaners that are marked
safe for painted surfaces to remove foreign matter. Exterior
painted surfaces are subject to aging, weather
and chemical fallout that can take their toll over a period
of years. You can help to keep the paint finish looking
new by keeping your Pontiac garaged
or covered
whenever possible.
Aluminum Wheels (If Equipped)
Keep your wheels clean using a soft clean cloth with
mild soap and water. Rinse with clean water. After
rinsing thoroughly, dry with
a soft clean towel. A wax
may then be applied.
The surface of these wheels
is similar to the painted
surface of your vehicle. Don’t use strong soaps,
chemicals, abrasive polishes, abrasive cleaners or
abrasive cleaning brushes on them because
you could
damage the surface.
Don’t take your vehicle through an automatic
vehicle wash that has silicon carbide tire cleaning
brushes. These brushes can also damage the surface
of these wheels.
6-61
ProCarManuals.com

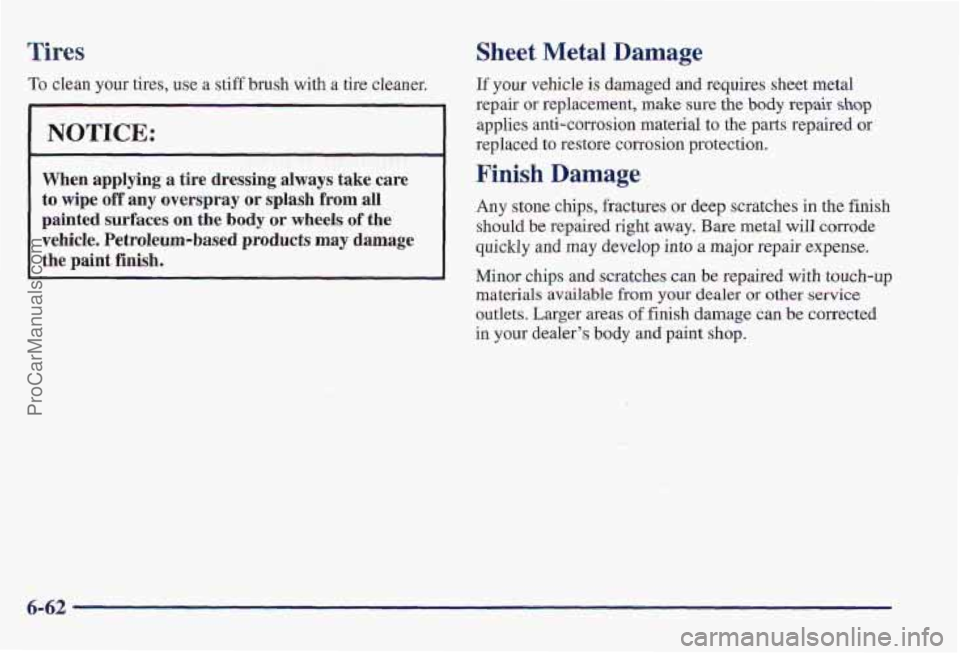

Tires Sheet Metal Damage
To clean your tires, use a stiff brush with a tire cleanler. If your vehicle is damaged and requires sheet metal
~ repair or replacement, make sure the body repair shop
NOTICE: applies anti-corrosion material to the parts repaired or
replaced to restore corrosion protection.
When applying a tire dressing always take care Finish Damage
~ . Any stone chips, fractures or deep scratches in the finish to wipe off any overspray or splash from all
painted surfaces on the body or wheels of the should be repaired right away. Bare metal will corrode
vehicle. Petroleum-based products may damage
the paint finish.
quickly and may develop into a major repair expense.
Minor chips and scratches can be repaired with touch-up
materials available
from your dealer or other service -
outlets. Larger areas of finish damage can be corrected
in your dealer’s
body and paint shop.
6-62
ProCarManuals.com

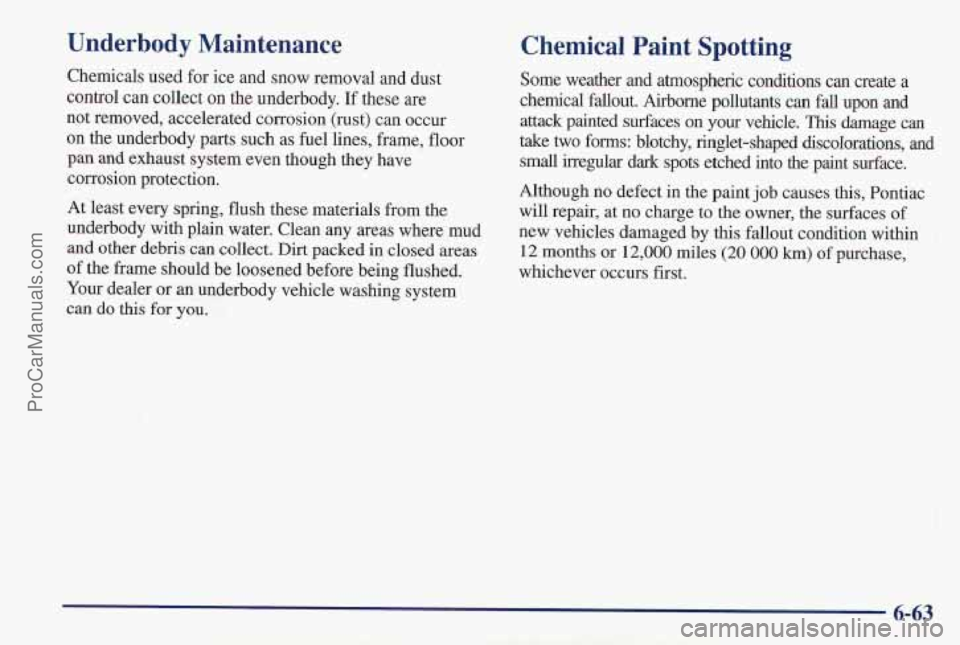

Underbody Maintenance
Chemicals used for ice and snow removal and dust
control can collect on the underbody.
If these are
not removed, accelerated corrosion (rust) can occur
on the underbody parts such as fuel lines, frame, floor
pan and exhaust system even though they have
corrosion protection.
At least every spring, flush these materials from the
underbody with plain water. Clean any areas where mud
and other debris can collect. Dirt packed in closed areas
of the frame should be loosened before being flushed.
Your dealer or an underbody vehicle washing system
can do this
for you.
Chemical Paint Spotting
Some weather and atmospheric conditions can create a
chemical fallout. Airborne pollutants can fall upon and
attack painted surfaces on your vehicle.
This damage can
take two forms: blotchy, ringlet-shaped discolorations, and small irregular dark spots etched into the paint surface.
Although
no defect in the paint job causes this, Pontiac
will repair, at
no charge to the owner, the surfaces of
new vehicles damaged by this fallout condition within
12 months or 12,000 miles (20 000 km) of purchase,
whichever occurs first.
ProCarManuals.com

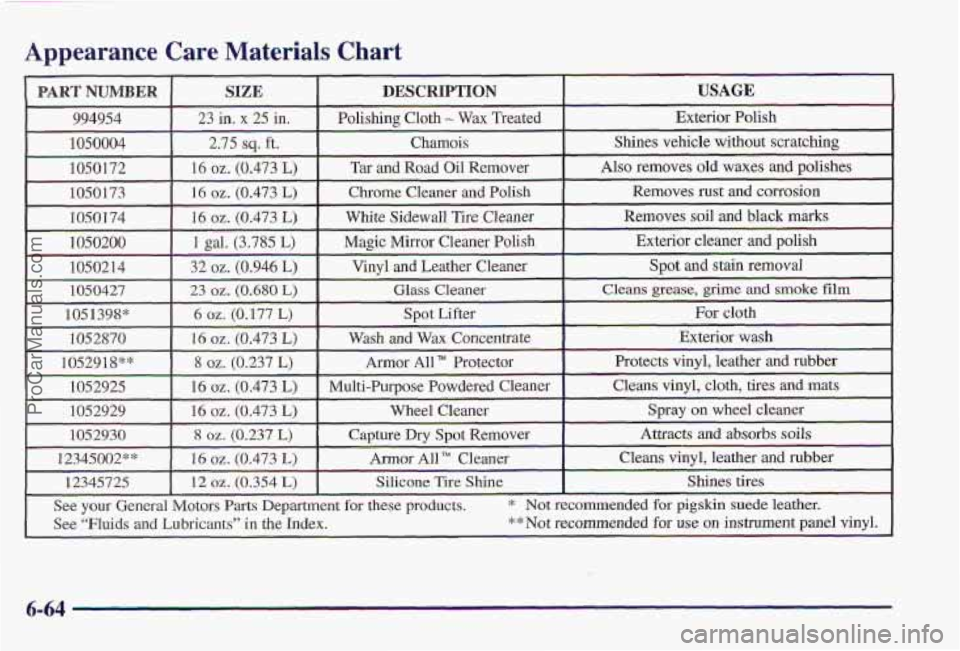

Appearance Care Materials Chart
ProCarManuals.com

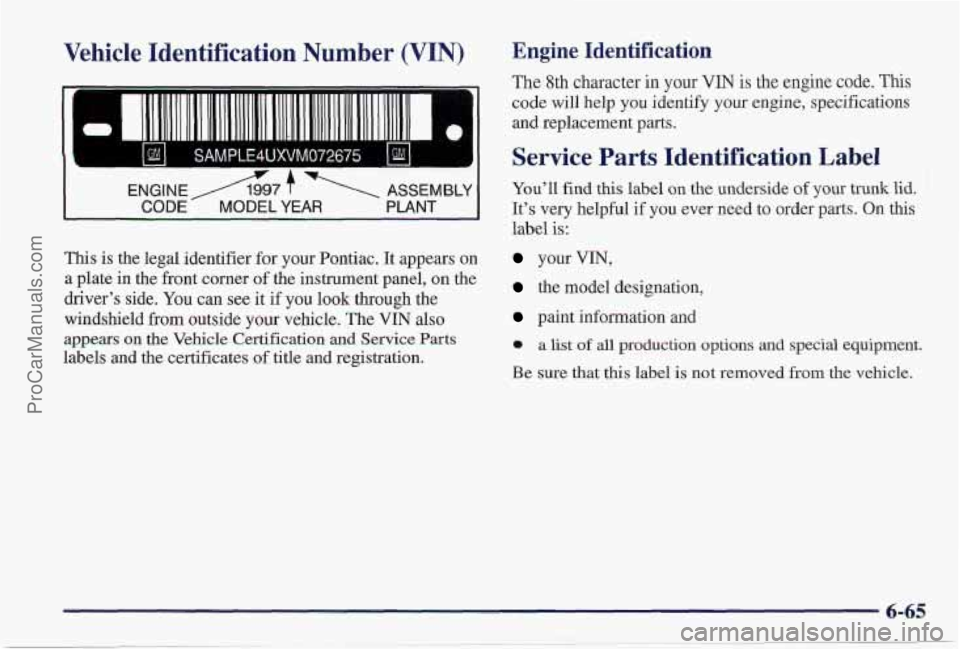

Vehicle Identification Number (VIN)
I
ENGINEA7 f ASSEMBLY
CODE MODEL YEAR PLANT
This is the legal identifier for your Pontiac. It appears on
a plate in the front corner
of the instrument panel, on the
driver’s side. You can see it if
you look through the
windshield
from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You’ll find this label on the underside of your trunk lid.
It’s very helpful if
you ever need to order parts. On this
label
is:
your VIN,
the model designation,
paint information and
0 a list of all production options and special equipment.
Be
sure that this label is not removed from the vehicle.
ProCarManuals.com

Electrical System
Add-on Electrical Equipment
NOTICE:
Don’t add anything electrical to your Pontiac
unless
you check with your dealer first. Some
electrical equipment can damage your vehicle
and
the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment
can keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your Pontiac, see “Servicing
Your Air Bag-Equipped Pontiac” in the Index.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected
from short circuits by a combination
of fuses, circuit
breakers, and fusible thermal links in the wiring itself.
This greatly reduces the chance
of fires caused by
electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken
or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating. Spare
fuses are located in the Instrument
Panel Electrical Center. See “Underhood Electrical
Center” in the Index.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the underhood electrical center.
An electrical overload
will cause the lamps to
go on and off, or in some cases
to remain off. If this happens, have your headlamp
system checked right away.
6-66
ProCarManuals.com

Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If
the overload is caused by some electrical problem, have
it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed.
Instrument Panel Fuse Block
r
Some fuses are in a fuse block located inside of the
glove
box behind a small bin, on the right side. To
open, pull on the plastic strap and pull the part out.
The fuse block is inside. On the back edge of this part
is
a fuse puller and a fuse usage chart. To use the fuse
puller, place
the wide end of the fuse puller over the
plastic end
of the fuse. Squeeze the ends over the fuse
and pull it out.
To reinstall the bin, position the lower end and rotate
the top into position. Press
on the sides until it snaps
into place.
ProCarManuals.com

FUSE USAGE CHARY 1
CIRCUIT MALL PGM
WIPER
K I HSEAT/LUM 1 R DEFOG I
SEAT
CIG LTR INTLAMP STOP LAMP AUXlCNSL
CD CHG
CRUISE I/P - lCiN TURN I I I I
ABS ETSl
ABS IGN
Printed in U.S.A.
Circuit Breaker
Description
HEADLMP
Headlamps
PWR SEAT Power Seat, Power Lumbar
PWR
WBO Power Windows
Fuse Description
MALL PGM Mall Module -- Program
MALL Mall
Module
Fuse
WIPER
STR WHL ILUM
STR WHL CTRL
SUNROOF
RADIO
PWR LOCK
HSEATLUM
R DEFOG
RAP
HAZARD
PWR MIR
HVAC HI
CIG LTR
INT LAMP
STOP LP
AUXKNSL
CD CHGR
Description
Wipers
Steering Wheel Illumination
Steering Wheel Control
Sunroof
Radio, Antenna
Mall Module
-- Power Locks
Heated Seats, Power
Lumbar
Rear Defog
Retained Accessory Power,
Mall Module
Hazard Flashers
Power Mirrors
HVAC Blower -- Hi
Cigarette Lighter,
ALDL, Floor
Console Auxiliary Outlet
Mall Module-Interior lamps
Stoplamp
Auxiliary Power, Overhead Console
CD Changer
6-68
ProCarManuals.com

Fuse
ECM
CRUISE
I/P-IGN SIR
TURN
ABS
BTSI
HVAC CTRL
DIC/HVAC
AB’S IGN
DRL
Description
ECM
Cruise Control ChimeMall Module, Cluster, Trip
Computer, Head-Up Display,
Brake-Transaxle Shift Interlock
Supplemental Inflatable Restraint
(Air
Bag)
Turn Signal
Anti-Lock Brakes
PRNDL, Brake-Transaxle Shift Interlock
Blower Control, HVAC
Rear Defog, HVAC, Driver
Information Center, Daytime
Running Lamps, Heated Seats
Anti-Lock Brakes Ignition
Daytime Running Lamps

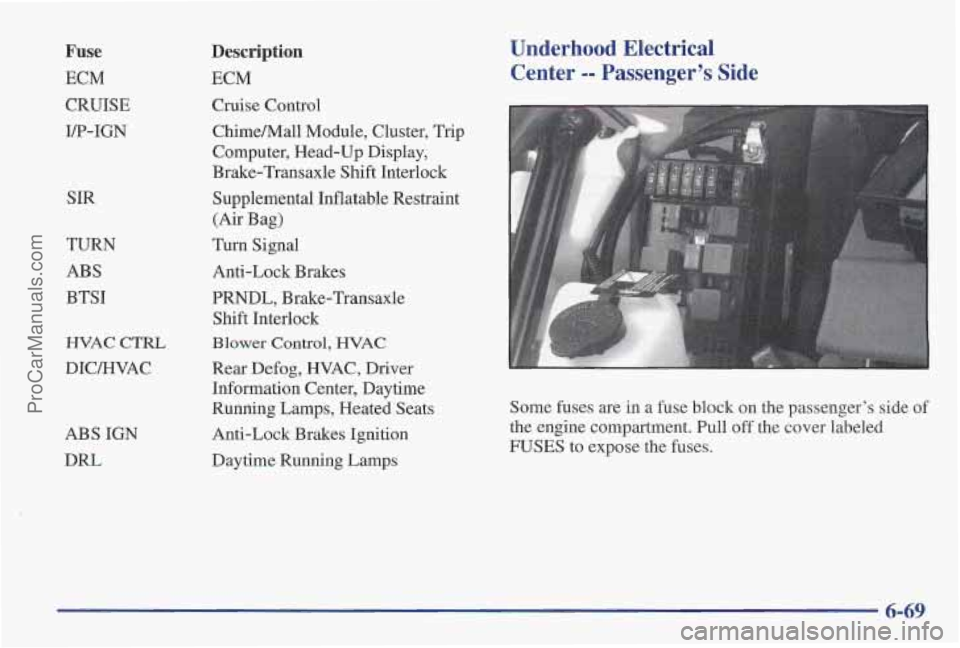

Underhood Electrical Center
-- Passenger’s Side
Some fuses are in a fuse block on the passenger’s side of
the engine compartment. Pull off the cover labeled
FUSES to expose the fuses.
6-69
ProCarManuals.com

0
COOL FAN 2
0
HEADLAMPS
0
BATT MAIN 2
IGN MAIN 1
0
COOL FAN 1
BATT MAIN 1
0
0
IGN MAIN 2
COOL FAN SERIES r-1 COOL FAN 2
, B/U LP , GLUTCi
TRANSMISSION
n FUELPUMP
0
FUEL PUMP
(SUPERCHARGER
FUEL PUMP SPEED
0
ION MODULE
0 ~1 ,AC-DIODE,
A/C
CLUTCH
El
COOL FAN 1
0
10
In
10
I_) HORN
FOG LP
, ECM I ,FUTURE I , FOG LF ,
0
0
n
6-70
