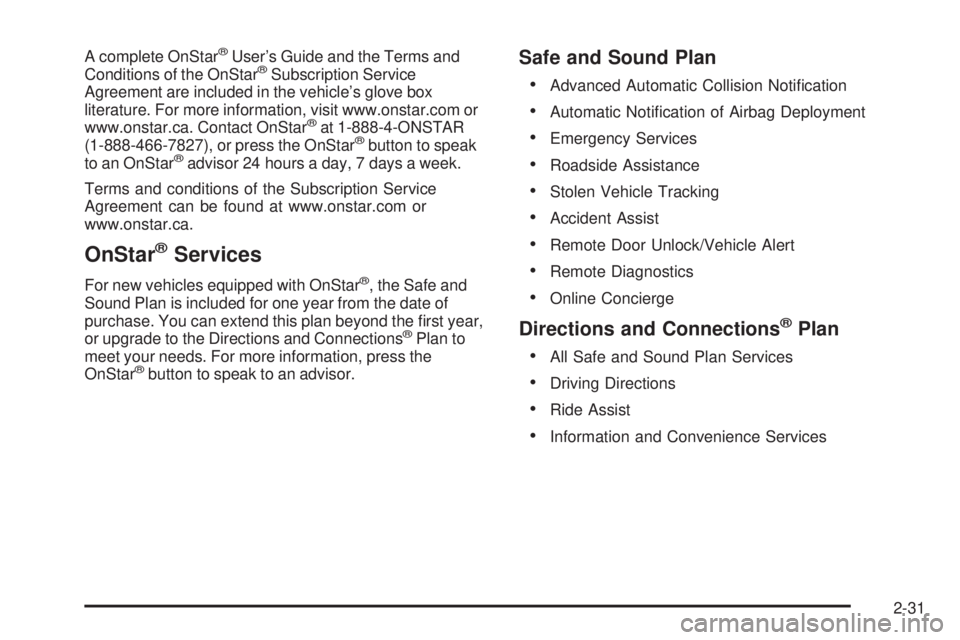

A complete OnStar®User’s Guide and the Terms and
Conditions of the OnStar®Subscription Service
Agreement are included in the vehicle’s glove box
literature. For more information, visit www.onstar.com or
www.onstar.ca. Contact OnStar
®at 1-888-4-ONSTAR
(1-888-466-7827), or press the OnStar®button to speak
to an OnStar®advisor 24 hours a day, 7 days a week.
Terms and conditions of the Subscription Service
Agreement can be found at www.onstar.com or
www.onstar.ca.
OnStar®Services
For new vehicles equipped with OnStar®, the Safe and
Sound Plan is included for one year from the date of
purchase. You can extend this plan beyond the rst year,
or upgrade to the Directions and Connections
®Plan to
meet your needs. For more information, press the
OnStar
®button to speak to an advisor.
Safe and Sound Plan

Advanced Automatic Collision Notication
Automatic Notication of Airbag Deployment
Emergency Services
Roadside Assistance
Stolen Vehicle Tracking
Accident Assist
Remote Door Unlock/Vehicle Alert
Remote Diagnostics
Online Concierge
Directions and Connections®Plan

All Safe and Sound Plan Services
Driving Directions
Ride Assist
Information and Convenience Services
2-31

OnStar®Personal Calling
As an OnStar®subscriber, the Personal Calling capability
allows you to make hands-free calls using a wireless
system that is integrated into the vehicle. Calls can be
placed nationwide using simple voice commands with no
additional contracts and no additional roaming charges.
To nd out more about OnStar
®Personal Calling, refer to
the OnStar®User’s Guide in the vehicle’s glove box, visit
www.onstar.com or www.onstar.ca, or speak to an
OnStar
®advisor by pressing the OnStar®button or
calling 1-888-4-ONSTAR (1-888-466-7827).
OnStar®Virtual Advisor
Your vehicle may have Virtual Advisor. It is a feature of
OnStar®Personal Calling that uses minutes to access
weather, local traffic reports, and stock quotes. By
pressing the phone button and giving a few simple
voice commands, you can browse through the
various topics. Customize your information prole at
www.myonstar.com. See the OnStar
®User’s Guide
for more information.
OnStar®Steering Wheel Controls
Your vehicle may be
equipped with a Talk/Mute
button that can be used
to interact with OnStar
®.
See the Audio Steering
Wheel Control section for
your specic vehicle
operation.
When calling into voice mail systems, or to dial directory
numbers, press this button once, wait for the response,
say the number(s) to be dialed, wait for the number(s)
to be repeated and then say “dial”. See the OnStar
®
User’s Guide for more information.
2-32

Storage Areas
Glove Box
To open the glove box, lift up on the lever. Use key to
lock and unlock.
Cupholder(s)
Your vehicle has a cupholder on the passenger side of
the center console. To access it, press and release
the forward section of the cupholder and pull out.
Center Console Storage Area
There is also an upright center console storage area
between the seatbacks. To open the storage area, press
and release the button near the top so it extends out.
Then, turn the button in either direction to unlatch the lid
and pull the console lid down. After you close the lid,
press the release button back in.
Convertible Top
For care and cleaning of the convertible top, see
Convertible Top on page 5-74under “Service and
Appearance Care”. High pressure car washes may
cause water to enter the vehicle.
The following procedures explain the proper operation
of the manual convertible top.
2-33

The parts of the manual convertible top that are used
when lowering and raising it are:
A. Front Edge
B. Side Edge
C. Rear Buttresses
D. Trunk
Notice:Leaving the convertible top down and
exposing the interior of your vehicle to outdoor
conditions may cause damage. Always close
the convertible top if leaving your vehicle outdoors.
Notice:Lowering the convertible top when there are
objects in the storage area could damage it or break
the glass rear window. Always verify that no objects
are in the storage area before lowering the
convertible top.Notice:Lowering the top if it is damp, wet, or dirty
can cause stains, mildew, and damage to the inside
of your vehicle. Dry off the top before lowering it.
Notice:If you lower the top on your vehicle in cold
weather (0°F/-18°C or lower), you may damage top
components. Do not lower the top in cold weather.
Notice:If you raise or lower the convertible top
while the vehicle is in motion, you could damage the
top or the top mechanism. The repairs would not be
covered by your warranty. Always put an automatic
transmission in PARK (P) or a manual transmission
in FIRST (1) or REVERSE (R), turn the ignition off and
engage the parking brake before raising or lowering
the convertible top.
{CAUTION:
Moving parts of the convertible top can be
dangerous. People can be injured by the
convertible top and its mechanism. Keep
people away from your vehicle when you are
lowering or raising the top.
2-34

Lowering the Manual Convertible Top
1. Park on a level surface and set the parking
brake. Shift an automatic transmission into
PARK (P). Shift a manual transmission into
FIRST (1) or REVERSE (R).
2. Make sure the ignition is turned off.
3. Push the trunk release button located in the glove
box, or on the remote keyless entry, if equipped.
4. Lift the trunk.
5. The convertible top front latch, located above the
inside rearview mirror, must be unlatched. Pull the
latch down and turn it counterclockwise to unlatch it.
Leave the latch open and rotated to prevent damage.6. Pull rearward on the side edge (B) of the convertible
top and pull it off of the windshield frame.
7. Push the convertible top down into the trunk (D).
8. After the top is stored, apply one even push, as
shown, on the convertible top to ensure that the
top is fully retracted and securely stored.
9. Close the trunk (D) by pressing down on it with a
swift, rm motion.
2-35

Raising the Manual Convertible Top
1. Park on a level surface, set the parking brake rmly
and shift an automatic transmission into PARK (P).
Shift a manual transmission into FIRST (1) or
REVERSE (R).
2. Make sure the ignition is turned off, and lower the
windows.
3. Push the trunk release button located in the glove
box, or on the remote keyless entry, if equipped.
4. Lift the trunk.
5. Pull the convertible top forward by rmly gripping the
side edge (B) and applying a brisk upward and
forward motion to get the top in the pull-up position.6. Close the trunk (D) by pushing it down with a swift,
rm motion.
7. At the rear edge of the convertible top, press down
on the two buttresses (C) to latch them into the top
of the trunk.
8. Pull the front edge (A) of the convertible top forward
from the outside of the vehicle, or push the front
edge (A) of the convertible top forward from the
inside of the vehicle.
9. Turn the top front latch handle clockwise to latch
the convertible top.
2-36

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Other Warning Devices...................................3-6
Horn.............................................................3-6
Tilt Wheel.....................................................3-6
Turn Signal/Multifunction Lever.........................3-7
Turn and Lane-Change Signals........................3-8
Headlamp High/Low-Beam Changer..................3-8
Flash-to-Pass.................................................3-8
Windshield Wipers..........................................3-9
Windshield Washer.......................................3-10
Cruise Control..............................................3-10
Headlamps..................................................3-13
Headlamps on Reminder................................3-14
Daytime Running Lamps (DRL).......................3-14
Fog Lamps..................................................3-14
Instrument Panel Brightness...........................3-15
Entry/Exit Lighting.........................................3-15
Mirror Reading Lamps...................................3-15
Battery Run-Down Protection..........................3-15
Accessory Power Outlet(s).............................3-15
Ashtray(s) and Cigarette Lighter......................3-16Climate Controls............................................3-17
Climate Control System.................................3-17
Outlet Adjustment.........................................3-20
Warning Lights, Gages, and Indicators............3-20
Instrument Panel Cluster................................3-21
Speedometer and Odometer...........................3-22
Tachometer.................................................3-22
Safety Belt Reminder Light.............................3-23
Passenger Safety Belt Reminder Light.............3-23
Airbag Readiness Light..................................3-24
Passenger Airbag Status Indicator...................3-25
Charging System Light..................................3-27
Brake System Warning Light..........................3-27
Anti-Lock Brake System Warning Light.............3-28
Engine Coolant Temperature Warning Light......3-29
Low Coolant Warning Light............................3-29
Malfunction Indicator Lamp.............................3-30
Oil Pressure Light.........................................3-32
Security Light...............................................3-33
Reduced Engine Power Light.........................3-34
Highbeam On Light.......................................3-34
Section 3 Instrument Panel
3-1

Service Vehicle Soon Light............................3-34
Fuel Gage...................................................3-35
Low Fuel Warning Light.................................3-35
Driver Information Center (DIC).......................3-36
DIC Operation and Displays...........................3-36
DIC Warnings and Messages.........................3-38
DIC Vehicle Personalization............................3-40
Audio System(s).............................................3-45
Setting the Time (Without Date Display)...........3-47
Setting the Time (With Date Display)...............3-47Radio with CD (Base)...................................3-48
Radio with CD (MP3)....................................3-53
Theft-Deterrent Feature..................................3-68
Audio Steering Wheel Controls.......................3-69
Radio Reception...........................................3-70
Care of Your CDs.........................................3-71
Care of the CD Player...................................3-71
Fixed Mast Antenna......................................3-71
XM™ Satellite Radio Antenna System
(Trunk Mounted)........................................3-71
Section 3 Instrument Panel
3-2

✍NOTES
3-3

Instrument Panel Overview
3-4
