set clock PONTIAC TORRENT 2009 User Guide

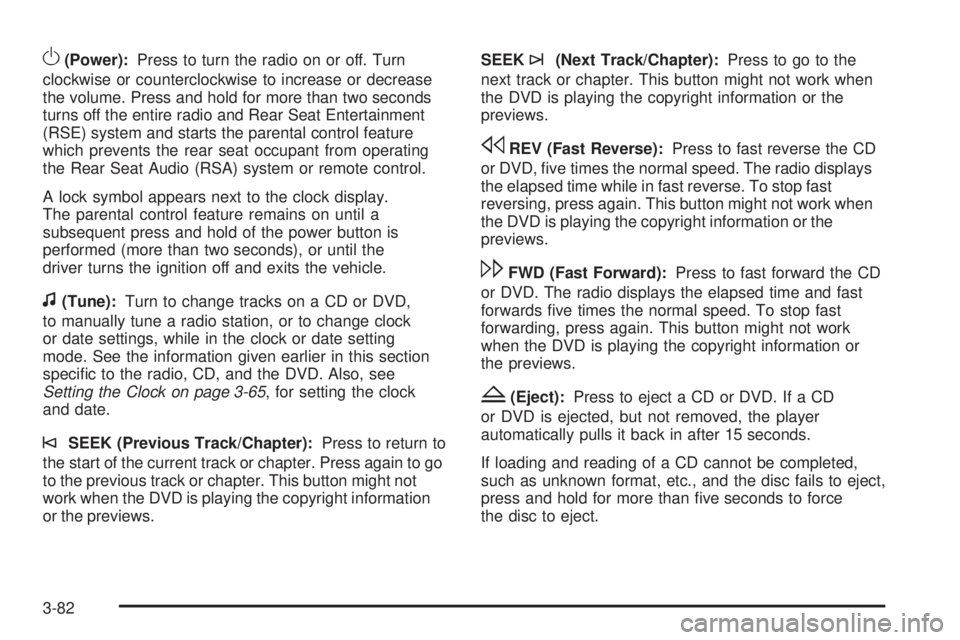

O(Power):Press to turn the radio on or off. Turn
clockwise or counterclockwise to increase or decrease
the volume. Press and hold for more than two seconds
turns off the entire radio and Rear Seat Entertainment
(RSE) system and starts the parental control feature
which prevents the rear seat occupant from operating
the Rear Seat Audio (RSA) system or remote control.
A lock symbol appears next to the clock display.
The parental control feature remains on until a
subsequent press and hold of the power button is
performed (more than two seconds), or until the
driver turns the ignition off and exits the vehicle.
f(Tune):Turn to change tracks on a CD or DVD,
to manually tune a radio station, or to change clock
or date settings, while in the clock or date setting
mode. See the information given earlier in this section
specic to the radio, CD, and the DVD. Also, see
Setting the Clock on page 3-65, for setting the clock
and date.
©SEEK (Previous Track/Chapter):Press to return to
the start of the current track or chapter. Press again to go
to the previous track or chapter. This button might not
work when the DVD is playing the copyright information
or the previews.SEEK
¨(Next Track/Chapter):Press to go to the
next track or chapter. This button might not work when
the DVD is playing the copyright information or the
previews.
sREV (Fast Reverse):Press to fast reverse the CD
or DVD, ve times the normal speed. The radio displays
the elapsed time while in fast reverse. To stop fast
reversing, press again. This button might not work when
the DVD is playing the copyright information or the
previews.
\FWD (Fast Forward):Press to fast forward the CD
or DVD. The radio displays the elapsed time and fast
forwards ve times the normal speed. To stop fast
forwarding, press again. This button might not work
when the DVD is playing the copyright information or
the previews.
Z(Eject):Press to eject a CD or DVD. If a CD
or DVD is ejected, but not removed, the player
automatically pulls it back in after 15 seconds.
If loading and reading of a CD cannot be completed,
such as unknown format, etc., and the disc fails to eject,
press and hold for more than ve seconds to force
the disc to eject.
3-82

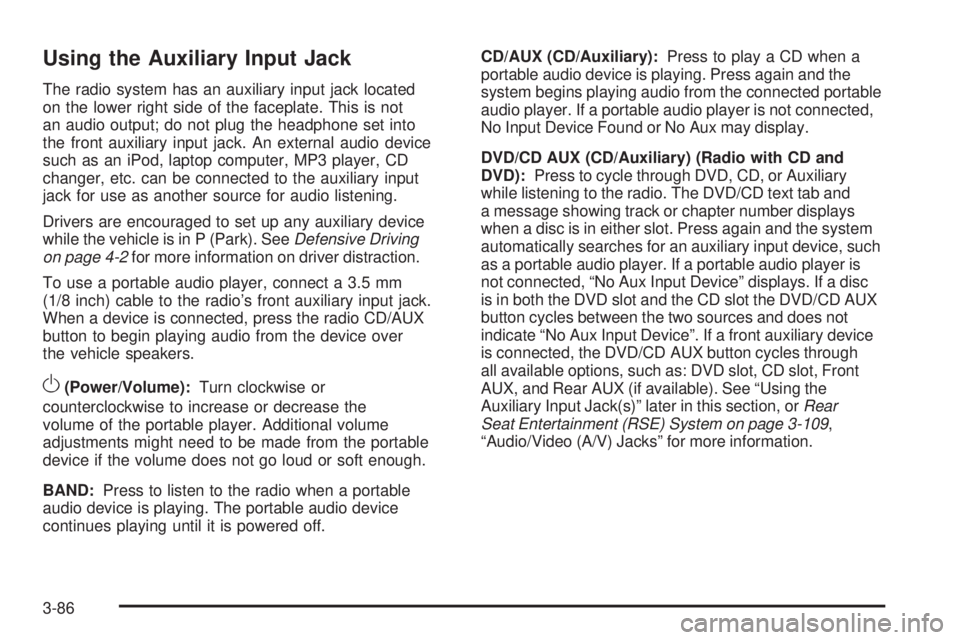

Using the Auxiliary Input Jack
The radio system has an auxiliary input jack located
on the lower right side of the faceplate. This is not
an audio output; do not plug the headphone set into
the front auxiliary input jack. An external audio device
such as an iPod, laptop computer, MP3 player, CD
changer, etc. can be connected to the auxiliary input
jack for use as another source for audio listening.
Drivers are encouraged to set up any auxiliary device
while the vehicle is in P (Park). SeeDefensive Driving
on page 4-2for more information on driver distraction.
To use a portable audio player, connect a 3.5 mm
(1/8 inch) cable to the radio’s front auxiliary input jack.
When a device is connected, press the radio CD/AUX
button to begin playing audio from the device over
the vehicle speakers.
O(Power/Volume):Turn clockwise or
counterclockwise to increase or decrease the
volume of the portable player. Additional volume
adjustments might need to be made from the portable
device if the volume does not go loud or soft enough.
BAND:Press to listen to the radio when a portable
audio device is playing. The portable audio device
continues playing until it is powered off.CD/AUX (CD/Auxiliary):Press to play a CD when a
portable audio device is playing. Press again and the
system begins playing audio from the connected portable
audio player. If a portable audio player is not connected,
No Input Device Found or No Aux may display.
DVD/CD AUX (CD/Auxiliary) (Radio with CD and
DVD):Press to cycle through DVD, CD, or Auxiliary
while listening to the radio. The DVD/CD text tab and
a message showing track or chapter number displays
when a disc is in either slot. Press again and the system
automatically searches for an auxiliary input device, such
as a portable audio player. If a portable audio player is
not connected, “No Aux Input Device” displays. If a disc
is in both the DVD slot and the CD slot the DVD/CD AUX
button cycles between the two sources and does not
indicate “No Aux Input Device”. If a front auxiliary device
is connected, the DVD/CD AUX button cycles through
all available options, such as: DVD slot, CD slot, Front
AUX, and Rear AUX (if available). See “Using the
Auxiliary Input Jack(s)” later in this section, orRear
Seat Entertainment (RSE) System on page 3-109,
“Audio/Video (A/V) Jacks” for more information.
3-86

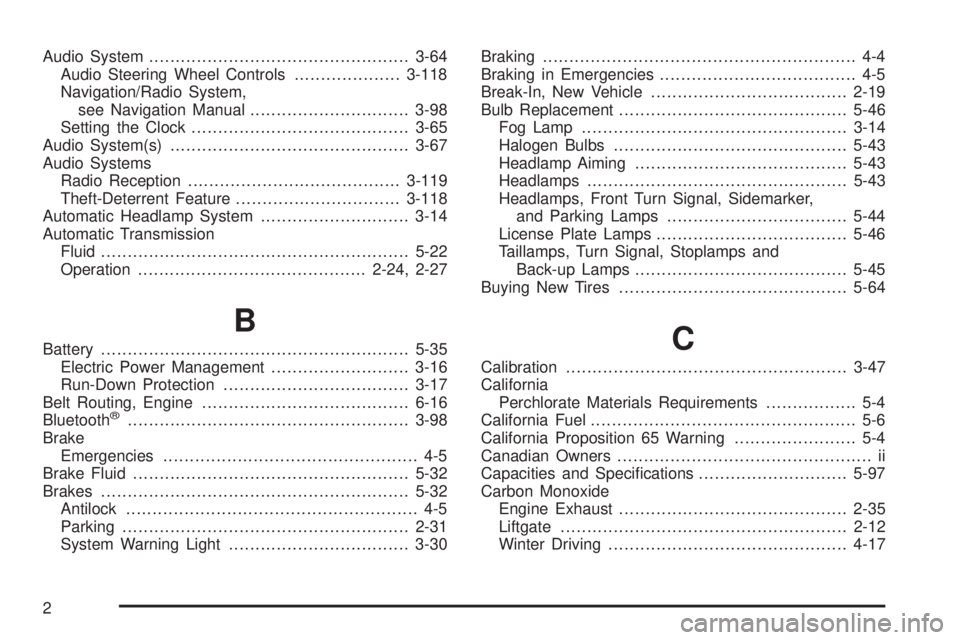

Audio System.................................................3-64
Audio Steering Wheel Controls....................3-118
Navigation/Radio System,
see Navigation Manual..............................3-98
Setting the Clock.........................................3-65
Audio System(s).............................................3-67
Audio Systems
Radio Reception........................................3-119
Theft-Deterrent Feature...............................3-118
Automatic Headlamp System............................3-14
Automatic Transmission
Fluid..........................................................5-22
Operation...........................................2-24, 2-27
B
Battery..........................................................5-35
Electric Power Management..........................3-16
Run-Down Protection...................................3-17
Belt Routing, Engine.......................................6-16
Bluetooth
®.....................................................3-98
Brake
Emergencies................................................ 4-5
Brake Fluid....................................................5-32
Brakes..........................................................5-32
Antilock....................................................... 4-5
Parking......................................................2-31
System Warning Light..................................3-30Braking........................................................... 4-4
Braking in Emergencies..................................... 4-5
Break-In, New Vehicle.....................................2-19
Bulb Replacement...........................................5-46
Fog Lamp ..................................................3-14
Halogen Bulbs............................................5-43
Headlamp Aiming........................................5-43
Headlamps.................................................5-43
Headlamps, Front Turn Signal, Sidemarker,
and Parking Lamps..................................5-44
License Plate Lamps....................................5-46
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps........................................5-45
Buying New Tires...........................................5-64
C
Calibration.....................................................3-47
California
Perchlorate Materials Requirements................. 5-4
California Fuel.................................................. 5-6
California Proposition 65 Warning....................... 5-4
Canadian Owners................................................ ii
Capacities and Specications............................5-97
Carbon Monoxide
Engine Exhaust...........................................2-35
Liftgate......................................................2-12
Winter Driving.............................................4-17
2

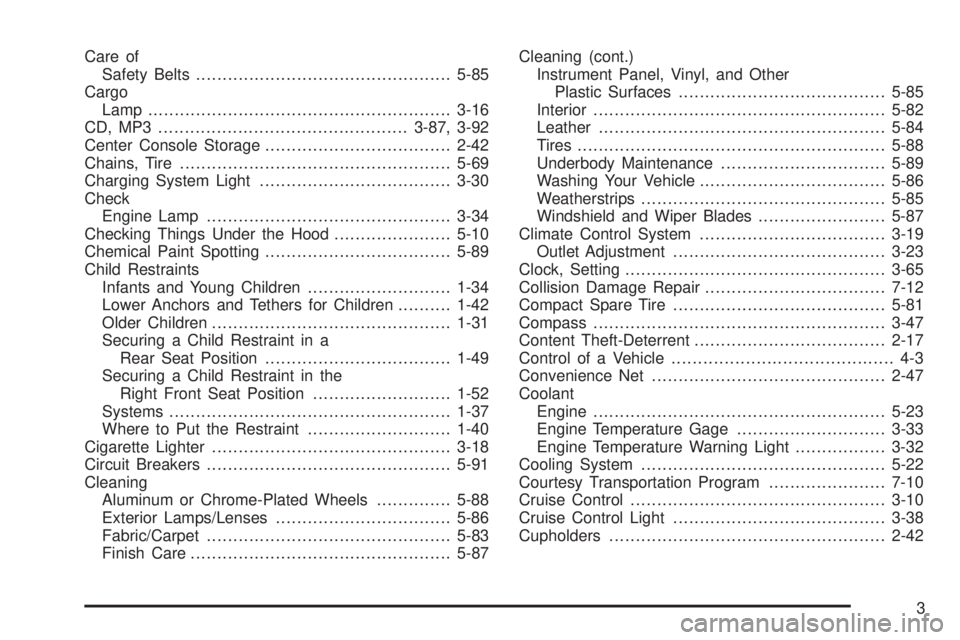

Care of
Safety Belts................................................5-85
Cargo
Lamp .........................................................3-16
CD, MP3 ...............................................3-87, 3-92
Center Console Storage...................................2-42
Chains, Tire...................................................5-69
Charging System Light....................................3-30
Check
Engine Lamp..............................................3-34
Checking Things Under the Hood......................5-10
Chemical Paint Spotting...................................5-89
Child Restraints
Infants and Young Children...........................1-34
Lower Anchors and Tethers for Children..........1-42
Older Children.............................................1-31
Securing a Child Restraint in a
Rear Seat Position...................................1-49
Securing a Child Restraint in the
Right Front Seat Position..........................1-52
Systems.....................................................1-37
Where to Put the Restraint...........................1-40
Cigarette Lighter.............................................3-18
Circuit Breakers..............................................5-91
Cleaning
Aluminum or Chrome-Plated Wheels..............5-88
Exterior Lamps/Lenses.................................5-86
Fabric/Carpet..............................................5-83
Finish Care.................................................5-87Cleaning (cont.)
Instrument Panel, Vinyl, and Other
Plastic Surfaces.......................................5-85
Interior.......................................................5-82
Leather......................................................5-84
Tires..........................................................5-88
Underbody Maintenance...............................5-89
Washing Your Vehicle...................................5-86
Weatherstrips..............................................5-85
Windshield and Wiper Blades........................5-87
Climate Control System...................................3-19
Outlet Adjustment
........................................3-23
Clock, Setting.................................................3-65
Collision Damage Repair..................................7-12
Compact Spare Tire........................................5-81
Compass.......................................................3-47
Content Theft-Deterrent....................................2-17
Control of a Vehicle.......................................... 4-3
Convenience Net............................................2-47
Coolant
Engine.......................................................5-23
Engine Temperature Gage............................3-33
Engine Temperature Warning Light.................3-32
Cooling System..............................................5-22
Courtesy Transportation Program......................7-10
Cruise Control................................................3-10
Cruise Control Light........................................3-38
Cupholders....................................................2-42
3

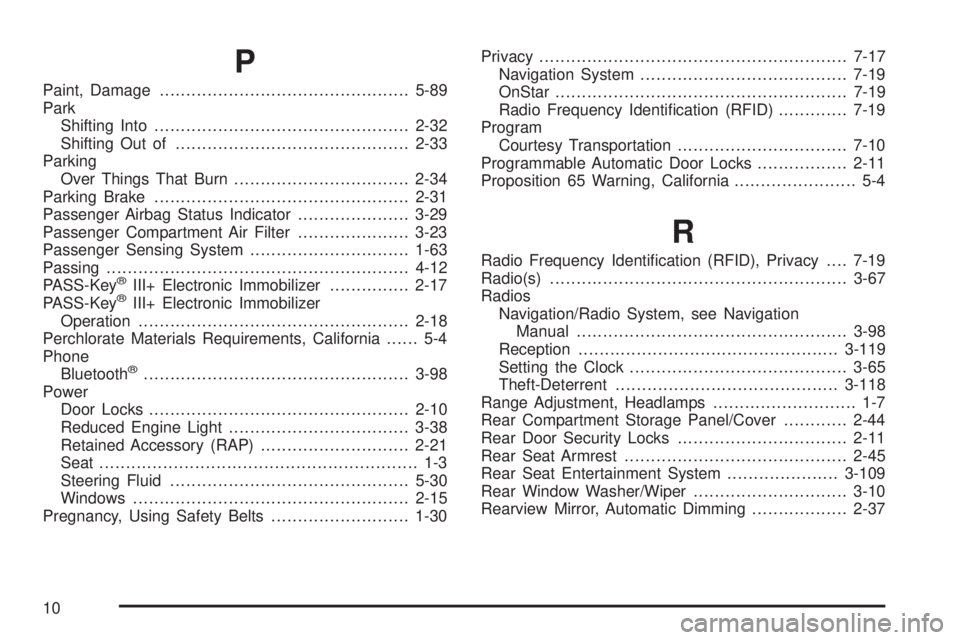

P
Paint, Damage...............................................5-89
Park
Shifting Into................................................2-32
Shifting Out of............................................2-33
Parking
Over Things That Burn.................................2-34
Parking Brake................................................2-31
Passenger Airbag Status Indicator.....................3-29
Passenger Compartment Air Filter.....................3-23
Passenger Sensing System..............................1-63
Passing.........................................................4-12
PASS-Key
®III+ Electronic Immobilizer...............2-17
PASS-Key®III+ Electronic Immobilizer
Operation...................................................2-18
Perchlorate Materials Requirements, California...... 5-4
Phone
Bluetooth
®..................................................3-98
Power
Door Locks.................................................2-10
Reduced Engine Light..................................3-38
Retained Accessory (RAP)............................2-21
Seat ............................................................ 1-3
Steering Fluid.............................................5-30
Windows....................................................2-15
Pregnancy, Using Safety Belts..........................1-30Privacy..........................................................7-17
Navigation System.......................................7-19
OnStar.......................................................7-19
Radio Frequency Identication (RFID).............7-19
Program
Courtesy Transportation................................7-10
Programmable Automatic Door Locks.................2-11
Proposition 65 Warning, California....................... 5-4
R
Radio Frequency Identication (RFID), Privacy....7-19
Radio(s)........................................................3-67
Radios
Navigation/Radio System, see Navigation
Manual...................................................3-98
Reception.................................................3-119
Setting the Clock.........................................3-65
Theft-Deterrent..........................................3-118
Range Adjustment, Headlamps........................... 1-7
Rear Compartment Storage Panel/Cover............2-44
Rear Door Security Locks................................2-11
Rear Seat Armrest..........................................2-45
Rear Seat Entertainment System.....................3-109
Rear Window Washer/Wiper.............................3-10
Rearview Mirror, Automatic Dimming..................2-37
10

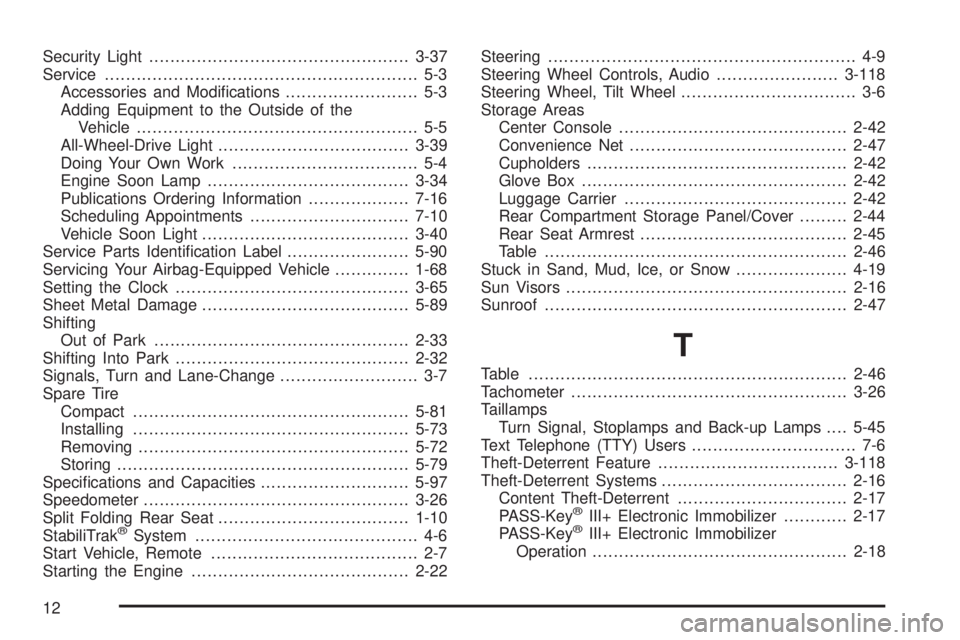

Security Light.................................................3-37
Service........................................................... 5-3
Accessories and Modications......................... 5-3
Adding Equipment to the Outside of the
Vehicle..................................................... 5-5
All-Wheel-Drive Light....................................3-39
Doing Your Own Work................................... 5-4
Engine Soon Lamp......................................3-34
Publications Ordering Information...................7-16
Scheduling Appointments..............................7-10
Vehicle Soon Light.......................................3-40
Service Parts Identication Label.......................5-90
Servicing Your Airbag-Equipped Vehicle..............1-68
Setting the Clock............................................3-65
Sheet Metal Damage.......................................5-89
Shifting
Out of Park................................................2-33
Shifting Into Park............................................2-32
Signals, Turn and Lane-Change.......................... 3-7
Spare Tire
Compact....................................................5-81
Installing....................................................5-73
Removing...................................................5-72
Storing.......................................................5-79
Specications and Capacities............................5-97
Speedometer..................................................3-26
Split Folding Rear Seat....................................1-10
StabiliTrak
®System.......................................... 4-6
Start Vehicle, Remote....................................... 2-7
Starting the Engine.........................................2-22Steering.......................................................... 4-9
Steering Wheel Controls, Audio.......................3-118
Steering Wheel, Tilt Wheel................................. 3-6
Storage Areas
Center Console...........................................2-42
Convenience Net.........................................2-47
Cupholders.................................................2-42
Glove Box..................................................2-42
Luggage Carrier..........................................2-42
Rear Compartment Storage Panel/Cover.........2-44
Rear Seat Armrest.......................................2-45
Table.........................................................2-46
Stuck in Sand, Mud, Ice, or Snow.....................4-19
Sun Visors.....................................................2-16
Sunroof.........................................................2-47
T
Table............................................................2-46
Tachometer....................................................3-26
Taillamps
Turn Signal, Stoplamps and Back-up Lamps....5-45
Text Telephone (TTY) Users............................... 7-6
Theft-Deterrent Feature..................................3-118
Theft-Deterrent Systems...................................2-16
Content Theft-Deterrent................................2-17
PASS-Key
®III+ Electronic Immobilizer............2-17
PASS-Key®III+ Electronic Immobilizer
Operation................................................2-18
12
