PONTIAC VIBE 2003 Owners Manual

3-
3-1
Section 3 Comfort Controls and Audio Systems
In this section, you'll find out how to operate the comfort control and audio systems offered with your vehicle.
Be sure to read about the particular systems supplied with your vehicle.
3
-2 Comfort Controls
3
-2 Climate Control System
3
-3 Air Conditioning
3
-4 Heating
3
-4 Defogging and Defrosting
3
-5 Rear Window Defogger
3
-6 Ventilation System
3
-7 Audio Systems
3
-7 Setting the Time
3
-8AM-FM Stereo with Compact Disc
Player with Equalization and Radio
Data System (RDS)3
-15 AM-FM Stereo with Six-Disc Compact
Disc Player with Equalization and Radio
Data System (RDS) (Option)
3
-25 Navigation/Radio System (Option)
3
-26 Understanding Radio Reception
3
-27 Tips About Your Audio System
3
-28 Care of Your Compact Discs
3
-28 Care of Your Compact Disc Player
3
-28 Fixed Mast Antenna

3-2

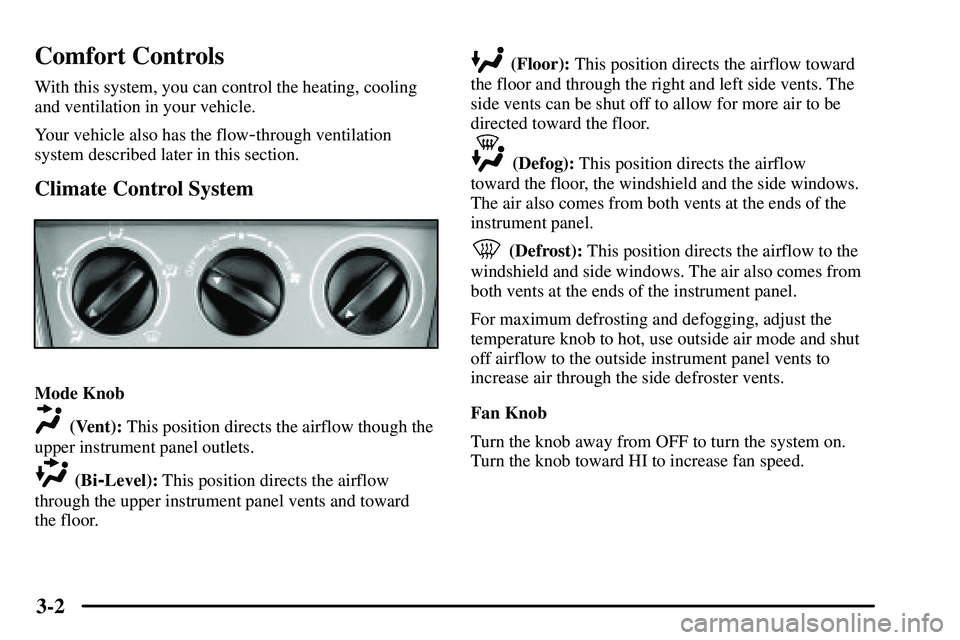

Comfort Controls
With this system, you can control the heating, cooling
and ventilation in your vehicle.
Your vehicle also has the flow
-through ventilation
system described later in this section.
Climate Control System
Mode Knob
(Vent): This position directs the airflow though the
upper instrument panel outlets.
(Bi-Level): This position directs the airflow
through the upper instrument panel vents and toward
the floor.
(Floor): This position directs the airflow toward
the floor and through the right and left side vents. The
side vents can be shut off to allow for more air to be
directed toward the floor.
(Defog): This position directs the airflow
toward the floor, the windshield and the side windows.
The air also comes from both vents at the ends of the
instrument panel.
(Defrost): This position directs the airflow to the
windshield and side windows. The air also comes from
both vents at the ends of the instrument panel.
For maximum defrosting and defogging, adjust the
temperature knob to hot, use outside air mode and shut
off airflow to the outside instrument panel vents to
increase air through the side defroster vents.
Fan Knob
Turn the knob away from OFF to turn the system on.
Turn the knob toward HI to increase fan speed.

3-3
Temperature Knob
Turn the knob to change the temperature of the air
flowing from the system. Turn the knob clockwise to
increase the temperature. Turn the knob
counterclockwise to decrease the temperature.
(Recirculate): Press this button, located in the
center of the instrument panel to the left of the audio
system, to recirculate inside air through the comfort
control system. An indicator light in the button will
come on to let you know the feature is in use. Press the
button again to turn off recirculate and to circulate
outside air through the system. The indicator light will
go off. Recirculate is automatically turned off when the
climate control system mode knob is turned to defog or
defrost or is between modes.
Air Conditioning
A/C (Air Conditioning): Press the A/C button, located
in the center of the instrument panel to the left of the
audio system, to change your comfort control system to
air conditioning. An indicator light will come on when
the air conditioning is on. Air conditioning can also
control the humidity in your vehicle. The incoming air is
cooled and dehumidified.
The air conditioner works best if you keep your
windows closed. On very hot days, open the windows
just long enough for the hot air to escape.
For normal cooling, press the A/C button and make sure
to use outside air. For faster cooling, also press the
recirculate button. Then move the mode knob to vent
and turn the temperature control knob counterclockwise.
Turn the fan knob to HI.
On days when it is raining or the humidity is high,
follow these dehumidifying steps instead of the cooling
directions. It will help clean windows that are cloudy
with moisture.
1. Press the A/C button.
2. Turn the mode knob to defrost. Recirculate will be off.
3. Turn the fan knob to HI and adjust the temperature
knob to a comfortable setting.

3-4 Heating
For the quickest results, press the recirculate button
and move the mode knob to the floor setting. Turn the
temperature knob clockwise for warmer air and turn the
fan knob toward HI. You should switch to outside air
once in a while to avoid stale air and fogging windows.
To prevent cold air from blowing in and to increase
air flow to the floor area, you may close the outer
instrument panel vents.
You may want to use bi
-level mode on cool but sunny
days. This setting directs outside air toward your body
and warmer air toward your feet. Using outside air, turn
the mode knob to bi
-level. Turn the temperature knob
counterclockwise and the fan knob toward HI.
Defogging and Defrosting
When the mode knob is turned to either the defog or
defrost mode, outside air will be selected automatically.
Outside air will clear the windshield more quickly.
Turn the temperature knob clockwise and the fan knob
toward HI. When the windshield is clear, turn down
the fan speed.
If you wish to return to the recirculate mode, the
recirculate button can be set when the mode knob is
set on full defog or full defrost. The indicator light will
come on.

Recirculate cannot be set partway between floor and
defog, and

recirculate cannot be set partway between defog
and defrost.
When the mode knob is turned to another position,
outside air will be selected automatically. To defog the
windshield and side windows, use outside air and turn
the mode knob to defog.

3-5 Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog from the rear window.
The rear window defogger
button is located in the
center of the instrument
panel, above the audio
system. The defogger does
not operate with the rear
liftglass opened.Press the button to turn on the defogger. The defogger
will stay on for about 15 minutes, then it will shut off
automatically. You can turn it off by pressing the button
again. Use it only when the engine is running. Make
sure you turn the defogger off when the window is clear.
Leaving the defogger on for a long time could cause the
battery to run down, especially during stop
-and-go
driving. The defogger is not designed for drying water
or melting snow.
Do not attach anything like a temporary vehicle license
or a decal across the defogger grid on the rear window.
NOTICE:
Don't use a razor blade or something else sharp
on the inside of the rear window. If you do, you
could cut or damage the warming grid, and the
repairs wouldn't be covered by your warranty.

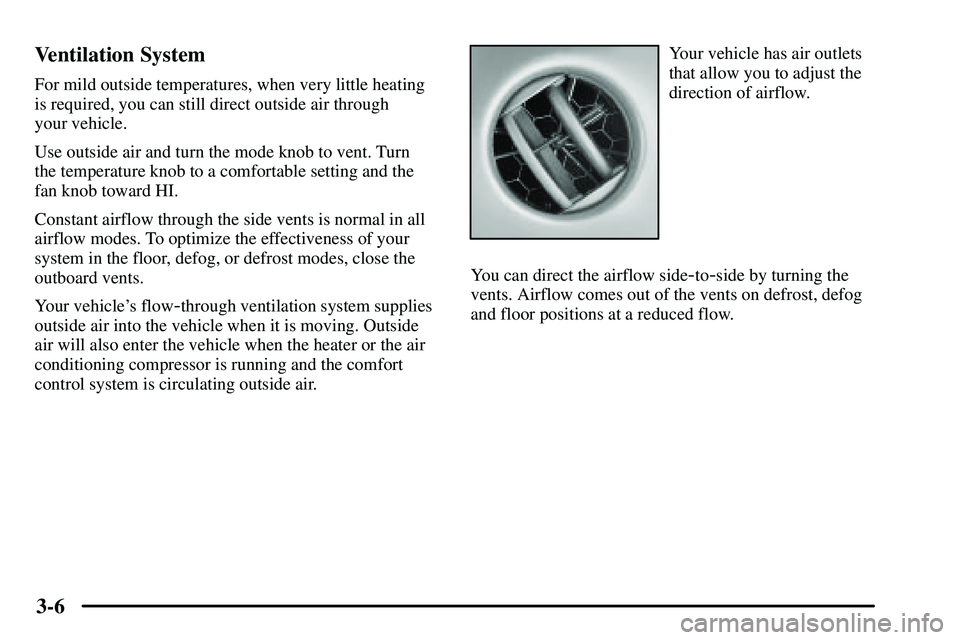

3-6 Ventilation System
For mild outside temperatures, when very little heating
is required, you can still direct outside air through
your vehicle.
Use outside air and turn the mode knob to vent. Turn
the temperature knob to a comfortable setting and the
fan knob toward HI.
Constant airflow through the side vents is normal in all
airflow modes. To optimize the effectiveness of your
system in the floor, defog, or defrost modes, close the
outboard vents.
Your vehicle's flow
-through ventilation system supplies
outside air into the vehicle when it is moving. Outside
air will also enter the vehicle when the heater or the air
conditioning compressor is running and the comfort
control system is circulating outside air.
Your vehicle has air outlets
that allow you to adjust the
direction of airflow.
You can direct the airflow side
-to-side by turning the
vents. Airflow comes out of the vents on defrost, defog
and floor positions at a reduced flow.

3-7
Ventilation Tips

Keep the hood and front air inlet free of ice, snow or
any other obstruction (such as leaves). The heater
and defroster will work far better, reducing the
chance of fogging the inside of your windows.

When you enter a vehicle in cold weather, move the
fan knob toward HI for a few moments before
driving off. This helps clear the intake ducts of snow
and moisture, and reduces the chance of fogging the
inside of your windows.

Keep the air path under the front seats clear of
objects. This helps air to circulate throughout
your vehicle.

Close outboard instrument panel vents to keep cold
air from blowing in.Audio Systems
Your audio system has been designed to operate easily
and to give years of listening pleasure. You will get the
most enjoyment out of it if you acquaint yourself with it
first. Find out what your audio system can do and how
to operate all of its controls to be sure you're getting the
most out of the advanced engineering that went into it.
Setting the Time
Your radio may have a button marked with an
H or HR to represent hours and an M or MIN to
represent minutes.
Press and hold the hour button until the correct hour
appears on the display. AM will also appear for morning
hours. Press and hold the minute button until the correct
minute appears on the display. The time may be set with
the ignition on or off.
To synchronize the time with an FM station
broadcasting Radio Data System (RDS) information,
press and hold the hour and minute buttons at the same
time until TIME UPDATED appears on the display. If
the time is not available from the station, NO UPDATE
will appear on the display instead.

3-8 AM-FM Radio with Compact Disc
Player with Equalization and Radio
Data System (RDS)
Playing the Radio
PWR (Power): Press this knob to turn the system on
and off.
VOL (Volume): Turn the knob to increase or to
decrease volume.
RCL (Recall): Press this button to switch the display
between the radio station frequency and the time.
Pressing this button with the ignition off will display
the timeFinding a Station
AM FM: Press this button to switch between AM, FM1
and FM2. The display will show your selection.
TUNE: Turn this knob to choose radio stations.
SEEK : Press the up or the down arrow to go
to the next or to the previous station and stay there.
The radio will seek only to stations that are in the
selected band and only to those with a strong signal.
SCAN : Press and hold one of the SCAN arrows
for two seconds until SCAN appears on the display and
you hear a beep. The radio will go to a station, play for a
few seconds, then go on to the next station. Press one of
the SCAN arrows again to stop scanning.
To scan preset stations, press and hold one of the SCAN
arrows for more than four seconds until PSCAN and the
preset number appear on the display. You will hear a
double beep. The radio will go to the first preset station
stored on your pushbuttons, play for a few seconds, then
go on to the next preset station. Press one of the SCAN
arrows again to stop scanning presets.
The radio will scan only to stations that are in the
selected band and only to those with a strong signal.

3-9
Setting Preset Stations
The six numbered pushbuttons let you return to
your favorite stations. You can set up to 18 stations
(six AM, six FM1 and six FM2) by performing the
following steps:
1. Turn the radio on.
2. Press AM FM to select AM, FM1 or FM2.
3. Tune in the desired station.
4. Press EQ to select the equalization.
5. Press and hold one of the six numbered pushbuttons
until you hear a beep. Whenever you press that
numbered pushbutton, the station you set will return
and the equalization that you selected will also be
automatically selected for that pushbutton.
6. Repeat the steps for each pushbutton.
Setting the Tone (Bass/Treble)
TONE: Press and release this button until BASS, MID
or TREB appears on the display. The SELECT LED
indicator will light to show that the tone control can be
adjusted. Turn the SELECT knob to increase or to
decrease. If a station is weak or noisy, you may want to
decrease the treble.
To adjust all of the tone controls to the middle position,
press and hold TONE until FLAT appears on the display.EQ (Equalizer): Press this button to select customized
bass, mid and treble equalization settings.
You can set up to six customized equalization settings
by performing the following steps:
1. Turn the radio on.
2. Use the TONE button and the SELECT knob to
create the desired equalization.
3. Press and hold the EQ button for two seconds.
SELECT EQ # will appear on the display and the
EQ symbol will flash.
4. Press EQ or turn the SELECT knob to select the
desired EQ number.
5. Press and hold the EQ button or push the SELECT
knob to store the equalization setting and the
number. You will hear a beep and EQ SAVED will
appear on the display.
6. Repeat the steps for the other EQ settings
and numbers.
EQ 5 has been programmed at the factory for use with
talk radio, but it can be preset to a different tone.

3-10
Adjusting the Speakers (Balance/Fade)
BAL (Balance): Press and release this button until BAL
appears on the display. The SELECT indicator will light
to show that the speakers can be adjusted. Turn the
SELECT knob to move the sound toward the left or the
right speakers.
FADE: Press and release this button until FADE appears
on the display. The SELECT indicator will light to show
that the speakers can be adjusted. Turn the SELECT
knob to move the sound toward the front or the
speakers.
Pressing and holding the BAL FADE button for
two seconds will return all speaker settings to the
middle position.Using RDS
Your audio system is equipped with a Radio Data
System (RDS). RDS features are available for use only
on FM stations that broadcast RDS information. Using
this system, the radio can do the following:

Seek to stations broadcasting the selected type
of programming,

receive announcements concerning local and
national emergencies,

display messages from radio stations, and

seek to stations with traffic announcements.
This system relies upon receiving specific information
from these stations and will only work when the
information is available. In rare cases, a radio station
may broadcast incorrect information that will cause the
radio features to work improperly. If this happens,
contact the radio station.
When you are tuned to an RDS station, the station name
or call letters will appear on the display instead of the
frequency. RDS stations may also provide the time of
day, a program type (PTY) for current programming and
the name of the program being broadcast.
