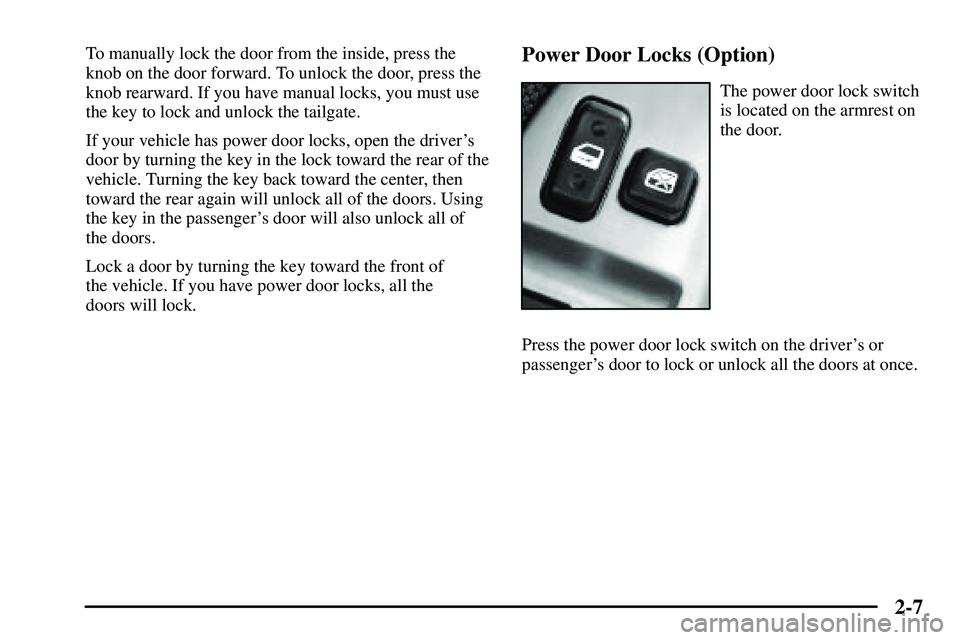

2-7
To manually lock the door from the inside, press the
knob on the door forward. To unlock the door, press the
knob rearward. If you have manual locks, you must use
the key to lock and unlock the tailgate.
If your vehicle has power door locks, open the driver's
door by turning the key in the lock toward the rear of the
vehicle. Turning the key back toward the center, then
toward the rear again will unlock all of the doors. Using
the key in the passenger's door will also unlock all of
the doors.
Lock a door by turning the key toward the front of
the vehicle. If you have power door locks, all the
doors will lock.Power Door Locks (Option)
The power door lock switch
is located on the armrest on
the door.
Press the power door lock switch on the driver's or
passenger's door to lock or unlock all the doors at once.

2-8 Rear Door Security Locks
Your vehicle is equipped with rear door security locks
that help prevent passengers from opening the rear doors
on your vehicle from the inside.
The security locks are
located on the inside of
the rear door trim.
To use of these locks, do the following:
1. Slide the lever down.
2. Close the door.
3. Do the same thing to the other rear door lock.
The rear doors on your vehicle cannot be opened from
the inside when this feature is in use.To open a rear door with the security lock, do the
following:
1. Unlock the door from the inside.
2. Then open the door from the outside.
If you don't cancel the security lock feature, adults and
older children who ride in the rear won't be able to open
the rear door from the inside. You should let adults and
older children know how these security locks work, and
how to cancel the locks.
To cancel the rear door security lock, do the following:
1. Unlock the door from the inside and open the door
from the outside.
2. Slide the lever up.
3. Do the same for the other rear door.
The rear door locks will now work normally.
Leaving Your Vehicle
If you are leaving the vehicle, take your key, open your
door and set the locks from inside. Then get out and
close the door.

2-9
Remote Keyless Entry System
(If Equipped)
If your vehicle has this feature, you can lock and unlock
your doors from about 3 feet (1 m) up to 30 feet (9 m)
away using the remote keyless entry transmitter supplied
with your vehicle.
Your remote keyless entry system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement is
necessary. See the instructions that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.

2-10 Operation
LOCK: Press this
button to lock all
of the doors.
The turn signal lights will flash once to confirm that the
doors have locked. The remote keyless entry system will
not operate while the doors are open or while the key is
in the ignition.UNLOCK: Press this button once to unlock the driver's
door. The turn signal lights will flash twice and the
interior lamps will come on to confirm that the door has
unlocked. If the UNLOCK button is pressed again
within three seconds, all remaining doors will unlock.
The interior lamps will stay on for 15 seconds or until
the ignition is turned on. If the UNLOCK button is
pressed and no door is opened, the doors will lock
automatically after 30 seconds.
HATCH: Press this button for about two seconds to
open the liftglass. If the key is in the ignition, the
liftglass cannot be opened by the HATCH button on
the transmitter.
Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have a maximum of four
transmitters matched to it.

2-11 Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about three years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.
NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.
To replace the battery, do the following:
1. Insert a small coin or similar object to separate the
bottom half from the top half of the transmitter.
2. Remove the battery and replace it with the new one.
Make sure the positive side of the battery faces
upward. For battery replacement, use a three
-volt
battery, type CR2032, or equivalent.
3. Snap the transmitter back together tightly to be sure
no moisture can enter.

2-12
Liftgate/Liftglass
CAUTION:
It can be dangerous to drive with the
liftgate/liftglass open because carbon monoxide
(CO) gas can come into your vehicle. You can't
see or smell CO. It can cause unconsciousness
and even death.
If you must drive with the liftgate/liftglass open
or if electrical wiring or other cable connections
must pass through the seal between the body and
the liftgate/liftglass:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. See ªComfort Controlsº
in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
Liftgate/Liftglass Release
To open the liftgate using your key do the following:

To unlock the liftgate, insert the key into the keyhole
and turn it counterclockwise.
When closing the liftgate, you can use the handle to
pull it down.

To lock the liftgate, turn the key clockwise to the
first position.

2-13
To open the liftglass using your key do the following:

To open the liftglass, insert the key into the keyhole
and turn it clockwise to the second position.
Use the handle in the center of the liftglass to help in
lifting the glass.
You can also release the
liftglass by pressing the
release button (if equipped)
located on the instrument
panel to the left of the
steering wheel.

2-14
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's door,
you'll hear a tone reminding you to remove your key
from the ignition and take it with you. Always do this.
Your steering wheel will be locked, and so will your
ignition. If you take the key with you, and you have an
automatic transaxle, it will be locked. And remember to
lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
Even if you park in a lot where someone will be
watching your vehicle, it's still best to lock it up and
take your keys. But what if you have to leave your key?

If possible, park in a busy, well
-lit area.

Put your valuables in a storage area, like your trunk
or glove box.

Be sure to close and lock the storage area.

Close all windows.

Lock all the doors except the driver's.

If your vehicle has a remote keyless entry system,
take the transmitter with you.

2-15
Content Theft-Deterrent System
(If Equipped)
Your vehicle's theft-deterrent system is designed to
activate an alarm if any of the side doors or the liftgate
is forcibly unlocked or if the battery terminal is
disconnected and then reconnected while the system
is set.
The alarm will sound the horn intermittently and flash
the headlamps, turn signal lamps and interior lights. If
the driver's or front passenger's side doors are unlocked
forcibly, the other side doors and the liftgate will be
locked automatically.
Setting the System
To set the system, do the following:
1. Turn the ignition key to the LOCK position and
remove it.
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors and liftgate with the
key or remote keyless entry transmitter.
The indicator light located
on the instrument panel to
the left of the steering wheel
will come on when all the
side doors and liftgate are
closed and locked.
The system will be automatically set after 30
seconds. When the system is set, the indicator light
will start flashing.
4. After the indicator light starts flashing, you may
leave the vehicle.
Do not leave anyone in the vehicle when you set the
system, because unlocking the vehicle from the
inside will activate the system.

2-16 Testing the System
To test the system, do the following:
1. Open all the windows.
2. Set the system as described in the previous
procedure. The side doors and liftgate should be
locked with the key or remote keyless entry
transmitter. Be sure to wait until the indicator light
starts flashing.
3. Unlock the driver's door from the inside. The system
should activate the alarm.
4. Stop the alarm as described in the cancelling
procedure.
5. Repeat this operation for the other doors. Also check
that the system is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly, have it
checked by your dealer.
Activating the System
The system will activate the alarm under the following
conditions:

If the driver's or front passenger's door is unlocked
or if any of the other side doors or the liftgate is
forcibly opened without the key or remote keyless
entry transmitter.

If the battery terminal is disconnected and then
reconnected.

If the ignition is hot
-wired.

If the side window glass is broken or damaged.
The indicator light will come on when the system is
activated.
If the driver's or front passenger's side doors are
unlocked without using the key or remote keyless entry
transmitter, the other side doors and the liftgate will be
automatically locked again.
After one minute the alarm will automatically stop and
the indicator light will start flashing again.
