keyless PONTIAC VIBE 2003 Owners Manual

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-4 Keys
2
-6 Door Locks
2
-9 Remote Keyless Entry System (If Equipped)
2
-12 Liftgate/Liftglass
2
-14 Theft
2
-17 New Vehicle ªBreak-Inº
2
-18 Ignition Positions
2
-19 Starting Your Engine
2
-21 Engine Coolant Heater (If Equipped)
2
-22 Automatic Transaxle Operation
2
-25 Manual Transaxle Operation
2
-29 Parking Brake
2
-30 Shifting Into PARK (P)
(Automatic Transaxle Only)
2
-32 Shifting Out of PARK (P)
(Automatic Transaxle Only)
2
-33 Parking Your Vehicle
(Manual Transaxle Only)
2
-33 Parking Over Things That Burn2
-34 Engine Exhaust
2
-34 Running Your Engine While You're Parked
(Automatic Transaxle)
2
-35 Horn
2
-35 Tilt Wheel
2
-36 Turn Signal/Multifunction Lever
2
-38 Windshield Washer
2
-39 Cruise Control (Option)
2
-42 Exterior Lamps
2
-44 Interior Lamps
2
-46 Mirrors
2
-48 Storage Compartments
2
-53 Ashtrays and Cigarette Lighter
2
-53 Sun Visors
2
-57 Sunroof (Option)
2
-58 The Instrument Panel -- Your
Information System
2
-60 Instrument Panel Cluster
2
-62 Warning Lights, Gages and Indicators
2
-76 Navigation System (Option)

2-6

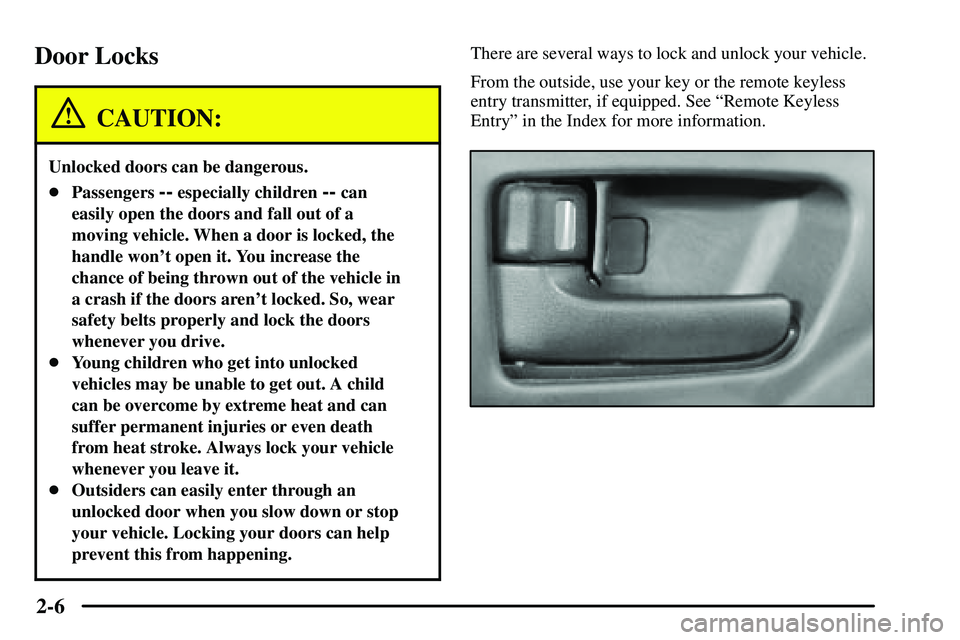

Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked, the
handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
From the outside, use your key or the remote keyless
entry transmitter, if equipped. See ªRemote Keyless
Entryº in the Index for more information.

2-9

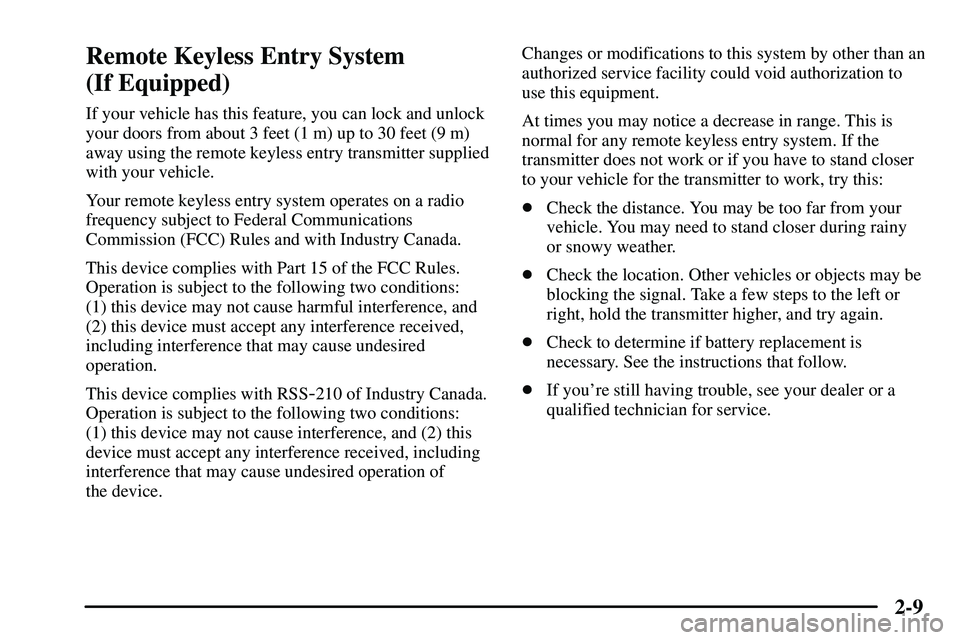

Remote Keyless Entry System
(If Equipped)
If your vehicle has this feature, you can lock and unlock
your doors from about 3 feet (1 m) up to 30 feet (9 m)
away using the remote keyless entry transmitter supplied
with your vehicle.
Your remote keyless entry system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement is
necessary. See the instructions that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.

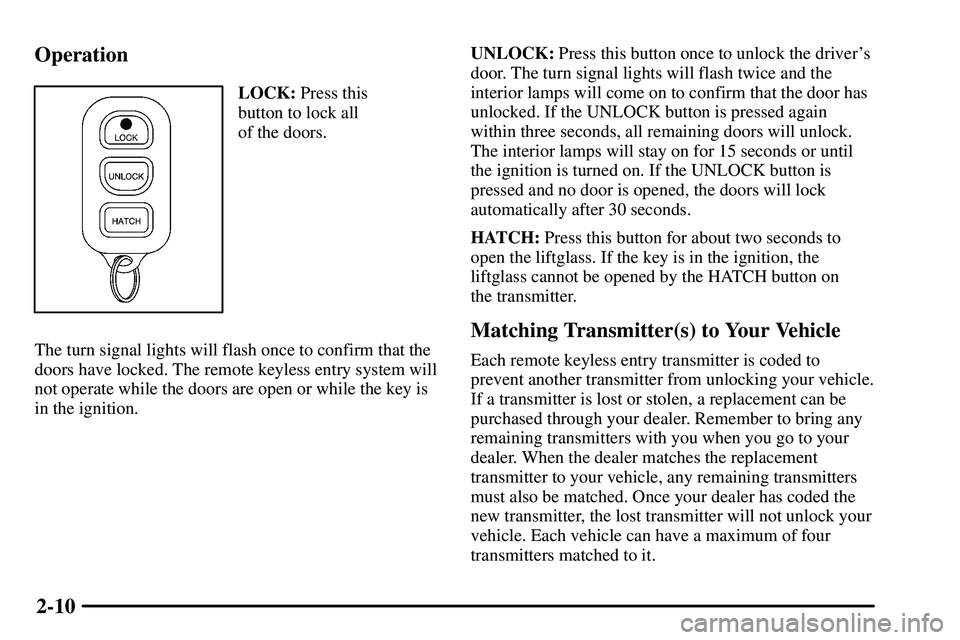

2-10 Operation
LOCK: Press this
button to lock all
of the doors.
The turn signal lights will flash once to confirm that the
doors have locked. The remote keyless entry system will
not operate while the doors are open or while the key is
in the ignition.UNLOCK: Press this button once to unlock the driver's
door. The turn signal lights will flash twice and the
interior lamps will come on to confirm that the door has
unlocked. If the UNLOCK button is pressed again
within three seconds, all remaining doors will unlock.
The interior lamps will stay on for 15 seconds or until
the ignition is turned on. If the UNLOCK button is
pressed and no door is opened, the doors will lock
automatically after 30 seconds.
HATCH: Press this button for about two seconds to
open the liftglass. If the key is in the ignition, the
liftglass cannot be opened by the HATCH button on
the transmitter.
Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have a maximum of four
transmitters matched to it.

2-11 Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about three years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.
NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.
To replace the battery, do the following:
1. Insert a small coin or similar object to separate the
bottom half from the top half of the transmitter.
2. Remove the battery and replace it with the new one.
Make sure the positive side of the battery faces
upward. For battery replacement, use a three
-volt
battery, type CR2032, or equivalent.
3. Snap the transmitter back together tightly to be sure
no moisture can enter.

2-14
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make
it impossible to steal. However, there are ways you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's door,
you'll hear a tone reminding you to remove your key
from the ignition and take it with you. Always do this.
Your steering wheel will be locked, and so will your
ignition. If you take the key with you, and you have an
automatic transaxle, it will be locked. And remember to
lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
Even if you park in a lot where someone will be
watching your vehicle, it's still best to lock it up and
take your keys. But what if you have to leave your key?

If possible, park in a busy, well
-lit area.

Put your valuables in a storage area, like your trunk
or glove box.

Be sure to close and lock the storage area.

Close all windows.

Lock all the doors except the driver's.

If your vehicle has a remote keyless entry system,
take the transmitter with you.

2-15

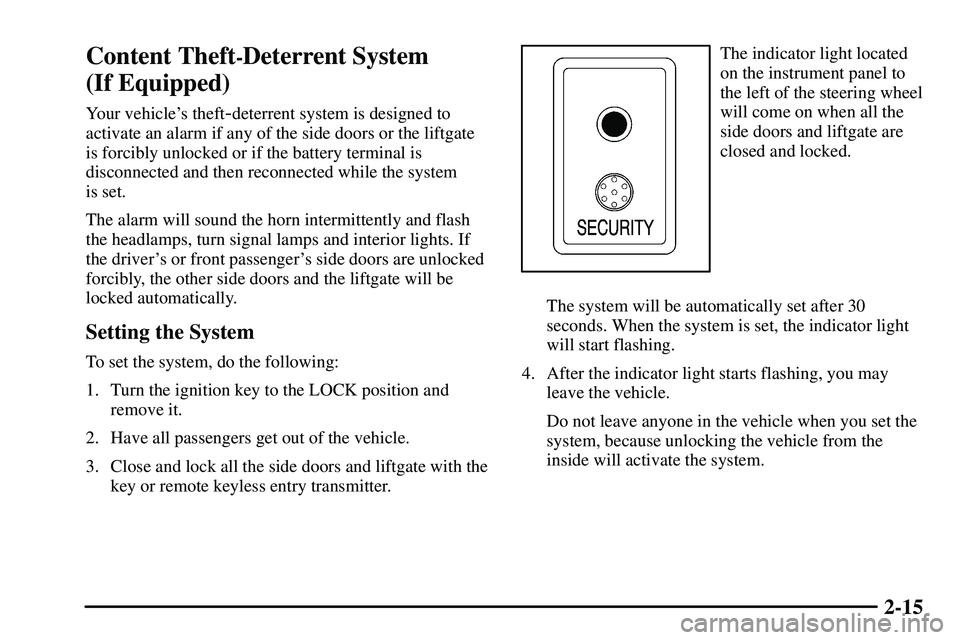

Content Theft-Deterrent System
(If Equipped)
Your vehicle's theft-deterrent system is designed to
activate an alarm if any of the side doors or the liftgate
is forcibly unlocked or if the battery terminal is
disconnected and then reconnected while the system
is set.
The alarm will sound the horn intermittently and flash
the headlamps, turn signal lamps and interior lights. If
the driver's or front passenger's side doors are unlocked
forcibly, the other side doors and the liftgate will be
locked automatically.
Setting the System
To set the system, do the following:
1. Turn the ignition key to the LOCK position and
remove it.
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors and liftgate with the
key or remote keyless entry transmitter.
The indicator light located
on the instrument panel to
the left of the steering wheel
will come on when all the
side doors and liftgate are
closed and locked.
The system will be automatically set after 30
seconds. When the system is set, the indicator light
will start flashing.
4. After the indicator light starts flashing, you may
leave the vehicle.
Do not leave anyone in the vehicle when you set the
system, because unlocking the vehicle from the
inside will activate the system.

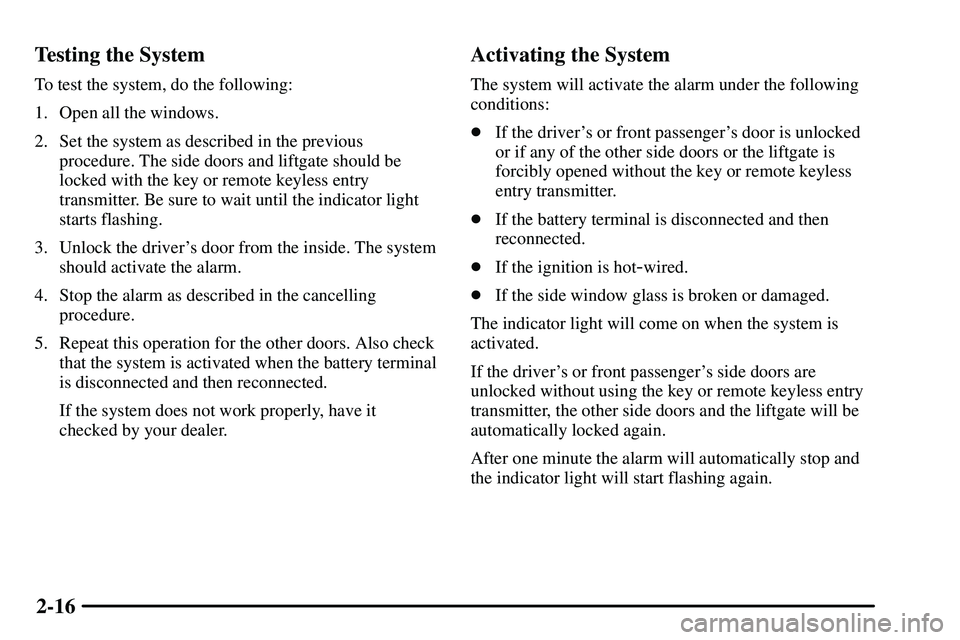

2-16 Testing the System
To test the system, do the following:
1. Open all the windows.
2. Set the system as described in the previous
procedure. The side doors and liftgate should be
locked with the key or remote keyless entry
transmitter. Be sure to wait until the indicator light
starts flashing.
3. Unlock the driver's door from the inside. The system
should activate the alarm.
4. Stop the alarm as described in the cancelling
procedure.
5. Repeat this operation for the other doors. Also check
that the system is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly, have it
checked by your dealer.
Activating the System
The system will activate the alarm under the following
conditions:

If the driver's or front passenger's door is unlocked
or if any of the other side doors or the liftgate is
forcibly opened without the key or remote keyless
entry transmitter.

If the battery terminal is disconnected and then
reconnected.

If the ignition is hot
-wired.

If the side window glass is broken or damaged.
The indicator light will come on when the system is
activated.
If the driver's or front passenger's side doors are
unlocked without using the key or remote keyless entry
transmitter, the other side doors and the liftgate will be
automatically locked again.
After one minute the alarm will automatically stop and
the indicator light will start flashing again.

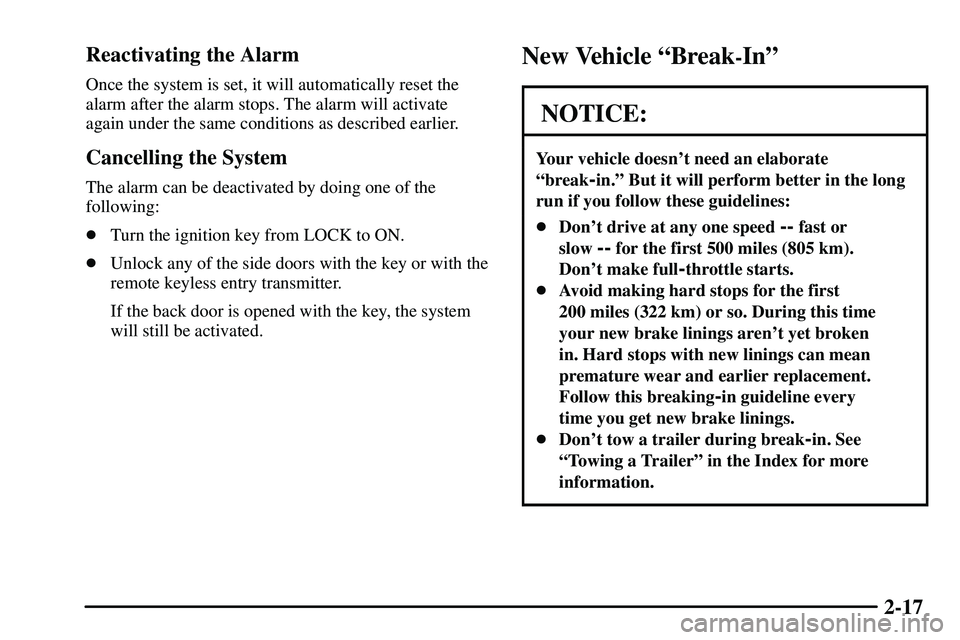

2-17 Reactivating the Alarm
Once the system is set, it will automatically reset the
alarm after the alarm stops. The alarm will activate
again under the same conditions as described earlier.
Cancelling the System
The alarm can be deactivated by doing one of the
following:

Turn the ignition key from LOCK to ON.

Unlock any of the side doors with the key or with the
remote keyless entry transmitter.
If the back door is opened with the key, the system
will still be activated.
New Vehicle ªBreak-Inº
NOTICE:
Your vehicle doesn't need an elaborate
ªbreak
-in.º But it will perform better in the long
run if you follow these guidelines:

Don't drive at any one speed -- fast or
slow
-- for the first 500 miles (805 km).
Don't make full
-throttle starts.

Avoid making hard stops for the first
200 miles (322 km) or so. During this time
your new brake linings aren't yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking
-in guideline every
time you get new brake linings.

Don't tow a trailer during break
-in. See
ªTowing a Trailerº in the Index for more
information.

2-45

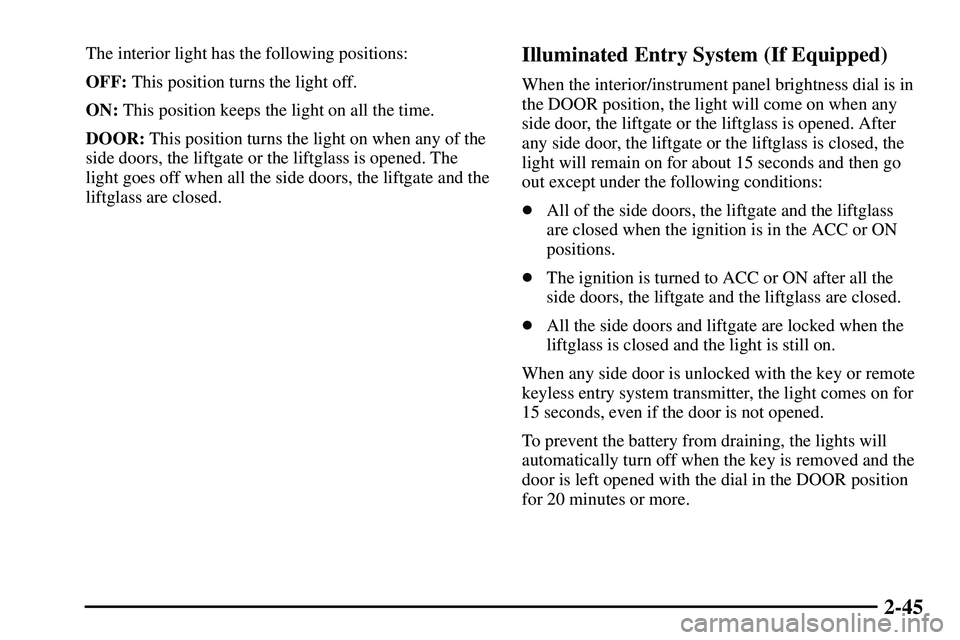

The interior light has the following positions:
OFF: This position turns the light off.
ON: This position keeps the light on all the time.
DOOR: This position turns the light on when any of the
side doors, the liftgate or the liftglass is opened. The
light goes off when all the side doors, the liftgate and the
liftglass are closed.Illuminated Entry System (If Equipped)
When the interior/instrument panel brightness dial is in
the DOOR position, the light will come on when any
side door, the liftgate or the liftglass is opened. After
any side door, the liftgate or the liftglass is closed, the
light will remain on for about 15 seconds and then go
out except under the following conditions:

All of the side doors, the liftgate and the liftglass
are closed when the ignition is in the ACC or ON
positions.

The ignition is turned to ACC or ON after all the
side doors, the liftgate and the liftglass are closed.

All the side doors and liftgate are locked when the
liftglass is closed and the light is still on.
When any side door is unlocked with the key or remote
keyless entry system transmitter, the light comes on for
15 seconds, even if the door is not opened.
To prevent the battery from draining, the lights will
automatically turn off when the key is removed and the
door is left opened with the dial in the DOOR position
for 20 minutes or more.
