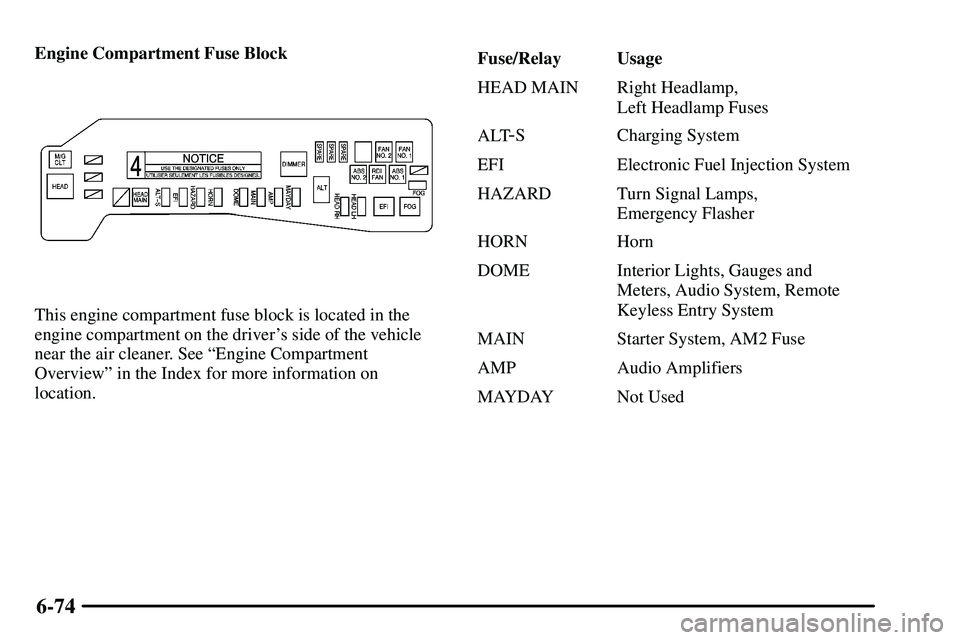

Engine Compartment Fuse Block
This engine compartment fuse block is located in the
engine compartment on the driver's side of the vehicle
near the air cleaner. See ªEngine Compartment
Overviewº in the Index for more information on
location.Fuse/Relay Usage
HEAD MAIN Right Headlamp,
Left Headlamp Fuses
ALT
-S Charging System
EFI Electronic Fuel Injection System
HAZARD Turn Signal Lamps,
Emergency Flasher
HORN Horn
DOME Interior Lights, Gauges and
Meters, Audio System, Remote
Keyless Entry System
MAIN Starter System, AM2 Fuse
AMP Audio Amplifiers
MAYDAY Not Used

6-75

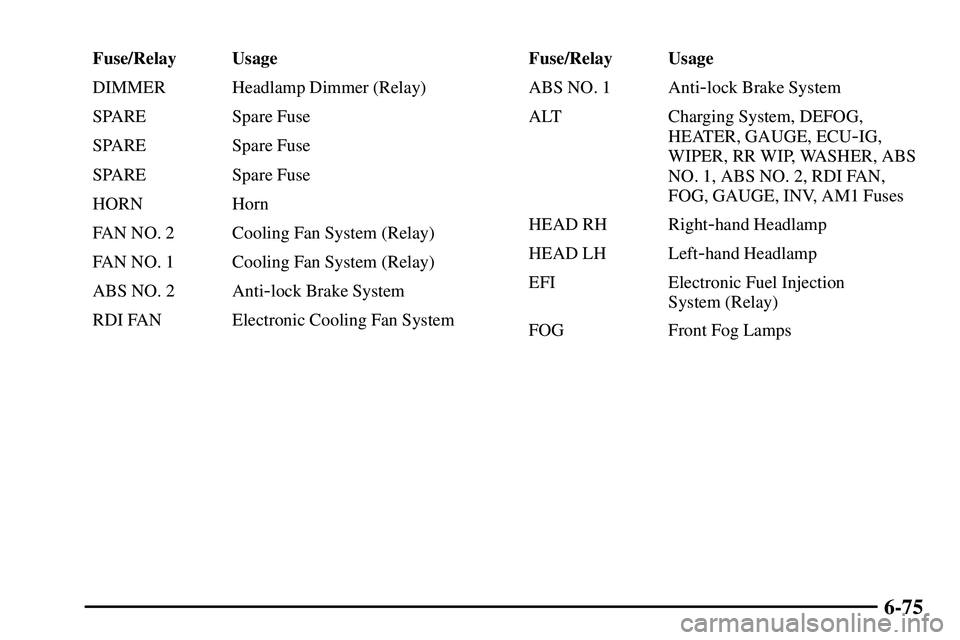

Fuse/Relay Usage
DIMMER Headlamp Dimmer (Relay)
SPARE Spare Fuse
SPARE Spare Fuse
SPARE Spare Fuse
HORN Horn
FAN NO. 2 Cooling Fan System (Relay)
FAN NO. 1 Cooling Fan System (Relay)
ABS NO. 2 Anti
-lock Brake System
RDI FAN Electronic Cooling Fan SystemFuse/Relay Usage
ABS NO. 1 Anti
-lock Brake System
ALT Charging System, DEFOG,
HEATER, GAUGE, ECU
-IG,
WIPER, RR WIP, WASHER, ABS
NO. 1, ABS NO. 2, RDI FAN,
FOG, GAUGE, INV, AM1 Fuses
HEAD RH Right
-hand Headlamp
HEAD LH Left
-hand Headlamp
EFI Electronic Fuel Injection
System (Relay)
FOG Front Fog Lamps
