stop start PONTIAC VIBE 2003 Owners Manual

2-16 Testing the System
To test the system, do the following:
1. Open all the windows.
2. Set the system as described in the previous
procedure. The side doors and liftgate should be
locked with the key or remote keyless entry
transmitter. Be sure to wait until the indicator light
starts flashing.
3. Unlock the driver's door from the inside. The system
should activate the alarm.
4. Stop the alarm as described in the cancelling
procedure.
5. Repeat this operation for the other doors. Also check
that the system is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly, have it
checked by your dealer.
Activating the System
The system will activate the alarm under the following
conditions:

If the driver's or front passenger's door is unlocked
or if any of the other side doors or the liftgate is
forcibly opened without the key or remote keyless
entry transmitter.

If the battery terminal is disconnected and then
reconnected.

If the ignition is hot
-wired.

If the side window glass is broken or damaged.
The indicator light will come on when the system is
activated.
If the driver's or front passenger's side doors are
unlocked without using the key or remote keyless entry
transmitter, the other side doors and the liftgate will be
automatically locked again.
After one minute the alarm will automatically stop and
the indicator light will start flashing again.

2-17 Reactivating the Alarm
Once the system is set, it will automatically reset the
alarm after the alarm stops. The alarm will activate
again under the same conditions as described earlier.
Cancelling the System
The alarm can be deactivated by doing one of the
following:

Turn the ignition key from LOCK to ON.

Unlock any of the side doors with the key or with the
remote keyless entry transmitter.
If the back door is opened with the key, the system
will still be activated.
New Vehicle ªBreak-Inº
NOTICE:
Your vehicle doesn't need an elaborate
ªbreak
-in.º But it will perform better in the long
run if you follow these guidelines:

Don't drive at any one speed -- fast or
slow
-- for the first 500 miles (805 km).
Don't make full
-throttle starts.

Avoid making hard stops for the first
200 miles (322 km) or so. During this time
your new brake linings aren't yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking
-in guideline every
time you get new brake linings.

Don't tow a trailer during break
-in. See
ªTowing a Trailerº in the Index for more
information.

2-19
CAUTION:
On manual transaxle vehicles, turning the key to
LOCK and removing it will lock the steering
column and result in a loss of ability to steer the
vehicle. This could cause a collision. If you need
to turn the engine off while the vehicle is moving,
turn the key only to ACC. Don't push the key in
while the vehicle is moving.
ACC (ACCESSORY) (B): This position operates some
of your electrical accessories (such as the radio, but not
the ventilation fan). It unlocks the steering wheel and
ignition. To move the key from ACC to LOCK, push in
the key and then turn it to LOCK.
ON (C): This is the position the switch returns to after
you start your engine and release the switch. The switch
stays in the ON position when the engine is running.
But even when the ignition is not running, you can use
ON to operate your electrical accessories (including the
ventilation fan and 115 volt power outlet) and to display
some warning and indicator lights.START (D): This position starts the engine. When the
engine starts, release the key. The ignition switch will
return to ON for normal driving.
When the engine is not running, ACC and ON allow you
to operate some of your electrical accessories.
A warning tone will sound if you open the driver's door
when the ignition is still in ACC or LOCK and the key
is in the ignition.
Starting Your Engine
Automatic Transaxle
Move your shift lever to PARK (P) or NEUTRAL (N).
Your engine won't start in any other position
-- that's a
safety feature. To restart when you're already moving,
use NEUTRAL (N) only.
NOTICE:
Don't try to shift to PARK (P) if your vehicle is
moving. If you do, you could damage the
transaxle. Shift to PARK (P) only when your
vehicle is stopped.

2-20 Manual Transaxle
The gear selector should be in neutral and the parking
brake engaged. Hold the clutch pedal to the floor and
start the engine. Your vehicle won't start if the clutch
pedal is not all the way down
-- that's a safety feature.
Starting Your Engine
1. With your foot off the accelerator pedal, turn your
ignition key to START. When the engine starts, let
go of the key. The idle speed will go down as your
engine gets warm.
NOTICE:
Holding your key in START for longer than
15 seconds at a time will cause your battery to
be drained much sooner. And the excessive heat
can damage your starter motor. Wait about
15 seconds between each try to help avoid
draining your battery or damaging your starter.
2. If it doesn't start, wait about 15 seconds and try
again to start the engine by turning the ignition key
to START. Wait about 15 seconds between each try.When your engine has run about 10 seconds to warm
up, your vehicle is ready to be driven. Don't ªraceº
your engine when it's cold.
If the weather is below freezing (32
F or 0
C), let
the engine run for a few minutes to warm up.
3. If your engine still won't start (or starts but then
stops), it could be flooded with too much gasoline.
Try pushing your accelerator pedal all the way to the
floor and holding it there as you hold the key in
START for about three seconds. If the vehicle starts
briefly but then stops again, do the same thing, but
this time keep the pedal down for five or six seconds.
This clears the extra gasoline from the engine.
NOTICE:
Your engine is designed to work with the
electronics in your vehicle. If you add electrical
parts or accessories, you could change the way
the engine operates. Before adding electrical
equipment, check with your dealer. If you don't,
your engine might not perform properly.

2-23
Ensure that the shift lever is fully in PARK (P) before
starting the engine. Your vehicle has an automatic
transaxle shift lock control system. You have to fully
apply your regular brakes before you can shift from
PARK (P) when the ignition key is in ON. If you cannot
shift out of PARK (P), ease pressure on the shift
lever
-- push the shift lever all the way into PARK (P)
and release the shift lever button as you maintain brake
application. Then press the shift lever button and move
the shift lever into the gear you wish. See ªShifting Out
of PARK (P)º in the index.
REVERSE (R): Use this gear to back up.
NOTICE:
Shifting to REVERSE (R) while your vehicle is
moving forward could damage your transaxle.
Shift to REVERSE (R) only after your vehicle is
stopped.
To rock your vehicle back and forth to get out of snow,
ice or sand without damaging your transaxle, see
ªStuck: In Sand, Mud, Ice or Snowº in the Index.NEUTRAL (N): In this position, your engine doesn't
connect with the wheels. To restart when you're already
moving, use NEUTRAL (N) only.
CAUTION:
Shifting into a drive gear while your engine is
ªracingº (running at high speed) is dangerous.
Unless your foot is firmly on the brake pedal,
your vehicle could move very rapidly. You could
lose control and hit people or objects. Don't shift
into a drive gear while your engine is racing.
NOTICE:
Damage to your transaxle caused by shifting out
of PARK (P) or NEUTRAL (N) with the engine
racing isn't covered by your warranty.

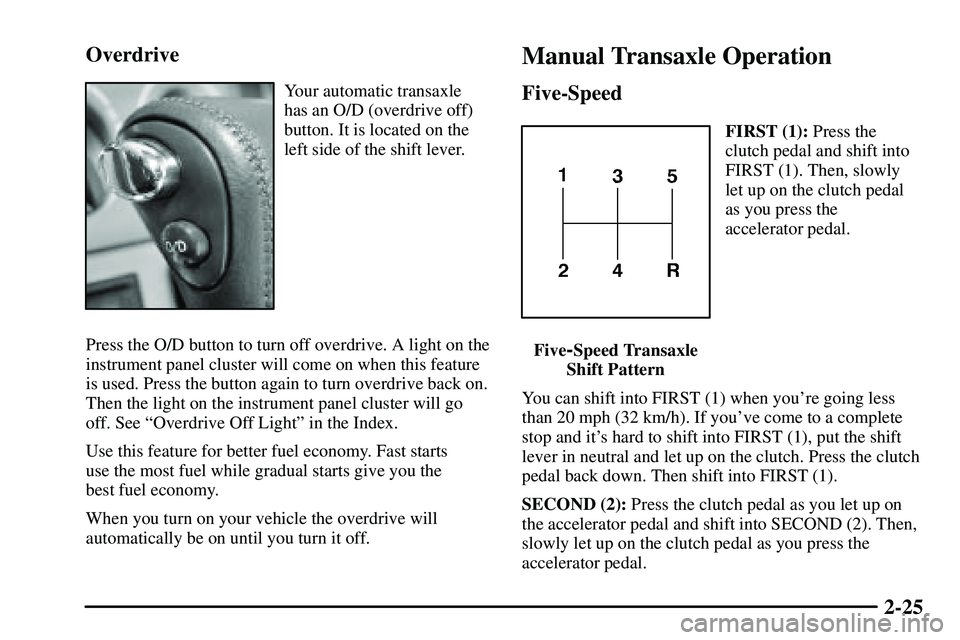

2-25 Overdrive
Your automatic transaxle
has an O/D (overdrive off)
button. It is located on the
left side of the shift lever.
Press the O/D button to turn off overdrive. A light on the
instrument panel cluster will come on when this feature
is used. Press the button again to turn overdrive back on.
Then the light on the instrument panel cluster will go
off. See ªOverdrive Off Lightº in the Index.
Use this feature for better fuel economy. Fast starts
use the most fuel while gradual starts give you the
best fuel economy.
When you turn on your vehicle the overdrive will
automatically be on until you turn it off.
Manual Transaxle Operation
Five-Speed
FIRST (1): Press the
clutch pedal and shift into
FIRST (1). Then, slowly
let up on the clutch pedal
as you press the
accelerator pedal.
Five
-Speed Transaxle
Shift Pattern
You can shift into FIRST (1) when you're going less
than 20 mph (32 km/h). If you've come to a complete
stop and it's hard to shift into FIRST (1), put the shift
lever in neutral and let up on the clutch. Press the clutch
pedal back down. Then shift into FIRST (1).
SECOND (2): Press the clutch pedal as you let up on
the accelerator pedal and shift into SECOND (2). Then,
slowly let up on the clutch pedal as you press the
accelerator pedal.

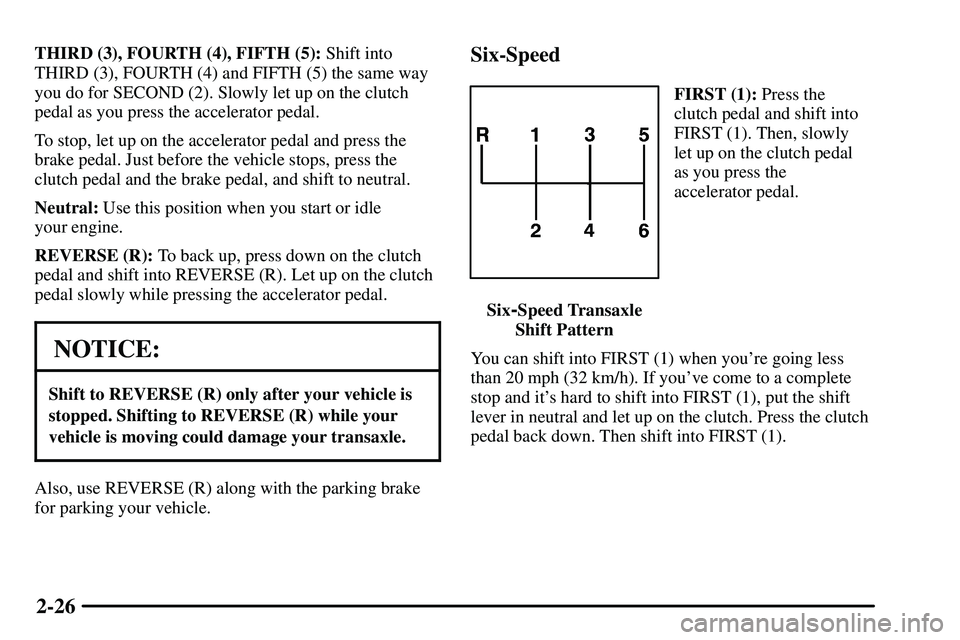

2-26
THIRD (3), FOURTH (4), FIFTH (5): Shift into
THIRD (3), FOURTH (4) and FIFTH (5) the same way
you do for SECOND (2). Slowly let up on the clutch
pedal as you press the accelerator pedal.
To stop, let up on the accelerator pedal and press the
brake pedal. Just before the vehicle stops, press the
clutch pedal and the brake pedal, and shift to neutral.
Neutral: Use this position when you start or idle
your engine.
REVERSE (R): To back up, press down on the clutch
pedal and shift into REVERSE (R). Let up on the clutch
pedal slowly while pressing the accelerator pedal.
NOTICE:
Shift to REVERSE (R) only after your vehicle is
stopped. Shifting to REVERSE (R) while your
vehicle is moving could damage your transaxle.
Also, use REVERSE (R) along with the parking brake
for parking your vehicle.
Six-Speed
FIRST (1): Press the
clutch pedal and shift into
FIRST (1). Then, slowly
let up on the clutch pedal
as you press the
accelerator pedal.
Six
-Speed Transaxle
Shift Pattern
You can shift into FIRST (1) when you're going less
than 20 mph (32 km/h). If you've come to a complete
stop and it's hard to shift into FIRST (1), put the shift
lever in neutral and let up on the clutch. Press the clutch
pedal back down. Then shift into FIRST (1).

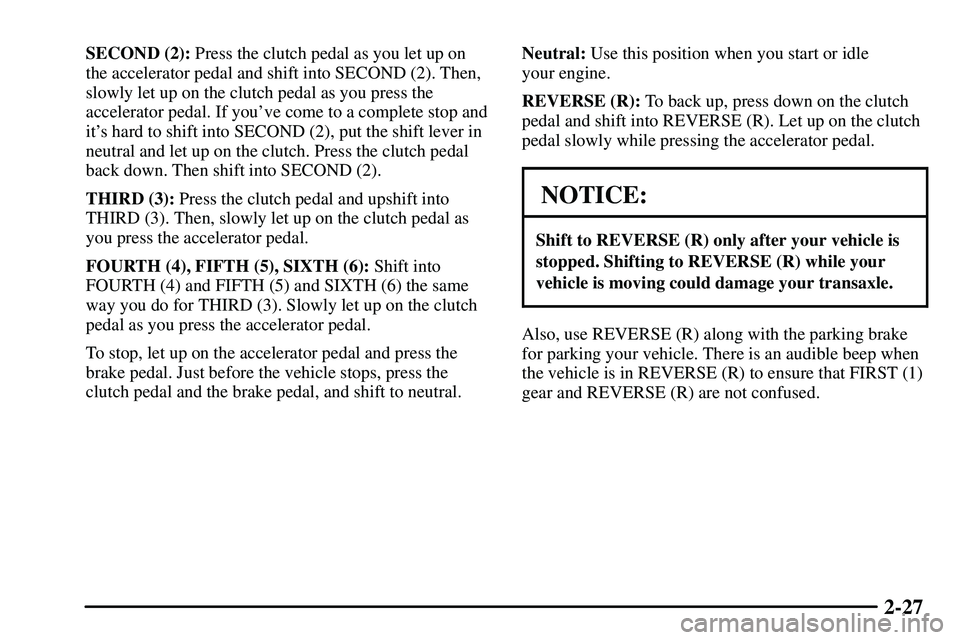

2-27
SECOND (2): Press the clutch pedal as you let up on
the accelerator pedal and shift into SECOND (2). Then,
slowly let up on the clutch pedal as you press the
accelerator pedal. If you've come to a complete stop and
it's hard to shift into SECOND (2), put the shift lever in
neutral and let up on the clutch. Press the clutch pedal
back down. Then shift into SECOND (2).
THIRD (3): Press the clutch pedal and upshift into
THIRD (3). Then, slowly let up on the clutch pedal as
you press the accelerator pedal.
FOURTH (4), FIFTH (5), SIXTH (6): Shift into
FOURTH (4) and FIFTH (5) and SIXTH (6) the same
way you do for THIRD (3). Slowly let up on the clutch
pedal as you press the accelerator pedal.
To stop, let up on the accelerator pedal and press the
brake pedal. Just before the vehicle stops, press the
clutch pedal and the brake pedal, and shift to neutral.Neutral: Use this position when you start or idle
your engine.
REVERSE (R): To back up, press down on the clutch
pedal and shift into REVERSE (R). Let up on the clutch
pedal slowly while pressing the accelerator pedal.
NOTICE:
Shift to REVERSE (R) only after your vehicle is
stopped. Shifting to REVERSE (R) while your
vehicle is moving could damage your transaxle.
Also, use REVERSE (R) along with the parking brake
for parking your vehicle. There is an audible beep when
the vehicle is in REVERSE (R) to ensure that FIRST (1)
gear and REVERSE (R) are not confused.

2-38

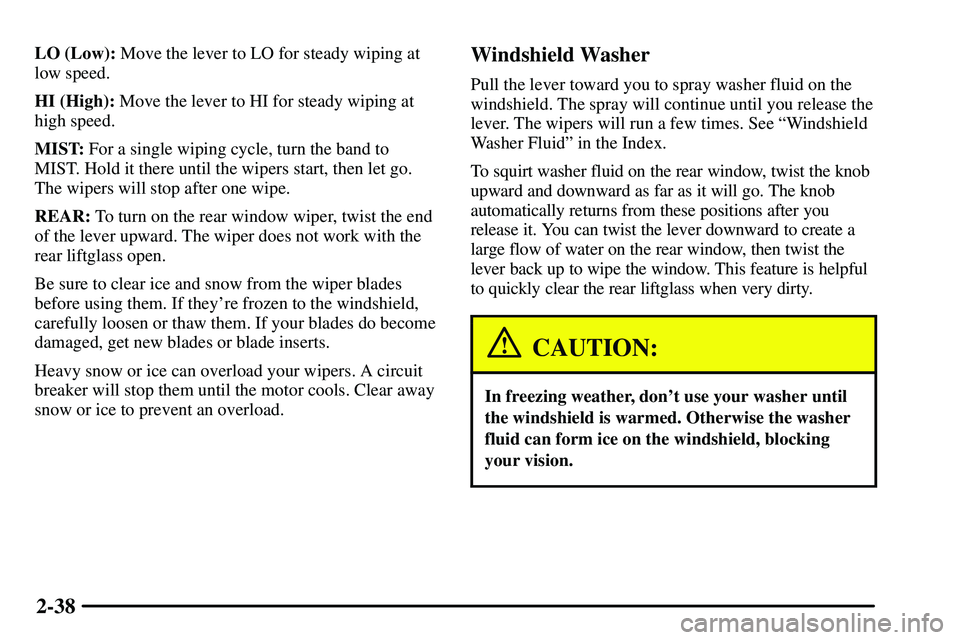

LO (Low): Move the lever to LO for steady wiping at
low speed.
HI (High): Move the lever to HI for steady wiping at
high speed.
MIST: For a single wiping cycle, turn the band to
MIST. Hold it there until the wipers start, then let go.
The wipers will stop after one wipe.
REAR: To turn on the rear window wiper, twist the end
of the lever upward. The wiper does not work with the
rear liftglass open.
Be sure to clear ice and snow from the wiper blades
before using them. If they're frozen to the windshield,
carefully loosen or thaw them. If your blades do become
damaged, get new blades or blade inserts.
Heavy snow or ice can overload your wipers. A circuit
breaker will stop them until the motor cools. Clear away
snow or ice to prevent an overload.Windshield Washer
Pull the lever toward you to spray washer fluid on the
windshield. The spray will continue until you release the
lever. The wipers will run a few times. See ªWindshield
Washer Fluidº in the Index.
To squirt washer fluid on the rear window, twist the knob
upward and downward as far as it will go. The knob
automatically returns from these positions after you
release it. You can twist the lever downward to create a
large flow of water on the rear window, then twist the
lever back up to wipe the window. This feature is helpful
to quickly clear the rear liftglass when very dirty.
CAUTION:
In freezing weather, don't use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.

2-65 Charging System Indicator Light
This light will come on
briefly when you turn on the
ignition, but the engine is
not running, as a check to
show you it is working.
Then it should go out when
the engine starts.
If it stays on, or comes on while you are driving, you
may have a problem with the electrical charging system.
It could indicate that you have a loose generator drive
belt or another electrical problem. Have it checked
right away. Driving while this light is on could drain
your battery.
If you must drive a short distance with the charging
system light on, be certain to turn off all your
accessories, such as the radio and air conditioner.
Brake System Warning Light
Your vehicle's hydraulic brake system is divided into
two parts. If one part isn't working, the other part can
still work and stop you. For good braking, though, you
need both parts working well.
If the warning light comes on, there is a brake problem.
Have your brake system inspected right away.
United States Canada
This light should come on when you turn the key to
START. If it doesn't come on then, have it fixed so it
will be ready to warn you if there's a problem.
