PONTIAC VIBE 2006 Workshop Manual

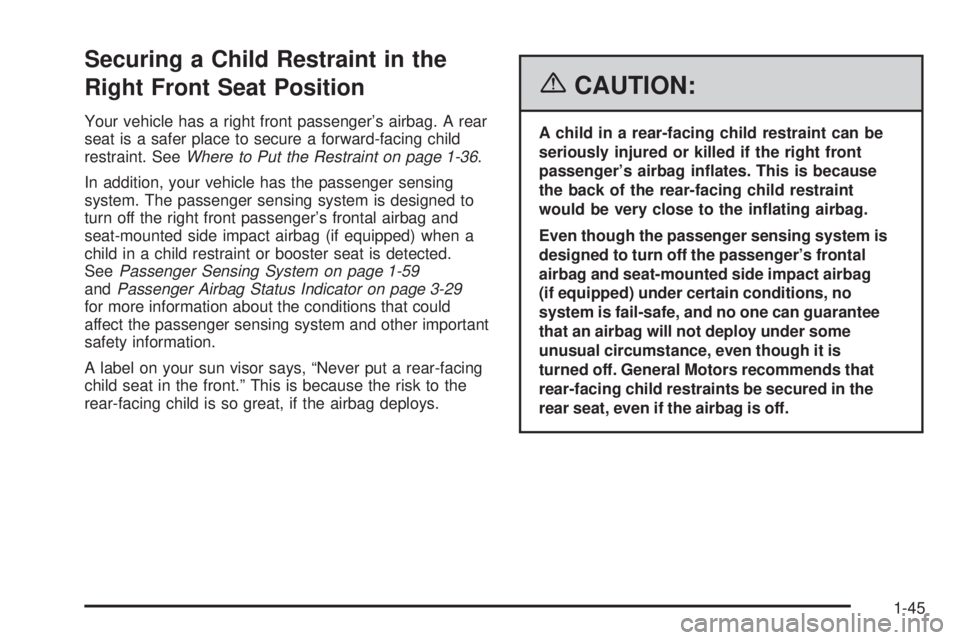

Securing a Child Restraint in the
Right Front Seat Position
Your vehicle has a right front passenger’s airbag. A rear
seat is a safer place to secure a forward-facing child
restraint. SeeWhere to Put the Restraint on page 1-36.
In addition, your vehicle has the passenger sensing
system. The passenger sensing system is designed to
turn off the right front passenger’s frontal airbag and
seat-mounted side impact airbag (if equipped) when a
child in a child restraint or booster seat is detected.
SeePassenger Sensing System on page 1-59
andPassenger Airbag Status Indicator on page 3-29
for more information about the conditions that could
affect the passenger sensing system and other important
safety information.
A label on your sun visor says, “Never put a rear-facing
child seat in the front.” This is because the risk to the
rear-facing child is so great, if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inates. This is because
the back of the rear-facing child restraint
would be very close to the inating airbag.
Even though the passenger sensing system is
designed to turn off the passenger’s frontal
airbag and seat-mounted side impact airbag
(if equipped) under certain conditions, no
system is fail-safe, and no one can guarantee
that an airbag will not deploy under some
unusual circumstance, even though it is
turned off. General Motors recommends that
rear-facing child restraints be secured in the
rear seat, even if the airbag is off.
1-45

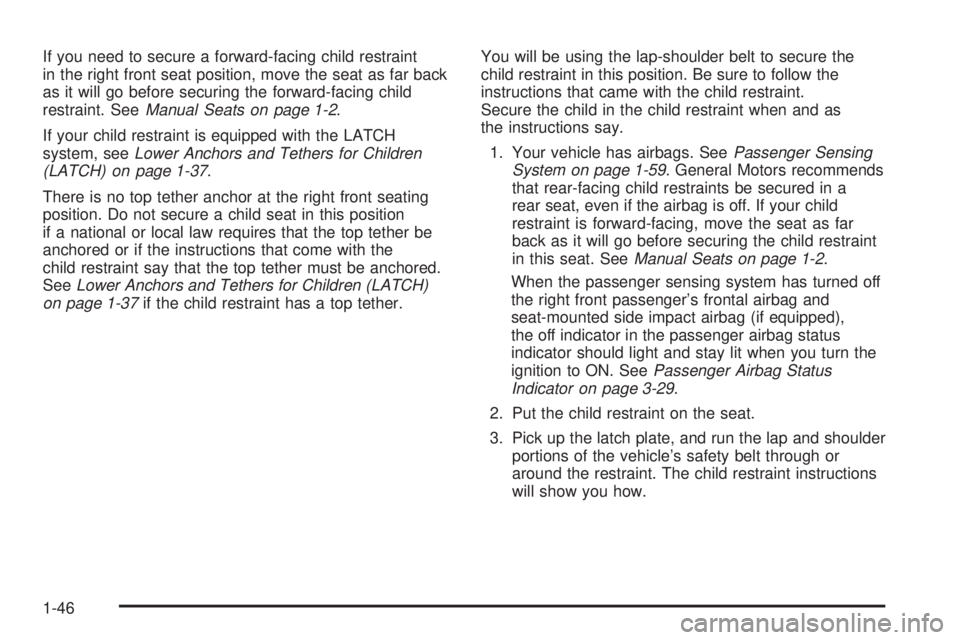

If you need to secure a forward-facing child restraint
in the right front seat position, move the seat as far back
as it will go before securing the forward-facing child
restraint. SeeManual Seats on page 1-2.
If your child restraint is equipped with the LATCH
system, seeLower Anchors and Tethers for Children
(LATCH) on page 1-37.
There is no top tether anchor at the right front seating
position. Do not secure a child seat in this position
if a national or local law requires that the top tether be
anchored or if the instructions that come with the
child restraint say that the top tether must be anchored.
SeeLower Anchors and Tethers for Children (LATCH)
on page 1-37if the child restraint has a top tether.You will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.
1. Your vehicle has airbags. SeePassenger Sensing
System on page 1-59. General Motors recommends
that rear-facing child restraints be secured in a
rear seat, even if the airbag is off. If your child
restraint is forward-facing, move the seat as far
back as it will go before securing the child restraint
in this seat. SeeManual Seats on page 1-2.
When the passenger sensing system has turned off
the right front passenger’s frontal airbag and
seat-mounted side impact airbag (if equipped),
the off indicator in the passenger airbag status
indicator should light and stay lit when you turn the
ignition to ON. SeePassenger Airbag Status
Indicator on page 3-29.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
1-46

4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
1-47

6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt. You should not be
able to pull more of the belt from the retractor
once the lock has been set.7. Push and pull the child restraint in different
directions to be sure it is secure.
8. If the passenger sensing system has turned off
the right front passenger’s frontal airbag and
seat-mounted side impact airbag (if equipped),
the off indicator in the passenger airbag status
indicator will be lit and stay lit when the key
is turned to ON.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the child
restraint from the vehicle and reinstall the child restraint
with the ignition key in the ACC or LOCK position.
If after reinstalling the child restraint and restarting the
vehicle, the on indicator is still lit, check to make
sure that the vehicle’s seatback is not pressing the child
restraint into the seat cushion. If this happens, slightly
recline the vehicle’s seatback and adjust the seat
cushion if possible. Also make sure the child restraint is
not trapped under the vehicle head restraint. If this
happens, adjust the head restraint.
1-48

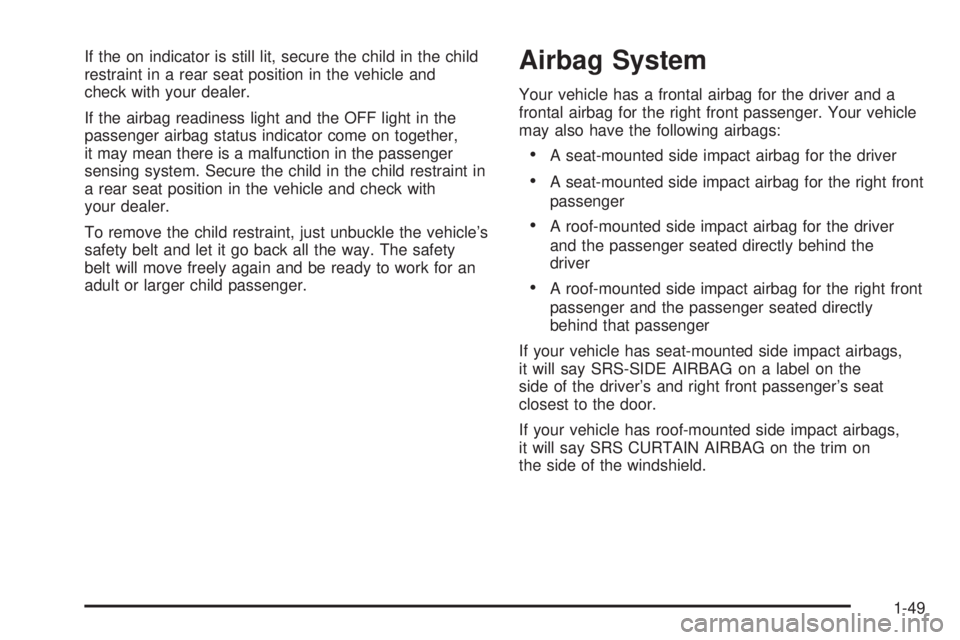

If the on indicator is still lit, secure the child in the child
restraint in a rear seat position in the vehicle and
check with your dealer.
If the airbag readiness light and the OFF light in the
passenger airbag status indicator come on together,
it may mean there is a malfunction in the passenger
sensing system. Secure the child in the child restraint in
a rear seat position in the vehicle and check with
your dealer.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.Airbag System
Your vehicle has a frontal airbag for the driver and a
frontal airbag for the right front passenger. Your vehicle
may also have the following airbags:
A seat-mounted side impact airbag for the driver
A seat-mounted side impact airbag for the right front
passenger
A roof-mounted side impact airbag for the driver
and the passenger seated directly behind the
driver
A roof-mounted side impact airbag for the right front
passenger and the passenger seated directly
behind that passenger
If your vehicle has seat-mounted side impact airbags,
it will say SRS-SIDE AIRBAG on a label on the
side of the driver’s and right front passenger’s seat
closest to the door.
If your vehicle has roof-mounted side impact airbags,
it will say SRS CURTAIN AIRBAG on the trim on
the side of the windshield.
1-49

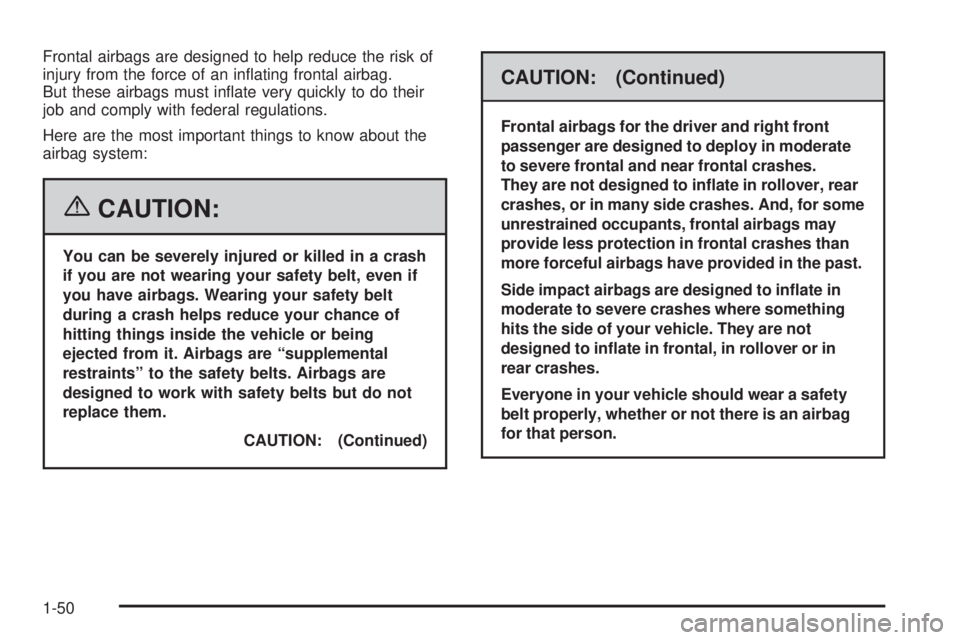

Frontal airbags are designed to help reduce the risk of
injury from the force of an inating frontal airbag.
But these airbags must inate very quickly to do their
job and comply with federal regulations.
Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash
if you are not wearing your safety belt, even if
you have airbags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being
ejected from it. Airbags are “supplemental
restraints” to the safety belts. Airbags are
designed to work with safety belts but do not
replace them.
CAUTION: (Continued)
CAUTION: (Continued)
Frontal airbags for the driver and right front
passenger are designed to deploy in moderate
to severe frontal and near frontal crashes.
They are not designed to inate in rollover, rear
crashes, or in many side crashes. And, for some
unrestrained occupants, frontal airbags may
provide less protection in frontal crashes than
more forceful airbags have provided in the past.
Side impact airbags are designed to inate in
moderate to severe crashes where something
hits the side of your vehicle. They are not
designed to inate in frontal, in rollover or in
rear crashes.
Everyone in your vehicle should wear a safety
belt properly, whether or not there is an airbag
for that person.
1-50

{CAUTION:
Both frontal and side impact airbags inate
with great force, faster than the blink of an
eye. If you are too close to an inating airbag,
as you would be if you were leaning forward,
it could seriously injure you. Safety belts help
keep you in position for airbag ination before
and during a crash. Always wear your safety
belt even with frontal airbags. The driver
should sit as far back as possible while still
maintaining control of the vehicle. Occupants
should not lean on or sleep against the door.
{CAUTION:
Anyone who is up against, or very close to,
any airbag when it inates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer the best protection for adults,
CAUTION: (Continued)
CAUTION: (Continued)
but not for young children and infants. Neither
the vehicle’s safety belt system nor its airbag
system is designed for them. Young children
and infants need the protection that a child
restraint system can provide. Always secure
children properly in your vehicle. To read how,
seeOlder Children on page 1-26orInfants and
Young Children on page 1-28.
There is an airbag
readiness light on the
instrument panel, which
shows the airbag symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-28
for more information.
1-51

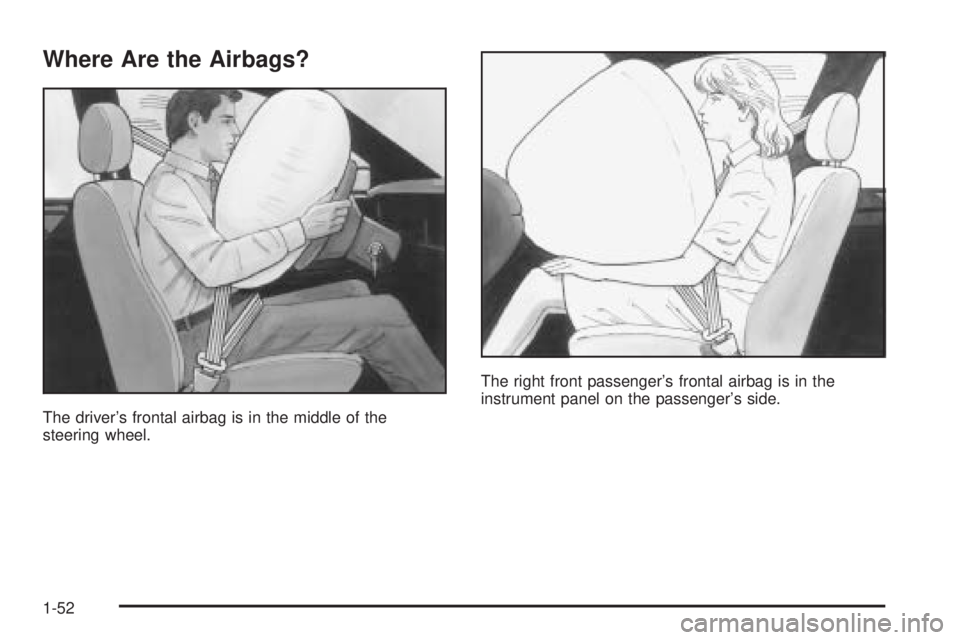

Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side.
1-52

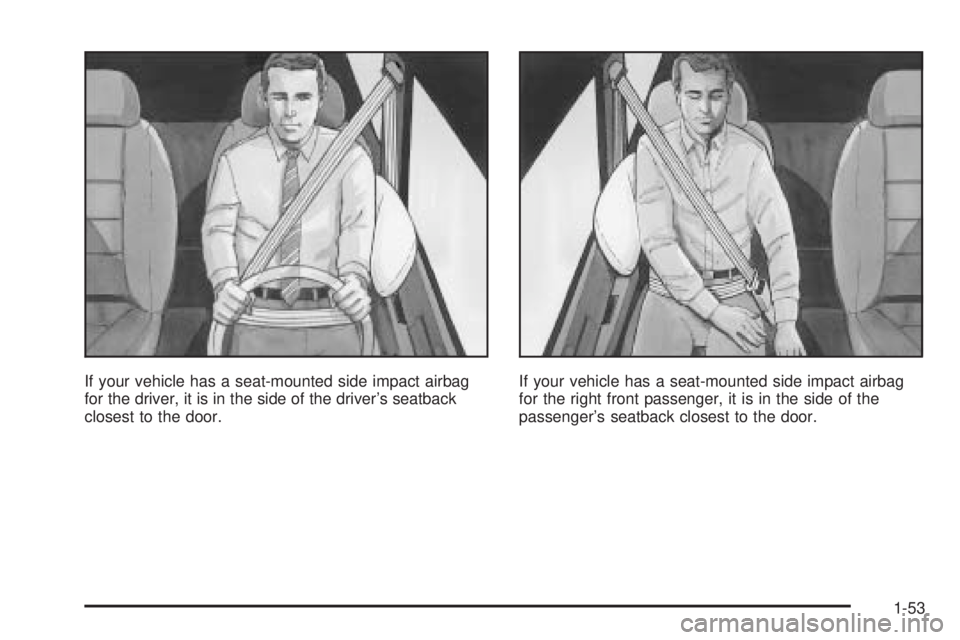

If your vehicle has a seat-mounted side impact airbag
for the driver, it is in the side of the driver’s seatback
closest to the door.If your vehicle has a seat-mounted side impact airbag
for the right front passenger, it is in the side of the
passenger’s seatback closest to the door.
1-53

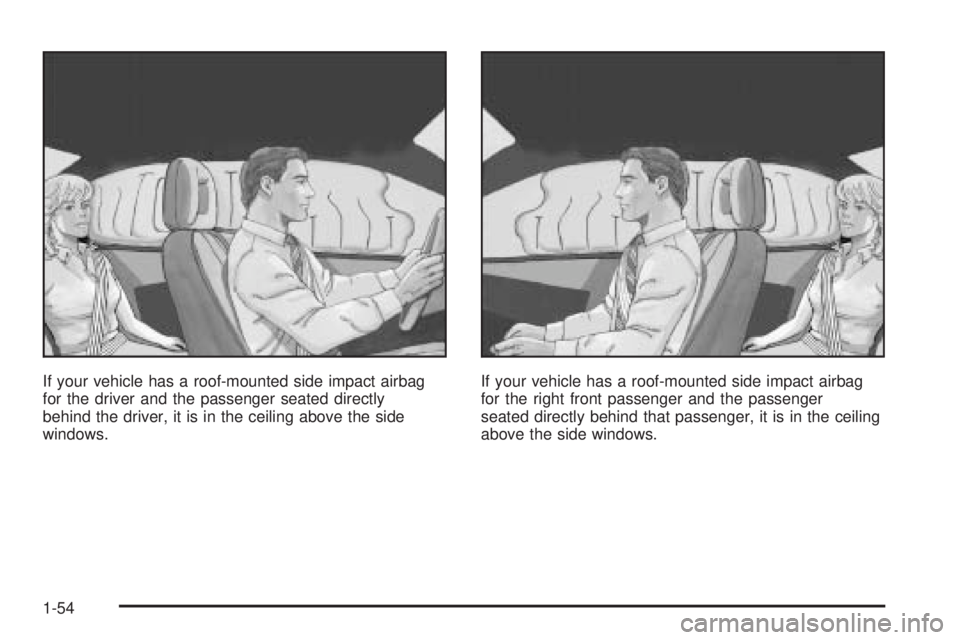

If your vehicle has a roof-mounted side impact airbag
for the driver and the passenger seated directly
behind the driver, it is in the ceiling above the side
windows.If your vehicle has a roof-mounted side impact airbag
for the right front passenger and the passenger
seated directly behind that passenger, it is in the ceiling
above the side windows.
1-54
