child restraint PONTIAC VIBE 2007 Owners Manual

Seats and Restraint Systems
....................... 7
Front Seats
.............................................. 8
Rear Seats
............................................. 16
Safety Belts
............................................ 18
Child Restraints
...................................... 37
Airbag System
........................................ 63
Restraint System Check
......................... 82
Features and Controls
................................ 85
Keys
....................................................... 87
Doors and Locks
.................................... 92
Windows
................................................ 98
Theft-Deterrent Systems
....................... 100
Starting and Operating Your Vehicle
..... 102
Mirrors
.................................................. 121
OnStar
®System
................................... 123
Storage Areas
...................................... 127
Sunroof
................................................ 131Instrument Panel
....................................... 133
Instrument Panel Overview
................... 136
Climate Controls
................................... 152
Warning Lights, Gages, and
Indicators
.......................................... 158
Audio System(s)
................................... 177
Driving Your Vehicle
................................. 221
Your Driving, the Road, and
Your Vehicle
..................................... 222
Towing
................................................. 259
Service and Appearance Care
.................. 269
Service
................................................. 272
Fuel
...................................................... 274
Checking Things Under the Hood
......... 280
Bulb Replacement
................................ 315
Windshield Wiper Blade Replacement
... 321
2007 Pontiac Vibe Owner ManualM
1

Front Seats..................................................... 8
Manual Seats................................................ 8
Driver Seat Height Adjuster........................... 9
Reclining Seatbacks.................................... 10
Head Restraints.......................................... 13
Passenger Folding Seatback....................... 14
Rear Seats.................................................... 16
Rear Seat Operation................................... 16
Safety Belts.................................................. 18
Safety Belts: They Are for Everyone........... 18
Questions and Answers About
Safety Belts............................................. 22
How to Wear Safety Belts Properly............. 23
Driver Position............................................. 24
Shoulder Belt Height Adjustment................. 31
Safety Belt Use During Pregnancy.............. 32
Right Front Passenger Position................... 32
Rear Seat Passengers................................ 33
Safety Belt Pretensioners............................ 36
Safety Belt Extender................................... 36
Child Restraints............................................ 37
Older Children............................................. 37
Infants and Young Children......................... 40Child Restraint Systems.............................. 43
Where to Put the Restraint.......................... 47
Lower Anchors and Tethers for
Children (LATCH).................................... 49
Securing a Child Restraint in a Rear
Seat Position........................................... 56
Securing a Child Restraint in the Right
Front Seat Position.................................. 58
Airbag System.............................................. 63
Where Are the Airbags?.............................. 66
When Should an Airbag Inate?.................. 70
What Makes an Airbag Inate?................... 71
How Does an Airbag Restrain?................... 72
What Will You See After an Airbag
Inates?................................................... 72
Passenger Sensing System......................... 74
Servicing Your Airbag-Equipped Vehicle...... 80
Adding Equipment to Your
Airbag-Equipped Vehicle.......................... 81
Restraint System Check............................... 82
Checking the Restraint Systems.................. 82
Replacing Restraint System Parts After
a Crash................................................... 83
Section 1 Seats and Restraint Systems
7

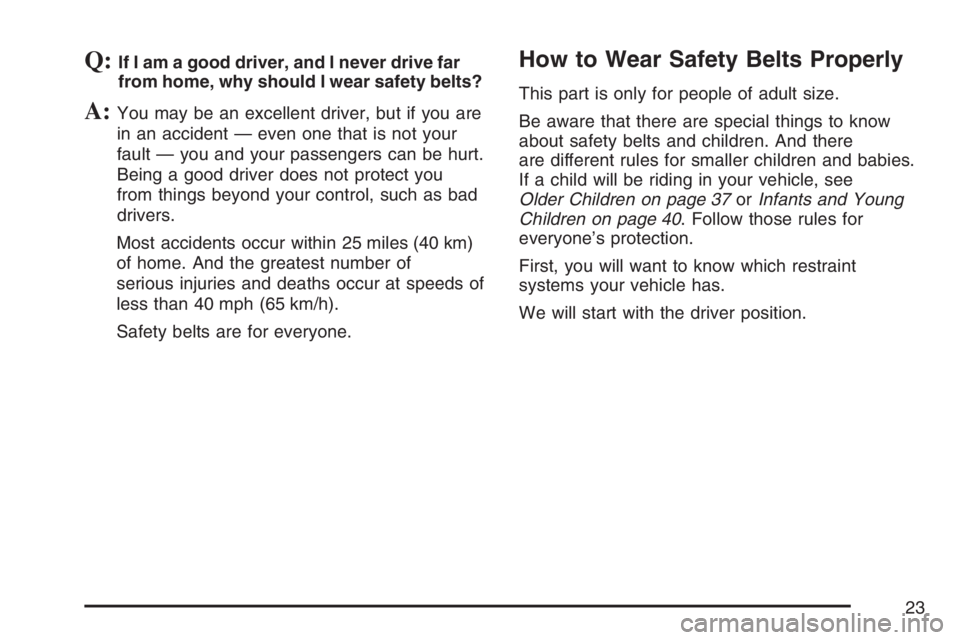

Q:If I am a good driver, and I never drive far
from home, why should I wear safety belts?
A:You may be an excellent driver, but if you are
in an accident — even one that is not your
fault — you and your passengers can be hurt.
Being a good driver does not protect you
from things beyond your control, such as bad
drivers.
Most accidents occur within 25 miles (40 km)
of home. And the greatest number of
serious injuries and deaths occur at speeds of
less than 40 mph (65 km/h).
Safety belts are for everyone.
How to Wear Safety Belts Properly
This part is only for people of adult size.
Be aware that there are special things to know
about safety belts and children. And there
are different rules for smaller children and babies.
If a child will be riding in your vehicle, see
Older Children on page 37orInfants and Young
Children on page 40. Follow those rules for
everyone’s protection.
First, you will want to know which restraint
systems your vehicle has.
We will start with the driver position.
23

Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely
to be seriously injured if they do not wear
safety belts.
A pregnant woman should wear a lap-shoulder
belt, and the lap portion should be worn as low as
possible, below the rounding, throughout the
pregnancy.The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly, it
is more likely that the fetus will not be hurt
in a crash. For pregnant women, as for anyone,
the key to making safety belts effective is wearing
them properly.
Right Front Passenger Position
To learn how to wear the right front passenger’s
safety belt properly, seeDriver Position on
page 24.
The right front passenger’s safety belt works the
same way as the driver’s safety belt — except
for one thing. If you ever pull the shoulder portion
of the belt out all the way, you will engage the
child restraint locking feature. If this happens, let
the belt go back all the way and start again.
32

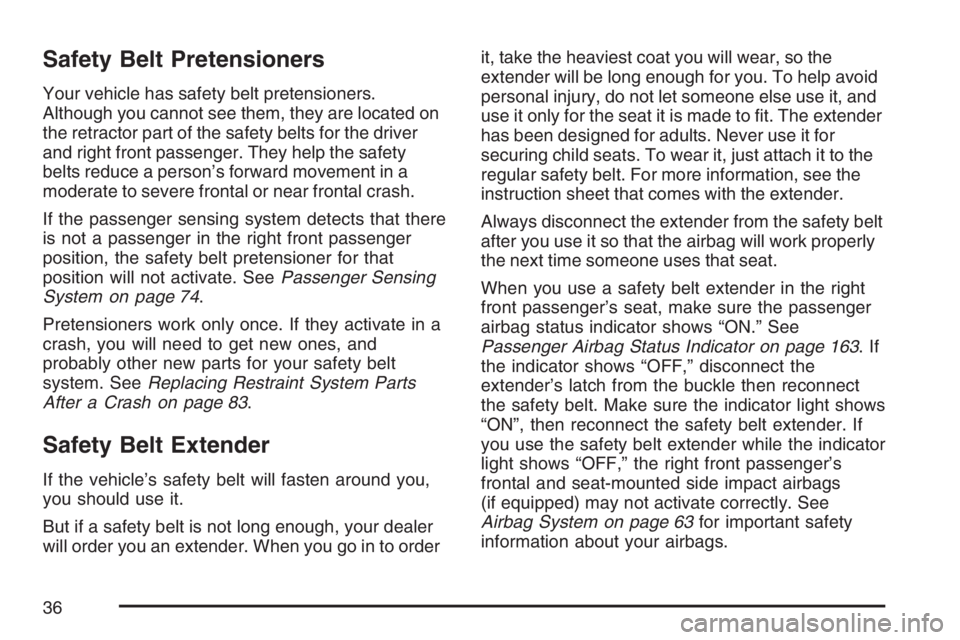

Safety Belt Pretensioners
Your vehicle has safety belt pretensioners.
Although you cannot see them, they are located on
the retractor part of the safety belts for the driver
and right front passenger. They help the safety
belts reduce a person’s forward movement in a
moderate to severe frontal or near frontal crash.
If the passenger sensing system detects that there
is not a passenger in the right front passenger
position, the safety belt pretensioner for that
position will not activate. SeePassenger Sensing
System on page 74.
Pretensioners work only once. If they activate in a
crash, you will need to get new ones, and
probably other new parts for your safety belt
system. SeeReplacing Restraint System Parts
After a Crash on page 83.
Safety Belt Extender
If the vehicle’s safety belt will fasten around you,
you should use it.
But if a safety belt is not long enough, your dealer
will order you an extender. When you go in to orderit, take the heaviest coat you will wear, so the
extender will be long enough for you. To help avoid
personal injury, do not let someone else use it, and
use it only for the seat it is made to t. The extender
has been designed for adults. Never use it for
securing child seats. To wear it, just attach it to the
regular safety belt. For more information, see the
instruction sheet that comes with the extender.
Always disconnect the extender from the safety belt
after you use it so that the airbag will work properly
the next time someone uses that seat.
When you use a safety belt extender in the right
front passenger’s seat, make sure the passenger
airbag status indicator shows “ON.” See
Passenger Airbag Status Indicator on page 163.If
the indicator shows “OFF,” disconnect the
extender’s latch from the buckle then reconnect
the safety belt. Make sure the indicator light shows
“ON”, then reconnect the safety belt extender. If
you use the safety belt extender while the indicator
light shows “OFF,” the right front passenger’s
frontal and seat-mounted side impact airbags
(if equipped) may not activate correctly. See
Airbag System on page 63for important safety
information about your airbags.
36

Child Restraints
Older Children
Older children who have outgrown booster seats
should wear the vehicle’s safety belts.
Q:What is the proper way to wear safety
belts?
A:If possible, an older child should wear a
lap-shoulder belt and get the additional
restraint a shoulder belt can provide. The
shoulder belt should not cross the face
or neck. The lap belt should t snugly below
the hips, just touching the top of the thighs. It
should never be worn over the abdomen,
which could cause severe or even fatal internal
injuries in a crash.
According to accident statistics, children are safer
when properly restrained in the rear seating
positions than in the front seating positions.
In a crash, children who are not buckled up can
strike other people who are buckled up, or can be
thrown out of the vehicle. Older children need
to use safety belts properly.
37

{CAUTION:
Never do this.
Here two children are wearing the same
belt. The belt cannot properly spread the
impact forces. In a crash, the two children
can be crushed together and seriously
injured. A belt must be used by only
one person at a time.
Q:What if a child is wearing a lap-shoulder
belt, but the child is so small that the
shoulder belt is very close to the child’s
face or neck?
A:If the child is sitting in a seat next to a window,
move the child toward the center of the vehicle.
If the child is sitting in the center rear seat
passenger position, move the child toward the
safety belt buckle. In either case, be sure that
the shoulder belt still is on the child’s shoulder,
so that in a crash the child’s upper body would
have the restraint that belts provide.
38

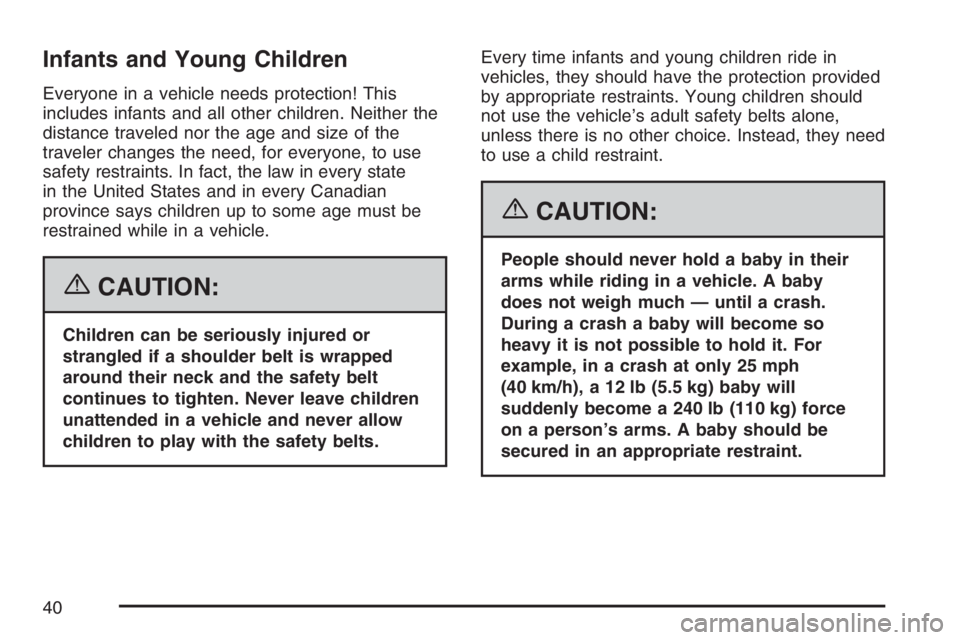

Infants and Young Children
Everyone in a vehicle needs protection! This
includes infants and all other children. Neither the
distance traveled nor the age and size of the
traveler changes the need, for everyone, to use
safety restraints. In fact, the law in every state
in the United States and in every Canadian
province says children up to some age must be
restrained while in a vehicle.
{CAUTION:
Children can be seriously injured or
strangled if a shoulder belt is wrapped
around their neck and the safety belt
continues to tighten. Never leave children
unattended in a vehicle and never allow
children to play with the safety belts.Every time infants and young children ride in
vehicles, they should have the protection provided
by appropriate restraints. Young children should
not use the vehicle’s adult safety belts alone,
unless there is no other choice. Instead, they need
to use a child restraint.
{CAUTION:
People should never hold a baby in their
arms while riding in a vehicle. A baby
does not weigh much — until a crash.
During a crash a baby will become so
heavy it is not possible to hold it. For
example, in a crash at only 25 mph
(40 km/h), a 12 lb (5.5 kg) baby will
suddenly become a 240 lb (110 kg) force
on a person’s arms. A baby should be
secured in an appropriate restraint.
40

{CAUTION:
Children who are up against, or very close
to, any airbag when it inates can be
seriously injured or killed. Airbags plus
lap-shoulder belts offer protection for
adults and older children, but not for
young children and infants.
CAUTION: (Continued)
CAUTION: (Continued)
Neither the vehicle’s safety belt system
nor its airbag system is designed for
them. Young children and infants need the
protection that a child restraint system
can provide.
41

Q:What are the different types of add-on
child restraints?
A:Add-on child restraints, which are purchased by
the vehicle’s owner, are available in four basic
types. Selection of a particular restraint should
take into consideration not only the child’s
weight, height, and age but also whether or not
the restraint will be compatible with the motor
vehicle in which it will be used.
For most basic types of child restraints, there
are many different models available. When
purchasing a child restraint, be sure it is
designed to be used in a motor vehicle. If it is,
the restraint will have a label saying that it
meets federal motor vehicle safety standards.
The restraint manufacturer’s instructions that
come with the restraint state the weight and
height limitations for a particular child restraint.
In addition, there are many kinds of restraints
available for children with special needs.
{CAUTION:
Newborn infants need complete support,
including support for the head and neck.
This is necessary because a newborn
infant’s neck is weak and its head weighs
so much compared with the rest of its
body. In a crash, an infant in a rear-facing
seat settles into the restraint, so the crash
forces can be distributed across the
strongest part of an infant’s body, the
back and shoulders. Infants always
should be secured in appropriate infant
restraints.
42
