Remote Keyless Entry (RKE)
System Operation
If your vehicle has this feature, you can lock and
unlock your doors from about 3 feet (1 m) up
to 30 feet (9 m) away using the remote keyless
entry transmitter supplied with your vehicle.
The remote keyless entry transmitter will look
different if your vehicle was purchased in Canada,
however it will operate the same.
LOCK:Press this button
to lock all of the doors.
The turn signal lights will ash once to conrm
that the doors have locked.UNLOCK:Press this button once to unlock the
driver’s door. The turn signal lights will ash twice
and the interior lamps will come on to conrm that
the door has unlocked. If the UNLOCK button is
pressed again within three seconds, all remaining
doors will unlock and the turn signal lights will ash
twice and interior lamps will remain on to conrm
that all doors & hatch have unlocked. The interior
lamps will stay on for 15 seconds or until the
ignition is turned on.
HATCH/GLASS:Press this button to open the
rear liftglass. If the ignition key is in the ON
position, the liftglass cannot be opened by the
HATCH/GLASS button on the transmitter.
90

Theft-Deterrent Systems
Vehicle theft is big business, especially in some
cities. Although your vehicle has a number of
theft-deterrent features, we know that nothing we
put on it can make it impossible to steal.
Content Theft-Deterrent
If your vehicle has this feature, the theft-deterrent
system is designed to activate an alarm if any
of the side doors or the liftgate is forcibly unlocked
or if the battery terminal is disconnected and
then reconnected while the system is set.
The alarm will sound the horn intermittently and
ash the headlamps, turn signal lamps and interior
lights. If the driver’s or front passenger’s side
doors are unlocked forcibly, the other side doors
and the liftgate will be locked automatically.
Arming the System
To arm the system, do the following:
1. Turn the ignition key to the LOCK position
and remove it.
2. Close and lock all doors and liftgate with the
key or remote keyless entry transmitter.The indicator light
located on the
instrument panel to the
left of the steering
wheel will come
on when all doors and
liftgate are closed
and locked.
The system will be automatically set after
30 seconds. When the system is set,
the indicator light will start ashing.
3. After the indicator light starts ashing, you
may leave the vehicle.
Do not leave anyone in the vehicle when you
set the system, because unlocking the
vehicle from the inside will activate the system.
100

Instrument Panel Overview........................ 136
Hazard Warning Flashers.......................... 138
Other Warning Devices............................. 138
Horn.......................................................... 138
Tilt Wheel.................................................. 139
Turn Signal/Multifunction Lever.................. 139
Turn and Lane-Change Signals................. 140
Headlamp High/Low-Beam Changer.......... 140
Flash-to-Pass............................................ 141
Windshield Wipers..................................... 141
Windshield Washer.................................... 142
Rear Window Wiper/Washer...................... 142
Cruise Control........................................... 143
Exterior Lamps.......................................... 146
Headlamps on Reminder........................... 146
Daytime Running Lamps (DRL)................. 147
Automatic Headlamp System..................... 147
Fog Lamps................................................ 148
Instrument Panel Brightness...................... 148
Interior Lamps Control............................... 149
Entry Lighting............................................ 149
Reading Lamps......................................... 150
Accessory Power Outlet(s)........................ 150Power Outlet 115 Volt Alternating
Current.................................................. 151
Ashtray(s) and Cigarette Lighter................ 151
Climate Controls......................................... 152
Climate Control System............................. 152
Outlet Adjustment...................................... 155
Passenger Compartment Air Filter............. 156
Warning Lights, Gages, and Indicators..... 158
Instrument Panel Cluster........................... 159
Speedometer and Odometer...................... 160
Trip Odometers......................................... 160
Tachometer............................................... 161
Safety Belt Reminder Light........................ 161
Airbag Readiness Light............................. 162
Passenger Airbag Status Indicator............. 163
Charging System Light.............................. 165
Brake System Warning Light..................... 166
Anti-Lock Brake System Warning Light...... 167
Low Tire Pressure Warning Light.............. 167
Traction Control System (TCS)
Warning Light........................................ 168
StabiliTrak
®Indicator Light......................... 168
Section 3 Instrument Panel
133

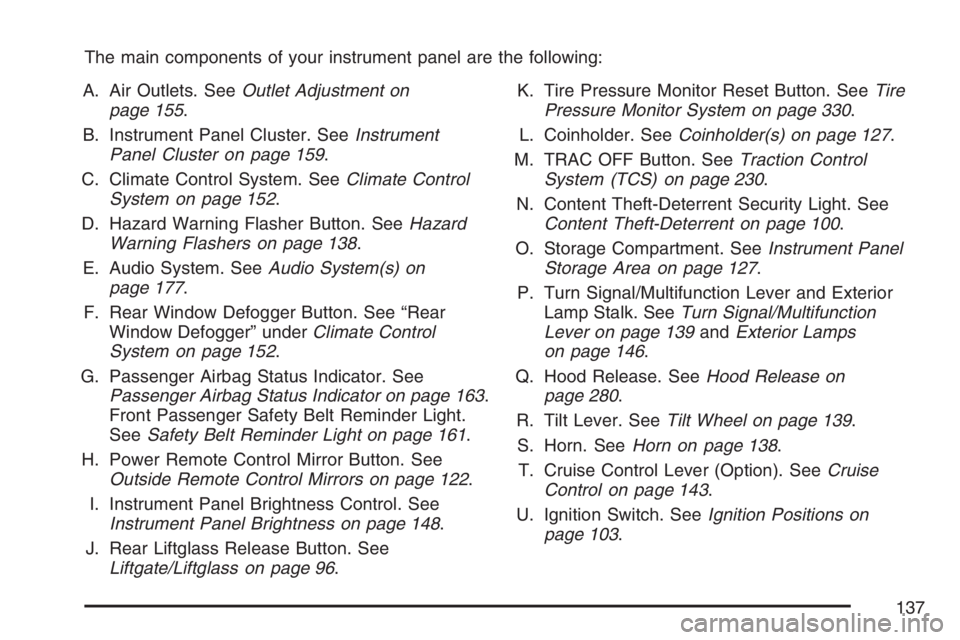

The main components of your instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on
page 155.
B. Instrument Panel Cluster. SeeInstrument
Panel Cluster on page 159.
C. Climate Control System. SeeClimate Control
System on page 152.
D. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 138.
E. Audio System. SeeAudio System(s) on
page 177.
F. Rear Window Defogger Button. See “Rear
Window Defogger” underClimate Control
System on page 152.
G. Passenger Airbag Status Indicator. See
Passenger Airbag Status Indicator on page 163.
Front Passenger Safety Belt Reminder Light.
SeeSafety Belt Reminder Light on page 161.
H. Power Remote Control Mirror Button. See
Outside Remote Control Mirrors on page 122.
I. Instrument Panel Brightness Control. See
Instrument Panel Brightness on page 148.
J. Rear Liftglass Release Button. See
Liftgate/Liftglass on page 96.K. Tire Pressure Monitor Reset Button. SeeTire
Pressure Monitor System on page 330.
L. Coinholder. SeeCoinholder(s) on page 127.
M. TRAC OFF Button. SeeTraction Control
System (TCS) on page 230.
N. Content Theft-Deterrent Security Light. See
Content Theft-Deterrent on page 100.
O. Storage Compartment. SeeInstrument Panel
Storage Area on page 127.
P. Turn Signal/Multifunction Lever and Exterior
Lamp Stalk. SeeTurn Signal/Multifunction
Lever on page 139andExterior Lamps
on page 146.
Q. Hood Release. SeeHood Release on
page 280.
R. Tilt Lever. SeeTilt Wheel on page 139.
S. Horn. SeeHorn on page 138.
T. Cruise Control Lever (Option). SeeCruise
Control on page 143.
U. Ignition Switch. SeeIgnition Positions on
page 103.
137

V. Windshield Wiper Lever. SeeWindshield
Wipers on page 141.
W. Cigarette Lighter or Accessory Power Outlet.
SeeAshtray(s) and Cigarette Lighter on
page 151orAccessory Power Outlet(s) on
page 150.
X. Shift Lever. SeeAutomatic Transaxle Operation
on page 108orManual Transaxle Operation
on page 111.
Y. Power Outlet. SeePower Outlet 115 Volt
Alternating Current on page 151.
Z. Parking Brake. SeeParking Brake on
page 114.
AA. Center Console Storage Area. SeeCenter
Console Storage Area on page 127.
AB. Glove Box. SeeGlove Box on page 127.
Hazard Warning Flashers
The hazard warning ashers let you warn the
police and others that you have a problem. The
front and rear turn signal lamps will ash on
and off.The hazard warning
asher button is located
in the center of the
instrument panel.
The hazard warning ashers work no matter what
position the key is in, and even if the key is not
in the ignition switch.
Press the button to make the front and rear turn
signal lamps ash on and off. Press the button
again to turn the ashers off.
While the hazard warning ashers are on, the turn
signals do not work.
Other Warning Devices
If you carry reective triangles, you can set
them up at the side of the road about 300 feet
(100 m) behind your vehicle.
Horn
Press near or on the horn symbols on your
steering wheel pad to sound the horn.
138

Tilt Wheel
A tilt steering column allows you to adjust the
steering column before you drive. You can also
raise it to the highest level to give your legs more
room when you exit and enter the vehicle.
The tilt lever is located
underneath, on the left
side of the steering
wheel column.
To tilt the column, move the lever downward.
Adjust the steering wheel to a comfortable position,
then move the lever upward to lock the column
in place.
Turn Signal/Multifunction Lever
The turn signal/multifunction lever is located on
the left side of the steering column.
This lever operates the following:
Exterior Lamps. SeeExterior Lamps on
page 146.
Turn and Lane-Change Signals. SeeTurn and
Lane-Change Signals on page 140.
Headlamp High/Low-Beam Changer. See
Headlamp High/Low-Beam Changer on
page 140.
Flash-to-Pass. SeeFlash-to-Pass on
page 141.
Fog Lamps. SeeFog Lamps on page 148.
139

Turn and Lane-Change Signals
The turn signal has an upward (for right) and a
downward (for left) position. These positions allow
you to signal a turn or a lane change.
To signal a turn, move the lever all the way up or
down. When the turn is nished, the lever will
return automatically.
To signal a lane change, raise or lower the lever
until the arrow starts to ash. Hold it there until you
complete your lane change. The lever will return
by itself when you release it.
An arrow on the
instrument panel cluster
will ash in the
direction of the turn or
lane change.
If you signal a turn or a lane change and notice
the arrow ashing rapidly, a signal bulb may
be burned out and other drivers will not see your
turn signal.If a bulb is burned out, have it replaced to help
avoid an accident. If the arrows do not go on at all
when you signal a turn, check for burned-out
bulbs and then check the fuse. SeeFuses and
Circuit Breakers on page 365.
Headlamp High/Low-Beam Changer
The headlamps must be on for this feature to
work. For high beams, push the turn signal lever
away from you.
When the high beams
are on, this light on the
instrument panel
cluster also will be on.
It will go off when you switch to the low beams. To
switch back to low beams, pull the lever toward you.
140

Flash-to-Pass
With the lever in the low-beam position, pull the
lever toward you to momentarily switch to
high beams (to signal that you are going to pass).
If you have the headlamps on when you release
the lever, they will return to the low beams.
Windshield Wipers
The lever on the right side of the steering column
controls the windshield wipers and washer.Move the lever to one of the following positions:
MIST:Move the lever to MIST, for a single wiping
cycle. Hold it there until the wipers start, then
let go. The wipers will stop after one wipe.
OFF:Move the lever to this position to turn the
wipers off.
INT (Intermittent):Move the lever to INT to
choose a delayed wiping cycle. The time between
wipes can be changed by turning the INT band.
Turn the band forward or rearward for a longer or
shorter delay interval. This position is useful in
light rain or snow, rather than continuous wiping.
LO (Low):Move the lever to LO for steady
wiping at low speed.
HI (High):Move the lever to HI for steady wiping
at high speed.
REAR:Turn the end of the lever upward to LO or
HI, to turn on the rear window wiper. The wiper
does not work with the rear liftglass open.
141

If you are driving through a parking garage,
overcast weather, or a tunnel, the automatic
headlamp system may turn on the low-beam
headlamps at a normal brightness along with the
taillamps, sidemarker, parking lamps and the
instrument panel lights. The radio lights will be
dimmer, and the instrument panel cluster
lights may dim. There will be a delay before the
lights will turn on when starting the car at night.
Fog Lamps
-(Fog Lamps):Turn the band on the turn
signal/multifunction lever to the fog lamp symbol to
turn the fog lamps on. They will come on only
when the headlamps are on low beam.
Some localities have laws that require the
headlamps to be on along with the fog lamps.
Instrument Panel Brightness
The instrument panel
brightness control is
located to the left of the
steering wheel on the
instrument panel.
Turn the wheel on the
left of the control
up or down to increase
or decrease brightness.
Turn the wheel all the way up for the maximum
setting. It is recommended that the brightness level
be kept at the maximum setting for all daytime
driving to ensure proper visibility.
The brightness of the instrument panel lights will
decrease when the headlamps are on.
148

wSEEKx:Press the up or the down arrow to
go to the next or to the previous station and
stay there.
The radio seeks stations only with a strong signal
that are in the selected band.
wSCANx:Press and hold either SCAN arrow
for two seconds until SCAN displays and a
beep sounds. The radio goes to a station, plays
for a few seconds, then goes to the next
station. Press either SCAN arrow again to stop
scanning.
To scan preset stations, press and hold either
SCAN arrow for more than four seconds until
PSCAN and the preset number displays. A double
beep sounds. The radio goes to the rst preset
station stored on your pushbuttons, plays for
a few seconds, then goes to the next preset
station. Press either SCAN arrow again to stop
scanning presets.
The radio scans stations only with a strong signal
that are in the selected band.
Setting Preset Stations
Up to 30 stations (six FM1, six FM2, and six AM,
six XM1 and six XM2 (if equipped)), can be
programmed on the six numbered pushbuttons, by
performing the following steps:
1. Turn the radio on.
2. Press BAND to select FM1, FM2, AM, or XM1
or XM2.
3. Tune in the desired station.
4. Press and hold one of the six numbered
pushbuttons until a beep sounds. When
that numbered pushbutton is pressed, the
station that was set returns and the
equalization that was selected is stored for
that pushbutton.
5. Repeat the steps for each pushbutton.
181
