wiring PONTIAC VIBE 2007 Owners Manual

Adding Equipment to Your
Airbag-Equipped Vehicle
Q:Is there anything I might add to the front
or sides of the vehicle that could keep the
airbags from working properly?
A:Yes. If you add things that change your
vehicle’s frame, bumper system, height,
front end or side sheet metal, they may keep
the airbag system from working properly.
Also, the airbag system may not work properly
if you relocate any of the airbag sensors. If
you have any questions about this, you should
contact Customer Assistance before you
modify your vehicle. The phone numbers and
addresses for Customer Assistance are in
Step Two of the Customer Satisfaction
Procedure in this manual. SeeCustomer
Satisfaction Procedure on page 400.
Q:Because I have a disability, I have to get
my vehicle modied. How can I nd out
whether this will affect my airbag system?
A:Changing or moving any parts of the
front seats, safety belts, the airbag sensing
and diagnostic module, steering wheel,
instrument panel, ceiling headliner, ceiling and
pillar garnish trim, roof-mounted airbag
modules, or airbag wiring can affect the
operation of the airbag system. If you have
questions, call Customer Assistance. The
phone numbers and addresses for Customer
Assistance are in Step Two of the Customer
Satisfaction Procedure in this manual.
SeeCustomer Satisfaction Procedure on
page 400.
81

To cancel the rear door security lock, do the
following:
1. Unlock the door from the inside and open the
door from the outside.
2. Slide the lever up.
3. Do the same for the other rear door.
The rear door locks will now work normally.Liftgate/Liftglass
{CAUTION:
It can be dangerous to drive with the
liftgate or liftglass open because carbon
monoxide (CO) gas can come into your
vehicle. You cannot see or smell CO. It
can cause unconsciousness and even
death. If you must drive with the liftgate
open or if electrical wiring or other cable
connections must pass through the seal
between the body and the liftgate or
liftglass:
Make sure all other windows are shut.
Turn the fan on your climate control
system to its highest speed and select
the control setting that will force
outside air into your vehicle. See
“Climate Control System” in the Index.
If you have air outlets on or under the
instrument panel, open them all the
way. SeeEngine Exhaust on page 119.
96

Your vehicle also has a safety belt reminder light
for the right front passenger position.
This light is located on
the center of the
instrument panel, above
the audio system.
When the key is turned to ON or START, this light
will come on as a reminder for the right front
passenger to fasten their safety belt. This light will
ash until the right front passenger’s safety belt
is buckled. The passenger’s safety belt reminder
light will not come on if the right front passenger’s
belt is already buckled or if a sensor does not
detect the weight of a passenger in that seat.
If something is placed on the right front passenger
seat, the sensors in the seat may detect that
object and cause the right front passenger safety
belt reminder light to come on. If this happens,
remove the object.Airbag Readiness Light
There is an airbag readiness light on the instrument
panel cluster, which shows the airbag symbol. The
system checks the airbag’s electrical system for
malfunctions. The light tells you if there is an
electrical problem. The system monitors the airbag
sensor assembly, front airbag sensors,
seat-mounted side impact and roof-mounted airbag
sensors, driver’s seat position sensor, driver’s seat
belt buckle switch, right front occupant sensing
system and indicator light, front passenger’s seat
belt buckle switch, seat belt pretensioner
assemblies, inators, interconnecting wiring and
power sources. For more information on the airbag
system, seeAirbag System on page 63.
This light will come on
briey when you start
your vehicle, then
it should go out. This
means the system
is ready.
162

Following Distance
Stay at least twice as far behind the vehicle ahead
as you would when driving your vehicle without
a trailer. This can help you avoid situations
that require heavy braking and sudden turns.
Passing
You’ll need more passing distance up ahead when
you’re towing a trailer. And, because you’re a
good deal longer, you’ll need to go much farther
beyond the passed vehicle before you can
return to your lane.
Backing Up
Hold the bottom of the steering wheel with
one hand. Then, to move the trailer to the left, just
move that hand to the left. To move the trailer
to the right, move your hand to the right. Always
back up slowly and, if possible, have someone
guide you.
Making Turns
Notice:Making very sharp turns while
trailering could cause the trailer to come in
contact with the vehicle. Your vehicle could be
damaged. Avoid making very sharp turns
while trailering.
When you’re turning with a trailer, make wider
turns than normal. Do this so your trailer
won’t strike soft shoulders, curbs, road signs,
trees or other objects. Avoid jerky or sudden
maneuvers. Signal well in advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle may need a
different turn signal asher and/or extra wiring.
Check with your dealer. The arrows on your
instrument panel will ash whenever you signal a
turn or lane change. Properly hooked up, the trailer
lamps will also ash, telling other drivers you’re
about to turn, change lanes or stop.
When towing a trailer, the arrows on your
instrument panel will ash for turns even if the bulbs
on the trailer are burned out. Thus, you may think
drivers behind you are seeing your signal when
they are not. It’s important to check occasionally to
be sure the trailer bulbs are still working.
266

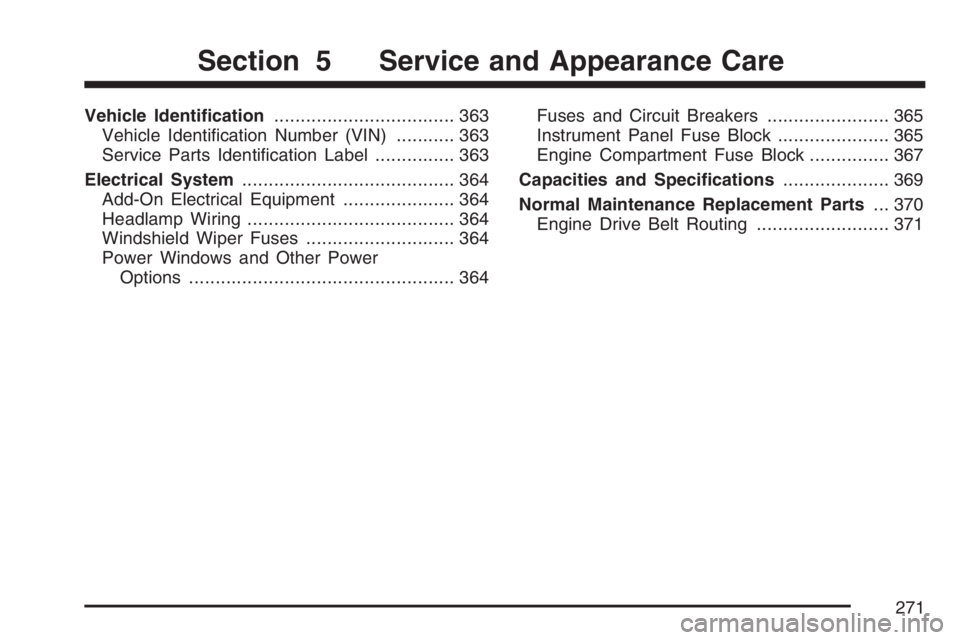

Vehicle Identication.................................. 363
Vehicle Identication Number (VIN)........... 363
Service Parts Identication Label............... 363
Electrical System........................................ 364
Add-On Electrical Equipment..................... 364
Headlamp Wiring....................................... 364
Windshield Wiper Fuses............................ 364
Power Windows and Other Power
Options.................................................. 364Fuses and Circuit Breakers....................... 365
Instrument Panel Fuse Block..................... 365
Engine Compartment Fuse Block............... 367
Capacities and Specications.................... 369
Normal Maintenance Replacement Parts... 370
Engine Drive Belt Routing......................... 371
Section 5 Service and Appearance Care
271

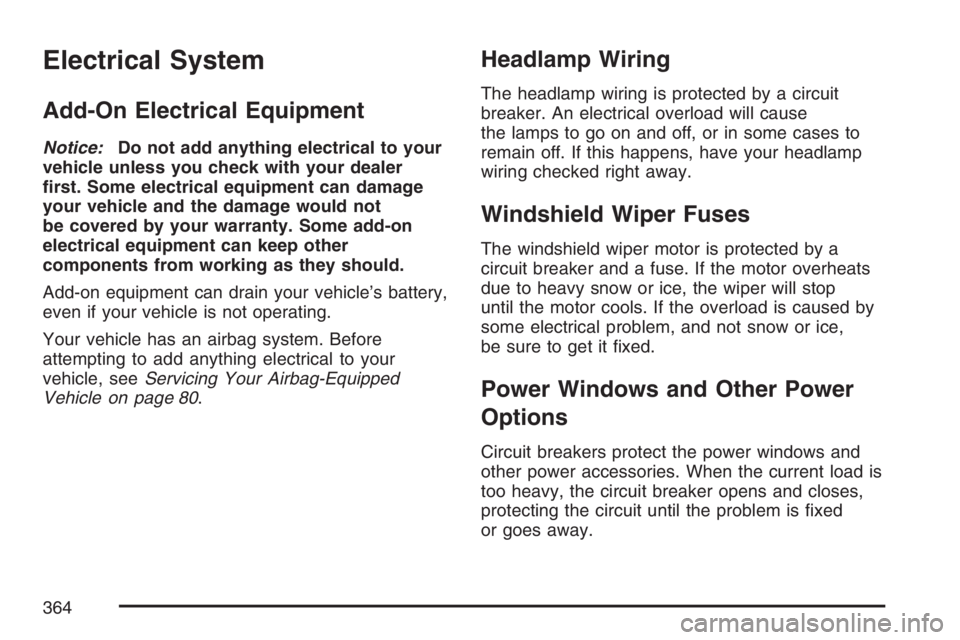

Electrical System
Add-On Electrical Equipment
Notice:Do not add anything electrical to your
vehicle unless you check with your dealer
rst. Some electrical equipment can damage
your vehicle and the damage would not
be covered by your warranty. Some add-on
electrical equipment can keep other
components from working as they should.
Add-on equipment can drain your vehicle’s battery,
even if your vehicle is not operating.
Your vehicle has an airbag system. Before
attempting to add anything electrical to your
vehicle, seeServicing Your Airbag-Equipped
Vehicle on page 80.
Headlamp Wiring
The headlamp wiring is protected by a circuit
breaker. An electrical overload will cause
the lamps to go on and off, or in some cases to
remain off. If this happens, have your headlamp
wiring checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a
circuit breaker and a fuse. If the motor overheats
due to heavy snow or ice, the wiper will stop
until the motor cools. If the overload is caused by
some electrical problem, and not snow or ice,
be sure to get it xed.
Power Windows and Other Power
Options
Circuit breakers protect the power windows and
other power accessories. When the current load is
too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is xed
or goes away.
364

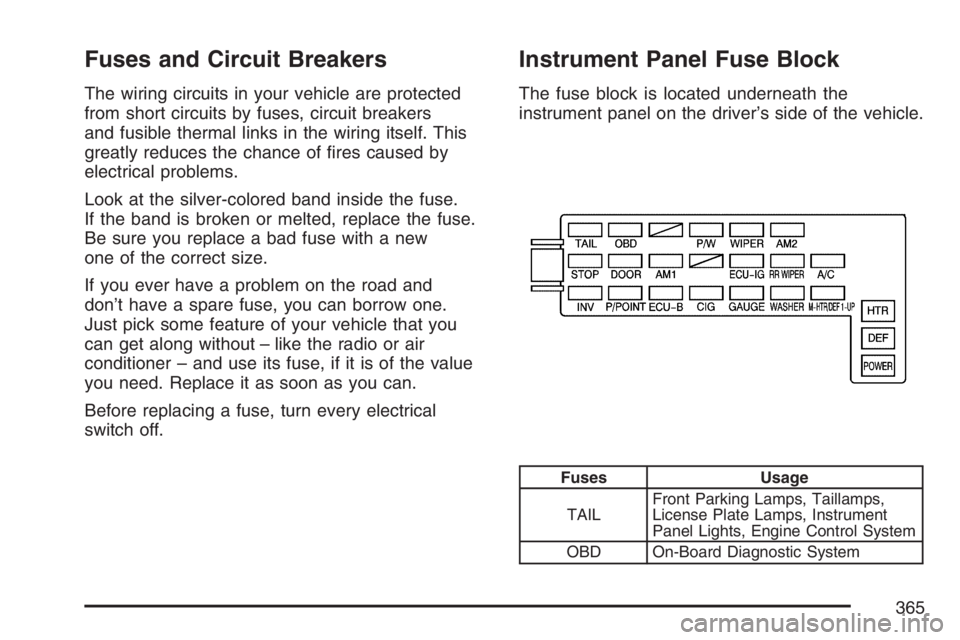

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected
from short circuits by fuses, circuit breakers
and fusible thermal links in the wiring itself. This
greatly reduces the chance of res caused by
electrical problems.
Look at the silver-colored band inside the fuse.
If the band is broken or melted, replace the fuse.
Be sure you replace a bad fuse with a new
one of the correct size.
If you ever have a problem on the road and
don’t have a spare fuse, you can borrow one.
Just pick some feature of your vehicle that you
can get along without – like the radio or air
conditioner – and use its fuse, if it is of the value
you need. Replace it as soon as you can.
Before replacing a fuse, turn every electrical
switch off.
Instrument Panel Fuse Block
The fuse block is located underneath the
instrument panel on the driver’s side of the vehicle.
Fuses Usage
TAILFront Parking Lamps, Taillamps,
License Plate Lamps, Instrument
Panel Lights, Engine Control System
OBD On-Board Diagnostic System
365

Customer Assistance Information
Courtesy Transportation........................... 409
Customer Assistance for Text Telephone
(TTY) Users.......................................... 404
Customer Assistance Offices.................... 404
Customer Satisfaction Procedure.............. 400
GM Mobility Reimbursement Program...... 405
Reporting Safety Defects to
General Motors..................................... 417
Reporting Safety Defects to the
Canadian Government.......................... 416
Reporting Safety Defects to the
United States Government.................... 416
Roadside Assistance Program.................. 406
Service Publications Ordering
Information........................................... 417
D
Daytime Running Lamps............................. 147
Defensive Driving........................................ 222
Disc, MP3................................................... 210
Doing Your Own Service Work.................... 273
Door
Ajar Light................................................. 175
Locks......................................................... 92Door (cont.)
Power Door Locks..................................... 94
Rear Door Security Locks.......................... 95
Driver
Position, Safety Belt................................... 24
Seat Height Adjuster.................................... 9
Driving
At Night................................................... 238
City.......................................................... 242
Defensive................................................. 222
Drunken................................................... 223
Freeway................................................... 243
Hill and Mountain Roads.......................... 246
In Rain and on Wet Roads...................... 239
Rocking Your Vehicle to Get it Out.......... 253
Winter...................................................... 248
E
Electrical System
Add-On Equipment................................... 364
Engine Compartment Fuse Block............. 367
Fuses and Circuit Breakers...................... 365
Headlamp Wiring..................................... 364
Instrument Panel Fuse Block................... 365
422

Fuel (cont.)
Filling Your Tank...................................... 277
Fuels in Foreign Countries....................... 276
Gage....................................................... 176
Gasoline Octane...................................... 274
Gasoline Specications............................ 274
Low Warning Light................................... 177
System Inspection.................................... 392
Fuses
Engine Compartment Fuse Block............. 367
Fuses and Circuit Breakers...................... 365
Instrument Panel Fuse Block................... 365
Windshield Wiper..................................... 364
G
Gage
Engine Coolant Temperature.................... 169
Fuel......................................................... 176
Speedometer........................................... 160
Tachometer.............................................. 161
Gasoline
Octane..................................................... 274
Specications........................................... 274
Glove Box................................................... 127
GM Mobility Reimbursement Program.......... 405
H
Hazard Warning Flashers............................ 138
Head Restraints............................................ 13
Headlamp Wiring......................................... 364
Headlamps
Automatic Headlamp System.................... 147
Bulb Replacement.................................... 315
Daytime Running Lamps.......................... 147
Flash-to-Pass........................................... 141
Halogen Bulbs......................................... 315
Headlamps, Front Turn Signal, and
Parking Lamps..................................... 316
High/Low Beam Changer ......................... 140
On Reminder........................................... 146
Heater......................................................... 152
Height Adjuster, Driver Seat............................ 9
Highbeam On Light..................................... 175
Highway Hypnosis....................................... 245
Hill and Mountain Roads............................. 246
Hood
Checking Things Under............................ 280
Release................................................... 280
Horn............................................................ 138
How to Use This Manual................................ 4
How to Wear Safety Belts Properly............... 23
Hydraulic Clutch.......................................... 293
424
