power steering fluid PONTIAC VIBE 2008 Owners Manual

Service............................................................5-3
Accessories and Modications..........................5-3
California Proposition 65 Warning.....................5-3
California Perchlorate Materials Requirements.....5-4
Doing Your Own Service Work.........................5-4
Adding Equipment to the Outside
of Your Vehicle...........................................5-5
Fuel................................................................5-5
Gasoline Octane............................................5-5
Gasoline Specications....................................5-5
California Fuel...............................................5-5
Additives.......................................................5-6
Fuels in Foreign Countries...............................5-6
Filling the Tank..............................................5-7
Filling a Portable Fuel Container.......................5-9
Checking Things Under the Hood....................5-10
Hood Release..............................................5-10
Engine Compartment Overview.......................5-12
Engine Oil...................................................5-13
Engine Air Cleaner/Filter................................5-17
Automatic Transmission Fluid.........................5-19
Manual Transmission Fluid.............................5-21
Hydraulic Clutch...........................................5-22
Engine Coolant.............................................5-23
Radiator Pressure Cap..................................5-26
Engine Overheating.......................................5-26Cooling System............................................5-28
Power Steering Fluid.....................................5-33
Windshield Washer Fluid................................5-34
Brakes........................................................5-35
Battery........................................................5-38
Jump Starting...............................................5-38
Headlamp Aiming...........................................5-42
Bulb Replacement..........................................5-43
Halogen Bulbs
..............................................5-43
Headlamps, Front Turn Signal,
and Parking Lamps....................................5-43
Center High-Mounted Stoplamp (CHMSL).........5-45
Taillamps, Turn Signal, and Stoplamps............5-46
Back-Up Lamps............................................5-47
Replacement Bulbs.......................................5-48
Windshield Wiper Blade Replacement..............5-48
Tires..............................................................5-49
Tire Sidewall Labeling...................................5-50
Tire Terminology and Denitions.....................5-52
Ination - Tire Pressure.................................5-55
Tire Pressure Monitor System.........................5-57
Tire Pressure Monitor Operation.....................5-58
Tire Inspection and Rotation...........................5-61
When It Is Time for New Tires.......................5-63
Buying New Tires.........................................5-63
Section 5 Service and Appearance Care
5-1

A. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-34.
B. Power Steering Fluid Reservoir. SeePower Steering
Fluid on page 5-33.
C. Radiator Pressure Cap. SeeRadiator Pressure Cap
on page 5-26.
D. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 5-13.
E. Coolant Recovery Tank. SeeCooling System on
page 5-28.
F. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-13.
G. Automatic Transmission Fluid Dipstick (If Equipped).
See “Checking the Fluid Level” underAutomatic
Transmission Fluid on page 5-19.
H. Brake Master Cylinder Reservoir and Hydraulic
Clutch (If Equipped). See “Brake Fluid” underBrakes
on page 5-35andHydraulic Clutch on page 5-22.
I. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-17.
J. Battery. SeeBattery on page 5-38.
K. Engine Compartment Fuse Block. SeeEngine
Compartment Fuse Block on page 5-93.Engine Oil
If the engine oil pressure
light appears on the
instrument cluster,
check the engine oil
level right away.
For more information, seeOil Pressure Light on
page 3-38. You should check the engine oil level
regularly; this is an added reminder.
Checking Engine Oil
It is a good idea to check the engine oil every time you
get fuel. In order to get an accurate reading, the oil
must be warm and the vehicle must be on level ground.
The engine oil dipstick handle is a yellow loop. See
Engine Compartment Overview on page 5-12for
the location of the engine oil dipstick.
1. Turn off the engine and give the oil several minutes
to drain back into the oil pan. If you do not do this,
the oil dipstick might not show the actual level.
2. Pull out the dipstick and clean it with a paper towel
or cloth, then push it back in all the way. Remove it
again, keeping the tip down, and check the level.
5-13

Power Steering Fluid
The power steering uid
reservoir is located in
the engine compartment
on the passenger’s side of
the vehicle. SeeEngine
Compartment Overview
on page 5-12for reservoir
location.
When to Check Power Steering Fluid
It is not necessary to regularly check power steering
uid unless you suspect there is a leak in the system
or you hear an unusual noise. A uid loss in this system
could indicate a problem. Have the system inspected
and repaired.
How to Check Power Steering Fluid
You can check your uid without taking the cap off.
Just look at the reservoir.
When the engine compartment is hot, the level
should be between the HOT marks.
When the engine compartment is cool, the level
should be between the COLD marks.
What to Use
To determine what kind of uid to use, see
Part D: Recommended Fluids and Lubricants
on page 6-19.
Notice:When adding power steering uid or
making a complete uid change, always use the
proper uid. Failure to use the proper uid can
cause leaks and damage hoses and seals.
5-33

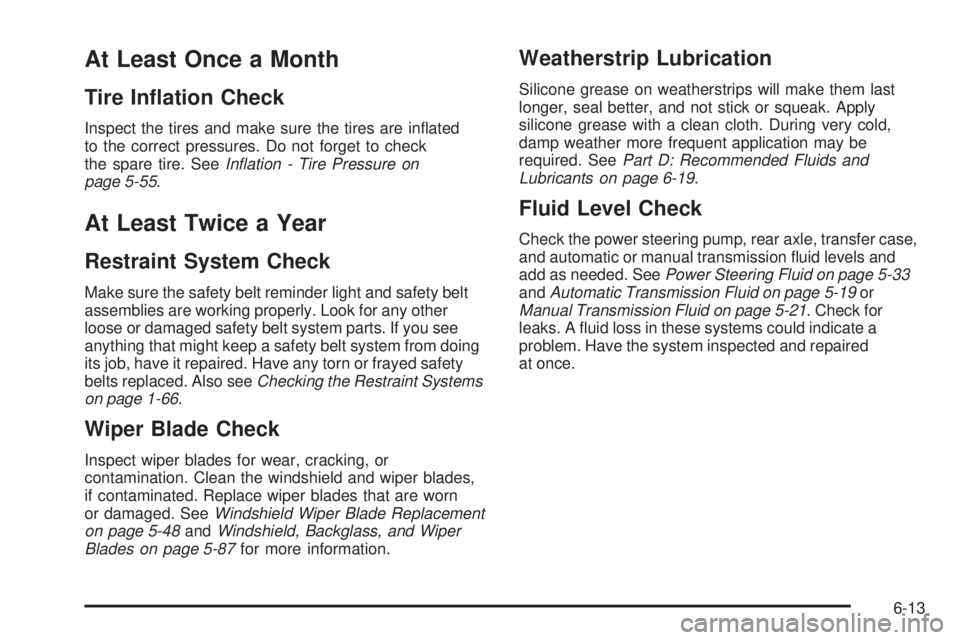

At Least Once a Month
Tire Ination Check
Inspect the tires and make sure the tires are inated
to the correct pressures. Do not forget to check
the spare tire. SeeInflation - Tire Pressure on
page 5-55.
At Least Twice a Year
Restraint System Check
Make sure the safety belt reminder light and safety belt
assemblies are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from doing
its job, have it repaired. Have any torn or frayed safety
belts replaced. Also seeChecking the Restraint Systems
on page 1-66.
Wiper Blade Check
Inspect wiper blades for wear, cracking, or
contamination. Clean the windshield and wiper blades,
if contaminated. Replace wiper blades that are worn
or damaged. SeeWindshield Wiper Blade Replacement
on page 5-48andWindshield, Backglass, and Wiper
Blades on page 5-87for more information.
Weatherstrip Lubrication
Silicone grease on weatherstrips will make them last
longer, seal better, and not stick or squeak. Apply
silicone grease with a clean cloth. During very cold,
damp weather more frequent application may be
required. SeePart D: Recommended Fluids and
Lubricants on page 6-19.
Fluid Level Check
Check the power steering pump, rear axle, transfer case,
and automatic or manual transmission uid levels and
add as needed. SeePower Steering Fluid on page 5-33
andAutomatic Transmission Fluid on page 5-19or
Manual Transmission Fluid on page 5-21. Check for
leaks. A uid loss in these systems could indicate a
problem. Have the system inspected and repaired
at once.
6-13

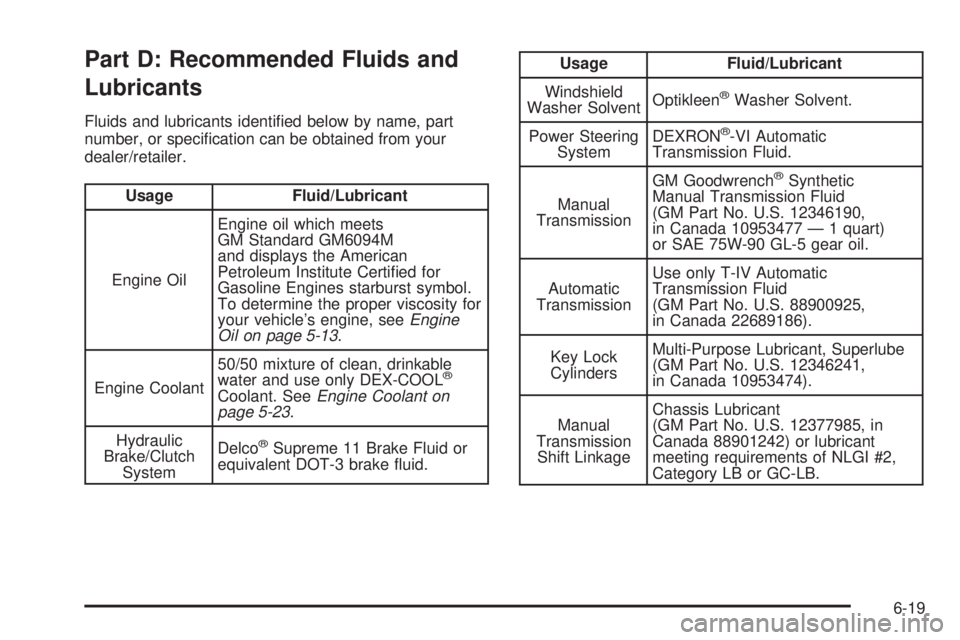

Part D: Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name, part
number, or specication can be obtained from your
dealer/retailer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets
GM Standard GM6094M
and displays the American
Petroleum Institute Certied for
Gasoline Engines starburst symbol.
To determine the proper viscosity for
your vehicle’s engine, seeEngine
Oil on page 5-13.
Engine Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 5-23.
Hydraulic
Brake/Clutch
SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Usage Fluid/Lubricant
Windshield
Washer SolventOptikleen
®Washer Solvent.
Power Steering
SystemDEXRON
®-VI Automatic
Transmission Fluid.
Manual
TransmissionGM Goodwrench
®Synthetic
Manual Transmission Fluid
(GM Part No. U.S. 12346190,
in Canada 10953477 — 1 quart)
or SAE 75W-90 GL-5 gear oil.
Automatic
TransmissionUse only T-IV Automatic
Transmission Fluid
(GM Part No. U.S. 88900925,
in Canada 22689186).
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Manual
Transmission
Shift LinkageChassis Lubricant
(GM Part No. U.S. 12377985, in
Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
6-19

F
Filter
Engine Air Cleaner......................................5-17
Finish Damage...............................................5-88
Fixed Mast Antenna........................................3-64
Flashers, Hazard Warning.................................. 3-6
Flash-to-Pass................................................... 3-8
Flat Tire........................................................5-69
Flat Tire, Changing.........................................5-70
Flat Tire, Storing.............................................5-79
Floor Mats.....................................................2-39
Fluid.....................................................5-19, 5-21
Power Steering...........................................5-33
Windshield Washer......................................5-34
Fog Lamp
Fog ...........................................................3-16
Folding Seatback, Passenger............................. 1-6
Fuel............................................................... 5-5
Additives...................................................... 5-6
California Fuel.............................................. 5-5
Filling a Portable Fuel Container..................... 5-9
Filling the Tank............................................. 5-7
Fuels in Foreign Countries.............................. 5-6
Gage.........................................................3-41Fuel (cont.)
Gasoline Octane........................................... 5-5
Gasoline Specications.................................. 5-5
Low Warning Light.......................................3-42
System Inspection.......................................6-18
Fuses
Engine Compartment Fuse Block...................5-93
Fuses and Circuit Breakers...........................5-91
Instrument Panel Fuse Block.........................5-92
Windshield Wiper.........................................5-91
G
Gage
Engine Coolant Temperature.........................3-35
Fuel..........................................................3-41
Speedometer..............................................3-27
Tachometer.................................................3-28
Gasoline
Octane........................................................ 5-5
Specications............................................... 5-5
Glove Box.....................................................2-39
GM Mobility Reimbursement Program.................. 7-6
5

Power
Door Locks.................................................. 2-8
Electrical System.........................................5-91
Outlet 115 Volt Alternating Current.................3-18
Steering Fluid.............................................5-33
Windows....................................................2-13
Privacy..........................................................7-16
Event Data Recorders..................................7-16
Navigation System.......................................7-17
OnStar.......................................................7-17
Radio Frequency Identication.......................7-17
R
Radiator Pressure Cap....................................5-26
Radio Frequency Identication (RFID), Privacy......7-17
Radios..........................................................3-42
Radio(s)........................................................3-44
Radios
Reception...................................................3-63
Setting the Time..........................................3-43
Reading Lamps..............................................3-17
Rear Cargo Accessory Track System.................2-42
Rear Door Security Locks.................................. 2-9
Rear Seat Operation......................................... 1-8
Rear Storage Area..........................................2-41Rear Windshield Washer/Wiper.........................3-10
Rearview Mirror, Automatic Dimming..................2-34
Rearview Mirror with OnStar
®...........................2-33
Rearview Mirrors.............................................2-33
Reclining Seatbacks.......................................... 1-3
Recreational Vehicle Towing.............................4-25
Remote Keyless Entry (RKE) System.................. 2-3
Remote Keyless Entry (RKE) System,
Operation..................................................... 2-4
Removing the Flat Tire and Installing
the Spare Tire.............................................5-73
Removing the Spare Tire and Tools...................5-71
Replacement Bulbs.........................................5-48
Replacement Parts, Maintenance......................5-96
Reporting Safety Defects
Canadian Government..................................7-14
General Motors...........................................7-14
United States Government............................7-14
Restraint System Check
Checking the Restraint Systems....................1-66
Replacing Restraint System Parts
After a Crash..........................................1-67
Roadside
Assistance Program....................................... 7-6
Rocking Your Vehicle to Get it Out....................4-19
Routing, Engine Drive Belt...............................5-97
Running the Engine While Parked.....................2-32
10
