remote start PONTIAC VIBE 2008 Owners Manual

Keys...............................................................2-2
Remote Keyless Entry (RKE) System................2-3
Remote Keyless Entry (RKE)
System Operation.......................................2-4
Doors and Locks.............................................2-7
Door Locks....................................................2-7
Power Door Locks..........................................2-8
Rear Door Security Locks................................2-9
Liftgate/Liftglass............................................2-10
Windows........................................................2-12
Manual Windows..........................................2-12
Power Windows............................................2-13
Sun Visors...................................................2-14
Theft-Deterrent Systems..................................2-14
Immobilizer..................................................2-14
Immobilizer Operation (Canada Only)...............2-15
Content Theft-Deterrent.................................2-16
Starting and Operating Your Vehicle................2-18
New Vehicle Break-In....................................2-18
Ignition Positions..........................................2-19
Starting the Engine.......................................2-20
Engine Coolant Heater..................................2-22
Automatic Transmission Operation...................2-23
Overdrive Off...............................................2-25
Manual Transmission Operation......................2-26
Parking Brake..............................................2-27Shifting Into PARK (P)
(Automatic Transmission)............................2-28
Shifting Out of PARK (P)...............................2-30
Parking Your Vehicle (Manual Transmission).....2-31
Parking Over Things That Burn.......................2-31
Engine Exhaust............................................2-32
Running the Engine While Parked...................2-32
Mirrors...........................................................2-33
Manual Rearview Mirror.................................2-33
Manual Rearview Mirror with OnStar®..............2-33
Automatic Dimming Rearview Mirror................2-34
Outside Remote Control Mirrors......................2-34
Outside Convex Mirror...................................2-35
OnStar
®System.............................................2-35
Storage Areas................................................2-39
Glove Box...................................................2-39
Cupholder(s)................................................2-39
Coinholder(s)................................................2-39
Instrument Panel Storage...............................2-39
Center Console Storage.................................2-39
Floor Mats...................................................2-39
Luggage Carrier...........................................2-40
Rear Storage Area........................................2-41
Rear Cargo Accessory Track System...............2-42
Cargo Cover................................................2-42
Cargo Tie Downs..........................................2-42
Sunroof.........................................................2-43
Section 2 Features and Controls
2-1

Do not do any of the following to keys with a
transponder:
Cover the key grip with any material that cuts off
electromagnetic waves.
Hit the key hard against other objects.
Leave the key exposed to high temperatures for a
long period of time.
Put the key in water.
Use the key with electromagnetic materials.
If a replacement key or an additional key with a
transponder is needed, see your dealer/retailer.
Bring the key and key number with you.
Any new Immobilizer key must be programmed
before it will start the vehicle. See your dealer/retailer.
If you make your own duplicate key, you will not be able
to cancel the system or start the vehicle.
In an emergency, contact Roadside Assistance.
SeeRoadside Assistance Program on page 7-6for
more information.
Notice:If you ever lock your keys in your vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.
Remote Keyless Entry (RKE)
System
If the vehicle has the Remote Keyless Entry (RKE)
system, it operates on a radio frequency subject
to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
2-3

Do not leave the key or device that disarms
or deactivates the theft deterrent system in
the vehicle.
Content Theft-Deterrent
Your vehicle may have a theft-deterrent system
designed to activate an alarm if someone attempts to
damage or break into your vehicle. The alarm will sound
and the headlamps and turn signal lamps will ash for
about one minute. The interior lights will also come on
when the interior lamps control is in the door position.
Your vehicle will have one of the following security
lights, located on the instrument panel to the left of
the steering wheel.
Arming the System
To arm the system:
1. Remove the key from the ignition.
The security light will ash when the key is removed
from the ignition. SeeImmobilizer Operation (Canada
Only) on page 2-15for additional information.
2. Have all passengers get out of the vehicle.
3. Close and lock all doors including the liftgate/liftglass
with the key or Remote Keyless Entry (RKE)
transmitter.
The security light will come on when all doors and
liftgate are closed and locked.
The system will be automatically set after
30 seconds. When the system is set, the
security light will ash.
4. After the security light starts ashing, you may
leave the vehicle.
Do not leave anyone in the vehicle when you set
the system, because unlocking the vehicle from the
inside will activate the system.
2-16

6. Connect the red positive (+) cable to the positive (+)
terminal of the dead battery. Use a remote
positive (+) terminal if the vehicle has one.
7. Do not let the other end touch metal. Connect
it to the positive (+) terminal of the good battery.
Use a remote positive (+) terminal if the vehicle
has one.8. Now connect the black negative (−) cable to the
negative terminal of the good battery. Use a
remote negative (−) terminal if the vehicle has one.
Do not let the other end touch anything until the
next step. The other end of the negative (−) cable
does not go to the dead battery. It goes to a
heavy, unpainted metal engine part or to a remote
negative (−) terminal on the vehicle with the
dead battery.
9. Connect the other end of the negative (−) cable at
least 18 inches (45 cm) away from the dead battery,
but not near engine parts that move. The electrical
connection is just as good there, and the chance
of sparks getting back to the battery is much less.
10. Now start the vehicle with the good battery and
run the engine for a while.
11. Try to start the vehicle that had the dead battery.
If it will not start after a few tries, it probably needs
service.
5-41

Fuses Usage
ABS NO. 2Antilock Brake System
(Without Stability Control System)
RDI FAN Electric Cooling Fan
ABS NO. 1Antilock Brake System
(With Stability Control System)
FOG Front Fog Lamps
EFI2Multiport Fuel Injection System/
Sequential Multiport Fuel Injection
System, Emission Control System
EFI3Multiport Fuel Injection System/
Sequential Multiport Fuel Injection
System, Emission Control System
HEAD MAINRight Headlamp,
Left Headlamp Fuses
ALT-S Charging System
EFI Electronic Fuel Injection System
HAZARDTurn Signal Lamps,
Emergency Flasher
HORN Horn
DOMEInterior Lights, Gauges and Meters,
Audio System, Remote Keyless
Entry System, Navigation System
(If Equipped)
MAIN Starter System, AM2 Fuse
AMP Audio SystemFuses Usage
MAYDAY OnStar®System
ALTABS NO.1, ABS NO.2, RDI FAN,
FOG, Heater, AM1, POWER,
DOOR, ECU-B, TAIL, STOP,
P/POINT, INV, OBD Fuses,
Charging System
HEAD RHRight-hand Headlamp,
Headlamp High Beam
Indicator Lamp
HEAD LH Left-hand Headlamp
Relays Usage
M/G M/G
HEAD Headlamps
DIMMER Headlamp Dimmer
HORN Horn
FAN NO. 2 Cooling Fan System
FAN NO. 1 Cooling Fan System
EFI Electronic Fuel Injection System
FOG Fog Lamps
5-94

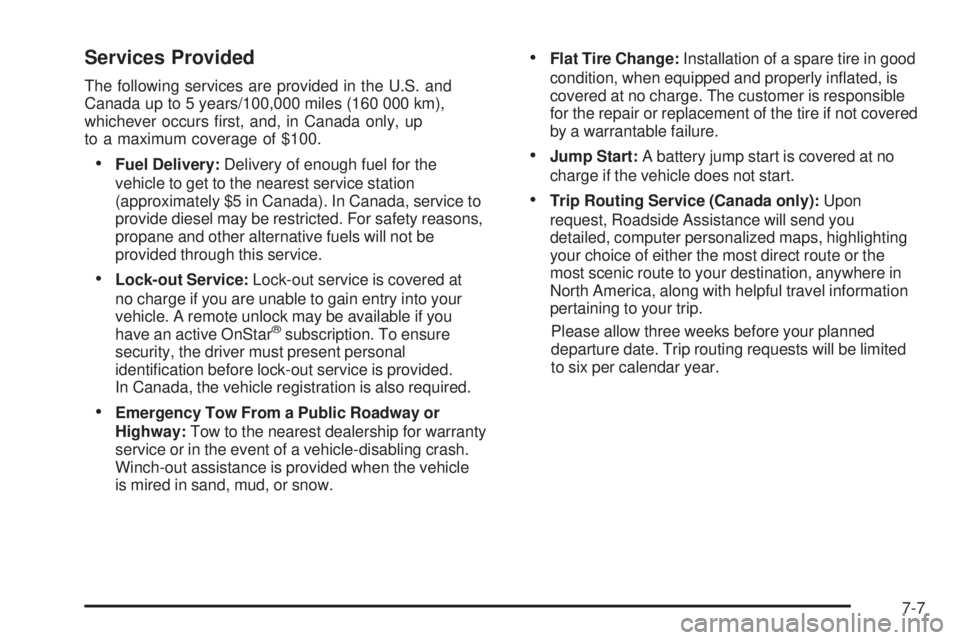

Services Provided
The following services are provided in the U.S. and
Canada up to 5 years/100,000 miles (160 000 km),
whichever occurs rst, and, in Canada only, up
to a maximum coverage of $100.
Fuel Delivery:Delivery of enough fuel for the
vehicle to get to the nearest service station
(approximately $5 in Canada). In Canada, service to
provide diesel may be restricted. For safety reasons,
propane and other alternative fuels will not be
provided through this service.
Lock-out Service:Lock-out service is covered at
no charge if you are unable to gain entry into your
vehicle. A remote unlock may be available if you
have an active OnStar
®subscription. To ensure
security, the driver must present personal
identication before lock-out service is provided.
In Canada, the vehicle registration is also required.
Emergency Tow From a Public Roadway or
Highway:Tow to the nearest dealership for warranty
service or in the event of a vehicle-disabling crash.
Winch-out assistance is provided when the vehicle
is mired in sand, mud, or snow.
Flat Tire Change:Installation of a spare tire in good
condition, when equipped and properly inated, is
covered at no charge. The customer is responsible
for the repair or replacement of the tire if not covered
by a warrantable failure.
Jump Start:A battery jump start is covered at no
charge if the vehicle does not start.
Trip Routing Service (Canada only):Upon
request, Roadside Assistance will send you
detailed, computer personalized maps, highlighting
your choice of either the most direct route or the
most scenic route to your destination, anywhere in
North America, along with helpful travel information
pertaining to your trip.
Please allow three weeks before your planned
departure date. Trip routing requests will be limited
to six per calendar year.
7-7

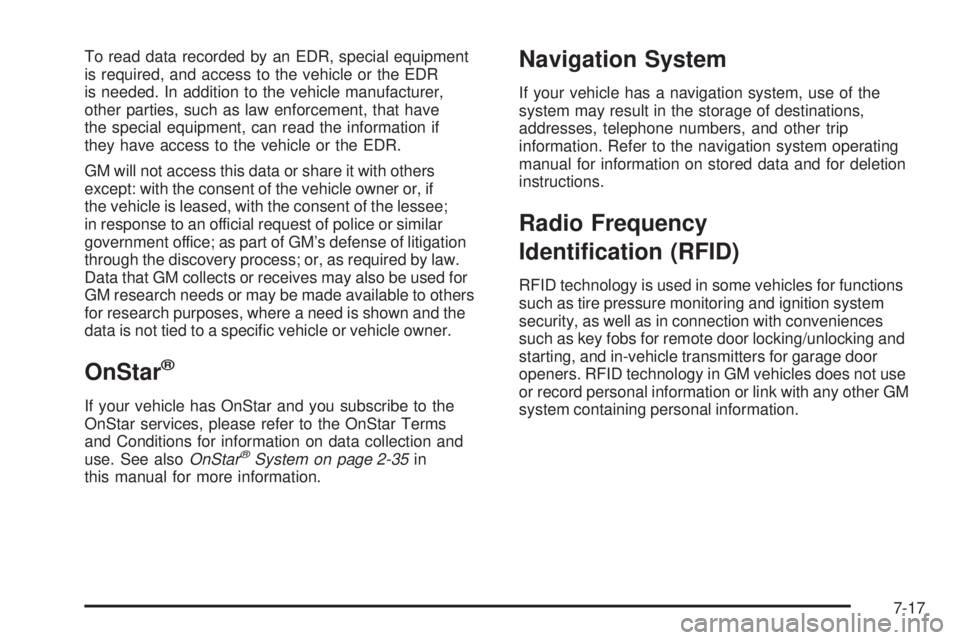

To read data recorded by an EDR, special equipment
is required, and access to the vehicle or the EDR
is needed. In addition to the vehicle manufacturer,
other parties, such as law enforcement, that have
the special equipment, can read the information if
they have access to the vehicle or the EDR.
GM will not access this data or share it with others
except: with the consent of the vehicle owner or, if
the vehicle is leased, with the consent of the lessee;
in response to an official request of police or similar
government office; as part of GM’s defense of litigation
through the discovery process; or, as required by law.
Data that GM collects or receives may also be used for
GM research needs or may be made available to others
for research purposes, where a need is shown and the
data is not tied to a specic vehicle or vehicle owner.
OnStar®
If your vehicle has OnStar and you subscribe to the
OnStar services, please refer to the OnStar Terms
and Conditions for information on data collection and
use. See alsoOnStar
®System on page 2-35in
this manual for more information.
Navigation System
If your vehicle has a navigation system, use of the
system may result in the storage of destinations,
addresses, telephone numbers, and other trip
information. Refer to the navigation system operating
manual for information on stored data and for deletion
instructions.
Radio Frequency
Identication (RFID)
RFID technology is used in some vehicles for functions
such as tire pressure monitoring and ignition system
security, as well as in connection with conveniences
such as key fobs for remote door locking/unlocking and
starting, and in-vehicle transmitters for garage door
openers. RFID technology in GM vehicles does not use
or record personal information or link with any other GM
system containing personal information.
7-17
