A. Engine Oil Dipstick. See
“Checking Engine Oil” under
Engine Oil on page 9-9.
B.Pressure Cap on page 9-22.
C.Windshield Washer Fluid
on page 9-24.
D. Coolant Recovery Tank. See
Engine Coolant on page 9-18.
E. Engine Oil Fill Cap. See “When
to Add Engine Oil” underEngine
Oil on page 9-9.
F.Brakes on page 9-27and
Hydraulic Clutch on page 9-17
(If Equipped).
G.Engine Air Cleaner/Filter on
page 9-12.
H.Engine Compartment Fuse Block
on page 9-39.I.Battery on page 9-30.
J. Remote Positive (+) Terminal.
SeeJump Starting on page 9-71.
K. Automatic Transmission
Fluid Dipstick. See″Checking
the Fluid Level″underAutomatic
Transmission Fluid on page 9-14
(If Equipped) (Out of View).
Engine Oil
Checking Engine Oil
It is a good idea to check the
engine oil every time you get fuel.
In order to get an accurate reading,
the oil must be warm and the
vehicle must be on level ground.The engine oil dipstick handle
is a yellow loop. SeeEngine
Compartment Overview on page 9-6
for the location of the engine oil
dipstick.
1. Turn off the engine and give the
oil several minutes to drain back
into the oil pan. If you do not
do this, the oil dipstick might
not show the actual level.
2. Pull out the dipstick and clean
it with a paper towel or cloth,
then push it back in all the way.
Remove it again, keeping the tip
down, and check the level.
Vehicle Service and Care 9-9
2009 - Pontiac Vibe Owner Manual

When to Add Engine Oil
If the oil is below the indent at
the tip of the dipstick, add at least
one quart/liter of the recommended
oil. This section explains what kind of
oil to use. For engine oil crankcase
capacity, seeCapacities and
Specifications on page 10-2.
Notice:Do not add too much oil.
If the engine has so much oil
that the oil level gets above the
upper hole, the engine could
be damaged.SeeEngine Compartment Overview
on page 9-6for the location of
the engine oil ll cap.
Add enough oil to put the level
somewhere in the proper operating
range. Push the dipstick all the
way back in when you are through.
What Kind of Engine Oil
to Use
Look for three things:
GM6094M
Use only an oil that meets
GM Standard GM6094M.
SAE 5W-20
SAE 5W-20 is best for the
vehicle. 1.8L Engine
2.4L Engine
9-10 Vehicle Service and Care
2009 - Pontiac Vibe Owner Manual

These numbers on an oil
container show its viscosity,
or thickness. Do not use
other viscosity oils such as
SAE 20W-50.
Oils meeting these requirements
should have the starburst symbol
on the container. This symbol
indicates that the oil has been
certied by the American
Petroleum Institute (API).
Notice:Use only engine oil
identied as meeting GM Standard
GM6094M and showing the
American Petroleum Institute
Certied For Gasoline Engines
starburst symbol. Failure to use
the recommended oil can result in
engine damage not covered by the
vehicle warranty.If you are in an area of extreme
cold, where the temperature
falls below−20°F (−29°C), it is
recommend that you use an
SAE 0W-20 oil. SAE 0W-20 oil
provides easier cold starting and
better protection for the engine
at extremely low temperatures.
Engine Oil Additives / Engine
Oil Flushes
Do not add anything to the oil.
The recommended oils with the
starburst symbol that meet GM
Standard GM6094M are all you
need for good performance and
engine protection.
Engine oil system ushes are not
recommended and could cause
engine damage not covered by the
vehicle warranty.
When to Change Engine Oil
Change the oil and lter
every 5,000 miles (8 000 km) or
3 months, whichever occurs rst.
SeeScheduled Maintenance on
page 11-4.
What to Do with Used Oil
Used engine oil contains certain
elements that can be unhealthy for
your skin and could even cause
cancer. Do not let used oil stay on
your skin for very long. Clean your
skin and nails with soap and water,
or a good hand cleaner. Wash or
properly dispose of clothing or rags
containing used engine oil. See the
manufacturer’s warnings about the
use and disposal of oil products.
Used oil can be a threat to the
environment. If you change your own
oil, be sure to drain all the oil from the
lter before disposal. Never dispose
of oil by putting it in the trash, pouring
it on the ground, into sewers, or into
streams or bodies of water. Recycle
it by taking it to a place that collects
used oil.
Vehicle Service and Care 9-11
2009 - Pontiac Vibe Owner Manual

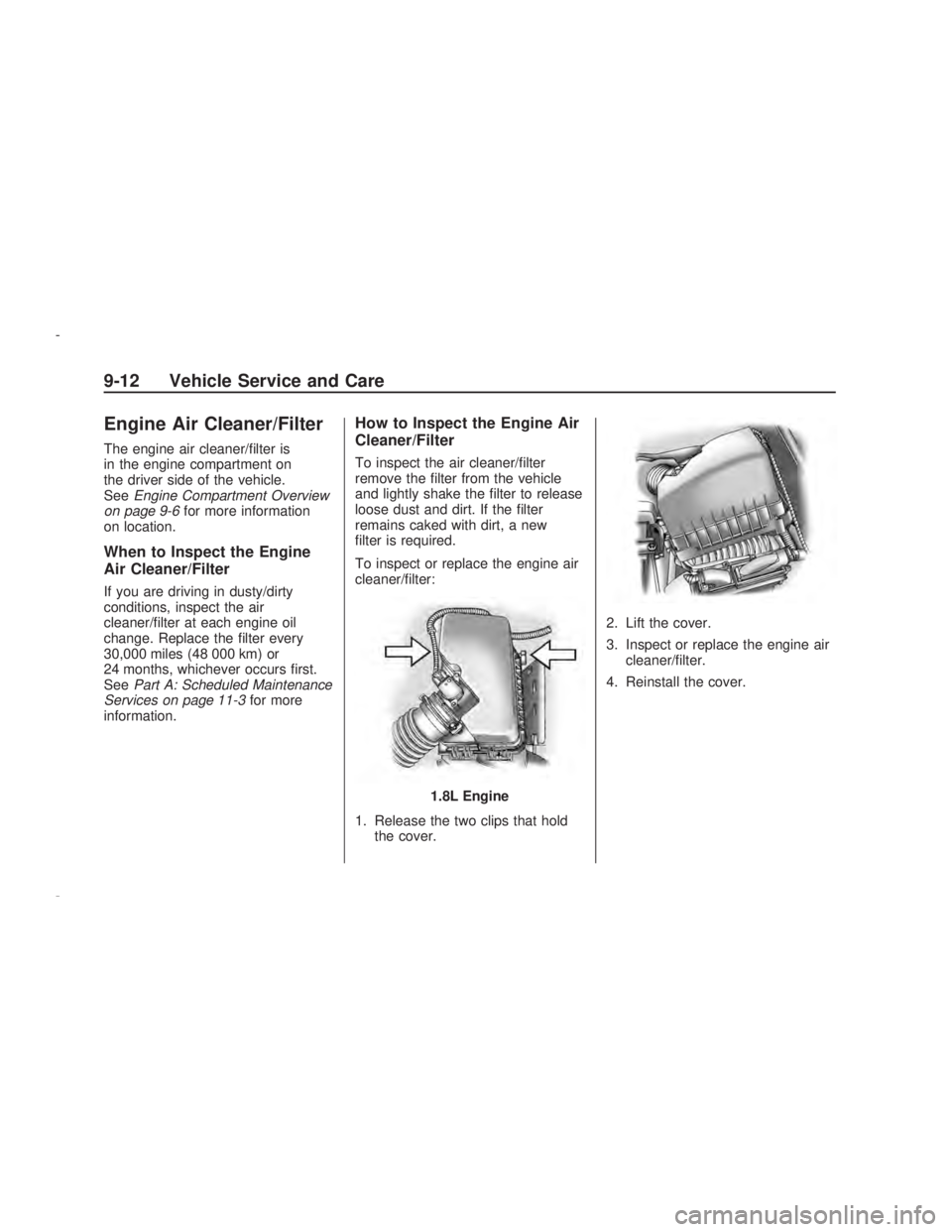

Engine Air Cleaner/Filter
The engine air cleaner/lter is
in the engine compartment on
the driver side of the vehicle.
SeeEngine Compartment Overview
on page 9-6for more information
on location.
When to Inspect the Engine
Air Cleaner/Filter
If you are driving in dusty/dirty
conditions, inspect the air
cleaner/lter at each engine oil
change. Replace the lter every
30,000 miles (48 000 km) or
24 months, whichever occurs rst.
SeePart A: Scheduled Maintenance
Services on page 11-3for more
information.
How to Inspect the Engine Air
Cleaner/Filter
To inspect the air cleaner/lter
remove the lter from the vehicle
and lightly shake the lter to release
loose dust and dirt. If the lter
remains caked with dirt, a new
lter is required.
To inspect or replace the engine air
cleaner/lter:
1. Release the two clips that hold
the cover.2. Lift the cover.
3. Inspect or replace the engine air
cleaner/lter.
4. Reinstall the cover.
1.8L Engine
9-12 Vehicle Service and Care
2009 - Pontiac Vibe Owner Manual

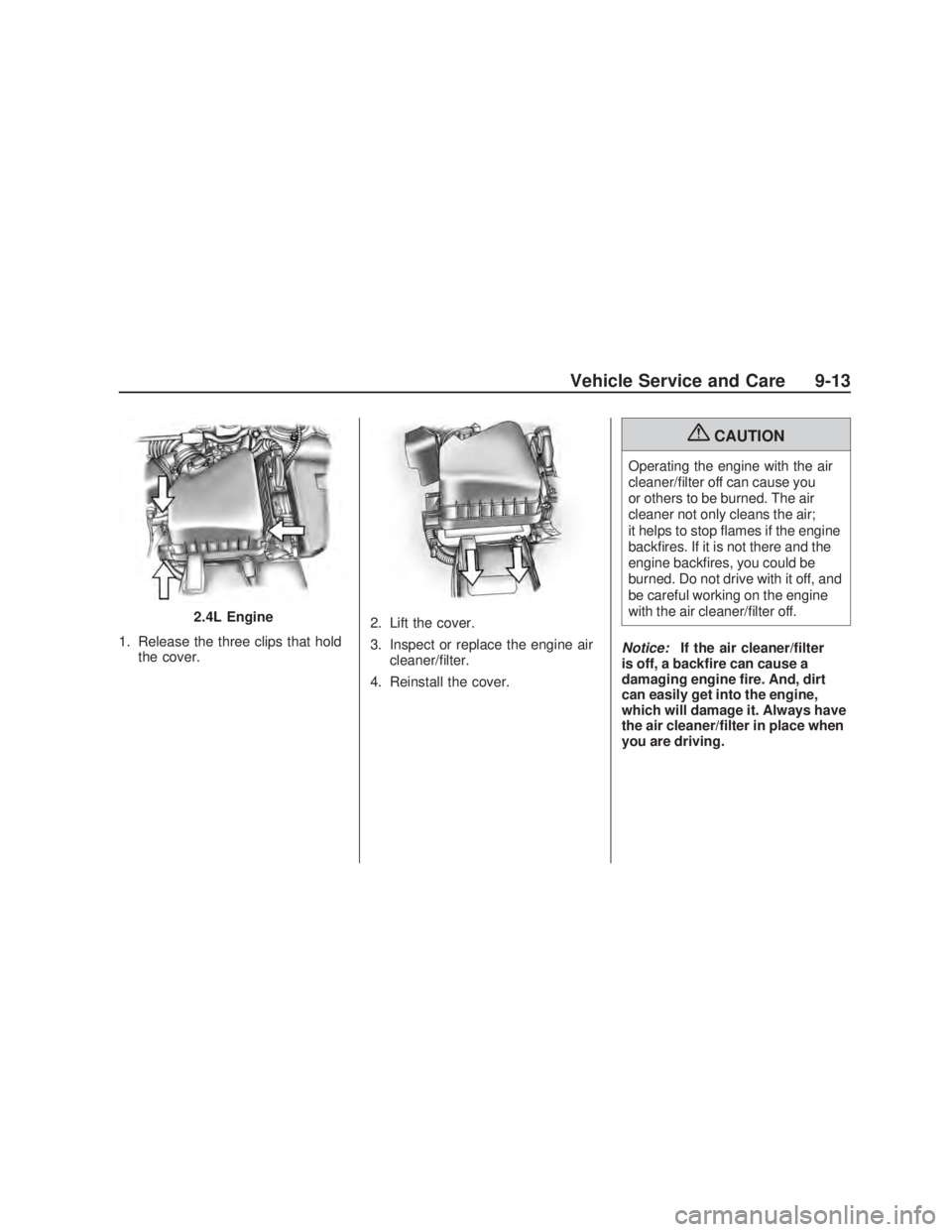

1. Release the three clips that hold
the cover.2. Lift the cover.
3. Inspect or replace the engine air
cleaner/lter.
4. Reinstall the cover.
{CAUTION
Operating the engine with the air
cleaner/lter off can cause you
or others to be burned. The air
cleaner not only cleans the air;
it helps to stop ames if the engine
backres. If it is not there and the
engine backres, you could be
burned. Do not drive with it off, and
be careful working on the engine
with the air cleaner/lter off.
Notice:If the air cleaner/lter
is off, a backre can cause a
damaging engine re. And, dirt
can easily get into the engine,
which will damage it. Always have
the air cleaner/lter in place when
you are driving. 2.4L Engine
Vehicle Service and Care 9-13
2009 - Pontiac Vibe Owner Manual

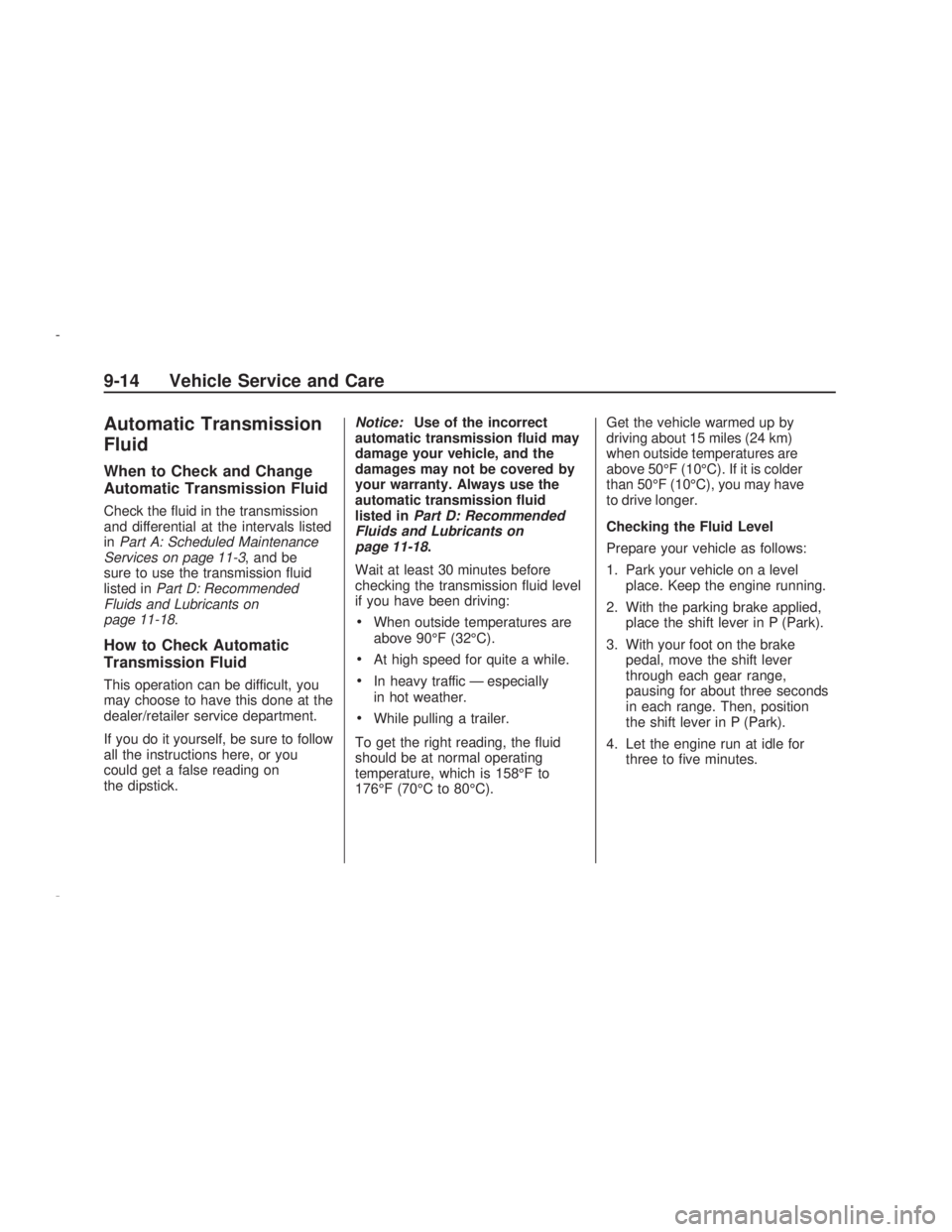

Automatic Transmission
Fluid
When to Check and Change
Automatic Transmission Fluid
Check the uid in the transmission
and differential at the intervals listed
inPart A: Scheduled Maintenance
Services on page 11-3, and be
sure to use the transmission uid
listed inPart D: Recommended
Fluids and Lubricants on
page 11-18.
How to Check Automatic
Transmission Fluid
This operation can be difficult, you
may choose to have this done at the
dealer/retailer service department.
If you do it yourself, be sure to follow
all the instructions here, or you
could get a false reading on
the dipstick.Notice:Use of the incorrect
automatic transmission uid may
damage your vehicle, and the
damages may not be covered by
your warranty. Always use the
automatic transmission uid
listed inPart D: Recommended
Fluids and Lubricants on
page 11-18.
Wait at least 30 minutes before
checking the transmission uid level
if you have been driving:
When outside temperatures are
above 90°F (32°C).
At high speed for quite a while.
In heavy traffic — especially
in hot weather.
While pulling a trailer.
To get the right reading, the uid
should be at normal operating
temperature, which is 158°F to
176°F (70°C to 80°C).Get the vehicle warmed up by
driving about 15 miles (24 km)
when outside temperatures are
above 50°F (10°C). If it is colder
than 50°F (10°C), you may have
to drive longer.
Checking the Fluid Level
Prepare your vehicle as follows:
1. Park your vehicle on a level
place. Keep the engine running.
2. With the parking brake applied,
place the shift lever in P (Park).
3. With your foot on the brake
pedal, move the shift lever
through each gear range,
pausing for about three seconds
in each range. Then, position
the shift lever in P (Park).
4. Let the engine run at idle for
three to ve minutes.
9-14 Vehicle Service and Care
2009 - Pontiac Vibe Owner Manual

Then, without shutting off the
engine, follow these steps:
The automatic transmission
dipstick has an orange handle
and is located near the front of the
engine compartment. SeeEngine
Compartment Overview on page 9-6
for more information on location.
1. Release the tab and pull out the
dipstick and wipe it with a clean
rag or paper towel.
2. Push it back in all the way, wait
three seconds and then pull it
back out again.
3. Check both sides of the dipstick,
and read the lower level. The
uid level must be between the
two dimples in the hot range.4. If the uid level is in the
acceptable range, push
the dipstick back in all the way;
then press the tab down to
lock the dipstick in place.
How to Add Automatic
Transmission Fluid
Refer to the Maintenance
Schedule to determine what
kind of transmission uid to use.
Part D: Recommended Fluids
and Lubricants on page 11-18.
If the uid level is low, add
only enough of the proper uid
to bring the level into the area
between dimples on the dipstick.
1. Pull out the dipstick.
2. Using a long-neck funnel, add
enough uid at the dipstick
hole to bring it to the proper level.
It does not take much uid,
generally less than one pint
(0.5 L). Do not overll.Notice:Too much or too
little uid can damage your
transmission. Too much can mean
that some of the uid could come
out and fall on hot engine parts or
exhaust system parts, starting a
re. Too little uid could cause the
transmission to overheat. Be sure
to get an accurate reading if you
check your transmission uid.
3. After adding uid, recheck the
uid level as described under
“How to Check Automatic
Transmission Fluid,” earlier
in this section.
4. When the correct uid level is
obtained, push the dipstick
back in all the way; then press
the tab down to lock the dipstick
in place.
1.8L shown
Vehicle Service and Care 9-15
2009 - Pontiac Vibe Owner Manual

Manual Transmission
Fluid
When to Check
A good time to have your manual
transmission uid level checked
is when the engine oil is changed.
However, the uid in your manual
transmission does not require
changing.
How to Check
This operation can be difficult, you
may choose to have this done
at your dealer/retailer service
department.
If you do it yourself, be sure to
follow all the instructions here,
or you could get a false reading.
Notice:Too much or too
little uid can damage your
transmission. Too much can
mean that some of the uid couldcome out and fall on hot engine
parts or exhaust system parts,
starting a re. Too little uid
could cause the transmission
to overheat. Be sure to get
an accurate reading if you
check your transmission uid.
Check the uid level only when your
engine is off, the vehicle is parked on
a level place and the transmission is
cool enough for you to rest your
ngers on the transmission case.
Then, follow these steps:
1. Remove the ller plug.
2. Check that the lubricant level is
up to the bottom of the ller
plug hole.
3. If the uid level is good, install
the plug and be sure it is fully
seated. If the uid level is low,
add more uid as described in
the next steps.
How to Add Fluid
Here is how to add uid. Refer
to the Maintenance Schedule
to determine what kind of uid to
use.Part D: Recommended
Fluids and Lubricants on
page 11-18.
1. Remove the ller plug.
2. Add uid at the ller plug hole.
Add only enough uid to bring
the uid level up to the bottom
of the ller plug hole.
3. Install the ller plug. Be sure the
plug is fully seated.
9-16 Vehicle Service and Care
2009 - Pontiac Vibe Owner Manual

Hydraulic Clutch
The hydraulic clutch linkage in
your vehicle is self-adjusting.
The master cylinder reservoir is
lled with DOT-3 brake uid.
It is not necessary to regularly check
the uid unless you suspect there
is a leak in the system. Adding uid
will not correct a leak.
The hydraulic clutch and brake
master cylinder use the same
reservoir.
A uid loss in this system could
indicate a problem. Have the system
inspected and repaired.
When to Check and What
to Use
The reservoir is located at the back
of the engine compartment, on the
driver side of the vehicle.Engine
Compartment Overview on page 9-6.Refer to the Maintenance Schedule
to determine how often you should
check the uid level in your master
cylinder reservoir and for the proper
uid.Part B: Owner Checks and
Services on page 11-12andPart D:
Recommended Fluids and
Lubricants on page 11-18.
How to Check and Add Fluid
Check that the uid level is at
or above the MIN mark. If the level
is below the MIN mark, see the
instructions on the reservoir cap.
Vehicle Service and Care 9-17
2009 - Pontiac Vibe Owner Manual

Cooling System
When it is safe lift the hood:
A. Electric Engine Cooling Fans
B. Pressure Cap
C. Engine Coolant Recovery Tank{CAUTION
An electric engine cooling fan
under the hood can start up even
when the engine is not running
and can cause injury. Keep
hands, clothing, and tools away
from any underhood electric fan.
{CAUTION
Heater and radiator hoses, and
other engine parts, can be very
hot. Do not touch them. If you do,
you can be burned.
Do not run the engine if there
is a leak. If you run the engine, it
could lose all coolant. That could
cause an engine re, and you
could be burned. Get any leak
xed before you drive the vehicle.
Engine Coolant
The coolant in the vehicle should
last for ve years or 150,000 miles
(240 000 km), whichever occurs
rst. When coolant is added
or changed, use DEX-COOL
®
coolant.
The following explains the cooling
system and how to add coolant when
it is low. If there is a problem with
engine overheating, seeEngine
Overheating on page 9-22Engine
Overheating.
What to Use
Use a 50/50 mixture of clean,
drinkable water and DEX-COOL®
coolant, which will not damage
aluminum parts. If this coolant
mixture is used, nothing else
needs to be added.
9-18 Vehicle Service and Care
2009 - Pontiac Vibe Owner Manual
