A problem may have occurred
while burning the CD.
The label could be caught in the
CD player.
If any error occurs repeatedly or if
an error cannot be corrected,
contact your dealer/retailer. If the
radio displays an error message,
write it down and provide it to your
dealer/retailer when reporting
the problem.
Using the Auxiliary Input Jack
The radio has an auxiliary input
jack located on the lower right side
of the faceplate. This is not an
audio output; do not plug the
headphone set into the front
auxiliary input jack. An external
audio device such as an iPod,
laptop computer, MP3 player, CD
changer, etc. can be connected
to the auxiliary input jack for use
as another audio source.To use a portable audio player,
connect a 3.5 mm (1/8 inch) cable
to the radio’s front auxiliary input
jack. When a device is connected,
press the radio CD/AUX button
to begin playing audio from
the device over the vehicle
speakers.
PWR VOL (Power/Volume):Turn
to adjust the volume. Additional
volume adjustments may have to be
made from the portable device if
the volume is too quiet or not loud.
BAND:Press to listen to the
radio when a portable audio device
is playing.
CD/AUX (CD/Auxiliary):Press to
play a CD when a portable audio
device is playing. Press again
and the system begins playing
audio from the connected portable
audio player.
Using an MP3
MP3 CD-R Disc
MP3 Format
The MP3 player will only play
CD-R discs. It can read and play a
maximum of:
50 folders
11 folders in depth
50 playlists
10 sessions
255 les
All folders, playlists, sessions and
les over the maximum are ignored.
Record an MP3 disc:
Onto a CD-R disc.
Record playlists with an .m3u or
.wpl extension.
Do not mix standard audio and
MP3 les on the same disc.
Record the entire disc at once.
Finalize the disc when recording
an MP3 disc with multiple
sessions.
Infotainment 6-9
2009 - Pontiac Vibe Owner Manual

Root Directory
The root directory is treated as a
folder. All .mp3 les in the root
directory are accessed before
folders in the root directory.
Empty Directory or Folder
Empty folders and directories do
not display. The system ignores
empty directories and folders and
advances to the next directory
or folder that has .mp3 les in it.
No Folder
On a CD that contains only .mp3
les in the root directory the
next and previous folder functions
do not work.
On a CD that contains playlists
and .mp3 les the next and previous
folder functions search playlists
rst and then search .mp3 les in
the root folder.Order of Play
CDs that have playlists play the
tracks in the following order:
1. After the rst track in the rst
playlist ends, play continues
sequentially through all tracks
in each playlist
2. After the last track of the last
playlist ends, play restarts
from the rst track of the rst
playlist.
CDs that do not have playlists play
the tracks in the following order:
1. The rst le in the root directory
plays.
2. After all les from the root
directory have played, les in the
folders play.
3. After playing the last le from the
last folder, play restarts with the
rst le in the root directory.File System and Naming
The radio display shows, track
names that are shorter than
39 characters. Names that are
longer are shortened. The track
name appears as:
The song name that is in the
ID3 tag.
The le name without the le
extension if the song name is
not in the ID3 tag.
Preprogrammed Playlists
Playlists are accessed before les
or folders in the root directory.
Preprogrammed playlists created
by WinAmp™, MusicMatch™,
or Real Jukebox™ software can
be accessed and are treated
as special folders containing
compressed audio song les.
6-10 Infotainment
2009 - Pontiac Vibe Owner Manual

Music Navigator
The music navigator feature lets
MP3 CDs play in order by artist or
album.
The MP3 player scans the disc
to sort the les by artist and
album ID3 tag information.
It can take several minutes to
scan the disc depending
on the number of MP3 les
recorded to the CD-R.
The radio starts playing while
the disc is being scanned.
After the scan is nished,
the disc starts playing.
Playing an MP3
The MP3 player can play the
smaller 3 inch (8 cm) single CDs
with an adapter ring.
1. Insert a CD label side up
partway into the slot.
2. The CD player pulls the CD in
and begins playing.3. The CD stays in the player if the
ignition or radio is turned off.
4. If the CD was the last source
selected, it resumes playing
when the radio is turned on.
Y(EJECT):Press and release
to eject a CD. Once the disc is
ejected it can be removed.
If the CD is not removed after
several seconds the CD player
automatically pulls the disc back
into the player and starts playing.
ySEEK TRACKz:Press to go to
the start of the current track, if
more than ten seconds have played.
Press
zto go to the next track.
Holding or pressing
yorzmultiple
times will cause the player to
continue moving backward or
forward through the tracks on
the CD.
(FWD REV)(Fast Forward/
Fast Reverse):Press and hold
)
to advance playback quickly within
a track. Release
(to resume
playing the track. Press and hold
)
to reverse playback quickly within a
track. Release
(to resume
playing the track.
BAND:Press to listen to the radio
when a CD is playing.
INFO (Information):Press when
an MP3 CD is loaded, then press
the button below the Song, Artist,
Album, or Folder label to view
the information.
CD/AUX (CD/Auxiliary):Press to
play a CD when listening to the
radio.
Press the CD/AUX button again and
the system begins playing audio
from the connected portable audio
player. If a portable audio player
is not connected, “No Input Device
Found” displays.
Infotainment 6-11
2009 - Pontiac Vibe Owner Manual

Radio Reception
Frequency interference and static
can occur during normal radio
reception if items such as cell phone
chargers, vehicle convenience
accessories, and external electronic
devices are plugged into the
accessory power outlet. If there is
interference or static, unplug the item
from the accessory power outlet.
AM
The range for most AM stations is
greater than for FM, especially at
night. The longer range can cause
station frequencies to interfere
with each other. For better radio
reception, most AM radio stations
boost the power levels during the
day, and then reduce these levels
during the night. Static can also
occur when things like storms and
power lines interfere with radio
reception. When this happens, try
reducing the treble on the radio.
FM Stereo
FM stereo gives the best sound,
but FM signals only reach about
10 to 40 miles (16 to 65 km).
Tall buildings or hills can interfere
with FM signals, causing the
sound to fade in and out.
XM™ Satellite Radio Service
XM Satellite Radio Service gives
digital radio reception from
coast-to-coast in the 48 contiguous
United States, and in Canada. Just
as with FM, tall buildings or hills can
interfere with satellite radio signals,
causing the sound to fade in and out.
In addition, traveling or standing
under heavy foliage, bridges,
garages, or through tunnels could
cause loss of the XM signal for a
period of time. The radio may
display NO XM SIGNAL to indicate
interference.
Fixed Mast Antenna
The xed mast antenna can
withstand most car washes without
being damaged. If the mast should
ever become slightly bent, straighten
it out by hand. If the mast is badly
bent, replace it.
Check occasionally to make sure
the mast is still tightened to the
antenna base located on the roof
of the vehicle. If tightening is
required, tighten by hand.
XM™ Satellite Radio
Antenna System
The XM Satellite Radio antenna is
located on the roof of the vehicle.
Keep this antenna clear of snow and
ice build up for clear radio reception.
If the vehicle has a sunroof, the
performance of the XM system may
be affected if the sunroof is open.
Loading items onto the roof of
the vehicle can interfere with the
performance of the XM system.
Make sure the XM Satellite Radio
antenna is not obstructed.
6-14 Infotainment
2009 - Pontiac Vibe Owner Manual

LOCK/OFF:This is the only position
from which you can remove the key.
This locks the steering wheel,
ignition and automatic transmission.
Push in the ignition switch as you
turn the key toward you.
On vehicles with an automatic
transmission, the shift lever must be
in P (Park) to turn the ignition switch
to the LOCK/OFF position.
A warning tone will sound if the driver
door is opened with the key in the
ignition.
The ignition switch can bind in the
LOCK/OFF position with your wheels
turned off center. If this happens,
move the steering wheel from right
to left while turning the key to
ACC/ACCESSORY. If this doesn’t
work, then the vehicle needs service.{CAUTION
On manual transmission vehicles,
turning the key to LOCK/OFF and
removing it will lock the steering
column and result in a loss of
ability to steer the vehicle.
This could cause a collision.
If you need to turn the engine
off while the vehicle is moving,
turn the key only to ACC/
ACCESSORY. Do not push the
key in while the vehicle is moving.
ACC/ACCESSORY:This position
provides power to some of the
electrical accessories. It unlocks the
steering wheel and ignition. To move
the key from ACC/ACCESSORY to
LOCK/OFF, push in the key and then
turn it to LOCK/OFF.
A warning tone will sound when
the driver door is opened when the
ignition is still in ACC/ACCESSORY
or LOCK/OFF and the key is in the
ignition.ON/RUN:The ignition switch stays
in this position when the engine is
running. This position can be used to
operate the electrical accessories,
including the ventilation fan and
115 volt power outlet, as well as to
display some warning and indicator
lights. The transmission is also
unlocked in this position on
automatic transmission vehicles.
The battery could be drained
if you leave the key in the ACC/
ACCESSORY or ON/RUN position
with the engine off. You may not be
able to start the vehicle if the battery
is allowed to drain for an extended
period of time.
START:This position starts the
engine. When the engine starts,
release the key. The ignition switch
will return to ON/RUN for normal
driving.
Driving and Operating 8-3
2009 - Pontiac Vibe Owner Manual

Driver Shift Control (DSC)
DSC mode allows you to choose
the top gear limit of the vehicle’s
transmission and the vehicle’s speed
while driving down hill or towing a
trailer. To use this feature, do the
following:
1. Move the shift lever from
D (Drive) left to S (Shift Control).
While driving in this mode,
the transmission will remain
in the driver selected range.
When coming to a stop, the
vehicle will automatically shift
into 1 (First) gear.
2. Move the shift lever forward to
increase the gear range, or
rearward to decrease the gear
range available based upon your
current driving conditions and
needs.The number displayed in the
instrument cluster is the highest gear
that the transmission will be allowed
to operate in. However, your vehicle
can automatically shift to lower gears
as required by various driving
conditions. This means that all gears
below that number are available.
The display in the instrument
cluster will change from the currently
displayed message to 4 (Fourth)
when you enter S (Shift Control),
and change to indicate the requested
gear range when moving the shift
lever forward or rearward.
While using the DSC feature the
transmission will have rmer shifting
and sportier performance. You can
use this for sport driving or when
climbing hills to stay in gear longer
or to downshift for more power or
engine braking.The transmission will only allow
shifting into gears appropriate
for the vehicles speed and engine
revolutions per minute (RPM):
The transmission will not
automatically shift to the next
higher gear if the vehicle speed
or engine RPM is too high.
The transmission will not allow
shifting to the next lower gear if
the vehicle speed or engine RPM
is too high. An audible warning
will sound and the downshift will
not be allowed. The downshift
request will have to be made
again once the vehicle reaches
an acceptable speed.
Downshift
RequestedRequired
Vehicle Speed
4 (Fourth) to
3 (Third)Below 95 mph
(153 km/h)
3 (Third) to
2 (Second)Below 60 mph
(97 km/h)
2 (Second) to
1 (First)Below 30 mph
(48 km/h)
8-10 Driving and Operating
2009 - Pontiac Vibe Owner Manual

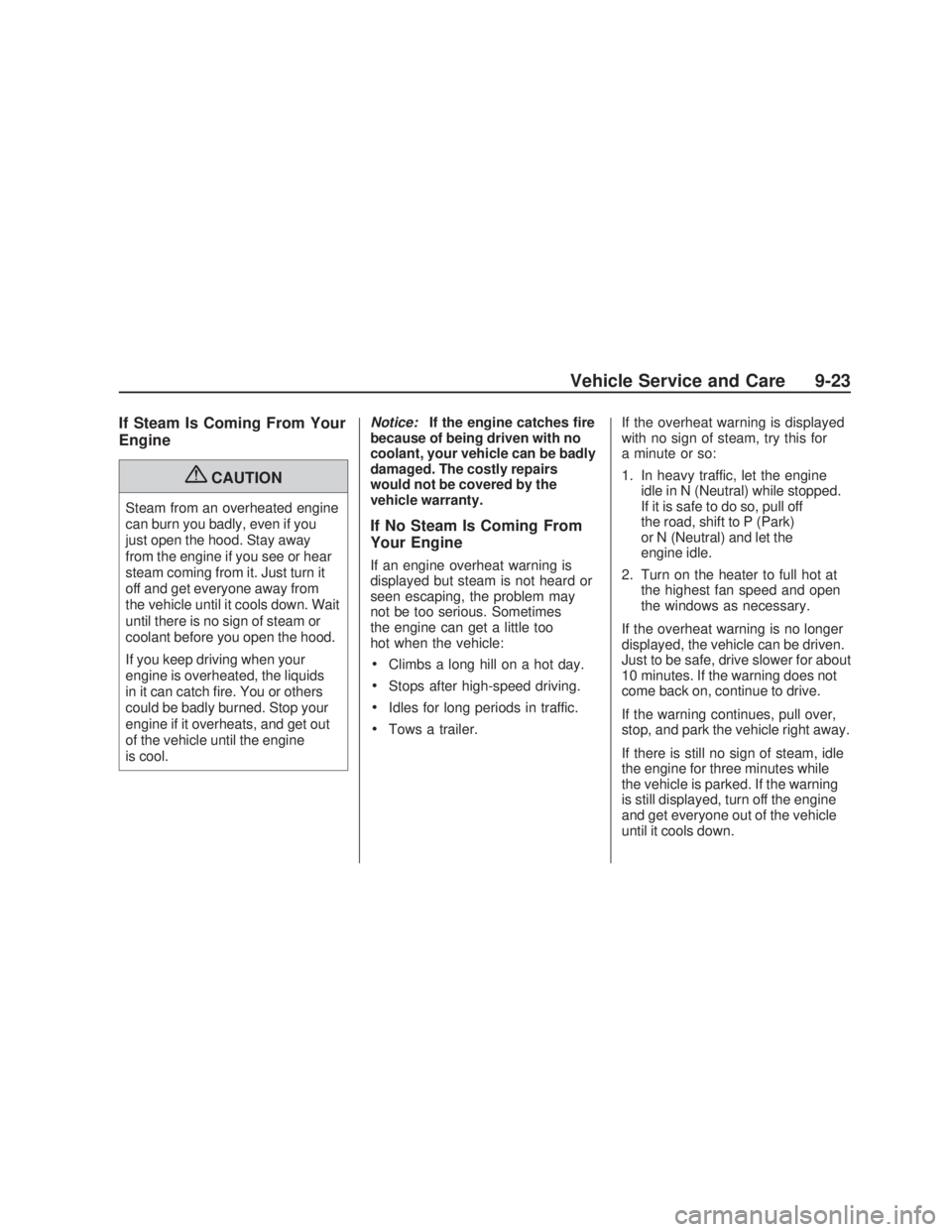

If Steam Is Coming From Your
Engine
{CAUTION
Steam from an overheated engine
can burn you badly, even if you
just open the hood. Stay away
from the engine if you see or hear
steam coming from it. Just turn it
off and get everyone away from
the vehicle until it cools down. Wait
until there is no sign of steam or
coolant before you open the hood.
If you keep driving when your
engine is overheated, the liquids
in it can catch re. You or others
could be badly burned. Stop your
engine if it overheats, and get out
of the vehicle until the engine
is cool.Notice:If the engine catches re
because of being driven with no
coolant, your vehicle can be badly
damaged. The costly repairs
would not be covered by the
vehicle warranty.
If No Steam Is Coming From
Your Engine
If an engine overheat warning is
displayed but steam is not heard or
seen escaping, the problem may
not be too serious. Sometimes
the engine can get a little too
hot when the vehicle:
Climbs a long hill on a hot day.
Stops after high-speed driving.
Idles for long periods in traffic.
Tows a trailer.If the overheat warning is displayed
with no sign of steam, try this for
a minute or so:
1. In heavy traffic, let the engine
idle in N (Neutral) while stopped.
If it is safe to do so, pull off
the road, shift to P (Park)
or N (Neutral) and let the
engine idle.
2. Turn on the heater to full hot at
the highest fan speed and open
the windows as necessary.
If the overheat warning is no longer
displayed, the vehicle can be driven.
Just to be safe, drive slower for about
10 minutes. If the warning does not
come back on, continue to drive.
If the warning continues, pull over,
stop, and park the vehicle right away.
If there is still no sign of steam, idle
the engine for three minutes while
the vehicle is parked. If the warning
is still displayed, turn off the engine
and get everyone out of the vehicle
until it cools down.
Vehicle Service and Care 9-23
2009 - Pontiac Vibe Owner Manual

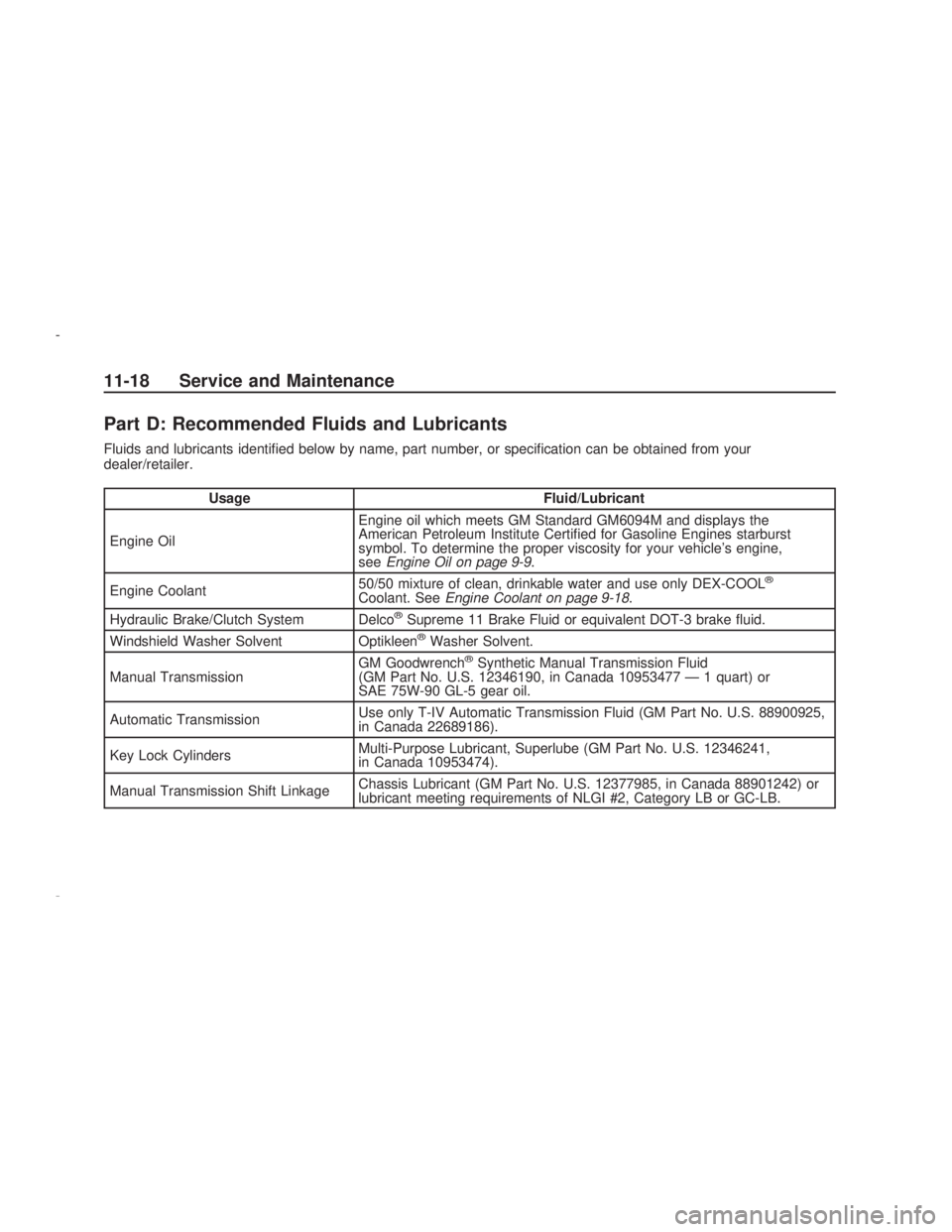

Part D: Recommended Fluids and Lubricants
Fluids and lubricants identied below by name, part number, or specication can be obtained from your
dealer/retailer.
UsageFluid/Lubricant
Engine Oil Engine oil which meets GM Standard GM6094M and displays the
American Petroleum Institute Certied for Gasoline Engines starburst
symbol. To determine the proper viscosity for your vehicle’s engine,
see
Engine Oil on page 9-9 .
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL
®
Coolant. See
Engine Coolant on page 9-18 .
Hydraulic Brake/Clutch System Delco
®Supreme 11 Brake Fluid or equivalent DOT-3 brake uid.
Windshield Washer Solvent Optikleen
®Washer Solvent.
Manual Transmission GM Goodwrench
®Synthetic Manual Transmission Fluid
(GM Part No. U.S. 12346190, in Canada 10953477 — 1 quart) or
SAE 75W-90 GL-5 gear oil.
Automatic Transmission Use only T-IV Automatic Transmission Fluid (GM Part No. U.S. 88900925,
in Canada 22689186).
Key Lock Cylinders Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241,
in Canada 10953474).
Manual Transmission Shift Linkage Chassis Lubricant (GM Part No. U.S. 12377985, in Canada 88901242) or
lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
11-18 Service and Maintenance
2009 - Pontiac Vibe Owner Manual
