PONTIAC VIBE 2009 Owners Manual

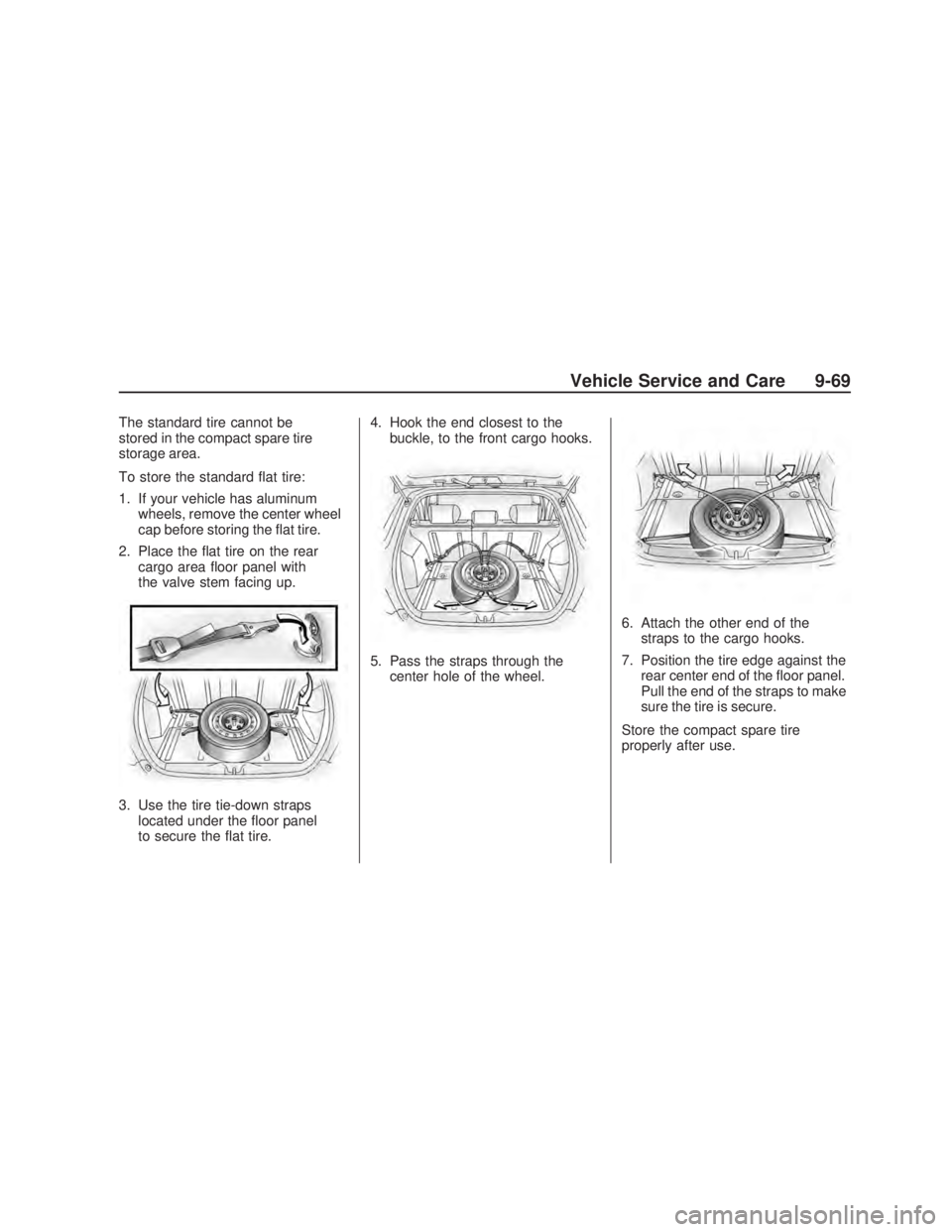

The standard tire cannot be
stored in the compact spare tire
storage area.
To store the standard at tire:
1. If your vehicle has aluminum
wheels, remove the center wheel
cap before storing the at tire.
2. Place the at tire on the rear
cargo area oor panel with
the valve stem facing up.
3. Use the tire tie-down straps
located under the oor panel
to secure the at tire.4. Hook the end closest to the
buckle, to the front cargo hooks.
5. Pass the straps through the
center hole of the wheel.6. Attach the other end of the
straps to the cargo hooks.
7. Position the tire edge against the
rear center end of the oor panel.
Pull the end of the straps to make
sure the tire is secure.
Store the compact spare tire
properly after use.
Vehicle Service and Care 9-69
2009 - Pontiac Vibe Owner Manual

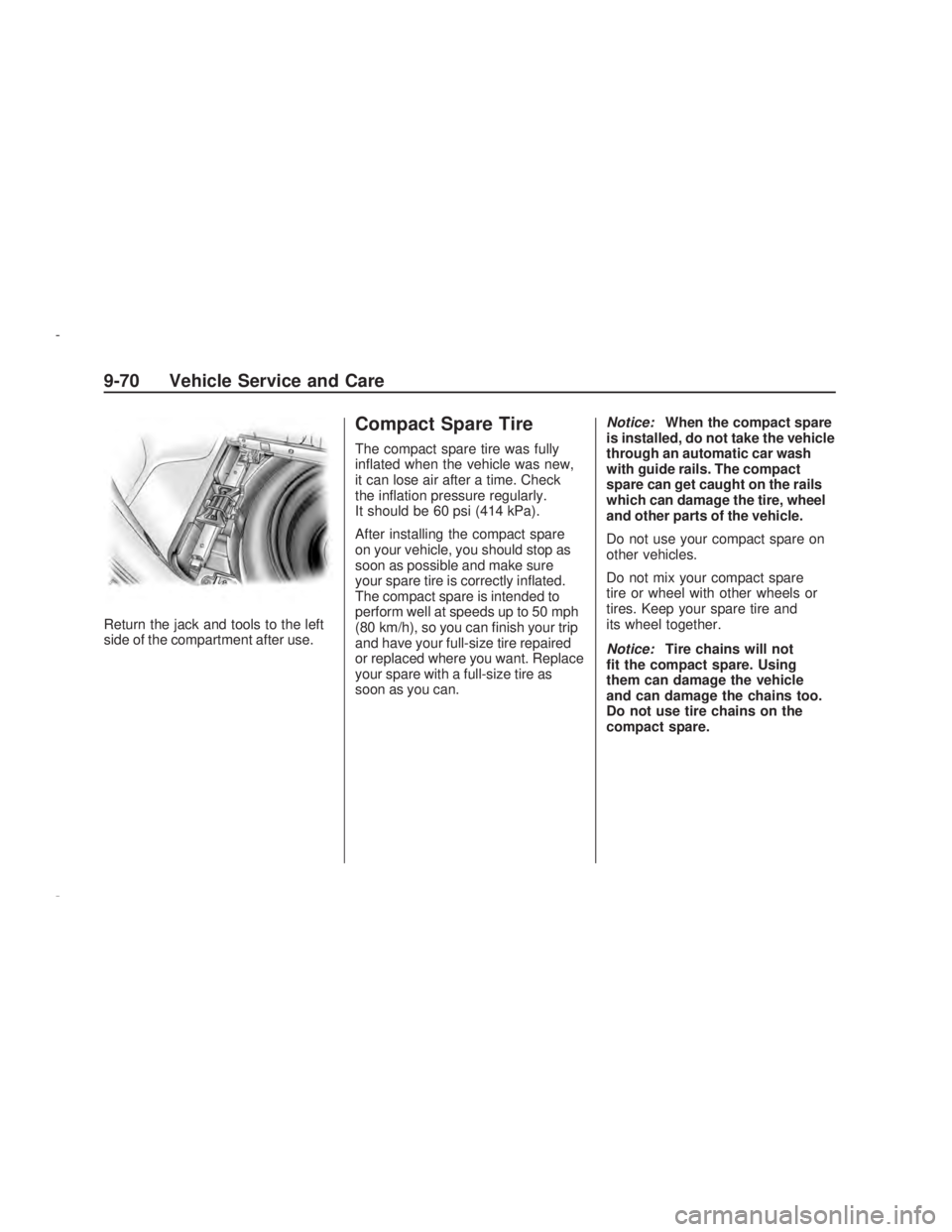

Return the jack and tools to the left
side of the compartment after use.
Compact Spare Tire
The compact spare tire was fully
inated when the vehicle was new,
it can lose air after a time. Check
the ination pressure regularly.
It should be 60 psi (414 kPa).
After installing the compact spare
on your vehicle, you should stop as
soon as possible and make sure
your spare tire is correctly inated.
The compact spare is intended to
perform well at speeds up to 50 mph
(80 km/h), so you can nish your trip
and have your full-size tire repaired
or replaced where you want. Replace
your spare with a full-size tire as
soon as you can.Notice:When the compact spare
is installed, do not take the vehicle
through an automatic car wash
with guide rails. The compact
spare can get caught on the rails
which can damage the tire, wheel
and other parts of the vehicle.
Do not use your compact spare on
other vehicles.
Do not mix your compact spare
tire or wheel with other wheels or
tires. Keep your spare tire and
its wheel together.
Notice:Tire chains will not
t the compact spare. Using
them can damage the vehicle
and can damage the chains too.
Do not use tire chains on the
compact spare.
9-70 Vehicle Service and Care
2009 - Pontiac Vibe Owner Manual

Jump Starting
If your vehicle’s battery has run
down, you may want to use another
vehicle and some jumper cables
to start your vehicle. Be sure to use
the following steps to do it safely.
{CAUTION
Batteries can hurt you. They can
be dangerous because:
They contain acid that can
burn you.
They contain gas that can
explode or ignite.
They contain enough
electricity to burn you.
If you do not follow these steps
exactly, some or all of these
things can hurt you.Notice:Ignoring these steps
could result in costly damage
to your vehicle that would not
be covered by your warranty.
Trying to start your vehicle
by pushing or pulling it will
not work, and it could damage
your vehicle.
1. Check the other vehicle. It must
have a 12-volt battery with a
negative ground system.
Notice:If the other vehicle’s
system is not a 12-volt system
with a negative ground, both
vehicles can be damaged. Only
use vehicles with 12-volt systems
with negative grounds to jump
start your vehicle.
2. Get the vehicles close enough
so the jumper cables can reach,
but be sure the vehicles are not
touching each other. If they are, it
could cause a ground connection
you do not want. You would not
be able to start your vehicle, and
the bad grounding could damage
the electrical systems.To avoid the possibility of the
vehicles rolling, set the parking
brake rmly on both vehicles
involved in the jump start
procedure. Put an automatic
transmission in P (Park) or
a manual transmission in
NEUTRAL before setting
the parking brake.
Notice:If you leave the radio
or other accessories on during
the jump starting procedure, they
could be damaged. The repairs
would not be covered by the
warranty. Always turn off
the radio and other accessories
when jump starting the vehicle.
3. Turn off the ignition on both
vehicles. Unplug unnecessary
accessories plugged into the
cigarette lighter. Turn off the radio
and all lamps that are not needed.
This will avoid sparks and help
save both batteries. And it could
save the radio!
Vehicle Service and Care 9-71
2009 - Pontiac Vibe Owner Manual

4. Open the hoods and locate the
batteries. Find the positive (+)
and negative (−) terminal
locations on each vehicle. See
Engine Compartment Overview
on page 9-6for more information
on location.
{CAUTION
An electric fan can start up even
when the engine is not running
and can injure you. Keep hands,
clothing and tools away from any
underhood electric fan.
{CAUTION
Using a match near a battery can
cause battery gas to explode.
People have been hurt doing this,
and some have been blinded. Use
a ashlight if you need more light.
(Continued)
CAUTION (Continued)
Be sure the battery has enough
water. You do not need to add
water to the battery installed in
your new vehicle. But if a battery
has ller caps, be sure the right
amount of uid is there. If it is
low, add water to take care of
that rst. If you don’t, explosive
gas could be present.
Battery uid contains acid that
can burn you. Do not get it on
you. If you accidentally get it in
your eyes or on your skin, ush
the place with water and get
medical help immediately.
{CAUTION
Fans or other moving engine
parts can injure you badly. Keep
your hands away from moving
parts once the engine is running.5. Check that the jumper cables
do not have loose or missing
insulation. If they do, you could
get a shock. The vehicles could
be damaged too.
Before you connect the cables,
here are some basic things you
should know. Positive (+) will go
to positive (+) or to a remote
positive (+) terminal if the vehicle
has one. Negative (−) will go to a
heavy, unpainted metal engine
part or to a remote negative (−)
terminal if the vehicle has one.
Do not connect positive (+) to
negative (−) or you will get a short
that would damage the battery
and maybe other parts too. And
do not connect the negative (−)
cable to the negative (−) terminal
on the dead battery because this
can cause sparks.
9-72 Vehicle Service and Care
2009 - Pontiac Vibe Owner Manual

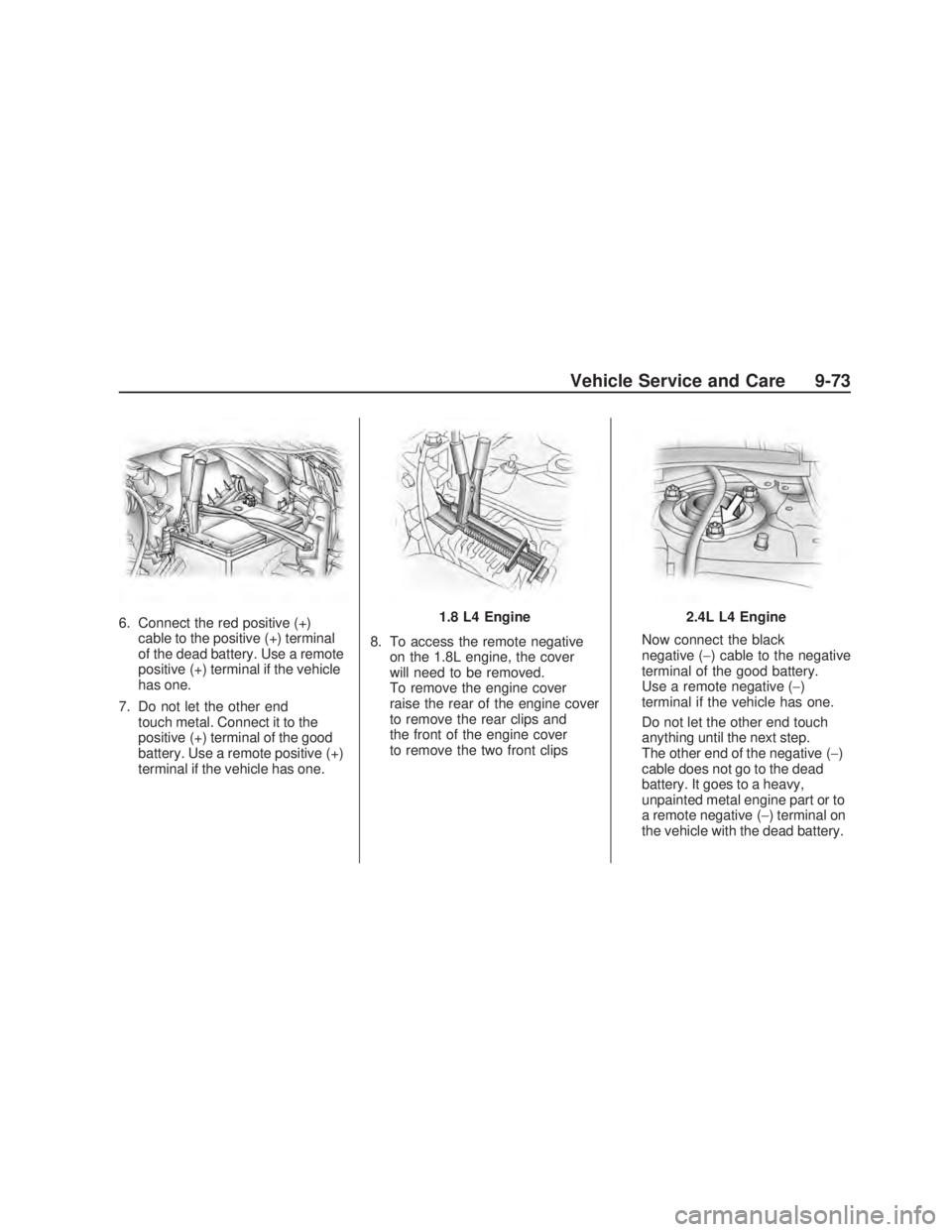

6. Connect the red positive (+)
cable to the positive (+) terminal
of the dead battery. Use a remote
positive (+) terminal if the vehicle
has one.
7. Do not let the other end
touch metal. Connect it to the
positive (+) terminal of the good
battery. Use a remote positive (+)
terminal if the vehicle has one.8. To access the remote negative
on the 1.8L engine, the cover
will need to be removed.
To remove the engine cover
raise the rear of the engine cover
to remove the rear clips and
the front of the engine cover
to remove the two front clipsNow connect the black
negative (−) cable to the negative
terminal of the good battery.
Use a remote negative (−)
terminal if the vehicle has one.
Do not let the other end touch
anything until the next step.
The other end of the negative (−)
cable does not go to the dead
battery. It goes to a heavy,
unpainted metal engine part or to
a remote negative (−) terminal on
the vehicle with the dead battery.1.8 L4 Engine2.4L L4 Engine
Vehicle Service and Care 9-73
2009 - Pontiac Vibe Owner Manual

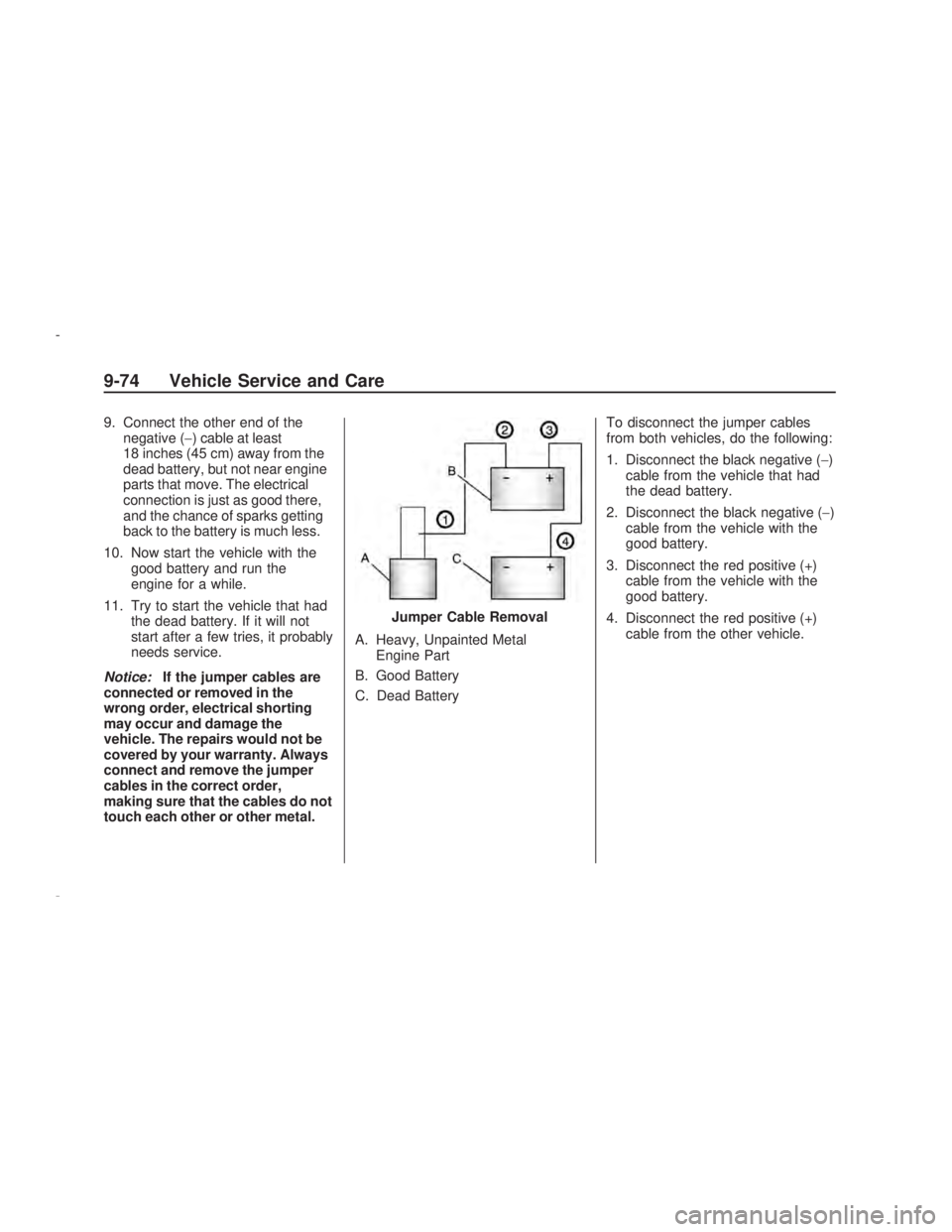

9. Connect the other end of the
negative (−) cable at least
18 inches (45 cm) away from the
dead battery, but not near engine
parts that move. The electrical
connection is just as good there,
and the chance of sparks getting
back to the battery is much less.
10. Now start the vehicle with the
good battery and run the
engine for a while.
11. Try to start the vehicle that had
the dead battery. If it will not
start after a few tries, it probably
needs service.
Notice:If the jumper cables are
connected or removed in the
wrong order, electrical shorting
may occur and damage the
vehicle. The repairs would not be
covered by your warranty. Always
connect and remove the jumper
cables in the correct order,
making sure that the cables do not
touch each other or other metal.A. Heavy, Unpainted Metal
Engine Part
B. Good Battery
C. Dead BatteryTo disconnect the jumper cables
from both vehicles, do the following:
1. Disconnect the black negative (−)
cable from the vehicle that had
the dead battery.
2. Disconnect the black negative (−)
cable from the vehicle with the
good battery.
3. Disconnect the red positive (+)
cable from the vehicle with the
good battery.
4. Disconnect the red positive (+)
cable from the other vehicle. Jumper Cable Removal
9-74 Vehicle Service and Care
2009 - Pontiac Vibe Owner Manual

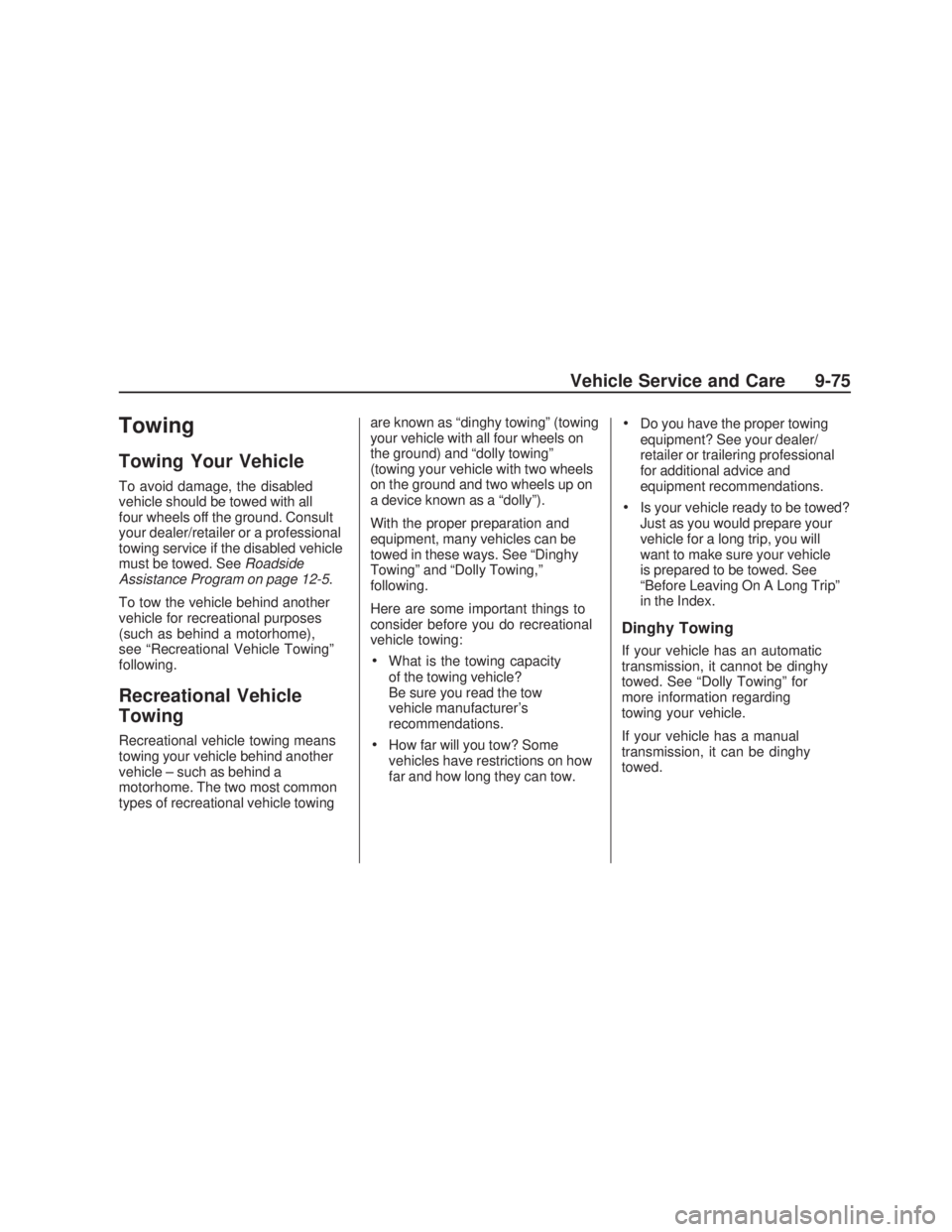

Towing
Towing Your Vehicle
To avoid damage, the disabled
vehicle should be towed with all
four wheels off the ground. Consult
your dealer/retailer or a professional
towing service if the disabled vehicle
must be towed. SeeRoadside
Assistance Program on page 12-5.
To tow the vehicle behind another
vehicle for recreational purposes
(such as behind a motorhome),
see “Recreational Vehicle Towing”
following.
Recreational Vehicle
Towing
Recreational vehicle towing means
towing your vehicle behind another
vehicle – such as behind a
motorhome. The two most common
types of recreational vehicle towingare known as “dinghy towing” (towing
your vehicle with all four wheels on
the ground) and “dolly towing”
(towing your vehicle with two wheels
on the ground and two wheels up on
a device known as a “dolly”).
With the proper preparation and
equipment, many vehicles can be
towed in these ways. See “Dinghy
Towing” and “Dolly Towing,”
following.
Here are some important things to
consider before you do recreational
vehicle towing:
What is the towing capacity
of the towing vehicle?
Be sure you read the tow
vehicle manufacturer’s
recommendations.
How far will you tow? Some
vehicles have restrictions on how
far and how long they can tow.
Do you have the proper towing
equipment? See your dealer/
retailer or trailering professional
for additional advice and
equipment recommendations.
Is your vehicle ready to be towed?
Just as you would prepare your
vehicle for a long trip, you will
want to make sure your vehicle
is prepared to be towed. See
“Before Leaving On A Long Trip”
in the Index.
Dinghy Towing
If your vehicle has an automatic
transmission, it cannot be dinghy
towed. See “Dolly Towing” for
more information regarding
towing your vehicle.
If your vehicle has a manual
transmission, it can be dinghy
towed.
Vehicle Service and Care 9-75
2009 - Pontiac Vibe Owner Manual

When dinghy towing, be sure to
follow the posted legal speed limit.
1. Put the shift lever in Neutral.
2. Turn the ignition to
ACC/ACCESSORY to avoid
locking the steering wheel.
Make sure the audio system
is turned off and that nothing is
plugged into the power outlets.
3. Release the parking brake.
After dinghy towing, let the engine
idle for more than three minutes
before driving the vehicle.Do not tow your vehicle from
the rear. Your vehicle could be badly
damaged and the repairs would
not be covered by your warranty.
Dolly Towing
(All-Wheel-Drive Vehicles)
All-wheel-drive vehicles must not
be towed with two wheels on the
ground. To properly tow these
vehicles, they should be placed
on a platform trailer with all four
wheels off of the ground.
Dolly Towing
(Front-Wheel-Drive
Vehicles Only)
To tow your front-wheel-drive
vehicle using a dolly, follow
these steps:
1. Put the front wheels on a dolly.
2. Move the shift lever to P (Park)
for an automatic transmission
or Neutral for a manual
transmission.
3. Set the parking brake.
9-76 Vehicle Service and Care
2009 - Pontiac Vibe Owner Manual

4. Clamp the steering wheel in a
straight-ahead position with a
clamping device designed
for towing.
5. Remove the key from the
ignition.
6. Secure the vehicle to the dolly.
7. Release the parking brake.
Towing a Trailer
{CAUTION
The driver can lose control when
pulling a trailer if the correct
equipment is not used or the
vehicle is not driven properly.
For example, if the trailer is too
heavy, the brakes may not work
well or even at all. The driver and
passengers could be seriously
(Continued)
CAUTION (Continued)
injured. The vehicle may also be
damaged; the resulting repairs
would not be covered by the
vehicle warranty. Pull a trailer only
if all the steps in this section have
been followed. Ask your
dealer/retailer for advice and
information about towing a trailer
with the vehicle.
Your vehicle can tow a trailer if it
is equipped with the proper trailer
towing equipment. To identify the
vehicle trailering capacity of your
vehicle, you should read the
information in “Weight of the Trailer”
that appears later in this section.
Trailering is different than just driving
your vehicle by itself. Trailering
means changes in handling,acceleration, braking, durability and
fuel economy. Successful, safe
trailering takes correct equipment,
and it has to be used properly.
That is the reason for this part.
In it are many time-tested, important
trailering tips and safety rules. Many
of these are important for your safety
and that of your passengers.
So please read this section
carefully before you pull a trailer.
Load-pulling components such as
the engine, transmission, wheel
assemblies and tires are forced to
work harder against the drag of
the added weight. The engine
is required to operate at relatively
higher speeds and under greater
loads, generating extra heat.
In addition, the trailer adds
considerably to wind resistance,
increasing the pulling requirements.
Vehicle Service and Care 9-77
2009 - Pontiac Vibe Owner Manual

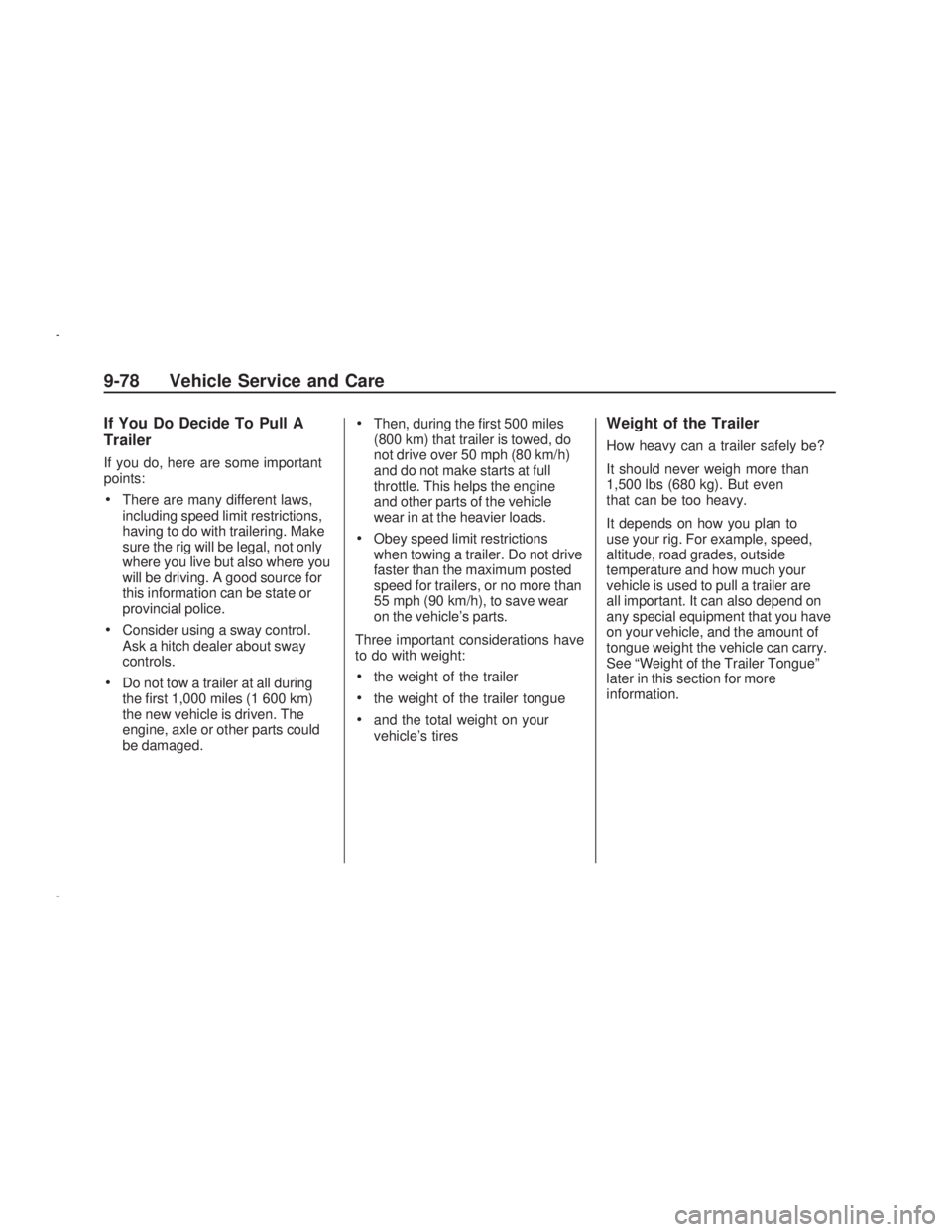

If You Do Decide To Pull A
Trailer
If you do, here are some important
points:
There are many different laws,
including speed limit restrictions,
having to do with trailering. Make
sure the rig will be legal, not only
where you live but also where you
will be driving. A good source for
this information can be state or
provincial police.
Consider using a sway control.
Ask a hitch dealer about sway
controls.
Do not tow a trailer at all during
the rst 1,000 miles (1 600 km)
the new vehicle is driven. The
engine, axle or other parts could
be damaged.
Then, during the rst 500 miles
(800 km) that trailer is towed, do
not drive over 50 mph (80 km/h)
and do not make starts at full
throttle. This helps the engine
and other parts of the vehicle
wear in at the heavier loads.
Obey speed limit restrictions
when towing a trailer. Do not drive
faster than the maximum posted
speed for trailers, or no more than
55 mph (90 km/h), to save wear
on the vehicle’s parts.
Three important considerations have
to do with weight:
the weight of the trailer
the weight of the trailer tongue
and the total weight on your
vehicle’s tires
Weight of the Trailer
How heavy can a trailer safely be?
It should never weigh more than
1,500 lbs (680 kg). But even
that can be too heavy.
It depends on how you plan to
use your rig. For example, speed,
altitude, road grades, outside
temperature and how much your
vehicle is used to pull a trailer are
all important. It can also depend on
any special equipment that you have
on your vehicle, and the amount of
tongue weight the vehicle can carry.
See “Weight of the Trailer Tongue”
later in this section for more
information.
9-78 Vehicle Service and Care
2009 - Pontiac Vibe Owner Manual
