Notice:This vehicle was not
designed for fuel that contains
methanol. Do not use fuel
containing methanol. It can
corrode metal parts in the fuel
system and also damage plastic
and rubber parts. That damage
would not be covered under the
vehicle warranty.
Some gasolines that are
not reformulated for low
emissions can contain an
octane-enhancing additive called
methylcyclopentadienyl manganese
tricarbonyl (MMT); ask the attendant
where you buy gasoline whether the
fuel contains MMT. We recommend
against the use of such gasolines.
Fuels containing MMT can reduce
the life of spark plugs and the
performance of the emission
control system could be affected.
The malfunction indicator lamp might
turn on. If this occurs, return to your
dealer/retailer for service.Filling the Tank
{CAUTION
Fuel vapor burns violently and a
fuel fire can cause bad injuries.
To help avoid injuries to you and
others, read and follow all the
instructions on the pump island.
Turn off the engine when you are
refueling. Do not smoke if you are
near fuel or refueling the vehicle.
Do not use cellular phones. Keep
sparks, flames, and smoking
materials away from fuel. Do not
leave the fuel pump unattended
when refueling the vehicle. This is
against the law in some places.
Do not re-enter the vehicle while
pumping fuel. Keep children away
from the fuel pump; never let
children pump fuel. The fuel door release lever is near
the floor under the driver seat on the
outboard side.
Driving and Operating 8-41

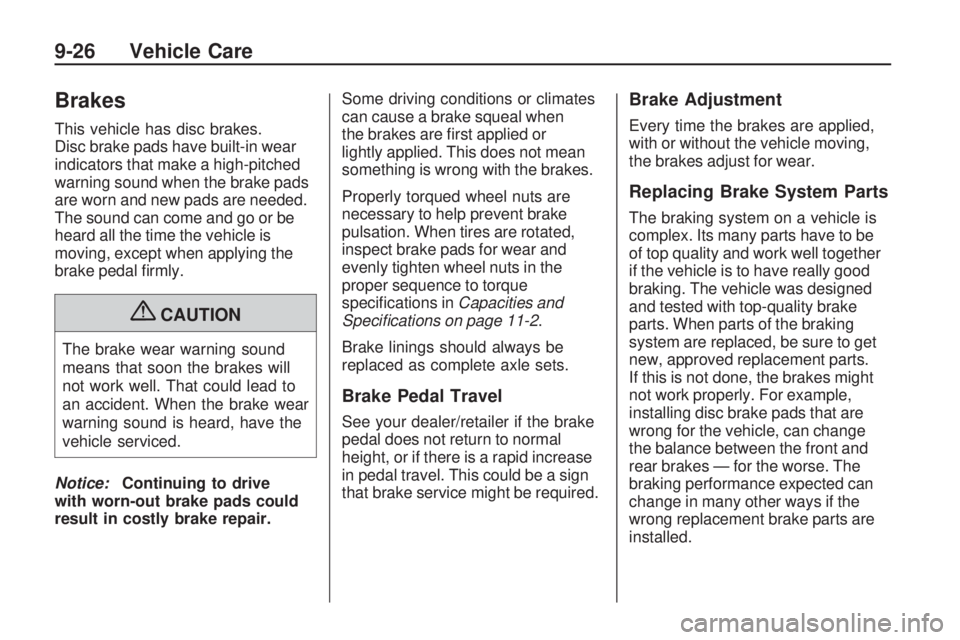

Brakes
This vehicle has disc brakes.
Disc brake pads have built-in wear
indicators that make a high-pitched
warning sound when the brake pads
are worn and new pads are needed.
The sound can come and go or be
heard all the time the vehicle is
moving, except when applying the
brake pedal firmly.
{CAUTION
The brake wear warning sound
means that soon the brakes will
not work well. That could lead to
an accident. When the brake wear
warning sound is heard, have the
vehicle serviced.
Notice: Continuing to drive
with worn-out brake pads could
result in costly brake repair. Some driving conditions or climates
can cause a brake squeal when
the brakes are first applied or
lightly applied. This does not mean
something is wrong with the brakes.
Properly torqued wheel nuts are
necessary to help prevent brake
pulsation. When tires are rotated,
inspect brake pads for wear and
evenly tighten wheel nuts in the
proper sequence to torque
specifications in
Capacities and
Specications on page 11-2 .
Brake linings should always be
replaced as complete axle sets.
Brake Pedal Travel
See your dealer/retailer if the brake
pedal does not return to normal
height, or if there is a rapid increase
in pedal travel. This could be a sign
that brake service might be required.
Brake Adjustment
Every time the brakes are applied,
with or without the vehicle moving,
the brakes adjust for wear.
Replacing Brake System Parts
The braking system on a vehicle is
complex. Its many parts have to be
of top quality and work well together
if the vehicle is to have really good
braking. The vehicle was designed
and tested with top-quality brake
parts. When parts of the braking
system are replaced, be sure to get
new, approved replacement parts.
If this is not done, the brakes might
not work properly. For example,
installing disc brake pads that are
wrong for the vehicle, can change
the balance between the front and
rear brakes — for the worse. The
braking performance expected can
change in many other ways if the
wrong replacement brake parts are
installed.
9-26 Vehicle Care

A
Accessories andModifications ...................... 9-3
Accessory Power .................8-18
Adding Equipment to the Airbag-Equipped Vehicle ....2-35
Add-On Electrical Equipment ....................... 8-50
Adjustments Seat, Front ........................ 2-4
Seat, Initial Drive ................ 2-3
Air Cleaner/Filter, Engine .......9-16
Air Filter, Passenger Compartment ..................... 7-4
Air Vents .............................. 7-4
Airbag System Check ............................. 2-36
How Does an Airbag Restrain? ..................... 2-28
Passenger Sensing System ........................ 2-29
What Makes an Airbag Inflate? ........................ 2-27Airbag System (cont.)
What Will You See Afteran Airbag Inflates? ........2-28
When Should an Airbag Inflate? ........................ 2-26
Where Are the Airbags? .....2-24
Airbags Adding Equipment to theVehicle ........................ 2-35
Passenger Status Indicator ....................... 4-13
Readiness Light ................4-12
Servicing Airbag-Equipped Vehicles ....................... 2-34
System Check ..................2-23
Alarm System Anti-Theft .......................... 1-7
All-Wheel Drive ............8-31, 9-29
All-Wheel-Drive Service Light ............................... 4-18
AM-FM Radio ........................ 6-4
Antenna Satellite Radio ................... 6-9
Antilock Brake System (ABS) ..................8-32
Warning Light ................... 4-17Anti-Theft
Alarm System .................... 1-7
Appearance Care Exterior ........................... 9-75
Interior ............................ 9-80
Ashtrays ...............................

4-8
Assistance Program, Roadside ......................... 12-6
Audio Players ........................ 6-9
CD ................................... 6-9
MP3 ............................... 6-11
Audio System Fixed Mast Antenna ............ 6-8
Audio Systems Radio Reception ................. 6-8
Automatic Headlamp System .............. 5-3
Automatic Transmission ............8-24, 8-27
Fluid ............................... 9-12
Manual Mode ................... 8-28
Auxiliary Devices ..................6-14
INDEX i-1

Engine (cont.)Pressure Light ..................4-19
Running While Parked .......8-24
Starting ........................... 8-18
Entry Lighting ........................ 5-5
Equipment, Towing ...............8-49
Event Data Recorders .........12-14
Extender, Safety Belt ............2-21
Exterior Care ....................... 9-75
Exterior Lamp Controls ........... 5-1
F
Filter
Engine Air Cleaner ............9-16
Flashers, Hazard Warning ....... 5-3
Flash-to-Pass ........................ 5-2
Flat Tire .............................. 9-62
Flat Tire, Changing ...............9-63
Floor Mats .......................... 9-83
Fluid Automatic Transmission .....9-12
Brakes ............................ 9-27
Power Steering .................9-24
Washer ........................... 9-24
Fog Lamps Bulb Replacement .............. 5-4
Light ............................... 4-20Folding Mirrors
....................1-10
Folding Seatback ................... 2-6
Front Seat Position Seats Adjustment ........................ 2-3
Front Seats Adjustment ........................ 2-4
Front Storage ........................ 3-2
Fuel ................................... 8-38
Additives ......................... 8-40
Economy Driving ................ 8-2
Filling a Portable Fuel Container ..................... 8-43
Filling the Tank .................8-41
Fuels in Foreign Countries ..................... 8-40
Gage .............................. 4-10
Gasoline Specifications ......8-39
Low Fuel Warning Light .....4-20
Recommended .................8-39
Requirements, California ....8-39
Fuses Engine Compartment FuseBlock ........................... 9-38
Fuses and Circuit Breakers ...................... 9-38
Instrument Panel Fuse Block ........................... 9-41
G
Gages
Engine CoolantTemperature .................4-11
Fuel ................................ 4-10
Odometer ........................ 4-10
Speedometer ................... 4-10
Tachometer ...................... 4-10
Trip Odometer ..................4-10
Warning Lights and Indicators ....................... 4-8
Gasoline Specifications ................... 8-39
General Information Service and Maintenance . . . 10-1
Towing ............................ 8-43
Vehicle Care ...................... 9-2
Glove Box ............................ 3-1
GM Mobility Reimbursement Program .......................... 12-5
i-4 INDEX

Lights (cont.)Engine Oil Pressure ..........4-19
Flash-to-Pass ..................... 5-2
Fog Lamps ...................... 4-20
High-Beam On .................4-20
High/Low Beam Changer ..... 5-2
Low Fuel Warning .............4-20
Low Washer Fluid Warning ....................... 4-21
Safety Belt Reminders .......4-11
Security ........................... 4-20
Service All-Wheel-Drive ......4-18
Speed Sensitive Power Steering (SSPS)
Warning ....................... 4-18
StabiliTrak
®Indicator .........4-18
Taillamp Indicator ..............4-21
Tire Pressure ................... 4-19
Traction Control System (TCS) Warning ..............4-19
Load Rails and Hooks ............ 3-4
Locks Door ................................. 1-5
Power Door ....................... 1-6
Safety ............................... 1-6
Loss of Control ..................... 8-6
Low Fuel Warning Light ........4-20 Low Washer Fluid Warning
Light ............................... 4-21
Lower Anchors and Tethers for Children (LATCHE
SYSTEM) ........................ 2-45
M
Maintenance
Records ......................... 10-18
Replacement Parts ..........10-17
Maintenance Schedule Recommended Fluidsand Lubricants ............10-15
Scheduled Maintenance .....10-3
Malfunction Indicator Lamp ....4-14
Manual Mode ...................... 8-28
Manual Transmission ............8-29
Fluid ............................... 9-14
Mirrors Folding ............................ 1-10
Manual Rearview ..............1-11
Outlets ....................... 4-6, 4-7
Power ............................. 1-10
Monitor System, Tire Pressure ......................... 9-50
MP3 ................................... 6-11
N
Navigation System
Vehicle Data Recordingand Privacy ................12-15
New Vehicle Break-In ...........8-16
O
Odometer ........................... 4-10
Trip ................................ 4-10
Off-Road Recovery .......................... 8-6
Oil Pressure Light ..................4-19
Oil, Engine ........................... 9-9
Older Children, Restraints ......2-37
Online Owner Center ............12-4
OnStar
®System .................. 4-23
Operation, Infotainment System ............................. 6-2
Outlets Power ........................ 4-6, 4-7
Overheating, Engine .............9-23
i-6 INDEX

S
Safety Belts.......................... 2-8
Care ............................... 2-22
Extender ......................... 2-21
How to Wear Safety Belts Properly ....................... 2-12
Lap-Shoulder Belt .............2-18
Reminders ....................... 4-11
Replacing After a Crash .....2-22
Use During Pregnancy ......2-20
Safety Defects Reporting General Motors ...............12-14
U.S. Government ............12-13
Safety Locks ......................... 1-6
Safety System Check ...........2-21
Satellite Radio ....................... 6-6
Satellite Radio Antenna .......... 6-9
Scheduled Maintenance ........10-3
Scheduling Appointments .......12-8
Seats Adjustment, Front ............... 2-4
Folding Seatback ................ 2-6
Head Restraints ................. 2-2
Position, Front ................... 2-3
Rear ................................. 2-7
Reclining Seatbacks ............ 2-4Securing Child
Restraints ................ 2-51, 2-53
Security Light ............................... 4-20
Vehicle ............................. 1-7
Service Accessories andModifications .................. 9-3
All-Wheel-Drive Light .........4-18
Engine Soon Lamp ...........4-14
Maintenance, General Information ................... 10-1
Parts Identification Label ....11-1
Publications Ordering Information ................. 12-12
Scheduling Appointments . . . 12-8
Service and Maintenance Records ......................... 10-18
Service, Doing Your Own Work ................................ 9-4
Servicing the Airbag-Equipped Vehicle ............................ 2-34
Shifting Into Park ......................... 8-20
Out

of Park ..................... 8-22
Signals, Turn and Lane-Change ..................... 5-3 Spare Tire
Compact ......................... 9-68
Specifications and Capacities ....................... 11-2
Speed Sensitive Power Steering (SSPS)
Warning Light ................... 4-18
Speedometer ....................... 4-10
StabiliTrak System ................8-35
StabiliTrak
®Indicator Light .....4-18
Starter Switch Check ............9-30
Starting the Engine ..............8-18
Steering ............................... 8-4
Fluid, Power .................... 9-24
Steering Wheel Adjustment ..... 4-4
Steering Wheel Controls ......... 4-4
Storage Areas Cargo Cover ...................... 3-2
Cargo Management System .......................... 3-4
Center Console .................. 3-2
Front ................................ 3-2
Glove Box ......................... 3-1
Roof Rack ......................... 3-5
Stuck Vehicle ...................... 8-11
Sun Visors .......................... 1-12
Sunroof .............................. 1-13
Symbols ................................. iii
i-8 INDEX

T
Tachometer......................... 4-10
Taillamp Indicator Light .........4-21
Taillamps ............................ 9-35
Text Telephone (TTY) Users ....12-4
Theft-Deterrent Systems ......... 1-9
Immobilizer ........................ 1-9
Tire Pressure ......................... 9-49
Tires Buying New Tires .............9-56
Chains ............................ 9-61
Changing ......................... 9-63
Compact Spare ................9-68
Designations .................... 9-46
Different Size ................... 9-58
If a Tire Goes Flat ............9-62
Inflation Monitor System ....9-52
Inspection ........................ 9-54
Pressure Light ..................4-19
Pressure Monitor System . . . 9-50
Rotation .......................... 9-55
Sidewall Labeling ..............9-44
Terminology and Definitions .................... 9-46
Uniform Tire Quality Grading ....................... 9-58Tires (cont.)
Wheel Alignment andTire Balance .................9-60
Wheel Replacement ..........9-60
When It Is Time for New Tires ............................ 9-56
Towing Driving Characteristics .......8-44
Equipment ....................... 8-49
General Information ...........8-43
Recreational Vehicle ..........9-73
Trailer ............................. 8-48
Vehicle ............................ 9-73
Traction Control System (TCS) .......8-33
Control System Warning Light ............................ 4-19
T

railer Towing ...................... 8-48
Transmission Automatic ................ 8-24, 8-27
Fluid, Automatic ................9-12
Fluid, Manual ................... 9-14
Transportation Program, Courtesy ......................... 12-8
Trip Odometer ..................... 4-10
Turn and Lane-Change Signals ............................. 5-3
U
Uniform Tire Quality
Grading ........................... 9-58
Using this Manual .................... iii
V
Vehicle
Canadian Owners .................. ii
Control ............................. 8-3
Load Limits ...................... 8-12
Personalization .................4-21
Security ............................ 1-7
Towing ............................ 9-73
Vehicle Care Tire Pressure ................... 9-49
Vehicle Identification Number (VIN) ................... 11-1
Service Parts Identification Label ........................... 11-1
Ventilation, Air ....................... 7-4
Visors ................................. 1-12
INDEX i-9
