Page 3 of 310
1
© Dr. Ing. h.c. F. Porsche AG
Porsche, the Porsche crest, 911, Carrera, Targa,
PCCB, PCM, PDK, PSM and Tequipment are regis-
tered trademarks and the distinctive shapes of
Porsche automobiles are trademarks of
Dr. Ing. h.c. F. Porsche AG.
All rights reserved.
Printed in Germany
Orientation guides in the
Owner’s ManualThe orientation guides in the Owner’s Manual are
highlighted in yellow.
Overall Table of Contents
At the start of the Owner’s Manual you will find an
overview of the overall contents of the Owner’s
Manual.
Section Contents
There is a summary of topics with the corre-
sponding page numbers at the beginning of each
main chapter.
Index
There is a detailed, alphabetical index at the end
of this Owner’s Manual. WKD 997 021 10 5/09
Page 8 of 310
6
Table of ContentsTable of ContentsSport tires..................................................... 4
Porsche Ceramic Composite Brake (PCCB) ...... 4
Setting and operating vehicle components
when driving .................................................. 5
Ground Clearance .......................................... 5
Before driving off... ....................................... 8
Break in hints for the first
2,000 miles/3,000 kilometers ...................... 10Operation, Safety .............................. 13Keys ........................................................... 15
Security Wheel Bolts.................................... 15
Doors ......................................................... 18
Central Locking ........................................... 19
Alarm System,
Passenger Compartment Monitoring ............. 23
Power Windows ........................................... 25
Mirrors ........................................................ 27
Rear Window Defogger, Door Mirror Heating .. 29
Seat Adjustment and Head Restraints ............ 30

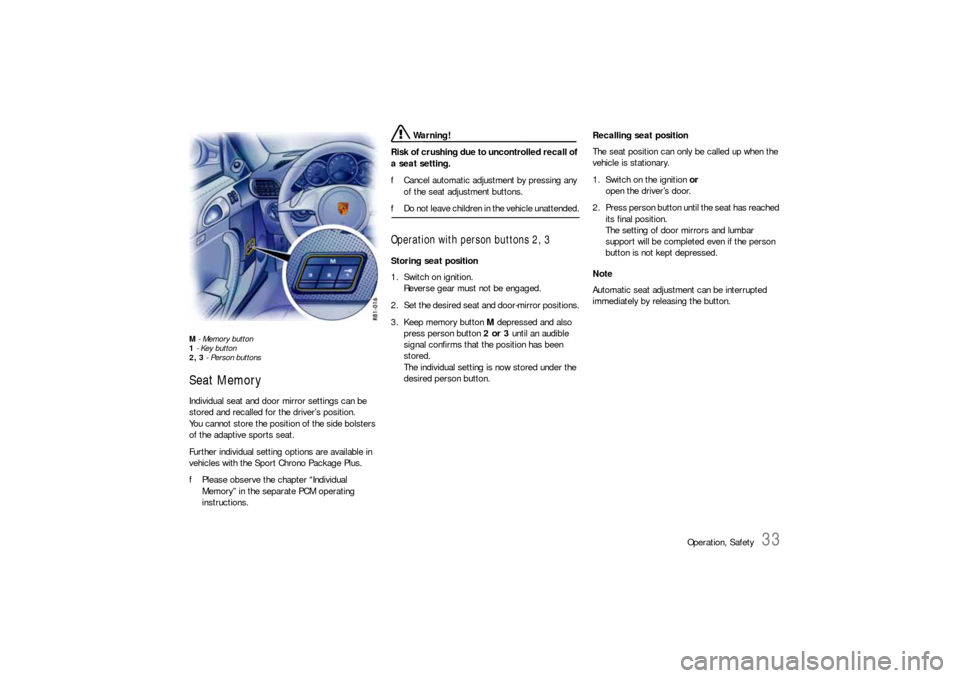

Seat Memory ............................................... 33
Heated Seats .............................................. 35
Seat Ventilation ............................................ 36
Rear Seat Backrests.................................... 37
Steering Wheel Adjustment ........................... 37
Steering Wheel Heating ................................ 38

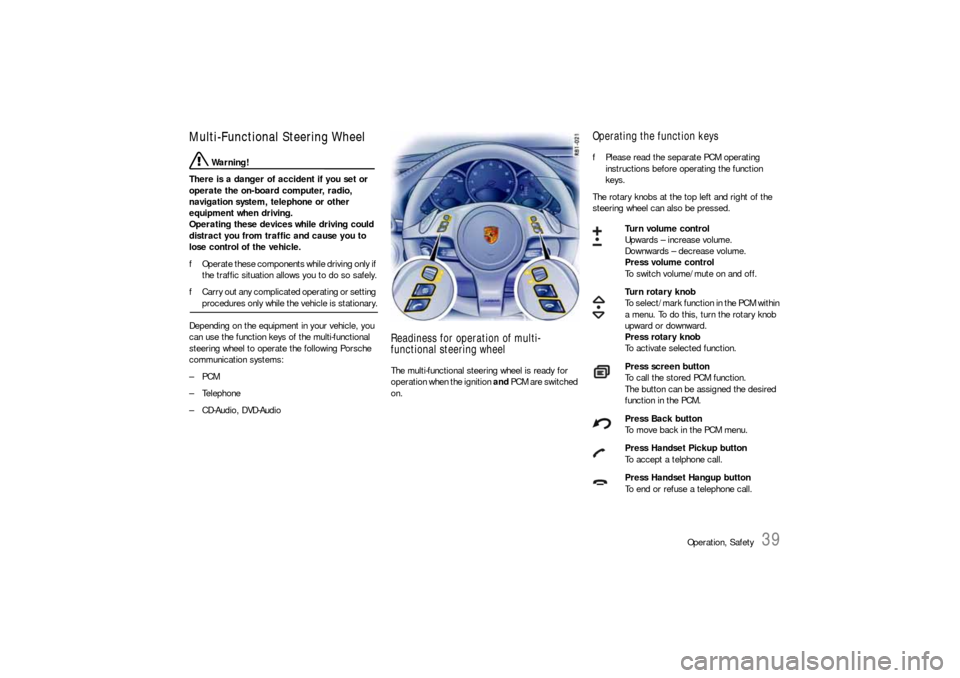

Multi-Functional Steering Wheel ..................... 39
Sun Visors................................................... 40
Safety Belts................................................. 41
Airbag Systems ........................................... 44
Child Restraint Systems................................ 50LATCH System
Child seat bracket on the passenger’s seat .... 54
Child Restraint Anchorages ........................... 55
Rollover Protection System ........................... 56
Sports Exhaust System................................ 57
Parking Brake .............................................. 57
Brakes ........................................................ 58
ABS Brake System (Antilock Brake System).... 61
Clutch Pedal ................................................ 62
Porsche Traction Management (PTM) ............. 63
Sport Mode ................................................. 64
Porsche Stability Management (PSM) ............. 66
Porsche Active Suspension Management
(PASM) ........................................................ 69
Retractable Rear Spoiler ............................... 69

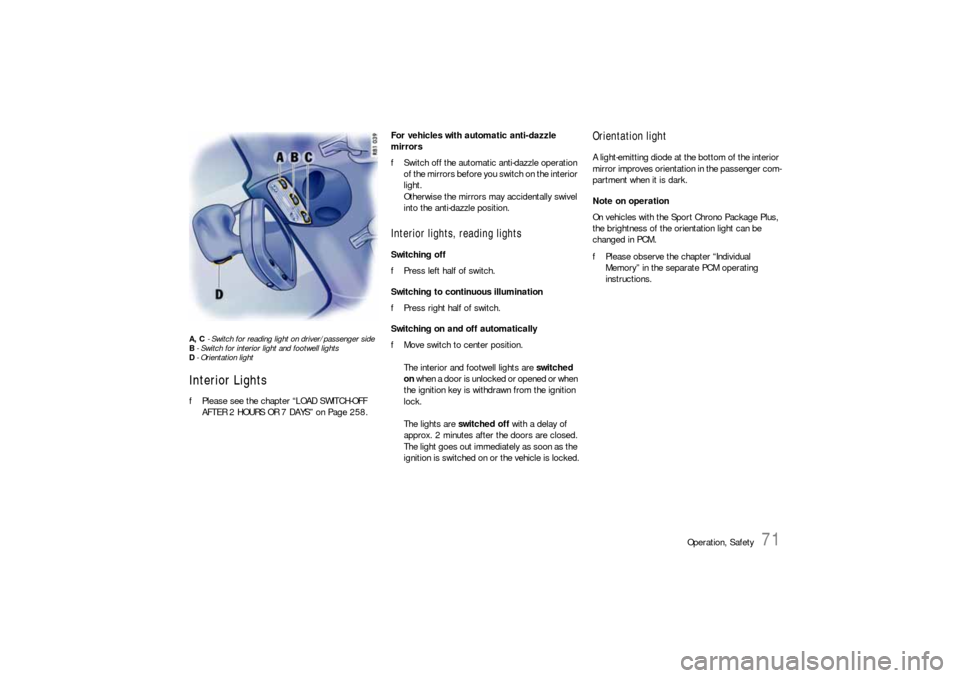

Interior Lights .............................................. 71
Parking Aids ................................................ 72
Ignition/Starter Switch with
anti-theft Steering Lock................................. 74
Starting Procedures ..................................... 77
Stopping Engine........................................... 78
Emergency Flasher Switch ............................ 79
Light Switch................................................. 80
Welcome Home Lighting............................... 81
Automatic Headlight Beam Adjustment........... 81
Turn Signal / Headlight Dimmer /
Parking light / Flasher Lever ......................... 82
Windshield Wiper / Washer Lever .................. 83
Automatic Speed Control .............................. 86
Cupholder ................................................... 88
Ashtray ....................................................... 89
Cigarette Lighter .......................................... 90Storage in the Passenger Compartment ....... 91
Luggage Compartment Lid and
Engine Compartment Lid ............................. 93
Luggage Compartment (Vehicles without
Porsche Traction Management PTM) ............. 95
Luggage Compartment (Vehicles with
Porsche Traction Management PTM) ............. 96
Trunk Entrapment ........................................ 97
Porsche Communication Management (PCM) . 98
Car Telephone and Aftermarket Alarms ....... 100
iPod, USB and AUX.................................... 101
Fire Extinguisher ....................................... 102
HomeLink ................................................. 103
Automatic Air Conditioning System,
Heated Rear Window/
Door Mirror Heating........................ 105Automatic Air Conditioning System ............. 106
Central and Side Vents............................... 109
Fresh-air Intake ......................................... 109
Heated Rear Window/Door Mirror Heating ... 110Instruments, On-Board Computer,
Warnings ....................................... 111Instrument Panel USA Models..................... 112
Instrument Panel Canada Models ................ 114
Engine Oil Temperature .............................. 116
Automatic Speed Control Indicator light ...... 116
Instrument Illumination............................... 116
Trip Odometer........................................... 117
Page 15 of 310
Operation, Safety
13 Operation, Safety
Keys ........................................................... 15
Security Wheel Bolts.................................... 15
Doors ......................................................... 18
Central Locking ........................................... 19
Alarm System,
Passenger Compartment Monitoring ............. 23
Power Windows ........................................... 25
Mirrors ........................................................ 27
Rear Window Defogger, Door Mirror Heating .. 29
Seat Adjustment and Head Restraints ............ 30
Seat Memory ............................................... 33
Heated Seats .............................................. 35
Seat Ventilation ............................................ 36
Rear Seat Backrests.................................... 37
Steering Wheel Adjustment ........................... 37
Steering Wheel Heating ................................ 38
Multi-Functional Steering Wheel ..................... 39
Sun Visors................................................... 40
Safety Belts................................................. 41
Airbag Systems ........................................... 44
Child Restraint Systems................................ 50
LATCH System
Child seat bracket on the passenger’s seat .... 54
Child Restraint Anchorages ........................... 55
Rollover Protection System ........................... 56
Sports Exhaust System................................ 57
Parking Brake .............................................. 57
Brakes ........................................................ 58
ABS Brake System (Antilock Brake System) ... 61
Clutch Pedal ................................................ 62
Porsche Traction Management (PTM)............. 63
Sport Mode ................................................. 64Porsche Stability Management (PSM)............. 66
Porsche Active Suspension Management
(PASM) ........................................................ 69
Retractable Rear Spoiler............................... 69
Interior Lights .............................................. 71
Parking Aids ................................................ 72
Ignition/Starter Switch with
anti-theft Steering Lock ................................ 74
Starting Procedures ..................................... 77
Stopping Engine .......................................... 78
Emergency Flasher Switch ............................ 79
Light Switch ................................................ 80
Welcome Home Lighting............................... 81
Automatic Headlight Beam Adjustment .......... 81
Turn Signal / Headlight Dimmer /
Parking light / Flasher Lever ......................... 82
Windshield Wiper / Washer Lever .................. 83
Automatic Speed Control.............................. 86
Cupholder ................................................... 88
Ashtray ....................................................... 89
Cigarette Lighter .......................................... 90
Storage in the Passenger Compartment ........ 91
Luggage Compartment Lid and
Engine Compartment Lid .............................. 93
Luggage Compartment (Vehicles without
Porsche Traction Management PTM).............. 95
Luggage Compartment (Vehicles with
Porsche Traction Management PTM).............. 96
Trunk Entrapment ........................................ 97
Porsche Communication Management (PCM).. 98
Car Telephone and Aftermarket Alarms ........ 100
iPod, USB and AUX .................................... 101Fire Extinguisher ........................................ 102
HomeLink .................................................. 103
Page 21 of 310
Operation, Safety
19
Central Locking This device complies with:
Part 15 of the FCC Rules
RSS-210 of Industry Canada.
Operation is subject to the following two condi-
tions:
1. This device may not cause harmful interfer-
ence, and
2. this device must accept any interference re-
ceived, including interference that may cause
undesired operation.
Note
The manufacturer is not responsible for any radio
or TV interference caused by unauthorized modifi-
cations to this equipment.
Such modification could void the user’s authority
to operate the equipment.
Warning!
Any changes or modifications not expressly ap-
proved by Porsche could void the user’s authority
to operate this equipment.
fPlease see the chapter “LOAD SWITCH-OFF AF-
TER 2 HOURS OR 7 DAYS” on Page 258.
fPlease see the chapter “SEAT MEMORY” on
Page 33.Both car doors and the filler flap can be centrally
unlocked or locked with the remote control.
The vehicle cannot be locked if the driver’s door is
not completely closed.
A short signal from the alarm horn will draw
your attention to the fact that the following
components are not completely closed when you
try to lock the vehicle:
– Driver’s door (the vehicle cannot be locked if
the driver’s door is not completely closed).
– Passenger’s door
– Luggage compartment lid
– Engine compartment lid
– Glass rear hatch (Targa)
– Glove compartment
Unlocking the vehicle by using the key in the door
lock and opening the door may activate the alarm
system within 10 seconds.
Note
fOn vehicles with the Sport Chrono Package
Plus, the PCM can be used to activate auto-
matic door locking.
Please observe the chapter “Individual Memo-
ry” in the separate PCM operating instructions.
Automatic relocking If the car is unlocked by remote control and none
of the car doors is opened within approx.
100 seconds, automatic relocking takes place.
This relocking time can be adapted to your individ-
ual requirements (10 - 100 seconds) by an author-
ized Porsche dealer.
Page 24 of 310
22
Operation, Safety
Automatic door locking Your authorized Porsche dealer can program di-
verse types of automatic door locking in the con-
trol unit of the central locking system:
Ty p e 1
Doors lock automatically when the ignition is
switched on.
Ty p e 2
Doors lock automatically when a speed of
3 - 6 mph (5 - 10 km/h) is exceeded. Ty p e 3
Doors lock automatically when the ignition is
switched on. If doors are opened with the engine
running, they lock again automatically when a
speed of 3 - 6 mph (5 - 10 km/h) is exceeded.
Ty p e 4
The doors do not lock automatically.
Note
Automatically locked doors can be unlocked with
the central locking button or opened by pulling on
the inside door handle twice.
fOn vehicles with the Sport Chrono Package
Plus, the PCM can be used to activate automat-
ic door locking.
Please observe the chapter “Individual Memo-
ry” in the separate PCM operating instructions.
Warning!
In an emergency situation where you need to
exit the car through an automatically locked
door, remember the following procedure to
open the door.
fUnlock the doors by pressing the central lock-
ing button or
fpull the inside door handle twice to open the door.
Page 35 of 310
Operation, Safety
33
M - Memory button
1 - Key button
2, 3 - Person buttonsSeat MemoryIndividual seat and door mirror settings can be
stored and recalled for the driver’s position.
You cannot store the position of the side bolsters
of the adaptive sports seat.
Further individual setting options are available in
vehicles with the Sport Chrono Package Plus.
fPlease observe the chapter “Individual
Memory” in the separate PCM operating
instructions.
Warning!
Risk of crushing due to uncontrolled recall of
a seat setting.
fCancel automatic adjustment by pressing any
of the seat adjustment buttons.
fDo not leave children in the vehicle unattended.Operation with person buttons 2, 3Storing seat position
1. Switch on ignition.
Reverse gear must not be engaged.
2. Set the desired seat and door-mirror positions.
3. Keep memory button M depressed and also
press person button 2 or 3 until an audible
signal confirms that the position has been
stored.
The individual setting is now stored under the
desired person button.Recalling seat position
The seat position can only be called up when the
vehicle is stationary.
1. Switch on the ignition or
open the driver’s door.
2. Press person button until the seat has reached
its final position.
The setting of door mirrors and lumbar
support will be completed even if the person
button is not kept depressed.
Note
Automatic seat adjustment can be interrupted
immediately by releasing the button.
Page 41 of 310
Operation, Safety
39
Multi-Functional Steering Wheel
Warning!
There is a danger of accident if you set or
operate the on-board computer, radio,
navigation system, telephone or other
equipment when driving.
Operating these devices while driving could
distract you from traffic and cause you to
lose control of the vehicle.
fOperate these components while driving only if
the traffic situation allows you to do so safely.
fCarry out any complicated operating or setting procedures only while the vehicle is stationary.
Depending on the equipment in your vehicle, you
can use the function keys of the multi-functional
steering wheel to operate the following Porsche
communication systems:
–PCM
– Telephone
– CD-Audio, DVD-Audio
Readiness for operation of multi-
functional steering wheelThe multi-functional steering wheel is ready for
operation when the ignition and PCM are switched
on.
Operating the function keysfPlease read the separate PCM operating
instructions before operating the function
keys.
The rotary knobs at the top left and right of the
steering wheel can also be pressed.
Turn volume control
Upwards – increase volume.
Downwards – decrease volume.
Press volume control
To switch volume/mute on and off.
Turn rotary knob
To select/mark function in the PCM within
a menu. To do this, turn the rotary knob
upward or downward.
Press rotary knob
To activate selected function.
Press screen button
To call the stored PCM function.
The button can be assigned the desired
function in the PCM.
Press Back button
To move back in the PCM menu.
Press Handset Pickup button
To accept a telphone call.
Press Handset Hangup button
To end or refuse a telephone call.
Page 73 of 310
Operation, Safety
71
A, C - Switch for reading light on driver/passenger side
B- Switch for interior light and footwell lights
D- Orientation lightInterior LightsfPlease see the chapter “LOAD SWITCH-OFF
AFTER 2 HOURS OR 7 DAYS” on Page 258.For vehicles with automatic anti-dazzle
mirrors
fSwitch off the automatic anti-dazzle operation
of the mirrors before you switch on the interior
light.
Otherwise the mirrors may accidentally swivel
into the anti-dazzle position.
Interior lights, reading lightsSwitching off
fPress left half of switch.
Switching to continuous illumination
fPress right half of switch.
Switching on and off automatically
fMove switch to center position.
The interior and footwell lights are switched
on when a door is unlocked or opened or when
the ignition key is withdrawn from the ignition
lock.
The lights are switched off with a delay of
approx. 2 minutes after the doors are closed.
The light goes out immediately as soon as the
ignition is switched on or the vehicle is locked.
Orientation lightA light-emitting diode at the bottom of the interior
mirror improves orientation in the passenger com-
partment when it is dark.
Note on operation
On vehicles with the Sport Chrono Package Plus,
the brightness of the orientation light can be
changed in PCM.
fPlease observe the chapter “Individual
Memory” in the separate PCM operating
instructions.
Page 82 of 310
80
Operation, SafetyWarning chime
If the ignition key is withdrawn and the door is
opened while the lights (not the parking light or
Welcome Home lighting) are on, a chime warns of
possible battery discharge.
In some countries, differences are possible
due to provisions of law.
Daytime driving lightsThe daytime driving lights are integrated in the
front auxiliary headlights. These lights are
switched on only when the engine is running and
with the light switch in the positions OFF or HOME.
Low beam headlights must be switched on when
driving through tunnels or at dusk, for example.
Operation of the daytime driving lights may vary
depending on country-specific regulations.
Canada only:
In addition to the auxiliary headlights the parking
lights are switched on.
USA only:
The daytime driving lights can be deactivated in
the on-board computer.
fPlease see the chapter “ON-BOARD
COMPUTER (BC)” on Page 126.
Vehicles with the Sport Chrono Package Plus
Further individual light functions (e.g. daytime driv-
ing lights) are available in vehicles with the Sport
Chrono Package Plus.
fPlease observe the chapter “Individual Memo-
ry” in the separate PCM operating instructions.Cornering lightThe dynamic cornering light is activated above
speeds of 6 mph (10 km/h).
Light SwitchLights switched off
Daytime driving lights are switched on
when the engine is running.
Welcome Home Function
Daytime driving lights are switched on
when the engine is running.
Parking lights, side marker lights,
license plate light, instrument illumina-
tion, daytime driving lights switched off
Low beam, high beam
Only with ignition on,
daytime driving lights switched off
Rear fog light
Pull switch to second click.
Indicator light on.
Page 83 of 310
Operation, Safety
81
Welcome Home LightingSwitching onfMove light switch to the HOME position.
For improved visibility and security when you get
in and out of the car, the daytime driving lights and
the tail lights remain on for a certain period of
time:
–When you get out of the car, the lights are
turned on for approx. 30 seconds after the
door is opened. The off-delay time resumes
when the vehicle is locked.
On vehicles with the Sport Chrono Package
Plus, the PCM can be used to set the off-delay
time. This setting also changes the lighting
period for unlocking the vehicle.
Please observe the chapter “Individual
Memory” in the separate PCM operating
instructions.
– The lights are turned on for approx.
30 seconds when the vehicle is unlocked.
The lights go out if the ignition is switched on
or when leaving the Welcome Home lighting.
Automatic Headlight Beam
Adjustment Vehicles with Bi-Xenon headlights feature
dynamic headlight beam adjustment.
When the ignition is switched on, the level of the
headlight beam automatically changes in accord-
ance with the vehicle load.
The level of the headlight beam is automatically
kept constant during acceleration and braking. Checking operation 1. Switch the low beam on.
2. Insert ignition key and switch ignition on.
The light beam first dips all the way down and
is then adapted to the vehicle load.
If this test item is not met, the headlight beam
adjustment system must be checked by an author-
ized Porsche dealer.
