Page 11 of 37
· 20 ·· 21 ·
n 1 , 3
–
––
n 1 , 3
– –
–
––
–
n 3
n 3
– –
n 3
–
n 
3
–
n 
3
911 Carrera
911 Carrera S
911 Carrera 4
911 Carrera 4S
9 11 T a r g a 4
9 11 T a r g a 4 S
911 Carrera GTS
9 11 T u r b o
9 11 T u r b o S
n 1 , 3
– –
n 1 , 3
–
– –
–
–
–n 
3n 3
n 1 , 3
– –
n 1 , 3
–
– –
–
n
Compatible
– Not compatible
1 Optional: Use of 5 - mm spacers on front
and rear axles to widen track.
2 Compatible with snow chains if no
spacers fitted.
3 Not compatible with snow chains.
If your vehicle documents do not contain
details of the correct wheel and tyre combination, please request a technical approval certificate from your Porsche Centre.
Note: The wheel centres shown are not includ -ed, except in the case of the 19-inch Sport
Classic wheels and the 19-inch SportDesign
wheels in a black high-gloss finish. All tyres
fit ted are designed exclusively for Po rsc h e, as indicated by the special Porsche designation (N0, N1 etc.) on the sidewall. Tyres that do not carr y this designation are not recommended
for use on your Porsche.
Wheel/tyre set Wheel dimensions
(offset (ET) in mm)Tyre specifications
19-inch SportDesign
wheels with summer tyresFront:
8 J x 19 ET 57
Rear: 11 J x 19 ET 67
Front: 8 J x 19 ET 57
Rear: 11 J x 19 ET 51 Front:
235/35 ZR 19 (87Y)
Rear: 295/30 ZR 19 (100Y) XL
Front: 235/35 ZR 19 (87Y)
Rear: 305/30 ZR 19 (102Y) XL
19-inch 911 Turbo II
wheels with summer tyresFront: 8 J x 19 ET 57
Rear: 11 J x 19 ET 67
Front: 8 J x 19 ET 57
Rear: 11 J x 19 ET 51
Front: 8.5 J x 19 ET 56
Rear: 11 J x 19 ET 51 Front:
235/35 ZR 19 (87Y)
Rear: 295/30 ZR 19 (100Y) XL
Front: 235/35 ZR 19 (87Y)
Rear: 305/30 ZR 19 (102Y) XL
Front: 235/35 ZR 19 (87Y)
Rear: 305/30 ZR 19 (102Y) XL
19-inch RS Spyder
wheels with summer tyres
(for vehicles with wheels
with central locking
device)Front: 8.5 J x 19 ET 56
Rear: 11 J x 19 ET 51 Front:
235/35 ZR 19 (87Y)
Rear: 305/30 ZR 19 (102Y) XL
19-inch 911 Turbo
wheels with summer tyresFront: 8 J x 19 ET 57
Rear: 11 J x 19 ET 67
Front: 8 J x 19 ET 57
Rear: 11 J x 19 ET 51 Front:
235/35 ZR 19 (87Y)
Rear: 295/30 ZR 19 (100Y) XL
Front: 235/35 ZR 19 (87Y)
Rear: 305/30 ZR 19 (102Y) XL
19-inch Sport Classic
wheels with summer tyresFront: 8.5 J x 19 ET 55
Rear: 11.5 J x 19 ET 67
Front: 8.5 J x 19 ET 55
Rear: 11.5 J x 19 ET 50 Front:
235/35 ZR 19 (87Y)
Rear: 305/30 ZR 19 (102Y) XL
Front: 235/35 ZR 19 (87Y)
Rear: 305/30 ZR 19 (102Y) XL
Page 12 of 37
· 22 ·· 23 ·
n 3
–
n 
1,
3
–
n 
1 , 3
–
n 
1 , 3
– –
n 
3
–
n 
1 , 3
–
n 
1 , 3
–
n 
1 , 3
–
n 
3
–
–
–
–
–
– –
n 
3
–
–
–
–
–
–
911 Carrera
911 Carrera S9 11 T u r b o
9 11 T u r b o S911 Carrera 4
911 Carrera 4S
9 11 T a r g a 4
9 11 T a r g a 4 S
911 Carrera GTS
Wheel/tyre set Wheel dimensions
(offset (ET) in mm)Tyre specifications
Front:
8.5 J x 19 ET 55
Rear: 11.5 J x 19 ET 67
Front: 8.5 J x 19 ET 55
Rear: 11.5 J x 19 ET 5019-inch Carrera Sport
wheels with summer tyresFront: 235/35 ZR 19 (87Y)
Rear: 305/30 ZR 19 (102Y) XL
Front: 235/35 ZR 19 (87Y)
Rear: 305/30 ZR 19 (102Y) XL
19-inch SportDesign
wheels in a black high-
gloss finish with summer
tyresFront: 8 J x 19 ET 57
Rear: 11 J x 19 ET 67
Front: 8 J x 19 ET 57
Rear: 11 J x 19 ET 51 Front:
235/35 ZR 19 (87Y)
Rear: 295/30 ZR 19 (100Y) XL
Front: 235/35 ZR 19 (87Y)
Rear: 305/30 ZR 19 (102Y) XL
19-inch Carrera S II
wheels with summer tyresFront: 8 J x 19 ET 57
Rear: 11 J x 19 ET 67
Front: 8 J x 19 ET 57
Rear: 11 J x 19 ET 51 Front:
235/35 ZR 19 (87Y)
Rear: 295/30 ZR 19 (100Y) XL
Front: 235/35 ZR 19 (87Y)
Rear: 305/30 ZR 19 (102Y) XL
Front: 8 J x 19 ET 57
Rear: 11 J x 19 ET 67
Front: 8 J x 19 ET 57
Rear: 11 J x 19 ET 51
19-inch Carrera Classic
wheels with summer tyresFront: 235/35 ZR 19 (87Y)
Rear: 295/30 ZR 19 (100Y) XL
Front: 235/35 ZR 19 (87Y)
Rear: 305/30 ZR 19 (102Y) XL
n Compatible
– Not compatible
1 Optional: Use of 5 - mm spacers on front
and rear axles to widen track.
2 Compatible with snow chains if no
spacers fitted.
3 Not compatible with snow chains.
If your vehicle documents do not contain
details of the correct wheel and tyre combination, please request a technical approval certificate from your Porsche Centre.
Note: The wheel centres shown are not includ -ed, except in the case of the 19-inch Sport
Classic wheels and the 19-inch SportDesign
wheels in a black high-gloss finish. All tyres
fit ted are designed exclusively for Po rsc h e, as indicated by the special Porsche designation (N0, N1 etc.) on the sidewall. Tyres that do not carr y this designation are not recommended
for use on your Porsche.
Page 13 of 37
· 24 ·· 25 ·
–
n 
3,4
–
n 
2, 4
n 3,4
– –
–
–
–
n 
2, 4
–
–
n 
2, 4
n 2, 4
–
n 
2, 4
–
n 
2, 4
–
–
n 
2, 4
n 2, 4
–
n 
2, 4
–
–
–
–
n 
2, 4
–
n 
2, 4
911 Carrera
911 Carrera S
9 11 T u r b o
9 11 T u r b o S911 Carrera 4
911 Carrera 4S
9 11 T a r g a 4
9 11 T a r g a 4 S
911 Carrera GTS
Note on the use of winter tyres
Summer t yres provide optimum
performance at ambient tempera -
tures above +7 °C. Below this
point, the t yre compound begins to
harden and braking distances are
increased. We therefore recommend
that you fit winter t yres during the
colder months of the year. Only then
can you enjoy the highest standards
of active safet y from your 911. All
winter t yres approved by Porsche
are identifiable by the ‘N’ designation
on the sidewall.
Wheel/tyre set Wheel dimensions
(offset (ET) in mm)Tyre specifications
19-inch RS Spyder
wheels with winter tyres
(for vehicles with wheels
with central locking
device)
Front: 8.5 J x 19 ET 56
Rear: 11 J x 19 ET 51 Front:
235/35 R 19 87V M+S
Rear: 295/30 R 19 100V XL M+S
19-inch Carrera S II
wheels with winter tyresFront: 8 J x 19 ET 57
Rear: 11 J x 19 ET 67
Front: 8 J x 19 ET 57
Rear: 11 J x 19 ET 51 Front:
235/35 R 19 87V M+S
Rear: 295/30 R 19 100V XL M+S
Front: 235/35 R 19 87V M+S
Rear: 295/30 R 19 100V XL M+S
18-inch Carrera IV
wheels with winter tyresFront: 8 J x 18 ET 57
Rear: 10.5 J x 18 ET 60
Front: 8 J x 18 ET 57
Rear: 10.5 J x 18 ET 60
Front: 8 J x 18 ET 57
Rear: 11 J x 18 ET 51 Front:
235/40 R 18 91V M+S
Rear: 265/40 R 18 97V M+S
Front: 235/40 R 18 91V M+S
Rear: 295/35 R 18 99V M+S
Front: 235/40 R 18 91V M+S
Rear: 295/35 R 18 99V M+S
19-inch 911 Turbo II
wheels with winter tyresFront: 8 J x 19 ET 57
Rear: 11 J x 19 ET 51
Front: 8.5 J x 19 ET 56
Rear: 11 J x 19 ET 51 Front:
235/35 R 19 87V M+S
Rear: 295/30 R 19 100V XL M+S
Front: 235/35 R 19 87V M+S
Rear: 295/30 R 19 100V XL M+S
n Compatible
– Not compatible
1 Optional: Use of 5 - mm spacers on front
and rear axles to widen track.
2 Compatible with snow chains if no
spacers fitted.
3 Not compatible with snow chains.4 Winter tyres up to max. 240 km/h.
If your vehicle documents do not contain
details of the correct wheel and tyre combination, please request a technical approval certificate from your Porsche Centre.
Note: The wheel centres shown are not includ -ed, except in the case of the 19-inch Sport
Classic wheels and the 19-inch SportDesign
wheels in a black high-gloss finish. All tyres
fit ted are designed exclusively for Po rsc h e, as indicated by the special Porsche designation (N0, N1 etc.) on the sidewall. Tyres that do not carr y this designation are not recommended
for use on your Porsche.

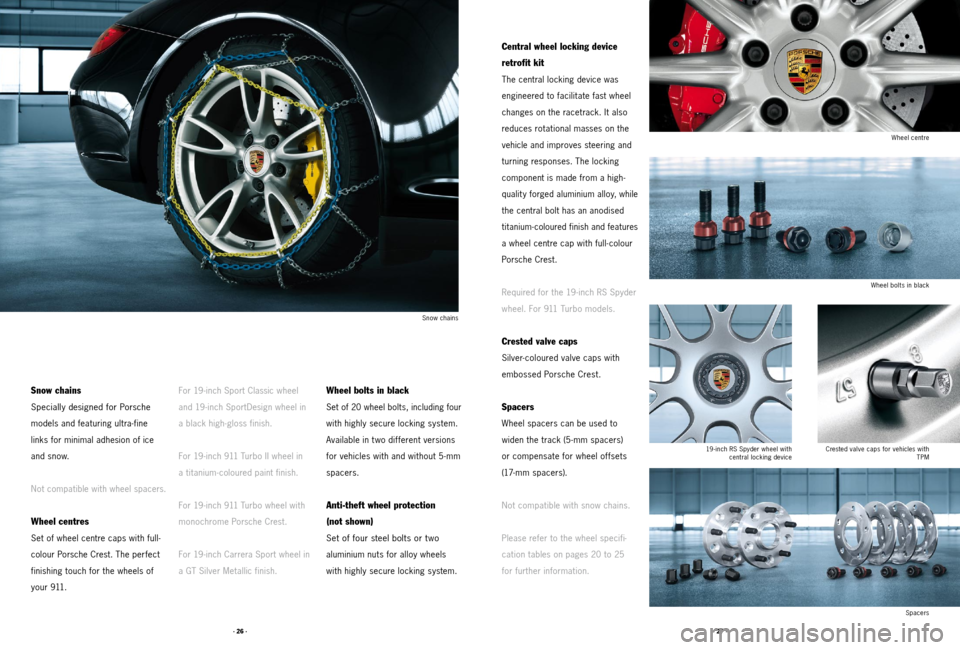

Page 14 of 37
· 26 ·· 27 ·
Central wheel locking device
retrofit kit
The central locking device was
engineered to facilitate fast wheel
changes on the racetrack. It also
reduces rotational masses on the
vehicle and improves steering and
turning responses. The locking
component is made from a high-
quality forged aluminium alloy, while
the central bolt has an anodised
titanium-coloured finish and features
a wheel centre cap with full- colour
Porsche Crest.
Required for the 19 -inch RS Spyder
wheel. For 911 Turbo models.
Crested valve caps
Silver- coloured valve caps with
embossed Porsche Crest.
Spacers
Wheel spacers can be used to
widen the track (5-mm spacers)
or compensate for wheel of fsets
(17-mm spacers).
Not compatible with snow chains.
Please refer to the wheel specifi -
cation tables on pages 20 to 25
for further information.
Wheel centre
Wheel bolts in black
Crested valve caps for vehicles with TPM
Spacers
Snow chains
Specially designed for Porsche
models and featuring ultra-fine
links for minimal adhesion of ice
and snow.
Not compatible with wheel spacers.
Wheel centres
Set of wheel centre caps with full-
colour Porsche Crest. The perfect
finishing touch for the wheels of
y o u r 9 11 . For 19 -inch Sport Classic wheel
and 19 -inch SportDesign wheel in
a black high-gloss finish.
For 19 -inch 911 Turbo II wheel in
a titanium - coloured paint finish.
For 19 -inch 911 Turbo wheel with
monochrome Porsche Crest.
For 19 -inch Carrera Sport wheel in
a GT Silver Metallic finish.
Wheel bolts in black
Set of 20 wheel bolts, including four
with highly secure locking system.
Available in t wo dif ferent versions
for vehicles with and without 5-mm
spacers.
Anti-theft wheel protection
(not shown)
Set of four steel bolts or t wo
aluminium nuts for alloy wheels
with highly secure locking system.
Snow chains
19 - inch RS Spyder wheel with
central locking device
