InstrumentIllumination
Theilluminationisautomaticallyadjustedtothe
ambientbrightnessbythelightsensorinthe
tachometer.
Inaddition,whenthecarlightsareswitchedon,
theinstrumentandswitchsymbolbrightnesscan
bemanuallyadjusted.
/?\.Warning!
Riskofanaccident,personalinjuryand
lossofcontrol.
[>
Donotreachthroughthesteering-wheel
spokeswhiledriving.
Dimminginstrumentillumination
[>
TurnadjustmentbuttonAintheappropriate
directionandholdituntilthedesiredbright-
nesshasbeenreached.
Thechosenlevelofbrightnessisindicatedby
abardisplayinthedisplayfieldofthe
on-boardcomputer.
TripOdometer
/?\.Warning!
Riskofanaccident,personalinjuryand
lossofcontrol.
[>Donotreachthroughthesteering-wheel
spokeswhiledriving.

Resetting
tozero
[>PressadjustmentbuttonAforapproximately
onesecondor
[>
Resetthedistanceinthe"SET"menuofthe
on-boardcomputer.
Refertothechapter"On-boardcomputer".
Afterexceeding
6213
milesor
9999
kilometers,
thecounterreturnsto"0".
Controls,Instruments
73

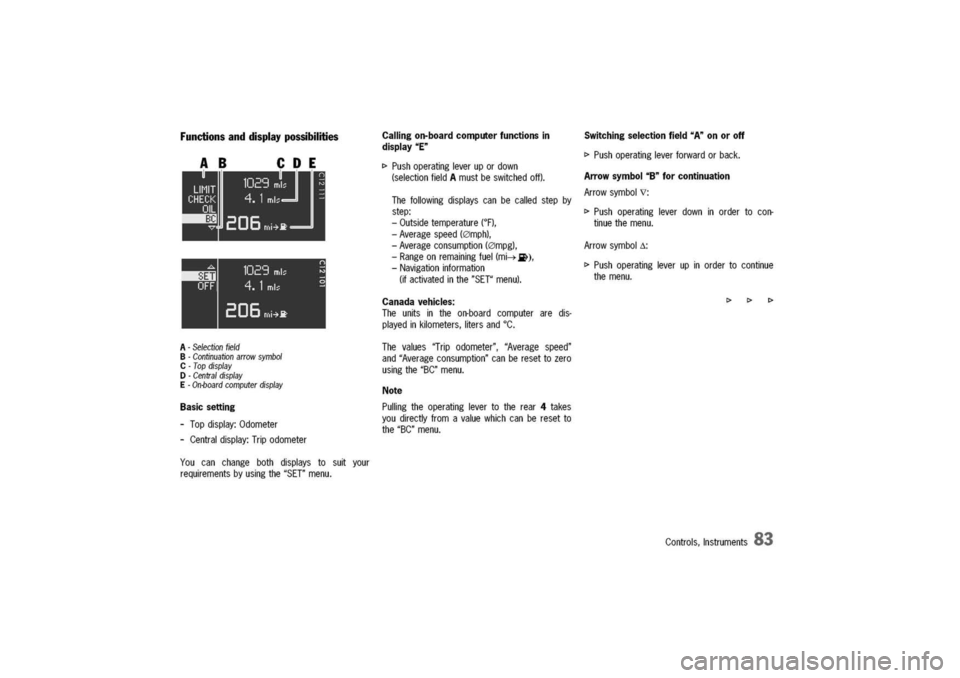

Functionsanddisplaypossibilities
A-Selectionfield
B-Continuationarrowsymbol
C-
Topdisplay
D-Centraldisplay
E-On-boardcomputerdisplay
Basicsetting
-Topdisplay:Odometer
-Centraldisplay:Tripodometer
Youcanchangebothdisplaystosuityour
requirementsbyusingthe"SET"menu.
Callingon-boardcomputerfunctionsin
display
"E"
I>Pushoperatingleverupordown
(selectionfieldAmustbeswitchedoff).
Thefollowingdisplayscanbecalledstepby
step:
-Outsidetemperature
(OF),
-Averagespeed(0mph),
-Averageconsumption(0mpg),
-Rangeonremainingfuel(mi--+a-),
-Navigationinformation
(ifactivatedinthe"SET"menu).
Canadavehicles:
Theunitsintheon-boardcomputeraredis-
playedinkilometers,litersand°C.
Thevalues"Tripodometer","Averagespeed"
and"Averageconsumption"canberesettozero
usingthe"BC"menu.
Note
Pullingtheoperatinglevertotherear4takes
youdirectlyfromavaluewhichcanberesetto
the"BC"menu.
Switchingselectionfield
"A"onoroff
I>Pushoperatingleverforwardorback.
Arrowsymbol"B"forcontinuation
ArrowsymbolV:
I>Pushoperatingleverdowninordertocon-
tinuethemenu.
Arrowsymbol~:
I>Pushoperatingleverupinordertocontinue
themenu.
I>I>I>
Controls,Instruments
83

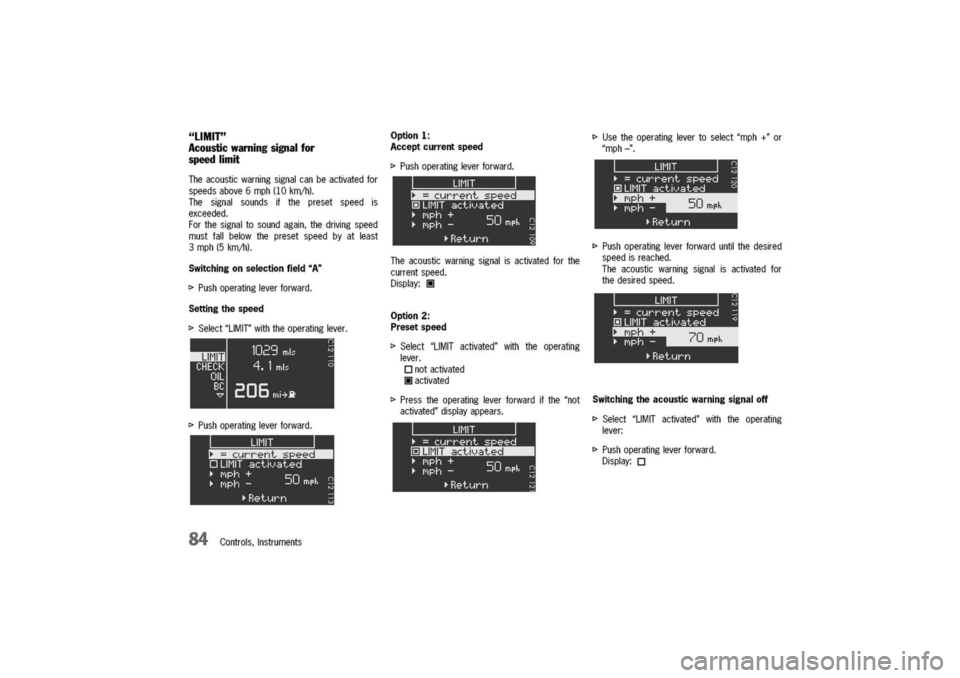

"LIMIT"
Acousticwarningsignalfor
speedlimit
Theacousticwarningsignalcanbeactivatedfor
speedsabove6mph(10km/h).
Thesignalsoundsifthepresetspeedis
exceeded.
Forthesignaltosoundagain,thedrivingspeed
mustfallbelowthepresetspeedbyatleast
3mph(5km/h).
Switchingonselectionfield
"A"
[>
Pushoperatingleverforward.
Settingthespeed
[>
Select"LIMIT"withtheoperatinglever.
[>
Pushoperatingleverforward.
84Controls,Instruments
Option1:
Acceptcurrentspeed
[>
Pushoperatingleverforward.
Theacousticwarningsignalisactivatedforthe
currentspeed.
Display:I!I
Option2:
Presetspeed
[>
Select"LIMITactivated"withtheoperating
lever.
0notactivated
I!Iactivated
[>
Presstheoperatingleverforwardifthe"not
activated"displayappears.
[>
Usetheoperatinglevertoselect"mph+"or
"mph-".
[>
Pushoperatingleverforwarduntilthedesired
speedisreached.
Theacousticwarningsignalisactivatedfor
thedesiredspeed.
Switchingtheacousticwarningsignaloff
[>
Select"LIMITactivated"withtheoperating
lever:
[>
Pushoperatingleverforward.
Display:
0

"BC"

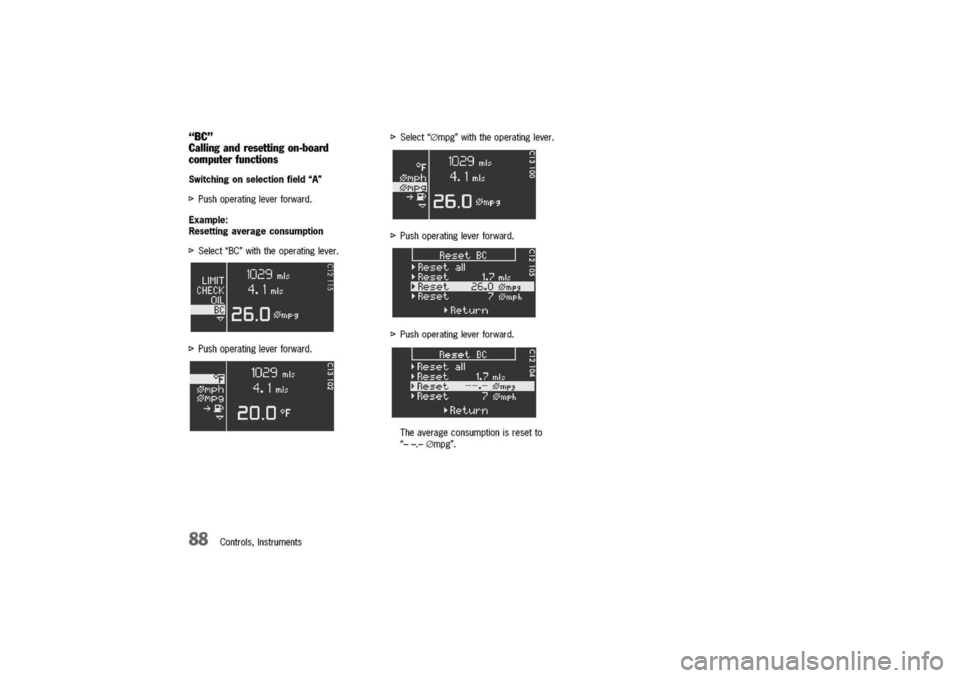

Callingandresettingon-board
computerfunctions
Switchingonselectionfield"A"
[>
Pushoperatingleverforward.
Example:
Resettingaverageconsumption
[>
Select"BC"withtheoperatinglever.
[>Pushoperatingleverforward.
88Controls,Instruments
[>
Select"0mpg"withtheoperatinglever.
[>
Pushoperatingleverforward.
[>
Pushoperatingleverforward.
Theaverageconsumptionisresetto
"--.-0mpg".

..

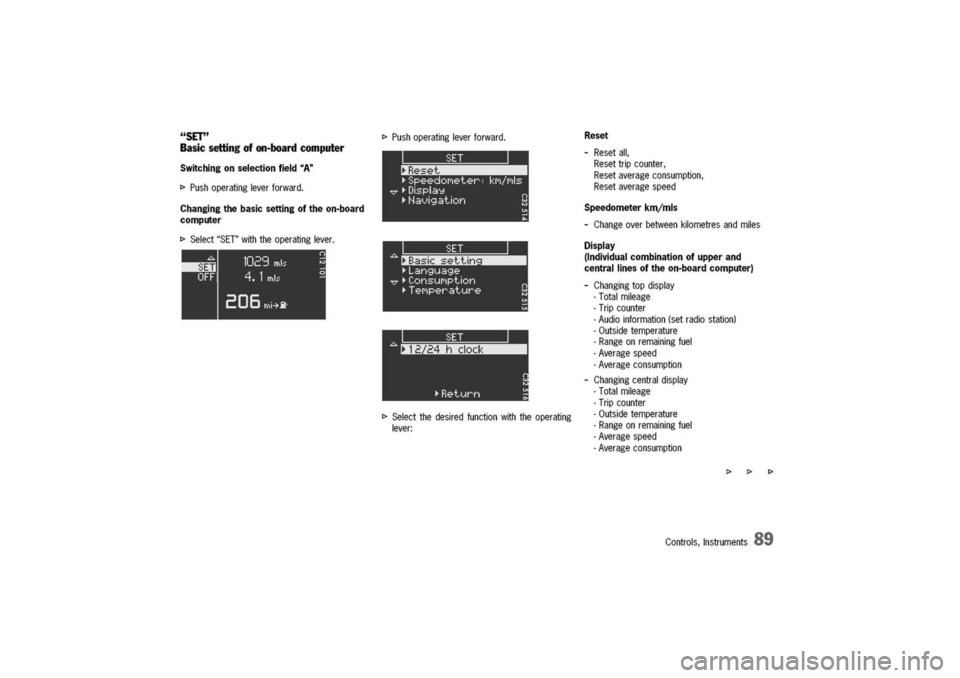

SET"
Basicsettingofon-boardcomputer
Switchingonselectionfield

"A"
[>
Pushoperatingleverforward.

Changingthebasicsettingoftheon-board
computer
[>

Select"SET"withtheoperatinglever.

[>

Pushoperatingleverforward.
SET
[>
Selectthedesiredfunctionwiththeoperating
lever:

Reset
-
Resetall,
Resettripcounter,
Resetaverageconsumption,
Resetaveragespeed

Speedometerkm/mls
-
Changeoverbetweenkilometresandmiles

Display
(Individualcombinationofupperand
centrallinesoftheon-boardcomputer)
-
Changingtopdisplay
-Totalmileage
-Tripcounter
-Audioinformation(setradiostation)
-Outsidetemperature
-Rangeonremainingfuel
-Averagespeed
-Averageconsumption

-
Changingcentraldisplay
-Totalmileage
-Tripcounter
-Outsidetemperature
-Rangeonremainingfuel
-Averagespeed
-Averageconsumption

[>[>[>

Controls,Instruments
89

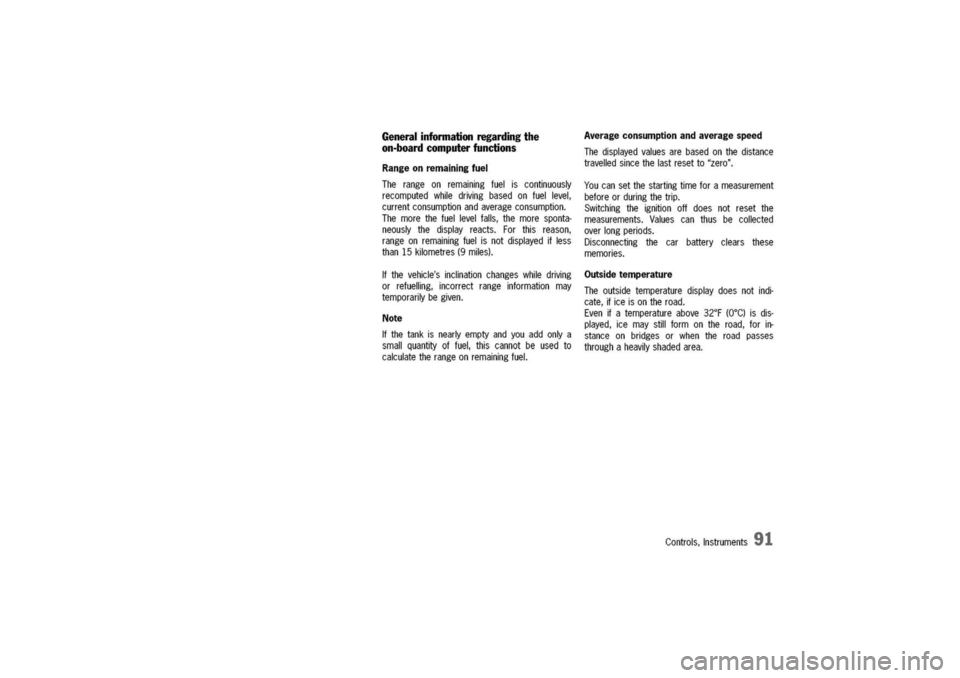

Generalinformationregardingthe
on-boardcomputerfunctions
Rangeonremainingfuel
Therangeonremainingfueliscontinuously
recomputedwhiledrivingbasedonfuellevel,
currentconsumptionandaverageconsumption.
Themorethefuellevelfalls,themoresponta-
neouslythedisplayreacts.Forthisreason,
rangeonremainingfuelisnotdisplayedifless
than15kilometres(9miles).
Ifthevehicle'sinclinationchangeswhiledriving
orrefuelling,incorrectrangeinformationmay
temporarilybegiven.
Note
Ifthetankisnearlyemptyandyouaddonlya
smallquantityoffuel,thiscannotbeusedto
calculatetherangeonremainingfuel.

Averageconsumptionandaveragespeed

Thedisplayedvaluesarebasedonthedistance
travelledsincethelastresetto"zero".
Youcansetthestartingtimeforameasurement
beforeorduringthetrip.
Switchingtheignitionoffdoesnotresetthe
measurements.Valuescanthusbecollected
overlongperiods.
Disconnectingthecarbatteryclearsthese
memories.
Outside
temperature
The
outsidetemperaturedisplaydoesnotindi-
cate,ificeisontheroad.
Evenifatemperatureabove32°F(O°C)isdis-
played,icemaystillformontheroad,forin-
stanceonbridgesorwhentheroadpasses
throughaheavilyshadedarea.
Controls,Instruments
91

On-boardTextdisplay
in

computeron-boardcomputer

~Seatbelt
Handbrake

II
~)-=

Ignitionkey
..notremoved

[it

Lightson
~F
ronVrear
lidnot
IiiiiiiiI
closed
~Refill
washerfluid
Tripcounter
reset

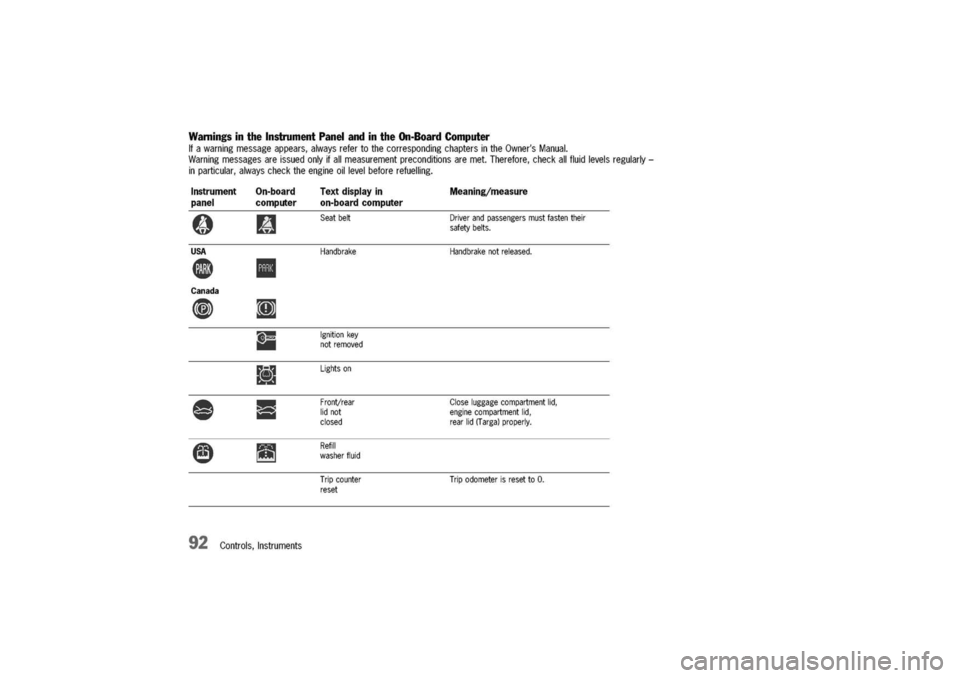

WarningsintheInstrumentPanelandintheOn-BoardComputer

Ifawarningmessageappears,alwaysrefertothecorrespondingchaptersintheOwner'sManual.
Warningmessagesareissuedonlyifallmeasurementpreconditionsaremet.Therefore,checkallfluidlevelsregularly-
inparticular,alwayschecktheengineoillevelbeforerefuelling.

Instrument
panel
0
USA
8
Canada
0
e
@b
Meaning/measure
Driverandpassengersmustfastentheir
safetybelts.
Handbrakenotreleased.
Closeluggagecompartmentlid,
enginecompartmentlid,
rearlid(Targa)properly.
TripodometerisresettoO.
92
Controls,Instruments

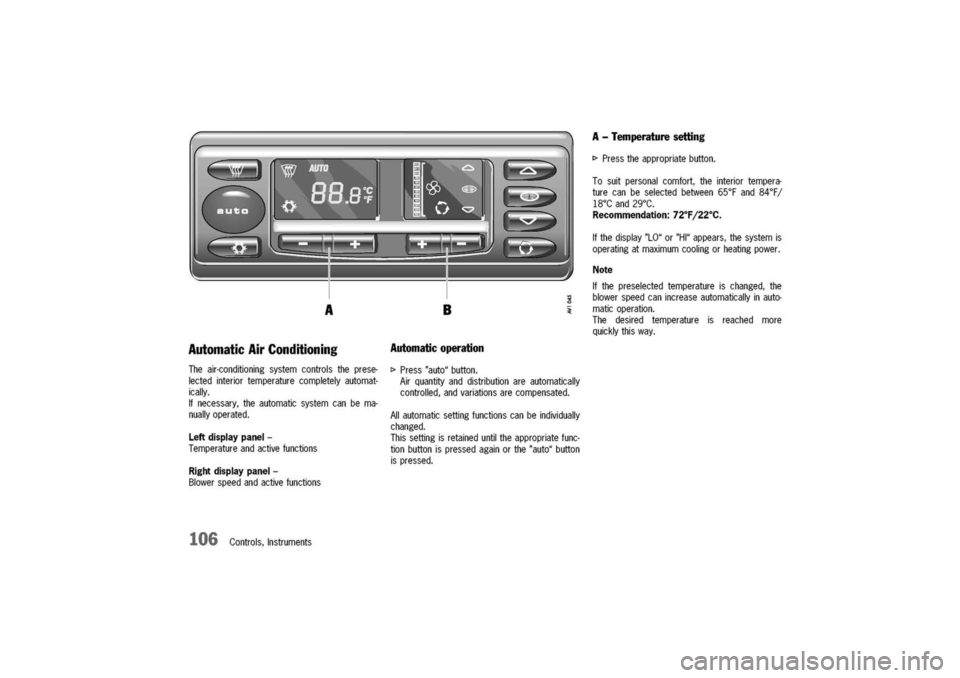

AutomaticAirConditioning

Theair-conditioningsystemcontrolstheprese-
lectedinteriortemperaturecompletelyautomat-
ically.
Ifnecessary,theautomaticsystemcanbema-
nuallyoperated.

Leftdisplaypanel
-
Temperatureandactivefunctions

Rightdisplaypanel
-
Blowerspeedandactivefunctions
106Controls,Instruments

Automaticoperation

I>Press"auto"button.
Airquantityanddistributionareautomatically
controlled,andvariationsarecompensated.
Allautomaticsettingfunctionscanbeindividually
changed.
Thissettingisretaineduntiltheappropriatefunc-
tionbuttonispressedagainorthe"auto"button
ispressed.
A-
Temperaturesetting

I>Presstheappropriatebutton.
Tosuitpersonalcomfort,theinteriortempera-
turecanbeselectedbetween65°Fand84°F
/

18°Cand29°C.

Recommendation:
72°F/22°C.
Ifthedisplay"La"or"HI"appears,thesystemis
operatingatmaximumcoolingorheatingpower.
Note
Ifthepreselectedtemperatureischanged,the
blowerspeedcanincreaseautomaticallyinauto-
maticoperation.
Thedesiredtemperatureisreachedmore
quicklythisway.

~

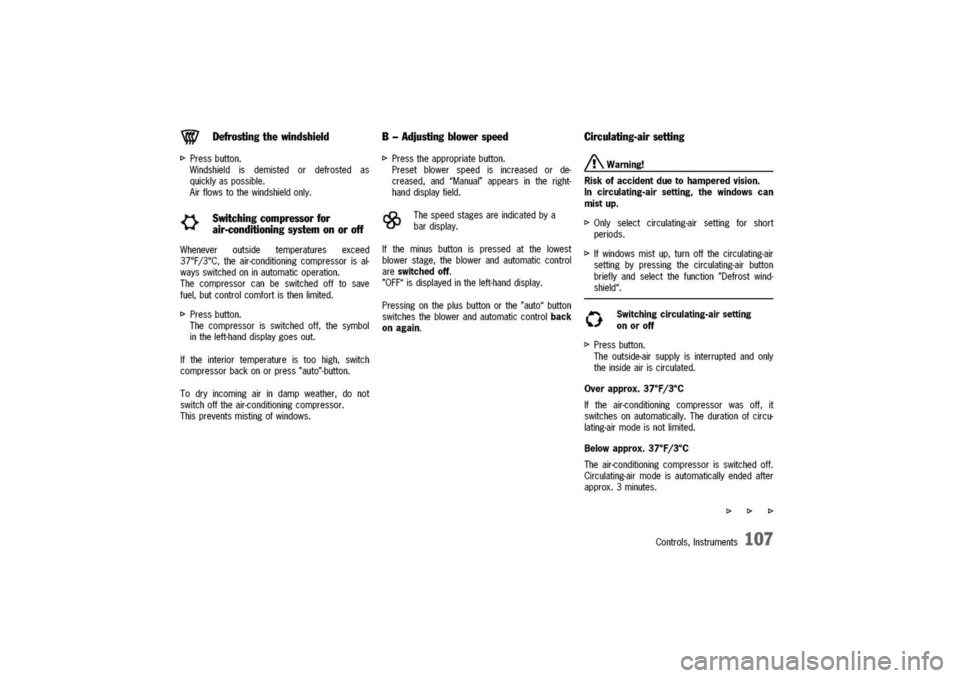

Defrosting
the
windshield

I>Pressbutton.
Windshieldisdemistedordefrostedas
quicklyaspossible.
Airflowstothewindshieldonly.

{}
Switchingcompressorfor
air-conditioningsystem
onoroff
Wheneveroutsidetemperaturesexceed

3rFj3°C,
theair-conditioningcompressorisal-
waysswitchedoninautomaticoperation.
Thecompressorcanbeswitchedofftosave
fuel,butcontrolcomfortisthenlimited.
I>Pressbutton.
Thecompressorisswitchedoff,thesymbol
intheleft-handdisplaygoesout.
Iftheinteriortemperatureistoohigh,switch
compressorbackonorpress"auto"-button.
Todryincomingairindampweather,donot
switchofftheair-conditioningcompressor.
Thispreventsmistingofwindows.
B-
Adjustingblowerspeed

I>Presstheappropriatebutton.
Presetblowerspeedisincreasedorde-
creased,and"Manual"appearsintheright-
handdisplayfield.
c8J
Thespeedstagesareindicatedbya
bardisplay.
Iftheminusbuttonispressedatthelowest
blowerstage,theblowerandautomaticcontrol
areswitchedoff.
"OFF"isdisplayedintheleft-handdisplay.
Pressingontheplusbuttonorthe"auto"button
switchestheblowerandautomaticcontrolback
onagain.

Circulating-airsetting

/!\Warning!
Riskofaccidentduetohamperedvision.
Incirculating-airsetting,thewindowscan
mistup.
I>Onlyselectcirculating-airsettingforshort
periods.
I>Ifwindowsmistup,turnoffthecirculating-air
settingbypressingthecirculating-airbutton
brieflyandselectthefunction"Defrostwind-
shield".
-
\..J
Switchingcirculating-airsetting
onoroff
I>Pressbutton.
Theoutside-airsupplyisinterruptedandonly
theinsideairiscirculated.
Overapprox.
37°F/3°C

Iftheair-conditioningcompressorwasoff,it
switchesonautomatically.Thedurationofcircu-
lating-airmodeisnotlimited.
Belowapprox.
37°F/3°C

Theair-conditioningcompressorisswitchedoff.
Circulating-airmodeisautomaticallyendedafter
approx.3minutes.
I>I>I>
Controls,Instruments
107

~Donotoperateelectricalappliancesformore
than5minuteswhenengineisoff(batterywill
otherwisedischarge).
~Donotdamagethesocketbytryingtoinsert
plugsofthewrongdesign.

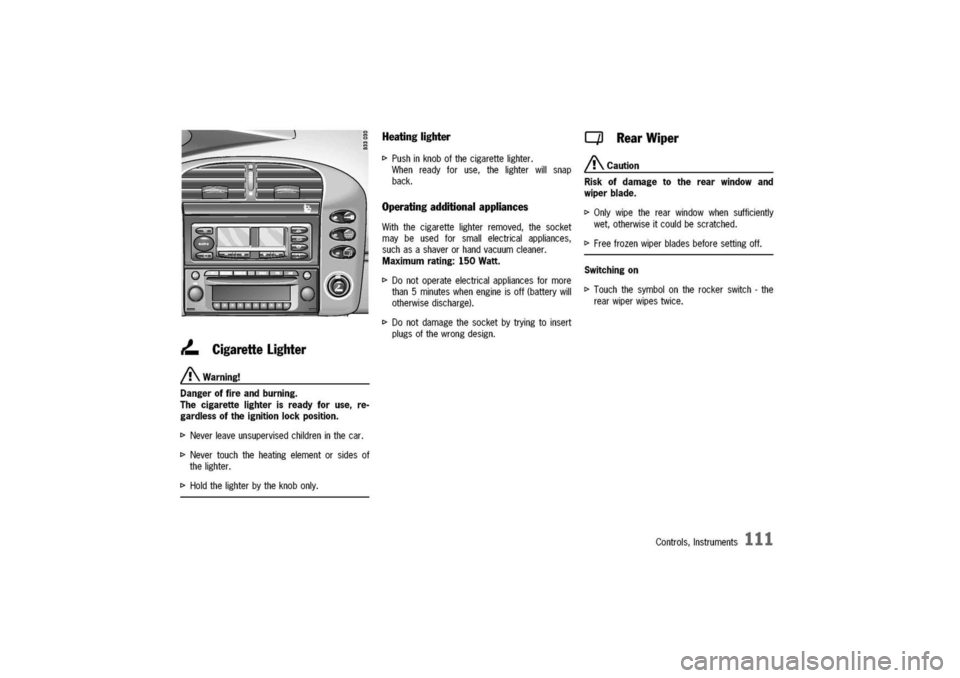

CigaretteLighter

A
Warning!
Dangeroffireandburning.
Thecigarettelighterisreadyforuse,re-
gardlessoftheignitionlockposition.

~Neverleaveunsupervisedchildreninthecar.
~Nevertouchtheheatingelementorsidesof
thelighter.
~Holdthelighterbytheknobonly.
Heatinglighter
~Pushinknobofthecigarettelighter.
Whenreadyforuse,thelighterwillsnap
back.
Operatingadditionalappliances
Withthecigarettelighterremoved,thesocket
maybeusedforsmallelectricalappliances,
suchasashaverorhandvacuumcleaner.

Maximumrating:
150
Watt.

L
QRearWiper

ACaution
Riskofdamagetotherearwindowand
wiperblade.

~Onlywipetherearwindowwhensufficiently
wet,otherwiseitcouldbescratched.
~Freefrozenwiperbladesbeforesettingoff.
Switching
on
~
Touchthesymbolontherockerswitch-the
rearwiperwipestwice.
Controls,Instruments
111
