ChildRestraintAnchorages
Pleasenotechapter"Automaticlockingretrac-
tor".
Ifyourchildrestraintseatorseatsrequirethe
useofatetherstrap,youwillwanttousethe
anchorpointsprovidedbehindtherearseat
backrestsunderthecarpet.
Toensureproperinstallation,seeyourauth-
orizedPorschedealer.
Thetetherstrapcanbemovedtotheotheran-
chorpointifrequired.

/!\Warning!
Childrestraintanchoragesaredesignedto
withstandonlythoseloadsimposedbycor-
rectlyfittedchildrestraints.Undernocir-
cumstancesaretheytobeusedforadults
safetybeltsorharnesses.Suchusecould
resultinseriouspersonalinjuryordeath.
I>Donotmisuse
thechildrestraintanchorages.
Theyarenotdesignedtowithstandloadsim-
posedbyadults.

I>I>I>

Controls,Instruments
41

A-Adjustmentbuttonforclock
B-Clock
Clock
Theclockisblankedoutapproximatelyfour
minutesaftertheignitionisswitchedofforwhen
thecarislocked.

Settingthetime

A
Warning!
Riskofanaccidentandlossofcontrol.
I>Donotreachthroughthesteering-wheel
spokeswhiledriving.
Settinghours
I>PressadjustmentbuttonAforaboutonesec-
ond.
Hourdisplayflashes.
I>Turnbuttonintheappropriatedirection:
toright-increasehoursfigure
toleft-decreasehoursfigure.
Adjustmentinhours-turnbuttonbriefly
Fastadjustment(displaycycles)-
turnandholdbutton.
Settingminutes
I>Pressadjustmentbuttonagain.
Minutesdisplayflashes.
I>Setbyrotatingasinhoursmode.
Leavingadjustmentmode
Automaticallyafteroneminuteor:
I>Pressadjustmentbuttonagain.
Whenadjustmentmodeisdeliberatelyleftby
pressingthebutton,thetimebeginspreciselyto
thesecond.
Note
Thetimemodecanbechangedbetween12h
and24hintheon-boardcomputer.
Controls,Instruments
79

~
Wipeintervalcontrol

Inwindshieldwiperintermittentmode3thewipe
intervalscanbeinfinitelyadjusted(notinve-
hicleswitharainsensor).

Shorteningwipeintervals

[>
TurnthumbwheelAclockwise.

Lengtheningwipeintervals

[>
TurnthumbwheelAcounter-clockwise.

Rainsensor

Invehicleswitharainsensortheamountofrain
orsnowwhichhassettledonthewindshieldis
measured.Thewiperspeediscontrolled
accordinglybetweenintermittentandcontinuous
operation(wiperspeed
1and2).
Switchingrainsensoron
[>

Movewiperleverinposition
3.
Switchingrainsensoroff
[>

Movewiperleverinposition
O.
Note
The
rainsensorremainsswitchedoffifthe
wiperleverisalreadyinposition
3
whentheigni-
tionisswitchedon.
Toswitchtherainsensor
on:
[>

Movewiperlevertoposition
0and
thenback
toposition
3or
[>
Operatewindshieldwashersystem
or
[>
Changethesensitivityoftherainsensorwith
thethumbwheel.
Switch-onisconfirmedbyonewipeofthewind-
shield.

~
Changingthesensitivityoftherain
sensor

SensitivitycanbesetwiththethumbwheelAin
6stages.
[>TurnthumbwheelAcounter-clockwise-low
sensitivity
.
[>

TurnthumbwheelAclockwise-highsensitiv-
ity.
Thesettingisconfirmedbyonewipeofthe
windshield.
Controls,Instruments
103

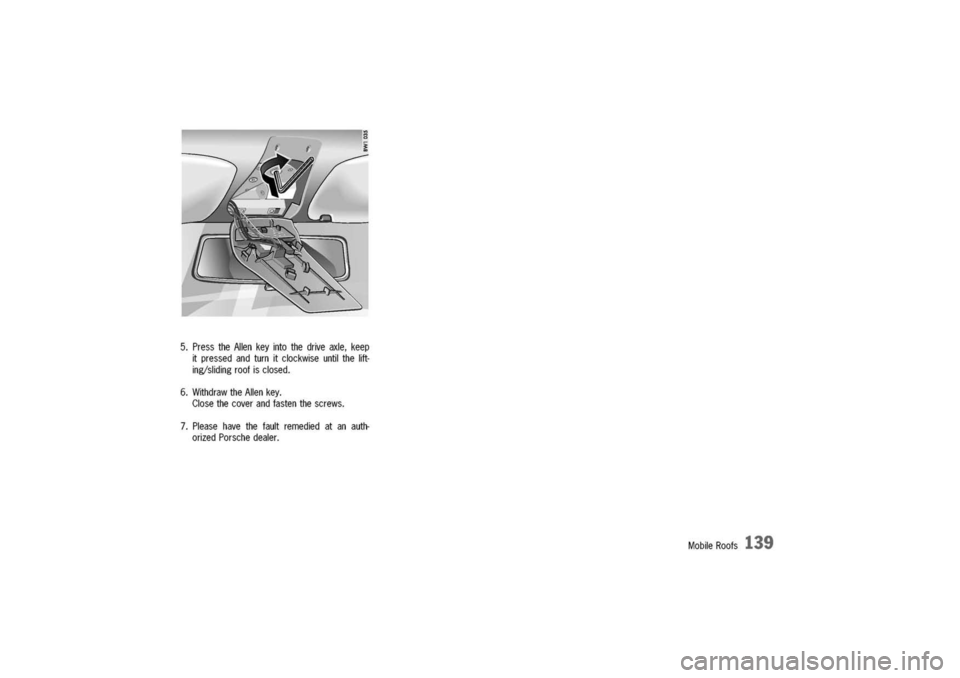

5.PresstheAllenkeyintothedriveaxle,keep
itpressedandturnitclockwiseuntilthelift-
ing/slidingroofisclosed.
6.WithdrawtheAllenkey.
Closethecoverandfastenthescrews.
7.Pleasehavethefaultremediedatanauth-
orizedPorschedealer.
MobileRoofs
139

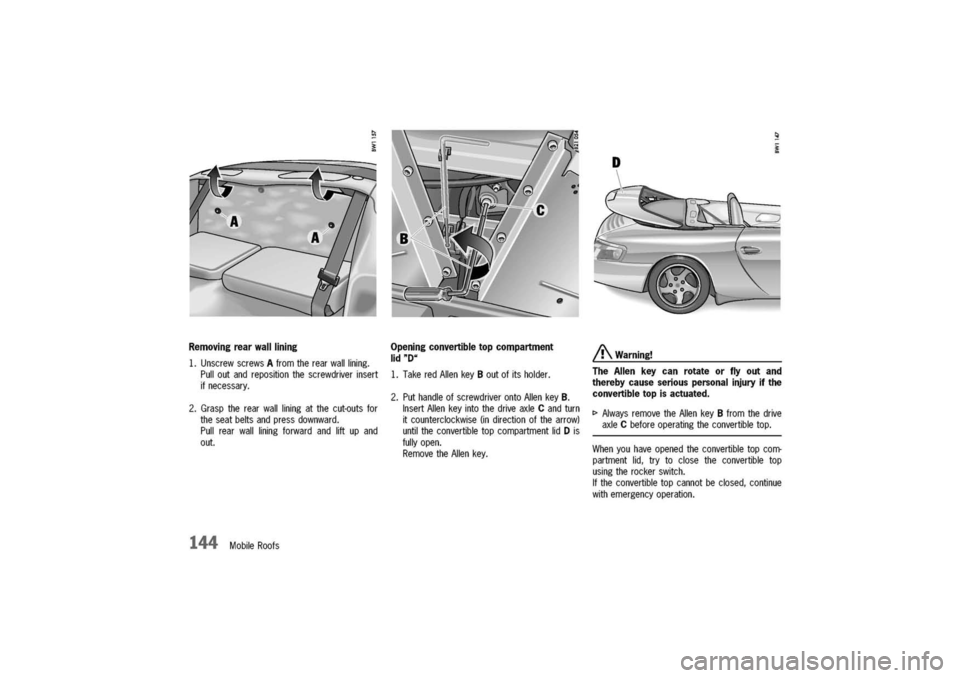

Removingrearwalllining
1.UnscrewscrewsAfromtherear
walllining.
Pulloutandrepositionthescrewdriverinsert
ifnecessary.
2.Grasptherearwallliningatthecut-outsfor
theseatbeltsandpressdownward.
Pullrearwallliningforwardandliftupand
out.
144MobileRoofs

Openingconvertibletopcompartment
lid"D"
1.Take
redAllenkeyBoutofitsholder.
2.PuthandleofscrewdriverontoAllenkeyB.
InsertAllenkeyintothedriveaxleCandturn
itcounterclockwise(indirectionofthearrow)
untiltheconvertibletopcompartmentlidDis
fullyopen.
RemovetheAllen
key.
A
Warning!
TheAllenkeycanrotateorflyoutand
therebycauseseriouspersonalinjuryifthe
convertibletopisactuated.

I>AlwaysremovetheAllenkeyBfromthedrive
axleCbeforeoperatingtheconvertibletop.
Whenyouhaveopenedtheconvertibletopcom-
partmentlid,trytoclosetheconvertibletop
usingtherockerswitch.
Iftheconvertibletopcannotbeclosed,continue
withemergencyoperation.

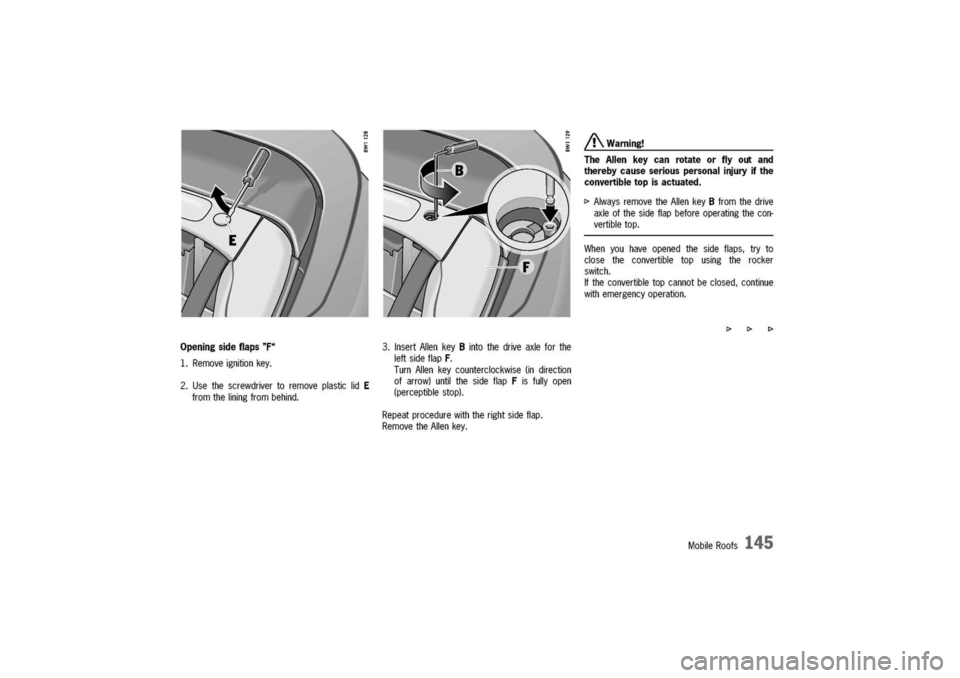

Opening
sideflaps
"F"
1.Removeignitionkey.
2.UsethescrewdrivertoremoveplasticlidE
fromtheliningfrombehind.
3.InsertAllenkeyBintothedriveaxleforthe
leftsideflapF.
TurnAllenkeycounterclockwise(indirection
ofarrow)untilthesideflapFisfullyopen
(perceptiblestop).
Repeatprocedurewiththerightsideflap.
RemovetheAllenkey.
/!\Warning!
TheAllenkeycanrotateorflyoutand
therebycauseseriouspersonalinjuryifthe
convertibletopisactuated.
I>AlwaysremovetheAllenkeyBfromthedrive
axleofthesideflapbeforeoperatingthecon-
vertibletop.
Whenyouhaveopenedthesideflaps,tryto
closetheconvertibletopusingtherocker
switch.
Iftheconvertibletopcannotbeclosed,continue
withemergencyoperation.
I>I>I>
MobileRoofs
145

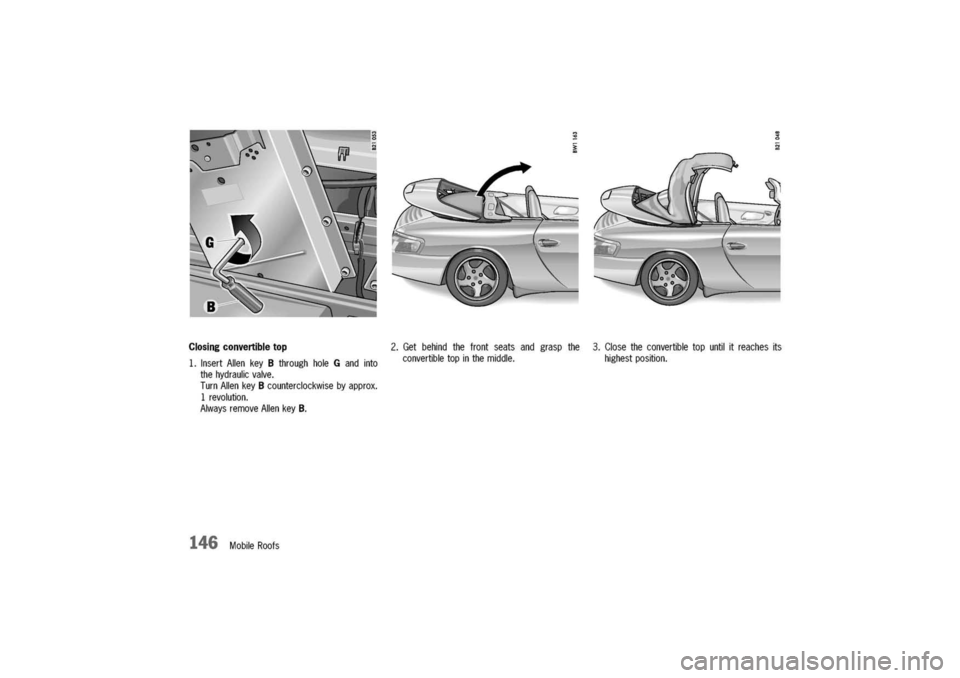

Closing
convertibletop
1.InsertAllenkeyBthroughholeGandinto
thehydraulicvalve.
TurnAllenkeyBcounterclockwisebyapprox.
1revolution.
AlwaysremoveAllenkeyB.
146MobileRoofs
2.Getbehindthefrontseatsandgraspthe
convertibletopinthemiddle.
3.Closetheconvertibletopuntilitreachesits
highestposition.

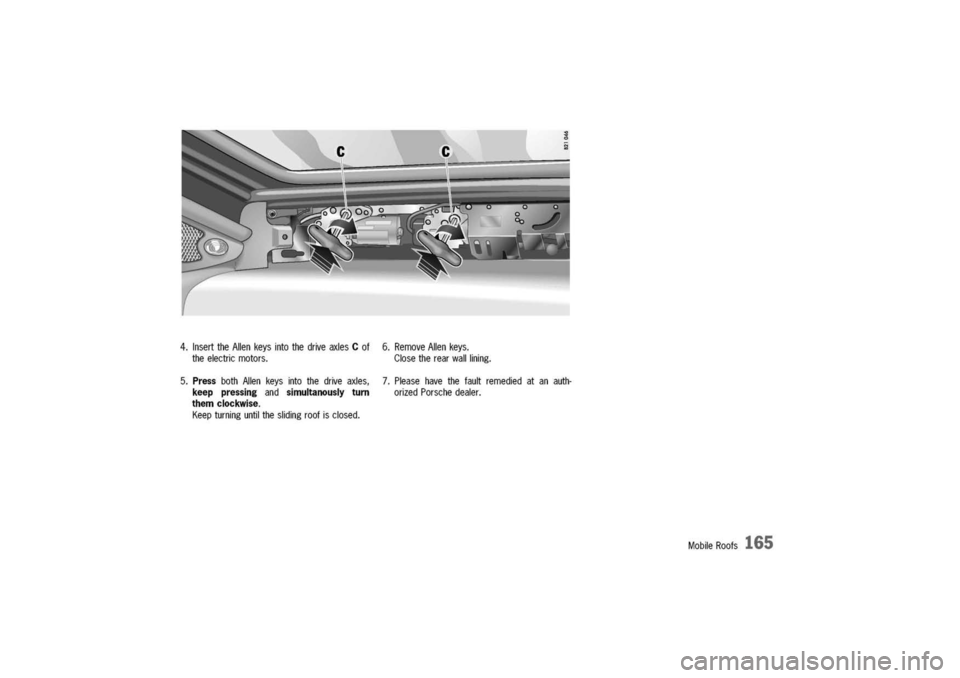

4.InserttheAllenkeysintothedriveaxlesCof
theelectricmotors.
6.RemoveAllenkeys.
Closetherearwalllining.
5.
Press
bothAllenkeysintothedriveaxles,
keeppressingandsimultanouslyturn
themclockwise.
Keepturninguntiltheslidingroofisclosed.
7.Pleasehavethefaultremediedatanauth-
orizedPorschedealer.
MobileRoofs
165

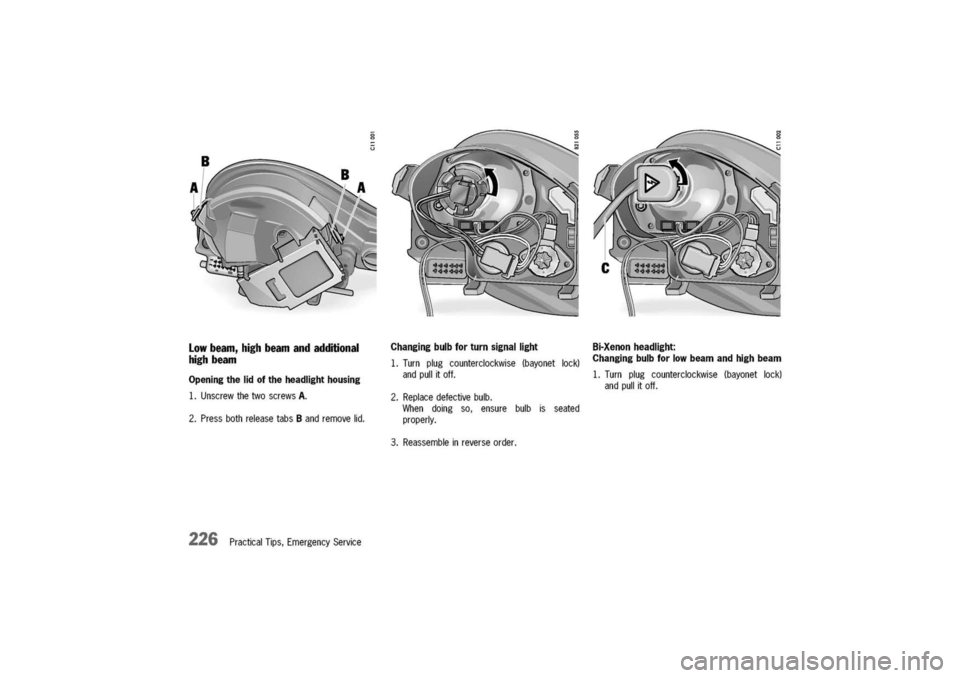

Lowbeam,highbeamandadditional
highbeam
Openingthelidoftheheadlighthousing

1.UnscrewthetwoscrewsA.
2.PressbothreleasetabsBandremovelid.
226PracticalTips,EmergencyService

Changingbulbforturnsignallight

1.Turnplugcounterclockwise(bayonetlock)
andpullitoff.
2.Replacedefectivebulb.
Whendoingso,ensurebulbisseated
properly.
3.Reassembleinreverseorder.

N
0
0
Bi-Xenonheadlight:
Changingbulbforlowbeamandhighbeam

1.Turnplugcounterclockwise(bayonetlock)
andpull
itoff.

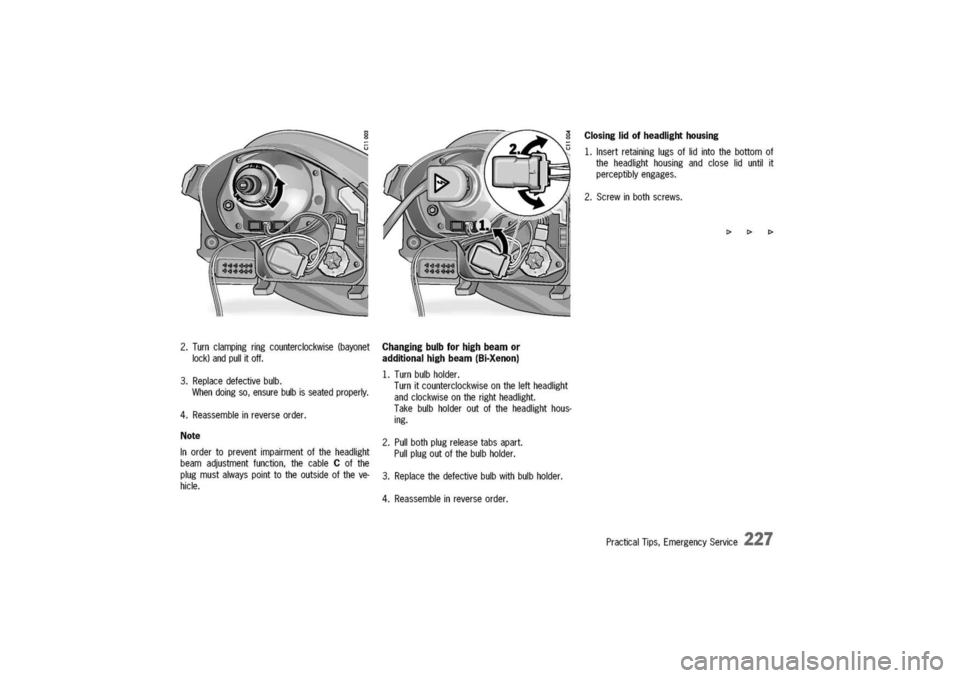

2.Turnclampingringcounterclockwise(bayonet
lock)andpullitoff.
3.Replacedefectivebulb.
Whendoingso,ensurebulbisseatedproperly.
4.Reassembleinreverseorder.
Note
Inordertopreventimpairmentoftheheadlight
beamadjustmentfunction,thecableCofthe
plugmustalwayspointtotheoutsideoftheve-
hicle.
Changingbulbforhighbeamor
additionalhighbeam(Bi-Xenon)
1.Turnbulbholder.
Turnitcounterclockwiseontheleftheadlight
andclockwiseontherightheadlight.
Takebulbholderoutoftheheadlighthous-
ing.
2.Pullbothplugreleasetabsapart.
Pullplugoutofthebulbholder.
3.Replacethedefectivebulbwithbulbholder.
4.Reassembleinreverseorder.

Closinglidofheadlighthousing

1.Insertretaininglugsoflidintothebottomof
theheadlighthousingandcloseliduntilit
perceptiblyengages.
2.Screwinbothscrews.
I>I>I>
PracticalTips,EmergencyService
