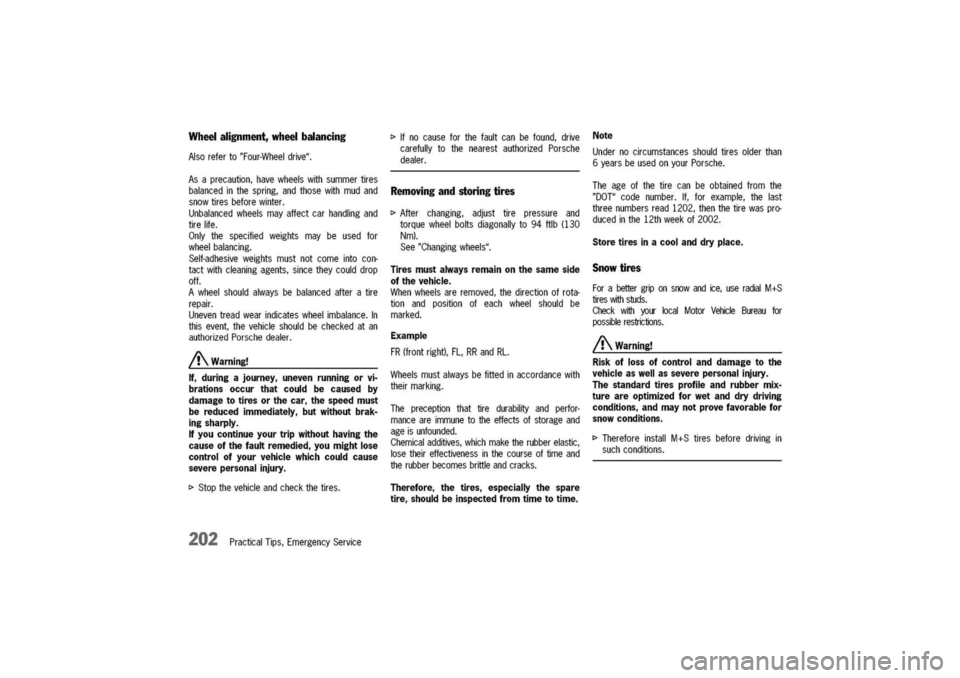

Wheelalignment,wheelbalancing

Alsoreferto"Four-Wheeldrive".
Asaprecaution,havewheelswithsummertires
balancedinthespring,andthosewithmudand
snowtiresbeforewinter.
Unbalancedwheelsmayaffectcarhandlingand
tirelife.
Onlythespecifiedweightsmaybeusedfor
wheelbalancing.
Self-adhesiveweightsmustnotcomeintocon-
tactwithcleaningagents,sincetheycoulddrop
off.
Awheelshouldalwaysbebalancedafteratire
repair.
Uneventreadwearindicateswheelimbalance.In
thisevent,thevehicleshouldbecheckedatan
authorizedPorschedealer.
/!\.Warning!
If,duringajourney,unevenrunningorvi-
brationsoccurthatcouldbecausedby
damagetotiresorthecar,thespeedmust
bereducedimmediately,butwithoutbrak-
ingsharply.
Ifyoucontinueyourtripwithouthavingthe
causeofthefaultremedied,youmightlose
controlofyourvehiclewhichcouldcause
severepersonalinjury.
I>Stopthevehicleandcheckthetires.
202PracticalTips,EmergencyService
I>Ifnocauseforthefaultcanbefound,drive
carefullytothenearestauthorizedPorsche
dealer.

Removingandstoringtires

I>Afterchanging,adjusttirepressureand
torquewheelboltsdiagonallyto94ftlb
(130

Nm).
See"Changingwheels".

Tiresmustalwaysremainonthesameside
ofthevehicle.

Whenwheelsareremoved,thedirectionofrota-
tionandpositionofeachwheelshouldbe
marked.
Example
FR(frontright),FL,RRandRL.
Wheelsmustalwaysbefittedinaccordancewith
theirmarking.
Thepreceptionthattiredurabilityandperfor-
manceareimmunetotheeffectsofstorageand
ageisunfounded.
Chemicaladditives,whichmaketherubberelastic,
losetheireffectivenessinthecourseoftimeand
therubberbecomesbrittleandcracks.

Therefore,thetires,especiallythespare
tire,shouldbeinspectedfromtimetotime.
Note

Undernocircumstancesshouldtiresolderthan
6yearsbeusedonyourPorsche.
Theageofthetirecanbeobtainedfromthe
"DOT"codenumber.If,forexample,thelast
threenumbersread1202,thenthetirewaspro-
ducedinthe12thweekof2002.

Storetiresinacoolanddryplace.
Snowtires

Forabettergriponsnowandice,useradialM+S
tireswithstuds.
CheckwithyourlocalMotorVehicleBureaufor
possiblerestricTIons.

/!\.Warning!
Riskoflossofcontrolanddamagetothe
vehicleaswellasseverepersonalinjury.
Thestandardtiresprofileandrubbermix-
tureareoptimizedforwetanddrydriving
conditions,andmaynotprovefavorablefor
snowconditions.

I>ThereforeinstallM+Stiresbeforedrivingin
suchconditions.

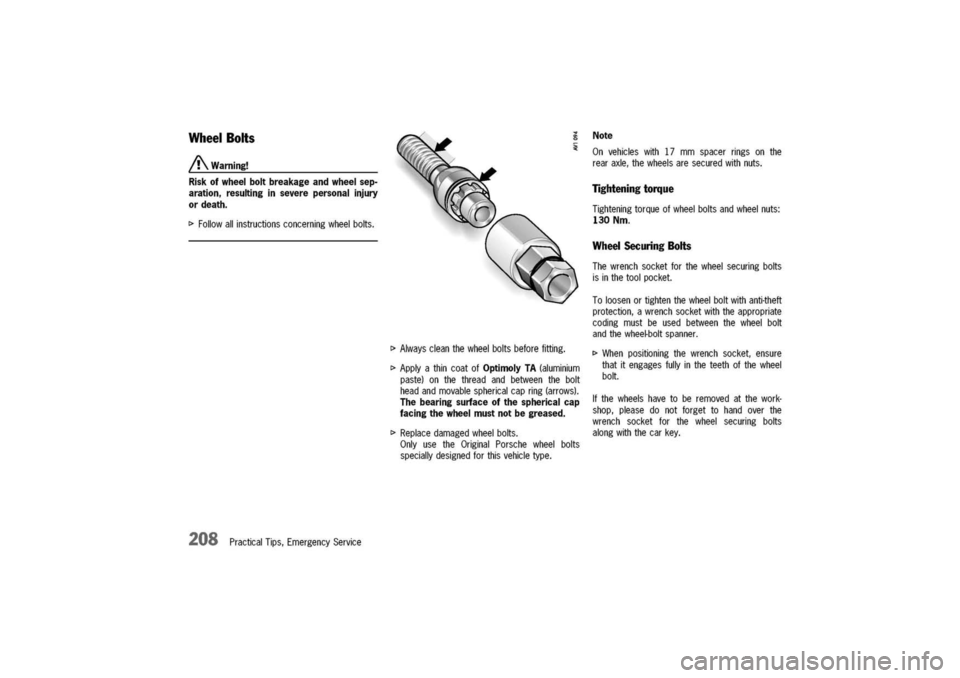

WheelBolts
/!\Warning!
Riskofwheelboltbreakageandwheelsep-
aration,resultinginseverepersonalinjury
ordeath.
[>
Followallinstructionsconcerningwheelbolts.
208PracticalTips,EmergencyService
[>Alwayscleanthewheelboltsbeforefitting.
[>ApplyathincoatofOptimolyTA(aluminium
paste)onthethreadandbetweenthebolt
headandmovablesphericalcapring(arrows).
Thebearingsurfaceofthesphericalcap
facingthewheelmustnotbegreased.
[>Replacedamagedwheelbolts.
OnlyusetheOriginalPorschewheelbolts
speciallydesignedforthisvehicletype.
Note
Onvehicleswith17mmspacerringsonthe
rearaxle,thewheelsaresecuredwithnuts.

Tighteningtorque

Tighteningtorqueofwheelboltsandwheelnuts:
130Nm.

WheelSecuringBolts

Thewrenchsocketforthewheelsecuringbolts
isinthetoolpocket.
Toloosenortightenthewheelboltwithanti-theft
protection,awrenchsocketwiththeappropriate
codingmustbeusedbetweenthewheelbolt
andthewheel-boltspanner.
[>Whenpositioningthewrenchsocket,ensure
thatitengagesfullyintheteethofthewheel
bolt.
Ifthewheelshavetoberemovedatthework-
shop,pleasedonotforgettohandoverthe
wrenchsocketforthewheelsecuringbolts
alongwiththecarkey.

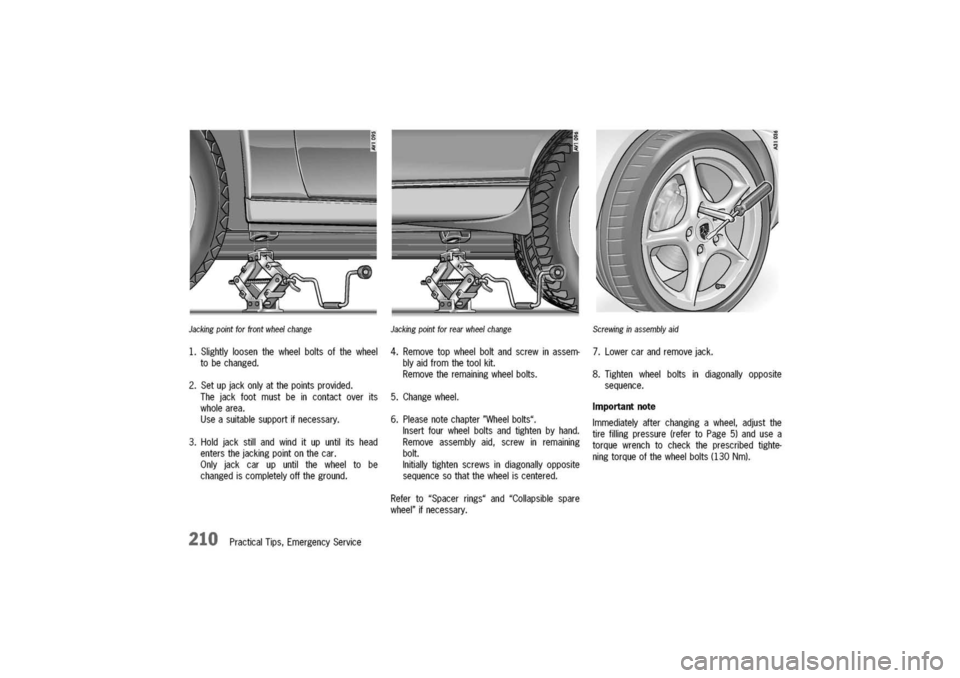

Jackingpointforfrontwheelchange
1.Slightlyloosenthewheelboltsofthewheel
tobechanged.
2.Setupjackonlyatthepointsprovided.
Thejackfootmustbeincontactoverits
wholearea.
Useasuitablesupportifnecessary.
3.Holdjackstillandwinditupuntilitshead
entersthejackingpointonthecar.
Onlyjackcarupuntilthewheeltobe
changediscompletelyofftheground.
210PracticalTips,EmergencyService
Jackingpointforrearwheelchange
4.Removetopwheelboltandscrewinassem-
blyaidfromthetoolkit.
Removetheremainingwheelbolts.
5.Changewheel.
6.Pleasenotechapter"Wheelbolts".
Insertfourwheelboltsandtightenbyhand.
Removeassemblyaid,screwinremaining
bolt.
Initiallytightenscrewsindiagonallyopposite
sequencesothatthewheeliscentered.
Referto"Spacerrings"and"Collapsiblespare
wheel"ifnecessary.
Screwinginassemblyaid
7.Lowercarandremovejack.
8.Tightenwheelboltsindiagonallyopposite
sequence.
Importantnote
Immediatelyafterchangingawheel,adjustthe
tirefillingpressure(refertoPage5)andusea
torquewrenchtochecktheprescribedtighte-
ningtorqueofthewheelbolts(130Nm).
