Lifting/Sliding Roof
Warning!
Risk of injury when operating or automatical-
ly closing the lifting/sliding roof.
fTake care to ensure that nobody can be injured
when the lifting/sliding roof is operated.
fAlways withdraw the ignition key when leaving
the vehicle. Uninformed persons (e.g. children)
could injure themselves by operating the lift-
ing/sliding roof.
fIn case of danger, release the button immedi-
ately and operate the lifting/sliding roof in the opposite direction.
Readiness for operation– When the ignition is switched on (engine
switched on or off) or
– With doors closed and ignition key withdrawn,
but only until a door is first opened.
A - Opening the lifting/sliding rooffPress rear of rocker switch A until lifting/slid-
ing roof reaches the desired position.
One-touch operation
fTouch rear of rocker switch A.
Lifting/sliding roof opens to its end position.
Stop it in any position by touching any button.
Note
The lifting/sliding roof opens until it reaches the
b e s t p o s i t i o n f r o m t h e p o i n t o f v i e w o f n o i s e . I t c a n
be opened fully, however, if you press the rocker
switch again.

Mobile Roofs
173
B - Closing the lifting/sliding rooffPress front of rocker switch B until lifting/slid-
ing roof reaches the desired position.
One-touch operation
fTouch front of rocker switch B.
Lifting/sliding roof closes to its end position.
Stop it in any position by touching any button.
C - Lifting the lifting/sliding rooffPress center of rocker switch C until lifting/
sliding roof reaches the desired position.
One-touch operation
fTouch the rocker switch C in the center.
Lifting/sliding roof opens to its end position.
Touch button again to stop in any position.B - Lowering the lifting/sliding rooffPress front of rocker switch B until lifting/slid-
ing roof reaches the desired position.

174
Mobile Roofs
Emergency operation
Warning!
Risk of serious personal injury and damage
to the lifting/sliding roof during emergency
operation.
fDo not operate the lifting/sliding roof with the
rocker switch during and after emergency operation.
Before using emergency operation, please check
whether defective fuses are the cause of the mal-
function.
fPlease observe the chapter “ELECTRICAL SYS-
TEM” on Page 254.
Closing the sliding roof
1. Carefully unclip both covers A with a screwdriv-
er.
If the car is equipped with HomeLink, the
HomeLink buttons must be carefully unclipped
instead of the covers.
2. Unscrew the two screws B.3. Fold down the cover of the lifting/sliding roof
drive at the rear.
Remove the Allen key (arrow) from its holder.
4. Insert the Allen key into the drive axle.

Mobile Roofs
175
5. Press the Allen key into the drive axle, keep it
pressed and turn it clockwise until the lifting/
sliding roof is closed.
6. Remove the Allen key.
Close the cover and screw in the screws.
7. Have the fault remedied at an authorized
Porsche dealer.
Caution!
Risk of damage to the lifting/sliding roof.
fAfter emergency operation, do not operate the
lifting/sliding roof using the rocker switch.
fDrive slowly to an authorized Porsche dealer in order to have the fault remedied.

176
Mobile Roofs
Convertible Top Brief operating instructions can be found on the
back side of the driver’s sun visor.
fPlease observe the chapter “CAR CARE IN-
STRUCTIONS” on Page 218.
Warning!
When opening or closing the convertible top,
serious personal injury may occur if a per-
son’s body parts are near or in the way of the
convertible top mechanism’s moving parts.
fMake absolutely sure that nobody can be in-
jured by the convertible-top mechanism or the convertible-top compartment lid.
Do not operate convertible top:
– At temperatures below 32°F (0°C).
– When one side of the car is on a curb, a hoist
or a jack.
– When items of luggage or other objects hinder
the convertible top movement.
– With the rollbars extended.fAvoid frequent operation of the convertible top
with the engine off; the vehicle battery would
be unintentionally discharged rapidly.
fDrive only with the convertible top fully open or
closed (end positions).
fWhen opening or closing the convertible top,
ensure there is sufficient clearance above the
convertible top (e.g. in the garage).
fTo prevent damp stains and abrasions, only
open the convertible top in a dry, clean state.
fPark your car in the shade whenever possible,
as the fabric, rubber material and color can be
harmed by long exposure to sunlight.
fThe convertible top may only be actuated dur-
ing driving on even surfaces.
fThe convertible top must not be used with
strong counter wind (over approx. 50 mph/
80 km/h).
Door windows and side windows The side windows are lowered automatically when
the convertible top is opened. The door windows
close automatically if convertible top operation is
not interrupted when the convertible top reaches
its final position.
When the door windows are closed, the rear side
windows can also be closed.
When opening the door windows, the rear win-
dows open automatically.
The side windows are lowered automatically when
the convertible top is closed. All windows close
automatically if convertible top operation is not in-
terrupted when the convertible top reaches its fi-
nal position.

Mobile Roofs
177
Preconditions for operation of the
convertible top – The ignition must be switched on
(engine running or off),
– the engine compartment lid must be closed,
– the speed must be below approx. 30 mph
(50 km/h).
If this maximum speed is exceeded, the open-
ing/closing procedure of the convertible top
will be interrupted.
Warning!
Risk of injury and damage when operating
the convertible top.
fMake absolutely sure that nobody can be in-
jured by the convertible-top mechanism or the
convertible-top compartment lid.
fBefore opening the convertible top, make sure
that there are no objects behind the rear seats.
fKeep the lids of the make-up mirrors in the sun
visors closed when closing the convertible top.
fIn order to abort convertible top operation in
the event of danger, immediately release the rocker switch.

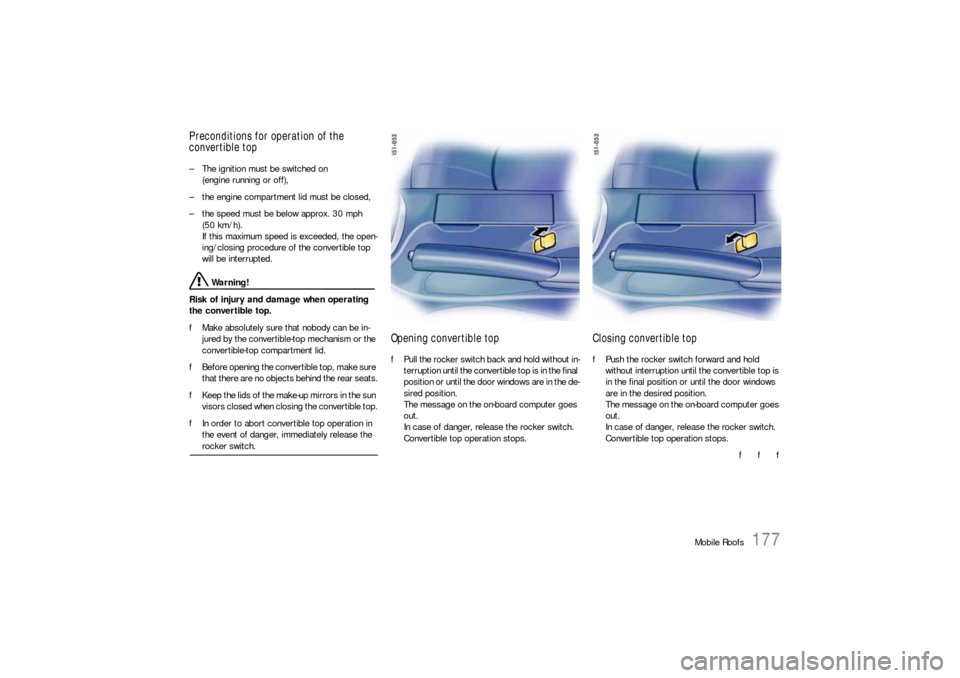

Opening convertible topfPull the rocker switch back and hold without in-
terruption until the convertible top is in the final
position or until the door windows are in the de-
sired position.
The message on the on-board computer goes
out.
In case of danger, release the rocker switch.
Convertible top operation stops.
Closing convertible topfPush the rocker switch forward and hold
without interruption until the convertible top is
in the final position or until the door windows
are in the desired position.
The message on the on-board computer goes
out.
In case of danger, release the rocker switch.
Convertible top operation stops.
f f f

178
Mobile Roofs If the convertible top does not lock in the
windshield frame
fOpen convertible top again, start the engine
and close the convertible top again using the
rocker switch.
Assist with the closing process by grasping the
convertible top at the handhold and pulling it
toward the windshield frame (arrow).
Messages in on-board computerIf the engine compartment lid is open when acti-
vating the convertible top, a message appears in
the on-board computer. The convertible top can-
not be opened.
fClose engine compartment lid.
fPlease observe the chapter “WARNINGS ON
THE INSTRUMENT PANEL AND THE ON-
BOARD COMPUTER” on Page 122.
Emergency operation
of the convertible top fBefore performing emergency operation,
please check:
Was the ignition switched on and was the en-
gine compartment lid closed during operation
of the convertible top with the rocker switch?
Are electrical fuses defective?
Please observe the chapter “ELECTRICAL SYS-
TEM” on Page 254.
Warning!
There is danger of injury during emergency
operation.
There is danger of crushing or trapping body
parts at all movable convertible top parts
which could cause serious personal injury.
fTake great care when performing emergency
operation.
fDo not operate the convertible top during and after emergency operation.
Before emergency operation
fRemove the ignition key so that the convertible
top is not operated unintentionally.
fTake screwdriver out of the tool kit.
fFold the rear seat backrests forward.
Rear lid
Convertible top status

Mobile Roofs
179
Removing rear wall lining

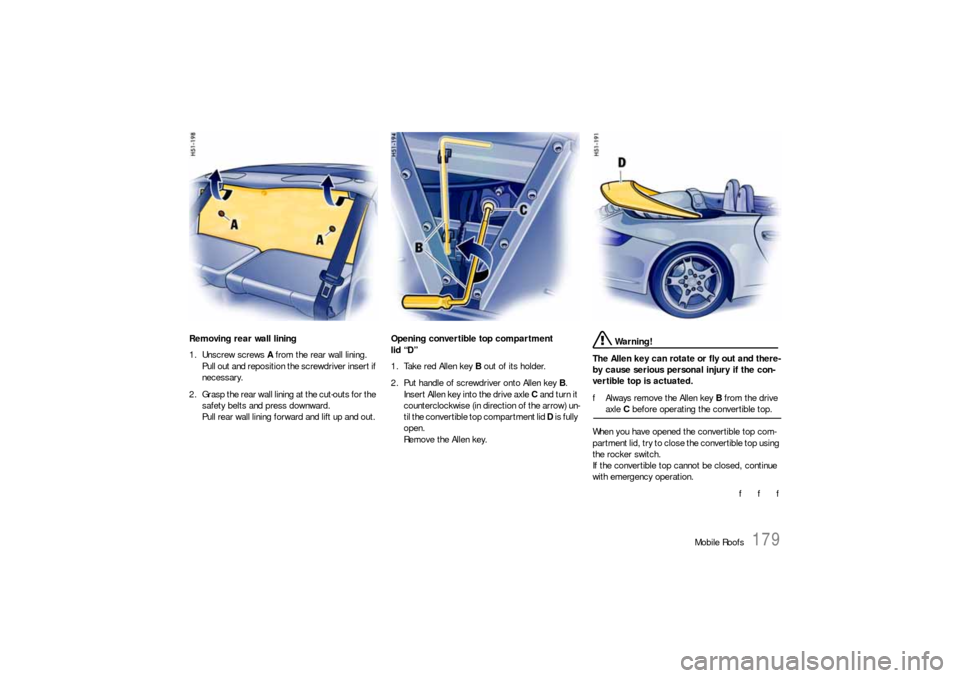

1. Unscrew screws A from the rear wall lining.
Pull out and reposition the screwdriver insert if
necessary.
2. Grasp the rear wall lining at the cut-outs for the
safety belts and press downward.
Pull rear wall lining forward and lift up and out. Opening convertible top compartment
lid “D”
1. Take red Allen key B out of its holder.
2. Put handle of screwdriver onto Allen key B.
Insert Allen key into the drive axle C and turn it
counterclockwise (in direction of the arrow) un-
til the convertible top compartment lid D is fully
open.
Remove the Allen key.
Warning!
The Allen key can rotate or fly out and there-
by cause serious personal injury if the con-
vertible top is actuated.
fAlways remove the Allen key B from the drive axle C before operating the convertible top.
When you have opened the convertible top com-
partment lid, try to close the convertible top using
the rocker switch.
If the convertible top cannot be closed, continue
with emergency operation.
f f f

180
Mobile Roofs Opening side flaps “F”
1. Remove ignition key.

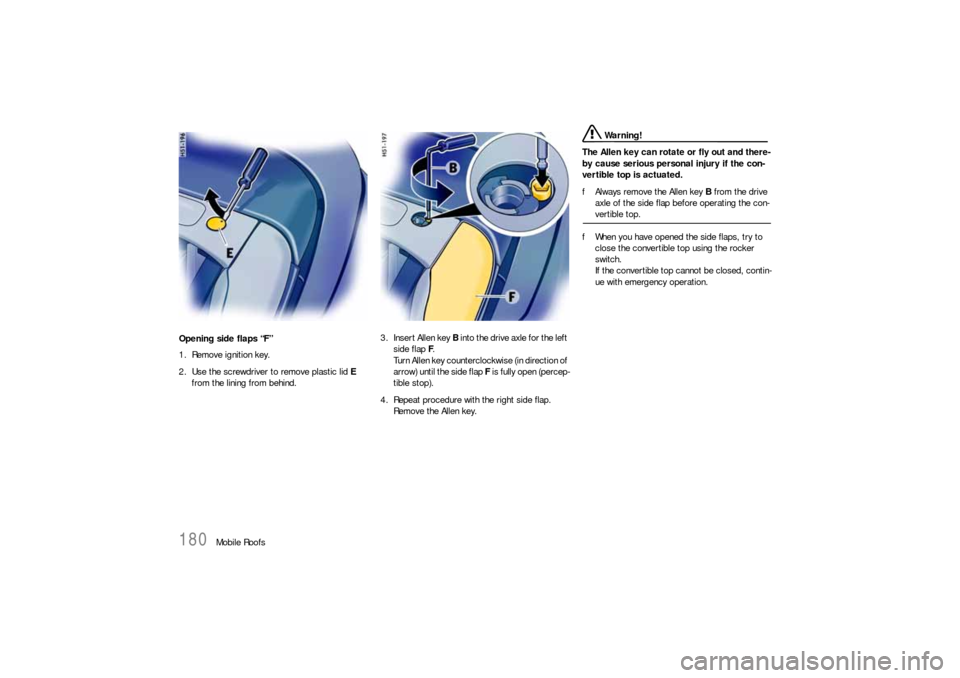

2. Use the screwdriver to remove plastic lid E
from the lining from behind. 3. Insert Allen key B into the drive axle for the left
side flap F.
Turn Allen key counterclockwise (in direction of
arrow) until the side flap F is fully open (percep-
tible stop).
4. Repeat procedure with the right side flap.
Remove the Allen key.
Warning!
The Allen key can rotate or fly out and there-
by cause serious personal injury if the con-
vertible top is actuated.
fAlways remove the Allen key B from the drive
axle of the side flap before operating the con-vertible top.
fWhen you have opened the side flaps, try to
close the convertible top using the rocker
switch.
If the convertible top cannot be closed, contin-
ue with emergency operation.
