1)
Weight is calculated in accordance with the relevant EC Directives and is valid for vehicles with standard specification only. Optional equipment increases this figure. The figure given includes 68 kg for the driver and 7 kg for luggage.2) Data determined in the NEDC (New European Driving Cycle) in accordance with the Euro 5 (715/2007/ EC and 692/2008/ EC) measurement method. The figures do not refer to an individual vehicle nor do they constitute part of the of fer.
They are intended solely as a means of comparing dif ferent t ypes of vehicle. You can obtain further information about individual vehicles from your Porsche Centre. Fuel consumption calculated for vehicles with standard specification
only. A vehicle’s fuel consumption and CO
2 emissions depend not only on its ef ficient use of fuel but also on driving st yle and other non ­technical factors. Actual consumption and per formance may var y with items of optional equipment.

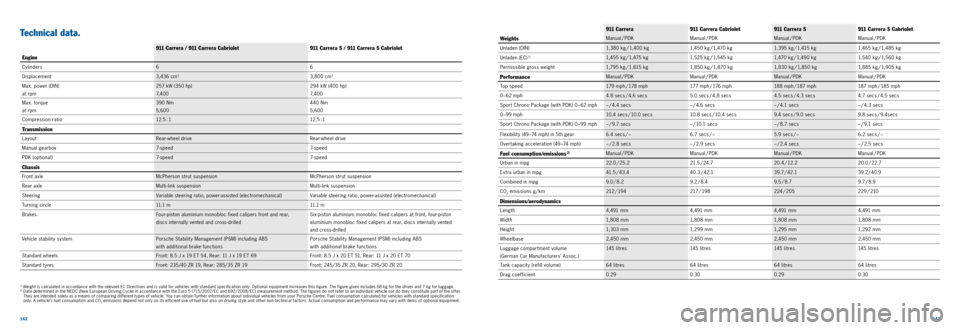

Technical data.9 11 C a r r e r a 911 Carrera Cabriolet9 11 C a r r e r a S911 Carrera S Cabriolet
Weights
Manual / PDK Manual / PDK Manual / PDK Manual / PDK
Unladen (DIN) 1,380 kg / 1,400 kg1,450 kg / 1,470 kg1,395 kg / 1,415 kg1,465 kg / 1,485 kg
Unladen (EC)
1)1,455 kg / 1,475 kg 1,525 kg / 1,545 kg1,470 kg / 1,490 kg1,540 kg / 1,560 kg
Permissible gross weight 1,795 kg / 1,815 kg1,850 kg / 1,870 kg1,830 kg / 1,850 kg1,885 kg / 1,905 kg
PerformanceManual / PDK Manual / PDK Manual / PDK Manual / PDK
Top speed 179 mph / 178 mph177 mph / 176 mph188 mph / 187 mph187 mph / 185 mph
0 – 62 mph 4.8 secs / 4.6 secs 5.0 secs / 4.8 secs4.5 secs / 4.3 secs 4.7 secs / 4.5 secs
Sport Chrono Package (with PDK) 0 – 62 mph – / 4.4 secs – / 4.6 secs– / 4.1 secs – / 4.3 secs
0 –99 mph 10.4 secs / 10.0 secs 10.8 secs / 10.4 secs9.4 secs / 9.0 secs 9.8 secs / 9.4secs
Sport Chrono Package (with PDK) 0 –99 mph – / 9.7 secs – / 10.1 secs– / 8.7 secs – / 9.1 secs
Flexibilit y (49 –74 mph) in 5th gear 6.4 secs / –6.7 secs / –5.9 secs / –6.2 secs / –
Overtaking acceleration (49–74 mph) – / 2.8 secs – / 2.9 secs– / 2.4 secs – / 2.5 secs
Fuel consumption/emissions 2)Manual / PDK Manual / PDK Manual / PDK Manual / PDK
Urban in mpg 22.0 / 25.2 21.5 / 24.7 20.4 / 12.2 20.0 / 22.7
Extra urban in mpg 41.5 / 43.440.3 / 42.139.7 / 42.139.2 / 40.9
Combined in mpg 9.0 / 8.29.2 / 8.49.5 / 8.79.7 / 8.9
CO
2 emissions g/km 212 / 194217 / 198224 / 205229 / 210
Dimensions/aerodynamics
Length 4,491 m m4,491 m m4,491 m m4,491 m m
Width 1,808 mm1,808 mm1,808 mm1,808 mm
Height 1,303 mm1, 2 9 9 m m1, 2 95 m m1, 2 92 m m
Wheelbase 2,450 mm2,450 mm2,450 mm2,450 mm
Luggage compartment volume
(German Car Manufacturers’ Assoc.) 14 5 l i t r e s
14 5 l i t r e s14 5 l i t r e s14 5 l i t r e s
Tank capacity (refill volume) 64 litres64 litres64 litres64 litres
Drag coefficient 0.290.300.290.30
911 Carrera / 911 Carrera Cabriolet 911 Carrera S / 911 Carrera S Cabriolet
Engine
Cylinders 6 6
Displacement 3,436 cm
33,800 cm3
Max. power (DIN)
at rpm257 kW (350 hp)
7, 4 0 0 294 kW (400 hp)
7, 4 0 0
Max. torque
at rpm 390 Nm
5,600 440 Nm
5,600
Compression ratio 12.5 : 1 12.5 : 1
Transmission
LayoutRear­wheel drive Rear­wheel drive
Manual gearbox 7­speed 7­speed
PDK (optional) 7­speed 7­speed
Chassis
Front axle McPherson strut suspension McPherson strut suspension
Rear axle Multi­link suspension Multi­link suspension
Steering Variable steering ratio, power­assisted (electromechanical) Variable steering ratio, power­assisted (electromechanical)
Turning circle 11. 1 m 11. 1 m
Brakes Four­piston aluminium monobloc fixed calipers front and rear,
discs internally vented and cross ­drilled Six
­piston aluminium monobloc fixed calipers at front, four ­piston
aluminium monobloc fixed calipers at rear, discs internally vented
and cross ­drilled
Vehicle stabilit y system Porsche Stability Management (PSM) including ABS
with additional brake functions Porsche Stability Management (PSM) including ABS
with additional brake functions
Standard wheels Front: 8.5 J x 19 ET 54, Rear: 11 J x 19 ET 69 Front: 8.5 J x 20 ET 51, Rear: 11 J x 20 ET 70
Standard tyres Front: 235/40 ZR 19, Rear: 285/35 ZR 19 Front: 245/35 ZR 20, Rear: 295/30 ZR 20

144145
9 11 C a r r e r a 4911 Carrera 4 Cabriolet9 11 C a r r e r a 4 S911 Carrera 4S Cabriolet
Weights
Manual/PDK Manual/PDKManual/PDKManual/PDK
Unladen (DIN) 1,430 kg / 1,450 kg1,500 kg / 1,520 kg1,445 kg / 1,465 kg1,515 k g / 1,535 k g
Unladen (EC)
1)1,505 kg / 1,525 kg 1,575 kg / 1,595 kg1,520 kg / 1,540 kg1,590 kg / 1,610 kg
Permissible gross weight 1,845 kg / 1,865 kg1,900 kg / 1,920 kg1,875 kg / 1,895 kg1,935 kg / 1,955 kg
PerformanceManual / PDK Manual / PDK Manual / PDK Manual / PDK
Top speed 177 mph / 175 mph 175 mph / 173 mph 185 mph / 184 mph183 mph / 182 mph
0 – 62 mph 4.9 secs / 4.7 secs5.1 secs / 4.9 secs4.5 secs / 4.3 secs4.7 secs / 4.5 secs
Sport Chrono Package (with PDK) 0 – 62 mph – / 4.5 secs– / 4.7 secs– / 4.1 secs– / 4.3 secs
0 –99 mph 10.6 secs / 10.2 secs11.0 secs / 10.6 secs9.6 secs / 9.2 secs10.0 secs / 9.6 secs
Sport Chrono Package (with PDK) 0 –99 mph – / 9.9 secs– / 10.3 secs– / 8.9 secs– / 9.3 secs
Flexibilit y (49 –74 mph), in 5th gear 6.5 secs / –6.8 secs / –6.0 secs/ –6.3 secs / –
Overtaking acceleration (49–74 mph) – / 2.9 secs– / 3.1 secs– / 2.5 secs– / 2.7 secs
Fuel consumption/emissions 2)Manual / PDK Manual / PDK Manual / PDK Manual / PDK
Urban in mpg 21.4 / 24.1 20.9 / 23.7 19.8 / 22.219.6 / 21.9
Extra urban in mpg 39.7 / 41.539.2 / 40.937.6 / 40.337.1 / 39.7
Combined in in mpg 30.3 / 32.829.7 / 32.428.5 / 31.028.2 / 30.7
CO
2 emissions g/km 219 / 203224 / 205234 / 215236 / 217
Dimensions/aerodynamics
Length 4,491 m m4,491 m m4,491 m m4,491 m m
Width 1,8 52 m m1,8 52 m m1,8 52 m m1,8 52 m m
Height 1,3 0 4 m m1,3 0 0 m m1, 2 9 6 m m1, 2 9 4 m m
Wheelbase 2,450 mm2,450 mm2,450 mm2,450 mm
Luggage compartment volume
(German Car Manufacturers’ Assoc.) 125 l i t re s
125 l i t re s125 l i t re s125 l i t re s
Tank capacity (refill volume) 68 litres68 litres68 litres68 litres
Drag coefficient 0.300.31 0.30 0.31
911 Carrera 4 / 911 Carrera 4 Cabriolet 911 Carrera 4S / 911 Carrera 4S Cabriolet
Engine
Cylinders 6 6
Displacement 3,436 cm
33,800 cm3
Max. power (DIN)
at rpm257 kW (350 hp)
7, 4 0 0 294 kW (400 hp)
7, 4 0 0
Max. torque
at rpm 390 Nm
5,600 440 Nm
5,600
Compression ratio 12.5 : 1 12.5 : 1
Transmission
LayoutAll­wheel drive All­wheel drive
Manual gearbox 7­speed 7­speed
PDK (optional) 7­speed 7­speed
Chassis
Front a xle McPherson strut suspension McPherson strut suspension
Rear axle Multi­link suspension Multi­link suspension
Steering Variable steering ratio, power­assisted (electromechanical) Variable steering ratio, power­assisted (electromechanical)
Turning circle 11. 1 m 11. 1 m
Brakes Four­piston aluminium monobloc fixed calipers front and rear,
discs internally vented and and cross ­drilled Six
­piston aluminium monobloc fixed calipers at front, four ­piston
aluminium monobloc fixed calipers at rear, discs internally vented
and cross ­drilled
Vehicle stability system Porsche Stability Management (PSM)
including ABS with additional brake functions Porsche Stability Management (PSM)
including ABS with additional brake functions
Standard wheels Front: 8.5 J x 19 ET 54, Rear: 11 J x 19 ET 48 Front: 8.5 J x 20 ET 51, Rear: 11 J x 20 ET 52
Standard tyres Front: 235/40 ZR 19, Rear: 295/35 ZR 19 Front: 245/35 ZR 20, Rear: 305/30 ZR 20
1) Weight is calculated in accordance with the relevant EC Directives and is valid for vehicles with standard specification only. Optional equipment increases this figure. The figure given includes 68 kg for the driver and 7 kg for luggage.2) Data determined in the NEDC (New European Driving Cycle) in accordance with the Euro 5 (715/2007/ EC and 692/2008/ EC) measurement method. The figures do not refer to an individual vehicle nor do they constitute par t of the of fer.
They are intended solely as a means of comparing dif ferent t ypes of vehicle. You can obtain fur ther information about individual vehicles from your Porsche Centre. Fuel consumption calculated for vehicles with standard specification
only. A vehicle’s fuel consumption and CO
2 emissions depend not only on its ef ficient use of fuel but also on driving st yle and other non ­technical factors. Actual consumption and per formance may var y with items of optional equipment.

146147
#
‘911’ badge 128
A
Adaptive cruise control 93
Airbags 80
Anti ­theft protection 97
Audio interface, universal 100
AudioPilot
® 10 3
Auto start/stop function 43
B
Bi­Xenon headlights 83
Body 54
BOSE
® Surround Sound System 103
Brakes 76
Burmester
®
High ­End Surround Sound System 104
C
Cataly tic converter 46, 117
CD/ DVD autochanger 100
Chassis 54
Climate control 92
Coasting 51 Colours
Exterior 122
Interior 124
Comfort 84
Communication 98
Cruise control 92
D
Digital radio 100
Direct fuel injection (DFI) 44
Dry ­sump lubrication, integrated 46
Dynamic engine mounts 69
E
Electrical system recuperation 43
Emission control 117
Engine management system 47
Engineered safety design 56
Engines 38
3.4 ­litre boxer engine 40
3.8 ­litre boxer engine 40
E n v i r o n m e n t 114
Exhaust system 46
Exterior mirrors and rear ­view mirror 94
F
Factory collection 137
Front axle 57
F u e l 117
Fuel consumption 117
Fuel system 117
H
Headlight cleaning system 83
HomeLink
®
(programmable garage door opener) 92
Hood 58
I
I numbers 128
Instruments 87
Intake manifold 46
K
Knock control, cylinder­specific 47
L
Leather 124, 133
LED main headlights 83Light design package
92
Lights 82
Logbook, electronic 101
Luggage compartment 96
M
Manual gearbox 48
M a t e r i a l s 117
Memory package 90
Mobile phone preparation 101
Models 20
Motorsport 108
O
On­board computer 87
On ­board diagnostics 47
Online services 102
P
Panorama 138
ParkAssist 94
Parking brake, electric 80
Performance display 69
Personalisation 120
Porsche Active Suspension
Management (PASM) 62Porsche Ceramic Composite

Brake (PCCB) 78
Porsche Communication 98
Management (PCM) 99
Porsche Doppelkupplung (PDK) 50
Porsche Dynamic Chassis
Control (PDCC) 64
Porsche Dynamic Light
System (PDLS) 83
Porsche Dynamic Light System Plus
(PDLS +
) 83
Porsche Entry & Drive 96
Porsche Side Impact
Protection System (POSIP) 81
Porsche Stabilit y Management (PSM) 71
Porsche Torque Vectoring (PT V) 72
Porsche Torque Vectoring Plus
(PT V Plus) 72
Porsche Traction Management (PTM) 52
Porsche Vehicle Tracking
System (PV TS) 97
Power steering 66
Power steering Plus 66
R
Rain sensor 94
Rear axle 57
Rear differential lock 72
R e c y c l i n g 117
Roll ­over protection 81
Roof transport system 96
S
Safet y 76
Seat heating 91
Seat ventilation 91
Seats Adaptive Sports seats Plus 90
Child seats 91
Fully electric Sports seats 90
Rear seats 91
Sports seats 90
Sports seats Plus 90
Sports bucket seats 91
Slide/tilt sunroof 94
Slide/tilt sunroof, glass 95
Sound Package Plus 98 Speed limit indicator
101
SPORT but ton 67
Sport Chrono Package 67
SPORT PLUS but ton 67
Sports exhaust system 46
Sports suspension 63
Steering 66
Steering wheel heating 89
Steering wheels Multifunction steering wheel 88
SportDesign steering wheel 89
Sports steering wheel 88
Stereo Lambda control circuits 117
T
Technical data 142
Telephone module 100
TFT display 87
Thermal management 43
Transmission 48
Trim strip in a high ­gloss finish 128
T V tuner 101
Tyre Pressure Monitoring (TPM) 70
Index.
V
VarioCam Plus system 44
Voice control system 101
W
‘Welcome Home’ lighting 92
Wheels 70
Wind deflector, electric 60

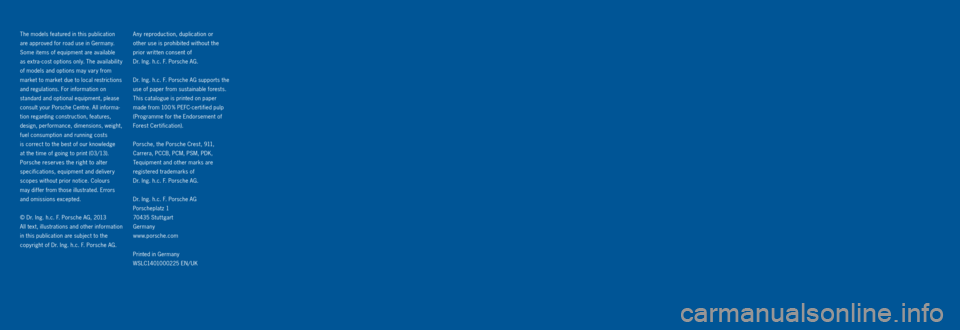

The models featured in this publication
are approved for road use in Germany.
Some items of equipment are available
as extra ­cost options only. The availabilit y
of models and options may vary from
market to market due to local restrictions
and regulations. For information on
standard and optional equipment, please
consult your Porsche Centre. All informa ­
tion regarding construction, features,
design, performance, dimensions, weight,
fuel consumption and running costs
is correct to the best of our knowledge
at the time of going to print (03/13).
Porsche reserves the right to alter
speci fications, equipment and delivery
scopes without prior notice. Colours
may differ from those illustrated. Errors
and omissions excepted.
© Dr. Ing. h.c. F. Porsche AG, 2013
All text, illustrations and other information
in this publication are subject to the
copyright of Dr. Ing. h.c. F. Porsche AG.
Any reproduction, duplication or
other use is prohibited without the
prior written consent of
Dr. Ing. h.c. F. Porsche AG.
Dr. Ing. h.c. F. Porsche AG supports the
use of paper from sustainable forests.
This catalogue is printed on paper
made from 100 % PEFC­certified pulp
(Programme for the Endorsement of
Forest Certification).
Porsche, the Porsche Crest, 911,
Carrera, PCCB, PCM, PSM, PDK,
Tequipment and other marks are
registered trademarks of
Dr. Ing. h.c. F. Porsche AG.
Dr. Ing. h.c. F. Porsche AG
Porscheplatz 1
70435 Stut tgart
Germany
www.porsche.com
Printed in Germany
WSLC1401000225 EN/UK
