PORSCHE 911 CARRERA 2013 6.G Tequipment Manual

Exterior · 21
20 · Exterior
Braking with ABS on wet road surface
(49-0 mph) at +3 °C
Braking with ABS on snow
(24-0 mph)
With winter tyres
With winter tyres With summer t yres
With summer t yres
How tyres influence braking performance:
Tyre type SizeFuel efficiency
class/rolling
resistance Wet grip class
External
rolling noise*
class
External
rolling noise
(dB)
Summer t yres 235/40 ZR 19
285/35 R 19
295/35 ZR 19
245/35 ZR 20
295/30 ZR 20
305/30 ZR 20 E
E
E
F
E
EB
C
B
A
A
A68
70
71
71
74
74
Winter t yres 235/40 R 19
285/35 R 19
245/35 R 20
295/30 R 20 E
C
E
CC
C
C
C
72
73
72–70
74 –7 3
Fuel efficiency class, wet grip class, rolling noise:
For logistical and technical reasons relating to the production process, we are unable to accept orders
for a par ticular make of t yre.
*
Quiet rolling noise,Moderate rolling noise,Loud rolling noise.
Wheel/tyre set9 11 C a r r e r a
9 11 C a r r e r a S
9 11 C a r r e r a 4
9 11 C a r r e r a 4 S
9 11 T u r b o
9 11 T u r b o S
9 11 G T 3
Wheel dimensions
(offset (ET) in mm) Tyre specifications
20-inch Turbo wheels with
winter tyres
– –•–Front: 8.5 J x 20 ET 51
Rear: 11 J x 20 ET 56 Front: 245/35 R 20 91V M+S
Rear: 295/30 R 20 97V M+S
20-inch Turbo S wheels
with winter tyres–
–•–Front: 8.5 J x 20 ET 51
Rear: 11 J x 20 ET 59 Front: 245/35 R 20 91V M+S
Rear: 295/30 R 20 97V M+S
–
––•Front: 9 J x 20 ET 51
Rear: 11 J x 20 ET 59 Front: 245/35 R 20 91V M+S
Rear: 295/30 R 20 97V M+S
For footnotes, please refer to page 21. • Compatible
– Not compatible
1 Optional: use of 5 mm spacers on front and
rear axles to widen track.
2 Winter t yres up to max. 149 mph.3 Not compatible with 5 mm wheel spacers (XRP).4 Compatible with snow chains if no spacers fit ted.5 Not compatible with snow chains – for winter t yres only.
6 The wheel centres shown are not included, except in the case of the 20 - inch Carrera S wheels in satin
platinum or black (high -gloss). If your vehicle docu -
ments do not contain details of the correct wheel and
tyre combination, please request a technical approval
cer tificate from your Porsche Centre. All t yres are
designed exclusively for Porsche as indicated by the
special Porsche designation (N0, N1, etc.) on the
sidewall. Tyres that do not carr y this designation are
not recommended for use on your Porsche.
100 105 11 0 115
Approx. 19 % shor ter braking distanceApprox. 12 % shor ter braking distance
Example:
Braking distance in % (measured with the use of tyres conforming to the\
Porsche specification).
Braking distances optimised by the use of Porsche winter tyres. Absolute values may vary.

[3] Anti-theft wheel protection
Set of four wheel bolts with highly secure
Thatcham-approved locking system.
[4] Wheel bolts in black including
anti-theft protection (not shown)
Set of 20 wheel bolts in black, four of
which are anti-theft wheel bolts. Two
versions available: for vehicles with and
vehicles without 5 mm spacers.
[1] Snow chains
Specially designed for Porsche models
and featuring ultra-fine links for minimal
adhesion of ice and snow. Set of t wo
for rear axle.
Not compatible with wheel spacers.
[2] Wheel centres
Set of wheel centre caps with full- colour
Porsche Crest. The perfect finishing touch
for the wheels of your 911.
Exterior · 23
22 · Exterior
[5] Wheel spacers
Wheel spacers create a wider track for
enhanced stability and presence on
the road. When fit ted, your 911 will look
even sportier, as the wheels run virtually
flush with the body of the car. Package
comprises a set of four spacers (5 mm)
including a set of 20 wheel bolts in black,
four of which are anti-theft wheel bolts.
[6] Crested valve caps
Silver- coloured valve caps with embossed
Porsche Crest.
For vehicles with TPM
1 or without TPM1
(not shown).
1 Tyre pressure monitoring.
1 2 3
6
5

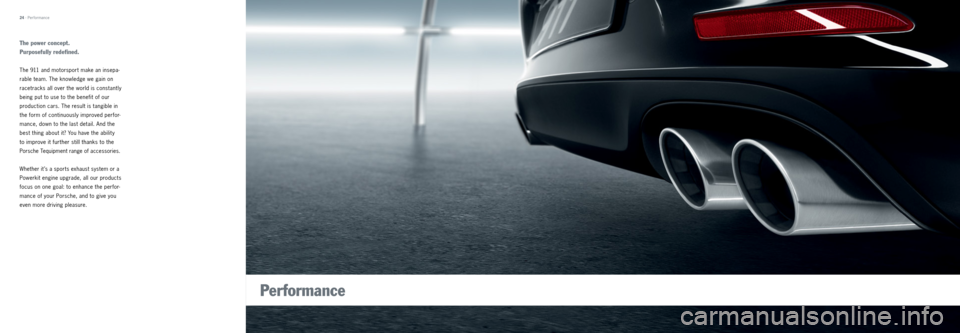

24 · Performance
The power concept.
Purposefully redefined.
The 911 and motorsport make an insepa -
rable team. The knowledge we gain on
racetracks all over the world is constantly
being put to use to the benefit of our
production cars. The result is tangible in
the form of continuously improved perfor -
mance, down to the last detail. And the
best thing about it? You have the abilit y
to improve it further still thanks to the
Porsche Tequipment range of accessories.
Whether it ’s a sports exhaust system or a
Powerkit engine upgrade, all our products
focus on one goal: to enhance the perfor -
mance of your Porsche, and to give you
even more driving pleasure.
Performance

Performance · 27
26 · Performance
The only alternative to power?
Even more power. In plain figures, we have managed to
increase power output from 294 kW

(400 hp) to 316 kW (430 hp) and improve
acceleration from 0 to 62 mph by
0.1 seconds. The 911 Carrera S models
with PDK1 and SPORT PLUS but ton complete
the sprint in an impressive 4.0 seconds.
The fastest variant in the range reaches a
top speed of 191 mph. To develop the Powerkit, a number of
sophisticated measures were needed.

The cylinder head intake ports have been
reworked and given a polished finish.
The stroke of the intake camshaft has
been increased and the electronic engine
management adapted accordingly. The highlight of the Carrera S Powerkit is
the newly developed variable resonance
intake manifold with six plus one switchable
valves. This innovation enables the system
to switch bet ween power- and torque-
optimised geometries and deliver a boost
in power output, particularly in the upper
speed range. The extra heat generated by this power increase is dissipated by an
additional centre radiator.
Other components include the sports
exhaust system with t wo specially designed
twin tailpipes and the titanium-coloured
engine cover featuring inlays in carbon. Some models may require additional

components. (Please see fit ting and
conversion instructions.)1 7-speed Porsche Doppelkupplung (PDK).
The 911 was born out of passion for the
sports car. The source of this passion
can be traced back to the Porsche Devel-
opment Centre in Weissach. Here, our
designers and engineers give their all to produce breakthrough after breakthrough.
The most recent accomplishment is the
new Carrera S Powerkit – available for

the 911 Carrera S models (t ype 991).
911 Carrera S/911 Carrera 4S models with Powerkit
911 Carrera S/911 Carrera 4S models series
For fuel consumption and C02 emissions, please refer to page 63.
300
380 400 420 440
460
280 290 300 310 320 330
1000
7000
1500 20002500 3000350040004500 5000550060006500 320
340
3608000
7500 480 500
230 240
250 260 270
Engine speed (rpm)
T orque (Nm)
Power output (kW)
911 Carrera S Coupé/911 Carrera 4S Coupé models with manual transm\
ission/PDK
Performance
911 Carrera S911 Carrera 4S
Top speed 191 m p h / 19 0 m p h188 mph/187 mph
0 – 62 mph 4.4 secs/4.2 secs4.4 secs/4.2 secs
0 – 62 mph with
SPORT PLUS button –/4.0 secs
–/4.0 secs
Flexibility/
overtaking acceleration
(49 –74 m p h ) 5.9 secs/2.4 secs
5t h ge a r/–
6.0 secs/2.5 secs
5t h ge a r/–
911 Carrera S Cabriolet/911 Carrera 4S Cabriolet models with manual transmission/PDK
Performance
911 Carrera S Cabriolet
911 Carrera 4S Cabriolet
Top speed 189 mph/188 mph18 6 m p h / 185 m p h
0 – 62 mph 4.6 secs/4.4 secs4.6 secs/4.4 secs
0 – 62 mph with
SPORT PLUS button –/4.2 secs
–/4.2 secs
Flexibility/
overtaking acceleration
(49 –74 m p h ) 6.2 secs/2.5 secs
5t h ge a r/–
6.3 secs/2.7 secs
5t h ge a r/–

1
28 29
3
2
1
1
28 · Performance Performance · 29
[1] Sports exhaust system
The t ypical Porsche sound – powerful,
robust and sport y. Bet ter still, it can
be further enhanced thanks to the sports
exhaust system, featuring a modified
silencer and specially designed t win dual-
tube tailpipes. By simply pressing the but ton integrated in the right half of the
control panel, the sound will vary with
driving behaviour, ranging from a robust
output during normal road driving to a

distinctively more aggressive tone during
performance use. The specially designed
tailpipes are included as standard. Some models may require additional

components. (Please see fit ting and
conversion instructions.)
[2] Sports tailpipes
Specially designed twin tailpipes in
chrome-plated stainless steel. Give a
sport y look to the rear of your 911.
[3] Fuel filler cap
with Aluminium Look finish
This elegant accessory is a st ylish addition
inspired by our racing heritage. Modelled
on filler caps from historic race vehicles,
it has an engraved ‘PORSCHE’ logo and
securing tether.

Interior
30 · Interior
Why should we be the only devoted
911 exterior and interior stylists?
The 911 is unmistakable on the outside
thanks to its unique silhouet te. Your
911 is unmistakable on both the outside
and the inside because the interior leaves
scope for further personalisation. After all,
this sports car was designed to reflect
your particular lifestyle and symbolise
freedom. Creative freedom included.

[3] Carb o n
Carbon is a light but highly durable material
which has its origins in motorsport. Its
look is the ideal complement to the car’s
race-bred engineering.
[4] Aluminium
Brushed aluminium sets clear accents and
gives the interior a sport y minimalist look.
[5] Alcantara
This high- qualit y material is easy to care
for, washable and has excellent non-slip
properties.
[1] Leather
Leather is a traditional natural material –
a true classic. Items made of leather are
both timeless and hard-wearing.
[2] Mahogany1
Mahogany is a dark, fine wood. Its fine
grain gives it a very modern and elegant
look.
1 Since wood is a natural product, there
may be variations in colour and grain.
The 911 symbolises creative freedom.
Not least on the inside.
Interior · 33
32 · Interior
4
2
1, 3 5
1
3

[3] Centre console trim in mahogany
Give your 911 an added personal touch
with the centre console trim in mahogany.
Charismatic and unique, just like you.
[1] Mahogany interior package
This package comprises inlays in
mahogany on the gear lever or PDK
1
gear selector and decorative strips in
mahogany on the dashboard.
[2] Heated multifunction steering
wheel in mahogany
The grain on the mahogany multifunction
steering wheel is as unique as a fingerprint.
Thanks to the integrated but tons, you have
control over a number of audio, navigation
and where applicable, telephone functions
at your fingertips.
Interior · 35
34 · Interior
[6] Centre console trim in carbon
This trim is more than just a sport y detail,
it adds a touch of motorsport.
1 7-speed Porsche Doppelkupplung (PDK).[4] Carbon interior package
This package comprises inlays in carbon
on the gear lever or PDK
1 gear selector
and decorative strips in carbon on the
dashboard.
[5] Heated multifunction steering wheel
in carbon
The multifunction steering wheel in
carbon brings you closer to the racetrack.
Thanks to the integrated but tons, you
have control over a number of audio,
navigation and where applicable, tele
-
phone functions at your fingertips.
1, 2 3 4, 56

[3] PDK1 gear selector in aluminium
Specially designed PDK1 gear selector in
aluminium. The PDK
1 gear selector inlays
feature leather trim in the interior colour.
[4] PD K1 gear selector in Alcantara,
gear lever in Alcantara (not shown)
This gear lever/ PDK1 gear selector
highlights the close association of

Porsche with motorsport. Both are
finished in black Alcantara.
[5] SportDesign steering wheel
This steering wheel in leather adds a
distinctly sport y accent. Two versions
are available: one for the manual gearbox
and one for PDK1. The PDK1 version is
equipped with gearshift paddles. The
right-hand paddle shifts up, the left-hand
paddle shifts down.
[6] SportDesign steering wheel
in Alcantara (not shown)
Alcantara makes the steering wheel
particularly easy to grip, robust and
straightforward to maintain – properties
appreciated not only in motorsport.
[1] Brushed aluminium interior package
This package comprises inlays in brushed
aluminium on the gear lever or PDK
1 gear
selector and decorative strips in brushed
aluminium on the dashboard.
[2] Centre console trim in brushed
aluminium
Every detail should be exactly as you
imagined. This trim in brushed aluminium
enhances the sport y feel of the interior.
1 7-speed Porsche Doppelkupplung (PDK).
Interior · 37
36 · Interior
1, 5 2 5
4 3

[3] Rubber floor mats
Two made-to -measure floor mats in
an appealing design featuring the
911 silhouet te and ‘PORSCHE’ logo.
Anti-slip and waterproof with perimeter
ridges.
[4] Rear footwell lighting (not shown)
Highlight the ambience of the interior
with additional LEDs for the rear left and
right footwells.
[1] Storage compartment lid
with Porsche Crest
The lid of the centre console storage
compartment is finished in leather in
the colour of the interior and embossed
with a Porsche Crest.
[2] Floor mats with nubuck edging
Made-to -measure floor mats with nubuck
edging and ‘PORSCHE’ logo, which have
a waterproof underside and are non-slip.
They are secured by a special fastener
system. Available as a set of t wo or four.
The interior of your 911.
A dream within a dream.[5] Key pouch in leather
In smooth-finish leather with decorative
stitching and embossed Porsche Crest.
Includes the tether for the vehicle key.
Interior · 39
38 · Interior
[6] Vehicle key painted
A special kind of door opener: set of t wo
vehicle key side mouldings with painted
finish.
2
1 35, 6
