PORSCHE 911 CARRERA EXCLUSIVE 2012 6.G Information Manual

1
23
4
20 · 911 Carrera S in Guards Red
The elegant interior demonstrates our
passion for detail and is unmistakable.
An extensive selection of features are
finished in Platinum Grey leather. The rear ­
view mirror, the decorative trims on the
dashboard and door panels and the seats
with the Porsche Crest embossed on the
headrests reflect our commitment to
outstanding craftsmanship. Even the air
vent slats have been painstakingly lined
in ultra ­thin leather. The decorative seams
on selected items, such as the rear centre
console or the backrests of the Sports
seats Plus, are the epitome of refinement
and high qualit y, accentuating the elegant
appearance of the leather. Originality sometimes means adding a
splash of colour. Here, this has been
achieved with contrasting elements in the
exterior colour of the vehicle. Clear
accents in Guards Red are set, for example,
by the seat belts and Sport Chrono
stopwatch. Another striking feature is the
red leather edging on the personalised
floor mats.
The PDK gear selector in aluminium is an
additional highlight, and one more detail in
an exclusive overall composition.
As you can see, even on the inside, there
is room to make your car individual.
This has always been an integral part of
the 911 identit y – and yours.

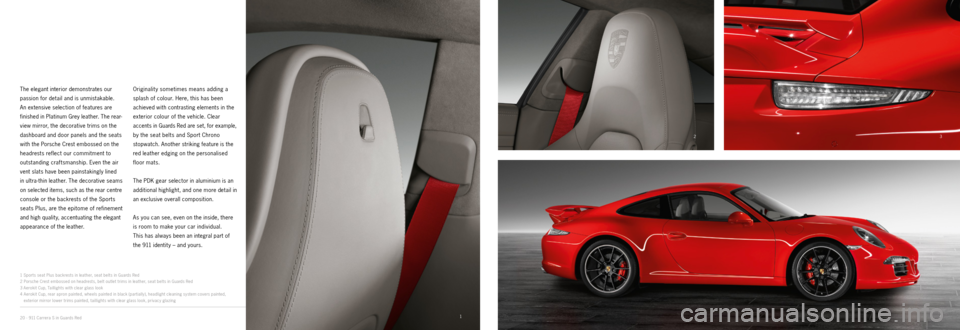

1 Sports seat Plus backrests in leather, seat belts in Guards Red
2 Porsche Crest embossed on headrests, belt outlet trims in leather, seat belts in Guards Red
3 Aerokit Cup, Taillights with clear glass look
4 Aerokit Cup, rear apron painted, wheels painted in black (partially), headlight cleaning system covers painted,
exterior mirror lower trims painted, taillights with clear glass look, privacy glazing

22 · Colours and materialsColours and materials · 23

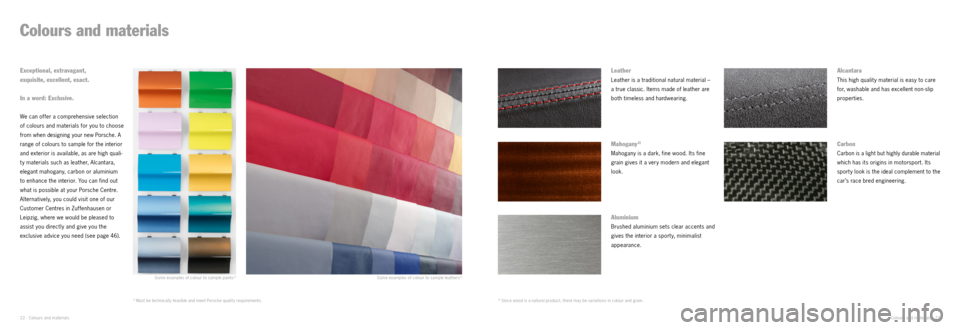

Colours and materials
We can offer a comprehensive selection
of colours and materials for you to choose
from when designing your new Porsche. A
range of colours to sample for the interior
and exterior is available, as are high quali­
t y materials such as leather, Alcantara,
elegant mahogany, carbon or aluminium
to enhance the interior. You can find out
what is possible at your Porsche Centre.
Alternatively, you could visit one of our
Customer Centres in Zuffenhausen or
Leipzig, where we would be pleased to
assist you directly and give you the
exclusive advice you need (see page 46).
Some examples of colour to sample leathers 1)Some examples of colour to sample paints 1)
Leather
Leather is a traditional natural material –
a true classic. Items made of leather are
both timeless and hardwearing.
Alcantara
This high qualit y material is easy to care
for, washable and has excellent non­slip
properties.
Mahogany 2)
Mahogany is a dark, fine wood. Its fine
grain gives it a very modern and elegant
look.
Carb o n
Carbon is a light but highly durable material
which has its origins in motorsport. Its
sport y look is the ideal complement to the
car’s race bred engineering.
Aluminium
Brushed aluminium sets clear accents and
gives the interior a sport y, minimalist
appearance.
2) Since wood is a natural product, there may be variations in colour and grain.1) Must be technically feasible and meet Porsche qualit y requirements.
Exceptional, extravagant,
exquisite, excellent, exact.
In a word: Exclusive.

12
3
Exclusive options · 25
24 · Exclusive options
1) Available from 11/2012 at the earliest.2) Painted in exterior colour unless other wise specified at the time of order.
More information on paint finishes in a contrasting exterior colour is available from your Porsche Centre.
3) Available from 10/2012 at the earliest.
– not available
I number/extra - cost option • standard available at no extra cost
More detailed information on individual equipment and equipment packages can be found in the respective vehicle price list. 1 Front spoiler painted, air intake grilles painted

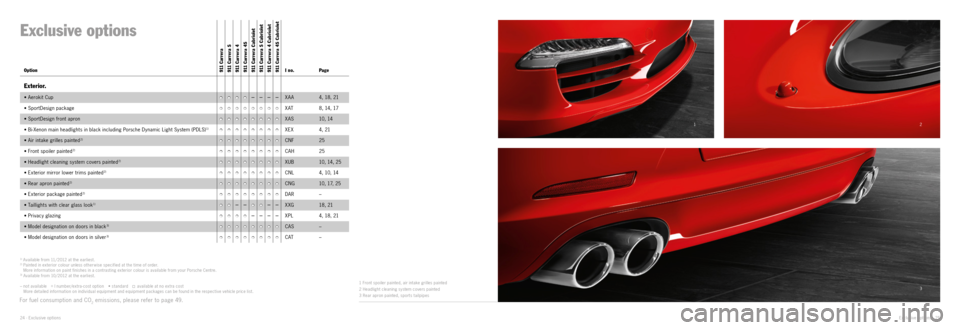

2 Headlight cleaning system covers painted
3 Rear apron painted, sports tailpipes
Option9 11
C a r r e r a
9 11 C a r r e r a S
9 11 C a r r e r a 4
9 11 C a r r e r a 4 S
911 Carrera Cabriolet
911 Carrera S Cabriolet
911 Carrera 4 Cabriolet
911 Carrera 4S CabrioletI no. Page
Exterior.
• Aerokit Cup••••–
–––XAA 4, 18, 21
• SportDesign package
••••••••X AT8, 14, 17
• SportDesign front apron
••••••••XAS10 , 14
• Bi-Xenon main headlights in black including Porsche Dynamic Light System (PDLS)
1)••••••••XEX4, 21
• Air intake grilles painted
2)••••••••CNF25
• Front spoiler painted
2)••••••••CAH25
• Headlight cleaning system covers painted
2)••••••••XUB 10, 14, 25
• Exterior mirror lower trims painted
2)••••••••CNL 4, 10, 14
• Rear apron painted
2)••••••••CNG 10, 17, 25
• Exterior package painted
2)••••••••DAR –
• Taillights with clear glass look
1)•• –
–••–
–X XG 18, 21
• Privacy glazing
•••• –
–––XPL 4, 18, 21
• Model designation on doors in black
3)••••••••CAS –
• Model designation on doors in silver
3)••••••••C AT –
Exclusive options
For fuel consumption and CO2 emissions, please refer to page 49.

3
4
2 1
Exclusive options · 27
26 · Exclusive options
1) Includes wheel centres with full ­colour Porsche Crest. 2) Available from 09/2012 at the earliest.3) Only in conjunction with 20 ­inch Carrera S wheels.
– not available
I number/extra - cost option • standard available at no extra cost
More detailed information on individual equipment and equipment packages can be found in the respective vehicle price list. 1

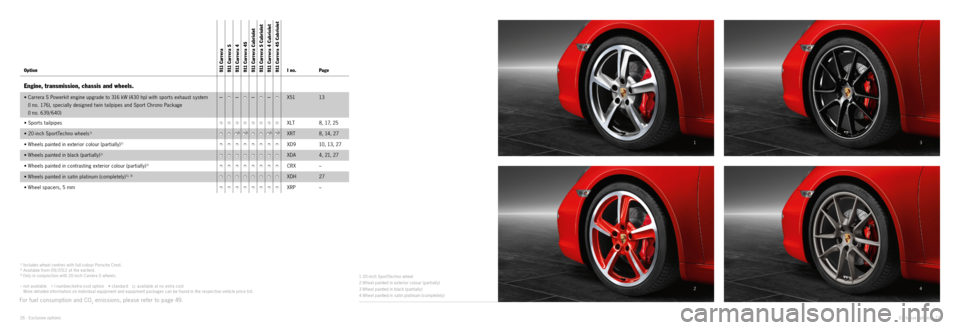

20 ­inch SportTechno wheel
2 Wheel painted in exterior colour (partially)
3 Wheel painted in black (partially)
4 Wheel painted in satin platinum (completely)
Option9 11 C a r r e r a
9 11 C a r r e r a S
9 11 C a r r e r a 4
9 11 C a r r e r a 4 S
911 Carrera Cabriolet
911 Carrera S Cabriolet
911 Carrera 4 Cabriolet
911 Carrera 4S CabrioletI no. Page
Engine, transmission, chassis and wheels.
• Carrera S Powerkit engine upgrade to 316 kW (430 hp) with sports exhaust system
(I no. 176), specially designed t win tailpipes and Sport Chrono Package
(I no. 639/640)–• –•–•–•X51
13
• Sports tailpipes
••••••••X LT 8, 17, 25
• 20 -inch SportTechno wheels
1)•••2)•2)•••2)•2)XRT 8, 14, 27
• Wheels painted in exterior colour (partially)
1)••••••••XD9 10, 13, 27
• Wheels painted in black (partially)
1)••••••••XDA 4, 21, 27
• Wheels painted in contrasting exterior colour (partially)
1) ••••••••CRX –
• Wheels painted in satin platinum (completely)
1), 3)••••••••XDH27
• Wheel spacers, 5 mm
••••••••XRP –
For fuel consumption and CO2 emissions, please refer to page 49.

1
2 3
Exclusive options · 29
28 · Exclusive options
1) Paint in exterior colour. 2) Available from 11/2012 at the earliest.3) Painted in exterior colour unless other wise specified at the time of order.
More information on paint finishes in a contrasting exterior colour is available from your Porsche Centre.
– not available
I number/extra - cost option • standard available at no extra cost
More detailed information on individual equipment and equipment packages can be found in the respective vehicle price list. 1

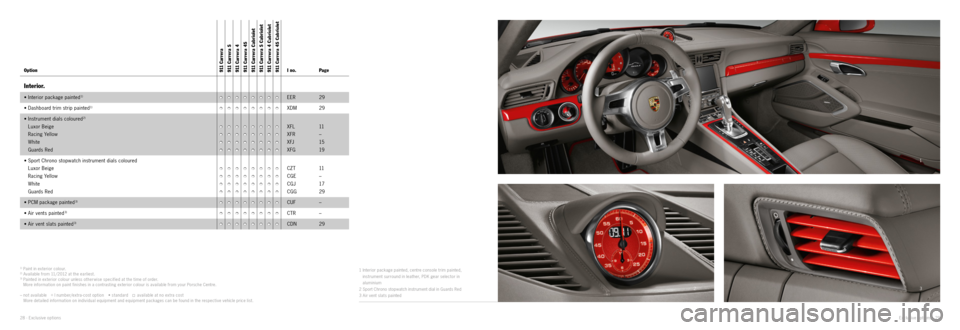

Interior package painted, centre console trim painted,
instrument surround in leather, PDK gear selector in
aluminium 2 Sport Chrono stopwatch instrument dial in Guards Red
3 Air vent slats painted
Option9 11 C a r r e r a
9 11 C a r r e r a S
9 11 C a r r e r a 4
9 11 C a r r e r a 4 S
911 Carrera Cabriolet
911 Carrera S Cabriolet
911 Carrera 4 Cabriolet
911 Carrera 4S CabrioletI no. Page
Interior.
• Interior package painted 1)••••••••EER29
• Dashboard trim strip painted
1)••••••••XDM 29
• Instrument dials coloured
2)
Luxor Beige
Ra c i n g Ye l l o w
White
G u a rd s R e d
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
XFL
XFR
X FJ
XFG 11
–
15
19
• Sport Chrono stopwatch instrument dials coloured
Luxor Beige
Ra c i n g Ye l l o w
White
G u a rd s R e d
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
CZT
CGE
CGJ
CGG 11
–
17
29
• PCM package painted
3)••••••••CUF –
• Air vents painted
3)••••••••CTR –
• Air vent slats painted
3)••••••••CDN 29

12
3
30 · Exclusive options Exclusive options · 31
1) Paint in exterior colour. 2) Painted in exterior colour unless other wise specified at the time of order.
More information on paint finishes in a contrasting exterior colour is available from your Porsche Centre.
– not available
I number/extra - cost option • standard available at no extra cost
More detailed information on individual equipment and equipment packages can be found in the respective vehicle price list. 1

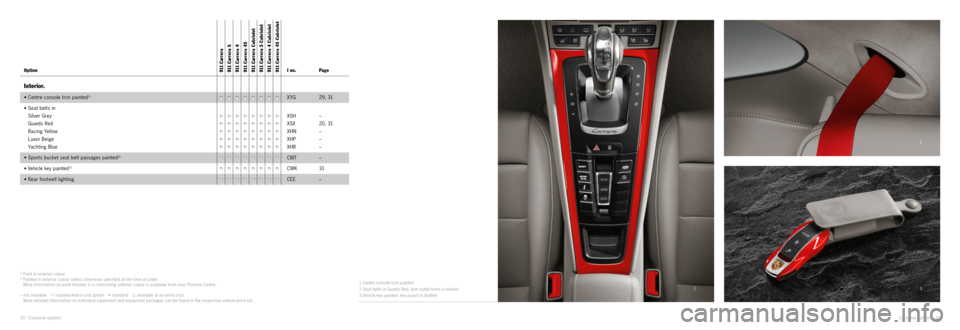

Centre console trim painted
2 Seat belts in Guards Red, belt outlet trims in leather
3 Vehicle key painted, key pouch in leather
Option9 11 C a r r e r a
9 11 C a r r e r a S
9 11 C a r r e r a 4
9 11 C a r r e r a 4 S
911 Carrera Cabriolet
911 Carrera S Cabriolet
911 Carrera 4 Cabriolet
911 Carrera 4S CabrioletI no. Page
Interior.
• Centre console trim painted 1)••••••••X YG29, 31
• Seat belts in
Silver Grey
G u a rd s R e d
Ra c i n g Ye l l o w
Luxor Beige
Yachting Blue
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
XSH
XSX
XHN
XHP
XHR –
20, 31
–
–
–
• Sports bucket seat belt passages painted
2)••••••••CMT –
• Vehicle key painted
2)••••••••CWK31
• Rear footwell lighting
••••••••CEE –

12
3
32 · Exclusive options Exclusive options · 33

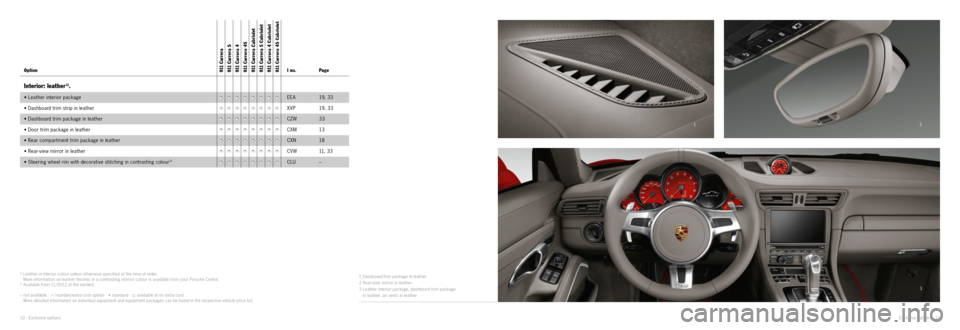

1 Dashboard trim package in leather
2 Rear
­view mirror in leather
3 Leather interior package, dashboard trim package
in leather, air vents in leather
1) Leather in interior colour unless other wise specified at the time of order.
More information on leather finishes in a contrasting interior colour is available from your Porsche Centre.
2) Available from 11/2012 at the earliest.
– not available
I number/extra - cost option • standard available at no extra cost
More detailed information on individual equipment and equipment packages can be found in the respective vehicle price list.
Option9 11 C a r r e r a
9 11 C a r r e r a S
9 11 C a r r e r a 4
9 11 C a r r e r a 4 S
911 Carrera Cabriolet
911 Carrera S Cabriolet
911 Carrera 4 Cabriolet
911 Carrera 4S CabrioletI no. Page
Interior: leather 1).
• Leather interior package••••••••EEA19, 3 3
• Dashboard trim strip in leather
••••••••XVP 19, 3 3
• Dashboard trim package in leather
••••••••CZW33
• Door trim package in leather
••••••••CXM13
• Rear compartment trim package in leather
••••••••CXN18
• Rear-view mirror in leather
••••••••CVW11, 3 3
• Steering wheel rim with decorative stitching in contrasting colour
2)••••••••CLU –

1
2 3
34 · Exclusive options Exclusive options · 35
1) Leather in interior colour unless other wise specified at the time of order.
More information on leather finishes in a contrasting interior colour is available from your Porsche Centre.
2) Available from 11/2012 at the earliest.
– not available
I number/extra - cost option • standard available at no extra cost
More detailed information on individual equipment and equipment packages can be found in the respective vehicle price list. 1
Centre console trim in leather,
storage compartment lid with Porsche Crest
2 Steering column casing in leather
3 Air vents in leather
Option9 11 C a r r e r a
9 11 C a r r e r a S
9 11 C a r r e r a 4
9 11 C a r r e r a 4 S
911 Carrera Cabriolet
911 Carrera S Cabriolet
911 Carrera 4 Cabriolet
911 Carrera 4S CabrioletI no. Page
Interior: leather 1).
• Instrument surround upper section in leather 2)••••••••XNG29
• Steering column casing in leather
••••••••XNS 35
• Air vents in leather
••••••••CTK11, 15, 35
• Air vent slats in leather
••••••••CZV–
• PCM package in leather
••••••••CUR 12, 33, 39
• Centre console trim in leather
••••••••XHB 35
• Storage compartment lid with model logo
••••••••XUV 37
• Storage compartment lid with Porsche Crest
••••••••XPT 16 , 3 5
• Transmission tunnel in rear in leather with decorative stitching
••••••••XHS 18
• Sports seat Plus backrests in leather
••••••••XWK 20

123
4
36 · Exclusive options Exclusive options · 37

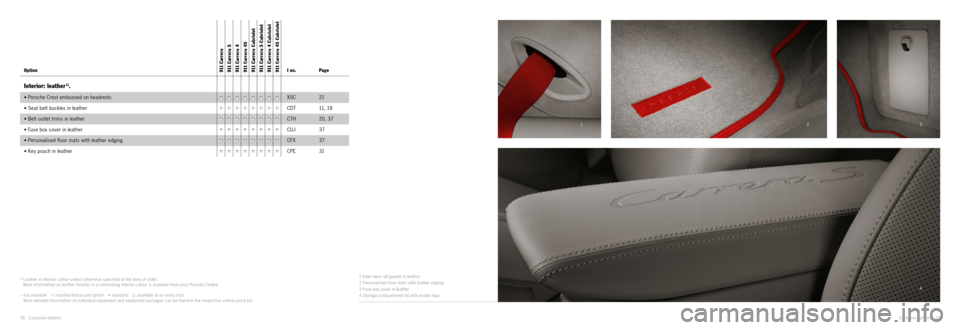

1
Inner door sill guards in leather
2 Personalised floor mats with leather edging
3 Fuse box cover in leather
4 Storage compartment lid with model logo
1) Leather in interior colour unless other wise specified at the time of order.
More information on leather finishes in a contrasting interior colour is available from your Porsche Centre.
– not available
I number/extra - cost option • standard available at no extra cost
More detailed information on individual equipment and equipment packages can be found in the respective vehicle price list.
Option9 11 C a r r e r a
9 11 C a r r e r a S
9 11 C a r r e r a 4
9 11 C a r r e r a 4 S
911 Carrera Cabriolet
911 Carrera S Cabriolet
911 Carrera 4 Cabriolet
911 Carrera 4S CabrioletI no. Page
Interior: leather 1).
• Porsche Crest embossed on headrests••••••••XSC21
• Seat belt buckles in leather
••••••••CDT 11, 1 8
• Belt outlet trims in leather
••••••••CTH 20, 37
• Fuse box cover in leather
••••••••CUJ37
• Personalised floor mats with leather edging
••••••••CFX 37
• Key pouch in leather
••••••••CPE 31

1
2 3
38 · Exclusive options Exclusive options · 39
1
Carbon interior package, centre console
trim in carbon, heated multifunction steering
wheel in carbon
2 Centre console trim in mahogany
3 PDK gear selector in aluminium
1) Since wood is a natural product, there may be variations in colour and grain.2) Available from 11/2012 at the earliest.
– not available
I number/extra - cost option • standard available at no extra cost
More detailed information on individual equipment and equipment packages can be found in the respective vehicle price list.
Option9 11 C a r r e r a
9 11 C a r r e r a S
9 11 C a r r e r a 4
9 11 C a r r e r a 4 S
911 Carrera Cabriolet
911 Carrera S Cabriolet
911 Carrera 4 Cabriolet
911 Carrera 4S CabrioletI no. Page
Interior: Alcantara, mahogany 1), carbon, aluminium.
• PDK gear selector in Alcantara ••••••••CLH–
• Gear lever in Alcantara
2)••••••••CLB –
• Mahogany interior package
••••••••EEB/EEC/
EED/EEF 11,

back cover
• Heated multifunction steering wheel in mahogany
••••••••XHF cover, 11
• Centre console trim in mahogany
••••••••XHG 12 , 3 9
• Carbon interior package
••••••••EEG/EEH/
EEJ/EEK 39
• Heated multifunction steering wheel in carbon
••••••••XHL 39
• Centre console trim in carbon
••••••••XHM 39
• Brushed aluminium interior package
••••••••EEL/EEM/
EEN/EEP 15
• Centre console trim in brushed aluminium
••••••••XYE 15
• PDK gear selector in aluminium
••••••••X YA 19, 39
• Pedals and footrest in aluminium
2)••••••••EFA –
