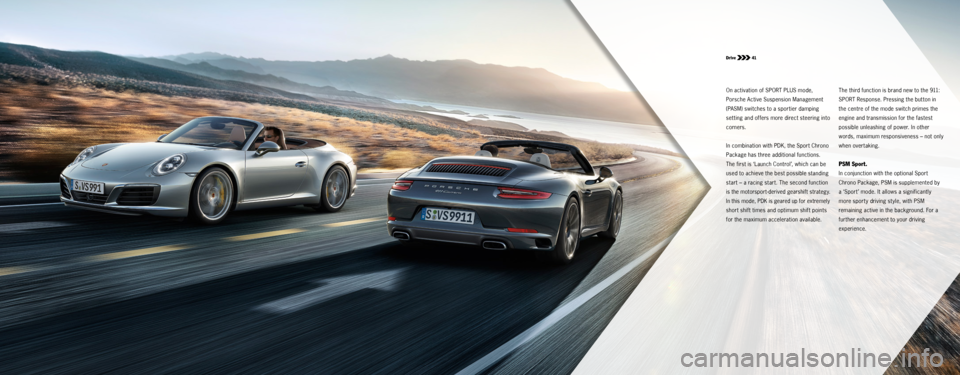

Drive 41
On activation of SPORT PLUS mode,
Porsche Active Suspension Management
(PASM) switches to a sportier damping
setting and offers more direct steering into
corners.
In combination with PDK, the Sport Chrono
Package has three additional functions.
The first is ‘Launch Control’, which can be
used to achieve the best possible standing
start – a racing start. The second function
is the motorsport-derived gearshift strategy.
In this mode, PDK is geared up for extremely
short shift times and optimum shift points
for the maximum acceleration available. The third function is brand new to the 911:
SPORT Response. Pressing the button in
the centre of the mode switch primes the
engine and transmission for the fastest
possible unleashing of power. In other
words, maximum responsiveness – not only
when overtaking.
PSM Sport.
In conjunction with the optional Sport
Chrono Package, PSM is supplemented by
a ‘Sport ’ mode. It allows a significantly
more sporty driving style, with PSM
remaining active in the background. For a
further enhancement to your driving
experience.
Page 22 of 29
Comfort
Page 23 of 29

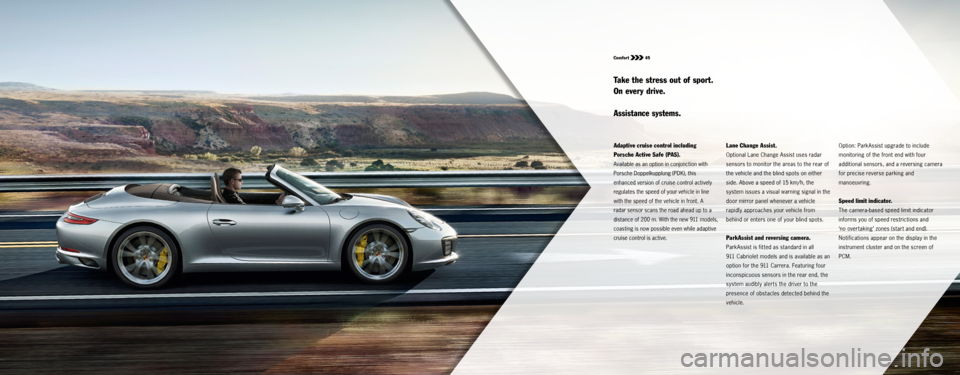

Comfort 45
Adaptive cruise control including
Porsche Active Safe (PAS).
Available as an option in conjunction with
Porsche Doppelkupplung (PDK), this
enhanced version of cruise control actively
regulates the speed of your vehicle in line
with the speed of the vehicle in front. A
radar sensor scans the road ahead up to a
distance of 200 m. With the new 911 models,
coasting is now possible even while adaptive
cruise control is active.
Lane Change Assist.
Optional Lane Change Assist uses radar
sensors to monitor the areas to the rear of
the vehicle and the blind spots on either
side. Above a speed of 15 km/ h, the
system issues a visual warning signal in the
door mirror panel whenever a vehicle
rapidly approaches your vehicle from
behind or enters one of your blind spots.
ParkAssist and reversing camera.
ParkAssist is fitted as standard in all
911 Cabriolet models and is available as an
option for the 911 Carrera. Featuring four
inconspicuous sensors in the rear end, the
system audibly alerts the driver to the
presence of obstacles detected behind the
vehicle. Option: ParkAssist upgrade to include
monitoring of the front end with four
additional sensors, and a reversing camera
for precise reverse parking and
manoeuvring.
Speed limit indicator.
The camera-based speed limit indicator
informs you of speed restrictions and
‘no overtaking’ zones (start and end).
Notifications appear on the display in the
instrument cluster and on the screen of
PCM.
Take the stress out of sport.
On every drive.
Assistance systems.
Page 24 of 29

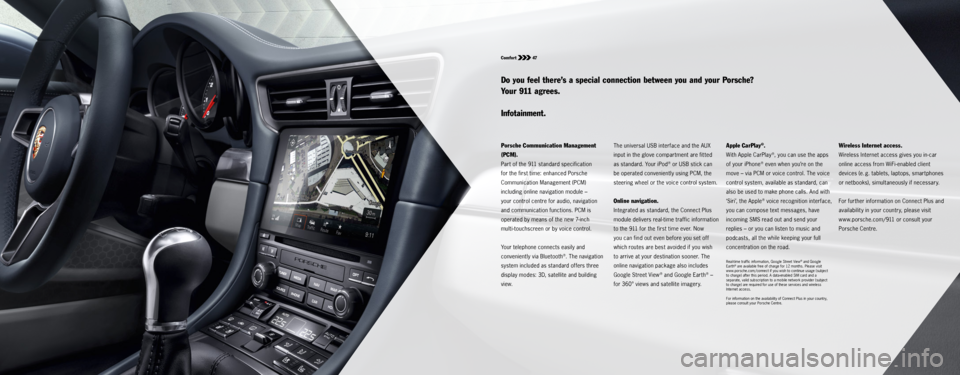

Comfort 47
Porsche Communication Management
(PCM).
Part of the 911 standard specification
for the first time: enhanced Porsche
Communication Management (PCM)
including online navigation module –
your control centre for audio, navigation
and communication functions. PCM is
operated by means of the new 7-inch
multi-touchscreen or by voice control.
Your telephone connects easily and
conveniently via Bluetooth
®. The navigation
system included as standard offers three
display modes: 3D, satellite and building
v iew.
The universal USB interface and the AUX
input in the glove compartment are fitted
as standard. Your iPod
® or USB stick can
be operated conveniently using PCM, the
steering wheel or the voice control system.
Online navigation.
Integrated as standard, the Connect Plus
module delivers real-time traffic information
to the 911 for the first time ever. Now
you can find out even before you set off
which routes are best avoided if you wish
to arrive at your destination sooner. The
online navigation package also includes
Google Street View
® and Google Earth® –
for 360° views and satellite imagery.
Apple CarPlay®.
With Apple CarPlay®, you can use the apps
of your iPhone
® even when you’re on the
move – via PCM or voice control. The voice
control system, available as standard, can
also be used to make phone calls. And with
‘Siri’, the Apple
® voice recognition interface,
you can compose text messages, have
incoming SMS read out and send your
replies – or you can listen to music and
podcasts, all the while keeping your full
concentration on the road.
Real-time traffic information, Google Street View® and Google
Earth® are available free of charge for 12 months. Please visit
www.porsche.com/connect if you wish to continue usage (subject
to charge) after this period. A data-enabled SIM card and a
separate, valid subscription to a mobile network provider (subject
to charge) are required for use of these services and wireless
Internet access.
For information on the availability of Connect Plus in your country ,
please consult your Porsche Centre.
Wireless Internet access.
Wireless Internet access gives you in-car
online access from WiFi-enabled client
devices (e. g. tablets, laptops, smartphones
or netbooks), simultaneously if necessary.
For further information on Connect Plus and
availability in your country, please visit
www.porsche.com/911 or consult your
Porsche Centre.
Do you feel there’s a special connection between you and your Porsche?
Your 911 agrees.
Infotainment.
Page 25 of 29

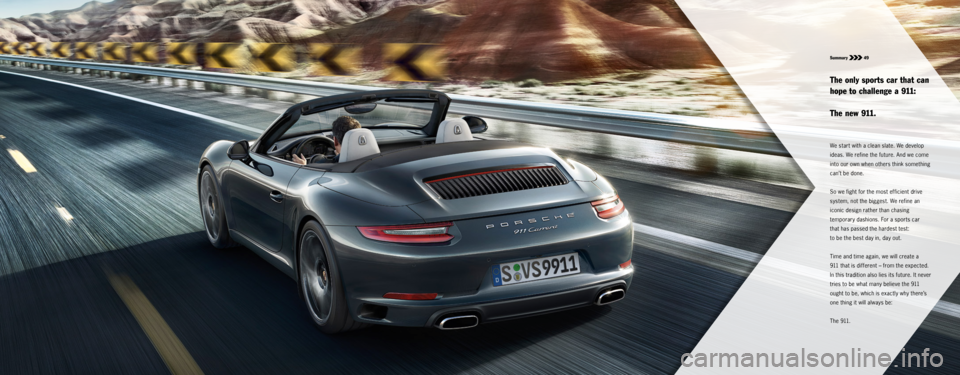

Summary 49
We start with a clean slate. We develop
ideas. We refine the future. And we come
into our own when others think something
can’t be done.
So we fight for the most efficient drive
system, not the biggest. We refine an
iconic design rather than chasing
temporary dashions. For a sports car
that has passed the hardest test:
to be the best day in, day out.
Time and time again, we will create a
911 that is different – from the expected.
In this tradition also lies its future. It never
tries to be what many believe the 911
ought to be, which is exactly why there’s
one thing it will always be:
The 911.
The only sports car that can
hope to challenge a 911:
The new 911.
Page 26 of 29
1) Weight is calculated in accordance with the relevant EC Directives and is valid for vehicles with standard specification only. Optional equipment increases this figure. The figure given includes 68 kg for the driver and 7 kg for luggage.2) Data determined in accordance with the measurement method required by law (Regulation [EC] 715/2007 as amended). The figures do not refer to an individual vehicle nor do they constitute par t of the of fer. They are intended solely as a means of comparing dif ferent
t ypes of vehicle. Fuel consumption calculated for vehicles with standard specification only. Actual consumption and per formance may var y with items of optional equipment. A vehicle's fuel consumption and CO2 emissions depend not only on its ef ficient use of fuel but
also on driving st yle and other non -technical factors. The latest Porsche models with petrol engine are designed to operate on fuels with an ethanol content of up to 10 %. You can obtain fur ther information about individual vehicles from your Porsche Centre.
3) Valid in the countries listed only.
Technical data
911 Carrera 911 Carrera Cabriolet911 Carrera S911 Carrera S Cabriolet
Weights
M a n u a l / P D K M a n u a l / P D K M a n u a l / P D K M a n u a l / P D K
Unladen weight (DIN) 1,430 kg / 1,450 kg 1,500 kg / 1,520 kg 1,440 kg / 1,460 kg 1,510 kg / 1,530 kg
Unladen weight (EC)
1)1,505 kg / 1,525 kg 1,575 kg / 1,595 kg 1,515 kg / 1,535 kg 1,585 kg / 1,605 kg
Permissible gross weight 1,875 kg / 1,890 kg 1,925 kg / 1,940 kg 1,900 kg / 1,915 kg 1,950 kg / 1,965 kg
PerformanceM a n u a l / P D K M a n u a l / P D K M a n u a l / P D K M a n u a l / P D K
Top speed 295 km/ h / 293 km/ h 292 km/ h / 290 km/ h 308 km/ h /306 km/ h 306 km/ h / 304 km/ h
0–100 km/h 4.6 secs / 4.4 secs 4.8 secs / 4.6 secs 4.3 secs / 4.1 secs 4.5 secs / 4.3 secs
0 –100 km/ h with Sport Chrono Package
(in conjunction with PDK) with Launch Control – / 4.2 secs – / 4.4 secs – / 3.9 secs – / 4.1 secs
0 –16 0 k m / h 9.8 secs / 9.5 secs 10.2 secs / 9.9 secs 8.9 secs / 8.5 secs 9.3 secs / 8.9 secs
0 –160 km/ h with Sport Chrono Package
(in conjunction with PDK) –
/ 9.2 secs – / 9.6 secs – / 8.2 secs – / 8.6 secs
Flexibilit y (80 –120 km/ h), 5th gear 5.5 secs / – 5.8 secs / – 4.8 secs / – 5.1 secs / –
Overtaking acceleration (80 –120 km/ h) – / 2.7 secs – / 2.8 secs – / 2.3 secs – / 2.4 secs
Fuel consumption/emissions2)M a n u a l / P D K M a n u a l / P D K M a n u a l / P D K M a n u a l / P D K
Urban in l/100 km 1 1 . 7 / 9 . 9 1 1 . 9 / 9 . 9 1 2 . 2 / 1 0 . 1 1 2 . 3 / 1 0 . 2
Extra urban in l/100 km 6 . 3 / 6 . 0 6 . 5 / 6 . 2 6 . 6 / 6 . 4 6 . 7 / 6 . 5
Combined in l/100 km 8 . 3 / 7 . 4 8 . 5 / 7 . 5 8 . 7 / 7 . 7 8 . 8 / 7 . 8
CO
2 emissions in g / km 1 9 0 / 1 6 9 1 9 5 / 1 7 2 1 9 9 / 1 7 4 2 0 2 / 1 7 8
Efficiency class3)M a n u a l / P D K M a n u a l / P D K M a n u a l / P D K M a n u a l / P D K
Efficiency class (Germany) F / D F / D F / E F / D
Efficiency class (Switzerland) G / FG / FG / GG / F
Dimensions/aerodynamicsM a n u a l / P D K M a n u a l / P D K M a n u a l / P D K M a n u a l / P D K
Length 4,499 mm4,499 mm4,499 mm4,499 mm
Width (including exterior mirrors) 1,808 mm (1,978 mm)1,808 mm (1,978 mm)1,808 mm (1,978 mm)1,808 mm (1,978 mm)
Height 1,294 mm1, 28 9 m m1,296 mm / 1,295 mm 1,291 mm / 1,290 mm
Wheelbase 2,450 mm2,450 mm2,450 mm2,450 mm
Luggage compartment volume
(German Car Manufacturers’ Assoc.) 14 5 l i t r e s
14 5 l i t r e s14 5 l i t r e s14 5 l i t r e s
Tank capacit y (refill volume) 64 litres (64 litres) 64 litres (64 litres) 64 litres (64 litres) 64 litres (64 litres)
Drag coefficient 0.290.300.300.30
911 Carrera / 911 Carrera Cabriolet 911 Carrera S/ 911 Carrera S Cabriolet
Engine
Cylinders 6 6
Displacement 2,981 cm
32,981 cm3
Max. power (DIN)
at rpm 272 kW (370 hp)
6,500 309 kW (420 hp)
6,500
Max. torque
at rpm 450 Nm
1,700–5,000 500 Nm
1,700–5,000
Compression ratio 1 0 . 0 : 1 1 0 . 0 : 1
Transmission
Drive Rear-wheel drive Rear-wheel drive
Manual transmission 7-speed 7-speed
Porsche Doppelkupplung (PDK), optional 7-speed 7-speed
Chassis
Front a xleMcPherson strut suspension McPherson strut suspension
Rear axle Multi-link suspension Multi-link suspension
Steering Variable steering ratio, power-assisted (electromechanical) Variable steering ratio, power-assisted (electromechanical)
Turning circle 11 . 2 m 11 . 2 m
Brakes Four-piston monobloc aluminium fixed brake calipers at front
and rear, discs internally vented and cross-drilled Six-piston monobloc aluminium fixed brake calipers at front,
four-piston units at rear, discs internally vented and cross-drilled
Vehicle stability system Porsche Stability Management (PSM) Porsche Stability Management (PSM)
Standard wheels Front: 8.5 J x 19 (ET 50), Rear: 11.5 J x 19 (ET 76) Front: 8.5 J x 20 (ET 49), Rear: 11.5 J x 20 (ET 76)
Standard tyres Front: 235/40 ZR 19, Rear: 295/35 ZR 19 Front: 245/35 ZR 20, Rear: 305/30 ZR 20
Technical data 51
Page 27 of 29

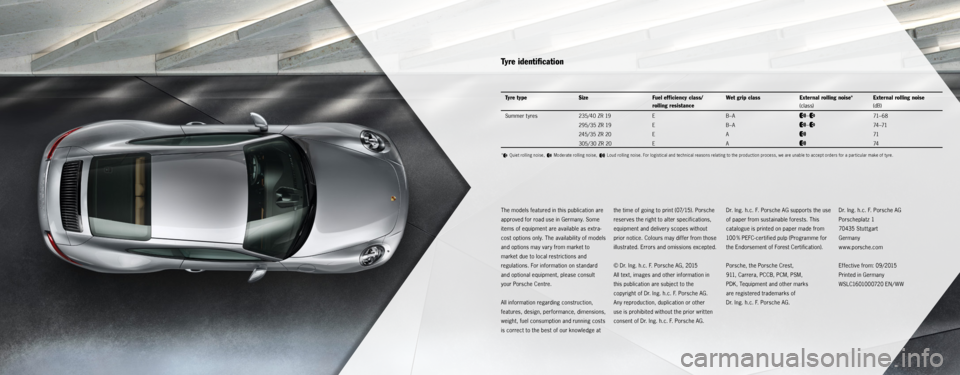

The models featured in this publication are
approved for road use in Germany. Some
items of equipment are available as extra-
cost options only. The availability of models
and options may vary from market to
market due to local restrictions and
regulations. For information on standard
and optional equipment, please consult
your Porsche Centre.
All information regarding construction,
features, design, performance, dimensions,
weight, fuel consumption and running costs
is correct to the best of our knowledge at the time of going to print (07/15). Porsche
reserves the right to alter specifications,
equipment and delivery scopes without
prior notice. Colours may differ from those
illustrated. Errors and omissions excepted.
© Dr. Ing. h.c. F.
Porsche AG, 2015
All text, images and other information in
this publication are subject to the
copyright of Dr. Ing. h.c. F. Porsche AG.
Any reproduction, duplication or other
use is prohibited without the prior written
consent of Dr. Ing. h.c. F. Porsche AG. Dr. Ing. h.c. F. Porsche AG supports the use
of paper from sustainable forests. This
catalogue is printed on paper made from
100
% PEFC-certified pulp (Programme for
the Endorsement of Forest Certification).
Porsche, the Porsche Crest,
911, Carrera, PCCB, PCM, PSM,
PDK, Tequipment and other marks
are registered trademarks of
Dr. Ing. h.c. F. Porsche AG. Dr. Ing. h.c. F.
Porsche AG
Porscheplatz 1
70435 Stuttgart
Germany
www.porsche.com
Effective from: 09/2015
Printed in Germany
WSLC1601000720 EN/ W W
* Quiet rolling noise, Moderate rolling noise, Loud rolling noise. For logistical and technical reasons relating to the production process, we are unable to accept orders for a par ticular make of t yre.
Tyre identification
Ty r e t y p e SizeFuel efficiency class/
rolling resistance Wet grip class
External rolling noise*
(class)
External rolling noise
(dB)
Summer tyres 235/40 ZR 19EB–A
–71– 6 8
295/35 ZR 19 EB–A
–74 –71
245/35 ZR 20 EA
71
305/30 ZR 20 EA
74
