CapacitiesUse only fluids andfuels authorized byPorsche. Yourauthorized Porschedealerwillgladly advise you.
Your Porsche hasbeen designed sothat itis not necessary tomix anyadditives withoilsorfuels.
Engine
CoolantManual transmission
and differential
Fuel tank
Fuel quality
Power steering
Brake fluid
Windshield washer
Oil
change quantity withoutoilfilter approx. 9.3quarts/S.75 liters
Oil change quantity withoilfilter approx. 9.6quarts/9.0 liters
Reference indicationisthe level onthe oildipstick.
Please observe thechapter "ENGINE Oil"onPage 114.
approx. 7.39U.S.gallons/28 liters
3.5 quarts/3.3 literstransmission oilSAE 75W-90, Mobilube PTX
approx. 16.6U.S.gallons/63 liters
Your engine isdesigned toprovide optimum performance andfuel economy using
unleaded premiumfuelwith anoctane ratingof98 RON (93CLC orAKI).
Porsche therefore recommends theuse ofthese fuelsinyour vehicle.
Porsche alsorecognizes thatthese fuelsmaynotalways beavailable. Beassured thatyour vehicle
will operate properly onunleaded premiumfuelswithoctane numbers ofatleast
95RON (90CLC orAKI),
since theengine's "Electronic Oktane
™
knock control" willadapt theignition timing,ifnecessary.
approx. 1.35quarts/1.27 literhydraulic fluidPentosin CHF11S®
0.67 quarts/0.63 liters;useonly Original Porsche brakefluid.
approx. 3.19quarts/3 literswithout headlight washer
approx. 6.06quarts/5.7 literswithheadlight washer
TechnicalData

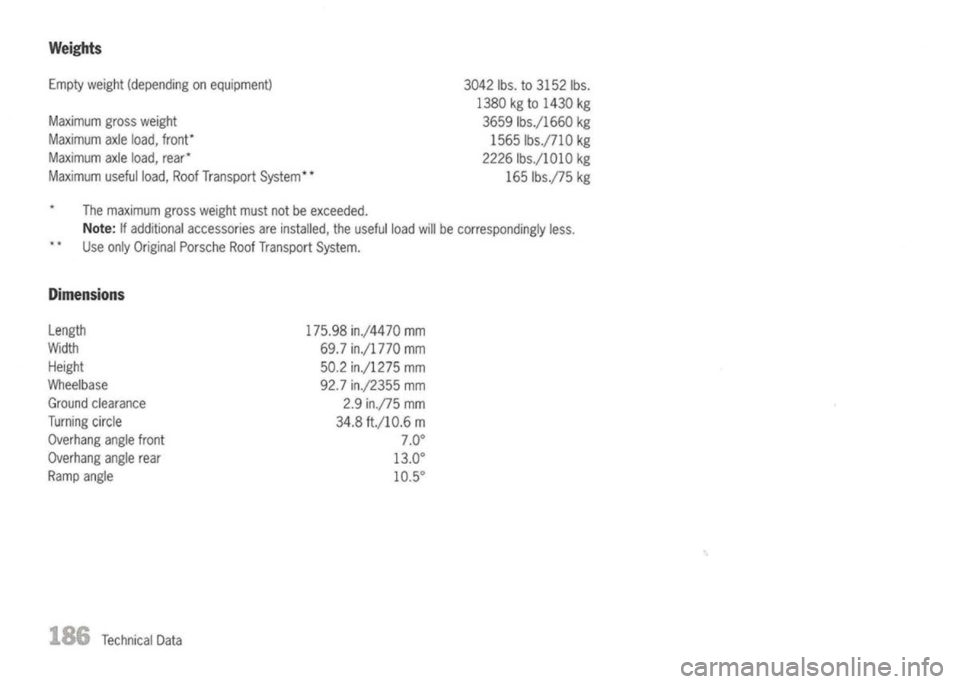

Weights
Empty weight (depending onequipment)
Maximum grossweight
Maximum axleload, front-
Maximum axleload, rear-
Maximum usefulload,RoofTransport System-- 3042
Ibs.to3152 Ibs.
1380 kgto 1430 kg
3659 Ibs./1660 kg
1565 Ibs./71 0kg
2226 Ibs./1010 kg
165 Ibs./75 kg
The maximum grossweight mustnotbeexceeded.
Note:
Ifadditional accessories areinstalled, theuseful loadwillbecorrespondingly less.
Use only Original Porsche RoofTransport System.
Dimensions
Length
Width Height
Wheelbase Ground clearance
Turning circle
Overhang anglefront
Overhang anglerear
Ramp angle
Technical Data 175.98
in./4470
mm
69.7 in./1770
mm
50.2 in./1275
mm
92.7 in./2355
mm
2.9 in.j75
mm
34.8 ft./10.6 m
7.0
0
13.0
0
10S
Diagrams

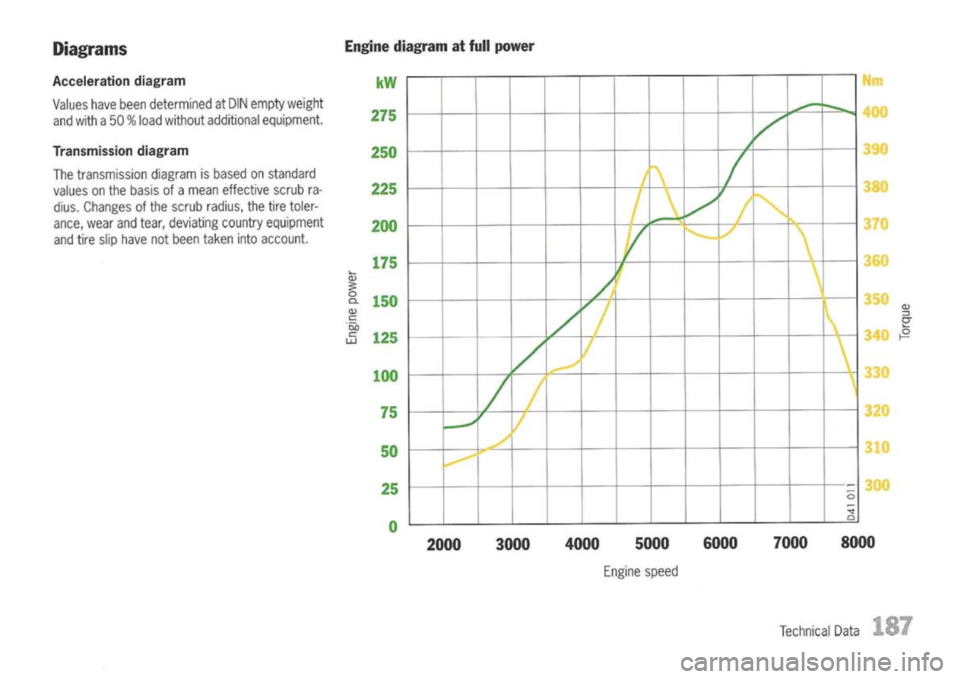

Enginediagram atfull power

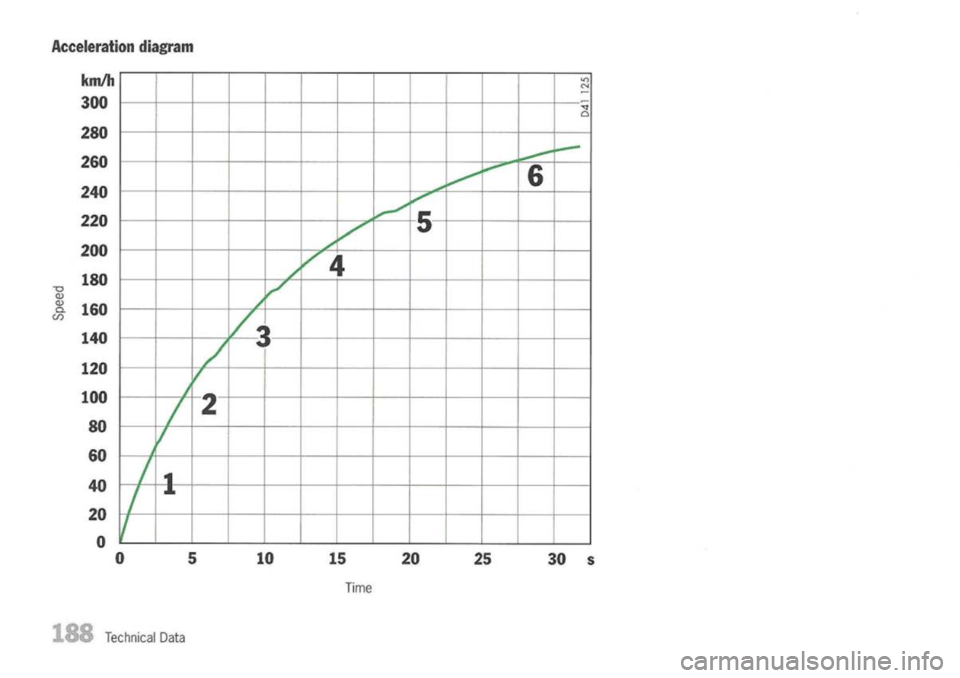

Acceleration diagram
Values havebeen determined atDIN empty weight
and with a50
%
load without additional equipment.

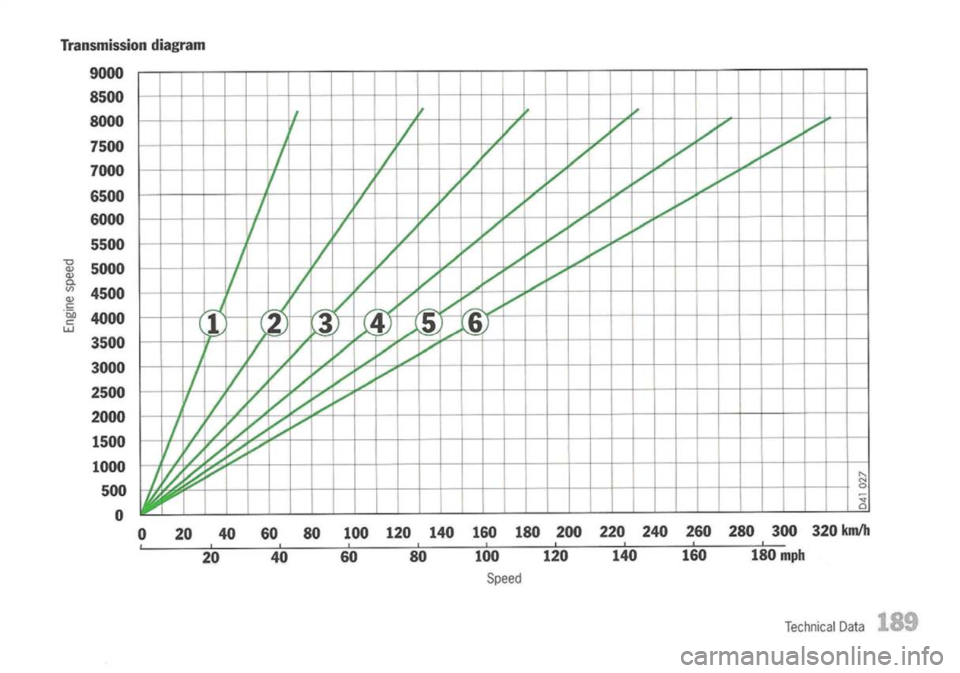

Transmission diagram
The transmission diagramisbased onstandard
values onthe basis ofamean effective scrubra-
dius. Changes ofthe scrub radius, thetire toler-
ance, wearandtear, deviating countryequipment
and tireslip have notbeen taken intoaccount.
TechnicalData
Sparekey 19,20
Speed Control 58,86, 87
Gong 69
Speedometer 54,60
analogue display 56
digital display 54,56
Spoiler 104
Starting engine 52
Steering lock 50
Steering wheel
Adjustment 31
Lock 51
Stopping engine 53
Storage options 96,97
Storage tray 97
Storing yourPorsche 137
Sun visors 103
T
Tachometer 54,56,61
Taillight 171
Tank 121,122,185
Ventilation system 126
Technical data 182
Temperature setting 88,90
Theft protection 18
Tires 16,141,184
Pressure 5,143, 183
Pressure compressor 100
Repair kit.. 149
Tires andtirecare 141
Tool kit 100
Towing 177,178 Tracks
184
Transmission 109,183
Fluid 185
Thpwu~r ~
Trunk entrapment 101
Turn signals 61,83,168,171
Indicator lights 54,56
U
Undercoating 124,133
V
Valves 145
Vanity mirror 103
Vehicle Care 130
Data 180,181
Identification label 180
Identification number 100,180
Washing 131
Ventilation 88
Vents 93
Voltmeter 54,56,58
w
Warning lampsandmessages 75
Washer fluid 126,185
Level warning light 54,56
Washing 131
Weights 186
Wheel Bolts 19,150 Changing
149
Wheels 135,184
Windows 26,27, 133
Washer nozzles 84
Washer system 84,126, 185
Windshield wiper/washer lever 84
Windshield wipers 84,85,129
Replacing 129
Winter operation
Battery "157
Coolant. 113
Engine oil 114
Jumper cables 160,161
Locks 132
Seals 134
Snow chains 147
Tires 146,184
Washer fluid 126
Wiper blades 129
Wiper Blades 129
Interval 84,85
Index
