Your carmay have allorsome ofthe components
described inthis manual.
Should youhave difficulty understanding anyof
the explanations offeatures orequipment
installed inyour vehicle, contactyourauthorized
Porsche dealer.He/She willbeglad toassist you.
Also check withyour dealer onother available op-
tions orequipment.
Throughout thisbooklet, leftisdesignated asthe
driver's sideofthe vehicle, andright asthe pas-
senger's sideofthe vehicle.
Text, illustrations andspecifications inthis manual
are based onthe information availableatthe time
of printing.
It has always beenPorsche's policytocontinuous-
ly improve itsproducts. Porsche,therefore, re-
serves theright tomake changes indesign and
specification, andtomake additions or
improvements inits product withoutincurring any
obligation toInstall themonproducts previously
manufactured.
We wish youmany milesofsafe andpleasurable
driving inyour Porsche.
j!\lmportant
For your ownprotection andlonger .service lifeof
your car,please heedalloperating instructions
and special warnings. Thesespecial warnings use
the safety alertsymbol, followed bythe words
Danger, Warning andCaution.
Thesespecial
warnings containimportant messages regarding
your safety and/or thepotential fordamage to
your Porsche. Ignoringthemcould result inseri-
ous mechanical failureoreven physical injury.
c>
Donot alter your Porsche. Anyalteration could
create dangerous conditionsordefeat safety
engineering featuresbuiltintoyour car.
c>
Donot misuseyour Porsche.Useitsafely, and
consistently Withthelaw, according tothe driv-
ing conditions, andtheinstructions inthis man-
ual.
Alteration ormisuse ofyour Porsche could
cause accidents andsevere orfatal personal
injuries.
Note
toowners
In Canada, thismanual isalso available inFrench.
To obtain acopy contact yourdealer orwrite to:
Note auxproprietaires
Au Canada onpeut seprocurer unexemplaire de
ce Manuel enfranaais auprasduconcessionaire
ou du:
Porsche CarsCanada, Ltd.
Automobiles PorscheCanada, LTEE
5045 Orbitor Drive
Building #11,Suite 302
Mississauga, Ontario
Canada L4W4Y4
Telephone numberforcustomer assistance:
1-800-PORSCHE /Option 3
Page 5 of 195
FuelQuality
Your engine isdesigned toprovide optimum performance andfueleconomy using
unleaded premiumfuelwith anoctane ratingof98 RON (93CLC orAKI).
Porsche therefore recommends theuse ofthese fuelsinyour vehicle.
Porsche alsorecognizes thatthese fuelsmaynotalways beavailable. Beassured thatyour vehicle willoperate
properly onunleaded premiumfuelswithoctane numbers ofatleast
95RON (90CLC orAKI).
since theengine's "Electronic Oktaneā¢knockcontrol" willadapt theignition timing,ifnecessary.
Fuels containing alcoholandether
Some areasofthe U.S. require oxygenated fuelsduring certain portions ofthe year.
Oxygenated fuelsarefuels which contain alcohols (suchasmethanol orethanol) orether (such asMTBE).
Under normal conditions, theamount ofthese compounds inthe fuel willnot affect driveability.
You may useoxygenated fuelsinyour Porsche, providedtheoctane requirements foryour vehicle aremet.
We recommend, however,tochange toadifferent fuelorstation ifany ofthe following problems occurwithyour vehicle:
- Deterioration ofdriveability andperformance.
- Substantially reducedfueleconomy.
- Vapor lockandnon-start problems, especiallyathigh altitude orathigh temperature.
- Engine malfunction orstalling.
Fuels containing MMT
Some NorthAmerican fuelscontain anoctane enhancing additivecalledmethylcyclopentadienyl manganesetricarbonyl(MMT).
If such fuels areused, youremission controlsystem performance maybenegatively affected.
The check engine warning lightsonyour instrument panelmayturnon.
If this occurs, Porsche recommends youstop using fuelscontaining MMT.
4
Page 7 of 195
Porsche andtheEnvironment
Environmental guidelines
We develop andproduce exclusive sportscars
with advanced environmental andsafety technolo-
gy and agreat ability tofascinate.
Our environmental policyisbased onthe
following principles:
- The maximum possibleuseofenvironmental
and safety technology thatiseconomically JUs-
tifiable.
- Economical usageofenergy andresources.
- Involvement ofour business partnersandcon-
tractors inour efforts toprotect theenviron-
ment.
- Open dialogue withallsocial groups.
6
California
Proposition 65Warning
/!\
Warning!
Engine exhaust, someofits constituents, andcer-
tain vehicle components containoremit chemi-
cals known tothe State ofCalifornia tocause can-
cer and birth defects orother reproductive harm.
In addition, certainfluidscontained invehicles and
certain products ofcomponent wearcontain or
emit chemicals knowntothe State ofCalifornia to
cause cancer andbirth defects orother reproduc-
tive harm.
Production
The manufacture ofPorsche vehicles inafactory
adjacent toaresidential arearequires morethan
mere compliance withalllaws andregulations.
Whether inproduction orrepair, Porsche always
relies onenvironmentally friendlytechnology.
An example ofthis isthe water-based paintused
in our painting installation.
Water-base paintsandnew painting methods re-
duce solvent emissions by70 per cent.
And thewater usedinthe painting installation isre-
circulated. Wastewaterleaves thePorsche facto-
ry only after being appropriately treated.
A waste-management systemhasbeen intro-
duced toreduce theamount ofwaste whilesimul-
taneously increasing therecycling rate.
Page 8 of 195
Environmentally friendlyvehicles
Modern environmental technologyensurescom-
pliance withallemission lawsapplicable world-
wide.
These havethefollowing advantages:
- Rapid operational readinessofthe catalytic
converters ensureslowemissions, evenin
short-trip operation.
- Reliable operation andgood emission control
over along useful life.
I>
Please refertothe chapter "FUELECONOMY"
on page 120.
Recycling
-for aPorsche, thisisvirtually
an academic question
More thantwo-thirds ofall Porsches everbuiltare
still running.
Just incase recycling isever necessary, we
take thefollowing precautionary measures:
- Identification ofall materials.
- Use ofrecyclable materials.
- Reusable components designedforsimple
removal.
- These reasons resultinafurther increase in
the recycling ratewhich iscurrently 80per
cent.
Emission
controlisbuilt in
Innovative enginetechnology combineshighen-
gine performance andenvironmental compati-
bility.
The engine diagnosis systemelectronically moni-
tors thecomponents andsystems thataffect ex-
haust gases.
This continuous monitoringandfault storage en-
ables swift, reliable diagnosis andfault detection.
Any fault messages areindicated tothe driver by
the "Check Engine" warning lightandtheon-board
computer.
I>
Please refertothe chapter "WARNINGS INTHE
INSTRUMENT PANELANDINTHE ON-BOARD
COMPUTER" onpage 75.
Page 11 of 195

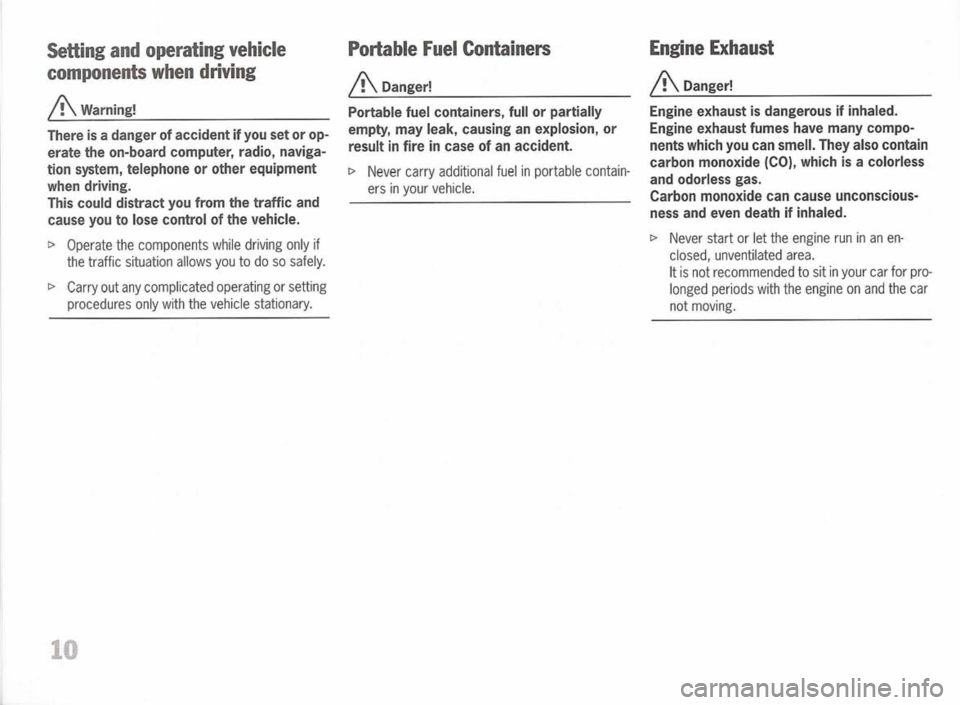

Setting andoperating vehicle
components whendriving
A
Warning!
There isadanger ofaccident ifyou setorop-
erate theon-board computer, radio,naviga-
tion system, telephone orother equipment
when driving.
This could distract youfrom thetraffic and
cause youtolose control ofthe vehicle.
t> Operate thecomponents whiledriving onlyif
the traffic situation allowsyoutodo sosafely.
t>
Carry outany complicated operatingorsetting
procedures onlywiththevehicle stationary.
10
Portable
FuelContainers
A
Danger!
Portable fuelcontainers, fullorpartially
empty, mayleak, causing anexplosion, or
result infire incase ofan accident.
t> Never carryadditional fuelinportable contain-
ers inyour vehicle.
Engine
Exhaust
A
Danger!
Engine exhaust isdangerous ifinhaled.
Engine exhaust fumeshavemany compo-
nents which youcansmell. Theyalsocontain
carbon monoxide (CO),which isacolorless
and odorless gas.
Carbon monoxide cancause unconscious-
ness andeven death ifinhaled.
t> Never startorlet the engine runinan en-
closed, unventilated area.
It is not recommended tosit inyour carforpro-
longed periods withtheengine onand thecar
not moving.
Page 14 of 195
Beforedrivingoff.. 14
Break inhints forthe first
1,000 miles/1,600 kilometers 16
Keys 19
Security WheelBolts 19
Doors 21
Central Locking 22
Alarm System, InfraredPassenger
Compartment Monitoring 24
Power Windows 26
Inside mirror 28
Rear View Mirrors 28
Rear Window Defogger,
Door Mirror Heating 29
Seat Adjustment 30
Steering WheelAdjustment.. 31
Safety Belts 32
Child Restraint Anchorages 35
Child Restraint Systems 36
Airbag Systems 38
Clutch Pedal 40
Parking Brake 40
Brakes 41
ABS Brake System
(Antilock BrakeSystem) 44
Interior lights 46
Footwell Lights 47
Operation, Instruments 48
Ignition/Starter Switchwith
anti-theft SteeringLock 50
Starting Procedures 52
Stopping Engine 53Instrument
PanelUSAModels 54
Instrument PanelCanada Models 56
Voltmeter 58
Automatic SpeedControl 58
Instrument Illumination 59
Trip Odometer 59
Speedometer 60
Changing overbetween
Miles /Kilometers 60
Tachometer 61
Turn Signal Indicator Light 61
High Beam 61
Cooling System 62
Fuel 63
C~k ~
Engine OilPressure 65
Check Engine
Warning Light 66
On-Board Computer (BC) 67
Warnings inthe Instrument Panelandinthe On-
Board Computer 75
Emergency FlasherSwitch 81
Light Switch 82
Automatic HeadlightBeamAdjustment 82
Turn Signal /
Headlight Dimmer/Flasher Lever 83
Windshield Wiper/Washer Lever 84
Automatic SpeedControl 86
Heating andVentilation 88
Automatic AirConditioning 90
Central andSide Vents 93
Fresh-air Intake 93Controls,
Instruments
Ashtray 94
Cigarette Lighter 94
Cupholder 95
Storage inthe Passenger Compartment 96
Luggage Compartment Lidand
Engine Compartment Lid 98
Luggage Compartment.. 100
Trunk Entrapment 101
Sun Visors 103
Spoiler, SideMember Panels 104
Car Audio Operation/Tips 105
Car Telephone and
Aftermarket Alarms 107
Roof Transport System 108
Gearshifting 109
Controls, Instruments
Page 15 of 195
DearPorsche Owner
A lot has gone intothemanufacture ofyour
Porsche, includingadvanced engineering, rigid
quality control anddemanding inspections.
These engineering andsafety features willbe
enhanced byyou ...
the safe driver ...
- who knows hiscar and allcontrols,
- who maintains thevehicle properly,
- who uses driving skillswisely andalways
drives withinher/his owncapabilities andthe
level offamiliarity withthevehicle.
You willfind helpful hintsinthis manual onhow to
perform mostofthe checks listedonthe following
pages.
If in doubt, havethese checks performed byyour
authorized Porschedealer.
Controls, Instruments
Before
driving off...
Check thefollowing itemsfirst
I>
Turn theengine offbefore youattempt any
checks orrepairs onthe vehicle.
I>
Besure thetires areinflated correctly.
Check tiresfordamage andtirewear.
I>
See that wheel boltsareproperly tightened
and notloose ormissing.
I>
Check engine oillevel, addifnecessary.
Make itahabit tohave engine oilchecked with
every fuelfilling.
I>
Check allfluid levels suchaswindshield
washer andbrake fluidlevels.
I>
Besure thevehicle battery iswell charged and
cranks theengine properly.
I>
Check alldoors andlidsforproper operation
and latch them properly.
I>
Check, andifnecessary replacewornor
cracked wiperblades.
I>
See that allwindows areclear andunob-
structed.
I>
Check airintake slotsandarea between lug-
gage compartment lidand windshield arefree
of snow andice,sothe heater andthewind-
shield wipers workproperly.
I>
Ifachild willberiding inthe vehicle, check
child seat/child seatrestraint systemtoen-
sure thatrestraints areproperly adjusted.
I>
Check allexterior andinterior lightsforopera-
tion andthat thelenses areclean.
I>
Check theheadlights forproper aim,andif
necessary, havethem adjusted.
I>
Check underthevehicle forleaks.
I>
Besure allluggage isstowed securely.
Emergency equipment
It is good practice tocarry emergency equipment
in your vehicle.
Some ofthe items youshould haveare:
window scraper, snowbrush, container orbag of
sand orsalt, emergency light,small shovel, first-
aid kit, etc.
Page 16 of 195
Inthe driver's seat...
c>
Check operation ofthe horn.
c>
Position seatforeasy reach offoot pedals and
controls.
To reduce thepossibility ofinjury fromthe
airbag deployment, youshould always sitback
as far from thesteering wheelasispractical,
while stillmaintaining fullvehicle control.
c>
Adjustthe insideandoutside rearview mirrors.
c>
Buckle yoursafety belts.
C>
Check operation ofthe foot andparking brake.
C>
Check allwarning andindicator lightswith
ignition onand engine notrunning.
C>
Start engine andcheck allwarning displays for
warning symbols.
C>
Never leaveanidling carunattended.
C>
Lock doors frominside, especially withchil-
dren inthe cartoprevent inadvertent opening
of doors frominside oroutside.
Drive withdoors locked.
On
the road ...
C>
Never driveafteryouhave consumed alcohol
or drugs.
C>
Always haveyoursafety beltfastened.
C>
Always drivedefensively.
Expect theunexpected.
C>
Use signals toindicate turnsandlane changes.
C>
Turn onheadlights atdusk orwhen thedriving
conditions warrantit.
C>
Always keepasafe distance fromthevehicle
in front ofyou, depending ontraffic, roadand
weather conditions.
C>
Reduce speedatnight andduring inclement
weather. Driving inwet weather requirescautionandre-
duced speeds, particularly onroads with
standing water,asthe handling characteristics
of the vehicle maybeimpaired duetohydro-
planing ofthe tires.
C>
Always observe speedlimitsandobey road
signs andtraffic laws.
C>
When tired,getwell offthe road, stopandtake
a rest. Turntheengine off.Donot sitinthe ve-
hicle withengine idling.
Please observe thechapter "ENGINE EX-
HAUST" onPage 10.
C>
When parked, alwayssetthe parking brake.
Move thegearshift levertoreverse orfirst
gear.
On hills also turnthefront wheels towardthe
curb.
C>
When emergency repairsbecome necessary,
move thevehicle welloffthe road. Turnonthe
emergency flasheranduseother warning de-
vices toalert other motorists. Donot park or
operate thevehicle inareas where thehotex-
haust system maycome incontact withdry
grass, brush,fuelspill orother flammable ma-
terial.
C>
Make itahabit tohave theengine oilchecked
with every fuelfilling.
Controls, Instruments
Page 17 of 195
Break inhints forthe first
1,000 miles/l,600 kilometers
The following tipswillbehelpful inobtaining opti-
mum performance fromyournewPorsche.
Despite themost modern, high-precision manufac-
turing methods, itcannot becompletely avoided
that themoving partshavetowear inwith each
other. Thiswearing-in occursmainlyinthe first
1,000 milesj1,600 km.
Therefore:
I>
Preferably takelonger trips.
I>
Avoid frequent coldstarts withshort-distance
driving whenever possible.
I>
Avoid fullthrottle startsandabrupt stops.
I>
Donot exceed maximum enginespeedof
4,200 rpm(revolutions perminute).
I>
Donot run acold engine athigh rpmeither in
Neutral oringear.
I>
Donot letthe engine labor,especially when
driving uphill.Shifttothe next lower gearin
time (usethemost favorable rpmrange).
I>
Never lugthe engine inhigh gear atlow
speeds. Thisruleapplies atall times, notjust
during thebreak-in period.
Controls, Instruments
I>
Donot participate inmotor racing events,
sports driving schools, etc.during thefirst
1,000 milesj1,600 kilometers.
There maybeaslight stiffness inthe steering,
gear-shifting orother controls duringthebreak-in
period whichwillgradually disappear.
Break inbrake padsanddiscs
New brake padsanddiscs havetobe "broken in",
and therefore onlyattain optimal frictionwhenthe
car has covered severalhundred milesorkm.
The slightly reduced brakingabilitymustbecom-
pensated forbypressing thebrake pedalharder.
This alsoapplies whenever thebrake padsand
brake discsarereplaced.
New tires
New tires donot have maximum traction.They
tend tobe slippery.
I>
Break innew tires bydriving atmoderate
speeds duringthefirst 60to120 milesj1 00to
200 km.Longer braking distances mustbean-
ticipated.
Engine
oilconsumption
During thebreak-in periodoilconsumption maybe
higher thannormal.
As always, therate ofoil consumption dependson
the quality andviscosity ofoil, the speed atwhich
the engine isoperated, theclimate androad con-
ditions, aswell asthe amount ofdilution andoxi-
dation ofthe lubricant.
I>
Make ahabit ofchecking engineoilwith every
fuel filling, addifnecessary.
Page 18 of 195
1Inner doorhandle
2 Door mirror control
3 Light switch
4 Ignition/starter switchwithsteering lock
5 Turn signal/headlight dimmer,
flasher lever
6 Emergency flasherswitch
7 Horn
8 Glove compartment
9 Parking brake
10 Diagnostic socket
11 Operating leverforon-board computer
12 Luggage compartment lidrelease
13 Seat adjustment
14 Steering-wheel adjustment
15 Engine compartment lidrelease
Controls, Instruments
17
