DearOwner,

We would liketothank youforyour purchase ofa
Porsche Sportscar.
Judging bythe caryou have chosen, youareamo-
torist ofaspecial breed,andyou areprobably no
novice whenitcomes toautomobiles.
Remember however,aswith anyvehicle, you
should taketime tofamiliarize yourselfwithyour
Porsche anditsperformance characteristics. Al-
ways drivewithin yourownunique capabilities as
a driver andyour levelofexperience withyour
Porsche. Ensurethatanyone elsedriving your
Porsche doesthesame. Toprevent orminimize
injury, always useyour safety belts.Never con-
sume alcohol ordrugs before orduring theoper-
ation ofyour vehicle.
This Owner's Manualcontains ahost ofuseful in-
formation. Pleasetakethetime toread thismanu-
al before youdrive yournewPorsche. Becomefa-
miliar withtheoperation ofyour Porsche carfor
maximum safetyandoperating pleasure.Thebet-
ter you know yourPorsche, themore pleasure you
will experience drivingyournewcar.
Always keepyourOwner's Manualinthe car, and
give itto the new owner ifyou ever sellyour
Porsche.

2 A
separate Maintenance Booklet
explainshow
you cankeep yourPorsche intop driving condition
by having itserviced regularly.

A separate Warranty andCustomer Informa-
tion Booklet
containsdetailedinformation about
the warranties coveringyourPorsche.

For U.S. only:

If you believe thatyour vehicle hasafault which
could cause acrash, injuryordeath, youshould
immediately informtheNational Highway Traffic
Safety Administration (NHTSA)inaddition to
notifying PorscheCarsNorth America, Inc.
(Porsche CarsN.AJ
If NHTSA receives similarcomplaints, itmay open
an investigation, andifitfinds thatasafety prob-
lem exists inagroup ofvehicles, itmay order are-
call and remedy campaign. However,NHTSAcan-
not become involvedinindividual problems be-
tween youandyour dealer, orPorsche CarsN.A..
To contact NHTSA, youmay either calltheAuto
Safety Hotline toll-free at1-(800)-424-9393
(or 366-0123 inWashington, D.C.area) orwrite
to: NHTSA, U.S.Department ofTransportation,
Washington, D.C.20590. Youcanalso obtain oth-
er information aboutmotor vehicle safetyfromthe
Hotline. Your
carhas thousands ofparts andcomponents
which havebeen designed andmanufactured in
accordance withPorsche's highstandards ofen-
gineering qualityandsafety.

Any alteration ofthe vehicle maynegate or
interfere withthose safety features builtinto
the vehicle.

Your Porsche isintended tobe used inasafe man-
ner obeying thelocal lawsandinthe light ofdriv-
ing conditions facedbyyou, andinaccordance
with theinstructions providedinthis Owner's Man-
ual.

Do not misuse yourPorsche byignoring
those lawsanddriving conditions, orby
ignoring theinstructions inthis manual.
Any alteration ormisuse ofthe vehicle can
lead toaccidents andsevere orfatal
personal injuries.
Regularly checkyourvehicle forsigns of
damage.
Damaged ormissing aerodynamic
components suchasspoilers orunderside
panels affectthedriving behavior and
therefore mustbereplaced immediately.

Your carmay have allorsome ofthe components
described inthis manual.
Should youhave difficulty understanding anyof
the explanations offeatures orequipment
installed inyour vehicle, contactyourauthorized
Porsche dealer.He/She willbeglad toassist you.
Also check withyour dealer onother available op-
tions orequipment.
Throughout thisbooklet, leftisdesignated asthe
driver's sideofthe vehicle, andright asthe pas-
senger's sideofthe vehicle.
Text, illustrations andspecifications inthis manual
are based onthe information availableatthe time
of printing.
It has always beenPorsche's policytocontinuous-
ly improve itsproducts. Porsche,therefore, re-
serves theright tomake changes indesign and
specification, andtomake additions or
improvements inits product withoutincurring any
obligation toInstall themonproducts previously
manufactured.
We wish youmany milesofsafe andpleasurable
driving inyour Porsche.
j!\lmportant

For your ownprotection andlonger .service lifeof
your car,please heedalloperating instructions
and special warnings. Thesespecial warnings use
the safety alertsymbol, followed bythe words

Danger, Warning andCaution.
Thesespecial
warnings containimportant messages regarding
your safety and/or thepotential fordamage to
your Porsche. Ignoringthemcould result inseri-
ous mechanical failureoreven physical injury.

c>
Donot alter your Porsche. Anyalteration could
create dangerous conditionsordefeat safety
engineering featuresbuiltintoyour car.

c>
Donot misuseyour Porsche.Useitsafely, and
consistently Withthelaw, according tothe driv-
ing conditions, andtheinstructions inthis man-
ual.

Alteration ormisuse ofyour Porsche could
cause accidents andsevere orfatal personal
injuries.
Note
toowners

In Canada, thismanual isalso available inFrench.
To obtain acopy contact yourdealer orwrite to:

Note auxproprietaires

Au Canada onpeut seprocurer unexemplaire de
ce Manuel enfranaais auprasduconcessionaire
ou du:
Porsche CarsCanada, Ltd.
Automobiles PorscheCanada, LTEE
5045 Orbitor Drive
Building #11,Suite 302
Mississauga, Ontario
Canada L4W4Y4
Telephone numberforcustomer assistance:
1-800-PORSCHE /Option 3

Power transmission

The differential lock,which wasdesigned foruse
in motor sport,maymake aslight noisewhen
maneuvering andontight corners.

Porsche Ceramic Composite Brake
IPCCB)

The high-performance brakesystem isdesigned
for optimal braking effectatall speeds andtem-
peratures. Certainspeeds, brakingforcesandam-
bient conditions (suchastemperature andhumid-
ity) therefore mightcause brakenoises.
Wear onthe different components andbraking
system, suchasbrake padsorbrake discs,
depends toagreat extent onthe individual driving
style andtheconditions ofuse andtherefore
cannot beexpressed inactual milesonthe road.
The values communicated byPorsche arebased
on normal operation adaptedtotraffic. Wearin-
creases considerably whenthevehicle isdriven
on race tracks orthrough anaggressive driving
style.

I>
Please consult yourauthorized Porschedealer
about thecurrent guidelines
in
effect before
such useofyour vehicle.
Aerodynamic
components

To benefit fromthehigh driving performance with-
out impairing thedriving safetyorthe service life
of the vehicle components, certainvehicle parts
must bealways fullyoperational whiledriving.

I>
Regularly checkyourvehicle forsigns ofdam-
age.
Damaged, wornormissing aerodynamic com-
ponents suchasspoilers orunderside panels
affect driving behaviour andmust therefore be
replaced immediately.
To optimise thecooling ofthe PCCS brakediscs,
large airbrake spoilers arefitted tothe front and
rear running gearcontrol arms.
If these air-brake spoilersarenotfitted andthere
is ahigh thermal demand onthe braking system,
the service lifeofthe PCCS brakediscscould be
reduced.
The aerodynamic stabilityofthe vehicle isinflu-
enced considerably athigh speeds bythe front lip.
Due tothe small ground clearance requiredforthe
optimisation ofthe driving behaviour, thefront lip
and theair-brake spoilershavetobe placed inex-
posed positions tofulfil their function. Theycanbe
damaged, forexample byground orcurbstone
contact.
Ground
clearance

Please bear
in
mind thelimited ground clearance
of your caronuneven surfaces, whenparking
(curbs), onramps, liftingplatforms, etc.

Seating
Your carhas two seats.
The area behind theseats isnot intended forpas-
sengers.

A
Danger!
Severe personal injuryordeath canresult in
the event ofan accident.

I>
Never allowanyone tosit inthe area behind the
seats.

Controls,Instruments
Maintenance, CarCare
Practical Tips,Emergency Service
Vehicle Identification, TechnicalData
Index
13
-110
112 -138
140 -178
180 -189
190 -194

11

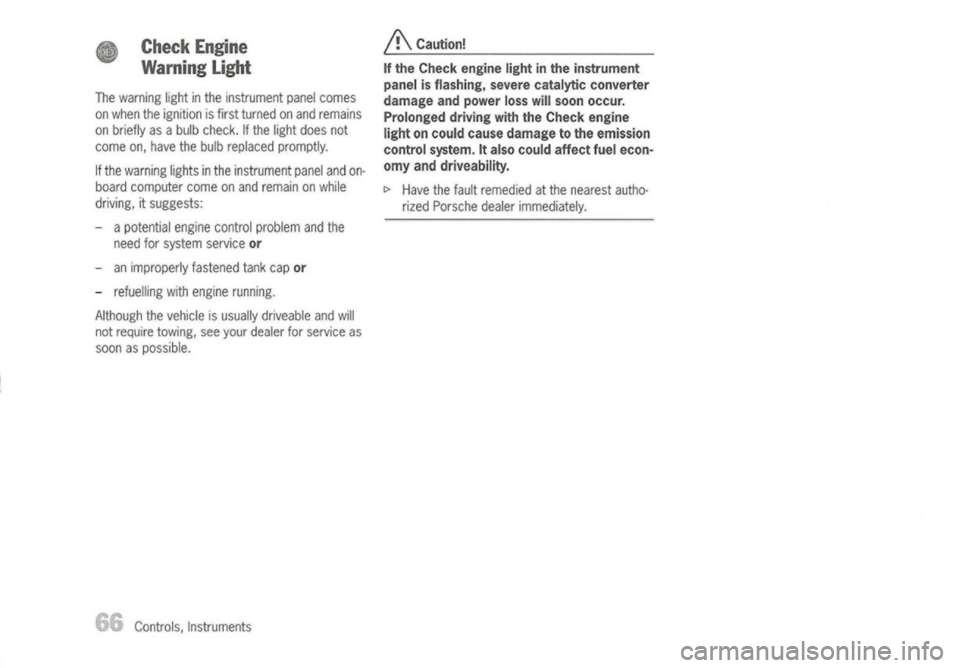

CheckEngine
Warning Light

The warning lightinthe instrument panelcomes
on when theignition isfirst turned onand remains
on briefly asabulb check. Ifthe light does not
come on,have thebulb replaced promptly.
If the warning lightsinthe instrument panelandon-
board computer comeonand remain onwhile
driving, itsuggests:
- apotential enginecontrol problem andthe
need forsystem serviceor
- animproperly fastenedtankcapor
- refuelling withengine running.
Although thevehicle isusually driveable andwill
not require towing, seeyour dealer forservice as
soon aspossible.
Controls, Instruments
A

Caution!
If the Check engine lightinthe instrument
panel isflashing, severecatalytic converter
damage andpower losswillsoon occur.
Prolonged drivingwiththeCheck engine
light oncould cause damage tothe emission
control system. Italso could affect fuelecon-
omy anddriveability.

I>
Have thefault remedied atthe nearest autho-
rized Porsche dealerimmediately.

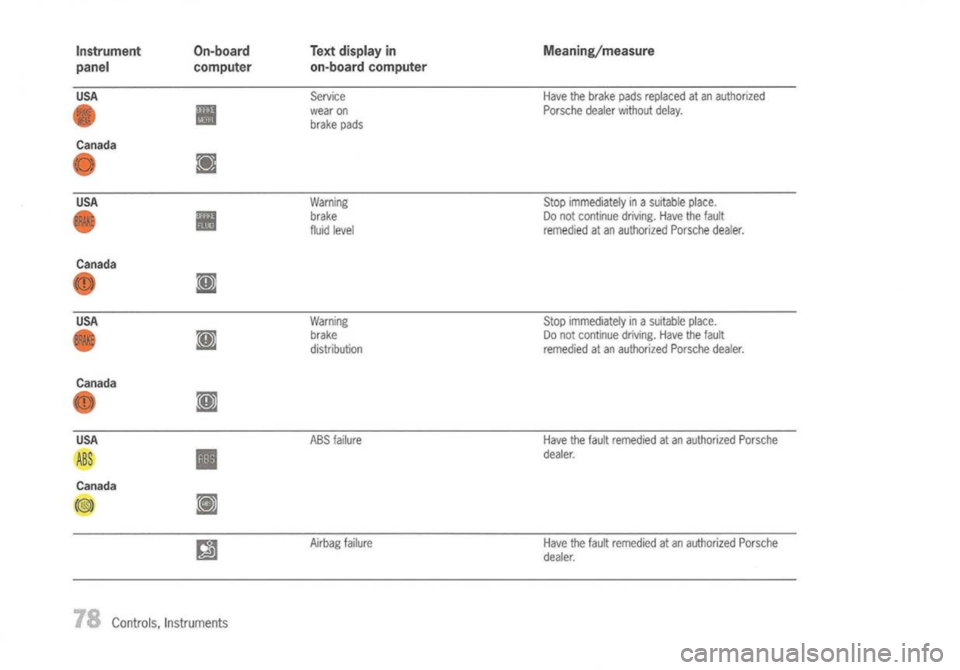

Instrument On-board
Textdisplay in Meaning/measure
panel computer
on-boardcomputer

USA
ServiceHave
thebrake padsreplaced atan authorized

•
II

wear
on Porsche
dealerwithout delay.
brake pads

Canada

D
iJ

USA
Warning
Stopimmediately inasuitable place.

R
brake
Donot continue driving.Havethefault
fluid level remedied
atan authorized Porschedealer.

Canada
~

USA
Warning
Stopimmediately inasuitable place.

~
brake
Donot continue driving.Havethefault
distribution remedied
atan authorized Porschedealer.

Canada
~

USA
ASSfailure Have
thefault remedied atan authorized Porsche

ABS
III
dealer.

Canada

(@)
~
~
Airbag
failure Havethefault remedied atan authorized Porsche
dealer.

Controls, Instruments

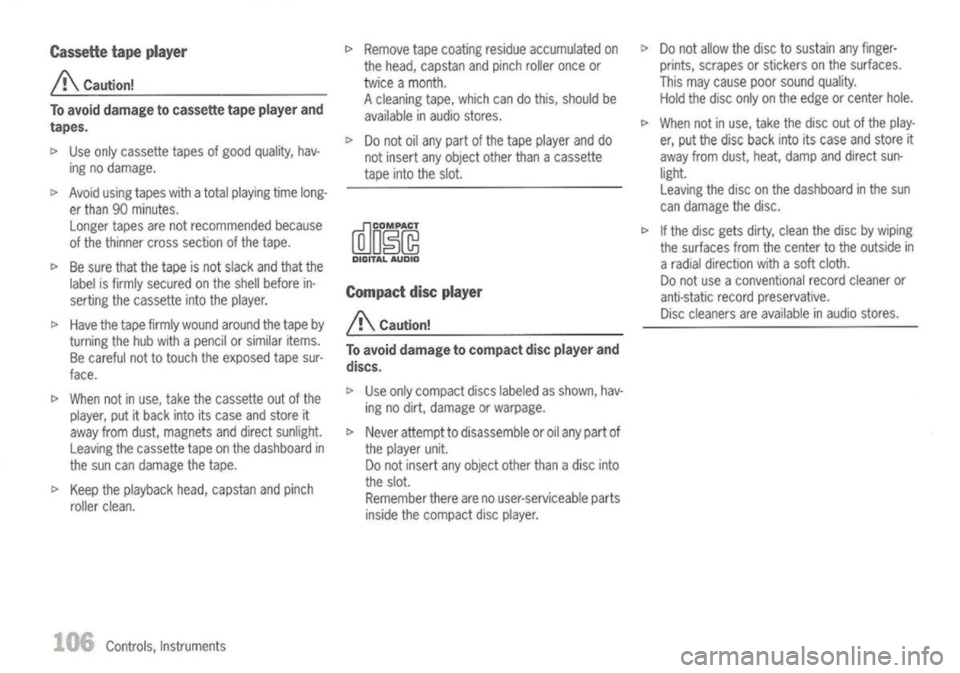

Cassette tapeplayer

/!\
Caution!
To avoid damage tocassette tapeplayer and
tapes.

I>
Use only cassette tapesofgood quality, hav-
ing nodamage.

I>
Avoid usingtapes withatotal playing timelong-
er than 90minutes.
Longer tapesarenotrecommended because
of the thinner crosssection ofthe tape.

I>
Besure thatthetape isnot slack andthat the
label isfirmly secured onthe shell before in-
serting thecassette intotheplayer.

I>
Have thetape firmly wound around thetape by
turning thehub with apencil orsimilar items.
Be careful nottotouch theexposed tapesur-
face.

I>
When notinuse, take thecassette outofthe
player, putitback intoitscase andstore it
away fromdust, magnets anddirect sunlight.
Leaving thecassette tapeonthe dashboard in
the sun can damage thetape.

I>
Keep theplayback head,capstan andpinch
roller clean.

106
Controls, Instruments
I>

Remove tapecoating residueaccumulated on
the head, capstan andpinch rolleronceor
twice amonth.
A cleaning tape,which candothis, should be
available inaudio stores.

I>
Donot oilany part ofthe tape player anddo
not insert anyobject otherthanacassette
tape intotheslot.

Compact discplayer

/!\
Caution!
To avoid damage tocompact discplayer and
discs.

I>
Use only compact discslabeled asshown, hav-
ing nodirt, damage orwarpage.

I>
Never attempt todisassemble oroil any part of
the player unit.
Do not insert anyobject otherthanadisc into
the slot.
Remember therearenouser-serviceable parts
inside thecompact discplayer.
I>

Donot allow thedisc tosustain anyfinger-
prints, scrapes orstickers onthe surfaces.
This maycause poorsound quality.
Hold thedisc only onthe edge orcenter hole.

I>
When notinuse, take thedisc outofthe play-
er, put the disc back intoitscase andstore it
away fromdust, heat,damp anddirect sun-
light.
Leaving thedisc onthe dashboard inthe sun
can damage thedisc.

I>
Ifthe disc gets dirty, clean thedisc bywiping
the surfaces fromthecenter tothe outside in
a radial direction withasoft cloth.
Do not use aconventional recordcleaner or
anti-static recordpreservative.
Disc cleaners areavailable inaudio stores.

FuelEconomy

Fuel economy willvary depending onwhere,
when andhow youdrive, optional equipment
installed, andthegeneral condition ofyour
car.
A car tuned tospecifications andcorrectly
maintained, willhelp youtoachieve optimal
fuel economy.

~ Have yourvehicle tunedtospecifications.
Air cleaner shouldbedirt free toallow proper
engine "breathing".
Battery shouldbefully charged.
Wheels shouldbeproperly aligned.
Tires should beinflated atcorrect pressure.
~ Always monitor yourfuelconsumption.
~ Drive smoothly, avoidabrupt changes inspeed
as much aspossible.
~ Avoid jackrabbit startsandsudden stops.
~ Donot drive longer thannecessary inthe lower
gears. Shifting intoahigher gearearly without
lugging theengine willhelp save fuel.
~ Prolonged "warmup"idling wastes gas.Start
the vehicle justbefore youareready todrive.
Accelerate slowlyandsmoothly.
~ Switch offthe engine ifstationary forlonger
periods.
Maintenance, CarCare ~
Any additional weightcarried inthe vehicle re-
duces fueleconomy. Alwayskeepcargo toa
minimum andremove allunnecessary items.
~ Organize yourtripstotake inseveral errands
in one trip.
~ Allelectrical accessories contributetoin-
creased fuelconsumption.
~ Only switch onthe airconditioning whenneces-
sary.
~ Donot drive withtheRoof Transport System
mounted unlessyouneed it.

The EPA estimated m.p.g.isto be used for
comparison purposes,actualmileage may
be different fromtheestimated m.p.g.,
depending onyour driving speed,weather
conditions andtriplength. Youractual
highway mileagewillprobably beless than
the estimated m.p.g.

~ Please observe alllocal andnational speed
limits.
Operating
YourPorsche inother
Countries

Government regulationsinthe United States and
Canada requirethatautomobiles meetspecific
emission regulations andsafety standards. There-
fore, carsbuiltforthe U.S. andCanada differfrom
vehicles soldinother countries.
If you plan totake your Porsche outsidetheconti-
nentallimits ofthe United States orCanada, there
is the possibility that
- unleaded fuelmay notbeavailable;
- unleaded fuelmay have aconsiderably lower
octane rating.Excessive engineknockandse-
rious damage toboth engine andcatalytic con-
verters couldresult;
- service maybeinadequate duetolack ofprop-
er service facilities, toolsordiagnostic equip-
ment;
- replacement partsmaynotbeavailable orvery
difficult toget.

Porsche cannotberesponsible forthe
mechanical damagethatcould result
because ofinadequate fuel,service orparts
availability.

If you purchased yourPorsche abroadandwant to
bring itback home, besure tofind outabout ship-
ping andforwarding requirements, aswell ascur-
rent import andcustoms regulations.

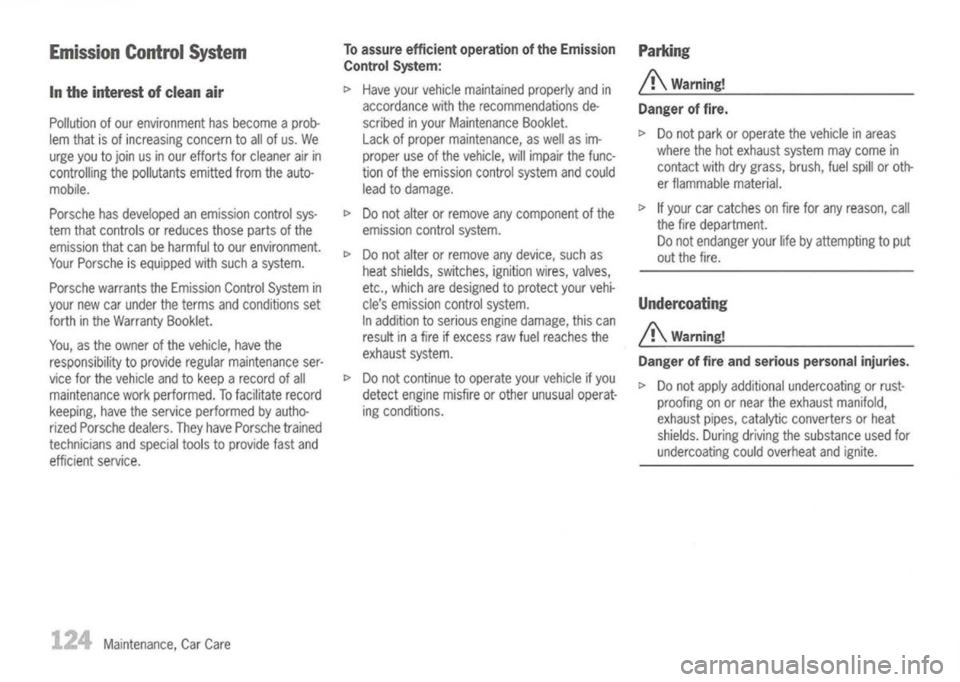

Emission ControlSystem

In the interest ofclean air
Pollution ofour environment hasbecome aprob-
lem that isof increasing concerntoall ofus. We
urge youtojoin us
in
our efforts forcleaner airin
controlling thepollutants emittedfromtheauto-
mobile.
Porsche hasdeveloped anemission controlsys-
tem that controls orreduces thosepartsofthe
emission thatcanbeharmful toour environment.
Your Porsche isequipped withsuch asystem.
Porsche warrants theEmission ControlSystem in
your newcarunder theterms andconditions set
forth inthe Warranty Booklet.
You, asthe owner ofthe vehicle, havethe
responsibility toprovide regularmaintenance ser-
vice forthe vehicle andtokeep arecord ofall
maintenance workperformed. Tofacilitate record
keeping, havetheservice performed byautho-
rized Porsche dealers.TheyhavePorsche trained
technicians andspecial toolstoprovide fastand
efficient service.
Maintenance, CarCare
To
assure efficient operation ofthe Emission
Control System:

~ Have yourvehicle maintained properlyandin
accordance withtherecommendations de-
scribed inyour Maintenance Booklet.
Lack ofproper maintenance, aswell asim-
proper useofthe vehicle, willimpair thefunc-
tion ofthe emission controlsystem andcould
lead todamage.
~ Donot alter orremove anycomponent ofthe
emission controlsystem.
~ Donot alter orremove anydevice, suchas
heat shields, switches, ignitionwires,valves,
etc., which aredesigned toprotect yourvehi-
cle's emission controlsystem.
In addition toserious enginedamage, thiscan
result inafire
if
excess rawfuel reaches the
exhaust system.
~ Donot continue tooperate yourvehicle ifyou
detect engine misfireorother unusual operat-
ing conditions. Parking

A
Warning!
Danger offire.

~ Donot park oroperate thevehicle inareas
where thehotexhaust systemmaycome in
contact withdrygrass, brush,fuelspill oroth-
er flammable material.

~ If
your carcatches onfire forany reason, call
the fire department.
Do not endanger yourlifebyattempting toput
out the fire.
Undercoating

A
Warning!
Danger offire and serious personal injuries.

~ Donot apply additional undercoating orrust-
proofing onornear theexhaust manifold,
exhaust pipes,catalytic converters orheat
shields. Duringdriving thesubstance usedfor
undercoating couldoverheat andignite.

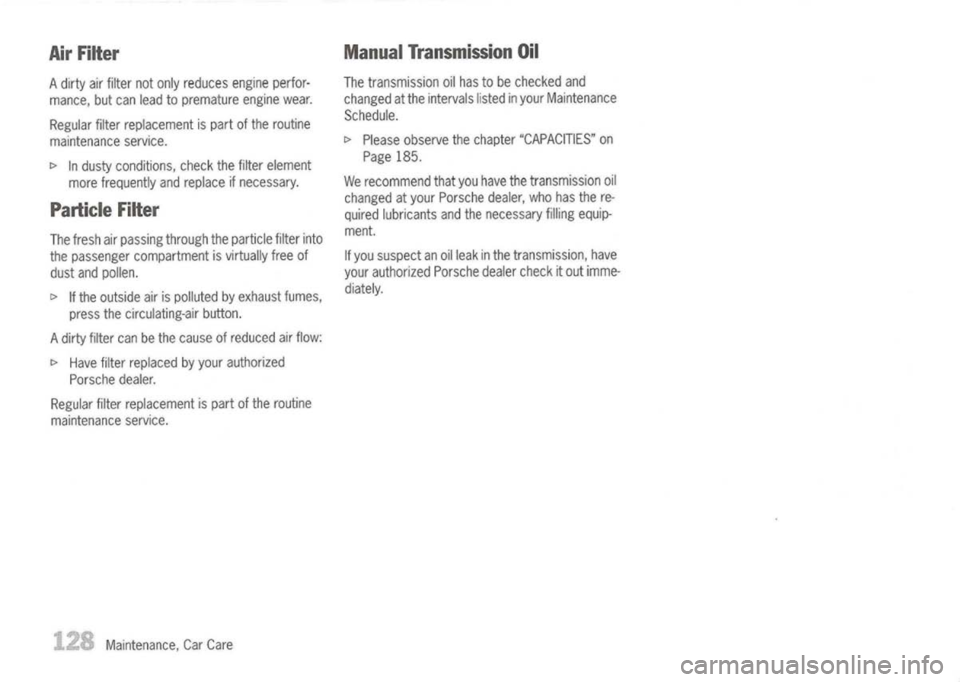

AirFilter

A dirty airfilter notonly reduces engineperfor-
mance, butcan lead topremature enginewear.
Regular filterreplacement ispart ofthe routine
maintenance service.

[>
Industy conditions, checkthefilter element
more frequently andreplace ifnecessary.

Particle Filter

The fresh airpassing through theparticle filterinto
the passenger compartment isvirtually freeof
dust andpollen.

[>
Ifthe outside airispolluted byexhaust fumes,
press thecirculating-air button.
A dirty filter canbethe cause ofreduced airflow:

[>
Have filterreplaced byyour authorized
Porsche dealer.
Regular filterreplacement ispart ofthe routine
maintenance service.
Maintenance, CarCare
Manual
Transmission Oil

The transmission oilhas tobe checked and
changed atthe intervals listedinyour Maintenance
Schedule.

[>
Please observe thechapter "CAPACITIES" on
Page 185.
We recommend thatyouhave thetransmission oil
changed atyour Porsche dealer,whohasthere-
quired lubricants andthenecessary fillingequip-
ment.
If you suspect anoilleak inthe transmission, have
your authorized Porschedealercheckitout imme-
diately.
