fuel filter PORSCHE 911 GT3 2010 5.G Owners Manual

10
Table of Contents Exercise Extreme Caution when Working
on your Vehicle ........................................... 157
Coolant Level ............................................. 158
Engine Oil................................................... 159
Engine Oil Level .......................................... 160
Brake Fluid Level ........................................ 162
Fuel Economy ............................................. 164
Operating your Porsche in other Countries .... 164
Fuel ........................................................... 165
Fuel Recommendations............................... 166
Portable Fuel Containers ............................. 167
Fuel Evaporation Control ............................. 167
Emission Control System............................. 168
How Emission Control Works ....................... 169
Washer Fluid............................................... 170
Power Steering ........................................... 171
Air Filter ..................................................... 172
Combination Filter ....................................... 172
Manual Transmission Oil .............................. 172
Wiper Blades .............................................. 173
Car Care Instructions.................................. 174
Exercise Extreme Caution when Working
on your Vehicle ........................................... 183
Tires/Wheels .............................................. 184
Loading Information .................................... 195
Wheels with Central Locking ........................ 197
Central Bolts .............................................. 197
Changing a Wheel ....................................... 198
Checking Tire Pressure with a
Pressure Gauge .......................................... 203
Flat Tire ..................................................... 203
Lifting the Vehicle with a Lifting Platform or
Garage Lift ................................................. 206
Electrical System ........................................ 207
Battery....................................................... 211Replacing the remote-control battery ............216
Emergency Starting with Jumper Cables .......217
Bulb chart ..................................................219
Lights, Replacing Bulbs ...............................219
Headlights ..................................................220
License Plate Light ......................................227
Front Side Lights, Front Turn Signal Lights,
Daytime Running Lights, Tail Lights and
Additional Brake Light..................................227
Adjusting Headlights ....................................228
Towing .......................................................230
Vehicle Identification....................................234
Technical Data ............................................236
Engine Diagram at full Power .......................242
10_GT3_21.book Seite 10 Donnerstag, 4. Juni 2009 12:48 12

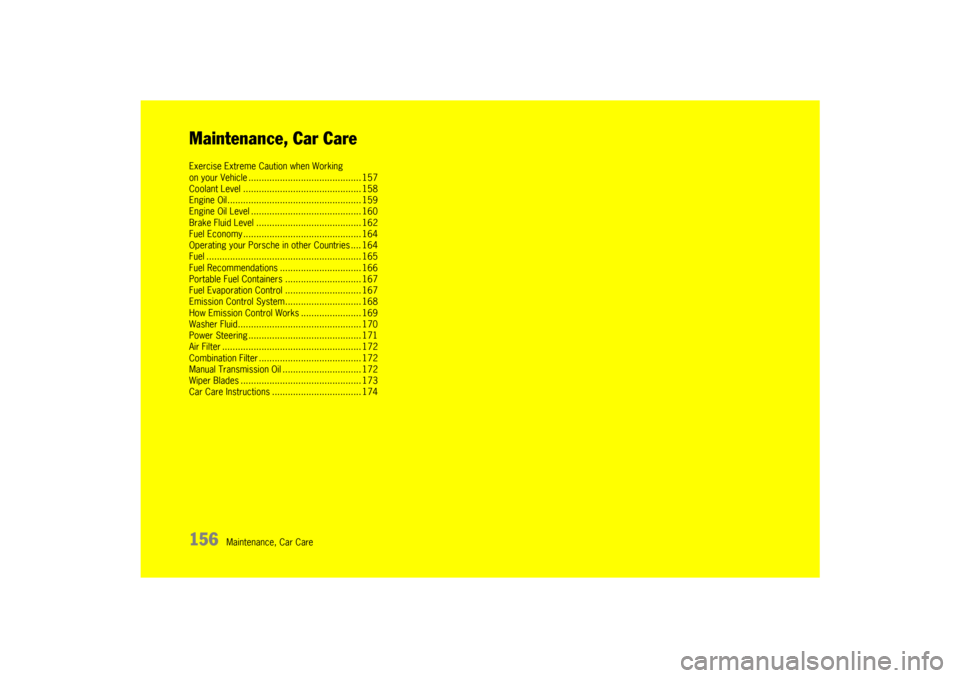

156
Maintenance, Car Care
Maintenance, Car CareExercise Extreme Caution when Working
on your Vehicle ........................................... 157
Coolant Level ............................................. 158
Engine Oil................................................... 159
Engine Oil Level .......................................... 160
Brake Fluid Level ........................................ 162
Fuel Economy ............................................. 164
Operating your Porsche in other Countries .... 164
Fuel ........................................................... 165
Fuel Recommendations............................... 166
Portable Fuel Containers ............................. 167
Fuel Evaporation Control ............................. 167
Emission Control System............................. 168
How Emission Control Works ....................... 169
Washer Fluid............................................... 170
Power Steering ........................................... 171
Air Filter ..................................................... 172
Combination Filter ....................................... 172
Manual Transmission Oil .............................. 172
Wiper Blades .............................................. 173
Car Care Instructions.................................. 174
10_GT3_21.book Seite 156 Donnerstag, 4. Juni 2009 12:48 12

Maintenance, Car Care
181
Storing your Porsche If you intend to store your Porsche for a prolonged
period, please consult your authorized Porsche
dealer. The staff will be glad to advise you on the
most suitable and necessary methods.
fClean your vehicle thoroughly inside and
outside.
Clean the engine compartment.
The under carriage and chassis components
should be free of dirt and salt deposits.
fFill up the fuel tank.
fChange the oil and oil filter, and run the engine
for several minutes.
fIncrease the tire pressure to 58 psi (4 bar).
It is not recommended to lift the vehicle, due to
the possibility of corrosion on shock absorber
piston shafts.
The vehicle should be moved slightly, approxi-
mately every four weeks, to prevent flat spot
on the tires. Climate control
The air conditioning system should be in good
working condition and fully charged.
Windshield/Headlight washer
fCheck and correct antifreeze/cleaning solution
level as necessary.
Electrical system
fRemove the battery from the vehicle and store
it in a cool dry place, not on a cement floor.
When the battery is disconnected, the
alarm system is deactivated.
fRecharge the battery every 3 months. If the
battery remains in the vehicle with the cables
connected, it is necessary to check, remove
and recharge the battery every 2-3 weeks.
Do not fast charge the battery.
fPlease see the chapter “BATTERY” on
Page 211.Vehicle interior
The interior must be dry, especially in the area of
the floor carpets. The use of drying agents (Silica-
Gel) is recommended in vehicles with leather
interior and in areas with high humidity. The
recommended amount is 3 fabric bags of 1.1 lbs.
(500 grams) each placed on the floor carpets.
Windows, doors and lids must be closed. The air
vents should be opened.
10_GT3_21.book Seite 181 Donnerstag, 4. Juni 2009 12:48 12

Technical Data
239
CapacitiesUse only fluids and fuels authorized by Porsche. Your authorized Porsche dealer will gladly advise you.
Your Porsche has been designed so that it is not necessary to mix any additives with oils or fuels.
EngineOil change quantity without oil filter approx. 9.25 quarts / 8.75 liters
Oil change quantity with oil filter approx. 9.5 quarts / 9 liters
Please see the chapter “ENGINE OIL” on Page 159.
Coolantapprox. 7.9 U.S. gallons / 30 liters
Manual transmission
and differential
approx. 3.5 quarts / 3.3 liters transmission oil SAE 75W-90, Mobilube PTX
Fuel tank approx. 17.7 U.S. gallons / 67 liters
Fuel qualityYour engine is designed to provide optimum performance and fuel economy using
unleaded premium fuel with an octane rating of 98 RON (93 CLC or AKI).
Porsche therefore recommends the use of these fuels in your vehicle.
Porsche also recognizes that these fuels may not always be available. Be assured that your vehicle
will operate properly on unleaded premium fuels with octane numbers of at least 95 RON (90 CLC or AKI),
since the engine’s “Electronic Octane™ knock control” will adapt the ignition timing, if necessary.
Power steeringapprox. 1.35 quarts / 1.27 liter hydraulic fluid Pentosin CHF 11 S
® or Pentosin CHF 202
®
Brake fluid0.67 quarts / 0.63 liters; use only Original Porsche brake fluid.
Windshield washerapprox. 2.6 quarts / 2,5 liters without headlight washer
approx. 6.3 quarts / 6 liters with headlight washer
10_GT3_21.book Seite 239 Donnerstag, 4. Juni 2009 12:48 12

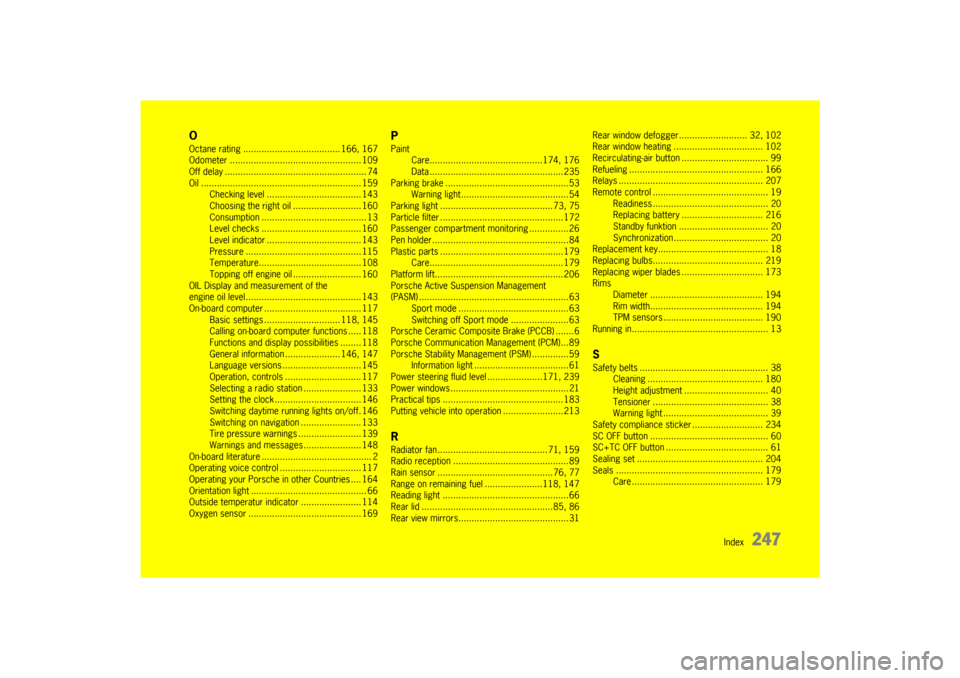

Index
247
OOctane rating ..................................... 166, 167
Odometer .................................................. 109
Off delay ...................................................... 74
Oil ............................................................. 159
Checking level .................................... 143
Choosing the right oil .......................... 160
Consumption ........................................ 13
Level checks ...................................... 160
Level indicator .................................... 143
Pressure ............................................ 115
Temperature....................................... 108
Topping off engine oil .......................... 160
OIL Display and measurement of the
engine oil level ............................................ 143
On-board computer ..................................... 117
Basic settings ............................. 118, 145
Calling on-board computer functions ..... 118
Functions and display possibilities ........ 118
General information ..................... 146, 147
Language versions .............................. 145
Operation, controls ............................. 117
Selecting a radio station ...................... 133
Setting the clock ................................. 146
Switching daytime running lights on/off. 146
Switching on navigation ....................... 133
Tire pressure warnings ........................ 139
Warnings and messages...................... 148
On-board literature .......................................... 2
Operating voice control ............................... 117
Operating your Porsche in other Countries .... 164
Orientation light ............................................ 66
Outside temperatur indicator ....................... 114
Oxygen sensor ........................................... 169
PPaint
Care...........................................174, 176
Data ...................................................235
Parking brake ...............................................53
Warning light.........................................54
Parking light ...........................................73, 75
Particle filter ...............................................172
Passenger compartment monitoring ...............26
Pen holder ....................................................84
Plastic parts ...............................................179
Care...................................................179
Platform lift.................................................206
Porsche Active Suspension Management
(PASM) .........................................................63
Sport mode ..........................................63
Switching off Sport mode ......................63
Porsche Ceramic Composite Brake (PCCB) .......6
Porsche Communication Management (PCM)...89
Porsche Stability Management (PSM) ..............59
Information light ....................................61
Power steering fluid level .....................171, 239
Power windows .............................................21
Practical tips ..............................................183
Putting vehicle into operation .......................213RRadiator fan..........................................71, 159
Radio reception ............................................89
Rain sensor ............................................76, 77
Range on remaining fuel ......................118, 147
Reading light ................................................66
Rear lid ..................................................85, 86
Rear view mirrors..........................................31Rear window defogger.......................... 32, 102
Rear window heating.................................. 102
Recirculating-air button ................................. 99
Refueling ................................................... 166
Relays ....................................................... 207
Remote control ............................................ 19
Readiness ............................................ 20
Replacing battery ............................... 216
Standby funktion .................................. 20
Synchronization.................................... 20
Replacement key.......................................... 18
Replacing bulbs.......................................... 219
Replacing wiper blades............................... 173
Rims
Diameter ........................................... 194
Rim width........................................... 194
TPM sensors...................................... 190
Running in.................................................... 13
SSafety belts ................................................. 38
Cleaning ............................................ 180
Height adjustment................................ 40
Tensioner ............................................ 38
Warning light ........................................ 39
Safety compliance sticker ........................... 234
SC OFF button ............................................. 60
SC+TC OFF button ....................................... 61
Sealing set ................................................ 204
Seals ........................................................ 179
Care .................................................. 179
10_GT3_21.book Seite 247 Donnerstag, 4. Juni 2009 12:48 12
