Boxster | Safet y
Passive safety: engineered
design.
The deformation zone at the
front of the vehicle contains a
system of longitudinal and lateral
members which absorb the
energy in the event of an impact.
The fuel tank and fuel lines are
safely positioned outside the
deformation zone. Together with
the rigid side structures, high-
strength steel elements in the
doors provide exceptional side-
impact protection. The reinforced
windscreen frame and the roll-
over bars positioned behind the
seats provide an ef fective barrier
if the car overturns. Energy-
absorbing materials are used at
key points throughout the passen -
ger compartment.
Both Boxster models are fit ted
as
standard with an airbag system

comprising t wo full-size front air -
bags as well as dedicated head
and thorax airbags (POSIP, p. 67)
on each side. This arrangement
ensures optimum upper-body

protection, even when the hood is
open. For added comfort and
safet y, the three-point belts have
integrated force limiters and
pretensioners.
Roll-over protection.
The front area of the cockpit is
protected by a robust steel
element integrated invisibly into
the windscreen frame. The rear
roll-over bars are made from high-
strength steel and are located
behind the seats. Their flat tened
form ensures high safet y, and
harmoniously follows the lines of
the seat backrests. The upper
seat-belt anchorage points are
at tached to the bars for greater
accessibility and comfort.
Porsche Side Impact
Protection (POSIP).
Both Boxster models are equipped
with Porsche Side Impact
Protection (POSIP) as standard.
This consists of t wo airbags on
each side. The outer bolsters of
the seats contain a thorax air-

bag and each door contains a head
airbag. Each has a volume of
around 8 litres, ensuring high
protection in the event of a side
impact, even when the hood is
open. The passenger cell is also
shielded by side impact protec -
tion beams in the doors.
Child seats.*
For our youngest Boxster pas-
sengers, the Porsche Tequipment
range of accessories includes
child seats and the necessary
preparation. This comprises an
ISOFIX fixing bracket for mount -
ing the Porsche child seats, and
a key switch to deactivate the
passenger airbag.
Porsche Side Impact Protection (POSIP)
*
Not to be used in conjunction with
spor ts bucket seats.
Sheet steel
Tailored Blanks
High-strength steel Aluminium Super high-strength steel
Super high-strength austenitic
stainless steel I

· 68 ·· 69 ·

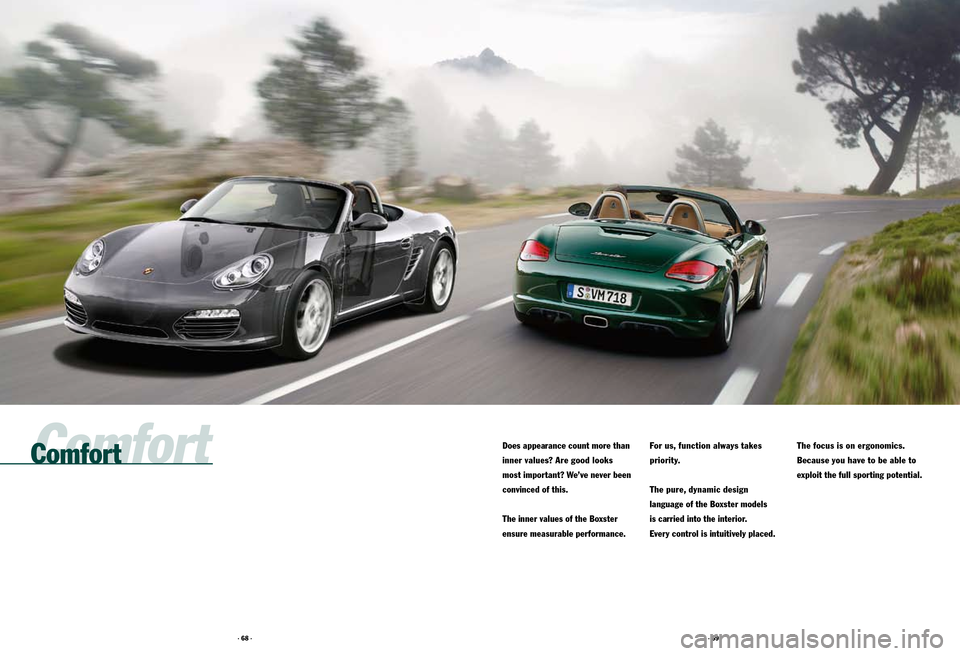

Comfort
Does appearance count more than
inner values? Are good looks
most important? We’ve never been
convinced of this.

The inner values of the Boxster
ensure measurable performance.
For us, function always takes
priority.

The pure, dynamic design
language of the Boxster models
is carried into the interior.
Every control is intuitively placed.
The focus is on ergonomics.
Because you have to be able to
exploit the full sporting potential.
Comfort

· 70 ·· 71 ·

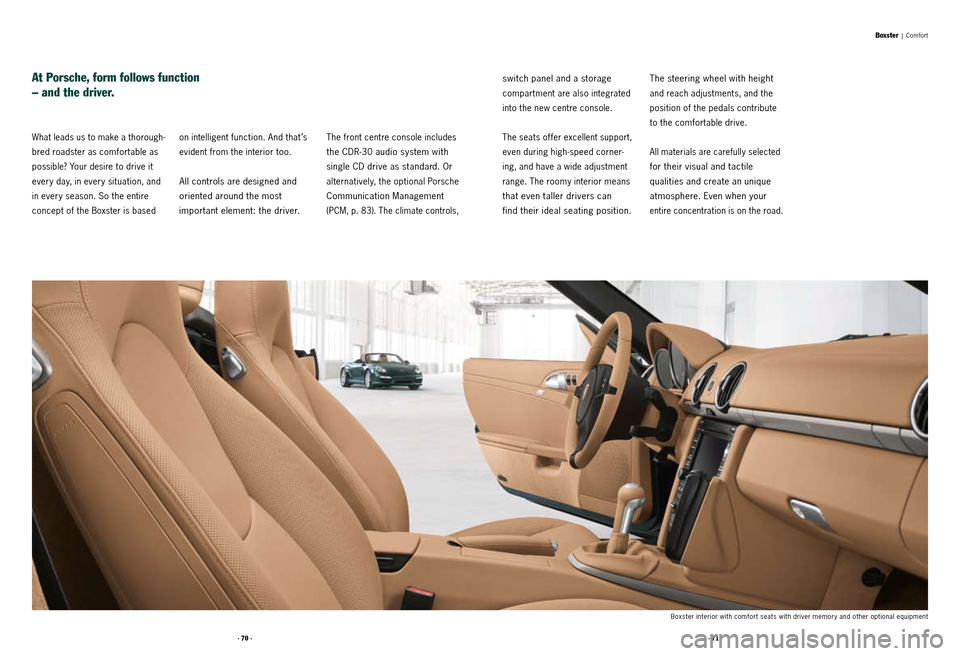

What leads us to make a thorough-
bred roadster as comfortable as
possible? Your desire to drive it
every day, in every situation, and
in every season. So the entire
concept of the Boxster is based on intelligent function. And that ’s
evident from the interior too.
All controls are designed and
oriented around the most

important element: the driver.
At Porsche, form follows function
– and the driver.
The front centre console includes
the CDR-30 audio system with
single CD drive as standard. Or
alternatively, the optional Porsche
Communication Management
(PCM, p. 83). The climate controls,
switch panel and a storage
compartment are also integrated
into the new centre console.
The seats offer excellent support,
even during high-speed corner -
ing, and have a wide adjustment
range. The roomy interior means
that even taller drivers can
find their ideal seating position.

The steering wheel with height
and reach adjustments, and the
position of the pedals contribute
to the comfortable drive.
All materials are carefully selected
for their visual and tactile
qualities and create an unique
atmo sphere. Even when your
entire concentration is on the road.
Boxster | Comfort
Boxster interior with comfort seats with driver memory and other optional equipment

· 72 ·· 73 ·

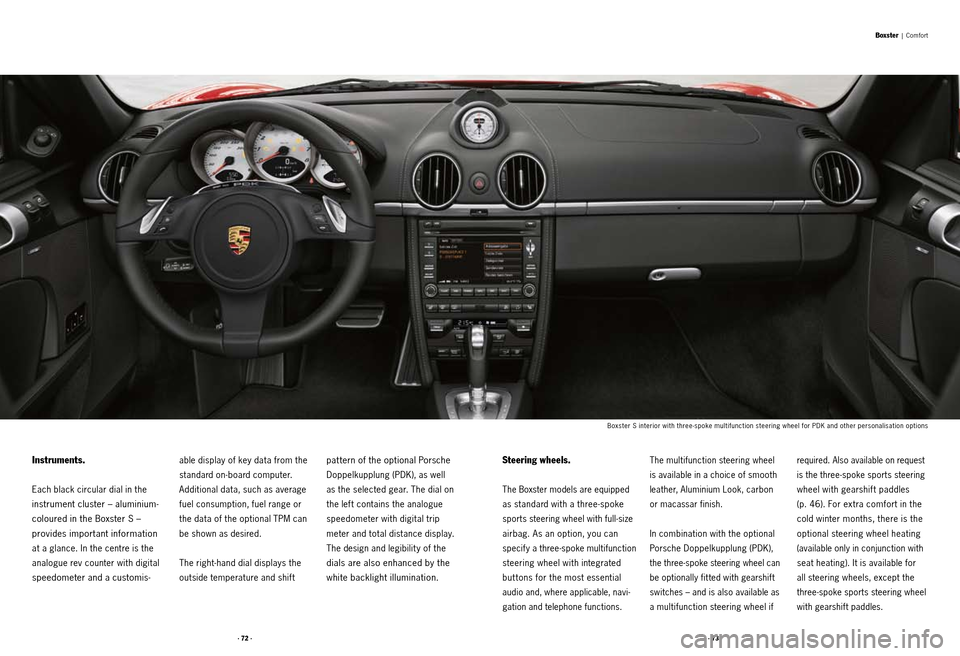

Instruments.
Each black circular dial in the
instrument cluster – aluminium-
coloured in the Boxster S –
provides important information
at a glance. In the centre is the
analogue rev counter with digital
speedometer and a customis - able display of key data from the
standard on -board computer.
Additional data, such as average
fuel consumption, fuel range or
the data of the optional TPM can
be shown as desired.
The right-hand dial displays the
outside temperature and shif t
pat tern of the optional Porsche
Doppelkupplung (PDK), as well

as the selected gear. The dial on
the lef t contains the analogue
speedometer with digital trip
meter and total distance display.
The design and legibilit y of the
dials are also enhanced by the
white backlight illumination.
Steering wheels.
The Boxster models are equipped
as standard with a three -spoke
sports steering wheel with full- size
airbag. As an option, you can
specify a three-spoke multifunction
steering wheel with integrated
but tons for the most essential
audio and, where applicable, navi -
gation and telephone functions. The multifunction steering wheel

is available in a choice of smooth
leather, Aluminium Look, carbon
or macassar finish.
In combination with the optional
Porsche Doppelkupplung (PDK),

the three-spoke steering wheel can
be optionally fit ted with gearshift
switches – and is also available as
a multifunction steering wheel if
Boxster | Comfort
required. Also available on request
is the three-spoke sports steering
wheel with gearshif t paddles
(p. 46). For extra comfort in the
cold winter months, there is the
optional steering wheel heating
(available only in conjunction with
seat heating). It is available for
all steering wheels, except the
three-spoke sports steering wheel
with gearshift paddles.
Boxster S interior with three-spoke multifunction steering wheel for PDK and other personalisation options

· 74 ·· 75 ·

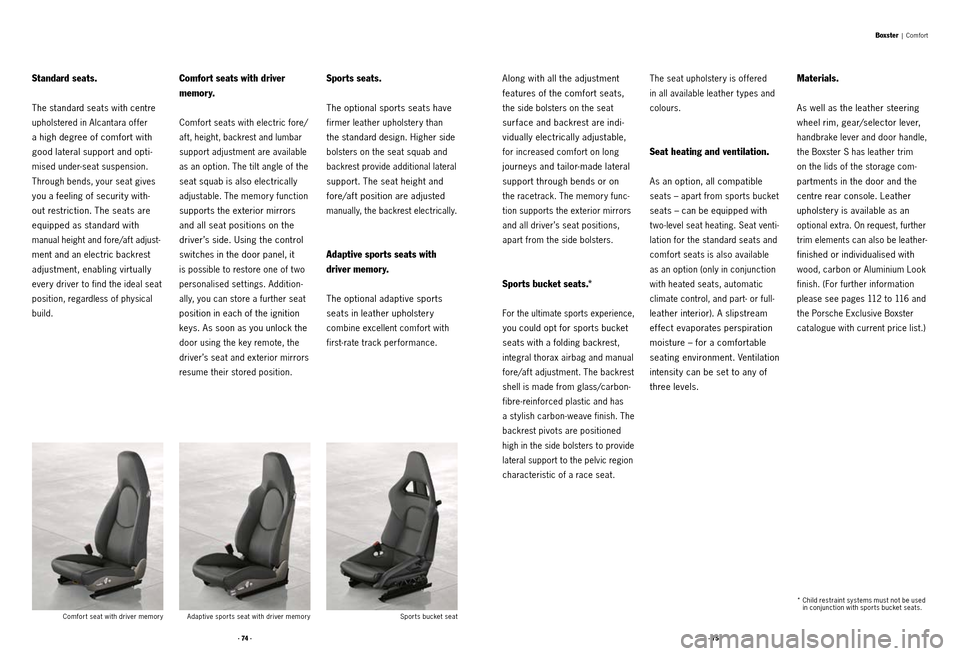

Standard seats.
The standard seats with centre
upholstered in Alcantara of fer
a high degree of comfort with
good lateral support and opti-
mised under-seat suspension.
Through bends, your seat gives
you a feeling of securit y with-
out restriction. The seats are
equipped as standard with

manual height and fore/aft adjust -
ment and an electric backrest
adjustment, enabling virtually
every driver to find the ideal seat
position, regardless of physical
build.
Comfort seats with driver
memory.
Comfort seats with electric fore/
aft, height, backrest and lumbar
support adjustment are available
as an option. The tilt angle of the
seat squab is also electrically
adjustable. The memory function
supports the exterior mirrors
and all seat positions on the
driver’s side. Using the control
switches in the door panel, it
is possible to restore one of t wo
personalised set tings. Addition -
ally, you can store a further seat
position in each of the ignition
keys. As soon as you unlock the
door using the key remote, the
driver’s seat and exterior mirrors
resume their stored position.
Sports seats.
The optional sports seats have
firmer leather upholstery than
the standard design. Higher side
bolsters on the seat squab and
backrest provide additional lateral
support. The seat height and
fore/aft position are adjusted
manually, the backrest electrically.
Adaptive sports seats with
driver memory.
The optional adaptive sports
seats in leather upholstery

combine excellent comfort with
first-rate track performance.
Boxster | Comfort
Along with all the adjustment
features of the comfort seats,
the side bolsters on the seat
surface and backrest are indi -
vidually electrically adjustable,
for increased comfort on long
journeys and tailor-made lateral
support through bends or on

the racetrack. The memory func -
tion supports the exterior mirrors
and all driver’s seat positions,
apart from the side bolsters.
Sports bucket seats.*
For the ultimate sports experience,
you could opt for sports bucket
seats with a folding backrest,
integral thorax airbag and manual
fore/af t adjustment. The backrest
shell is made from glass/carbon-
fibre-reinforced plastic and has
a st ylish carbon -weave finish. The
backrest pivots are positioned
high in the side bolsters to provide
lateral support to the pelvic region
characteristic of a race seat. The seat upholstery is of fered

in all available leather t ypes and
colours.
Seat heating and ventilation.
As an option, all compatible
seats – apart from sports bucket
seats – can be equipped with
t wo -level seat heating. Seat venti-
lation for the standard seats and
comfort seats is also available
as an option (only in conjunction
with heated seats, automatic
climate control, and part- or full-
leather interior). A slipstream
effect evaporates perspiration
moisture – for a comfortable
seating environment. Ventilation
intensit y can be set to any of
three levels.
Materials.
As well as the leather steering
wheel rim, gear/selector lever,
handbrake lever and door handle,
the Boxster S has leather trim
on the lids of the storage com -
partments in the door and the
centre rear console. Leather
upholstery is available as an
optional extra. On request, further
trim elements can also be leather-
finished or individualised with
wood, carbon or Aluminium Look
finish. (For further information
please see pages 112 to 116 and
the Porsche Exclusive Boxster
catalogue with current price list.)
Comfort seat with driver memory Adaptive sports seat with driver memory Sports bucket seat *
Child restraint systems must not be used
in conjunction with spor ts bucket seats.

· 76 ·· 77 ·
Air conditioning.
As standard, both Boxster models
come with a quiet, efficient
air- conditioning system. Optional
climate control, with solar and
temperature sensors, ensures
even more consistent control
over the interior temperature.
Cruise control.
This optional automatic speed
controller for the 30 to 240 km/ h
(19–149 mph) range is operated
using a switch on a separate con -
trol stalk on the steering column.
Storage compartments.
The Boxster’s cleverly designed
storage compartments of fer
plent y of space, such as those in
the front centre console or the lockable glove compartment
(includes CD storage on vehicles
with optional sound system).

The storage box on the rear bulk -
head of fers additional loadspace
(except on vehicles with optional
BOSE® Surround Sound System)
along with space in the rear
centre console. Other practical
features include storage com -
partments in the doors, coat
hooks on the back of each seat
and t wo retractable cup holders
above the glove compartment.
Boxster | Comfort
‘Welcome Home’ lighting.
When the vehicle is opened or
locked using the key remote, the
standard automatic locator light -
ing switches on automatically.
This is particularly convenient at
night. In conjunction with the
optional PCM (p. 83) and Sport
Chrono Package Plus (p. 57), the
delayed lighting switch - of f period
can be adjusted as desired.
HomeLink® (programmable
garage door opener).
The optional programmable
garage door opener is integrated
into the overhead console and
remotely controls up to three
different garage doors, gates,
home lighting and/or alarm
systems.
Windscreen wipers.
The windscreen wipers with
an adjustable intermit tent wipe
speed are aerodynamic and
inconspicuous. The windscreen
washer system has t wo heated
and filtered nozzles. An inte -
grated rain sensor is available
as an option (in conjunction
with auto -dimming mirrors).
Climate control Cruise controlCup holder

· 78 ·· 79 ·
Water-repellent side windows.
The surfaces of the side windows
are treated with a water-repellent
coating so that not only water but
also dirt runs away more easily,
thereby providing optimum visibil-
it y even in poor weather.
ParkAssist.
As soon as reverse gear is
engaged, the optional Park Assist
is automatically enabled. If you
move too close to an obstacle, a
warning signal begins to sound,
becoming faster until the car stops.
The sensors of the optional
Park Assist are neatly concealed in
the rear bumper.
Anti-theft protection.
The Boxster models are equipped
with an immobiliser with in-
key transponder. In addition, the
Boxster S has an alarm system
with contact-sensitive exterior pro -
tection as standard. On request
,
radar-based interior surveillance
is available which protects
the interior of the vehicle when
the hood is closed. For the
Boxster, the alarm system and
radar interior surveillance are
both available as options.
Boxster | Comfort
Vehicle tracking system.
In conjunction with the alarm
system, this optional preparation
enables future installation of a
vehicle tracking system available
from Porsche Tequipment. It
makes it possible to locate a
stolen vehicle across most of the
countries of Europe. The package
includes a special wiring loom
and a higher-capacit y bat tery.
A tilt sensor is included.
Two luggage compartments.
Two carpet-lined luggage compart -
ments are available. The front
loadspace capacit y is 150 litres,
with 130 litres at the rear –
even when the hood is lowered.
At the front there's enough room
for the large trolley from the
Porsche Travel System, while
the rear can accommodate the
Porsche golf bag. The luggage
compartment covers are made
of light weight aluminium.
A service hatch located in the
rear luggage compartment

enables easy refilling of coolant
and engine oil.
Front luggage compartment Rear luggage compartment Luggage compartments

· 80 ·· 81 ·
Hood.
The Boxster hood system is per-
fectly matched to the dynamic
exterior design. It opens in just
12 seconds and can even be
operated while the car is in motion
at speeds of up to 50 km/ h
(approx. 30 mph). The glass rear
screen is heated and scratch-
resistant. The Boxster models
ensure unrestricted driving
pleasure - and not only when the
sun is shining.
A concertina action protects the
interior rooflining when the hood
is folded away. The hood itself is
made from a fade - resistant robust

fabric which is specially pro -
tected against ultraviolet light.
The hood structure is very light
and stores compactly for a low
vehicle centre of gravit y with
no loss of storage space. The
interior is lined with a st ylish and
practical heat-insulating fabric
that also reduces exterior noise.
Hardtop.
The optional hardtop is elegantly
st yled to match the exterior of
the Boxster models. It is made of
robust aluminium and weighs
just 23 kg. The integral glass rear
window is, of course, heated.
Wind deflector.
On request, a three-piece wind
deflector is available which
reduces turbulence in the head
and shoulder area. It is easily
Boxster | Comfort
installed on the rear roll-over
bars. The wind deflector is
available in combination with

the storage box on the rear
bulkhead panel or with the BOSE®
Surround Sound System.
Hardtop
Wind deflector

· 82 ·· 83 ·
Porsche and sound – inseparable
– not only in terms of the engine,
but also in the interior acoustics.
The audio system is specially
adapted to the Boxster models.
The result is a rich and more
enjoyable sound – both inside
and outside the car.
CDR-30 audio system.
Both Boxster models are equipped
as standard with the CDR-30
audio system with 5-inch display
(monochrome) and MP3-com -
patible CD drive. An integrated
six-disc CD autochanger is avail -
able as an option.

Calling the tune,
even when it comes to communication.
The FM dual tuner with RDS
diversit y, a total of 30 memory
presets, dynamic autostore

and speed-sensitive volume con -
trol are, as usual, all part of the
standard package. Just like the
high-qualit y sound, which is deliv -
ered by t wo high-range speakers
in the dashboard, t wo low-range
speakers in the door trims and
t wo 25-wat t output stages. For
an even more impressive sound
experience, you could opt for
the Sound Package Plus or BOSE®
Surround Sound System.
Controlling the CDR-30 audio
system could not be more simple:
the function keys ensure that all
the main functions are directly at
your finger-tips, and it is also pos -
sible to conveniently control all
of the most important functions
using the but tons on the optional
multifunction steering wheels.
Porsche Communication
Management (PCM) including
navigation module.
PCM is available on request for
both Boxster models. As the
central information and communi -
cations system, it can be used
for many dif ferent applications
and its ergonomic design makes
it easy and comfortable to
operate.

Boxster | Comfort
The main feature is the 6.5-inch
colour touchscreen with a
durable, easy-to - clean coating.
Functional, innovative and easy
to use, you will find the display
very clearly presented and a
maximum of five list entries per
page enable you to operate the
unit quickly and safely. Alterna -
tively, you can also operate the
PCM using conventional but ton
controls.
CDR-30 audio system with optional CD autochanger Porsche Communication Management (PCM) with navigation module

· 84 ·· 85 ·
Radio functions include up to
42 memory presets and an FM
dual tuner with RDS and fre -
quency diversit y, which continu -
ously scans in the background
for the best signal. The integrated single CD/ DVD
drive – in combination with the
optional BOSE
® Surround Sound
System – is also able to play
back music from audio and video
DVDs in the 5.1 digital surround
format. An integrated six-disc
CD/ DVD autochanger with MP3
compatibilit y is also available as
an option for the PCM.
Navigation module for PCM.
The GPS navigation module
included with the optional PCM
now has an internal hard drive
containing maps for most Euro
-
pean countries.
Boxster | Comfort
A touchscreen enables rapid
destination input and instant
viewing of traf fic information and
points of interest (POIs) by simply
allowing you to touch the symbols
on the map. Route diversions,
e.g. the nearest service stations,
can therefore be incorporated
quickly and easily into the current
route guidance.
When viewing a map, it is pos -
sible to select bet ween a 3D
perspective and the 2D display.
At motorway exits, graphical

turn indications are displayed for
bet ter orientation. In splitscreen
mode, you can choose to display
not only the current map over-
view, but also a list of icons that
represent dynamic route guidance.
Electronic logbook for PCM.
The optional electronic logbook
enables automatic recording of
relevant driving data. Once you
have downloaded the logbooks
via Bluetooth® or the optional
USB interface, you can evaluate
them on your home PC using
the sof t ware supplied (sof t ware
complies with all statutory
requirements for automatic log-
books as specified by the

German revenue authorities).
TV tuner.
A T V tuner, available as an option,
receives free-to -air analogue and
digital broadcasts (DVB-T) and
provides entertainment bet ween
journeys. For your safet y, the
T V picture cannot be displayed
while the vehicle is in motion.
Voice control system.
Almost all of the functions of the
PCM can be controlled using
the latest optional voice control
system with word-by-word input.
The menu item is read aloud
exactly as it is displayed on the
screen and the voice control
system recognises commands or
sequences of numbers, whoever
the speaker. It then gives an
audible acknowledgement and
carries out the functions you
request. There is no need to ‘train’
the system.
Telephone module for PCM.*
Available as an option, the quad-
band GSM telephone module
of fers convenience and excellent
reception. Hands-free calls can
be made by inserting a SIM card
directly into the PCM’s integral
SIM card reader. And for even
more convenience, the Bluetooth®
capabilit y of your mobile phone
can be used to make calls through
the SIM Access Profile (SAP).
Once automatic pairing is com -
plete, the mobile phone’s aerial is
switched off to conserve bat tery
charge and the phone operates
via the car aerial. Depending

on the t ype of mobile phone, this
gives access not only to the
numbers on the SIM card, but also
to the phone’s internal memory.
Porsche Communication Management (PCM) including navigation module
* See page 117/118 for information.
