Sport Chrono Package.
Time is precious and every hundredth
of a second counts. The optional Sport
Chrono Package makes your driving experi -
ence priceless thanks to an even sportier
tuning of throt tle response and handling
characteristics.
The package comprises dynamic gear-
box mounts, a per formance display,
a digital and analogue stopwatch and
the SPORT PLUS but ton. When this
is pressed, optional Porsche Active
Suspension Management (PASM) switches
to ‘Sport ’ mode for harder damping
and more direct steering and therefore,
even more intensive road holding.
The trigger threshold for PSM is raised.
Agilit y is perceptibly enhanced when
braking for corners with PSM, allowing
even sportier braking and exit acceleration.
For even greater dexterit y, PSM can be set to standby while the car is still in
SPORT PLUS mode. For safet y, it is set
to intervene automatically only when ABS
assistance is required.
In conjunction with optional PDK, the Sport
Chrono Package comes with t wo additional
functions for a sport y drive that borders
on a motorsport experience. The first
is ‘Launch Control’, which is designed to
produce a racing start.
The second function is the involving

‘motorsport- derived gearshif t strategy’.
Using this, Porsche Doppelkupplung (PDK)

is geared up for the shortest possible
shift times and optimum shift points,
while torque boosts during gear changes
provide the maximum possible accelera -
tion. This involving experience is further
enhanced by overrun downshifts
and the
throttle-blip function for uncompromising
driving pleasure.
An additional display in the steering wheel
or either the instrument cluster indicates
whether the SPORT or SPORT PLUS
but -
tons and, with PDK, Launch Control have
been activated. In conjunction with the
optional Porsche Communication
Management (PCM), a special display
enables you to view, store and evaluate
lap times or other driving times. It shows
the total driving time, lap distance, lap
number and lap times recorded so far.

Performance is further intensified by
dynamic gearbox mounts. Read on to find
out more.
1 Sport Chrono display on the PDK steering wheel
2 Sport Chrono stopwatch
3 SPORT and SPORT PLUS but ton

1
64656465
For ward thrust |
Chassis
Dynamic gearbox mounts.
Dynamic gearbox mounts are included
as part of the optional Sport Chrono
Package. They are designed to enhance
both performance and comfort.
The electronically controlled system
minimises the oscillations and vibrations of the entire drive train, especially the
engine.
The gearbox is bolted to the body by t wo
mounts. Like any mass, it obeys the law

of inertia. This means that it will continue
moving in a uniformly straight line unless
some force causes it to change direction. Put more simply: when you are driving
into a bend, the vehicle will follow your
steering but, at first, the mass of the
drive train will not. This means that the
rear of the vehicle will ultimately be
pushed out wards as a result of the drive
train’s force of inertia.
Dynamic gearbox mounts minimise this
effect. Steering angle and both longitudi
-
nal and lateral acceleration are constantly
recorded by sensors. The stiffness and
damping performance of the gearbox
mounts adapt to changes in driving st yle
and road surface conditions, which is
achieved by use of a fluid with magnetic properties. This results in greater

traction, perceptibly more stable handling
under load change conditions and in
fast corners and, in conjunction with the
‘Launch Control’ function for example,
extremely fast acceleration. Using the SPORT or SPORT PLUS but ton
you can switch the dynamic gearbox
mounts from ‘Normal’ to ‘Sport ’ or

‘Per formance’ mode and intensif y your
driving pleasure. In conjunction with optional PCM, the
G -Force graphic on the TFT screen in

the right-hand circular instrument enables
you to view the lateral and longitudinal
forces as they act on the vehicle.
1 Dynamic gearbox mounts

The wider view |
Safety
On the road to independence, there is no
room for the slightest element of doubt.
The active and passive safet y concept
of the new Boxster models is designed
to ensure driving pleasure through peace
of mind.
Safet y is founded on a precisely engi -
neered chassis and high-performance
braking system. It also involves intelligent
control systems, such as Porsche Stability
Management (PSM), and depends on
an innovative body construction designed
to keep your roadster stable without
diminishing its agilit y. It is enhanced by an ingenious lighting concept featuring
powerful headlights, by assistance

systems that give you the information
you need and by an interior that provides
reliable protection in the event of an
accident.
Engineered body design.
The bodyshell of the new Boxster models
is based on an intelligent light weight
principle involving the composite con -
struction of aluminium and steel. The
use of dissimilar but precisely combined
components makes it possible to utilise
specific material properties exactly
It’s the same in the office as it is on the road:
performance needs a stable concept.
Safety.
where they are needed. Not only does
this provide a high level of safet y for
the driver, it offers a considerable weight
saving compared with the bodyshell of
the previous model. This is why the doors
of both luggage compartment lids are
made from lightweight aluminium.
The crumple zones in the front and
rear aprons feature integral light-alloy
bumpers, while impact absorbers offer
additional safet y. For the protection of
occupants, energy-absorbing padding is
used selectively in important areas within
the passenger cell.

2
1
70
71
The wider view |
Safety
Roll-over protection.
Dual roll - over protection creates survival
space in the event of a roll-over or side
impact. The front roll-over protection
element is made from super and ultra
high -strength steels. The rear roll - over
bars located behind the seats are a composite construction of aluminium and
steel. They are fully trimmed to blend in
and provide an excellent level of safet y.
The upper seat belt guides are mounted
on the roll-over bars for easier fastening.
Airbags.
To protect the driver and passenger, the
new Boxster models are equipped with
full-size airbags, which are inflated in

t wo stages depending on the severit y
and t ype of accident (e.g. frontal or offset
frontal). In less serious accidents, the airbags are only partially inflated, thereby
minimising discomfort to the occupants.
In addition to the central airbag control
unit on the transmission tunnel, a pair of
impact sensors is located near the head
-
lights. This allows a crash to be detected and evaluated far sooner and with

considerably greater accuracy.Porsche Side Impact Protection
System (POSIP).
Both new Boxster models are equipped
as standard with the Porsche Side Impact Protection System (POSIP). It comprises
t wo side airbags on each side. An integral
thorax airbag is located in the outer side
bolster of each seat, while the door panels
each contain an upwards-inflating head
airbag. Each thorax airbag has a volume of
10 litres and each head airbag 15 litres, ensuring excellent protection in the event
of a side impact even with the hood open.
POSIP additionally includes steel side
impact protection elements in the doors.
1 Engineered body design

2 Airbags and Porsche Side Impact Protection (POSIP)
Aluminium
Super high-strength steel
Multi-phase steel
Alloyed steel

12
5 3
4
72
73
The wider view |
Safety
Lights.
Lights will always be an essential safet y
feature, but we go one step further by
using them as part of an extraordinary
styling concept.
Clear glass halogen headlights are fit ted
as standard on the Boxster. The Boxster S
is equipped as standard with Bi-Xenon
headlights. On both models, LED day time running lights and position lights are
housed in a separate auxiliary light unit
above the outer air intakes. LEDs provide
powerful illumination, respond extremely
rapidly to driver input, offer a longer

service life and have an unmistakable
appearance.
LED technology opens up entirely new
possibilities for designers. Not only are LEDs capable of fulfilling all the functions
of the imposing taillights and third brake
light, they are integral to safet y and

create a look that is unmistakable, day
and night.
Bi-Xenon headlights including
Porsche Dynamic Light System (PDLS).
The optional Porsche Dynamic Light
System (PDLS), which comprises Bi -Xenon headlights with halogen main-beam head
-
lights, a headlight cleaning system and
automatic dynamic range control, provides
uniform illumination of the road whether
dipped or main beam is selected.
The dynamic cornering light function
swivels the main headlights towards the
inside of a bend based on steering angle
and road speed. Put simply, a greater part of the road ahead is illuminated the
moment you enter a bend. The system also includes a speed-sensitive
headlight range control function. With
adaptive light systems, it is possible for
the maximum range of the dipped beams
and their lighting power to be adjusted as
a function of the speed of the vehicle.
PDLS takes care of this automatically in t wo stages. Stage 1 is the basic position,
optimised for driving at lower speeds
such as in cit y traffic. Stage 2 is designed
for driving at faster speeds, such as
when on the motorway. Another function
of PDLS is the adverse weather function.
Activated when you switch on the rear
fog light, it reduces the effect of reflection
phenomena in poor visibility conditions.
Automatic headlight activation.
In the new Boxster models, automatic
headlight activation is available as
standard. The system automatically
switches bet ween day time running lights
and dipped beam based on ambient
lighting conditions.

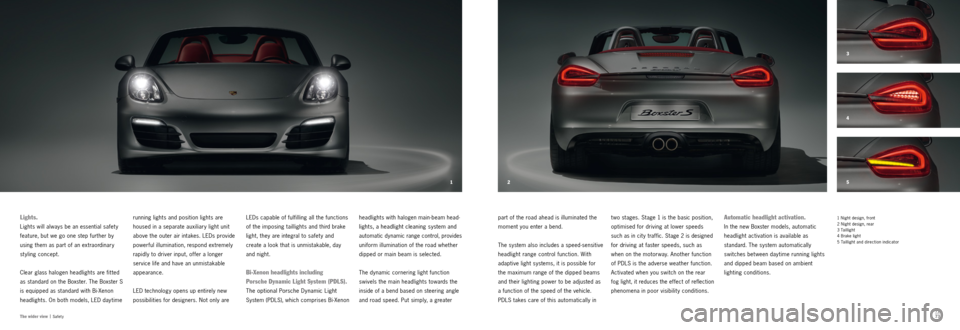

1 Night design, front
2 Night design, rear
3 Taillight
4 Brake light
5 Taillight and direction indicator

74
75
If we are to continue to enjoy driving
pleasure, we need to look after our
environment. In other words, we need to
take responsibilit y. In an era of intensify -
ing debate about global climate change
and CO
2 emissions, every automotive
manufacturer is asking itself what it
has to offer in terms of environmental
protection. Our answer has long been
the same: Intelligent Performance –
a combination of high power output and
high efficiency.
In recent years Porsche has managed to
reduce fuel consumption across all model
ranges by a double - digit percentage compared with the respective previous
model, even though performance has
been increased in every generation.

This is made possible by an efficient drive
concept (e.g. direct fuel injection (DFI) and
VarioCam Plus), lightweight construction,
optimised aerodynamics and low rolling
resistance.
The environmental management team
at the Porsche Development Centre in
Weissach aims to demonstrate a high
level of environmental responsibility. Here,
technological developments are carried
out with environmental protection in mind.
The goal is to enhance performance –
You can live for the moment
and still care about tomorrow.
Environment.
but, where possible, not at the expense
of the environment. We achieve this
goal with Intelligent Per formance, as
epitomised by the Boxster.
Exhaust emission control.
Vehicles manufactured by Porsche
demonstrate that even high-performance
sports cars can achieve moderate fuel
consumption and exhaust emission values
in their respective category.
This is achieved, on the one hand, through
the use of fuel - ef ficient technologies such
as auto start /stop, thermal management,
electrical system recuperation, direct fuel
For fuel consumption and CO
2 emissions please refer to page 127. injection, VarioCam Plus and, in conjunc
-
tion with optional PDK, coasting mode.
On the other hand, newly developed
cataly tic converters provide ef ficient
emission control. While the stereo
Lambda control circuitr y controls and
monitors each cylinder bank separately.
For each exhaust tract, oxygen sensors,
together with the engine electronics
and injectors, regulate the composition
of the exhaust gas, while another
Lambda sensor on each cylinder bank
monitors pollutant conversion in the
respective cataly tic converter.

76
7776
77
The wider view |
Environment
Fuel economy and recycling.
Intelligent lightweight construction has
been fundamental to the Porsche identit y
since 1948 for both technical and ecolog -
ical reasons. This forms the basis for
achieving low fuel consumption values in
conjunction with outstanding perfor -
mance. On the technical side, various compo
-
nents are made with a high proportion of
aluminium, magnesium, plastics and
super- high -strength sheet steel. The
materials used have been selected for
their abilit y to withstand load, yet they
are considerably lighter than conventional
steel. As a result, the bodyshell of the
new Boxster models has a light alloy con -
tent of approximately 46 %. On the ecological side, all materials used
are meticulously selected. We use only
innovative and environmentally friendly
components. All synthetic components
are easily recyclable and each material

is labelled to facilitate its separation for
recycling. The reduction in the number
of plastic variants helps to ensure more
ef ficient recycling. Recycled plastics are
used where they meet our exacting technical requirements. In short, the new
Boxster is around 95
% recyclable.
In addition, Porsche uses a high propor -
tion of environmentally friendly water-
based paints. For us, environmental
protection does not begin at the end of
a vehicle’s life. It starts at the planning
and development stage.
Fuel.
Both Boxster models are designed to
operate on fuels with an ethanol content
of up to 10 %. Ethanol has a positive
impact on the CO
2 balance since the
plants grown for the production of this
biofuel also absorb CO
2 from the atmos -
phere. The release of hydrocarbons from the fuel system has been minimised
thanks to the active carbon filter and the
multilayered material from which the fuel
tank is made. All fuel lines are made from
multilayered plastic, steel or aluminium.
Servicing.
Long service intervals offer clear advan
-
tages. For you, they reduce costs and
save time. For the environment, they
assist in the sparing use of consumables
and replacement parts. For full details
of service intervals, please refer to the
separate price list.
For fuel consumption and CO
2 emissions please refer to page 127.

1Free space |
Interior and comfort
Ultimately, the feeling of freedom comes
from within. The interior of the new
Boxster models is purposefully designed
as a declaration of independence.
The geometric form of the cockpit
follows a clear direction: forwards.
The elevated centre console integrates
the driver optimally into the vehicle
by positioning the gear lever extremely
close to the steering wheel to enable
fast and sport y gear changes.
The generously proportioned interior is
light and offers plent y of space for driver
and passenger comfort. The individual
controls are characterised by their
simplicit y and ergonomics for intuitive use.
Fit ted as standard, the CDR audio
system combines with the optional
Sound Package Plus to deliver impressive
acoustic performance and has a touch -
screen for easy operation. Available
as an option, the BOSE
® Surround Sound
System creates an authentic sound
experience with eight amplifier channels,
10 loudspeakers and a total output of
445 wat ts.
The interior materials are high-quality,
and the refined tone is enhanced by a
wealth of silver- coloured details. These
are found on the dashboard trim strip,
the centre console, the door pulls, the
glove compartment release lever, the
side and centre air vent surrounds and
The most beautiful roof is the sky.
Interior and comfort.
the model designation plaque on the
centre console.
The steering wheel rim and gear lever/
selector are sport y and st ylish at the
same
time. The door pull inlays are t ypi -
cally Porsche. Finished in leather, they
represent a balanced blend of design
and functionalit y. In the Boxster S, the
door armrests and the centre console
storage compartment lid are also fin -
ished in leather.
For even more sport y elegance, you
can request the optional leather package
for a st ylish leather finish on purposefully
selected interior features. As always, a
comprehensive leather interior package
is also available as an option.
1 Boxster S with natural leather interior in Carrera Red,
PDK and other optional equipment available from
selected product ranges including Porsche Exclusive
