PORSCHE BOXSTER S 2013 3.G Information Manual

6061

Porsche Stability Management (PSM).

Porsche Stabilit y Management (PSM) is fit-
ted as standard. This system automatically
maintains stability even at the limits of
dynamic driving performance. Sensors
continuously monitor the speed, yaw
velocit y and lateral acceleration of the
Fo r w ar d t h r u s t |
Chassis
therefore achieved much sooner. Brake
assist detects a panic braking situation
and generates the brake pressure
required for maximum deceleration.
precharging of the brake system and
brake assist. If you suddenly release the
accelerator pedal, PSM automatically
prepares for your next action: the braking
system is precharged so that the brake
pads are already in light contact with the
brake discs. Maximum braking power is

If you prefer an ever sportier drive, PSM
can be switched off. For your safet y,

however, PSM remains set to intervene if
the vehicle is braked and ABS assistance

is required. ABS and ABD remain switched
on at all times. Also included with PSM
are engine drag torque control (EDC),
Under acceleration on wet or low-grip
road surfaces, PSM improves traction –
as well as agilit y and safet y – using the
automatic brake differential (ABD) and
antislip regulation (ASR). Integrated ABS is
designed to minimise braking distances. car. Using this information, PSM is able
to calculate the actual direction of travel
at any given moment. If the car begins
to oversteer or understeer, PSM applies
selective braking on individual wheels in
order to restore stability.

62
63
Fo r w ar d t h r u s t |
Chassis
with precise steering and stable load
transfer characteristics. What else? As
ever, lots of excitement at every t wist
and turn.
on a range of surface conditions, includ
-
ing the wet and snow.
The results are remarkable stability,
easier handling and outstanding traction
as well as greater agilit y at every speed
At low and medium vehicle speeds, PT V
significantly increases agilit y and steering
precision. At high speeds and when

a
ccelerating out of corners, the rear differ-
ential lock ensures greater driving stabilit y
(yaw movement) around the vehicle’s
vertical axis. This results in a direct and
sport y steering action as the car enters
the corner.
When the car is driven assertively into

a corner, moderate brake pressure is
applied to the inside rear wheel. Conse -
quently, a greater amount of drive force
is distributed to the outside rear wheel,
inducing an additional rotational pulse Porsche Torque Vectoring (PTV).
This optional system for increasing
dynamic performance and stability varies
the distribution of torque to the rear
wheels and includes a mechanically lock -
ing rear differential.

3 2 1
6465
1 Sport Chrono display on sports steering wheel
in conjunction with PDK
2 Sport Chrono stopwatch
3 SPORT and SPORT PLUS but tonswhile torque boosts during gear changes
provide the maximum acceleration availa -
ble. This involving experience is further
enhanced by overrun downshifts
and the
throttle-blip function for uncompromising
driving pleasure.
An additional display in the steering
wheel or either the instrument cluster
indicates the SPORT or SPORT PLUS
but tons and, with PDK, Launch Control
have been activated. In conjunction with
the optional Porsche Communication
Management (PCM), a special display ena -
bles you to view, store and evaluate lap
times or other driving times. It shows the
total driving time, lap distance, lap num -
ber and lap times recorded so far.
Performance is further intensified by
dynamic gearbox mounts. Read on to find
out more.
be set to standby while the car is still in
SPORT PLUS mode. For safet y, it is set

to intervene automatically only when ABS
assistance is required.
The throt tle-blip function produces even
sportier gearshifts. A managed burst of
throt tle ensures smooth load changes for
increased stabilit y and makes the gearshift
process an even more engaging experience.
In conjunction with optional PDK, the Sport
Chrono Package comes with t wo additional
functions for a sport y drive that borders

on a motorsport experience. The first
is ‘Launch Control’, which is designed to
produce a racing start.
The second function is the involving

‘motorsport- derived gearshif t strategy’.
Using this, Porsche Doppelkupplung (PDK)

is geared up for the shortest possible
shift times and optimum shift points,
Sport Chrono Package.
Time is precious and every hundredth
of a second counts. The optional Sport
Chrono Package makes your driving experi
-
ence priceless thanks to an even sportier
tuning of throt tle response and handling
characteristics.
The package comprises dynamic gear-
box mounts, a performance display, a
digital and analogue stopwatch and the
SPORT PLUS but ton. When this is pressed,
optional Porsche Active Suspension
Management (PASM) switches to ‘Sport ’
mode for harder damping and more
direct steering and therefore, even more
intensive road holding.
The trigger threshold for PSM is raised.
Agilit y is perceptibly enhanced when

braking for corners with PSM, allowing
even sportier braking and exit acceleration.
For even greater dexterit y, PSM can

1
6667
Fo r w ar d t h r u s t |
Chassis
1 Dynamic gearbox mountsIn conjunction with optional PCM, the
G -Force graphic on the TFT screen in
the right-hand circular instrument enables
you to view the lateral and longitudinal
forces as they act on the vehicle.
Using the SPORT or SPORT PLUS but ton
you can switch the dynamic gearbox
mounts from ‘Normal’ to ‘Sport ’ or

‘Per formance’ mode and intensif y your
driving pleasure. This results in greater traction, perceptibly
more stable handling under load change
conditions and in fast corners and, in
conjunction with the ‘Launch Control’
function for example, extremely fast
acceleration.
Dynamic gearbox mounts minimise this
effect. Steering angle and both longitudi
-
nal and lateral acceleration are constantly
recorded by sensors. The stiffness and
damping performance of the gearbox
mounts adapt to changes in driving st yle
and road surface conditions, which is
achieved by use of a fluid with magnetic
properties.
Put more simply: when you are driving
into a bend, the vehicle will follow your
steering but, at first, the mass of the

drivetrain will not. This means that the
rear of the vehicle will ultimately be
pushed out wards as a result of the drive -
train’s force of inertia.
of the entire drivetrain, especially the
engine.
The gearbox is bolted to the body by t wo
mounts. Like any mass, it obeys the law

of inertia. This means that it will continue
moving in a uniformly straight line unless
some force causes it to change direction. Dynamic gearbox mounts.
Dynamic gearbox mounts are included
as part of the optional Sport Chrono
Package. They are designed to enhance
both performance and comfort.
The electronically controlled system
minimises the oscillations and vibrations

7071
The wider view |
Safety
are needed. Not only does this provide a
high level of safet y for the driver, it offers
a considerable weight saving compared
with the bodyshell of the previous model.
This is why the doors of both luggage
compartment lids are made from light -
weight aluminium.
The crumple zones in the front and
rear aprons feature integral light-alloy
bumpers, while impact absorbers offer
additional safet y. For the protection of
occupants, energy-absorbing padding is
used selectively in important areas within
the passenger cell.an ingenious lighting concept featuring
powerful headlights, by assistance

systems that give you the information
you need and by an interior that provides
reliable protection in the event of an

accident.
Engineered body design.
The bodyshell of the Boxster models is
based on an intelligent light weight princi -
ple involving the composite construction
of aluminium and steel. The use of dis -
similar but precisely combined compo -
nents makes it possible to utilise specific
material properties exactly where they
It’s the same in the office as it is on the road:
performance needs a stable concept.
Safety.
On the road to independence, there is no
room for the slightest element of doubt.
The active and passive safet y concept

of the Boxster models is designed to
ensure driving pleasure through peace

of mind.
Safet y is founded on a precisely engi
-
neered chassis and high-performance
braking system. It also involves intelligent
control systems, such as Porsche Stability
Management (PSM), and depends on

an innovative body construction designed
to keep your roadster stable without

diminishing its agilit y. It is enhanced by

2
1
72
73
The wider view |
Safety
Alloyed steel Multi - phase steel Super high -streng th steel Aluminium
1 Engineered body design
2 Airbags and Porsche Side Impact Protection System
(POSIP)
ensuring excellent protection in the event
of a side impact even with the hood open.
POSIP additionally includes steel side
impact protection elements in the doors.System (POSIP). It comprises t wo side
airbags on each side. An integral thorax
airbag is located in the outer side bolster
of each seat, while the door panels each
contain an upwards-inflating head airbag.
Each thorax airbag has a volume of
10 litres and each head airbag 15 litres,
and evaluated far sooner and with

considerably greater accuracy.
Porsche Side Impact Protection
System (POSIP).
Both Boxster models are equipped as stand-
ard with the Porsche Side Impact Protection
only partially inflated, thereby minimising
discomfort to the occupants.
In addition to the central airbag control
unit on the transmission tunnel, a pair of
impact sensors is located near the head -
lights. This allows a crash to be detected
Airbags.
To protect the driver and passenger, the
Boxster models are equipped with full -size
airbags, which are inflated in t wo stages
depending on the severit y and t ype of
accident (e.g. frontal or offset frontal). In
less serious accidents, the airbags are

composite construction of aluminium and
steel. They are fully trimmed to blend in
and provide an excellent level of safet y.
The upper seat belt guides are mounted
on the roll- over bars for easier fastening.Roll-over protection.
Dual roll - over protection creates survival
space in the event of a roll- over or side
impact. The front roll-over protection
element is made from super and ultra
high -strength steels. The rear roll - over
bars located behind the seats are a

5 4
3
2
1
74
75
The wider view |
Safety

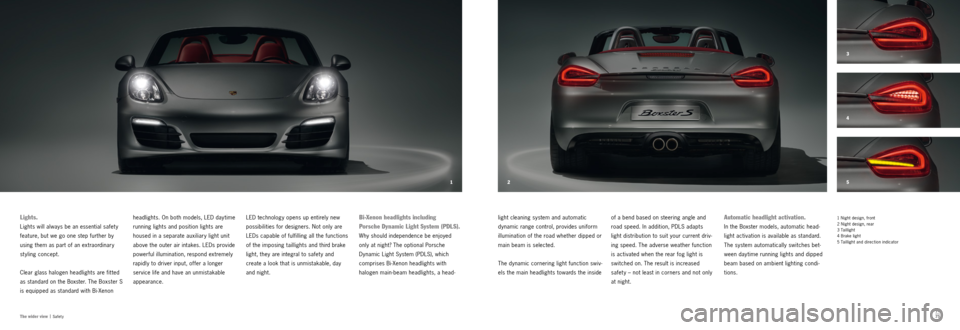

1 Night design, front
2 Night design, rear
3 Taillight
4 Brake light
5 Taillight and direction indicatorAutomatic headlight activation.
In the Boxster models, automatic head -
light activation is available as standard.
The system automatically switches bet -
ween day time running lights and dipped
beam based on ambient lighting condi -
tions.
of a bend based on steering angle and
road speed. In addition, PDLS adapts
light distribution to suit your current driv
-
ing speed. The adverse weather function
is activated when the rear fog light is
switched on. The result is increased
safet y – not least in corners and not only
at night.
light cleaning system and automatic
dynamic range control, provides uniform
illumination of the road whether dipped or
main beam is selected.
The dynamic cornering light function swiv
-
els the main headlights towards the inside
Bi-Xenon headlights including
Porsche Dynamic Light System (PDLS).
Why should independence be enjoyed
only at night? The optional Porsche
Dynamic Light System (PDLS), which
comprises Bi-Xenon headlights with
halogen main-beam headlights, a head-
LED technology opens up entirely new
possibilities for designers. Not only are
LEDs capable of fulfilling all the functions
of the imposing taillights and third brake
light, they are integral to safet y and

create a look that is unmistakable, day
and night.
headlights. On both models, LED day time
running lights and position lights are
housed in a separate auxiliary light unit
above the outer air intakes. LEDs provide
powerful illumination, respond extremely
rapidly to driver input, offer a longer

service life and have an unmistakable
appearance.
Lights.
Lights will always be an essential safet y
feature, but we go one step further by
using them as part of an extraordinary
styling concept.
Clear glass halogen headlights are fit ted
as standard on the Boxster. The Boxster S
is equipped as standard with Bi-Xenon

76
77For fuel consumption, CO2 emissions and efficiency class please refer to page 131. injection, VarioCam Plus and, in conjunc
-
tion with optional PDK, coasting mode.
On the other hand, newly developed
cataly tic converters provide ef ficient
emission control. While the stereo

Lambda control circuitr y controls and
monitors each cylinder bank separately.
For each exhaust tract, oxygen sensors,
together with the engine electronics
and injectors, regulate the composition
of the exhaust gas, while another
Lambda sensor on each cylinder bank
monitors pollutant conversion in the
respective cataly tic converter.
The goal is to enhance performance –

but, where possible, not at the expense
of the environment.
Exhaust emission control.
Vehicles manufactured by Porsche
demonstrate that even high-performance
sports cars can achieve moderate fuel
consumption and exhaust emission values
in their respective category.
This is achieved, on the one hand, through
the use of fuel - ef ficient technologies such
as auto start /stop, thermal management,
electrical system recuperation, direct fuel
compared with the respective previous
model, even though performance has
been increased in every generation. This
is made possible by an efficient drive
concept (e.g. direct fuel injection (DFI) and
VarioCam Plus), lightweight construction,
optimised aerodynamics and low rolling
resistance.
The environmental management team

at the Porsche Development Centre in
Weissach aims to demonstrate a high
level of environmental responsibility. Here,
technological developments are carried
out with environmental protection in mind.
If we are to continue to enjoy driving
pleasure, we need to look after our

environment. In other words, we need to
take responsibilit y. In an era of intensify -
ing debate about global climate change
and CO
2 emissions, every automotive
manufacturer is asking itself what it
has to offer in terms of environmental
protection. Our answer has long been
the same: a combination of high power
output and high efficiency.
In recent years Porsche has managed to
reduce fuel consumption across all model
ranges by a double - digit percentage
You can live for the moment
and still care about tomorrow.
Environment.

7879For fuel consumption, CO2 emissions and efficiency class please refer to page 131.
The wider view |
Environment
Servicing.
Long service intervals offer clear advan -
tages. For you, they reduce costs and
save time. For the environment, they
assist in the sparing use of consumables
and replacement parts. For full details
of service intervals, please refer to the
separate price list.
the fuel system has been minimised
thanks to the active carbon filter and the
multilayered material from which the fuel
tank is made. All fuel lines are made from
multilayered plastic, steel or aluminium.
Fuel.
Both
Boxster models are designed to
operate on fuels with an ethanol content
of up to 10 %. Ethanol has a positive
impact on the CO
2 balance since the
plants grown for the production of this
biofuel also absorb CO
2 from the atmos -
phere. The release of hydrocarbons from
technical requirements. In short, the

Boxster is around 95 % recoverable.
In addition, Porsche uses a high propor -
tion of environmentally friendly water-
based paints. For us, environmental
protection does not begin at the end of
a vehicle’s life. It starts at the planning
and development stage.
On the ecological side, all materials used
are meticulously selected. We use only
innovative and environmentally friendly
components. All synthetic components
are easily recyclable and each material

is labelled to facilitate its separation for
recycling. The reduction in the number
of plastic variants helps to ensure more
ef ficient recycling. Recycled plastics are
used where they meet our exacting
On the technical side, various compo
-
nents are made with a high proportion of
aluminium, magnesium, plastics and
super high-strength sheet steel. The
materials used have been selected for
their abilit y to withstand load, yet they
are considerably lighter than conventional
steel. As a result, the bodyshell of the
Boxster models has a light alloy content
of approximately 46 %.
Fuel economy and recycling.
Intelligent lightweight construction has
been fundamental to the Porsche identit y
since 1948 for both technical and ecolog -
ical reasons. This forms the basis for
achieving low fuel consumption values in
conjunction with outstanding perfor -
mance.
