sensor PORSCHE BOXSTER S 2013 3.G Information Manual

3233For fuel consumption, CO2 emissions and efficiency class please refer to page 131.
converter to reach normal operating
temperature sooner after a cold start and
a higher maximum torque to be achieved.
DFI improves the internal cooling of the
combustion chamber by having the
mixture prepared directly in the cylinder.
This allows for a higher compression ratio,
which helps to deliver higher power output
at the same time as enhanced engine
efficiency. Injection is regulated by the
electronic engine management system
and emissions are monitored by the stereo
Lambda sensors.
Direct fuel injection (DFI).
Direct fuel injection (DFI) is featured
as standard in both Boxster models.
Multi-hole injectors deliver fuel directly
into the combustion chamber with milli -
second precision. The injection pattern
has been optimised for torque, power
output, fuel consumption and emissions.
With direct injection, the engine manage -
ment system regulates injection timing
individually for each cylinder, as well as
the injection rate for each cylinder bank.
This optimises the combustion process
and therefore fuel economy. Depending
on the engine operating conditions, multi -
ple fuel injections can take place on each
operating cycle. This allows the cataly tic
Resonance intake manifold.
The resonance effect, where the air mass
inside the intake manifold is caused to
oscillate, is used to optimise the induction
process at all engine speeds. The engine
in the Boxster S is additionally equipped
with a switchable resonance valve.
The results are high torque, a flat ter
torque curve and high power output.

The sound produced is characteristically
resonant and deep, as you would expect
of a Boxster.

2
1
36
37Fo r w ar d t h r u s t |
Engine
For fuel consumption, CO2 emissions and efficiency class please refer to page 131.
1 Boxster tailpipe
2 Boxster S t win tailpipemonitors each cylinder bank separately.
For each exhaust tract, four correspond -
ing oxygen sensors regulate the composi -
tion of the exhaust gas and monitor the
performance of the catalytic converters.
Having separate tracts means that the
exhaust gas can flow more freely. The
resulting reduction in pressure loss has a
positive impact on power output, torque
and the unmistakable engine sound.
Available as an option for the Boxster
models is the sports exhaust system
including sports tailpipe. It produces an
even more resonant Porsche sound.
Our cross-flow cooling system, as used

in motorsport, supplies each engine
cylinder uniformly with coolant, which
protects the valves against thermal
overload and, therefore, premature wear.
This improves combustion and keeps
emissions, fuel consumption and noise
comparatively low.
Exhaust system.
In the Boxster models, each cylinder
bank has its own stainless-steel exhaust
tract. Downstream of their respective
rear silencer, the tracts converge into a
connecting tube and a single ( Boxster)
or t win (
Boxster S) tailpipe. The stereo
Lambda control circuitr y controls and
Thermal management.
The Boxster models feature a new version
of thermal management to reduce friction
losses that arise during the warm-up
phase.
Thanks to the selective control strategy
and on-demand, gradual activation of the
various cooling circuits, the engine and
gearbox warm up to normal operating
temperature more rapidly. The conse -
quent reduction in friction also reduces
fuel consumption and CO
2 em issio ns.
During sporty driving, thermal manage -
ment also acts to reduce temperatures
so that a high level of performance is
maintained.

2 1
4041For fuel consumption, CO2 emissions and efficiency class please refer to page 131.
Fo r w ar d t h r u s t |
Engine
adaptive cruise control will decelerate
your vehicle accordingly – even down to
a halt.
1 Auto start /stop but ton
2 Adaptive cruise control radar sensor
front because it is driving more slowly –
this is detected by the radar sensor. The
system now reduces the speed of your
vehicle by restricting throt tle or by gently
applying the brakes until your chosen
distance from the vehicle in front is main -
tained. If the vehicle ahead slows further,
regulates the speed of your vehicle in line
with the speed of the vehicle in front. A

radar sensor scans the road ahead up to
a distance of 200 m.
Imagine you’ve selected a cruising speed
but have begun to gain on the vehicle in
within the speed limit, it also helps you to
save fuel by maintain
ing a constant speed.
Adaptive cruise control including
Porsche Active Safe (PAS).
Also available as an option is the
enhanced version of cruise control, which
Cruise control.
This optional automatic speed controller
for the 30 to 240 km/ h speed range is
operated using a switch
on a separate
control stalk on the steering
column. The
advantages are clear, not
only can cruise
control be used as a
means of staying
The auto start /stop function can be
deactivated and reactivated using a sepa-
rate but ton on the centre console. The
function may be deactivated automatical-
ly under particular circumstances, for
example in extreme outside tempera
-
tures, when the SPORT but ton is selected
or when there is low bat tery charge.
All audio and commu nication systems
remain switched on. The engine will
restart as soon as you operate the clutch
or, in cars with PDK, release the brake.
This fuel-saving innovation is designed
primarily for use in towns or congested
motorway traffic.
Auto start/stop function.
The auto start/stop function, which is
integrated as standard in the Boxster
models, switches off the engine when
you stop, select neutral and release the
clutch pedal.
In cars with Porsche
Doppelkupplung (PDK), it is simply a
case of applying and holding the brake.

5051
Fo r w ar d t h r u s t |
Chassis
and more comfortable than the standard
chassis. The PASM control unit evaluates
the driving conditions and modifies the

damping force on each of the wheels in
accordance with the selected mode.
Sensors record the body movements that
accompany powerful acceleration, brak
-
ing or uneven road surfaces. This enables
intelligent adaptation of damper stif fness
for the selected mode, optimising contact
bet ween each individual t yre and the road
and reducing pitch.
Porsche Active Suspension
Management (PASM).
Optional PASM, the electronic damping
control system, suits the Boxster models
down to the ground. PASM
actively and
continuously regulates the damping force
for each wheel according to the
road con-
ditions and driving st yle. In addition, the
suspension is lowered by 10 mm.
The driver can select bet ween t wo
dif ferent modes: ‘Normal’ which is a
blend of performance and comfort,
and ‘Sport ’ where the setup is much
firmer. Depending on the mode selected,
therefore, PASM can be both sportier

of the previous model. The independent
suspension features lightweight spring-strut
axles with longitudinal and transverse
links and, at the front, cross members
that have been refined for optimum control.
As a result, each wheel moves precisely
to ensure excellent directional stability
and superior handling in all situations.
What does this mean for the driver? The
sophisticated engineering of the chassis,
combined with the mid-engined layout,
achieves impressive dynamic performance.
Body roll and pitch have been practically
eliminated to offer a level of agilit y that
turns each corner into an incomparable
experience.

Even when you want to make a break
from everyday life, you should still keep
your feet on the ground.
The chassis of the Boxster models are an
excellent match for the powerful engines.
Axle components are made predominantly
of aluminium. This lightweight material
helps to keep the weight of the vehicle and
its unsprung masses low, which reduces
fuel consumption, improves comfort and
increases agilit y.
The wide track is a prominent feature
and to provide additional stability and
enhanced comfort, the wheelbase has been
extended by 60 mm compared with
that
A love of freedom is no reason
to lose self-control.
Chassis.

6061

Porsche Stability Management (PSM).

Porsche Stabilit y Management (PSM) is fit-
ted as standard. This system automatically
maintains stability even at the limits of
dynamic driving performance. Sensors
continuously monitor the speed, yaw
velocit y and lateral acceleration of the
Fo r w ar d t h r u s t |
Chassis
therefore achieved much sooner. Brake
assist detects a panic braking situation
and generates the brake pressure
required for maximum deceleration.
precharging of the brake system and
brake assist. If you suddenly release the
accelerator pedal, PSM automatically
prepares for your next action: the braking
system is precharged so that the brake
pads are already in light contact with the
brake discs. Maximum braking power is

If you prefer an ever sportier drive, PSM
can be switched off. For your safet y,

however, PSM remains set to intervene if
the vehicle is braked and ABS assistance

is required. ABS and ABD remain switched
on at all times. Also included with PSM
are engine drag torque control (EDC),
Under acceleration on wet or low-grip
road surfaces, PSM improves traction –
as well as agilit y and safet y – using the
automatic brake differential (ABD) and
antislip regulation (ASR). Integrated ABS is
designed to minimise braking distances. car. Using this information, PSM is able
to calculate the actual direction of travel
at any given moment. If the car begins
to oversteer or understeer, PSM applies
selective braking on individual wheels in
order to restore stability.

1
6667
Fo r w ar d t h r u s t |
Chassis

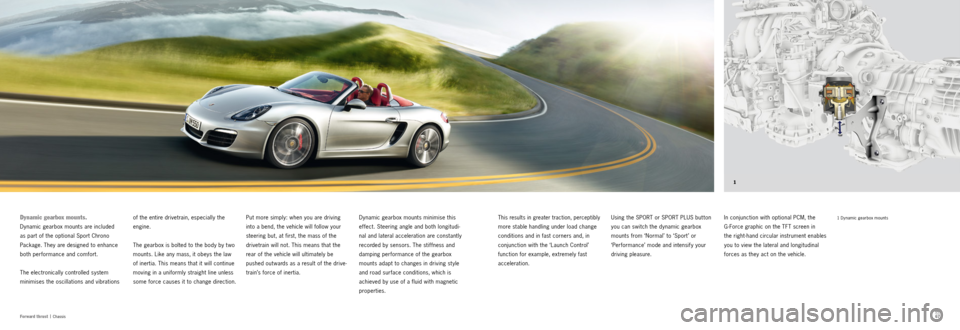

1 Dynamic gearbox mountsIn conjunction with optional PCM, the
G -Force graphic on the TFT screen in
the right-hand circular instrument enables
you to view the lateral and longitudinal
forces as they act on the vehicle.
Using the SPORT or SPORT PLUS but ton
you can switch the dynamic gearbox
mounts from ‘Normal’ to ‘Sport ’ or

‘Per formance’ mode and intensif y your
driving pleasure. This results in greater traction, perceptibly
more stable handling under load change
conditions and in fast corners and, in
conjunction with the ‘Launch Control’
function for example, extremely fast
acceleration.
Dynamic gearbox mounts minimise this
effect. Steering angle and both longitudi
-
nal and lateral acceleration are constantly
recorded by sensors. The stiffness and
damping performance of the gearbox
mounts adapt to changes in driving st yle
and road surface conditions, which is
achieved by use of a fluid with magnetic
properties.
Put more simply: when you are driving
into a bend, the vehicle will follow your
steering but, at first, the mass of the

drivetrain will not. This means that the
rear of the vehicle will ultimately be
pushed out wards as a result of the drive -
train’s force of inertia.
of the entire drivetrain, especially the
engine.
The gearbox is bolted to the body by t wo
mounts. Like any mass, it obeys the law

of inertia. This means that it will continue
moving in a uniformly straight line unless
some force causes it to change direction. Dynamic gearbox mounts.
Dynamic gearbox mounts are included
as part of the optional Sport Chrono
Package. They are designed to enhance
both performance and comfort.
The electronically controlled system
minimises the oscillations and vibrations

2
1
72
73
The wider view |
Safety
Alloyed steel Multi - phase steel Super high -streng th steel Aluminium
1 Engineered body design
2 Airbags and Porsche Side Impact Protection System
(POSIP)
ensuring excellent protection in the event
of a side impact even with the hood open.
POSIP additionally includes steel side
impact protection elements in the doors.System (POSIP). It comprises t wo side
airbags on each side. An integral thorax
airbag is located in the outer side bolster
of each seat, while the door panels each
contain an upwards-inflating head airbag.
Each thorax airbag has a volume of
10 litres and each head airbag 15 litres,
and evaluated far sooner and with

considerably greater accuracy.
Porsche Side Impact Protection
System (POSIP).
Both Boxster models are equipped as stand-
ard with the Porsche Side Impact Protection
only partially inflated, thereby minimising
discomfort to the occupants.
In addition to the central airbag control
unit on the transmission tunnel, a pair of
impact sensors is located near the head -
lights. This allows a crash to be detected
Airbags.
To protect the driver and passenger, the
Boxster models are equipped with full -size
airbags, which are inflated in t wo stages
depending on the severit y and t ype of
accident (e.g. frontal or offset frontal). In
less serious accidents, the airbags are

composite construction of aluminium and
steel. They are fully trimmed to blend in
and provide an excellent level of safet y.
The upper seat belt guides are mounted
on the roll- over bars for easier fastening.Roll-over protection.
Dual roll - over protection creates survival
space in the event of a roll- over or side
impact. The front roll-over protection
element is made from super and ultra
high -strength steels. The rear roll - over
bars located behind the seats are a

76
77For fuel consumption, CO2 emissions and efficiency class please refer to page 131. injection, VarioCam Plus and, in conjunc
-
tion with optional PDK, coasting mode.
On the other hand, newly developed
cataly tic converters provide ef ficient
emission control. While the stereo

Lambda control circuitr y controls and
monitors each cylinder bank separately.
For each exhaust tract, oxygen sensors,
together with the engine electronics
and injectors, regulate the composition
of the exhaust gas, while another
Lambda sensor on each cylinder bank
monitors pollutant conversion in the
respective cataly tic converter.
The goal is to enhance performance –

but, where possible, not at the expense
of the environment.
Exhaust emission control.
Vehicles manufactured by Porsche
demonstrate that even high-performance
sports cars can achieve moderate fuel
consumption and exhaust emission values
in their respective category.
This is achieved, on the one hand, through
the use of fuel - ef ficient technologies such
as auto start /stop, thermal management,
electrical system recuperation, direct fuel
compared with the respective previous
model, even though performance has
been increased in every generation. This
is made possible by an efficient drive
concept (e.g. direct fuel injection (DFI) and
VarioCam Plus), lightweight construction,
optimised aerodynamics and low rolling
resistance.
The environmental management team

at the Porsche Development Centre in
Weissach aims to demonstrate a high
level of environmental responsibility. Here,
technological developments are carried
out with environmental protection in mind.
If we are to continue to enjoy driving
pleasure, we need to look after our

environment. In other words, we need to
take responsibilit y. In an era of intensify -
ing debate about global climate change
and CO
2 emissions, every automotive
manufacturer is asking itself what it
has to offer in terms of environmental
protection. Our answer has long been
the same: a combination of high power
output and high efficiency.
In recent years Porsche has managed to
reduce fuel consumption across all model
ranges by a double - digit percentage
You can live for the moment
and still care about tomorrow.
Environment.

2 1Free space |
Interior and comfort
1 Air conditioning system
2 Two-zone automatic climate controlprotection with the hood closed, is availa -
ble on request. A combined alarm and
radar-based interior surveillance system
is available as an option for the Boxster.
Porsche Vehicle Tracking System
(PV TS).
Available as an option, this preparation
enables future installation of the Porsche
Vehicle Tracking System (PV TS) available
from Porsche Tequipment. The system
makes it possible to locate a stolen
vehicle across most of the countries of
Europe. The preparation package inclu -
des a special wiring loom and a tilt sen -
sor for the alarm system.
mented by a visual warning in the central
display of the CDR audio system, optional
CDR Plus or optional PCM, which shows a
graphical representation of the vehicle
from overhead.
HomeLink®

(programmable garage door opener).
The optional programmable garage door
opener is integrated into the overhead
console and remotely controls up to three
different garage doors, gates, home light -
ing and/or alarm systems.
Anti-theft protection.
Both Boxster models are equipped as
standard with an immobiliser with in-key
transponder. In addition, the Boxster S
has an alarm system with contact-sensitive
exterior protection. A radar-based interior
surveillance system, which en hances
option, electrically folding exterior mirrors
with door courtesy lighting on both sides
of the vehicle make it easier to find your
way in the dark. An auto-dimming function
for the exterior mirrors and rear-view mir -
ror with an integrated rain sensor for the
windscreen wipers, is available as an
option.
ParkAssist.
Optional Park Assist is activated the mo -
ment you select reverse gear. An audible
signal gives a warning if you reverse too
close to an obstacle.
An enhanced version of Park Assist also
provides monitoring of the area to the
front of the vehicle. Ultrasonic sensors
are neatly integrated into the front and
rear aprons. The audible alert is supple-
Light design package.
The optional light design package com -
prises dimmable LEDs in the overhead
console, in the area of the door handles,
in the door storage compartments and in
the foot wells. LED illumination of the
luggage compartments and in the vanit y
mirrors of the sun visors is also included
with the light design package.
‘Welcome Home’ lighting.
The ‘Welcome Home’ lighting function
automatically switches on the LED day -
time running lights for a user- defined
period whenever the vehicle is opened
or closed using the key remote.
Exterior mirrors and rear-view mirror.
The Boxster models are equipped as
standard with electrically adjustable and
heated exterior mirrors. Available as an
Wave goodbye to everyday life.
But embrace everyday practicality.
Additional comfort and convenience features.
Air conditioning system.
An air conditioning system with integrat -
ed active carbon filter is fit ted as stand -
ard. The filter traps particles, pollen and
odours. The ventilation pat tern is wide
and the air conditioning is quiet and
ef fective.
Two-zone automatic climate control.
Two-zone automatic climate control is
available as an option. It provides an
enhanced ventilation effect and has sepa -
rate temperature controls for the driver
and passenger. The available air condi -
tioning modes are gentle, normal and
strong. The automatic air-recirculation
function permanently monitors air quality,
reduces humidity and switches from
fresh to recirculated air when required.

3
2 1Free space |
Audio and communication
The navigation module of PCM with high-
speed hard drive allows you to choose
bet ween a 2D display and a 3D perspec -
tive. In some regions, even buildings can
be displayed in 3D as well as terrain with
satellite image overlay.
Split screen mode enables you to view
two functions at once, such as the current
navigation map and a list of symbols that
represent the next navigation instruction.
The navigation module also features
dynamic route guidance, which recal -
culates the route in response to official
traffic messages (TMC) and information
from traffic flow sensors (TMC Pro*).
* TMC Pro available in Germany, Austria and
Switzerland.
1, 3 Porsche Communication Management (PCM)
including navigation module
2 CDR audio system
Fit ted in the glove compartment as stand -
ard, the universal audio interface (USB)
enables you to connect and even charge
your iPod
® or any other compa tible audio
source of your choice. The iPod
® or a
USB stick can be operated conveniently
and safely via PCM, the optional multi -
function steering wheel or the optional
voice control system.
By means of the USB socket, it is also
possible to download data from the per -
formance display of the Sport Chrono
Package, as well as data from the elec -
tronic logbook. In the opposite direction,
you can transfer up to 5,000 tracks in
MP3 format to the 40 GB internal hard
drive of PCM and create your own juke -
box. Playback of recognised podcast and
audiobook formats is supported and
cover art is displayed.
Porsche Communication Management
(PCM) including navigation module.
PCM is your central information and
communication system. It is powerful
and multifunctional, yet easy to operate.
The focal point is the intuitive 7-inch
high-resolution touchscreen. Almost all
functions can be controlled with just your
fingertips, although conventional rotary
pushbut ton controls are still provided.
Radio functions include up to 42 memory
presets, dynamic autostore and the
FM dual tuner with RDS diversit y, which
continuously scans in the background for
the best signal. The CD/ DVD drive plays
CDs and audio DVDs and is MP3-compati -
ble. A six- disc CD/ DVD autochanger inte -
grated into PCM is available as an option.
CDR Plus audio system.
Optional CDR Plus has seven loudspeakers
and delivers a total output of 185 wat ts.
Functions are controlled using a high-res -
olution 7-inch touchscreen. An analogue
and digital t win tuner ensures an exten -
sive selection of radio broadcasts. Other
features include a CD/ DVD drive support -
ing audio playback of MP3 files and
audio/video DVDs, a USB port for various
iPod
® and iPhone® models, an MP3 play-
er or for USB memory sticks containing
MP3 tracks. Cover art is also supported.
Connected USB devices can be controlled
via CDR Plus or the optional multifunction
steering wheel. An AUX inter face enables
you to connect additional external audio
sources, in which case functions are con -
trolled directly from the external device.
CDR audio system.
The CDR audio system is an ideal com -
plement to the resonant engine sound
of the Boxster models. It features a 7-inch
colour touchscreen, giving you quick
and easy access to the most important
functions and menus.
The integrated CD radio features
an FM dual tuner and RDS diversit y,
30 memor y presets, dynamic autostore
and speed -sensitive volume control.
The system also includes a sound system
with four loudspeakers and a total output
of 2 x 25 wat ts. As standard, the glove
compartment contains an AUX interface,
which enables you to connect an external
audio device such as a compatible MP3
p l a y e r.
We’ve shown you what rock ‘n’ roll looks like.
Now you want to know how it sounds.
Audio and communication.
